KCV-S701EB MANUAL
[7” Digital Color LCD Videophone]
COLOR HANDFREE VIDEOPHONE
■7 inch Color Digital LCD Screen
■Call & Communication with a Visitor
■Expandable up to 2 Door Cameras and 3 Indoor Units : Monitor
■Video and Audio Monitoring of the door camera/s
■Operating Condition Display with Icons (OSD)
■Door Open
Page 2
Cautions for safety
For safe use, please stick to the following cautions.
·Please, save this manual after reading these instructions carefully. ·Read and understand all instructions to set up rightly.
·This Cautions for Safety may include items that are not contained in specifications of the product that consumer purchases.
·If you need assistance with the set-up or operation, please contact with A/S center.
The important marks in the manual.
To help our customers to understand this manual, to prevent any personal injury or property damage, some marks are used in the manual.
The marks and the drawing signs are below. Please, understand the marks before reading the manual.
The meaning of the drawing signs.
Sign to show what not to do.
Mishandling the device with ignoring this sign may result physical injury or material damage.
Mishandling the device with ignoring this sign may result in serious injury or death.
Sign to tell you that you should follow the instructions.
Sign to tell you that you can't disassemble this unit.
Sing to tell you that you need more attention including (high voltages, electric shock, danger, warning)
Sign to tell you that you must unplug the unit.
Caution
Cautions for set-up
·The law limits distributing the power lines to an authorized person from government.
The work from an unaurhtorized person cause fire or electric shock.
·Place this unit securely on a stable surface. Serious damafe and/or injury may result if the unit falls.
·Do not set up this unit near the leaking place because it may expose you to dangerous voltages or other risks.
·Even if your product is water proof, do not install it slanted place of water leakage, which can a short circuit.
·Fix the product on the wall safely according to the installation guideline to prevent any damage or injury.
ㆍDon’t put any stuff in 30cm around the monitor, not to block the air hole.
·The work of distributing wires needs skills and experiences. So please, for assistance, contact your dealer or call service center.
·The communication lines should be built in being distant from the power source.
This may result in the risk of fire, electric shock and communication disorder.
·Setting the communication lines in a high humid place such as outside without any protection from rain causes the communication disorder.
·Keep the hook at the wall-mounted device safe. The hook may cause the physical injury.
·Think about the thickness and quality of wall material. The unqualified material may make the device fall.
·Set the device of the wall-mounted type not to fall. Falling from an earthquake causes personal injury.
Cautions for Repairs and Maintenance
·Keep the inside of the device clean. Having the dust inside without any cleaning for a long time causes the fire.
If necessary, contact your dealer or service center to get cleaning service.
·Unplug this device when you want to check the inside. If there is no plug, please, turn off the circuit breaker.
·Unplug this device when you try to move it to another place.
If the electric line is connected inside of the unit, please contact your dealer or service center.
·Do not use liquid or aerosol cleaners. Use a damp cloth for cleaning.
Warning
Warnings for Usage
·Do not install this unit near the water and dust, for example, in a bathroom or near the washing machine. It caused fire and electric shock.
·Do not install this unit near the fire, for example, near kitchen sink, heater or the like.
·Do not install near the noxious gar such as Hydrogen Sulfide, metal power and the like.
·Do not install near the water and chemicals.
·Do not give any damage, break and modify the plug. Overloading, heating, pulling causes the damage.
·Do not place the plug near the heater. The damaged code causes fire and electric shock. Do not pull the power code when unplugging.
·The damaged code causes fire and eclectic shock. Must pull with plug. Do not touch with wet hands. It causes the electric shock.
·Do not use any other voltage, except the marked regular voltage.
·Do not use the power terminal at the units to other electric device except the designed device.
·Do not install the units at the leaking place if it doesn’t have any waterproof mark. Do not install the unit when the power is on.
·Install the circuit breaker after checking the safety such as electric shock and leakage. Turn off the power before you install or A/S
·Check the suitability of the lines for installing when you use the exiting lines.
·Do the wiring work by using the designed material.
·Connect the electric wire with the designed ways and ground.
·Do not connect with any other devices except the designed devices to compose the system.
·Unplug electric wire and communication lines from the units before moving to another place.
2
Page 3
Cautions for Use
·This unit is not designed for security purpose. 쪾·Do not handle the unit with the wet hands.
·Do not place a pot with water or a small metal material on the Units.
·Do not cover the ventilating opening or put any metal material in the units. 쪾
·During thunderstorms, avoid using this unit. There may be a remote risk of an electric shock from lighting.
·Do not modify the unit. ·Open the main gate after checking ID if the image and sound system do not work. Call A/S
·Do not disassemble the back and cabinet cover.
Cautions for Abnormality
·Change the damaged electric code.
·Unplug this unit from plug socket and refer servicing to an authorized service center when the following conditions occur:
·If liquid has been spilled into the unit. 쪾·If the unit does not work normally by following the operating instructions.
·If the unit exhibits a distinct change in performance. ·If the unit has been dropped or physically damaged.
ㆍThe mains plug, as a disconnection device, shall remain readily accessible by the user.
Caution
Safety Instructions, Warnings and Cautions of Each System
·Do not disassemble this unit at will as this device is composed by precision parts. 쪾 ·Install the unit by following the set-up instructions of Kocom.
·Do not touch or insert any foreign substances, for example, sticker, magnetic, opener and the like.
·Make U-type at the end of wires as the rain can effect on the system by following the wires during the rainy season.
Videophone
·Separate the AC/DC lines with the hook of the wall-mounted type when installing. 쪾 ·Connect the lines after peeling the wires properly.
·Do not distribute signal line with AC line. ·Use the designed driver to connect the lines to terminal.
·Do not clean the LCD with the damp cloth for cleaning. Use the only dry and soft cloth. ·Do not install the main gate monitor at the leaking place.
Things You Need to Know
·This product is designed as a home videophone and cannot use continuously like monitor camera.
·If there is temperature difference between inner part of camera and surrounding, dew condensation occurs on camera lens and may disturb image.
If dew condensation is removed from camera lens, image quality recovers.
·White LED light examination range is narrower than camera shot range at night, so there is less amount of light at night than day.
So it is difficult to see the face in low illumination condition due to noise increase on screen, but it is not from defect.
·Monitor screen (liquid crystal panel) is not in defect when some pixels always light or black out.
·Please install monitor and camera over 5cm away.
Also, avoid installing at a place with too much noise, because too much noise around camera causes phone call inferiority.
·Do not place an object within 20cm in front of monitor. It causes phone call inferiority, especially because microphone is installed at the top of monitor.
·If strong light such as sunlight flows into camera module, screen saturation (or strange mark) and image shaking might occur.
·This is not a defect, so please do not install camera where a direct ray of light do not flow if possible.
Cautions
·In some cases there is occurrence of product destruction, malfunction, noise mixing and picture quality deterioration due to mixing of other tool's
induced. voltage or thunder with communication wiring of monitor/camera, monitor/extended monitor.
Do not wire with power line such as outdoor wiring or AC power, or phones and other tools.
·You cannot use it if you incorrectly wire the AC voltage between monitor/camera, monitor/extended monitor.
Call the store or agency where you purchased this product and consult to solve the problem.
Beware that unfixable damage might be caused due to authorizing AC voltage on communication wiring of monitor/camera, monitor/extended monitor.
·Do not ever disjoint this product. It may cause electrocution accident when touching high-voltage circuit inside this product.
·Outside power authorizing this product must be confirmed of product description and use rated voltage.
Beware that if higher voltage is authorized, unfixable damage might be caused due to product destruction.
·Power must be connected to domestic voltage (product rated voltage) consent or interior wiring.
If connected to other motive power or inverter-type power, product destruction, noise mixing, and picture distortion may occur.
·Do not drop this product. Glass is used for monitor and might break, or cause other circuit inferiority.
In such case, immediately turn down the power switch, and call to consult agency or store in which this product was purchased.
·Keep away from any conditions where water splatters or falls. Do not place anything containing water like a vase on the product.
·If installed near transmission antenna such as broadcasting station, electric wave may mix and cause picture distortion or voice mixing.
·Avoid installing near tools with strong electromagnetic waves such as microwaves and cell phones, or it may cause picture distortion.
·Do not install monitor in following places.
① Above or around water heater, rice-cooker, heater ② Place exposed to direct rays of the sun
③ Place with temperature below 0'C such as cold store ④ Place with high humidity such as bathroom, washroom, heated room
⑤ Place with a lot of gas, dust, smoke ⑥ Dangerous place with sprays of water or chemicals
·Do not wipe with insecticide, drugs or chemicals such as thinner and alcohol, or it may damage
the surface of this product.
·Beware of occurrence of image quality deterioration or malfunction from cause of humidity due to
penetration of chemicals or water into camera’s urea resins.

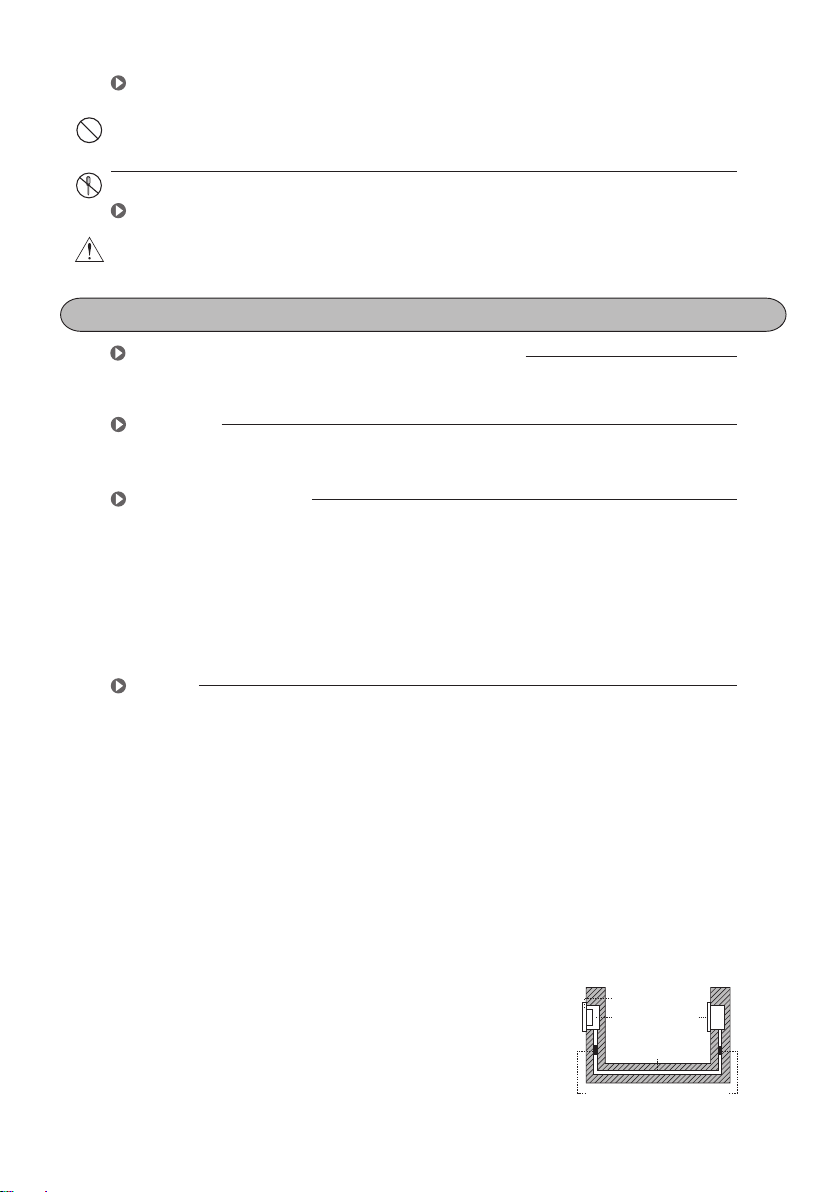

·As in the picture, it prevents temperature difference of camera (outside) and monitor (inside), and
removes dew condensation caused by humidity of camera window.
·Camera must be installed when wall cement is completely dry.
·When product is installed in winter below -5'C, wait for approximately 2 hours to connect. Dew formation
in monitor and camera due to temperature difference inside and outside may cause product defect.
·Avoid installing monitor and camera in place directly exposed to heat or where gas noxiousness is highly occurring.
3
Page 4

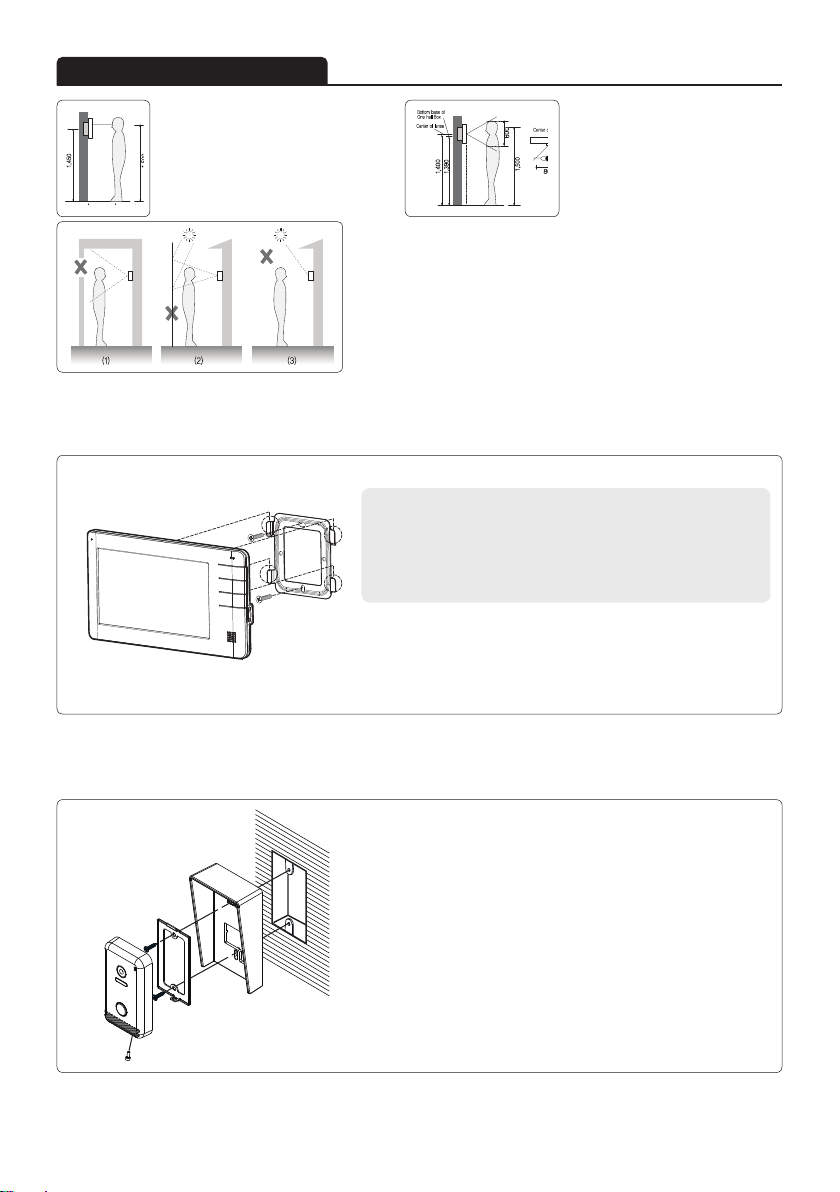

Installation location
■ Monitor installation location
·Standard monitor installation height
is about 1,500mm where screen
center is at eye level.
In this case, wall-hanging metal
center (center of piping) is 1,450mm
above ground level.
·Standard installation height
■ Monitor installation
■ Camera installation location
·Camera installation in height Standard
camera installation height is when
lens is about 1,400mm above the floor.
In this case, camera stack center
(piping box) is above 1,390mm above
ground level.
·Standard installation in height
■ Caution of camera installation
·Avoid installing camera exposed to direct ray of light (and sun).
·Beware backlight and darkness of visitor’s face, which makes identification difficult.
·Avoid installing camera in places such as the following picture.
(1) Place illuminating sky as background
(2) Place with white wall reflecting direct ray of light
(3) Place with direct ray of light
·Standard installation in height
■ Directly connecting cut-off power cord with power wire
1) Do not do such electric work on your own. Installing product in this way
requires reliance on electric installation man with electric work license.
2) Insulate with insulating tape while cutting off power cord and connecting with power
wire so electric wire metal does not expose. Contact between exposed electric wires
cause fire or electric shock accident.
3) Such electric work requires connection after interception of supplied power.
1) Remove wall hanger frame metal behind monitor.
2) Install wall hanger frame metal on 1 type box or wall with attached Vis.
3) Connect wiring to monitor back terminal referring to product connection diagram.
4) Hang monitor on metal wall hanger frame and fix monitor on metal wall hanger frame
5) Plug monitor`s power plug into consent and check to see if the power switch is [ON]
on the left side of monitor.
■Door camera installation
4
Sun Visor (Option)
1) Install metal wall hanger frame on type 1 box or on the wall with attached screws.
2) Connect wiring to terminal on the back of door camera referring to product connection diagram.
3) Hang door camera on metal wall hanger frame and fix door camera on metal wall hanger frame
using attached screw.
Avoid heavy rain directed to the product which can cause damage since it is not waterproof.
Page 5

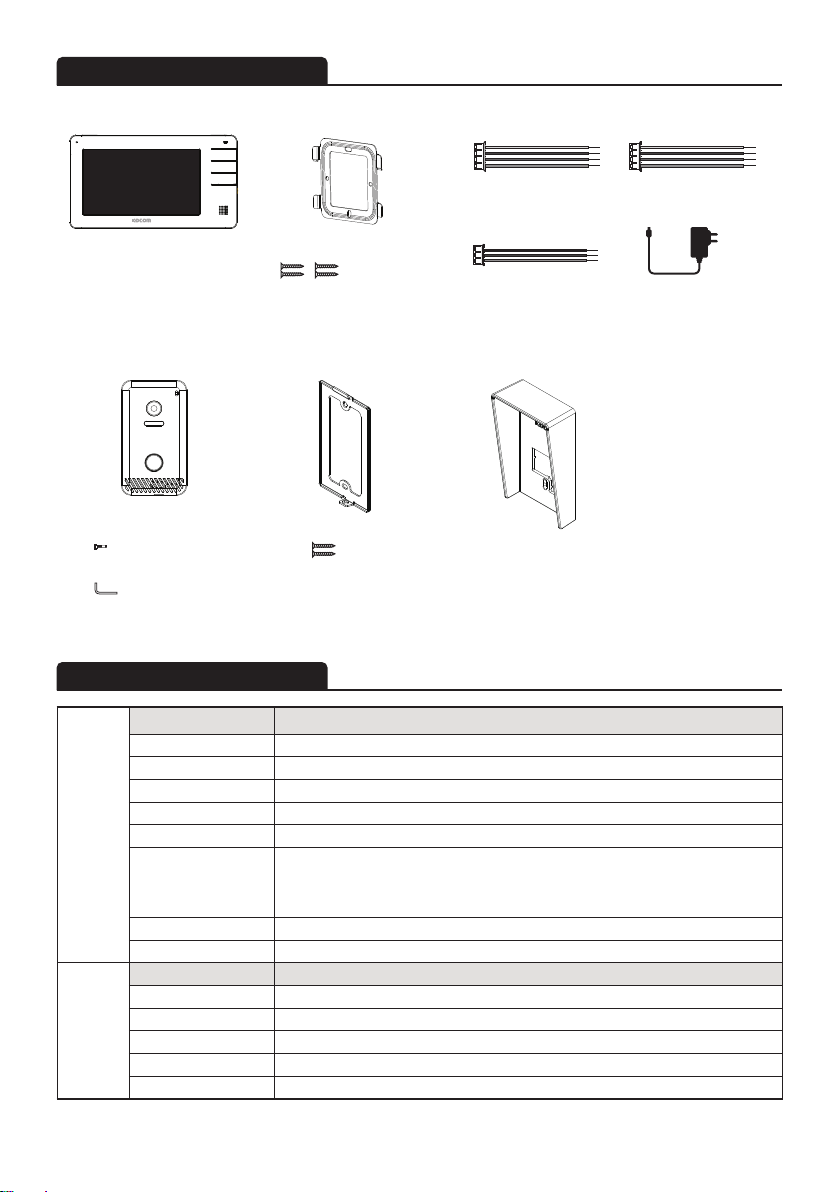

Components of product
■ Monitor
■ Door Camera
■Screws
M3X8mm 1EA
Specifications
Screws for fixing main
body on the wall
LENCH 2.5M/M 1EA
■ A Wall hanger frame
■ Wire
4Pin cable camera x 2ea
■Screws
4X25mm 4ea
3Pin cable door opener x 1ea DC adaptor x 1ea
■ A Wall hanger frame ■ Sun Visor (Option)
Screws for fixing Hanger
4X25mm 2ea
frame body on the wall
4Pin cable EX-monitor x 2ea
Monitor
Door
Camera
Model No. KCV-S701EB
Power Source
Power Consumption
Operating Temperature
LCD
Communication Systerm
Wiring
Mount Type
Dimension 220(W) x 123(H) x 19(D) mm
Model No. KC-S81M
Power Source
Power Consumption
Operating Temperature
Dimension
Angle of Lens
DC 12V-1A Adaptor
2W(±20%)(Stand by), 9W(±20%)(In load)
0℃ ~ +40℃
7 Inch color LCD
Handsfree type
Door camera : Polarized 4 wire
Ex_Monitor : Polarized 4 wire
Door opener : Non-polarized 2 wire
Surface mount
DC 11±1V(Power from Monitor)
Max. 3W
-10℃ ~ +50℃
70(W) x 125(H) x 21(D) mm
Diagonal 60˚
5
Page 6

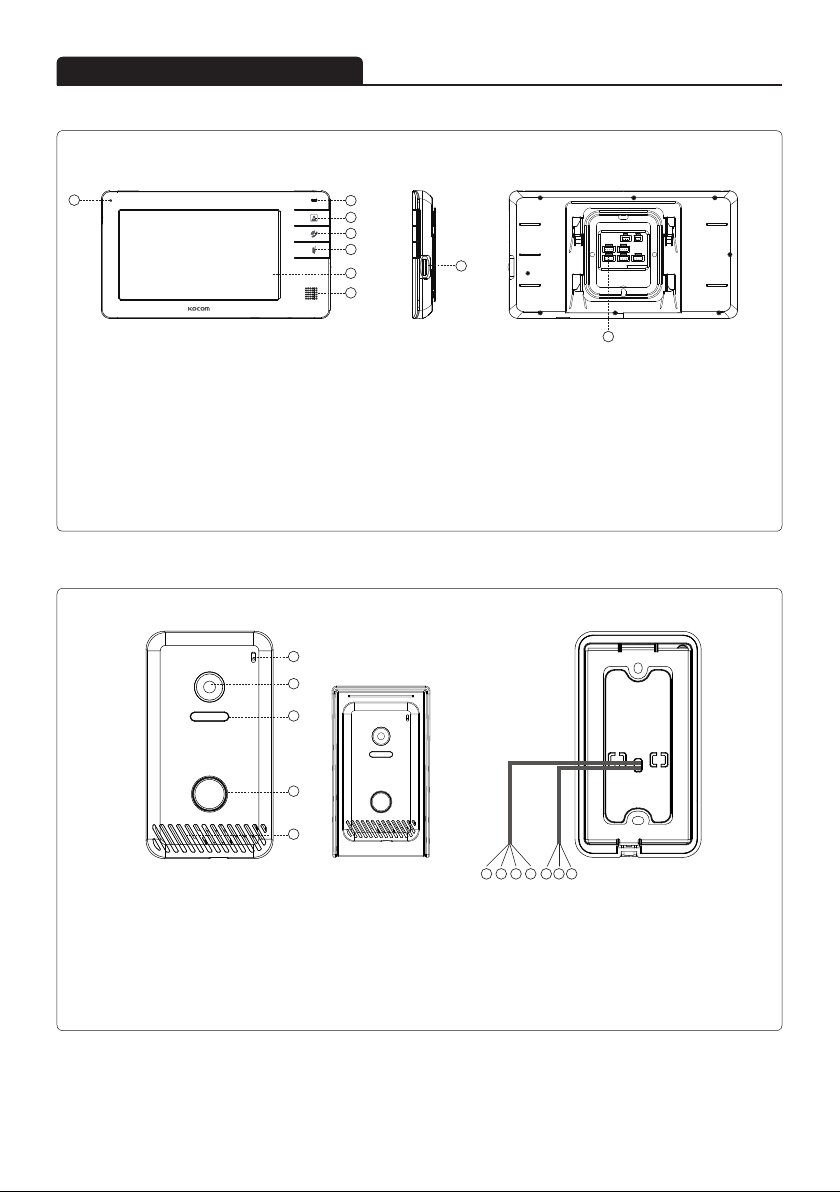

Name and functions of each part
■ Monitor
1
① MIC
② Power LED
③ Monitoring button
④ Call button : connect Talk with the door camera
⑤ Open door button : open the door
⑥ LCD Monitor
⑦ Speaker
■ Door camera
·Front
·Side·Front
2
3
4
5
6
7
·Back
8
9
⑧ Jog switch
⑨ Terminal
·Back
1
2
3
4
5
Door camera + Sun Visor (Option)
① Mic
② Camera Lens
③ LED
④ Call button
⑤ Speaker
2
5
1
3
4
6
7
① VCC (BLUE)
② GND (YELLOW)
③ Audio (RED)
④ Video (WHITE)
⑤⑥⑦ Door (COM/NO/NC)
(BLACK, BROWN, ORANGE)
6
Page 7

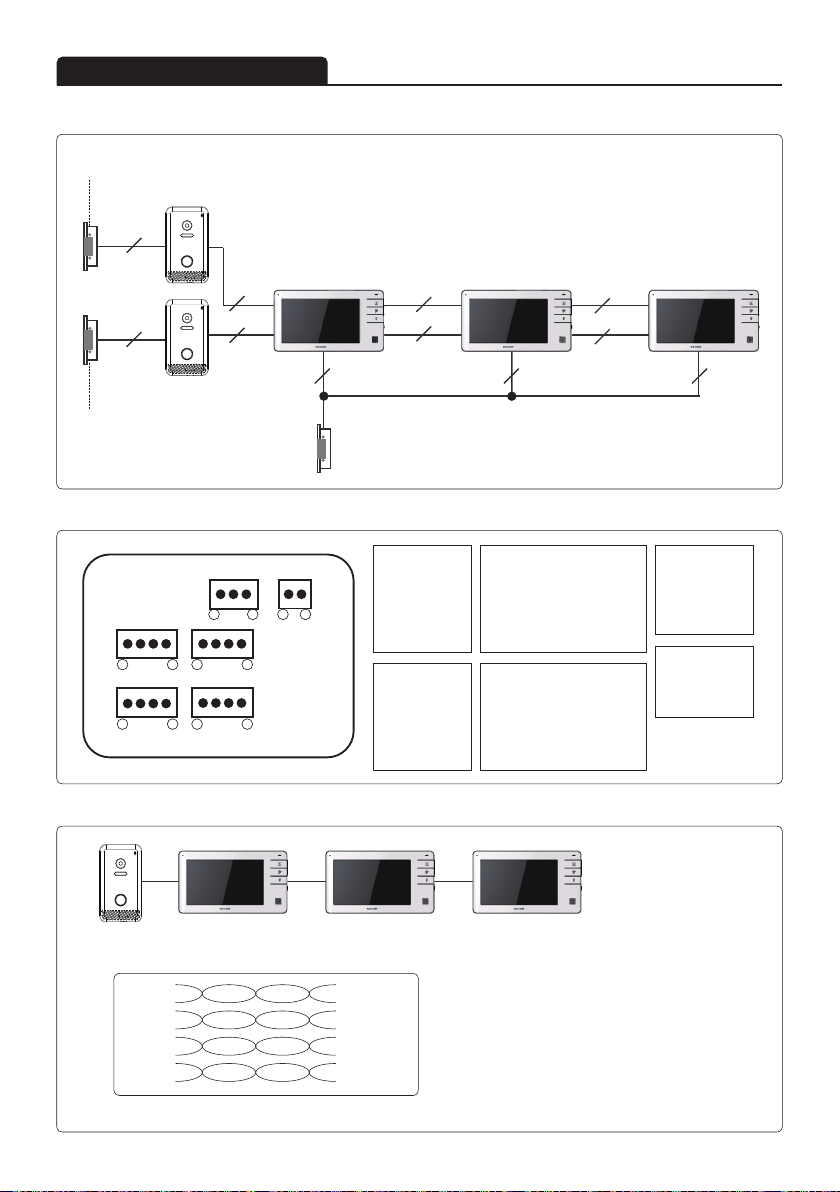

Product connection diagram
■ System configurations
Door opener(DC)
External power input
Door camera 1
2
4
Monitor 1 Monitor 2 Monitor 3
4
2
Door camera 2
Door opener(DC)
External power input
4
2 2 2
Door opener(DC)
External power input
4
■ Terminal
A. CAMERA 1
① VCC
② GND
③ AUDIO
④ VIDEO
A B
1
4
E F
3
1
4
1 2 1
B. CAMERA 2
C D
1
4
1
4
① VCC
② GND
③ AUDIO
④ VIDEO
■ Cable requirement - Based on distance from camera to monitor
4
4
C. CAMERA 1 for EX-monitor
① VCC
② GND
③ AUDIO
④ VIDEO
D. CAMERA 2 for EX-monitor
① VCC
② GND
③ AUDIO
④ VIDEO
E. Door open
① COM
② NO
③ NC
F. DC Adaptor
① 12V
② GND
a
※ When UTP CAT.5 wiring is used as in the following picture,
the total length of wiring (a,b,c) between camera and monitors is limited to 150m.
Orange
W/Orange
Green
W/Green
Blue
W/Blue
Brown
W/Brown
b c
① VCC
1 line (2 wire)
② GND
1 line (2 wire)
③ Audio
1 line (2 wire)
④ Video
1 line (2 wire)
※ Slight reduction in image quality may be noticed depending on conditions of installation environment.
7
Page 8

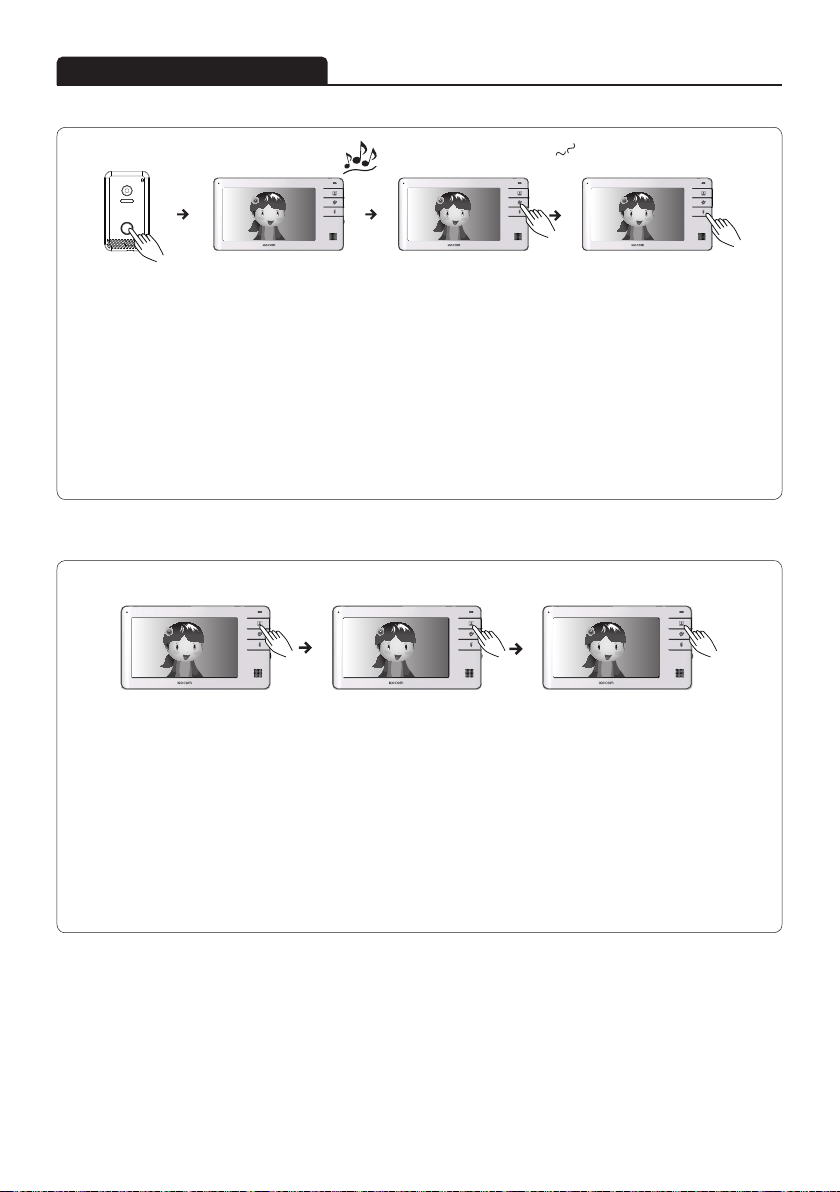

Instructions for operation
■ Communication from door camera & Door open
o
l
l
e
H
Press the call button
to make a call
■ Camera monitoring
Press the monitoring button once
to monitor door camera 1.
When monitoring is in progress,
adjust the screen brightness by
controlling the jog switch up and
down. (Variable range : 1~10)
※ Cannot talk with other camera when talk is on progress.
Press monitoring button to connect with other camera after finishing the talk.
Then, press call button to connect the talk.
Idenitify the visitor from
monitor.
(Standby time : 30sec)
When call is in progress,
adjust the volume by
controlling the jog switch
up and down.
(Variable range : 0~3, 0 : mute)
Press the monitoring button twice to
monitor door camera 2.
Push the [Talk] button
and communicate with
the door camera.
(Communication time : 3 minutes)
Push the [Talk] button
again and stop the
communication.
When talk is in progress,
adjust the volume by
controlling the jog switch
up and down.
(Variable range : 1~3)
While `Talk` on. Push
[Door Open] and the door
will be opened.
Door open time can be
set from 1sec~10sec.
Press the monitoring button three
times to end monitoring.
8
Page 9
Menu setup
■ Adjusting Ring/Call sound
When call is in progress, adjust the volume by controlling the jog switch up and down. (Variable range : 1~3)
■ Adjusting talking sound from door camera
When talk is in progress, adjust the volume by controlling the jog switch up and down. (Variable range : 1~3)
■ Adjusting brightness
When monitoring is in progress, adjust the screen brightness by controlling the jog switch up and down.
(Variable range : 1~10)

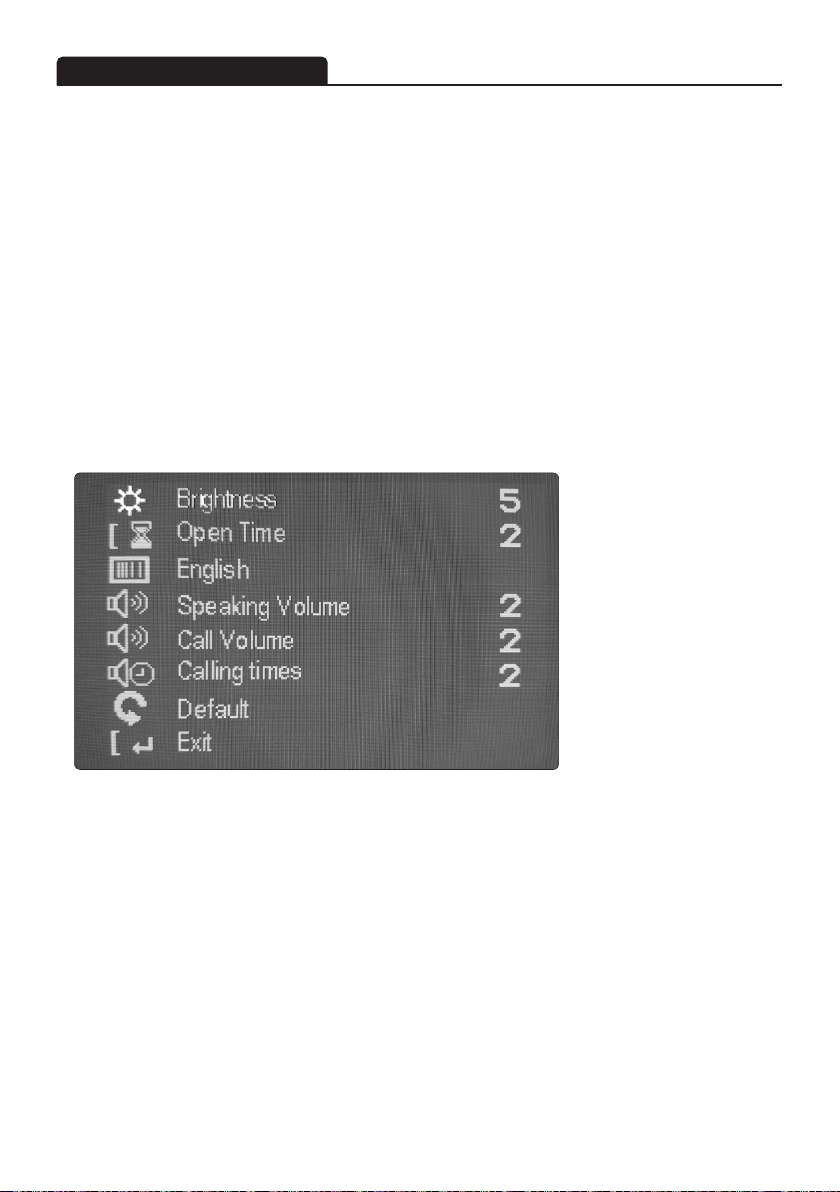

■ Setting menu
·Press the jog switch on idle screen to enter in setup menu.
·Control the position of cursor by controlling the jog switch up and down.
·Menu is selected by pressing the jog switch
·After making a selection, change the setting value of selected menu by controlling jog switch up and down.
·Press jog switch to exit from selected menu.
·Setting value is saved when exit menu is selected.
·Brightness : Adjust brightness (Variable range : 1~10)
·Open time : Adjust Door open time (Time : 1~10 seconds)
·Language : Select Language (English, Spanish)
·Speaking Volume : Adjust talking sound from door camera(Variable range : 1~3)
·Call Volume : Adjust calling sound (Variable range : 0~3, 0 : mute)
·Calling times : Change number of calling sound. (2 beats or 4 beats)
·Default : Set value to default
·Exit : Exit from setup menu
9
Page 10
Memo
10
Page 11
Memo
11
Page 12
Warranty
To receive after service, have the following ready before you contact our branches.
1. Name of the product.
2. Model number of the product.
3. The area of problem.
4. Phone number and address at which you can be contacted.
Warranty Card
PRODUCT
MODEL
KCV-S701EB
DATE PURCHASED
WARRANTY PERIOD
AGENCY ADDRESS
KOCOM Warranties the original purchaser of this product as follows.
1) This product is produced under strict quality control and inspection procedures.
2) If this product breaks down during proper use as a result of product defect,
KOCOM will repair it within one year from date of purchase free of charge.
3) The following cases will be subject to charge, even during warranty period:
a. Breakdown during transport, or through careless treatment, by consumer.
b. Breakdown cause by unauthorized repair, or system modification.
c. Breakdown caused by natural disaster or power disorder.
This manual is based on the date as shown in the right and specifications are subject to change without notice for quality improvement
www.kocom.com E-mail : [email protected]
SINCE 1976
KCV-S701EB
S0523
Loading...
