KOCASO M762 User Manual

Tablet PC

Andriod 4.0

7” User Manual

Tablet of Contents

Specifications………………………………………………………………….1
What’s inside the box…………………………………………………………1
Tablet Parts……………………………………………………………………2
Getting started………………………………………………………………...4
Connection to Internet………………………………………………………..7
Task Bar………………………………………………………………………..9
Install and Uninstall…………………………………………………………..10

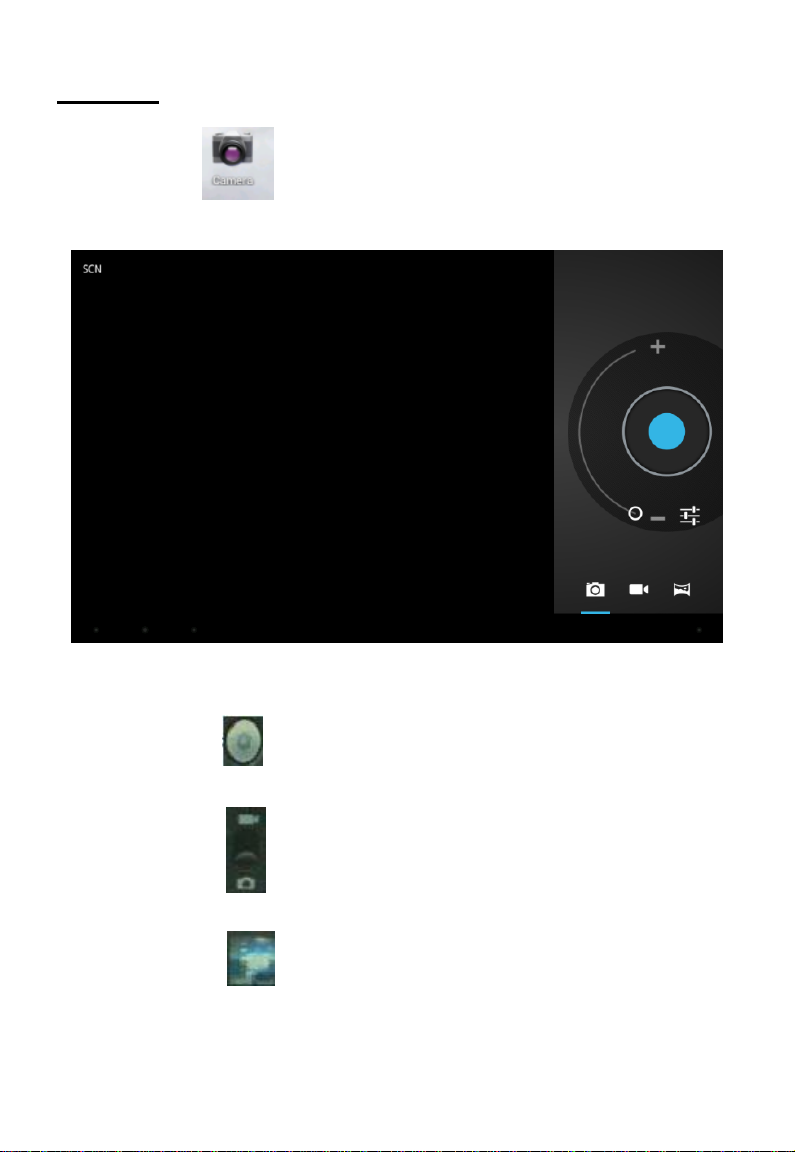

Camera……………………………………………………………………….11
HDMI………………………………………………………………………….12
Trouble Shooting…………………………………………………………….12

Specifications

Display: 7 inch 800X480 Resolution Capacitive screen
CPU: Boxchip A10
RAM: 1GB DDR
Internal Storage: 4GB
Expansion Memory: USB & TF card, 32GB Max.
Built-In Wireless: 802.11b/g Adapter
AC Adapter: DC 5V-2A
Operating System: Andriod 4.0

What’s Inside The box

Tablet – 1pc
Power Adapter -1pc
User manual -1pc
USB Cable -1pc
Earphone -1pc
USB charger Cable -1pc
RESET needel – 1pc

1

Tablet Parts

1 Volume -

2 Volume +

3 Power ON/OFF button

4 Headset Port

5 TF card slot

6 HDMI Port

7 RESET Button

8 5Pin USB Port

9 DC Jack

9 4 5

678

2

1

2

3

Getting Started

Battery Charging

The tablet has a built-in rechargeable Li-polymer battery.

1. To charge connect the AC power adapter to the DC jack on the right
side of the tablet.

2. The LED indicator will illuminate to show the battery is charging. The
LED indicator will turn “OFF” when it’s fully charged.

3. The tablet can be used even if the battery is being charged.

Power ON/OFF

ON:

1. Press and hold the power button until the tablet turns “ON”.

OFF:

1. Press and hold the power button until device optional

2. Select power off

3. Select OK to power off the tablet

Screen Lock/Unlock:
This feature locks the screen, at the same time turn OFF the screen’s
backlight after a few seconds.
Screen locks when:

1. System is idle.

2. Manually activated by pressing the Power button once.

How to Use TF card

1. Insert the TF card into the TF card slot. Gently push TF card into slot
until it clicks into place.

2. A prompt will be seen on the screen saying “ Preparing SD card “

4

Removing TF card
