KOCASO M1060 User Manual

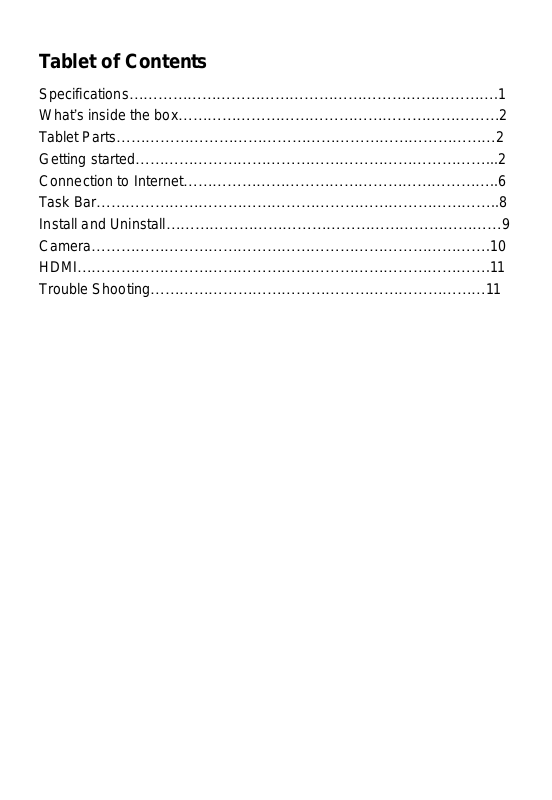

Tablet of Contents

Specifications………………………………………………………………….1
What‟s inside the box…………………………………………………………2
Tablet Parts……………………………………………………………………2
Getting started………………………………………………………………...2
Connection to Internet………………………………………………………..6
Task Bar………………………………………………………………………..8
Install and Uninstall……………………………………………………………9
Camera……………………………………………………………………….10
HDMI………………………………………………………………………….11
Trouble Shooting……………………………………………………………11

Specifications

Display: 10.1 inch 1024X600 Resolution Capacitive screen
CPU: Boxchip A10
RAM: 1GB DDR
Internal Storage: 4GB
Expansion Storage: USB & TF card(Micro SD card), 32GB Max.
Built-In Wireless: 802.11b/g Adapter
AC Adapter: DC 5V-2A
Operating System: Android 4.0
Battery: 5000mAh

What’s Inside The box

Tablet – 1pc
Power Adapter -1pc
User manual -1pc

1

Tablet Parts

123

46 7

859

10

11

8

1. Headset Port 7. Home button

2. HDMI Port 8. Camera

3. DC Jack 9. Power ON/OFF button

4. 5Pin USB Port 10. Volume

5. TF card slot(Micro SD card) 11. Volume

6. USB Port

2

Getting Started

Battery Charging

The tablet has a built-in rechargeable Li-polymer battery.

1. To charge connect the AC power adapter to the DC jack on the right
side of the tablet.

2. The LED indicator will illuminate to show the battery is charging. The
LED indicator will turn “OFF” when it‟s fully charged.

3. The tablet can be used even if the battery is being charged.

Power ON/OFF

ON:

1. Press and hold the power button until the tablet turns “ON”.

OFF:

1. Press and hold the power button until device optional

2. Select power off

3. Select OK to power off the tablet

Screen Lock/Unlock:
This feature locks the screen, at the same time turn OFF the screen‟s
backlight after a few seconds.
Screen locks when:

1. System is idle.

2. Manually activated by pressing the Power button once.

Soft Keyboard

The tablet has a soft keyboard which will automatically show up when
you tap the place on screen where text or number is to be entered.

3
