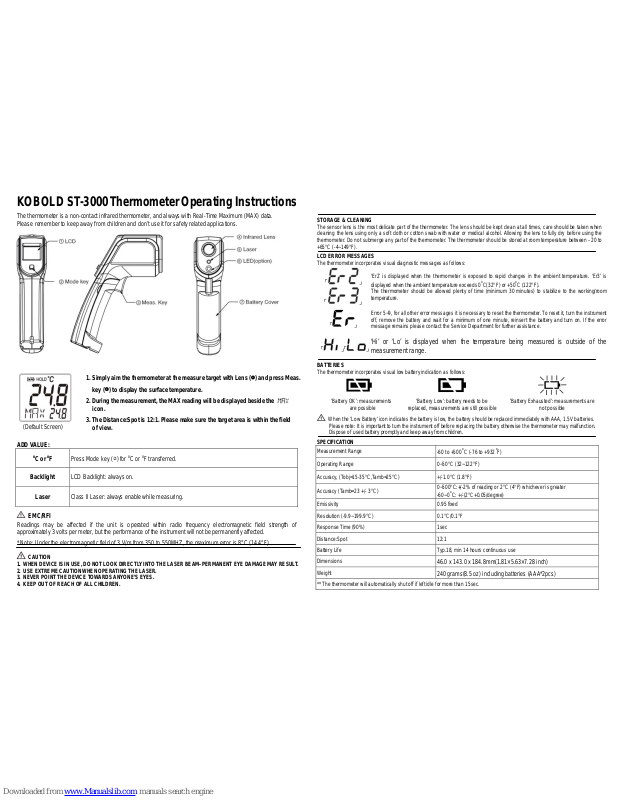

Kobold ST-3000 Operating Instructions Manual
KOBOLD ST-3000 Thermometer Operating Instructions
The thermometer is a non-contact infrared thermometer, and always with Real-Time Maximum (MAX) data.
Please remember to keep away from children and don’t use it for safety related applications.
(Default Screen)
ADD VALUE:
o
C or oF
Press Mode key (○
2
) for oC or oF transferred.
Backlight LCD Backlight: always on.
Laser Class II Laser: always enable while measuring.
EMC/RFI
Readings may be affected if the unit is operated within radio frequency electromagnetic field strength of
approximately 3 volts per meter, but the performance of the instrument will not be permanently affected.
* Note: Under the electromagnetic field of 3 V/m from 350 to 550MHZ, the maximum error is 8°C (14.4°F).
CAUTION
1. WHEN DEVICE IS IN USE, DO NOT LOOK DIRECTLY INTO THE LASER BEAM–PERMANENT EYE DAMAGE MAY RESULT.
2. USE EXTREME CAUTION WHEN OPERATING THE LASER.
3. NEVER POINT THE DEVICE TOWARDS ANYONE’S EYES.
4. KEEP OUT OF REACH OF ALL CHILDREN.
STORAGE & CLEANING
The sensor lens is the most delicate part of the thermometer. The lens should be kept clean at all times, care should be taken when
cleaning the lens using only a soft cloth or cotton swab with water or medical alcohol. Allowing the lens to fully dry before using the
thermometer. Do not submerge any part of the thermometer. The thermometer should be stored at room temperature between –20 to
+65°C (-4~149°F).
LCD ERROR MESSAGES
The thermometer incorporates visual diagnostic messages as follows:
「
」
「
」
‘Er2’ is displayed when the thermometer is exposed to rapid changes in the ambient temperature. ‘Er3’ is
displayed when the ambient temperature exceeds 0
o
C(32°F) or +50oC (122°F).
The thermometer should be allowed plenty of time (minimum 30 minutes) to stabilize to the working/room
temperature.
「
」
Error 5~9, for all other error messages it is necessary to reset the thermometer. To reset it, turn the instrument
off, remove the battery and wait for a minimum of one minute, reinsert the battery and turn on. If the error
message remains please contact the Service Department for further assistance.
「
」「 」
‘Hi’ or ’Lo’ is displayed when the temperature being measured is outside of the
measurement ra n g e.
BATTERIES
The thermometer incorporates visual low battery indication as follows:
‘Battery OK’: measurements
are possible
‘Battery Low’: battery needs to be
replaced, measurements are still possible
‘Battery Exhausted’: measurements are
not possible
When the ‘Low Battery’ icon indicates the battery is low, the battery should be replaced immediately with AAA, 1.5V batteries.
Please note: It is important to turn the instrument off before replacing the battery otherwise the thermometer may malfunction.
Dispose of used battery promptly and keep away from children.
SPECIFICATION
Measurement Range
-60 to +500
o
C (-76 to +932 oF)
Operating Range 0~50°C (32~122°F)
Accuracy, (Tobj=15-35°C,Tamb=25°C) +/-1.0°C (1.8°F)
Accuracy (Tamb=23 +/- 3°C)
0~500°C:+/-2% of reading or 2°C (4°F) whichever is greater
-60~0
o
C: +/-(2°C+0.05/degree)
Emissivity 0.95 fixed
Resolution (-9.9~199.9°C) 0.1°C/0.1°F
Response Time (90%) 1sec
Distance:Spot 12:1
Battery Life Typ.18, min 14 hours continuous use
Dimensions
46.0 x 143.0 x 184.8mm(1.81×5.63×7.28 inch)
Weight
240 grams(8.5 oz) including batteries (AAA*2pcs)
** The thermometer will automatically shut off if left idle for more than 15sec.
1. Simply aim the thermometer at the measure target with Lens (○
4
) and press Meas.
key (○
3
) to display the surface temperature.
2. During the measurement, the MAX reading will be displayed beside the
icon.
3. The Distance:Spot is 12:1. Please make sure the target area is within the field
of view.
KKOOBBOOLLDD SSTT--66000000 TThheerrmmoommeetteerr OOppeerraattiinngg IInnssttrruuccttiioonns
s
The thermometer is a non-contact infrared thermometer. There are many mathematical modes for the Infrared function. Please
remember to keep away from children and don’t use it for safety related applications.
(Default Screen)
Simply aim the thermometer at the measure target with Lens ( ○8) and press Meas. key ( ○6) to
display the surface temperature. The Distance: Spot is 50:1. The two laser points are the reference for the target spot
size. Please make sure the target area is within the field of view.
FUNCTION
Press Emissivity key (○1) for setting the emissivity
Press Emissivity key (○
1
), then press Up key (○4) or Down key (○2) to set the emissivity, then press Mode key (○
5
)
to
confirm it. The emissivity can be changed from 0.10 (10E) to 1 (100E).
Press Mode key (○5) for scrolling more display function as follows.
Here will show the emissivity data. (The default emissivity is 0.95.)
Press Mode key (○
5
) for the Maximum (MAX) Minimum (MIN) Difference between MAX and MIN (DIF) and Average
(AVG) modes. During the measurement, the special modes reading will be displayed beside the mode icon.
Press Up key (○
4
) or Down key (○2) key to change the High Alarm (HAL) or Lo Alarm (LAL), then press Meas. key
(○
6
) to confirm it. For example: When the reading 26.9oC < LAL 27 oC, the Low icon will flash and you will hear a
beep sound.
** The thermometer will automatically shut off if left idle for more than 60sec.
ADD VALUE
Press Up key (○4) for LOCK mode ON/OFF. The lock mode is particularly useful for continuous
monitoring of temperatures for up to 60 minutes.
In MAX, MIN, DIF, AVG
mode:
Press Down key (○
2
) for oC or oF transferred.
and press Up key (○4) for backlight function ON/OFF.
In all modes: First
hold on the Meas. key
(○
6
)
and press Down key (○
2
) for laser function ON/OFF.
(With flash light be turned on in the same time as laser )
CAUTION
1. WHEN DEVICE IS IN USE, DO NOT LOOK DIRECTLY INTO THE TWO LASER BEAMS–PERMANENT EYE DAMAGE MAY RESULT.
2. USE EXTREME CAUTION WHEN OPERATING THE LASER.
3. NEVER POINT THE DEVICE TOWARDS ANYONE’S EYES.
4. KEEP OUT OF REACH OF ALL CHILDREN.
STORAGE & CLEANING The thermometer should be stored at room temperature between –20 to +65
o
C (-4~149°F).
The sensor lens is the most delicate part of the ther mometer. The lens should be kept c lean at all times, c are s hould be t aken when cleaning t he
lens using only a soft cloth or cotton swab with water or medical a lcohol. Allowing the lens to fully dry before using the th ermometer. Do not
submerge any part of the thermometer.
LCD ERROR MESSAGES
The thermometer incorporates visual diagnostic messages as follows:
‘Hi’ or ’Lo’ is displayed when the temperature being measured is outside of the settings of HAL and LAL.
「 」 「 」
‘Er2’ is displayed when the thermometer is exposed to rapid changes in the ambie nt temperature. ‘Er 3’
is displayed when the ambient temperature exceeds 0
o
C (32°F) or +50oC (122°F). The thermometer
should be allowed plenty of time (minimum 30 minutes) to stabilize to the working/room temperature.
「
」
Error 5~9, for all other error messages it is necessary to reset the thermometer. To reset it, wait for auto power
off, remove the battery and wait for a minimum of one minute, reinsert the battery and turn on. If t he error
message remains please contact the Service Department for further assistance.
「
」「 」
‘Hi’ or ’Lo’ is displayed when the temperature being measured is outside of the measurement range.
BATTERIES
The thermometer incorporates visual low battery indication as follows:
‘Battery OK’: measurements
are possible
‘Battery Low’: battery needs to be
replaced, measurements are still possible
‘Battery Exhausted’: measurements are not
possible
When the ‘Low Battery’ icon indicates the battery is low, the battery should be replaced immediately with AAA, 1.5V batteries. Please note: It
is important to turn the instrument off before replacing the battery otherwise the thermometer may malfunction.
Dispose of used battery promptly and keep away from children.
SPECIFICATION
Item Non-contact Infrared Scan function
Measurement Range
-60 to +1000
o
C (-76 to +1832 oF)
Operating Range 0 to +50°C (32 to +122°F)
Accuracy
(Tobj=15~35°C, Tamb=25°C)
±1.0°C (1.8°F)
Accuracy
(Tobj=-33~1000°C, Tamb=23±3°C)
±2% of reading or 2°C (4°F) whichever is greater
Emissivity Range 0.95 default – adjustable 0.1 to 1 step .01
Resolution (-9.9~199.9°C) 0.1°C/0.1°F
Response Time (90%) 1sec
Distance: Spot 50:1
Battery Life Typ.180, min 140 hours continuous use (Alkaline, without Laser and Back Light.)
Dimensions 47.0 x 197.0 x 203.3mm(1.8×7.7×8.0 inch)
Weight 386.1 grams(13.62 oz) including batteries (AAA*2pcs)
Note: Under an electromagnetic field of 3V/m from 90 to 360 MHz the maximum error is +/-10°C
EMC/ RFI: Readings may be affected if the unit is operated within radio frequency electromagnetic field strength of approximately 3 volts per
meter, but the performance of the instrument will not be permanently affected.
