Kobian CyperPix E660P User Manual

EN-1

FCC STATEMENT (For customers in USA)

This device complies with Part 15 of the FCC Rules. Opera tion is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired

operation.

Note:

This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help.

Use of shielded cable is required to comply with Class B limits in Subpart B of Part 15 of the FCC rules. Do not make any changes or modificat ions to the equipment un less oth erwis e specified in the manu al. If such changes or modificati ons should be made, you could be required to stop operat ion of the equipment.

EN-2

READ THIS FIRST

Trademark Information

 Microsoft® and Windows® are U.S. registered trademarks of Microsoft Corporation.  Pentium® is a registered trademark of Intel Corporation.  Macintosh is a trademark of Apple Computer, Inc.  SD™ is a trademark.  Photo Explorer and Phot o Express are trademarks.  Other names and products may be t rademarks or registered trademarks of their respective owners.

Product Information

 Product design and specifications are subject to change without notice. This includes primary product

specifications, so ftware, software drivers, and user ’s manual. This User Manual is a general r eference guide for the product.

 The product and access or ies t h at co me wi th yo ur digi tal came ra may b e different f rom thos e d es crib ed in

this manual. This is due to the fact that different retailers often sp ecify sli ghtly d ifferent produ ct inclus ions and accessories to suit their market requirements, customer demographics, and geographical preferences. Products very often vary between retailers especially with accessories such as batteries, chargers, AC adapters, memory cards, cables, carrying cases/pouches, and language support. Occasionally a retailer will specify a unique product color, appearance, and internal memory capacity. Contact your dealer for precise product definition and included accessories.

 The illustrations in this manual are for the purpose of explanation and may differ from the actual design of

your digital camera.

 The manufacturer assumes no liability for any errors or discrepancies in this user manual.  For user manual and driver updates, refer to our website or contact your dealer.

EN-3

SAFETY INSTRUCTIONS

Read and understa nd all Warnings and Cautions before using this product.

Warnings

If foreign objects or water have entered the camera, turn the power OFF and remove the batteries and the AC power adapter.

Continued use in this state might cause fire or electric shock. Consult the store of purchase.

If the camera has fallen or its case has been damaged, turn the power OFF and remove the batteries and the AC power adapter.

Continued use in this state might cause fire or electric shock. Consult the store of purchase.

Do not disassemble, change or repair the camera.

This might cause fire or electric shock. For repair or internal inspection, ask the store of purchase.

Use the supplied AC adapter only with the indicated power supply voltage.

Use with any other power supply voltage might cause fire or electric shock.

Do not use the camera in areas near water.

This might cause fire or electric shock. Take special care during rain, snow, on the beach, or near the

shore.

Do not place the camera on inc lined or unsta ble surfaces.

This might cause the camer a to fall or tilt over, causing injury.

Keep the batteries out of the rea ch of ch ild ren.

Swallowing batteries mi ght cause poisoning. If the battery is accidentally swal lowed, immediately

consult a physician.

Do not use the camera while you are walking, driving or ridin g a motorcycle.

This might cause you to fall over or result in traffic accident.

EN-4

Cautions

Insert the batteries paying careful attention to the polarity (+ or –) of the terminals.

Inserting the batteries with their polarities inverted might cause fire and injury, or damage to the surrounding areas due to the battery rupturing or leaking.

Do not fire the flash close to anyone’s eyes.

This might cause damage to the person’s eyesight.

Do not subject the LCD monitor to impact.

This might damage the glass on the screen or cause the internal fluid to leak. If the internal fluid

enters your eyes or comes into contact with your body or clothes, rinse with fresh water. If the internal fluid has entered your eyes, consult a physician to receive treatment.

A camera is a precision instrument. Do not drop it, strike it or use excessive force when handling the camera.

This might cause damage to the camera.

Do not use the camera in humid, steamy, smoky, or dusty places.

This might cause fire or electric shock.

Do not remove the batteries immediately after long period of continuous use.

The battery becomes hot during use. Touching a hot battery might cause burns.

Do not wrap the camera or place it in cloth or blankets.

This might cause heat to build up and deform the case, resulting in fire. Use the camera in a

well-ventilated place.

Do not leave the camera in places where the temperature may rise significantly, such as inside a car.

This might adversely affect the case or the parts inside, resulting in fire.

Before you move the camera, disconnect cords and cables.

Failure to do this might damage cords and cables, resulting in fire and electric shock.

EN-5

Notes on Battery Usage

When you use the batteries, carefully read and strictly observe the Safety Instructions and the notes described below:

 Different battery types and surrounding temperatures may affect the battery performance.  Avoid using batteries in extremely cold environments as low temperatures can shorten the battery life and

reduce camera performance. This low temperature will also influence Alkaline battery performance, therefore Ni-MH rechargeable battery is highly recommended.

 If you are using the new rechargeable batteries or rechargeable batteries that have not been used for an

extended period of time (batteries that pass the expiry date are exceptions) might affect the number of pictures that can be taken. Therefore, to maximize their performance and lifetime, we recommend that you fully charge the batteries and discharge them for at least one complete cycle before use.

 The batteries may feel warm when using the camera for an extended period of time or using the flash

continuously. This is normal and not a malfunction.

 The camera may feel warm when being used continuously or for an extended period of time. This is

normal and not a malfunction.

 If you will not be using the batteries for an extended period of time, remove them from the camera to

prevent leakage or corrosion.

 Never use batteries of different types (together) or mix old and new batteries.  Always keep the terminals clean.  Never use manganese batteries.  There is a risk of explosion if the batteries are replaced with an incorrect type.  Dispose of used batteries according to the instructions.

Contents

EN-6

INTRODUCTION....................................................8

Package Contents .................................................9

GETTING TO KNOW YOUR CAMERA...............10

Front View............................................................ 10

Rear View ............................................................ 11

Mode Dial.............................................................12

LCD Monitor Information...................................... 13

PREPARING THE CAMERA...............................16

Installing the Batteries .........................................16

Using the AC Adapter (Optional Accessory)........ 17

Inserting and Removing an SD Memory Card

(Optional Accessory) ........................................... 18

Attaching the Camera Strap ................................ 19

GETTING STARTED ...........................................20

Turning the Power On/Off.................................... 20

Choosing the Screen Language ..........................21

Setting the Date and Time ................................... 22

Formatting an SD Memory Card or

Internal Memory ................................................... 23

Using the LCD Monitor ........................................ 24

PHOTOGRAPHY MODE..................................... 25

Shooting Images .................................................. 25

Setting Image Resolution and Quality ................. 26

Using the Zoom Function..................................... 27

Using the Flash .................................................... 28

Setting Focus....................................................... 29

Capture Mode..................................................... 30

Burst .................................................................... 30

Auto Bracket ........................................................ 31

Self-Timer ............................................................ 32

Adjusting the Exposure (EV Compensation) ....... 34

Setting White Balance ......................................... 35

USING THE MODE DIAL....................................36

Auto Mode [ ]...................................................36

Program Mode [ ] ............................................36

Portrait Mode [ ] .............................................. 37

Landscape Mode [ ] ........................................37

Sport Mode [ ] ................................................. 38

Night Mode [ ].................................................. 38

EN-7

PLAYBACK MODE - THE BASICS....................39

Viewing Images................................................... 39

Magnifying Images...... .. ........................... .. ... .. .... 40

Thumbnail Display............................................... 41

Slideshow Display............................................... 42

Resizing an Image .............................................. 43

MOVIE MODE................................ ... .................. 44

Recording Movie Clips........................................ 44

Playing Back Movie Clips.................................... 45

PLAYBACK MODE - ADVANCED FEATURES. 46

Playing Back Still Images/Movie Clips on TV...... 46

Deleting Images/Movie Clips............................... 47

Protecting Images/Movie Clips............................ 48

Setting the DPOF ................................................ 49

TRANSFERRING FILES FROM YOUR DIGITAL

CAMERA TO COMPUTER.................................51

Step 1: Install the USB driver.............................. 52

Step 2: Connect the digital camera to

your computer ..................................................... 53

Step 3: Download images or movie clips ............ 54

EDITING SOFTWARE INSTALLATION .............55

Installing Photo Explorer..................................... 55

Installing Photo Express...................................... 56

USING THE DIGITAL CAMERA AS A PC

CAMERA.............................................................57

Step 1: Install the PC camera driver ................... 57

Step 2: Connect the digital camera to

your computer ..................................................... 58

Step 3: Run your application software

(i.e. Windows NetMeeting)..................................59

MENU OPTIONS.......................................... .......60

Camera Menu ..... ... ....................... ... ................... 60

Movie Menu......................................................... 65

Playback Menu.................................................... 66

Setup Menu...... ........................ .. ........................ . 69

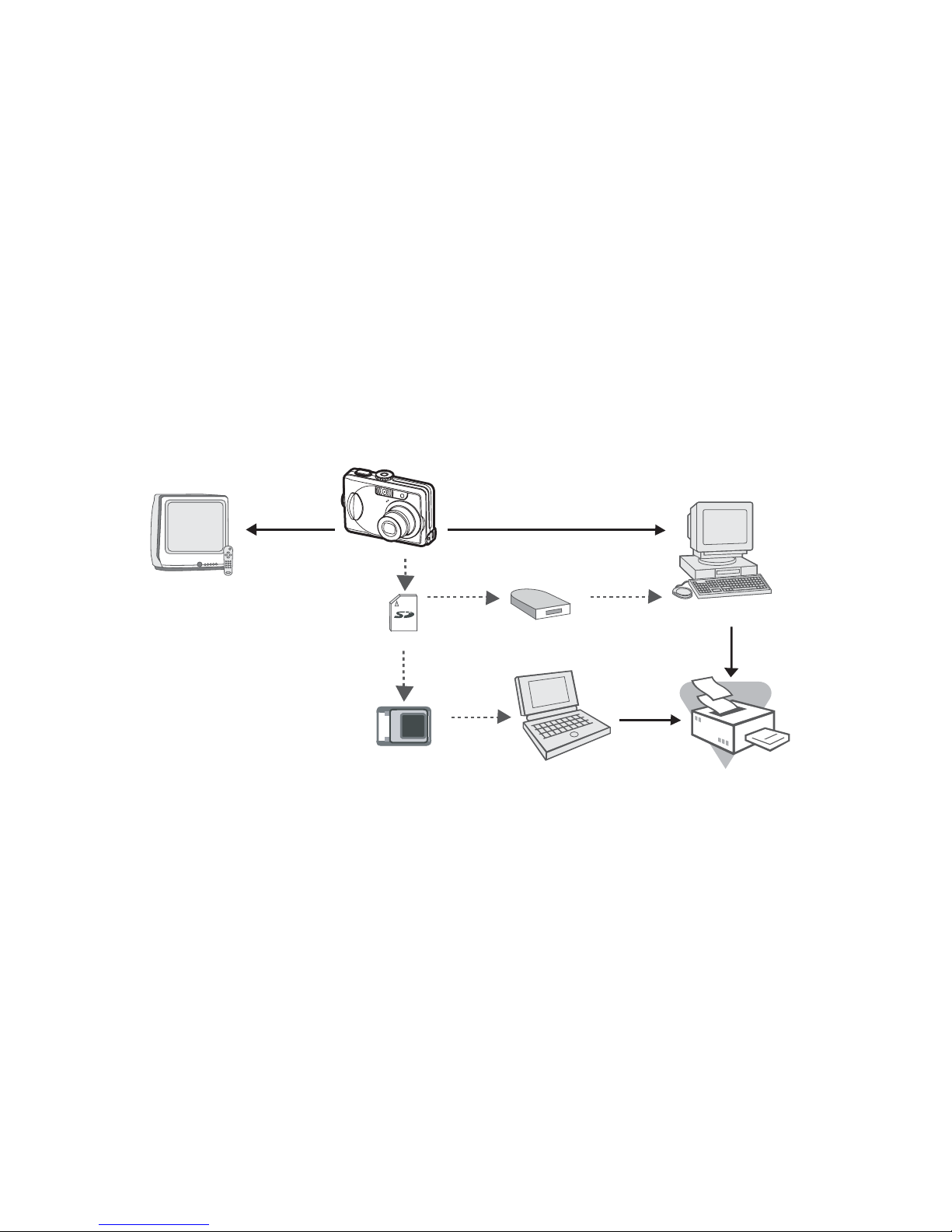

CONNECTING THE DIGITAL CAMERA TO

OTHER DEVICES................................................73

SPECIFICATIONS...............................................74

APPENDIX...........................................................76

EN-8

INTRODUCTION

Thank you for purchasing the new digital still camera! Equipped with a 6.0 Megapixels CCD sensor, your camera delivers high quality, 2816 x 2112 resolution images. Other features provided by the camera include the following:

 6.0 Megapixels

A high-resolution CCD sensor provides 6.0 megapixels for high quality images.

 Auto flash

An auto flash sensor automatically detects the shooting (lighting) conditions and determines whether the flash should be used.

 2.4” TFT color image LCD monitor  Optical zoom: 1x~3x  Digital zoom: 1x~4x  Approx. 11 MB internal (built-in) memory

Images can be captured without using an SD memory card.

 Support for SD memory card for memory

expansion

You may wish to expand the memory capacity (up to 1GB) by using an optional SD memory card.

 USB connection

Still images or movie clips that you have recorded can be downloaded to your compute

using the USB cable (A USB driver is required for Win 98 and Win98SE).

 DPOF functionality

DPOF can be used to print your images on a DPOF compatible printer by simply inserting the SD memory card.

 Provided editing software: Photo Explorer

Photo Express

You can enhance and retouch your images on your computer by using the provided editing software.

EN-9

Package Contents

Carefully unpack your kit box and ensure that you have the following items. In the event that any item is missing or if you find any mismatch or damage, promptly contact you r dealer.

Common Product Components:

 Digital Camera  User's Manual  Software CD-ROM  Camera Strap  Camera Pouch  AV Cable  USB Cable  Batteries

*******************************************************************************

Common (Optional) Accessorie s:

 AC power adapter  SD memory card

 Accessories and components may vary by retailer.

EN-10

GETTING TO KNOW YOUR CAMERA

Front View

1 2

3 4

8 9

1. Shutter release button

2. Flash

3. Power switch

4. Mode dial

5. Self-timer LED

6. Microphone

7. PC / AV terminal

8. DC input terminal

9. Lens

EN-11

Rear View

3 4

7 8

1. LED indicator

2. / Zoom in (telephoto) button / Zoom out (wide-angle) butto n

3. Playback button

4. Menu button

5. Delete button

6. Arrow button (Up) Self-timer button

7. Arrow button (Right) Focus button

8. Strap holder

9. Arrow button (Down) Exposure compensation button

10. Arrow button (Left) Flash button

11. button Display button

12.Battery / card cover

13.Tripod socket

14.LCD monitor

EN-12

Mode Dial

You can select from seven shooting modes and setup mode according to shooting conditions to achieve the desired effect.

Mode Description

1. Program Select this mode to permit the shutter speed and aperture to be set manually.

2. Portrait Select this mode to make people stand out with the background out-of-focus.

3. Landscape Select this mode to take photographs of distant scenery or landscapes.

4. Sports Select this mode to shoot fast moving objects.

5. Night Select this mode to take photographs of people against a dusk or night-time background.

6. Setup Select this mode to adjust the camera settings.

7. Video Select this mode to record video clips.

8. Auto Select this mode to adjust point-and-shoot action.

EN-13

LCD Monitor Information

+0.3

2.2X

5321 4

8 9

10 11

14 13

 Camera Mode

1. Mode indication [ ] Program Mode [] Portrait Mode [ ] Landscape Mode [ ] Sport Mode [ ] Night Mode [] Setup Mode [ ] Movie Mode [ ] Auto Mode

2. Flash mode [] Auto [] Red eye [ ] Flash on [ ] Flash off

3. Capture mode [] Single [] Burst [ ] AEB [ ] 2 sec. Self-timer [ ] 10 sec. self-timer [ ] 10+2 sec. Self-timer

4. Focus mode [ ] Standard [] Macro [ ] Infinity

5. Possible number of sh ots

6. Memory status : Built-in memory

(without card)

: SD memory card

7. Battery and AC adapter

[ ] Full battery power [ ] Medium battery power [ ] Low battery power [ ] No battery power [ ] AC adapter

8. Recorded pixels

[ ] 2816 x 2112 [ ] 2272 x 1704 [ ] 1600 x 1200 [ ] 640 x 480

9. Image quality

[] Fine [] Normal [ ] Economy

10.White balance

Auto [ ] Daylight [ ] Cloudy [] Tungsten [ ] Fluorescent

11.ISO sensitivity [ ] Auto [] 64 [ ] 100 [ ] 200

12.EV compensation

13.Focus area

14.Zoom bar

EN-14

 Movie Mode

1. Movie mode

2. Flash mode

3. Recordable movie time available

4. Memory status

5. Battery power and AC adapte r indicator

6. Focus area

7. Zoom bar

 Image Playback

1. Playback mode

2. Number of image

3. Memory status

4. Battery power and AC adapte r indicator

5. Index number of total number

6. DPOF indicator

7. Protect indicator

8. Date

9. Time

10.EV compensation

11.ISO sensitivity

12.White balance

13.Ima ge quality

14.Recorded pixels

00:49

321

12:00

12:00+0.3

+0.3

ISO 100

01/01/2006

1/7

100-0001

5 6

8 9

EN-15

 Movie Playback

1. Playback mode

2. Movie mode

3. Number of movie

4. Memory status

5. Battery power an d AC ad ap ter indicator

6. Index number of tot al number

7. Elapsed time

8. Date

9. Time

10.Play/Pause indicator

12:01

01/01/2006

1/7

100-0001

00:05

31 2

8 9

EN-16

PREPARING THE CAMERA

Installing the Batteries

You ca n use 2 AA size batteries (a lkaline or Ni-MH recha rgeable) to power the camera. Make sure that t he power of the digital camera is off before inserting or removing the batteries.

1. Make sure the camera is tu rn ed off.

2. Open the battery cov e r.

3. Insert the batteries in the correct orientation as shown in the illustration.

4. Close the battery cover.  To remove the batteries, turn the camera off before removing

batteries and hold the camera with the battery cover facing upward, then open the ba ttery cover.

 Be careful not to drop the batteries when opening or closing the battery cover.  Due to the characteristics of AA alkaline batteries, camera performance may deteriorate. AA alkaline batteries are not

recommended except in emergencies and checking the camera's functionality.

EN-17

Using the AC Adapter (Optional Accessory)

Use of the AC adapter is reco mmended if you intend to u se the LCD monitor for a lon g time or connect the camera to a PC.

1. Make sure your camera is off.

2. Connect one end of the AC adapter to the camera DC input terminal labeled "DC IN 3V".

3. Connect the other end to a power outlet.

 Make sure to use only the AC adapter specified for the camera. Damage caused by the use of an incorrect adapter is not

covered under the warranty.

 To prevent unexpected auto power off resulting from no battery power left during the process of transferring your images to

the computer, use the AC adapter as a power supply.

 The AC adapter can only be used to power the camera. Batteries cannot be charged inside the camera.

EN-18

Inserting and Removing an SD Memory Card (Optional Accessory)

The digital camera comes with 11MB of internal memory, allowing you to store captured still images or video clips in the digital camera. Moreover, you can also expand the memory capacity by using an optional SD (Secure Digital) memory card so that you can store more files.

1. Make sure your camera is turned off before inserting or removing a memory card.

2. Open the battery/SD memory card cover.

3. Insert an SD memory card in the correct orientation as shown in the illustration.

4. Close the battery/SD memory card cover.  To remove the SD memory card, make sure the camera is

turned off. Press lightly on the edge of the memory card and it will eject.

 Be sure to format an SD memory card with this digital camera before using it.

Refer to section in the manual titled “Formatting an SD Memory Card or Internal Memory” for further details.

 To prevent valuable data from being accidentally erased from an SD card,

you can slide the write protect tab (on the side of the SD memory card) to “LOCK”.

 To save, edit, or erase data on an SD memory card, you must unlock the

card.

EN-19

Attaching the Camera Strap

 Attach the strap as shown in the illustration.

EN-20

GETTING STARTED

Turning the Power On/Off

 Press the power switch until the digital camera turns on.  To turn the power off, press the power switch again.

Power switch

EN-21

Choosing the Screen Language

Follow the steps below to choose the desired language .

1. Rotate the mode dial to and turn your camera on by pressing the power switch.

2. [Set-up1] is displayed.

3. Use the four-way controller (T) to select [Language], then press the button.

4. Use the four-w ay cont roller ( ST) to select the language you want.

5. Press the button to confirm.

Set-up1

Set-up1 Set-up2

Set-up2

Set-up3

Set-up2 Set-up3

Langu

age

Date & Tim

te & Tim

Beeper

Format

Language

Date & Time

Beeper

Format

Select :

glis

lis

hEnglish

m/d/y

Louder

m/d/y

Louder

EN-22

Setting the Date and Time

Follow the steps below to set the date display style, current date and time.

1. Rotate the mode dial to and turn your camera on by pressing the power switch.

2. [Set-up1] is displaye d.

3. Use the four-way controller (T) to select [Date & Time] and the four-way controller (WX) to switch the d ate types,then press the

button.

4. Press the four-w ay controller (WX) to select Day, Month, Year and Time fields.

 To incre ase a value, press the four-way controller (S).  To decrease a value, press the four-way controller (T).  The time is displaye d in 24-hour format.

5. Press the button after all fields are set.

 The date illustration shown is for the purpose of explanation and may differ from the actual setting of your camera.

Set-up1

Set-up1 Set-up2

Set-up2

Set-up3

Set-up2 Set-up3

Langu

Language

te & Tim

te & Time

Date & Time

Beeper

Format

Beeper

Format

Select :

Eng

lis

lish

English

m/d/y

Louder

m/d/y

Louder

te & Tim

te & Time

Date & Time

Select :

Select :Cancel :

Cancel :

0101 / 01 / 2006

/ 01 / 2006

00 : 00

01 / 01 / 2006

00 : 00

EN-23

Formatting an SD Memory Card or Internal Memory

The term “Formatting” means preparing an “SD memory card” to record images; this process is also called “initialization” . This utility formats an SD memory card or the in ternal memory and erases all st ored images and data.

1. Rotate the mode dial to and turn your camera on by pressing the power switch.  [Set-up1] is displayed.

2. Use the four-way contro ller (T) to select [Format], then press the

button.

3. Use the four-way controller (ST) to select [Yes], t hen press the

button to confirm.

 When you format an SD memory card, be aware that all data on the SD memory card will be erased. Protected images are

also erased.

 To format the internal me mory, do not insert an SD memory card into the camera. O therwise, you will format the SD

memory card.

 An SD memory card having any problem cannot be properly formatted.

Set-up1

Set-up1 Set-up2

Set-up2

Set-up3

Set-up2 Set-up3

Langu

age

Date & Tim

te & Tim

Beeper

Format

Language

Format

Date & Time

Beeper

Select :

glis

lis

hEnglish

m/d/y

Louder

m/d/y

Louder

Select :

Format

Yes

Format

Yes

EN-24

Using the LCD Monitor

Your camera is equipped with a 2.4” full color TFT LCD monitor to help you compose images, replay recorded images/movie clips or adjust menu settings. The mode icons, text and numbers displayed on the monitor may vary according to the current settings.

1. Rotate the mode dial to , , , , , or .

2. Press the power switch to turn on the power.

3. Compose your scene on the LCD moni tor.

4. Press the shutter release button.

 The LCD monitor darkens in strong sunlight or bright light. This is not a malfunction.  To prevent your images from being blurred while pressing the shutter release button, always hold it carefully. This is

especially important whe n you are shoo ting unde r low lightin g conditio ns, since yo ur camera ma y decelera te the shut ter speed to ensure your images are properly exposed.

EN-25

PHOTOGRAPHY MODE

Shooting Images

1. Rotate the mode dial to , , , , , or and turn your camera on by pressing the power switch.

2. Compose the image on the LCD monitor scree n so that the main subject is within the focus frame.

3. Press the shutter release button down halfway to focus the image.  When you press the s hutter release button do wn halfway, the

camera’s Auto Focus feature automatically focuses the image. The focus frame turns green if the subject is in f ocus. Proper exposure is determined and locke d at the sa me time .

4. Press the shutter release button the rest of the way down to capture the image.

 The actual captured image appears to be larger than the one displayed by the LCD monitor screen after the image has

been captured.

 Pressing the

/ button switches the LCD monitor display mode. Each time you press the / button, the display

changes in the following order: Normal Display Æ Infomation Display Æ No Icons Æ LCD Off.

EN-26

Setting Image Resolution and Quality

As you get to know the digital camera, you can set the image resolution (number of vertical and horizontal pixels) and image quality (compression ratio) based on the types of images you want to shoot.These settings affect the number of images th at can be stored in the interna l memory, or on an SD memory card. Higher resolution and higher quality images provide finer detail but cause the images’ file size to be larger. To change image resolution or image quality, perform these steps below:

1. Rotate the mode dial to , , , , , or and turn your camera on by pressing the power switch.

2. Press the button.

 [Mode1] is displayed.  In the mode, [Auto] is displayed.

3. Use the four-way controller (T) to select [ Image S ize], t hen pr ess the button.

4. Use the four-way controller (ST) to select the desired setting, then press the button to confirm.

5. Follow the step 3 and 4 above to set the [Quality].

 The possible number of shots and recording time depend on the storage

size, resolution and quality settings and the subject of the image to be captured.

 You can resize the images later. Please refer to the section in this manual

titled “Resizing an Image” (EN-43) for further detail.

Mode1Mode1

Mode1

Mode1 Mode2

Mode2

Mode3

Mode2 Mode3

Select :

ISO

Quality

ImImage Si

ge Si

zeImage Size

W. Balanc

. Balanc

Retu

etu

rn n :

ISO

Quality W. Balance

Return :

ImImage Si

ge Si

zeImage Size

Select :

Select :Cancel :

Cancel :

2816 X 2112

2272 X 1704

1600 X 1200

640 X 480

2816 X 2112

2272 X 1704 1600 X 1200 640 X 480

EN-27

Using the Zoom Function

This camera is equipped with 3x optical zoom. The lens moves during the optical zoom photography, allowing you to capture tele photo and w ide-an gle shots. By using the optical zoom fun ction; im ages appea r close r by pressing the button, or smaller away by pressing the button. The zoom bar indicates t he current level of magnif ication. When the digital zoom is within 3x magnification, the zoom bar is within the optical zoom range. When the digi tal zoom functio n is set to On, you can further enlarge the subj ects with 4x digital zoom by continui ng to press the button. It is activated after your camera reaches its maximum optical zoom factor (3x) and the zoom bar is within the digital zoom area. You can enlarge the subject to a maximum magnification equivalent to 12 times. A useful feature as it is, however, the more the image is enlarged, the more pixelated the image will appear.

To capture a zoomed image, perform the following steps:

1. Rotate the mode dial to , , , , , or and turn your camera on by pressing the power swi tc h.

2. Adjust the magnification ratio by using the / button.

 To exit the zoom photography, press and hold the button.  The status of digital magnification is displayed on the LCD

monitor.

3. Compose your scene and press the shutter release butt on.

 To enable the digital zoom feat ure, set the [Mode2- Digital Zoom] to [On] in the , , , , , or mode.

(Refer to EN-63 for further details).

2.2X

Optical zoom range

Zoom bar

Digital zoom range

EN-28

Using the Flash

The flash is designed to function automatically when lighting conditions warrant the use of flash. You can take an image using a desired flash mode to suit your circumstances.

1. Rotate the mode dial to , , , , , or .

2. Press the power switch to turn on the power.

3. Press the four-way controller (W/ ). The flash mode changes

each time the button is pressed. You can also change the setting using the four-way controller (ST).

4. Press the button to confirm the setting.

5. Compose your scene and press the shutter release button.

The camera has four flash modes: Auto, Red-eye, Flash on and Flash off. The table below will help you to choose the appropriate flash mode:

Flash mode Description

Auto The flash fires automatically according to the photographic conditions.

Red-eye Use this mode to reduce the red-eye phenomenon when you want to take

natural-looking photographs of people and animals in low-light conditions.When taking photographs, the red-eye phenomenon can be reduced by asking the subject (person) to look at the digital camera or get as close to the digital camera as possible.

Flash on The flash will always fire regardless of the surrounding brightness.

Flash off The flash will not discharge, regardless of the brightness. Use this mode when

taking pictures using indoor lighting, for stages and indoor competitions, and when the subject is too far away for the flash to be effective.

lash Mod

lash Mode

uto

OK :

Flash Mode

Auto

OK :

EN-29

Setting Focus

Images can be captured with the focus determined automatically using auto focus. You may over-ride the auto focus and specify [ ] macro or [ ] infinity.

1. Rotate the mode dial to , , , , , or .

2. Press the power switch to turn on the power.

3. Press the four-way controller (X/ ). The focus mode changes each time the button is pressed. You can also change the setting using four-way controller (ST).

4. Press the button to confirm the setting.

5. Compose your scene and press the shutter release button.

The camera has three focus modes: Standard, Macro and Infinity. The table below will help you choose the appropriate focus mode:

Focus mode Description

Standard Select Standard-focus setting for most occasions when you want the camera to

automatically determine the focus setting.When using Standard-focus setting, any object at a range of focus is 40 cm or greater can be in focus.

Macro Select Macro-focus setting to capture close-up images. When the lens is zoomed

to its widest position you may focus on objects as close as 5 cm.When the lens is zoomed to its telephoto position (3x zoom) you may focus on objects as close as 30 cm.

Infinity Select Infinity-focus setting when you want to capture an image of a subject at

infinity. The flash mode will be set to Flash Off automatically.

ocu

ocus

Standa

Standard

OK :

Focus

Standard

OK :

EN-30

Capture Mode

Burst

This mode is used for cont in uous sh oo ti ng. 3 pic tu res ar e taken co nt inuo us ly once th e shutt e r re leas e but t on is pressed. Secure the camera to a tripod or place it on a stable surface.

1. Rotate the mode dial to , , , , , or .

2. Press the power switch to turn on the power.

3. Press the four-way controller (S/ ) and use (S) to select [Burst]. You can also change the setting using four-way cont roller (WX).

4. Press the button to confirm the setting. The indicator is displayed on the monitor screen.

5. Press the shutter release button halfway to lock the focus.

6. Press the shutter release button to capture a sequence of images.

 In Burst mode, the flash mode will be set to Flash Off automatically.

Captu

ptu

re Mod

e Mod

rst

OK :

Capture Mode

Burst

EN-31

Auto Bracket

In this mode, the camera automatically changes the exposure within a set range to take three shots after you press the shutter re lease button once . Auto Bracket s ettings can be c ombined with expos ure compensati on settings to extend the adjustment range.

1. Rotate the mode dial to , , , , , or .

2. Press the power switch to turn on the power.

3. Press the four-way controller (S/ ) and use (S) to select [AEB]. You can also change the setting using the four-way controller (WX).

4. Press the button to confirm the setting. The indicator is displayed on the LCD monitor screen.

5. Press the shutter release button to capture the three images.

 In AEB mode, the flash mode will be set to Flash Off automatically.

Captu

ptu

re Mod

e Mod

AEB

OK :

Capture Mode

AEB

EN-32

Self-Timer

The self-timer can be used in situations such as group shots. When using this option, you should either mount the camera on a tripod (recommended) or rest it on a flat, level surface.

1. Secure the camera to a tripod or place it on a stable surfac e.

2. Rotate the mode dial to , , , , , or .

3. Press the power switch to turn on the power.

4. Press the four-way cont roller (S/ ) and use ( S) to select your desired self-timer mode. You can also change the setting using four-way controller (WX).

5. Press the button to confirm the setting.

6. Compose your scene and press the shutter release button.

 The self-timer function is activated.  The photograph is then taken after the preset time.  To cancel the self-timer at any time, press the four-way

controller (S/ ) or press the shutter release button halfway.

Captu

ptu

re Mod

e Mod

2 sec. Self-timer

Capture Mode

2 sec. Self-timer

OK :

EN-33

The table below will help you choose the appropriate self-timer mode:

 After one shot is taken, the self-timer mode is turned off.  If you wish to take another image using the self-timer, repeat these steps.

Self-timer mode Description

2 sec. Self-timer The image is captured about 2 seconds after the shutter is pressed. This mode

is useful for preventing camera shake.

10 sec. Self-timer The image is captured about 10 seconds after the shutter is pressed. This mode

is suitable for the shots in w hich the photographer h as to be included.

10+2 sec. Self-timer The first image is captured about 10 seconds after the shutter release button is

pressed, and then the second image is captured 2 sec onds later. This mode is convenient when capturing group images in succession. Flash does not fire in this mode.

EN-34

Adjusting the Exposure (EV Compensation)

You c an manually adjust the exposure determin ed by the digital camera. Use this mode when the proper exposure cannot be ob tained, for example, whe n the contrast (difference between bright and dark areas) between the subject and t he background is extremely high. The EV compensatio n value can be set from

-2.0EV to +2.0EV.

1. Rotate the mode dial to , , , , or .

2. Press the power switch to turn on the power.

3. Press the four- way con troll er (T/ ) and use WX to set the range of EV compensation value from -2.0EV to +2.0EV.

4. Press the button to confirm the setting.

Set :

Select :

EVEVEV

0.0

±0.0

Set :Select :

EN-35

Setting White Balance

This feature lets you make adjustmen ts to compens ate for d ifferent ligh ting typ es accor ding to y our sho oting conditions.

1. Rotate the mode dial to , , , , or .

2. Press the power switch to turn on the power.

3. Press the button. [Mode1] is displayed.

4. Use the four-way controller (T) to select [W. Balance], then press the button.

5. Use the four-way controller (ST) to select the desired white balance setting, then press the button to confirm.

6. To cancel the setting, press the button and exit the menu.

Mode1Mode1

Mode1

Mode1 Mode2

Mode2

Mode3

Mode2 Mode3

Select :

ISO

Quality

ImImage Si

ge Si

zeImage Size

W. Balanc

. Balanc

Retu

etu

rn n :

ISO

Quality W. Balance

Return :

Select :

Select :Cancel :

Cancel :

Aut

oAuto

Tungste

ungste

Daylight

Cloudy

W. Balanc

. Balanc

Tungsten

Daylight Cloudy

W. Balance

Select :

Select :Cancel :

Cancel :

Fluo

luo

rescen

escen

tFluorescent

W. Balanc

. Balanc

eW. Balance

EN-36

USING THE MODE DIAL

Auto Mode [ ]

(Auto) mode is the simplest way which allows you to take still pictures without having to set special

functions or manual adjustments. The camera sets the optimal focusing and exposure.

1. Rotate the mode dial to a nd turn your camera on by p ressing the power switch.

2. Compose your subject within the focus frame.

3. Press the shutter release button down halfway to focus the image.  When you press the s hutter release button do wn halfway, the

camera’s Auto Focus feature automatically focuses the image. Proper exposure is determined and locked at the same time.

4. Press the shutter release button the rest of the way down to capture the image.

Program Mode [ ]

In the (Program) mode, the camera automatically sets the shutter speed and aperture for taking still images. You can adjust other functions, such as flash mode or continuous shooting mode.

1. Rotate the mode dial to a nd turn your camera on by p ressing the power switch.

2. Compose your subject within the focus frame.

3. Press the shutter release button to capture the im age.

EN-37

Portrait Mode [ ]

Select this mode to make people stand out with the background out-of-focus.

1. Rotate the mode dial to and turn your camera on by pressing the power switch.

2. Compose your sub j ec t wi thin the focus frame.

3. Press the shutter release button to capture the image.

Landscape Mode [ ]

This mode allows you to take photographs of distant scenery or landscapes.

1. Rotate the mode dial to and turn your camera on by pressing the power switch.

2. Compose your sub j ec t wi thin the focus frame.

3. Press the shutter release button to capture the image.

EN-38

Sport Mode [ ]

This mode allows you to shoot fast moving objects.

1. Rotate the mode dial to and turn your camera on by pressing the power switch.

2. Compose your sub j ec t wi thin the focus frame.

3. Press the shutter release button to capture the image.

Night Mode [ ]

This mode allows you to take photographs of people against a dusk or night-time ba ckground.

1. Rotate the mode dial to and turn your camera on by pressing the power switch.

2. Compose your sub j ec t wi thin the focus frame.

3. Press the shutter release button to capture the image.

EN-39

PLAYBACK MODE - THE BASICS

Viewing Images

You can display the still images one by one.

1. Rotate the mode dial to , , , , , or and turn your camera on by pressing the power switch.

2. Press the button.

 The last recorded image appears on the LCD monitor screen.  Basic information is sho wn by indicators on the LCD monitor

screen. To see full information displ ay, press the / button.

3. Use the four-way controller (WX) to select the desired images.

 To view the previous image, press the four-way controller (W).  To view the next image, press the four-way controller (X).

 For protected images/movie clips, mark will be displayed. Refer to the section in this manual titled “Protecting

Images/Movie Clips” (EN-48) for further details.

 For images selected for printing with DPOF setting, mark will be displayed. (Refer to the section in this manual titled

“Setting the DPOF” (EN-49, 50) for further details.)

 If there is no image stored in the internal memory or on the SD memory card, [No image] message will appear on the LCD

monitor screen.

 You cannot enter the Playback mode from the Setup mode.

100-0001

EN-40

Magnifying Images

While reviewing your ima ges , you may e nl arge a se lect ed port i on of a n im age . Thi s ma gnif ica ti on al lows you to view fine details. The zoo m fa cto r displayed on the screen shows the current magnification ratio .

1. Press the button.

 The last recorded image appears on the LCD monitor screen.  To view th e previous image, press t he four-way controller ( W).  To view th e next image, press the four-way controller (X).

2. Adjust the zoom ratio by using the / but ton.

 To enlarge the selected image, press the button.  To return to the normal image, press the button.  The magnification factor is displayed on the LCD monitor

screen.

3. To view different portions of the images, press the four-way controller (STWX) to adjust the display area.

 The magnification factors range from 1.5X to 4X (within 6 stages: 1.5X, 2.0X, 2.5X, 3.0X, 3.5X and 4.0X).

1.5X

EN-41

Thumbnail Display

This function allows yo u to view 9 t humbnail ima ges on the LCD monitor scre en simultaneous ly so you may search for a particular image.

1. Press the button.  The last recorded image appears on the LCD monitor screen.

2. Press the / button once.

 Nine thumbnail images are displayed simultaneously.  For recorded movie clips, the movie mode icon will be

displayed.

 For protected image s/movie clips, mark will be di splayed.

(Refer to the section in this manual titled “Protecting Images/ Movie Clips” (EN-48) for further details.)

3. Use the four-way contro ller (STWX) to move the cursor to select the image to be displa yed at regular size.

4. Press the or / butto n to display the selected image on full screen.

1 2 3

4 5 6

7 8

123

456

EN-42

Slideshow Display

The slideshow funct ion enables yo u to play your images back automatical ly in sequent ial order. This is very useful and entertaining feature for reviewing recorded images and for presentations.

1. Press the button.  The last recorded image appears on the LCD monitor screen.

2. Press the button to access the Playback menu. Then use the four-way controller (T) to select [Slide Show] and press th e button.

3. Use the four-way controller (ST) to set the playback inte rval, th en press the button.

 The slideshow starts.  The movie clips display the fi rst fr ame image, and the movie is

not played back.

 To stop slideshow, press the button.

 You can adjust the slideshow display interval within the range of 3 sec., 5 sec., 10 sec..

Select :

Select :Retu

etu

rn n :Return :

Playba

ck2Playba

Playba

ck1Playback1

DPOF

Protec

otec

Slide Sh

owSlide Show

Playback2

DPOF

Protect

Slide Sh

Sta

rt t :Start :

Cancel :

3 Sec.

5 Sec.

10 Sec.

Slide Show

5 Sec. 10 Sec.

EN-43

Resizing an Image

You ca n change t he image size of a capture d image t o one of t he fol lowing si zes: 22 72 x 1704 pi xel, 1 600 x 1200 pixel and 640 x 480 pixel.

1. Press the button.  The last recorded image appears on the LCD monitor screen.

2. In the mode, use the four-way controller (WX) to select the desired images.

 To view the previous image, press the four-way controller (W).  To view the next image, press the four-way controller (X).

3. Press the button to access the Playback menu. Press the four-way controller (X) to select [Playback2] and press (T) to select [Resize] and pr ess the button.

4. Use the four-way controller (ST) to select the desired setting, then press the button to confirm.

 You can only choose a smaller size image; you cannot increase the resolution of an image.  Movie cannot be resized.

Select :

Retu

etu

rn n :Return :

Playba

ck2Playba

Playba

ck1Playback1 Playback2

CoCopy y To Ca

o Ca

Quality Change

Resi

esi

zeResize

Copy To Card

Quality Change

Resi

esi

zeResize

2272 X 1704

1600 X 1200

640 X 480

1600 X 1200 640 X 480

Select :

Select :Cancel :

Cancel :

EN-44

MOVIE MODE

Recording Movie Clips

This mode allows you to record movie clips with sound via buil t-in microphone.

1. Rotate the mode dial to and turn your camera on by pressing the power switch.

2. Press the shutter release button to start recording.

3. To stop recording, press the shutter release button again.

 The optical zoom function (3X) can be activated before you start recording the movie clips  The digital zoom function can be activated before and during the recording.

 Pressing the

/ button switches the LCD monitor screen display mode. Each time you press the / button, the

display changes in the following order: Normal Display Æ No Icons Æ LCD Off.

00:49

EN-45

Playing Back Movie Clips

You ca n play back the record ed movie clips on the LCD monitor screen. However, the sound recorded w ith movie clips can only be played back on a TV or on a computer.

1. Press the button.

2. Use the four-way con troller (WX) to go through the ima ges until the movie clip you want to play back is displayed.

 To view the previous image, press the four-way controller (W).  To view the next image, press the four-way controller (X).

3. Press the button to start playing back the movie clips.  To pause or resume movie playback, press the button

again.

 The index number, date and time indicators displayed on the LCD monitor screen will disappear after a few seconds.  The zoom function cannot be activated when playing back movie clips.

 To playback the movie clips on the computer, we recommend you to use Windows Media Player 9.0 or later (WMP 9.0 or

later). You can download WMP version from the website at www.microsoft.com

12:01

01/01/2006

1/7

100-0001

00:05

EN-46

PLAYBACK MODE - ADVANCED FEATURES

Playing Back Still Images/Movie Clips on TV

You c an also playback your imag es on a TV screen. Before co nnecting to any device, ma ke sure to select NTSC/PAL system to match the video output system of the vi deo equ ipment you ar e going to connect to the digital camera, then turn off all devices to be connected.

1. Connect one end of the AV cable to the AV terminal of the digital camera.

2. Connect the other end to the AV input socket of the TV set.

3. Turn the TV and digital camera on.

4. Playback the images/movie clips.  The method of operation is the same as playing back still

images and movie clips on the di gital camera.

 The sound recorded with movie clips can only be played back on a TV or on a computer.

PC/AV terminal

EN-47

Deleting Images/Movie Clips

Use this function to del ete one or all images/movie cl ips stored in SD memo ry card or the in ternal memory. Please note that the deleted images or movie clips cannot be recovered. Exercise caution before deleting a file.

1. Rotate the mode dial to , , , , , or and turn your camera on by pressing the power switch.

2. Press the button.  The last recorded image/movie clip appears on the LCD

monitor screen.

3. Use the four-way controller (WX) to select the image/movie clip you want to delete.

4. Press the button to delete.

5. Use the four-way controller (ST) to select [This Image] or [All Images] by your preference, then press the button.

6. When the delete message appears, use the four-way controller (ST) to select [Yes], then press the button to confirm the deletion.

 If you wish to cancel the deletion, select [No].

 Protected images cannot be deleted with the delete function.

Delete

Select :

Select :Cancel :

Cancel :

This Im

his Im

age

All Im

ageges

Delete

This Image

All Images

Select :

Delete

Yes

EN-48

Protecting Images/Movie Clips

Set the data to read-only to prevent images from being erased by mistake.

1. Press the button.  The last recorded image appears on the LCD monitor screen.

2. In the mode, use the four-way controller (WX) to select the desired images.

 To view the previous image, press the four-way controller (W).  To view the next image, press the four-way controller (X).

3. Press the butt o n, the n us e t he fou r- way con tro ll er( T) t o se lect [Protect] and press the button.

4. Use the four-way controll er (ST) to choose the desired setting, then press the button.

 [Protect One]: Protect one image/movie.  [Protect All]: Protect all images/movies (at once).

5. Use the four-way controller (ST) to select [Lock] , then press the

button to confirm.

 Press the button to return to the mode. The

indicator appears on the selected image.

 If you wish to cancel the prot ect func tion of a protect ed image,

select [Unlock].

Slide Sh

owSlide Show

Select :

Select :Retu

etu

rn n :Return :

Playba

ck2Playba

Playba

ck1Playback1

DPOF

Protect

Playback2

DPOF

Protec

otec

tProtect

Select :

Select :Cancel :

Cancel :

Protect On

otect On

eProtect One

Protect Al

otect Al

lProtect All

Protect On

otect On

eProtect One

Select :

Select :Cancel :

Cancel :

ckLock

Unlo

ckUnlock

EN-49

Setting the DPOF

DPOF (Digital Print Order Form at) allows you to embed printing informat ion on your SD memory card. By using DPOF, you can select an image to be printed and then specify how many prints or which image you would like. Take your SD memory card to a DPOF enabled printer that accepts SD memory cards. The DPOF/card-compatible prin ter will read the embedded information on the SD memory card and print your images as specified. To configu re print settings for a si ngle image / all images.

1. Press the button, then use the four-way controller (WX) to select the desired image you want to print.

2. Press the button. Use the four-way controller (ST) to select [DPOF], then press t he button.

3. Use the four-way controll er (ST) to select by your preference, then press the button. [One Image]: To configure print settings for a single image. [All Images]: To configure print settings for all images. [Reset All]: Resets all DPOF settings.

100-0001

Protec

otec

tProtect

Slide Sh

owSlide Show

Select :

Select :Retu

etu

rn n :Return :

Playba

ck2Playba

Playba

ck1Playback1

DPOF

Playback2

Reset Al

eset Al

DPOF

Select :

Select :Cancel :

Cancel :

One Im

ageOne Image

All Im

ageges

Reset All

DPOF

All Images

EN-50

4. Use the four-way controll er (ST) to select by your preference, then press the button. [Quantity]: Allows you to select image quantity (0~10). Use the

four-way controller (WX) to set the image quantity.

[Date]: The date of recording can be printed directly on the images.

Select [Yes] or [No] with the four-way controller (WX).

5. Press the button to return to the image playback mode.

 The print icon is marked on the displayed image.  To cancel th e DPOF sett ings for a sing le image , go back to step 3

to select [One Image] and select 0 in [Quantity] in the next step. For resetting all the DPOF settings, go back to step 3 to select [Reset All].

 Before you perform the DPOF settings on your camera, always remember to copy

your images from the internal memory to an SD memory card first.

 The

print icon will appear on the LCD monitor screen indicating images

selected for printing.

 You cannot print movies.  Depending on the printer or printing equipment at the photo processing lab., the

date may not be imprinted on the pictures even if the DPOF settings are made.

YesYes

One Im

ageOne Image

Select :

Select :Cancel :

Cancel :

Quantity

DateDate

One Im

ageOne Image

YesYes

Select :

Select :Cancel :

Cancel :

Quantity

DateDate

100-0001

Reset Al

eset Al

lReset All

DPOF

Select :

Select :Cancel :

Cancel :

One Im

ageOne Image

All Im

ageges

DPOF

All Images

EN-51

TRANSFERRING FILES FROM YOUR DIGITAL CAMERA TO COMPUTER

After using USB cable to establish a US B connection betw een the camera and yo ur computer, you can use your computer to sh are recor ded images or vi deo clips with your f amily or friends via e-mai l or pos t them on the Web. In order to do this, you must install the USB driver onto your computer first. Note that before you begin to install the software, you need to check your system according to the table as shown below.

System Requirements (Windows) System Requirements (Macintosh)

CPU Pentium III 600 MHz processor or higher PowerPC G3/G4 Operating System Windows 98SE/Me/NT/2000/XP OS 9.0 or higher RAM 32MB

(64MB RAM recommended)

32MB (64MB RAM recommended)

Hard Disk Space 128MB hard disk space 128MB hard disk space Required Devices A CD-ROM drive

An available USB port

Display Color Monitor (800x 600, 24-bit or higher

recommended)

Color Monitor (800x600, 24-bit or higher recommended)

EN-52

Step 1: Install the USB driver

 Installation on Windows 98 & 98SE

The USB driver on the supplie d CD-ROM is exclusively for Windows 98 and 98SE. Windows 2000/ME/XP users need not install the USB driver.

1. Insert the enclosed CD-ROM into your CD-ROM drive.

2. When the welcome screen appears , click “Install USB/PC-Cam driver”. Follow the on-screen instructions to complete the installation.

3. After the USB driver has been installed, restart your computer.

 Installation on MAC OS 9.0

For Mac OS 9.0 or higher, the computer will automatically recognize the digital camera and load i ts own USB drivers.

EN-53

Step 2: Connect the digital camera to your computer

1. Rotate the mode dial to and turn your camera on by pressing the power switch.

2. Press the four-way controller (X) to select the [Set-up2] menu, then use the four-way controller (T) to select [USB Mode].

3. Press the button.

4. Use the four-way controller (T) to select [PC], then press the button.

5. Turn off your camera.

6. Connect your camera and the computer via the supplied USB cable.

7. Turn your camera on by pressing the power switch.

8. There will be a new “Removable Disk” icon detected in “My Computer”, which contain s your recorded images or mov ie clips. (For Mac users, double-click [untitled] or [unlabeled] disk drive icon on our desktop.)

Select :

Set-up1

Set-up1 Set-up2

Set-up2

Set-up2 Set-up3

Set-up3

Auto Shut D

uto Shut D

own

LCD Brightnes

CD Brightnes

USB Mode

3 Min.

NTSC

Auto Shut Down

LCD Brightness

3 Min.

NTSC

USB Mode

Select :

Select :Cancel :

Cancel :

PC CAM.

USB Mode

PC CAM.

PC/AV terminal

EN-54

Step 3: Download images or movie clips

When the digital camera is turned on and connected to your computer, it is considered to be a disk drive, just like a floppy disk or CD. You can d ownload (transfer) images by copying them from the “Remov able disk” (“untitled” or “un labeled” disk on a Macintos h) to your computer hard drive.

 Windows

Open the “removabl e di sk ” and d ou ble cli ck on th e DCIM / D SCI M fol der t o op en it t o fi n d more f old er s. Your images are inside the se fold er(s). Se lect the desire d still im ages or vi deo cli ps and then choo se “Copy” from the “Edit” menu. Open the dest ination location (folder) and choose “ Paste” from the “Edit” menu. You may also drag and drop image files from the digital camera to a desired location.

 Macintosh

Open the “untitled” disk icon, and the desti nation location on your har d disk. Drag and drop fr om the digital camera to the desired destination.

 Memory card users may prefer to use a memory card reader (highly recommended).  Video playback application is not included with the package. Make sure that video playback application has been installed

in your computer.

EN-55

EDITING SOFTWARE INSTALLATION

Installing Photo Explorer

Ulead® Photo Explorer provides a simple and efficient way to transfer, browse, modify and distribute digital media.

Acquire photos, video or sound clips from various digital devi ce types and easily browse or add personal descriptions; make timel y modifications; or dist ribute the media throug h the medium of your cho ice: E-mail, Print, Slideshow Pres ent at io ns. It is an indis pen sabl e all -in -one tool for o wne rs of digital cameras, WebCams, DV camcorders, scanne rs, or anyone who strives to effectively organize a large collection of digital media.

1. Insert the enclosed CD-ROM into your CD-ROM drive.

2. When the welcome screen appears, click “Install Ulead® Photo

Explorer”. Follow the on-screen instructions to complete the

installation.

 For more information about the operation of Photo Explorer application software, refer to its respective help

documentation.

 For Windows 2000/XP users, please make sure to install and use the Photo Explorer in “Administrator” mode.  Photo Explorer is not supported on the Mac. iPhoto or iPhoto2 is recommended.

EN-56

Installing Photo Express

Ulead

Photo Express is complete photo project software for digital images. The step-by-step workflow, visual program interface, and in-program help assist us ers in creating exciting ph oto projects. Acquir e digital photos effortlessly from digital camer as or sc ann er s. Or ga nize th em c onven ie ntl y wi th t he Visual Bro wse mode. Use hundreds of ready-to-use templates such as albums, cards, posters, slideshows, and more. Edit and enhance images with photo editing tools, photographic filters, and special effects. Embellish projects by adding creative design eleme nts such as frames, ca llouts, and stamp objec ts. Share results with famil y and friends via e-mail and multiple print options.

1. Insert the enclosed CD-ROM into your CD-ROM drive.

2. When the welcome screen appears,click “Install Ulead® Photo

Express”. Follow the on-screen instructions to complete the installation.

 For information on how to use Photo Express to edit and retouch your recorded images, please refer to its online help.  For Windows 2000/XP users, make sure to install and use the Photo Express while logged in as a user with an

Administrator account.

 Photo Express is not supported on the Mac.

EN-57

USING THE DIGITAL CAMERA AS A PC CAMERA

Your d ig ital c amera c an a ct as a PC c amera , wh ic h al lows y ou to v ideo con fer enc e wi t h bu si ness as so ciat es, or have a real-ti me conver sation w ith fri ends or family. To use the dig ital camera fo r video conferen cing, yo ur computer system must include the items as below:

 Microphone  Sound card  Speakers or headphones  Network or Interne t connection

 Video conferencing (or video editing) software is not included with the digital camera.  This mode is not supported for Mac.

Step 1: Install the PC camera driver

The PC-camera driver included in the CD-ROM is exclusively for Windows. The PC camera function is not supported for Mac platforms.

1. Insert the enclosed CD-ROM into your CD-ROM drive.

2. When the welcome screen ap pears, click “ Install USB/PC-Cam

driver ”. Follow the on-screen instructions to complete the installation.

3. After the driver installation is completed, restart your computer.

EN-58

Step 2: Connect the digital camera to your computer

1. Rotate the mode dial to and turn your camera on by pressing the power switch.

2. Press the four-way controller (X) to select the [Set-up2] menu, then use the four-way controller (T) to select [USB Con.].

3. Press the button.

4. Use the four-way controller (ST) to select [PC CAM], then press the button.

5. Connect your camera and the computer via the supplied USB cable.

6. Position the digital camera steadily on top of your computer

monitor or use a tripod.

USB Mode

Select :

Select :Cancel :

Cancel :

PC CAM.

USB Mode

EN-59

Step 3: Run your application software (i.e. Windows NetMe etin g)

To use Windows NetMeeting for videoconferencing:

1. Go to Start Æ Programs Æ Accessories Æ Communications Æ NetMeeting to launch the NetMeeting program.

2. Click the Start Video button to view live video.

3. Click the Place Call button.

4. Type the e-mail address or the network address of the computer that you are calling.

5. Click Call. The person th at you are cal ling must also ha ve Windows NetMee ting runni ng and be willing to

accept your call to start the videoconference.

 The video resolution for videoconferencing applications is generally 320 x 240.  For more information about the operation of videoconference application software, refer to its respective help

documentation.

 Use of AC adapter is recommended while the camera is used as a PC camera.

EN-60

MENU OPTIONS

Camera Menu

This menu is for the basic settings to be used when capturing still images.

1. Rotate the mode dial to , , , , , or and turn your camera on.

2. Press the button, then use the four -way controller (WX) to select the [Mode1] / [Mode2] / [Mode3] menu.  In Mode, press the button to access the [Auto] menu directly.

3. Use the four-way controller (ST) to sele ct th e op tion item, then press the button.

4. Press the four-way controller (ST) to select the desired setting, then press the button.

Select :

AututoAuto

Quality

ImImage Si

ge Si

zeImage Size

Retu

etu

rn n :

Quality

Return :

Mode1

Mode1 Mode2

Mode2

Mode3

Mode2 Mode3

ISO

Quality

ImImage Si

ge Si

W. Balanc

. Balanc

Retu

etu

rn n :

ISO

Quality

Image Size

W. Balance

Return :

Mode1

Mode1 Mode2

Mode2

Mode2 Mode3

Mode3

Off

Retu

etu

rn n :

Return :

Digital Zoom

Metering

Qui

ck k Vieiew Off

OnDigital Zoom

Metering

Quick View

Mode1

Mode1 Mode2

Mode2

Mode3

Mode3Mode2

Retu

etu

rn n :Return :

Date Imprin

te Imprin

Sha

rpnes

pnes

Color

Satuturatio

tio

OffOff

Medium

Date Imprint

Sharpness

Color

Saturation Medium

Medium

EN-61

 In the Mode

Item Functional Description

Image Size Sets the size of the imag e that will be cap tured. Refer to the section in this manual titled

"Setting Image Resolution and Quality" (EN-26) for further details.

2816x2112 2272x1704 1600x1200 640x480

Quality Sets the quality (compression rate) at which the image is captured. Refer to the section in

this manual titled "Setting Image Resolution and Quality" (EN-26) for further details.

Fine Normal Economy

EN-62

 In the , , , , or Mode.  Mode1 settings

Item Functional Description

Image Size Refe r to the section i n this manual titled “Setting Image Resolution and Quality” (EN-26)

for further details.

Quality Refer to the section in this manual titled “Setting Image Resolution and Quality” (EN-26)

for further details.

W.Balance Sets the white balance when shooting under a variety of lighting co nditions and permits

photographs to be taken that approach the conditions that are seen by the human eye.

Auto Daylight Cloudy Tungsten Fluorescent

ISO Sets the sensitivity for taking pictures. When the sensitivity is ra ised (and the ISO figure is

increased), photography will become possible even in dark locations, but the more pixelated (grainier) th e im ag e will appear. Auto / 64 / 100 / 200

EN-63

 Mode2 settings

Item Functio nal Description

Metering You can select the metering mode that sets which part of the subject to measure to

determine the exposure.

Center-weighted: Averages the light metered from the entire frame, but gives greater wieght to the subject matter at the center. Spot: The exposure is determined by the sm all area in the center of the screen only.

Digital Zoom This sets whether or not to us e digital zoom at the time of shooting. Refer to the section in

this manual titled “Using the Zoom Function” (EN-27)

for further details.

Quick View Set to display a photographed image on LCD monitor screen immediately after you have

taken the shot.

EN-64

 Mode3 settings

Item Functional Description

Color Sets the color of the image that will be captured.

Full Color Black & White Sepia

Sharpness Sets the level of image sharpn ess.

High Medium Low

Saturation To capture an image, your camer a offers you three different de gree s of co lor to ma tch w ith

your preference. Your images will demonstrate different impression by selecting different degrees of color. This is called “Saturation”.

High Medium Low

Date Imprint The dat e of re co rd ing can be printed directly on the still im ag es . Th is function must be

activated before the image is captured. The date appears on the right bottom of the captured picture. When images are shot with date imprint feature, the date cannot be removed later.

EN-65

Movie Menu

This menu is for the basic settings to be used when recording movie clips.

1. Rotate the mode dial to and turn your camera on.

2. Press the button.

3. Press the four-way controller (ST) to select the option item. Then press the button

4. Press the four-way controller (ST) to select the desired setting, then press the button.

5. To exit the movie menu, press the button.

Item Functional Description

Color

Refer to the Camera Menu's option item (the , , , , or Mode) for further details. (EN-64)

Digital Zoom

Refer to the Camera Menu's option item (the , , , , or Mode) for further details. (EN-63)

Select :

Vide

ide

oVideo

Retu

etu

rn n :Return :

Digital Zoom

OnDigital Zoom

Color

EN-66

Playback Menu

In the menu, set the settings used for pl ayback.

1. Press the button.  The last recorded image appears on the LCD monitor screen.

2. Press the button, then use the four-way controller (ST) to select the [Playback1] / [Playback2] menu.

3. Use the four-way controller (ST) to sele ct th e op tion item, then press the button.

4. Press the four-way controller (ST) to select the desired setting, then press the button.

5. To exit the playback menu, press the button.

Select :

Select :Retu

etu

rn n :Return :

Playba

ck2Playba

Playba

ck1Playback1

DPOF

Protec

otec

Slide Sh

owSlide Show

Playback2

DPOF

Protect

Select :

Retu

etu

rn n :Return :

Playba

ck2Playba

Playba

ck1Playback1 Playback2

CoCopy y To Ca

o Ca

Quality Change

Resi

esi

zeResize

Copy To Card

Quality Change

EN-67

 Playback1

Item Functional Description

Slide Show You can play back recorded images in order with a selected interval ti me.

This function is useful for checking your images or for presentations, et c. Refer to the section in this manual titled “Slideshow Display” (EN-42) for further details. 3 Sec. / 5 Sec. / 10 Sec.

Protect Set the data to read-only to prevent images from being erased by mistake.

Refer to the section in this manual titled “Protecting Images/Movie Clips” (EN-48) for further details.

DPOF Allows you to select the desired pictures to be printed and set the number of prints and

whether or not to imprint the data in DPOF format. You can print images easily just by inserting the SD memory card to a DPOF-compatible printer or taking it to a print shop. Refer to the section in this manual titled “Setting the DPOF” (EN-49) for further details.

EN-68

 Playback2

Item Functional Description

Resize Changes the size of a recorded image.

Resizing replaces the ori ginal image with the changed image. Only resizing to a smaller size is available. Refer to the section in this manual titled “Resizing an Imag e” (EN-43) for further details

2272x1704 1600x1200 640x480

Quality Change Changes the quality (compression rate) of a record ed image.

Compresses images and over writes an old size images with a newly compressed image. Only quality changing to a lower quality level is available.

Normal Economy

Copy to Card Allows you to copy your files from the digital camera’s internal memory to an SD memory

card. You can only do this if you have an SD memory card installed and some fi les in internal memory.

EN-69

Setup Menu

This feature allows you to set up the default settings by preference for using your camera.

1. Rotate the mode dial to mode and turn your camera on.

2. Press the four-way controller (WX) to select the [Set-up1] / [Set-up2] / [Set-up3] menu.

3. Use the four-way controller (ST) to select the desired option item, the n pr es s the button.

4. To exit the setup menu, rotate the mode dial to another mode.

Set-up1

Set-up1 Set-up2

Set-up2

Set-up3

Set-up2 Set-up3

Langu

age

Date & Tim

te & Tim

Beeper

Format

Language

Format

Date & Time

Beeper

Select :

glis

lis

hEnglish

m/d/y

Louder

m/d/y

Louder

Select :

Set-up1

Set-up1 Set-up2

Set-up2

Set-up2 Set-up3

Set-up3

Auto Shut D

uto Shut D

own

LCD Brightnes

CD Brightnes

USB Mode

3 Min.

NTSC

Auto Shut Down

LCD Brightness

3 Min.

NTSC

Select :

Set-up1

Set-up1 Set-up2

Set-up2

Set-up3

Set-up3Set-up2

Versio

sio

Set

To De

o De

faul

aul

Reset Numbe

eset Numbe

rReset Number

Version

Set To Default

EN-70

 Set-up1 settings

Item Functional Description

Format Erases all images and reformats the SD memory card loaded in your camera. Protected

images are also erased. SD me mory card cannot be formatted if it is write-protected. Refer to the section in this manual titled “Formatting an SD Memory Card or Internal Memory” (EN-23) for further details.

Beeper This sets whether or not to mute the startup sound, and the camera sound each time you

press a camera button. Louder / Soft / Off

Date & Time This sets the date and th e time .

Refer to the section in this manual titled “Setting the Date and Time” (EN-22) for further details. d/m/y m/d/y y/m/d

Language Sets the language that is displayed on the LCD monitor screen.

Refer to the section in this manual titled “Choosing the Screen Language” (EN-21) for further details . English/ Français / Deutsch / Español / Italiano / /

EN-71

 Set-up2 settings

Item Functional Description

USB Mode Selects to choose one of the following modes for further settings.

PC / PC CAM

TV Sets video output of the camera for matching the video output system of the equipment

that you are going to connect to the camera. PAL / NTSC

LCD Brightness

This sets the brightness of the LCD monitor screen. The adjustment range is from -5 to +5.

Auto Shut Down

If no operation is performed for a specific period of time, the power to the camera is automatically turned off. This feature is useful to reduce battery wear. 2 Min. / 3 Min. / 5 Min. / Off

EN-72

 Set-up3 settings

Item Functional Description

Reset Number. Sets whether or not to reset the file number when you take photographs. This creates a

new folder. The captured images are recorded to the newly created folder from number

0001. If you want to reset the file number, be sure that no images are recor ded in the internal memory or the SD memory card.

Set to Default Returns all basic settings to the digital camera's default settings. The time setting will not

be reset.

Version This displays the current firmware version of the camera.

EN-73

CONNECTING THE DIGITAL CAMERA TO OTHER DEVICES

USB Cable

Notebook

Computer

PCMCIA Adapter

SD Card ReaderSD Card Reader

AV Cable

SD Memory Card

Printer

EN-74

SPECIFICATIONS

Item Description

Image Sensor CCD

Effective pixels 6.0 Mega pixels

Image size Still image: 2816x 2112, 2272 x 1704, 1600 x 1200, 640 x 480

Movie clip: 320 x 240

Image quality Still image: Fine / Normal / Economy

Movie image: QVGA

Recording media Approx. 11MB internal memory

SD memory card (Optional, up to 1 GB)

File format JPEG (Exif 2.2), DCF, Motion JPEG (AVI)

Lens F-no.: Wide: 2.8 / Tele: 4.8

Focal length: 5.5mm~16.5mm (equivalent to 34~102mm)

Focus range Normal :40cm ~ infinity

Macro : W: 5cm ~ 40cm T: 35cm ~ 40cm

Flash effective range Wide: Approx. 0.6 m - Approx.2.4 m (at the standard output sensitivity of 200)

Tele: Approx. 0.6 m - Approx. 1.8 m (at the standard output sensitivity of 200)

LCD monitor 2.4" color TFT-LCD

Approx. 110K pixels display

EN-75

* Recording capacity shows approximate number of shots recorded during CIPA-compliant testing. Actual performance may

vary according to operating conditions.

* Design and specifications are subject to change without notice.

Self-timer 10 sec self-timer, 2 sec self-timer, 10+2 sec self-timer Exposure compensation -2.0EV~ +2.0EV (in 1/3 EV increments) White balance Auto, Daylight, Cloudy, Tungsten, Fluorescent ISO Auto, 64, 100, 200 Interface DC input terminal, PC/AV terminal Power 2 x AA (alkaline or Ni-MH recharge ab le) batteries

AC-DC Adapter (3V/2. 5A ) (Opt ional) Dimension A pprox. 88 x 60 x 25.5 mm Weight Approx. 130g (without batteries & SD card)

Item Description

EN-76

APPENDIX

 Troubleshooting Guide

Symptom Possible causes Solutions / Corrective Actions

Power does not turn on.

* The batteries have run out. * The batteries are not o riented correctly. * The battery cover is not closed properly. * The AC adapter (optional) is

disconnected.

* Load new or fully charge d batteries. * Load the batteries in the correct

direction. * Close the battery cover correctly. * Properly connect the AC adapter.

Camera suddenly powers down.

* The function of [Auto Shut Down] in the

mode has been activated.

* The batteries have run out.

* Turn the power back on and set the

option of [[Auto Shut Down] to [Off]. * Load new or fully charge d batteries.

Image is not captured when the shutter release button is pressed.

* The camera is in the or mode. * Memory is full.

* Rotate the mode dial to , , ,

, , or .

* Transfer the desired files to your

computer and then delete

unnecessary files, or use a different

memory card.

EN-77

Flash does not fire. * Flash off is selected in flash mode.

* 10+2 sec. Self-timer is selected in

self-timer mode.

* The [Capture Mode] is set to [Burst] or

[AEB].

* The camera is in the (video) mode.

* Select a different fl as h mod e. * Select [AF] in the [Capture Mode]. * Switch the mode dial to another

mode.

Continuous shooting is not possible.

* The capacity of the built-in memory or

SD memory card is full.

* Insert SD memory card with available

space or delete unwanted images.

Cannot transfer files over a USB connection.

* USB cable is not connec ted securely. * USB driver is not installed. * Camera is turned off.

* Check all connections . * Install the USB driver on your

computer. * Turn on the camera.

Symptom Possible causes Solutions / Corrective Actions

Kobian CyperPix E660P User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
