User Manual
165mm+-2
1
2
2
m
m
+
-
2
Table Of Contents
2
Safety Notes
------------------------------------------------------------------------03
Overall Introduction-------------------------------------------------------------04
n Accessories----------------------------------------------------------------------04
n External View -------------------------------------------------------------------05
n Mode Dial (Working Mode)---------------------------------------------------05
n Icon Display----------------------------------------------------------------------06
n Icon Index Table ---------------------------------------------------------------06
Getting Ready---------------------------------------------------------------------07
n Turn On or Off the Camera---------------------------------------------------07
n Loading the Batteries----------------------------------------------------------07
n Inserting or Removing an SD Card----------------------------------------08
n Attaching the Wrist Strap-----------------------------------------------------08
Getting Started--------------------------------------------------------------------09
n Basic Photography-------------------------------------------------------------09
Advanced Functionality Settings-------------------------------------------11
n Under Shooting Mode (
)------------------------------------------------11
Setting Focus Range----------------------------------------------------------11
Turning On or Off the TFT LCD Monitor----------------------------------11
Setting Flash Mode-------------------------------------------------------------12
Setting Self-timer---------------------------------------------------------------12
Setting Digital Zoom-----------------------------------------------------------13
Setting an Image Size (Resolution)----------------------------------------14
Setting Image Quality----------------------------------------------------------14
Setting Voice Memo------------------------------------------------------------15
Setting Exposure----------------------------------------------------------------16
Setting White Balance---------------------------------------------------------16
n Under Playback Mode (
) ----------------------------------------------17
Exploring an Image-------------------------------------------------------------17
Displaying Image Information-----------------------------------------------17
Playback of a Movie Clip-----------------------------------------------------
18
Thumbnail Images (Small Images) Display------------------------------18
Deleting Images ---------------------------------------------------------------19
Formatting an SD Card--------------------------------------------------------20
Formatting the Built-in Flash Memory -----------------------------------20
Setting Slide Show-------------------------------------------------------------
20
Setting Image Protection-----------------------------------------------21
Printing Out Images without a PC-----------------------------------21
n Under Movie Clip Mode (
) ----------------------------------------22
Setting the Recording Time of a Movie Clip----------------------22
n Under Setup Mode ( )----------------------------------------------- 23
Setting Beep Sound ---------------------------------------------------23
Setting Auto Power Off ------------------------------------------------23
Setting Date Stamp ----------------------------------------------------23
Setting Date Type ------------------------------------------------------23
Setting Date -------------------------------------------------------------24
Setting Quick View------------------------------------------------------24
Setting Language--------------------------------------------------------25
Setting Reset-------------------------------------------------------------25
Setting TV Mode---------------------------------------------------------25
TV Connection ---------------------------------------------------------------26
PC Connection-----------------------------------------------------------------27
n Installing the Camera's Driver ------------------------------------------27
Under Microsoft Windows 98 / 98SE-----------------------------------27
Under Microsoft Windows 2000-----------------------------------------28
Under Microsoft Windows ME / XP-------------------------------------29
Under Mac 9.X or later-----------------------------------------------------29
n Installing Ulead Photo Explorer ----------------------------------------
30
Under Windows Operation System (Windows 98/98SE/2000
/ME/XP)--------------------------------------------------------------------30
Under Macintosh Operating System (Mac 9.X or later)-----------32
n Downloading the Image(s)------------------------------------------------34
Under Windows Operation System (Windows 98/98SE/2000
/ME/XP)------------------------------------------------------------------------34
Downloading Images from Removable Disk --------------------34
Downloading Images through Ulead Photo Explorer ---------34
Under Macintosh Operating System (Mac 9.X or later)-----------35
Downloading Images from Removable Disk --------------------35
Downloading Images through Ulead Photo Explorer-----------35
Appendix -----------------------------------------------------------------------36
n Error Message Table ----------------------------------------------------36
n Specifications ---------------------------------------------------------------37
n About Ulead Photo Explorer --------------------------------------------38
Safety Notes
3
Do not try to open the camera by yourself, which may cause damage to the camera or electric shock.
Do not fire the flash in a close distance (less than 1 meter) to human eyes.
Keep the camera away from the reach of children or animals to prevent them from swallowing the batteries or small accessories.
Avoid using the camera if any kinds of liquid enters the camera. If it happens, switch off the camera and contact the company that you bought
this camera from for help.
Do not operate this camera with wet hands, which may cause electric shock.
Do not place or store the camera in a high temperature environment, which may cause damage to the camera.
Do not mix to use different types of batteries or new and old batteries.
Please remove the batteries to avoid electricity leakage if the camera is not in use for a long period.
Unplug the camera from the adapter (if used) to avoid damage to the camera if the camera is not to be used for a long period.
It's normal that the temperature of the camera body rises after using for a long period.
Overall Introduction
4
User Manual
Quick
Start
Guide
User
Manual
Accessories
Digital Camera
Camera Driver
& Ulead Software
2 x AA Batteries
Camera Pouch
Quick Start
Guide
USB Cable
Wrist Strap
Video Cable
Overall Introduction
5
DISP
POWER
External View
Shutter Button
Flash
Viewfinder
Speaker
Video Connector
USB Connector
Self-timer
LED
Optical Lens
Tripod Socket
Memory Card
Cover
Ø Shooting Mode (
)
Ø Playback Mode ( )
Ø Movie Clip Mode ( )
Ø Setup Mode (
)
Left ( )Direction/Flash
/ Thumbnails Button
Up ( )Direction Button
Down ( )Direction Button
Zoom in/out Button
(Optical, Digital Zoom)
Right ( )Direction
/ Self-Timer Button
Set/Macro
/Speaker Button
Strap Eyelet
Mode Dial
Menu/Cancel
Button
LED
Indicator
Viewfinder
TFT LCD
Monitor
TFT LCD Button
Power Button
Microphone
Battery Cover
TopBackFrontBottom
Mode Dial (Working Mode)
Overall Introduction
6
4
11 14
Icon Index Table
+
+
-
0
+
T
W
1
2
3
4
5
6
7
8
9
1112131014
Icon Display
Voice Memo
Working Mode
( ) Shooting mode
( ) Playback mode
( ) Movie clip mode
( ) Setup mode
Note: In Playback mode,
this icon " " will not be
shown on the TFT LCD.
3
Digital Zoom
4 Optical Zoom
6Digital Zoom
( )Macro
Battery Status
( ) Battery full
() Battery half
drained
( ) Battery
drained
7
Memory Card
8
9
101112
13
Exposure
Date
Image Size
( )2272x1704
( )2048x1536
( )1600x1200
( )1280x960
14
I
mage Quality
( )Super fine
( )Fine
( )Normal
White Balance
( )Auto
( )Daylight
( )Sunset
( )Fluorescent
( )Tungsten
Self-timer
5
2
1
Flash Mode
( )Auto flash
( )Auto flash with
red-eye
reduction
(
)Slow Sync
( )Fill-in flash
( )Flash off
Working Mode
Focus Range
Flash Modes
Digital Zoom
Thumbnails
Self-timer
Memory Card Inside
Battery Status
Image Size (Resolution)
Image Quality
White Balance
Exposure
Voice Memo
Protected Image
Print (DPOF)
Darkness Warning
Setting
Getting Ready
7
Turn On or Off the Camera
Loading the Batteries
Press down the "POWER" button to turn on the camera.
Repeat the above action to turn off the camera.
Note
The below symbols on the TFT LCD Monitor are the indication of
the battery status.
( ): Battery power is full.
( ):Battery power is half drained. Have new batteries ready.
( ):Battery power is drained. Replace the batteries you are using
now.
Note
2 pcs of AA alkaline / Ni-MH / CRV-3 batteries are strongly
recommended for normal operation.
Loading the Batteries
1. Turn off the camera.
2. Push down the black triangle button on the Battery Cover and
slide out to open it.
3. Load 2 x AA batteries into the battery chamber, following the
polarity indication.
4. Close the Battery cover
Getting Ready
8
Note
n Batteries may lose power if kept inside the camera for a long time without using. Please remove the batteries while the camera is
n not in use.
n Do not use manganese batteries since they cannot supply sufficient power to support the camera's operation.
n Batteries may not work normally under 0¢J.
n It's normal that the temperature of the camera body goes up after being in use for a long period.
Inserting or Removing an SD Card
Attaching the Wrist Strap
Note
If a new SD card is used, it is necessary to format firstly. Please
refer to page 20 for the details.
Note
The image(s) can be stored either in built-in flash memory or in
memory card. Only if the memory card is inserted, the images
will
be stored in the memory card rather than the built-in flash
memory. On the other hand, the images will be stored in the built-in
flash memory only if a memory card is not inserted.
1. Power off the camera
2. Open the Memory Card Cover.
3. Insert the SD card into the card slot and press it down until a click
sound happens. (Press down the inserted SD card again to get it
out when a click sound happens)
4.Close the Memory Card Cover.
Getting Started
9
Basic Photography
1. Remove the Lens Cover.
2. Press down the POWER button to turn on the camera.(Note that the yellow led on the back side will blink.)
3. Set the Mode Dial at Shooting Mode ( ) for still image or Movie Clip Mode ( ) for video recording.
4. Hold your camera with your hand and position a subject in the center of the frame to focus on.
5. If the subject you are going to shoot is ranged from 0.2m to 0.8 m, pressing down SET/MACRO button to change the focus range.
6. Press and hold the shutter button halfway down. Note when the color of the central frame turns from white to red and then to green,
this means the camera Auto Focus is ready. And then you can continue next step for image shooting.
7. Press the shutter button fully down for capturing the image.
8. The LED Indicator starts blinking right after the Shutter Button is released.
9. Once the LED Indicator stops blinking, you are ready to take another shot.
2003/09/05
2003/09/05 2003/09/05
2003/09/05
green
Auto Focus is ready!
Getting Started
10
Note
A message of "Low Light!" appearing on the TFT LCD Monitor as a warning to remind you to go to the Flash Mode and select Auto Flash or
Fill-in flash to get more light sources so as to compose a superior quality image.
Note
In such cases shown as follows, please release the shutter button, then try to recompose the shot and focus again because the Auto Focus
function may be difficult to use with.
n The subject is distant from the camera and dark
n The contrast of the subject and its background is poor
n The subject is viewed through a piece of glass or window.
n A fast-moving or a flashing subject is passing through.
n The subject has a reflection attribute like a mirror, a luminous body, or a lustrous subject.
Note
Move up and down the zoom button to adjust the suitable zoom position.
Note
The lens moves when the zoom feature is being used. Be very careful not to touch the lens.
Note
When the zoom exceeds 3X, enlargement is carried out using digital processing image and the image can be enlarged up to 4X using the
digital zoom feature. (When the digital zoom feature is used, the image quality deteriorates unlike the enlargement with the optical zoom.)
Note
Regarding any advanced functionality settings, please refer to the next section -- Advanced Functionality Settings. Note that press the MENU
Button to enter the advanced settings and please press down the MENU Button again anytime if you would like to exit the setting.
Note
You can easily check whether the setting is changed or not by the representative icon display on the right side of the LCD screen. If not, please
repeat the above steps.
T
T
The T side of this line shows
the extent of digital zoom
Advanced Functionality Settings
11
Under Shooting Mode ( )
Setting Focus Range
Turning On or Off the TFT LCD Monitor (Default :On)
DISP
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
Note:
For close-up of small subjects like flower or insects, shoot using the Macro feature as
shown on the left side of camera.
And the Macro icon ( ) will appear on the LCD screen
DISP
POWER
Macro ( ) : 0.2m~0.8m
Note:
By pressing the LCD button in order, you may change the display with fewer icons on
the TFT LCD, turn the TFT LCD off, and turn it on again for all available icons.
Note
:
With the power-off TFT LCD Monitor, you are able to extend the power consumption of
the camera and you may use the Viewfinder to target the subject instead for your
convenience.
Advanced Functionality Settings
12
Setting Flash Mode (Default: Auto Flash)
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
Setting Self-timer (Default: OFF)
T
W
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
Ø You can change the flash mode shown below according to the environment.
Auto Flash
Auto Flash with
Red-eye
Reduction
Night Scene
Fill-in Flash
Flash Off
The flash fires automatically as required under shooting mode.
To avoid the subject's eyes appear red in the picture, use this
mode can effectively minimize the likelihood of the red-eye
effect.
The flash will fire and the exposure time is set to 1/2 second
so that the subject in the foreground and background are
properl
y exposed.
This mode will enable the flash to fire in any circumstances.
The mode will disable the flash to fire in any circumstance.
Note
The function of self-timer starts with the
countdown from 10 seconds.
Note
The self-timer will be automatically cancelled
once the shoot is done.
Note
Press Right key and the self-time icon will
appear in the Preview.
Advanced Functionality Settings
13
Setting Optical Zoom (3X continuous) and Digital Zoom ( 4X continuous )
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
Note
The zoom bar, appearing on the left of the TFT LCD monitor, shows
the current digital and optical zoom position.
Note
When the zoom exceeds 3X, enlargement is carried out by using
digital processing, and the image can be enlarged up to 4X by using
the digital zoom feature.
When the digital zoom feature is used, the image quality is unlike the
enlargement with the optical zoom.
Advanced Functionality Settings
14
Setting Image Size (Default:2048x1536)
+
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
Setting Image Quality (Default: FINE)
+
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
Note
Four resolutions provided can be selected as follows:
( ) 2272 x 1704 (XL)
( ) 2048 x 1536 (L)
( ) 1600 x 1200 (M)
( ) 1280 x 960 (S)
Note
You can easily check whether the setting is changed or
not by the image size icon display on the right side of the
LCD screen. If not, please repeat the above steps.
Note
Three levels of image quality can be selected as
follows:
( ) Super Fine
( ) Fine
( ) Normal
Note
The better the image quality is
set, the less the number
of images can be stored in the built-
in flash memory or
the memory card.
Note
Three levels of image quality can be selected as
follows:
( ) Super Fine
( ) Fine
( ) Normal
Note
The better the image quality is set, the less the number
of images can be stored in the built-
in flash memory or
the memory card.
Advanced Functionality Settings
15

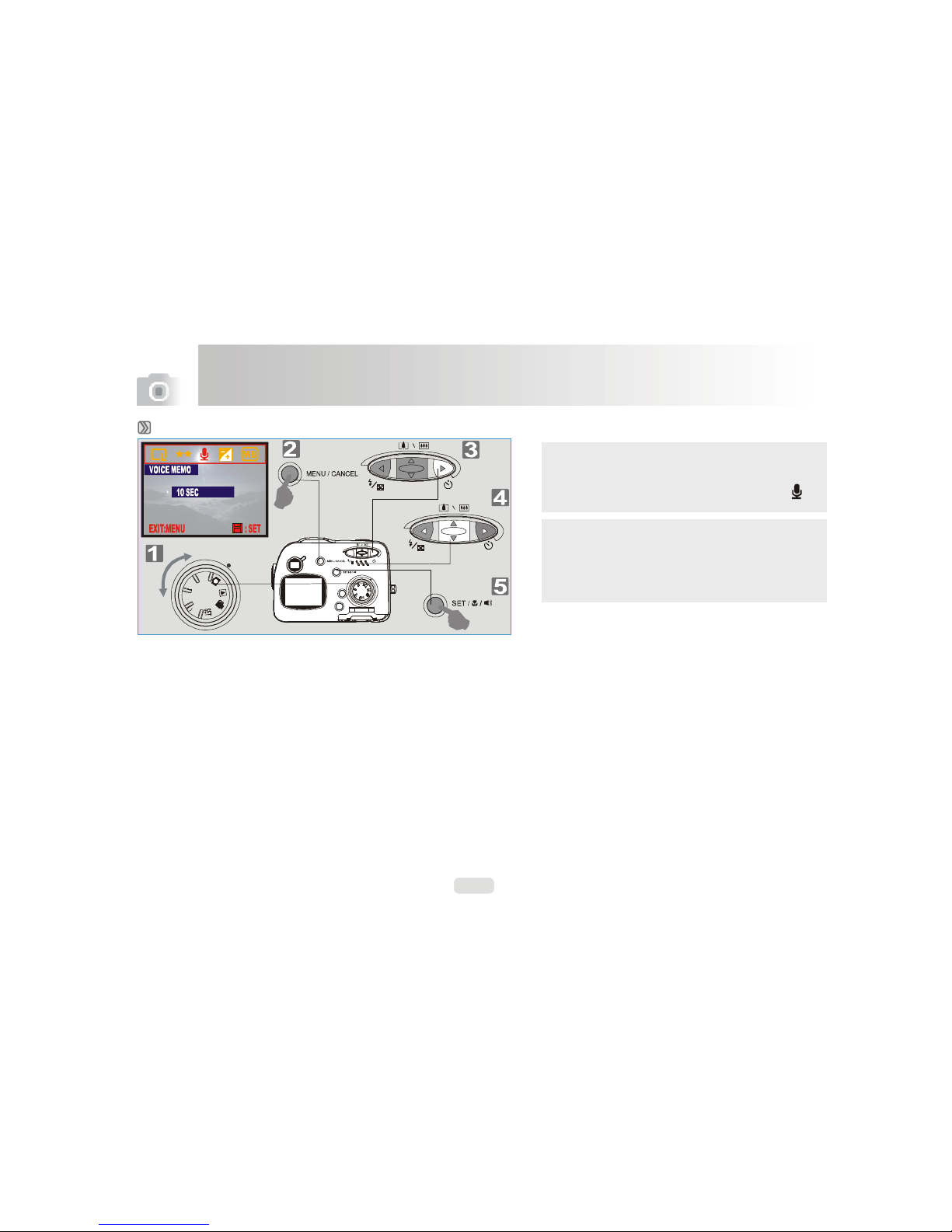

Setting Voice Memo (Default: OFF)
+
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
Note
When the Voice Memo is on for 10, 20, 30 SEC. or even
manual, you can record any voice or sound right after
capturing the image and you can also see the icon ( )
on the top of TFT LCD Monitor blinking.
Note
With the voice Memo function, you can record a voice
memo for a image that you just shot, just as a memo with
sound. Then, go to the PLAYBACK Mode, you can view the
image you just shot and listen to the sound you recorded by
pressing down the SET button.
Advanced Functionality Settings
16
Setting Exposure (Default: + 0)
+
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
Setting White Balance (Default: AUTO)
+
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
Note
The higher the value is, the brighter the image will be.
Note
Five White Balance modes can be selected as follows:
Auto Adjusting the white balance automatically
Daylight Under strong light environment
Sunset Under sunset light environment
Fluorescent Under fluorescent light environment
Tungsten Under tungsten light environment
Note
It is suggested to stay AUTO mode for beginners.
Advanced Functionality Settings
17
Under Playback Mode( )
Exploring an Image
T
W
TWT
W
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
Displaying an Image Information
Note: After enlarging your image by digital process
(step3), then you can continue (the step4) to enter
the PAN mode.
100-0003
SIZE:2048x1536
DATE: 2003/07/10
TIME:17:16:56
FLASH:FIRED
DI
SP
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
Advanced Functionality Settings
18
Playback of a Movie Clip
Thumbnail Images (Small Images) Display
100-0001
100-0001
100-0001
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
Note
Press Up ( ) and Down ( ) Direction Button to
search for the movie clip you record and press SET
( ) Direction Button to play the movie clip.
Note
You can press the SET Button to pause the playback and repress to cancel it.
Note
Press Up ( ) and Down ( ) Direction Button
to search for the images or movie clips and press
the SET Button to see the movie clip.
Note
The appearance of the icon (
) represents
Note
The appearance of the icon ( ) represents a
still image with voice memo.
Advanced Functionality Settings
19
Deleting Image(s)
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
Advanced Functionality Settings
20
Formatting an SD Card
Please inset an SD Card in advance.
Refer to page 19 and follow the steps, selecting "FORMAT" in step 3, "YES" in step 4.
Formatting the Built-in Flash Memory
Please make sure no memory card is inserted.
Refer to page 19 and follow the steps, selecting "FORMAT" in step 3 , "YES" in step 4.
Setting Slide Show (Default :1SEC)
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
Advanced Functionality Settings
21
Setting Image Protection
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
Printing Out Images without a PC (Default: X0)
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
Note
After the above steps are done, please check if the ( )
is shown on the left side of the TFT LCD screen. If it is
not shown please repeat the above steps.
Note
For cancelling this "PROTECT" function, please repeat
the steps above and select "UNLOCK" Instead.
Note
You cannot see the "PRINT" function on the TFT LCD
Monitor if a memory card is not inserted.
Note
After the above steps are done, please check if the ( )
is shown on the left down corner. If it is not shown,
please repeat the steps.
Note
After the above steps are done, please check if the ( )
is shown on the left side of the TFT LCD screen. If it is
not shown please repeat the above steps.
Note
For cancelling this "PROTECT" function, please repeat
the steps above and select "UNLOCK" Instead.
Advanced Functionality Settings
22
Under Movie Clip Mode( )
Setting the Recording Time of a Movie Clip (Default :10 SEC)
MOVIE CLIP
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
Note
1. Once the Shutter Button is pressed, the camera will
start and end the recording automatically according
to the time you select.
2. If "Manual" is selected, press the Shutter Button to
start the recording or press the Shutter Button again
to stop the recording.
Note
The TFT LCD Monitor will show "Low Light!" as a
warning to remind you that the video that you are going
to record is in a low light environment.
Advanced Functionality Settings
23
Under Setup Mode ( )
Setting Beep Sound (Default: ON) Setting Auto Power Off (Default : 2 MIN)
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
Setting Date Stamp (Default : ON)
Setting Date Type
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
Note
The power off setting is from "cancel" to "10mins."
Note
If "ON", the date in this image can be printed out.
Advanced Functionality Settings
24
Setting Date
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
Setting Quick View
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
Note:
After press SET key, then you can start to Set Date information.
Advanced Functionality Settings
25

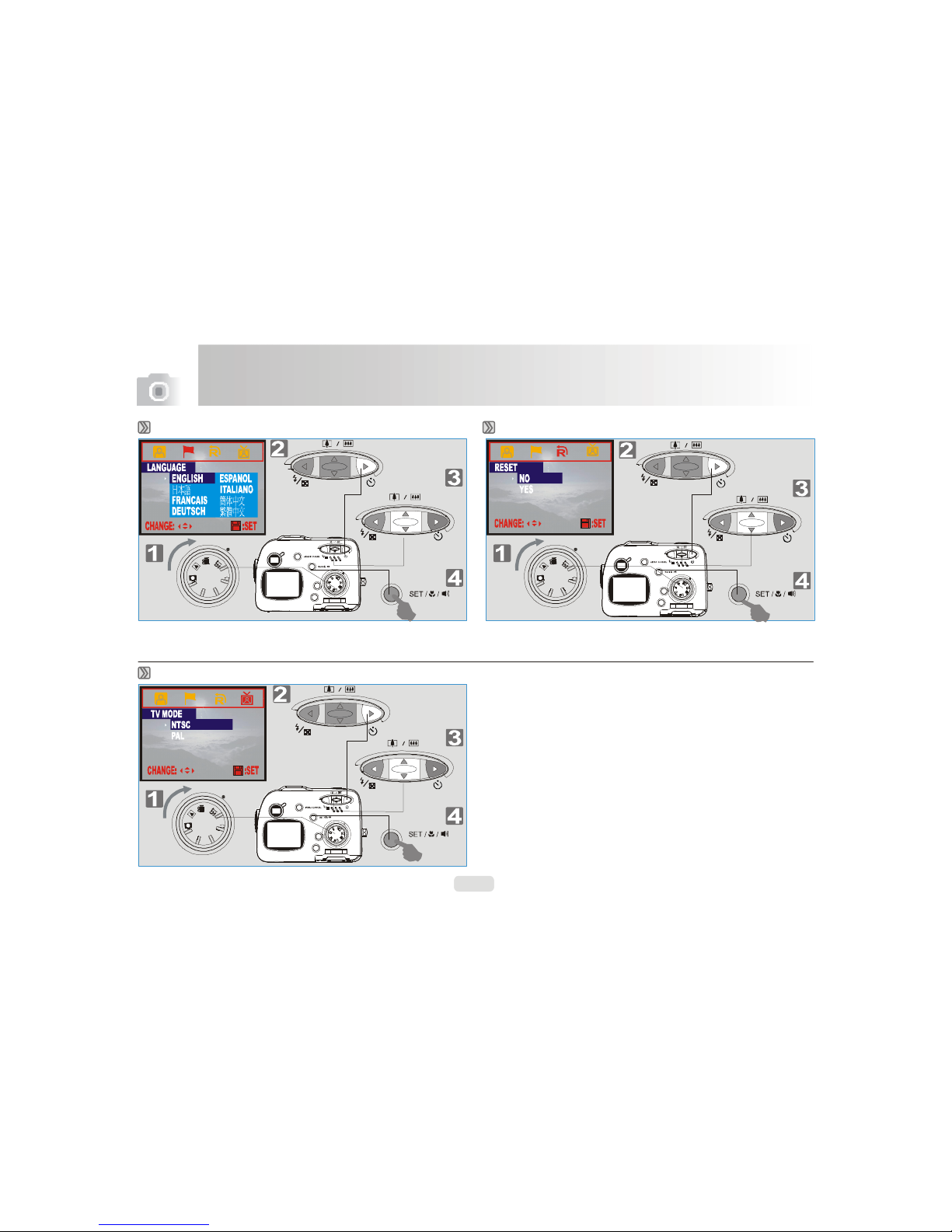

Setting Language
Setting Reset
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER

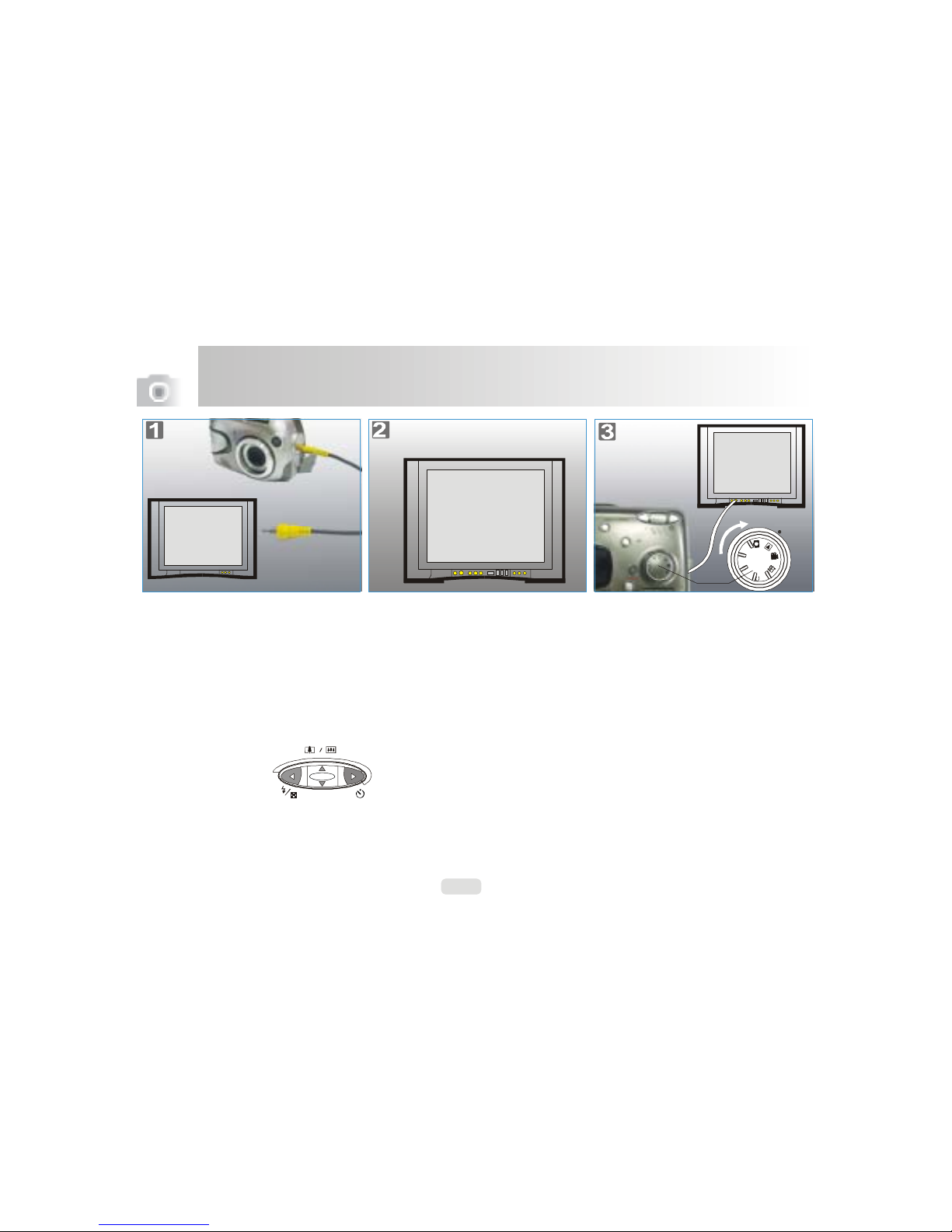

Setting TV Mode
DISP
POWER
SET / MACRO
MENU / CANCEL
DISP
POWER
Note:
After press SET key, then you can start to Set Date information.
If you want to view the playback picture on TV, the video standard
system of the TV must be the same ast of your digital camera.
Check the following list:
NTSC system:
Canada, Central America, Chile, Colombia, Japan, South Korea,
Mexico, Peru, Taiwan, the Philippines, the U. S. A. Belize,... etc.
PAL system:
Australia, China, Finland, Germany, Holland, Hong Kong, Italy,
New Zealand, Spain, Sweden, Singapore, Switzerland, Thailand,
United Kingdom, Denmark, Greece, India, Indonesia, Israel,
Norway, Pakistan, Saudi Arabia, South Africa, Turkey, United
Arab Emirates,...etc.
TV Connection
26
1 Connect the video out jack of the camera to video input ports of the TV set with the included Video Cable
2 Turn on the TV set and set the TV/Vi deo toggle switch to A/V mode.
3 Rotate to PLAYBACK Mode and power on the camera.
4 Move up and down the direction button to se lect the image and view it on T V.
PC Connection
27

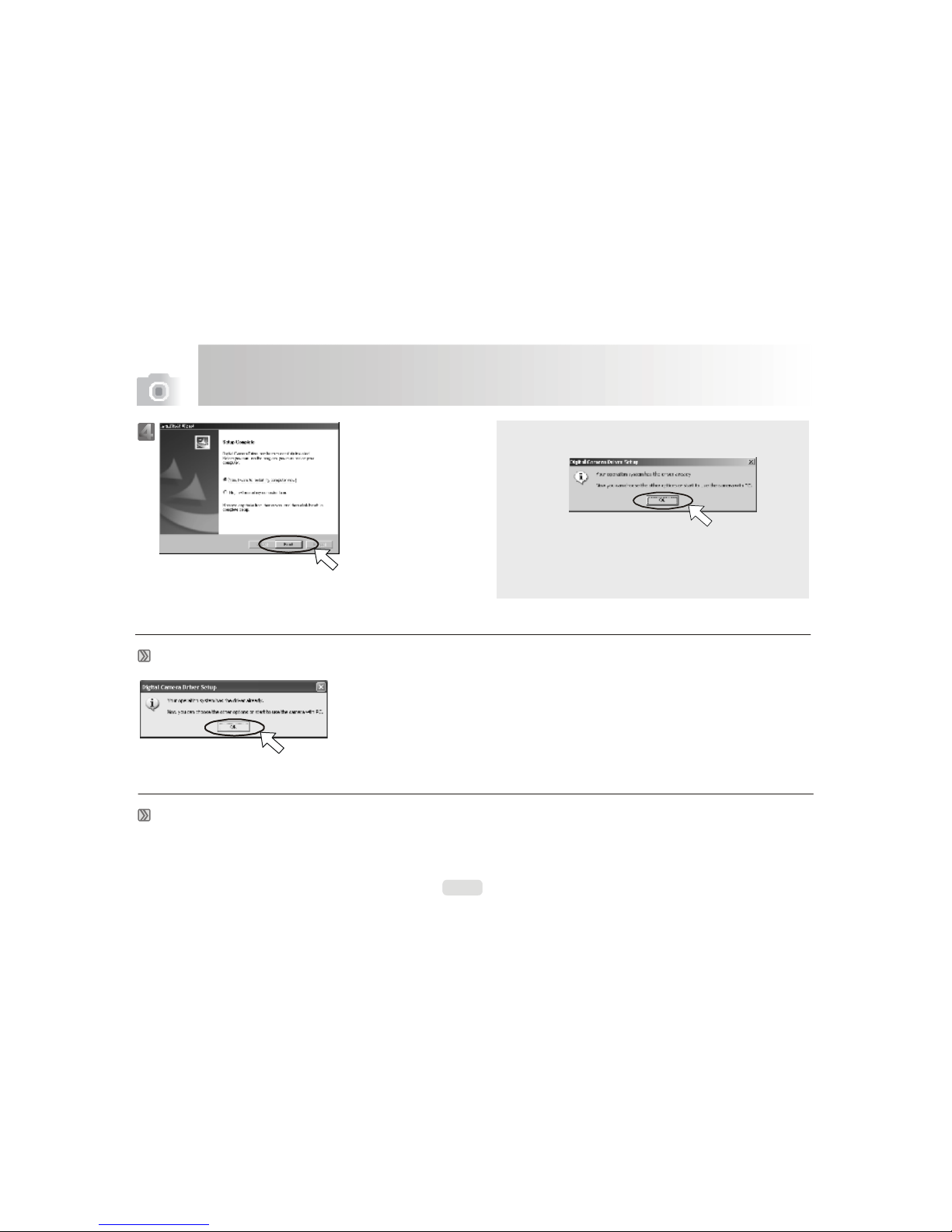

Installing the Camera's Driver

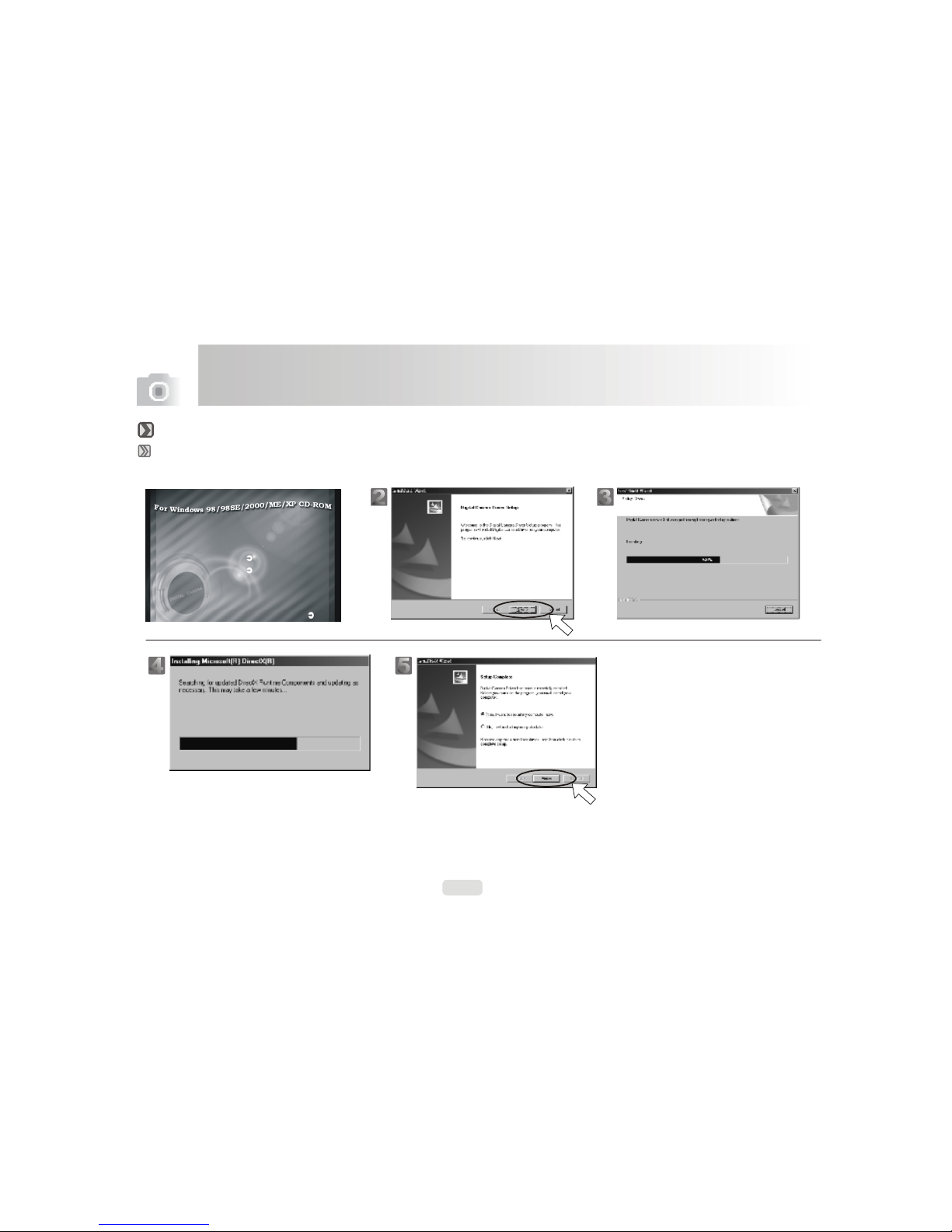

Under Microsoft Windows 98 / 98SE
PC Connection
28
Note
Under Microsoft Windows 2000
If the auto run program fails under certain situation, please go
to the Start Menu, click "Run" and key in "CD-ROM Drive:\
AutoRun.exe" and then click "OK" Button.
Note
If the computer has DirectX 8.0 or later already, the installation
procedure will skip above step 4 and go to the following window
directly completing the driver installation.
PC Connection
29
Under Microsoft Windows ME / XP
Under Mac 9.X or later
This camera, supporting only Mac 9.X or later versions, allows you not to install any driver. Please go to page 28 for installation of
Ulead Photo Explorer or go to page 31 to download the stored images onto the PC.
Note
Having DirectX 8.0 or later already, the computer will
skip the installation procedure from step 2 above and go
to the following window directly. Please complete the
driver installation with a "OK" Click.
The camera's driver is not required under Windows ME and Windows XP. So, go to page
26 for installation of Ulead Photo Explorer or go to page 30 to download the stored
image(s) onto the PC. Please click "OK", if the below window prompts.
PC Connection
30

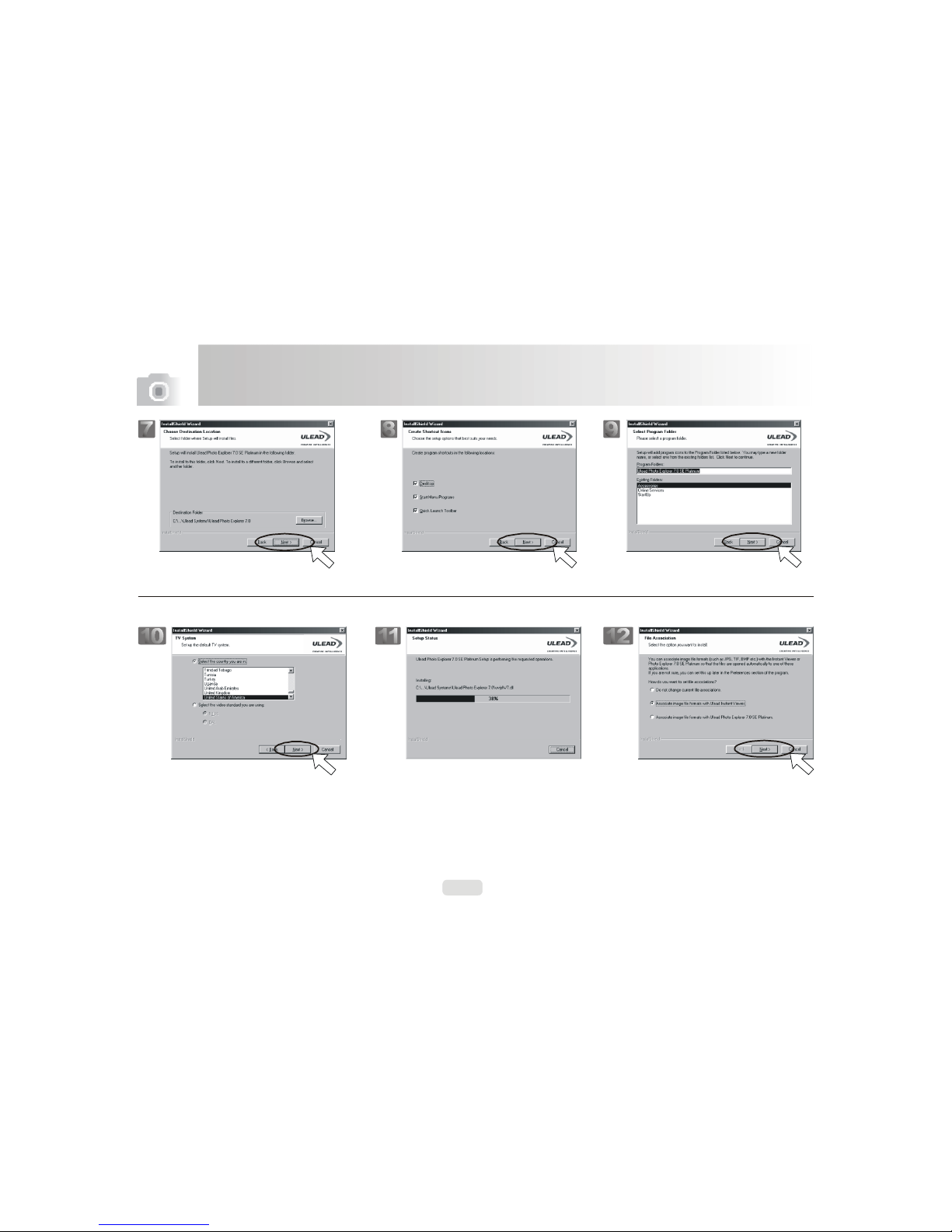

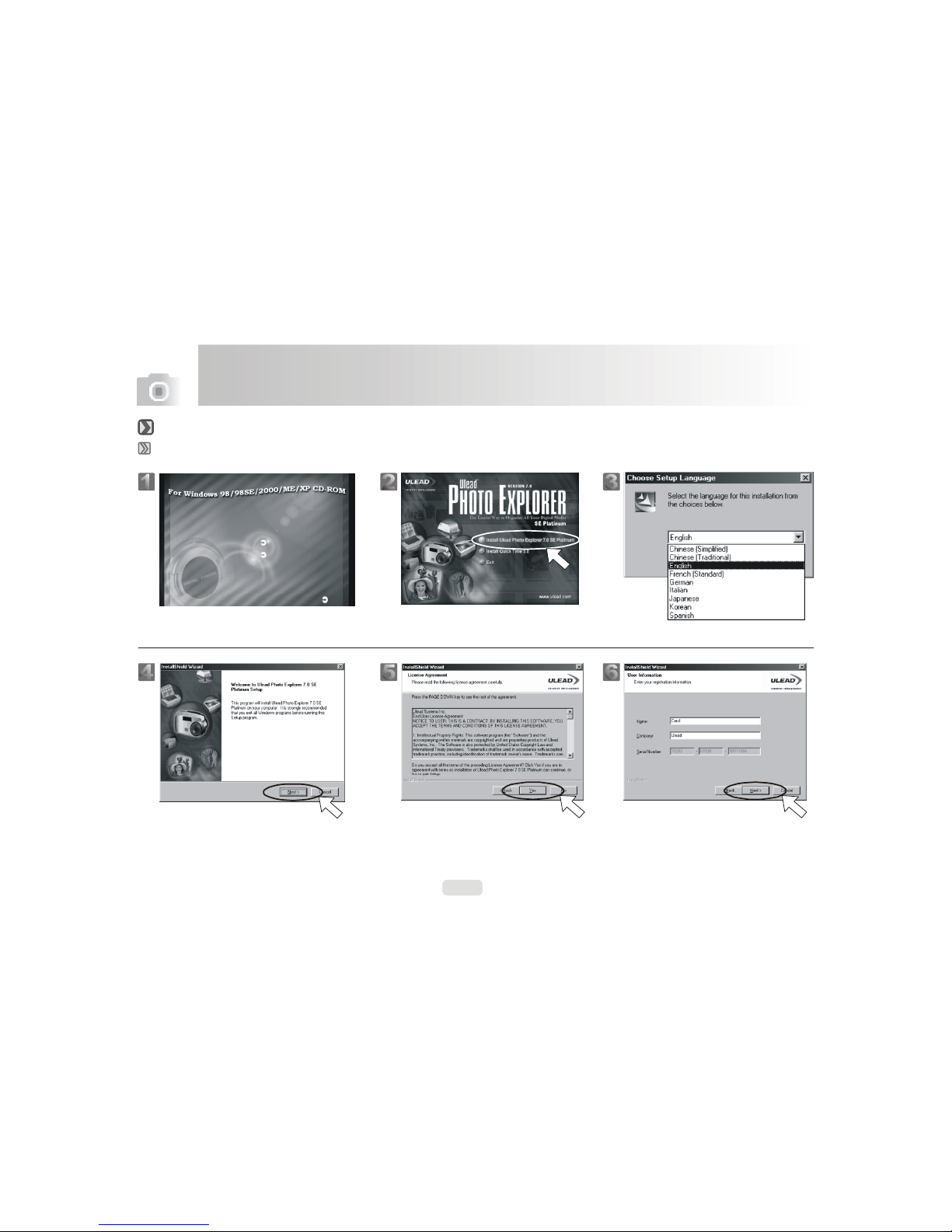

Installing Ulead Photo Explorer
Under Windows Operating System (Windows 98/98SE/2000/ME/XP)
PC Connection
31
PC Connection
32
Under Macintosh Operating System (Mac 9.X or later)
Step :
Turn on the computer.
Step :
Insert the CD into the CD-ROM
Drive. The computer will
create an icon named "Driver
CD" on the desktop.
Step :
Double clicks on the icon and
choose the language you
prefer by double clicking on
one of the below folders.
PEX 2.0: English
PEX 2.0F: French
PEX 2.0G: German
PEX 2.0I: Italian
PEX 2.0J: Japanese
PEX 2.0P: Portuguese
PEX 2.0S: Spanish
PC Connection
33
Step :
Choose "Ulead Photo
Explorer" and copy this file
to the desktop.
Step :
Click on the newly created
"Ulead Photo Explorer" icon
on the desktop and double
clicks on "Photo Explorer"
folder to start Ulead Photo
Explorer.
Note
If a warning window shows please visit Apple's official web-site http://kbase.info.
apple.com to download the latest version of CarbonLib.
a. Key in "CarbonLib" in the search bar and click "Search" button.
b. Download the latest version of CarbonLib.
c. Restart the computer.
d. Go to the desktop and double click on the icon "Ulead Photo Explorer" to start Ulead
Photo Explorer.
PC Connection
34
Downloading the Image(s)
Under Windows Operating System (Windows 98/98SE/2000/ME/XP)
n Downloading Image(s) From Removable Disk
1. Turn on the PC.
2. Switch on the camera.
3. Connect the camera to the PC with USB cable under any working mode. Please make sure
the USB cable is well connected to the PC and camera.
4. When the USB cable is connected to the PC, it will create a new hard disk named
Removable Disk .
5. The stored "image(s) can be found in" Removable Disk\Dcim\100 media .
6. View the image with double-clicks.
n Downloading Image(s) Through Ulead Photo Explorer
1. Connect the camera to the PC with USB cable under any working mode. Please make sure
the USB cable is well connected to the PC and camera.
2. Start Ulead Photo Explorer 7.0 SE Platinum .
3. Click "File \Download From Memory Card" to get the stored image(s).
PC Connection
35
Under Macintosh Operating System (Mac 9.X or later)
n Downloading Image(s) From Removable Disk
1. Turn on the PC.
2. Switch on the camera.
3. Connect the camera to the PC with USB cable under any working mode. Please make sure
the USB cable is well connected to the PC and camera.
4. When the USB cable is connected to the PC, it will create a new icon named "untitled" on
the desktop.
5. Double click on the icon.
6. The stored image(s) can be found in the folder of DCIM \ 100MEDIA \.
7. View the image with double-clicks.
n Downloading Image(s) Through Ulead Photo Explorer
1. Turn on the PC and switch on the camera. Connect the camera to the PC with USB cable
and a new disk such as "Unlabeled" will be created automatically.
2. Start with Uleas Photo Explorer 7.0 SE Platinum . The stored image(s) can be found in the
folder of DCIM \ 100MEDIA \. Please view the image(s) with double-clicks.
Appendix
Error Message Table
Messages Causes Solutions
CARD FULL
There is insufficient card memory capacity
to store an image.
Delete the stored image(s) in the memory
card or insert a new memory card.
MEMORY FULL
There is insufficient internal memory
capacity to store an image.
Delete the stored image(s) in the flash memory.
CARD LOCKED
(ICON BLINKING)
The SD card is under protection. Set the card protection switch at non-protection
position.
LOCK
The Image can't be deleted under protection. Unlock the protected image.
NO IMAGE
There is no image stored in the memory card
or built-in flash memory.
Please take pictures or record movie clips.
FILE ERROR
File format error. Insert a new SD/MMC card or format the media.
MEMORY ERROR
Memory is damaged or failed. Format the media.
CARD ERROR
Card is damaged or failed. Insert a new SD/MMC card
LOW BATTERY !
(ICON BLINKING)
Battery power is drained. Insert new batteries.
HAND SHAKE
ICON (
)
The environment is too dark in "Flash Off" mode. Cancel the Flash off mode.
FOCUS ERROR
Focus is out of range. Power on again
ZOOM ERROR
Zoom is not in right position. Power on again
LOW LIGHT!
The environment is too dark in Flash off or "Night Scene' Set the flash mode at Auto Flash or Full-in Flash.
HAND SHAKE ICON
The environment is too dark in Flash off or "Night Scene' Avoid shake.
Set the flash mode at Auto Flash or Full -in Flash.
36
Appendix
Specifications
Type
Sony 1/2.7” CCD
Effective
Pixels
Approx. 3.14 Mega pixels
Sensor
Total Pixels
Approx. 3.3 Mega pixels
Focal Length
Wide: f= 5.6mm, Tele: f=16.8mm
(35mm film equivalent: 36 ~ 108 mm)
F No.
Wide: F3.6 to F6.5, Tele: F5.6 to Tele: F10.0
Lens
Zoom
3x Optical Zoom, 4x Digital Zoom
Capture Mode:4x (continuous)
& Play Mode:4x (continuous)
LCD Display
1.6" color TFT LCD (85k pixels)
Viewfinder Optical
Viewfinder
Optical real image viewfinder
Field-of-view: >80% (@ wide 2m)
Type
Mechanical shutter and Electronic shutter
Shutter
Speed
1/2~1/1000 sec.
Control
Programmed AE
Compensation
±2EV (0.5EV / steps)
Exposure
ISO Equivalent
Auto
Modes
Auto/Auto & Red - eye reduction/Slow sync/Fill-in flash /
Flash off
Range
Wide: 0.2M ~ 4M Tele: 0.2M ~ 2.5M
Flash
Recharging
Approx.: 8 - 10 sec.
White Balance
Auto / Daylight / Sunset / Fluorescent / Tungsten /
Still Image
Modes: Single image
Shooting
Movie Clip
Size: 320x240 with Audio
Recording time:10~30 sec.(10sec. / steps)
and Manual
Self-timer
10 seconds with LED indicator
Media
Internal memory: 16MB flash memory
External memory: SD Card
File Format
Still Image: JPEG (DCF), DPOF;
Movie Clip: AVI with wave sound
Storage
Image Size
Extra Large: 2272x1704 via interpolation,
Large: 2048x1536, Medium: 1600x1200 pixels,
Small: 1280x960 pixels
Image Play
Single image with voice memo/AVI play with audio /
thumbnails/slide show
Interface
Digital output connector: USB 1.1
TV-out, MIC-in, Speaker
Power Source
2 pcs of AA alkaline / 2 pcs of Ni-MH / CRV-3
Dimensions (WxHxD)
98 x 72 x 52.5 mm
Weight
215g
Camera
Driver
Mass Storage Driver
(Windows98/98SE/2000/ME/XP, Mac OS 9.x or later)
Software
Application
Ulead PhotoExplorer 7 / PhotoExplorer 2 (MAC ver.:
Optional)
System Requirements
For Windows
PC with processor better than MMX Pentium 233MHz
(XP : Pentium II 300MHz)
Windows 98/98SE/2000/ME/XP
Minimum 32MB RAM (XP: 128MB)
110MB of available hard-disk space
USB port, CD-ROM drive
800×600 pixels, 16-bit color display compatible monitor
For Macintosh
Power Mac G3 or later
Mac OS 9.x or later
Minimum 64MB RAM
110MB of available hard-disk space
USB port, CD-ROM drive
QuickTime 4.0 or later for Movie Clip
37
Appendix
About Ulead Photo Explorer
Software license
The software described in this document is furnished under a License Agreement which is included with the product. This Agreement
specifies the permitted and prohibited uses of the product.
Licenses and trademarks
ICI Library 1991-1992 C-Cube Microsystems.Ulead Systems, Inc. And the Ulead logo are trademarks of Ulead Systems, Inc. All other
product names and any registered and unregistered trademarks mentioned in this manual are for identification purposes only and
remain the exclusive property of their respective owners.
Technical supports
Registered users are entitled to Ulead technical support. This Web site has valuable up-to-date information about Photo Explorer, other
Ulead products, and free downloads. Visit our Web site at www.ulead.com, or send an e-mail at support@ulead.com.tw.
Headquarters:Ulead Systems, Inc.
North & South America:Ulead Systems, Inc.
Http://www.ulead.com
E-mail: info@ulead.com
Asia-Pacific:Ulead System, Inc.
Http://www.asiapac.ulead.com
E-mail: info@asiapac.ulead.com
China:Ulead Systems, Inc.
Http://www.ulead.com.cn
E-mail: info@ulead.com.cn
Http://www.ulead.com.tw
E-mail: info@ulead.com.tw
Japan:Ulead Systems, Inc.
Http://www.ulead.co.jp
E-mail: info@ulead.co.jp
Europe:Ulead Systems GmbH
http://www.ulead.de
http://www.ulead.co.uk
http://www.ulead.co.uk/fr
E-mail: info@ulead.de
38
Appendix
39
R R
R
System requirements
Before installing Photo Explorer, make sure your computer meets these requirements:
Intel Pentium processors (or 100% compatible processors)
Microsoft Windows 95/98, NT 4.0, 2000 or higher
32 MB RAM (or more)
17.8 MB available hard drive space for program files
True Color or HiColor display adapter and monitor (recommended)
800 X 600 minimum display resolution
Windows compatible pointing device
Microsoft Internet Explorer 4.0 or higher
Internet connection (recommended)
16-bit or better sound card and speakers (recommended)
DirectX 6.0 or higher (for video functions only)
Loading...
