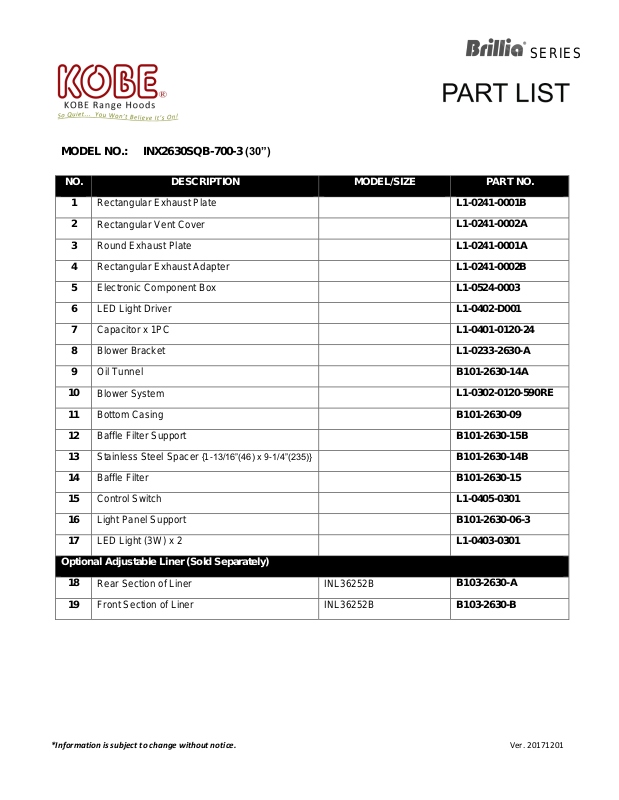

Kobe INX2630SQB7003 Part List
SERIES
MODEL NO.:
INX2630SQB-700-3 (30”)
NO.
DESCRIPTION
MODEL/SIZE
PART NO.
1
Rectangular Exhaust Plate
L1-0241-0001B
2
Rectangular Vent Cover
L1-0241-0002A
3
Round Exhaust Plate
L1-0241-0001A
4
Rectangular Exhaust Adapter
L1-0241-0002B
5
Electronic Component Box
L1-0524-0003
6
LED Light Driver
L1-0402-D001
7
Capacitor x 1PC
L1-0401-0120-24
8
Blower Bracket
L1-0233-2630-A
9
Oil Tunnel
B101-2630-14A
10
Blower System
L1-0302-0120-590RE
11
Bottom Casing
B101-2630-09
12
Baffle Filter Support
B101-2630-15B
13
Stainless Steel Spacer {1-13/16”(46) x 9-1/4”(235)}
B101-2630-14B
14
Baffle Filter
B101-2630-15
15
Control Switch
L1-0405-0301
16
Light Panel Support
B101-2630-06-3
17
LED Light (3W) x 2
L1-0403-0301
Optional Adjustable Liner (Sold Separately)
18
Rear Section of Liner
INL36252B
B103-2630-A
19
Front Section of Liner
INL36252B
B103-2630-B
*Information is subject to change without notice. Ver. 20171201
MODEL NO.:
INX2630SQB-700-3 (30”)
SERIES
*Information is subject to change without notice. Ver. 20171201
