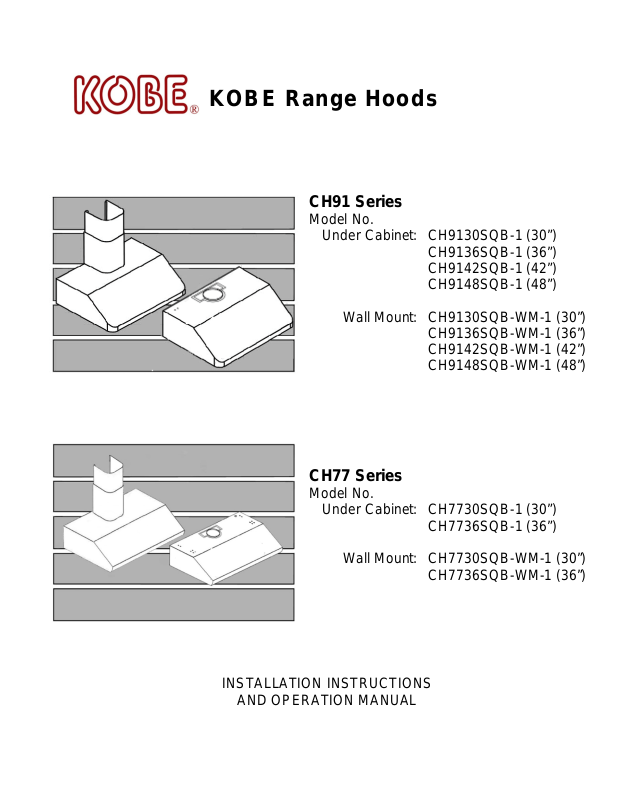

Kobe CH9130SQB1, CH9136SQBWM1 User Manual

KOBE Range Hoods

CH91 Series

Model No.

Under Cabinet:

Wall Mount: CH9130SQB-WM-1 (30”)

CH9130SQB-1 (30”)
CH9136SQB-1 (36”)
CH9142SQB-1 (42”)
CH9148SQB-1 (48”)

CH9136SQB-WM-1 (36”)
CH9142SQB-WM-1 (42”)
CH9148SQB-WM-1 (48”)

CH77 Series

Model No.

Under Cabinet:

Wall Mount: CH7730SQB-WM-1 (30”)

CH7730SQB-1 (30”)
CH7736SQB-1 (36”)

CH7736SQB-WM-1 (36”)

INSTALLATION INSTRUCTIONS

AND OPERATION MANUAL

IMPORTANT

READ THIS FIRST

READ BEFORE INSTALLATION

1. Carefully check all contents of packages.

2. Thoroughly inspect the unit for any shipping damages, cosmetic
damages or defects.

3. Have a certified contractor/electrician test the unit before installation.

IF THERE IS ANY PROBLEM:

1. DO NOT INSTALL THE UNIT AND KEEP ALL ORIGINAL

PACKAGING MATERIAL.

2. Have your original invoice as proof of purchase and product serial
number ready.

3. Contact your merchant for product replacement due to shipping
damages, cosmetic damages or defects.

4. For all other issues, call 1-877-BUY-KOBE (289-5623), or e-mail to

[e-mail] .

NO RETURN, NO REFUND, NO EXCHANGE IF:

1. PRODUCT HAS BEEN INSTALLED

2. KNOCK-OUT HOLES HAVE BEEN PUNCTURED

3. MISSING ORIGINAL PACKAGING MATERIAL
AND/OR PARTS

[ENGLISH]

- READ AND SAVE THESE INSTRUCTIONS -

CONTENTS

IMPORTANT SAFETY INSTRUCTIONS .................................................................................... 1

COMPONENTS OF PACKAGE.................................................................................................. 3

INSTALLATION .......................................................................................................................... 5

OPERATING INSTRUCTIONS..................................................................................................14

MAINTENANCE ........................................................................................................................16

SPECIFICATIONS ....................................................................................................................17

MEASUREMENTS & DIAGRAMS .............................................................................................19

PARTS LIST ..............................................................................................................................22

CIRCUIT DIAGRAM ..................................................................................................................28

TROUBLE SHOOTING .............................................................................................................30

WARRANTY .............................................................................................................................31

WARRANTY INFORMATION FORM .........................................................................................33

- READ ALL INSTRUCTIONS CAREFULLY BEFORE STARTING -

ALL W I RING MUST B E DON E BY A PROF E SSION A L AND IN

ACCO R DANCE WITH N ATION A L AND LOCA L ELEC T R ICAL CODES

IMPORTANT SAFETY INSTRUCTIONS

- PLEASE READ THIS SECTION CAREFULLY BEFORE INSTALLATION -

WARNING

:

TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK OR PERSONAL INJURY,
OBSERVE THE FOLLOWING:

1) Installation and electrical wiring must be done by qualified professionals and in accordance with all
applicable codes and standards, including fire-rated construction.

2) When cutting or drilling into wall or ceiling, be careful not to damage electrical wiring or other hidden
utilities.

3) Ducted fans must be vented to the outside.
a) Before servicing or cleaning unit, open the light panel and SWITCH POWER OFF AT SERVICE

PANEL.

b) Clean all grease laden surfaces frequently. To reduce the risk of fire and to disperse air properly,

make sure to vent air outside. DO NOT vent exhaust air into wall spaces, attics, crawl spaces or
garages.

NOTE - This warranty is void without an authorized agent’s receipt or if unit is

damaged due to misuse, poor installation, improper use, mistreatment,
negligence or any other circumstances beyond the control of KOBE
RANGE HOODS authorized agents. Any repair carried out without the
supervision of KOBE RANGE HOODS authorized agents will
automatically void the warranty.

- KOBE RANGE HOODS will not be held responsible for any damages to
personal property or real estate or any bodily injuries whether caused
directly or indirectly by the range hood.

WARNING

1. Keep all fan, baffle/spacer/filter/oil tunnel/oil container and grease-laden surfaces clean. Grease
should not be allowed to accumulate on fan, baffle/spacer/filter/oil tunnel/oil container.

2. Always turn hood ON when cooking.

3. Use high settings on cooking range ONLY when necessary.

4. Do not leave cooking range unattended when cooking.

5. Always use cookware and utensils appropriate for the type and amount of food prepared.

6. Use this unit only in the manner intended by the manufacturer.

7. Before servicing, switch power off at service panel and lock service panel (if possible) to prevent
power from switching on accidentally.

8. Clean ventilating fan frequently.

: TO REDUCE THE RISK OF PERSONAL INJURY IN THE EVENT OF A RANGE

TOP GREASE FIRE:

1

What to Do In The Event Of a Range Top Grease Fire

• SMOTHER FLAMES with a tight fitting lid, cookie sheet, or metal tray, and then turn off the burner.
KEEP FLAMMABLE OR COMBUSTIBLE MATERIAL AWAY FROM FLAMES. If the flames do not go
out immediately, EVACUATE THE AREA AND CALL THE FIRE DEPARTMENT or 911.

• NEVER PICK UP A BURNING PAN – You May Get Burned.

• DO NOT USE WATER, including wet dishcloths or towels – a steam blast will result.

• Use an extinguisher ONLY if:
a) You have a Class A, B, C extinguisher and know how to operate it.
b) The fire is small and contained in the area where it started.
c) The fire department has been called.
d) You can fight the fire with your back to an exit.

What to Do If You Smell Gas

-

Extinguish any open flame.

-

Do not try to turn on the lights or any type of appliance.

-

Open all doors and windows to disperse the gas. If you still smell gas, call the Gas Company and
Fire Department right away.

CAUTION

1) For general ventilation use only. Do not use to exhaust hazardous or explosive materials and vapors.

2) To reduce the risk of fire, use only metal ductwork. Sufficient air is needed for proper combustion and
exhausting of gases through the flue (chimney) to prevent back drafting.

3) Follow the heating equipment manufacturer’s guideline and safety standards such as those published
by the National Fire Protection Association (NFPA), and the American Society for Heating,
Refrigeration and Air Conditioning Engineers (ASHRAE), and code authorities.

4) Activating any switch on may cause ignition or an explosion.

5) Due to the size and weight of this hood, installation by 2 persons is recommended.

ELECTRICAL SHOCK HAZARD – Can result in serious injury or death.
Disconnect appliance from electric power before servicing. If equipped,
the fluorescent light bulb contains small amounts of mercury, which must
be recycled or disposed of according to Local, State, and Federal Codes.

2

CH91 Series

Range Hood Box

Duct Cover Box

2 PCS

3/16”

x 3/8” (6

PCS)

4 x 6mm

(4 PCS)

COMPONENTS OF PACKAGE

(Must keep all material for returns or refunds)

{A} KOBE Range Hood
{B} Warranty Registration Card
{C} Quick Reference Guide
{D} 3-1/4” x 10” Exhaust
{E} Top Vent Cover
{F} 6” Round Plastic Collar
{G} Oil Tunnel
{H} Baffle Filters x 2 (30”, 36” hood)
x 3 (42”, 48” hood)
{I} Stainless Steel Spacer x 2
{J} Wire Cap x 3
{K} Screw Package (for Under Cabinet only)

{A}

{B} {C}

{D} {E}

{F} {G}

{H} {I}

Handle is included with baffle filter

(Included in Wall Mount Hood ONLY)

CH1120DC-1

{L} Adjustable Duct Cover
{M} Screws Package
{N} Duct Cover-Mounting Bracket
{O} Duct Cover Support x 2
{P} Hood-Mounting Bracket
{Q} Screws Package (for Wall Mount only)

{L}

{M} {N}

{O}

{P}

{Q}

{J} {K}

M4 x 1-1/2” (5)

 FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com OR

CONTACT KOBE RANGE HOODS AT [phone].

M4 x 3/4"
(4 for 30” &36”)
(8 for 42” & 48”)

M4 x 1-1/4”
(4 for 30” & 36”)
(8 for 42” & 48”)

3

CH77 Series Range Hood Box

Duct Cover Box

2 PCS

3/16”

x 3/8” (6

PCS)

4 x 6mm

(4 PCS)

M

4 x 3/4" (4)

Wire Cap (3)

(Must keep all material for returns or refunds)

{A} KOBE Range Hood
{B} Warranty Registration Card
{C} Quick Reference Guide
{D} 3-1/4” x 10” Exhaust
{E} Top Vent Cover
{F} 6” Round Plastic Collar
{G} Oil Tunnel
{H} Baffle Filters x 2 (30”, 36” hood)
x 3 (42”, 48” hood)
{I} Stainless Steel Spacer x 2
{J} Wire Cap x 3
{K} Screw Package (for Under Cabinet only)

{A}

{B} {C}

{D} {E}

{F} {G}

{H} {I}

Handle is included
with baffle filter

{J} {K}

(Included in Wall Mount Hood ONLY)

CH1120DC-1

{L} Adjustable Duct Cover
{M} Screws Package
{N} Duct Cover-Mounting Bracket
{O} Duct Cover Support x 2
{P} Hood-Mounting Bracket
{Q} Screws Package (for Wall Mount only)

{L}

{M} {N}

{O}

{P}

{Q}

M4 x 1-1/2” (5)

 FOR MORE INFORMATION, PLEASE VISIT OUR WEBSITE www.koberangehoods.com OR

CONTACT KOBE RANGE HOODS AT [phone].

M4 x 1-1/4” (4)

4

TABLE 1

TABLE 2

INSTALLATION

PLEASE READ ENTIRE INSTRUCTIONS BEFORE PROCEEDING

Calculation before Installation

To calculate installation, please refer to TABLE 1 and TABLE 2. (All calculation in inches.)

- FOR UNDER THE CABINET -

A = Height of Floor to Ceiling
B = Height of Floor to Counter Top

(Standard: 36")

C = Preferred Height of Counter Top to

Hood Bottom (Minimum 26" to 30")

D = Height of Hood
E = Height of the Cabinet

- FOR WALL MOUNT (WITH OPTIONAL DUCT COVER) -

A = Height of Floor to Ceiling
B = Height of Floor to Counter Top

(Standard: 36")

C = Preferred Height of Counter Top to

Hood Bottom (Minimum 26" to 30")

D = Height of Hood
E = Height of Duct Cover [F – D]
F = Height of the Hood Installation
[A – (B+C)]

5

SAFETY WARNING

HOOD MAY HAVE VERY SHARP EDGES; PLEASE WEAR PROTECTIVE GLOVES IF
REMOVING ANY PARTS FOR INSTALLING, CLEANING OR SERVICING.

NOTE: BE CAREFUL WHEN USING ELECTRICAL SCREWDRIVER, DAMAGE TO THE HOOD MAY

OCCUR.

Installation Contents

UNDER THE CABINET
WALL MOUNT

7

10

6

Preparation before

Installation

Vent

option installation

UNDER CABINET INSTALLATION

NOTE: TO AVOID DAMAGE TO YOUR HOOD, PREVENT

DEBRIS FROM ENTERING THE VENT OPENING.

-

Decide the location of the venting pipe from the
hood to the outside. Refer to Figure 1.

-

A straight, short vent run will allow the hood to
perform more efficiently.

-

Try to avoid as many transitions, elbows, and long
run as possible. This may reduce the performance
of the hood.

-

Temporarily wire the hood to test for proper
operation before installing. If the hood does not
operate, check the circuit breaker or house fuse.
If the hood is still not working, disconnect power
supply and check the continuity of all wire
connections.

-

Peel protective film off the hood (if any).

-

Use duct tape to seal joints between pipe sections.

-

For installing under the cabinet with recessed
bottom, attach 4-inch wide wood filler strips (not
included) on each side. ( Figure 2)

-

Using reference on Page 19-20 to measure and
create access opening for electrical wires and
exhaust under the cabinet.

CAUTION:

OVER TIGHTEN SCREWS. IT MAY CAUSE DAMAGE TO
THE HOOD.

1. Choose the require vent option. Some installation
screws are already pre-attached to hood.

2. For 6” Round vent installation only:

-

The 6” exhaust is already attached. (Figure 3)
Align and secure the 6” Round Plastic Collar {F}
to two screws on hood.

3. For Top 3-1/4” x 10” vent installation only:

-

Remove attached 6” exhaust and discard. (Figure

3) Keep 13 screws to install 3-14” x 10” exhaust
& vent cover.

-

Align and secure Top Vent Cover {E} and 3-1/4” x
10” Exhaust {D} using 14 screws (13 screws
taken from 6” exhaust. (Figure 4)

4. For Rear 3-1/4” x 10” vent installation only:

-

Remove attached 6” exhaust and discard. (Figure

3) Keep 13 screws to install vent covers.

-

Remove duct knockout from back of the hood and
discard. (Figure 5) Unscrew 3-1/4” x 10” Vent
Cover from rear exhaust (located inside hood);
keep screws to install 3-1/4” x 10” exhaust.

USE HAND TOOLS ONLY. DO NOT

Figure 1

Figure 2

Figure 3

Figure 4

7

Hood Installation

Wiring to Power Supply

-

Align and secure Top Vent Cover {E} and 3-1/4” x
10” Vent Cover (removed from rear exhaust)
using 14 screws (13 screws taken from 6”
exhaust. (Figure 5)

-

Attach the 3-1/4” x 10” Exhaust {D} to rear
exhaust (located inside hood) using 10 screws
taken from rear vent cover. (Figure 6)

CAUTION

necessary to install the hood, turn off the power in
an electric range at the main electrical box. SHUT
OFF THE GAS BEFORE MOVING A GAS RANGE.
And use a protective covering to protect cooktop
and/or countertop from damage.

5. Remove the baffle filters/stainless steel spacers if
necessary; arrange the electrical wires to run
through the 1” diameter hole on the top or the rear
of the hood.

6. Using references on Table 1 and measurements on
page 19-20, center the hood in place beneath the
cabinet and flush with the front of the cabinet.

7. Draw electrical wires through cabinet access
opening.

8. Use electrical drill to remove the knockout holes on
top of the range hood.

9. Place screw (provided) into the exact center of each
knockout hole. Make sure all screws are in place
before tightening screws.

CAUTION

SECURE BEFORE RELEASING.

CAUTION

necessary to install the hood, turn off the power in
an electric range at the main electrical box. SHUT
OFF THE GAS BEFORE MOVING A GAS RANGE.
RISK OF ELECTRICAL SHOCK.

THIS RANGE HOOD MUST BE PROPERLY
GROUNDED. MAKE SURE THIS IS DONE BY
QUALIFIED ELECTRICIAN IN ACCORDANCE WITH
ALL APPLICABLE NATIONAL AND LOCAL
ELECTRICAL CODES. BEFORE CONNECTING
WIRES, SWITCH POWER OFF AT SERVICE PANEL
AND LOCK SERVICE PANEL TO PREVENT POWER
FROM BEING SWITCHED ON ACCIDENTALLY.

-

If hood is operating normally, connect three wires
(black, white and green) to house wires and cap
with wire connectors.

-

Store wires in the wiring box.

: If moving the cooking range is

: MAKE SURE THE HOOD IS

: If moving the cooking range is

8

Figure 5

Figure 6

Ductwork Installation

Install Accessories

Final Installation

10. Use steel pipe to connect the exhaust on the hood

to the ductwork. Use duct tape to make all joints
secure and air tight.

11. Install the Oil Tunnel {G} into recess support near

rear of hood. Refer to Figure 7.

12. Install Baffle Filters {H} and Stainless Steel Spacers

{I}.  Angle baffle filter toward back of hood. 
Push the baffle filter up until almost level.  Slide
forward into recess behind the front of hood. 
Lower baffle filter.  Slide back until it fits into
resting position. Refer to Figure 8.

13. For Stainless Steel Spacer, follow above steps.

14. Turn power ON in control panel. Check all lights

and fan operation.

15. Make sure to leave this manual for the homeowner.

Figure 7

Figure 8

9

Preparation before Installation

Vent option installation

WALL MOUNT INSTALLATION

***This installation required to have Duct Cover Model No. CH1120DC-1.

NOTE: TO AVOID DAMAGE TO YOUR HOOD,

PREVENT DEBRIS FROM ENTERING THE
VENT OPENING.

-

Decide the location of the venting pipe from the
hood to the outside. Refer to Figure 9.

-

A straight, short vent run will allow the hood to
perform more efficiently.

-

Try to avoid as many transitions, elbows, and long
run as possible. This may reduce the performance
of the hood.

-

Temporarily wire the hood to test for proper
operation before installing. If the hood does not
operate, check the circuit breaker or house fuse.
If the hood is still not working, disconnect power
supply and check the continuity of all wire
connections.

-

Peel protective film off the hood (if any).

-

Use duct tape to seal joints between pipe sections.

-

If necessary, prepare back wall frame with cross
framing lumber for secure installation. Using
references on Table 2 and measurements on page
19-21, decide the level of the lumber. Refer to
Figure 10.

CAUTION:

OVER TIGHTEN SCREWS. IT MAY CAUSE DAMAGE TO
THE HOOD.

1. Choose the require vent option. Some of

installation screws are already pre-attached to
hood. Refer to Figure 15. Please use Screws
Package {M} with pre-attached screws for wall
mount installation.

2. For 6” Round vent installation only:

-

The 6” exhaust is already attached. Refer to
Figure 11. Align and secure the 6” Round
Plastic Collar {F} to two screws on hood. Follow
instructions in Step 5 to attach Hood Mounting
Bracket {P} and two Duct Cover Support {O}.
(Figure 15)

3. For Top 3-1/4” x 10” vent installation only:

-

Remove attached 6” exhaust and discard.
(Figure 11) Keep 13 screws to install 3-14” x
10” exhaust & vent cover.

-

Align Top Vent Cover {E} and 3-1/4” x 10”
Exhaust {D}. (Figure 12) Skip to Step 5 to attach
Hood-Mounting Bracket {P} and two Duct Cover
Support {O} using 14 screws (13 screws taken
from 6” exhaust. (Figure 15)

USE HAND TOOLS ONLY. DO NOT

10

Figure 9

Figure 10

Figure 11

Figure 12

Hood Installation

4. For Rear 3-1/4” x 10” vent installation only:

-

Remove attached 6” exhaust and discard.
(Figure 11) Keep 13 screws to install vent
covers.

-

Remove duct knockout from back of the hood
and discard. (Figure 13) Unscrew 3-1/4” x 10”
Vent Cover from rear exhaust (located inside
hood); keep screws to install 3-1/4” x 10”
Exhaust.

-

Align Top Vent Cover {E} and 3-1/4” x 10” Vent
Cover (removed from rear exhaust) using 14
screws (13 screws taken from 6” exhaust).
(Figure 13) Follow instructions in Step 5 to
attach Hood-Mounting Bracket {P} and two Duct
Cover Support {O} using 14 screws (13 screws
taken from 6” exhaust). (Figure 15)

-

Attach the 3-1/4” x 10” Exhaust {D} to rear
exhaust (located inside hood) using 10 screws
taken from rear vent cover. (Figure 14)

CAUTION

necessary to install the hood, turn off the power in
an electric range at the main electrical box. SHUT
OFF THE GAS BEFORE MOVING A GAS RANGE.
And use a protective covering to protect cooktop
and/or countertop from damage.

5. Secure Hood-Mounting Bracket {P} and two Duct

Cover Support {O} on top of the hood with eight pre­attached screws. Use four 3/16” x 3/8” screws {M}
for Hood-Mounting Bracket {P}. (Figure 15)

6. Using references on Table 2 and measurements on

page 19-21, mark the leveling point of the hood.
Position mounting screws (provided) on the wall,
leaving 1/8” away from the wall as shown in Figure

16.

7. Align Hood-Mounting Bracket {P} to the two screws

on the wall and hook hood into place. Tighten
screws to secure hood to the wall.

CAUTION

BEFORE RELEASING

: If moving the cooking range is

: MAKE SURE HOOD IS SECURE

Figure 13

Figure 14

Figure 15

Figure 16

Mounting Screws

11

Wiring to Power Supply

Ductwork Installation

Duct Cover

Installation

CAUTION

necessary to install the hood, turn off the power in
an electric range at the main electrical box. SHUT
OFF THE GAS BEFORE MOVING A GAS RANGE.
RISK OF ELECTRICAL SHOCK.

THIS RANGE HOOD MUST BE PROPERLY
GROUNDED. MAKE SURE THIS IS DONE BY
QUALIFIED ELECTRICIAN IN ACCORDANCE WITH
ALL APPLICABLE NATIONAL AND LOCAL
ELECTRICAL CODES. BEFORE CONNECTING
WIRES, SWITCH POWER OFF AT SERVICE PANEL
AND LOCK SERVICE PANEL TO PREVENT POWER
FROM BEING SWITCHED ON ACCIDENTALLY.

8. If hood is operating normally, connect three wires

(black, white and green) to house wires and cap
with wire connectors.

9. Store wires in the wiring box.

10. Use steel pipe to connect the exhaust on the hood

to the ductwork. Use duct tape to make all joints
secure and air tight.

11. Mark the position of the Duct Cover-Mounting

Bracket {N}. Use reference E from Table 2 and
measurements on page 19-21. Attach and secure
Duct Cover-Mounting Bracket {N} with two screws
(provided). Refer to Figure 17. NOTE: Inner duct
cover will cover the Duct Cover-Mounting Bracket.

12. Position the entire duct cover up onto the hood.

13. Secure the inner duct cover with two (3/16” x 3/8”)

screws {M} to the Duct Cover-Mounting Bracket {N}.
Shown in Figure 18.

14. Fasten outer duct cover to Duct Cover Support {O}

with four (4 x 6 mm) screws {M}.

: If moving the cooking range is

Figure 17

Figure 18

Attach Together

12

Install Accessories

Final Installation

15. Install the Oil Tunnel {G} into recess support

near rear of hood. Refer to Figure 19.

16. Install Baffle Filters {H} and Stainless Steel

Spacers {I}.  Angle baffle filter toward back
of hood.  Push the baffle filter up until
almost level.  Slide forward into recess
behind the front of hood.  Lower baffle
filter.  Slide back until it fits into resting
position. Refer to Figure 20.

17. For Stainless Steel Spacer, follow above

steps.

18. Turn power ON in control panel. Check all

lights and fan operation.

19. Make sure to leave this manual for the

homeowner.

Figure 19

Figure 20

13

OPERATING INSTRUCTIONS

Note: For best results, turn fan on prior to any preparation or cooking and keep fans running while cooking. Adjust
speed as needed.

Power Control

Press Power Control to turn On/Off the range hood.

Speed Control

The fan will start on Speed #3. Press button to decrease the speed level.Press button to
increase the speed level.

To activate 3-minute delay shutoff, press and hold button. Once the delay shutoff has been
activated the LED Display will flash and fan speed will change to Speed #3. Speed level can be

adjusted by pressing or button during the 3-minute countdown.
To turn fan off immediately, press button a second time.

Light Control

Press button to turn LED lights ON. Each press of button will cycle the light intensity
through Bright, Medium Bright, Dim, and OFF.

Lights are controlled independently from Power Control and delay shutoff. Turning the power off
will not turn lights off.

ECO Mode Control

ECO Mode is set to turn fan on QuietMode™ setting for 10 minutes every hour to remove excess
moisture, microscopic particles and odors for better kitchen air quality.

ECO Mode is independent from the Power Control and delay shutoff.
ECO Mode can be activated while fan is running or off. Press and hold button until icon

briefly appears in the LED Display. While fan is running you can change the speed, use delay

14

shutoff or turn off fan without disabling ECO Mode. When fan is off and ECO Mode has been
activated, the icon will appear in the LED Display. The icon will flash while ECO Mode
is operating on QuietMode™. To deactivate, press and hold button until icon no longer

appears in the LED Display.
NOTE: Pressing button while ECO Mode is active will activate the regular fan function and

the speed will be displayed in LED Display.
Note: Must open door or windows to create sufficient make-up air when ECO Mode has been

activated.

15

MAINTENANCE

For optimal performance, clean the range hood surface and baffles regularly.

To Clean Hood Surface
CAUTION: NEVER USE ABRASIVE CLEANERS, PADS, OR CLOTHS.

*** Regular care will help preserve its fine appearance.

1. Use only mild soap or detergent solutions. Dry surfaces using soft cloth.

2. If hood looks splotchy (stainless steel hood), use a stainless steel cleaner to clean the surface of
the hood. Avoid getting cleaning solution onto or into the control panel. Follow directions of the
stainless steel cleaner. Caution: Do not leave on too long as this may cause damage to
hood finish. Use soft towel to wipe off the cleaning solution, gently rub off any stubborn spots.
Use dry soft towel to dry the hood.

3. DO NOT allow deposits to accumulate or remain on the hood.

4. DO NOT use ordinary steel wool or steel brushes. Small bits of steel may adhere to the surface
and cause rusting.

5. DO NOT allow salt solutions, disinfectants, bleaches, or cleaning compounds to remain in contact
with stainless steel for extended periods. Many of these compounds contain chemicals, which
may be harmful. Rinse with water after exposure and wipe dry with a clean lint free cloth.

For Baffle Filter models only: to Clean Baffle Filter/Oil Tunnel
CAUTION: DRAIN OIL FROM BAFFLE FILTERS, SPACERS & OIL TUNNEL REGULARLY TO

PREVENT OVERFLOW.

1. Remove all the baffle filters, spacers and oil tunnel.

2. Using a sponge, wash with warm soapy water. Dry completely before returning into place.

CAUTION: SHARP EDGES

(Note: Baffle Filters are top rack dishwasher safe.)

16

MODEL

/

SIZE

COLOR

CONSUMPTION / AMPERE

NUMBER OF

BLOWER

DESIGN

BLOWER

TYPE

EXHAUST

CONTROLS

ECO

MODE

LIGHTS

HOOD DIMENSION

CH9130SQB

-

1 and CH9130SQB

-WM-

1

OPTIONAL ACCESSORIES

1)

Two

-

Piece Adjustable Duct Cover

(Included in Wall Mount

SPECIFICATIONS

(W x D x H)

For Under Cabinet Application For Wall Mount Application

CH9130SQB-1 (30”) CH9130SQB-WM-1 (30”)
CH9136SQB-1 (36”) CH9136SQB-WM-1 (36”)
CH9142SQB-1 (42”) CH9142SQB-WM-1 (42”)
CH9148SQB-1 (48”) CH9148SQB-WM-1 (48”)
CH7730SQB-1 (30”) CH7730SQB-WM-1 (30”)

CH7736SQB-1 (36”) CH7736SQB-WM-1 (36”)
18-Gauge Commercial Grade Stainless Steel
232W / 2.21A (30”, 36”)

235W / 2.23A (42”, 48”)
2
Seamless / Satin Finish
Twin Vertical Turbine Impeller
Top:

6" Round
3-1/4" x 10" Rectangular
Rear:
3-1/4" x 10" Rectangular

Electronic Control (5 Buttons) with LED Display
3-Minute Delay Shutoff
ECO Mode

ECO Mode runs the range hood on the QuietMode™ setting for 10
minutes every hour to remove excess moisture, microscopic particles
and odors to promote a cleaner kitchen environment.

3-Level Lighting
3-watt LED light x 2 (30”, 36”)
3-watt LED light x 3 (42”, 48”)

29-3/4” x 22” x 9-1/16”

CH9136SQB-1 and CH9136SQB-WM-1 35-3/4” x 22” x 9-1/16”
CH9142SQB-1 and CH9142SQB-WM-1 41-3/4” x 22” x 9-1/16”
CH9148SQB-1 and CH9148SQB-WM-1 47-3/4” x 22” x 9-1/16”

(W x D x H)

HOOD WEIGHT (lbs)

CH7730SQB-1 and CH7730SQB-WM-1 29-3/4” x 22” x 10”
CH7736SQB-1 and CH7736SQB-WM-1 35-3/4” x 22” x 10”

Hood)

CH1120DC-1: 11-13/16" x 10-7/16" x (min 22" ~ max 41")

2) 30" Stainless Steel Back Panel
SSP30: 30" x 1/10" x 32"

3) 36" Stainless Steel Back Panel
SSP36: 36" x 1/10" x 32"

Net Gross
CH9130SQB-1 (30”) 44.0 57.0

CH9136SQB-1 (36”) 49.0 63.0
CH9142SQB-1 (42”) 56.0 71.0
CH9148SQB-1 (48”) 60.5 75.0

17

SPEED

Air Capacity (cfm)

Sone* (dB)

CH7730SQB-1 (30”) 45.5 52.0
CH7736SQB-1 (36”) 50.0 63.0

QuietMode™ 1 2 3 4 5

300 370 440 540 640 760

1.0 (40) 1.4 (45) 2.8 (55) 3.5 (58) 4.2 (61) 4.5 (62)

*One sone is equivalent to the sound of a refrigerator at 40 decibels.
**Specifications subject to change without notice.

18

MODEL NO.:

CH91

30SQB

-1

(30”)

MODEL NO.:

CH9130SQB

-WM-

1 (30”)

MEASUREMENTS & DIAGRAMS

***All inch measurements are converted from millimeters. Inch measurements are estimated.
***All measurements in ( ) are millimeters.

-FOR UNDER THE CABINET-

CH9136SQB-1 (36”)
CH9142SQB-1 (42”)
CH9148SQB-1 (48”)

30" = Knockout Holes "A"
36”, 42” & 48” = Knockout Holes "A" & "B"

- FOR WALL MOUNT (DUCT COVER IS INCLUDED) –

CH9136SQB-WM-1 (36”)
CH9142SQB-WM-1 (42”)
CH9148SQB-WM-1 (48”)

19

MODEL NO.:

CH7730SQB

-

1 (30”)

MODEL

NO.:

CH7730SQB

-WM-

1 (30”)

CH7736SQB-1 (36”)

30" = Knockout Holes "A"
36" = Knockout Holes "A" & "B"

- FOR WALL MOUNT (DUCT COVER IS INCLUDED) –

-FOR UNDER THE CABINET-

CH7736SQB-WM-1 (36”)

20

***Hood-Mounting Bracket ***Duct Cover-Mounting Bracket

***Duct Cover Support

21

MODEL NO.:

CH9130SQB

-1 and CH9130SQB

-WM-1 (30”)

PARTS LIST

CH9136SQB-1 and CH9136SQB-WM-1 (36”)

NO. DESCRIPTION MODEL /SIZE PART NO.

1

6” Exhaust Plate

2

Vent Cover (Top)

3

2-3/4” x 9-3/4” Exhaust Plate

4

3-3/4” x 11-1/4” Vent Cover

5

6” Round Plastic Exhaust

6

LED Lights (3W)

7

LED Light Support

8

Control Unit

9

Capacitor Support

10

Capacitor x 2PCS

11

Motor (B)

12

Motor (A)

13

Turbine Impeller (B)

14

Turbine Impeller (A)

15

Processor Board

16

Plastic Oil Tunnel

17

Safety Screen

18

Safety Screen Screws
Stainless Steel Spacer {1-5/16” (33) x 14-3/8”(365)} CH9130SQB-1

19

Stainless Steel Sapcer {4-5/16” (109)x14-3/8”(365)} CH9136SQB-1

20

Baffle Filter

CH9130SQB-1
CH9136SQB-1

Duct Cover (Included in CH91 SQB-WM-1 Series Only)

NO. DESCRIPTION MODEL /SIZE PART NO.

1

Hood Mounting Bracket

2

Screws (3/16” x 3/8”)

3

Duct Cover Support

4

Duct Cover CH1120DC-1

5

Duct Cover – Mounting Bracket

6

Screws (TS 4 x 6mm)

L1-0241-0001A
L1-0241-0001B
L1-0241-0002BH
L1-0241-0002A
L1-0505-0003
L1-0403-0301
B101-19130-06
B101-19136-06
L1-0404-6001-A
L1-0201-1630
L1-0401-0120-6
L1-0301-0120-102B
L1-0301-0120-102A
L1-0251-0747-B
L1-0251-0747-A
L1-0404-6001-B
L1-0502-0102
L1-0602-0101
L1-0705-0001
B101-9130-15
B101-9136-15
L1-0214-0191

L1-0221-1630
L1-0707-0002
L1-0208-1630
12-16300-61
L1-0203-0390
L1-0708-0002

22

MODEL NO.:

CH91

30SQB

-1

and CH9130SQB

-WM-1 (30”)

CH9136SQB-1 and CH9136SQB-WM-1 (36”)

23

MODEL NO.:

CH9142SQB

-1 and CH9142SQB

-WM-1 (42”)

CH9148SQB-1 and CH9148SQB-WM-1 (48”)

NO. DESCRIPTION MODEL /SIZE PART NO.

1

6” Exhaust Plate

2

Vent Cover (Top)

3

2-3/4” x 9-3/4” Exhaust Plate

4

3-3/4” x 11-3/4” Vent Cover

5

6” Round Plastic Exhaust

6

LED Light (3W)

7

LED Light Support

8

Control Unit

9

Capacitor Support

10

Capacitor x 2PCS

11

Motor (B)

12

Motor (A)

13

Turbine Impeller (B)

14

Turbine Impeller (A)

15

Processor Board

16

Plastic Oil Tunnel

17

Safety Screen

18

Safety Screen Screws
Stainless Steel Spacer {15/16” (23) x 14-3/8” (365)} CH9142SQB-1

19

Stainless Steel Spacer {3-7/8” (98) x 14-3/8” (365)} CH9148SQB-1

20

Baffle Filter

CH9142SQB-1
CH9148SQB-1

L1-0241-0001A
L1-0241-0001B
L1-0241-0002BH
L1-0241-0002A
L1-0505-0003
L1-0403-0301
B101-19142-06
B101-19148-06
L1-0404-6001-A
L1-0201-1630
L1-0401-0120-6
L1-0301-0120-102B
L1-0301-0120-102A
L1-0251-0747-B
L1-0251-0747-A
L1-0404-6001-B
L1-0502-0102
L1-0602-0101
L1-0705-0001
B101-9142-15
B101-9148-15
L1-0214-0191

Duct Cover (Included in CH91 SQB-WM-1 Series Only)

NO. DESCRIPTION MODEL /SIZE PART NO.

1

Hood Mounting Bracket

2

Screws (3/16” x 3/8”)

3

Duct Cover Support

4

Duct Cover CH1120DC-1

5

Duct Cover – Mounting Bracket

6

Screws (TS 4 x 6mm)

L1-0221-1630
L1-0707-0002
L1-0208-1630
12-16300-61
L1-0203-0390
L1-0708-0002

24

MODEL NO.:

CH9142

SQB

-1

and CH9142SQB

-WM-1

(42”)

CH9148SQB-1 and CH9148SQB-WM-1 (48”)

25

MODEL NO.:

CH7

7

30SQ

B-1 and CH7730SQB

-WM-1 (30”)

CH7736SQB-1 and CH7736SQB-WM-1 (36”)

NO. DESCRIPTION MODEL /SIZE PART NO.

1

6” Exhaust Plate

2

Vent Cover (Top)

3

2-3/4” x 9-3/4” Exhaust Plate

4

3-3/4” x 11-1/4” Vent Cover

5

6” Round Plastic Exhaust

6

LED Light (3W)

7

LED Light Support

8

Control Unit

9

Capacitor Support

10

Capacitor x 2PCS

11

Motor (B)

12

Motor (A)

13

Turbine Impeller (B)

14

Tubine Impeller (A)

15

Processor Board

16

Plastic Oil Tunnel

17

Safety Screen

18

Safety Screen Screws
Stainless Steel Spacer {1-5/16” (33) x 14-3/8”(365)} CH7730SQB-1

19

Stainless Steel Spacer {4-5/16”(109) x14-3/8”(365)} CH7736SQB-1

20

Baffle Filter

CH7730SQB-1
CH7736SQB-1

L1-0241-0001A
L1-0241-0001B
L1-0241-0002BH
L1-0241-0002A
L1-0505-0003
L1-0403-0301
B101-07730-06
B101-07736-06
L1-0404-6001-A
L1-0201-1630
L1-0401-0120-6
L1-0301-0120-102B
L1-0301-0120-102A
L1-0251-0747-B
L1-0251-0747-A
L1-0404-6001-B
L1-0502-0102
L1-0602-0101
L1-0705-0001
B101-9130-15
B101-9136-15
L1-0214-0191

Duct Cover (Included in CH77 SQB-WM-1 Series Only)

NO. DESCRIPTION MODEL /SIZE PART NO.

1

Hood Mounting Bracket

2

Screws (3/16” x 3/8”)

3

Duct Cover Support

4

Duct Cover CH1120DC-1

5

Duct Cover – Mounting Bracket

6

Screws (TS 4 x 6mm)

L1-0221-1630
L1-0707-0002
L1-0208-1630
12-16300-61
L1-0203-0390
L1-0708-0002

26

MODEL NO.:

CH7

730SQB

-1

and CH7730SQB

-WM-1 (30”)

CH7736SQB-1 and CH7736SQB-WM-1 (36”)

27

MODEL NO.:

CH9130SQB

-1

and CH9130SQB

-WM-1 (30”)

CIRCUIT DIAGRAM

CH9136SQB-1 and CH9136SQB-WM-1 (36”)
CH7730SQB-1 and CH7730SQB-WM-1 (30”)
CH7736SQB-1 and CH7736SQB-WM-1 (36”)

28

MODEL NO.:

CH9142SQB

-1

and CH9142SQB

-WM-1 (42”)

CH9148SQB-1 and CH9148SQB-WM-1 (48”)

29

Issue

Possible Cause

Solution

TROUBLE SHOOTING

After
Installation,
both motors
and lights are
not working.

Lights are
working, but
motor(s) is
not.

The range
hood is
vibrating.

The motor is
working, but
the lights are
not working.

The range
hood is not
venting out
correctly.

The power is not on. Make sure the circuit breaker and the unit’s

power is ON. Use a voltage meter to check

the power supply.
The wire connection is not secure. Check and tighten wire connection.
The control panel and processor
board wiring are disconnected.
The control panel and processor
board is defective.

Check wire continuity from control panel to

processor board.

Replace the control panel or processor

board.
The motor(s) is defective. Replace the motor.
The capacitor(s) is defective. Replace capacitor(s).
The control panel or processor
board is defective.

Replace the control panel or processing

board.
The blower system is not secure. Tighten the turbine impeller/squirrel cage

and air chamber.
The turbine impeller/squirrel cage

Replace the turbine impeller/squirrel cage.
is not balanced.
Hood is not secured in place. Check the installation of hood, tighten the

mounting bracket.
LED light fixture(s) is defective.

Replace LED light fixture(s)
The light wiring(s) is loose.

The control panel or processor
board is defective.

The range hood is installed
outside of the manufacture
recommended clearance.

There is no make-up air inside the
house.

Check wire continuity from processor board

to light transformer to LED light fixture(s).

Replace the control panel or processing

board.

Adjust the clearance between the range

hoods and cook top to 26” to 30”. For

Island range hood, the clearance between

the range hoods and cook top is 30” to 36”.

Open the window to enhance the

performance of the range hood by creating

a sufficient make-up air.
Obstacle blocking the pipe work. Remove all obstacles from the duct work.

Cold air is
coming into
the home.

The pipe size is smaller than the
suggested pipe size.
The pipe connection is not
properly sealed.
The damper is not properly
installed or is missing from the

Change the ducting according to the

manufacture suggestion.

Check the pipe installation.

Check the damper installation.
installation.

The damper is not installed. By installing the damper, it will help to

eliminate air backflow.

30

WARRANTY

WARRANTY CERTIFICATE

In order to obtain warranty service, you must provide proof of original purchase from a
KOBE authorized Dealer. Please keep a copy of your original invoice as proof of
purchase.

TWO-YEAR LIMITED LABOR WARRANTY ON KOBE PREMIUM SERIES:

For two years from the date of your original invoice from a KOBE authorized dealer, we will repair any
parts or components free of charge that failed due to manufacturing defects. KOBE reserves the right to
replace, rather than repair the product free of charge at our sole discretion.

It is your sole responsibility to ensure the product is readily accessible for the service technician to
perform repairs. The service technician will not, under any circumstance, remove, alter or modify

any fixture built around and/or connected to the product to gain access to perform repairs.

TWO-YEAR LIMITED PARTS WARRANTY ON KOBE PREMIUM SERIES:

For two years from the date of your original invoice from a KOBE authorized dealer, we will provide non­consumable replacement parts or components free of charge that failed due to manufacturing defects.
Consumable parts such as lights bulbs, filters, fuses, and oil cups are not covered by this warranty.

WHAT IS COVERED:

This warranty is valid in the United States and Canada. It is non-transferable and applies only to the
original purchaser and does not extend to subsequent owner of this product. In Hawaii, Alaska and
Canada, this warranty is limited. There may be additional shipping charges for parts and service
technician travel costs in remote areas or locations 30 miles outside of KOBE authorized service area.

WHAT IS NOT COVERED:

1. Normal wear and tear, regular service and maintenance required for the product.

2. Consumable parts such as light bulbs, filters, fuses, and oil cups.

3. Chips, scratches or dents due to abuse or misuse of the product, use of corrosive and abrasive
cleaning products.

4. Damages caused by accident, fire, flood and other Acts of God.

5. Services in remote areas or locations 30 miles outside of KOBE authorized service area.

6. Labor cost incurred in connection with the removal of range hood, and reinstallation of
replacement range hood, nor does it cover any other contingent expenses.

7. Scratches inside the hood, back of the baffle filter, and inside the duct cover.

THIS WARRANTY WILL BE VOIDED WHEN:

1. Improper installation and failure to follow installation instructions.

2. Any repair, alteration, modification not authorized by KOBE.

3. Duct alteration, modification and connection.

4. Incorrect electric current, voltage or wiring.

5. Improper usage of the product such as commercially, outdoor or other usage other than its
intended purpose which is residential indoor usage only.

31

6. Product is purchased from an unauthorized KOBE dealer.

7. Product is damaged due to negligence, misuse, abuse, accident.

If we determine that the warranty exclusions listed above applies or if you fail to provide all necessary
documentation for warranty service, you will be responsible for all expenses associated with the
requested service, including parts, labor, shipping, travelling, and any other expense related to the
service request.

TO REQUEST WARRANTY SERVICE, PLEASE CONTACT KOBE RANGE HOODS SERVICE
CENTER:

From the 48 contiguous states:
Toll Free: 1-877-BUY-KOBE (289-5623)
E-Mail: [e-mail]

From Alaska, Hawaii, and Canada:
TEL: [phone]
E-Mail: [e-mail]

32

WARRANTY INFORMATION FORM

Fill in the blanks and keep this paper with the original invoice in a
safe place for future service purpose.

1. Date of purchase :

2. Model No. :

3. Serial No. :

For warranty service or spare parts purchase contact:

KOBE Service Center (USA ONLY)
Toll Free: 1-877-BUY-KOBE (289-5623)
Email: [e-mail]

For service in Canada and to report a problem, please contact:

Tel: [phone]
Email: [e-mail]

Your notes:

33

CANADA only. We do not recommend

using this hood overseas as the power supply may not be compatible and may violate the

Using a KOBE hood overseas is at your own risk and

Unis et au Canada seulement. Il

n’est pas recommandé d’utiliser cette hotte à l’étranger puisque l’alimentation électrique

L’usage

ha sido fabricada para ser utilizada únicamente en

No recomendamos la utilización de esta campana en el extranjero

nte de energía podría no ser compatible y podría violar el código

en el extranjero será a su propio

KOBE Range Hoods

11775 Clark Street

Arcadia, CA 91006 USA

www.koberangehoods.com

This KOBE hood is made for use in the USA and
electrical code of that country.

will void your warranty.

Cette hotte KOBE est fabriquée pour usage aux États­pourrait ne pas être compatible et enfreindre le code de l’électricité de ce pays.

de la hotte KOBE à l’étranger est à votre propre risque et la garantie sera annulée.

Esta campana de extracción KOBE
EE.UU. y CANADÁ.
debido a que la fue
eléctrico de dicho país. Utilizar una campana KOBE
riesgo y anulará la garantía.

VER.170301

Information subject to change without notice.
