Operation and Maintenance Instructions
PYROT 100 to 540

ID: 106811-H English

© by KÖB Holzfeuerungen GmbH

Flotzbachstraße 33
A-6922 Wolfurt
All rights reserved, including photomechanical
reproduction and storage in electronic media.

Viessmann Group

1 General Information_________________________________________________ 4

1.1 Foreword _______________________________________________________________________ 4

1.2 Technical standing _______________________________________________________________ 4

1.3 Intended use ____________________________________________________________________ 4

1.4 Technical data___________________________________________________________________ 4

1.5 Information documented __________________________________________________________ 4

1.6 CE-certification __________________________________________________________________ 4

2 Important Information _______________________________________________ 5

2.1 Safety instructions _______________________________________________________________ 5

2.2 Excess temperature/power failure __________________________________________________ 5

2.3 Low water/excess water pressure___________________________________________________ 5

2.4 A fire hazard ____________________________________________________________________ 6

2.5 Wood fuels, minimum requirements_________________________________________________ 6

2.6 Filling the fuel storage unit ________________________________________________________ 6

2.6.1 By dumping ______________________________________________________________________ 6

2.6.2 By blowing in_____________________________________________________________________ 6

2.7 Correcting malfunctions in the feed systems _________________________________________ 6

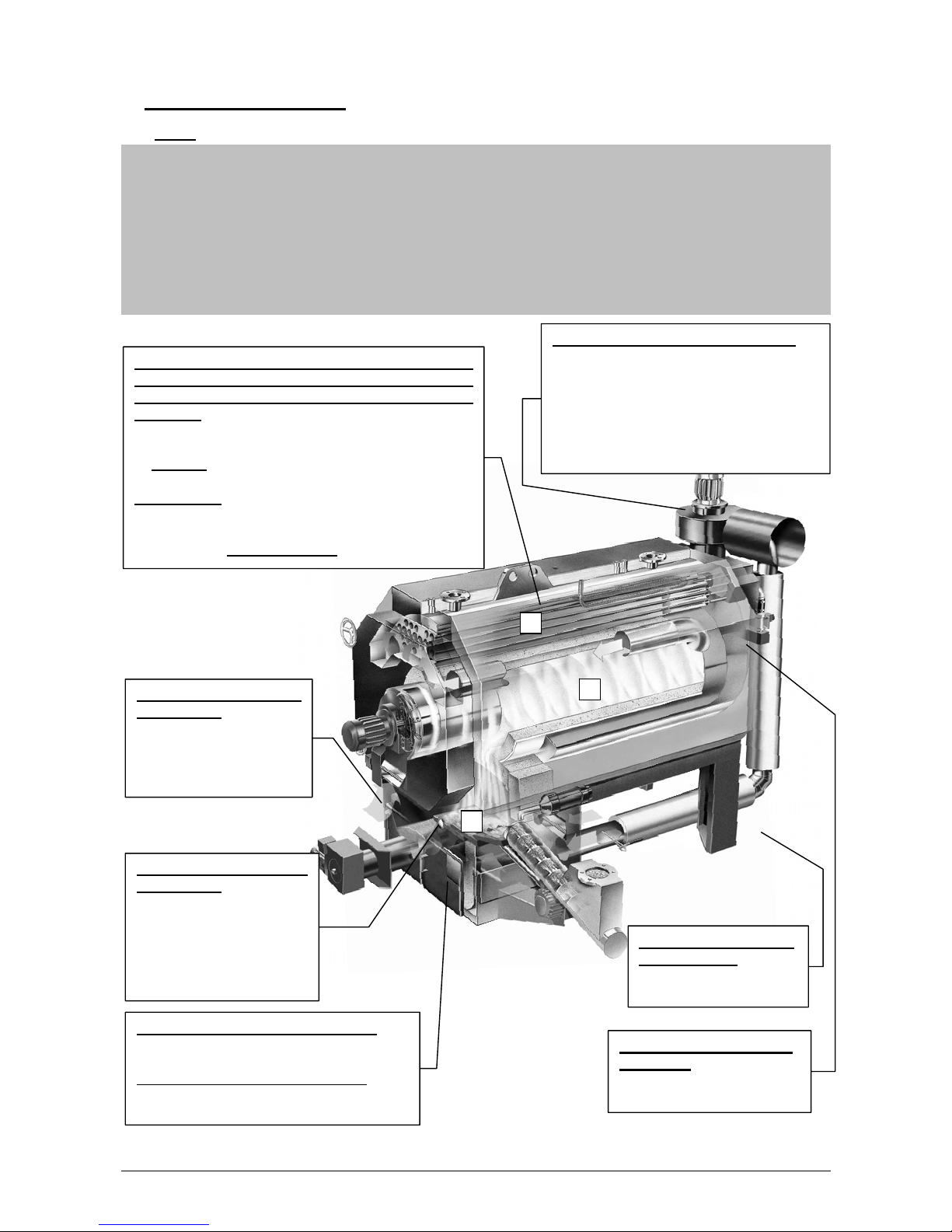

3 How the Boiler Plant is Strucured _____________________________________ 7
4 Commissioning/Operation ___________________________________________ 8

4.1 The initial start-up________________________________________________________________ 8

4.2 Operation_______________________________________________________________________ 8

4.2.1 Heating up_______________________________________________________________________ 8

4.2.2 Operation _______________________________________________________________________ 8

4.2.3 Switching off _____________________________________________________________________ 8

5 Oil burners on a Pyrot_______________________________________________ 9
6 The ECOTRONIC control system _____________________________________ 10

6.1 General information _____________________________________________________________ 10

6.1.1 Replacing the battery _____________________________________________________________ 10

6.2 The functions of the keys_________________________________________________________ 10

6.3 Boiler and loader system (F3/F4)___________________________________________________ 11

6.3.1 The F3 KEY: "PYROT Parameters" __________________________________________________ 11

6.3.2 The F4 KEY: "PYROT Loader System" _______________________________________________ 12

6.4 Extended control systems F5 – F8 (optional)_________________________________________ 13

6.4.1 Room heating system _____________________________________________________________ 13

6.4.2 Utility water heater _______________________________________________________________ 15

6.4.3 Air heater ______________________________________________________________________ 16

6.4.4 Annex buildings__________________________________________________________________ 17

6.4.5 Pipelining ______________________________________________________________________ 18

6.4.6 Additional heat generator __________________________________________________________ 19

6.4.7 Solar __________________________________________________________________________ 20

7 Cleaning/Maintenance______________________________________________ 21

7.1 Boiler _________________________________________________________________________ 21

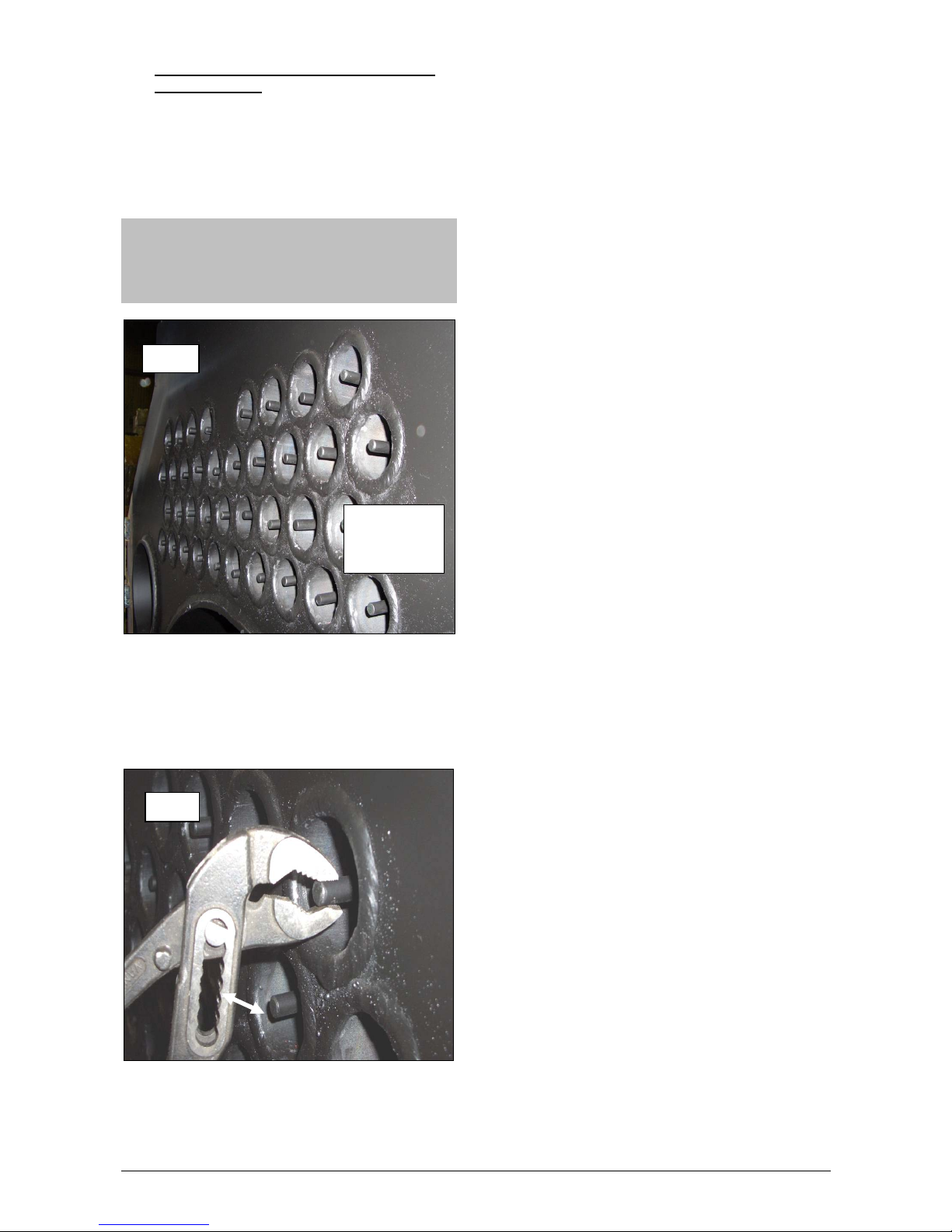

7.1 Installing the displacement rods into the heat exchanger ______________________________ 23

7.2 Feed systems __________________________________________________________________ 24

8 Shutdown ________________________________________________________ 24
9 Carrying out disposals _____________________________________________ 24

10 Supplements

- Spec Sheet 1010-1, 2

- Malfunction report/Malfunction correction

4

1 General Information

1.1 Foreword

Dear System Owner, you have made a good se­lection in the PYROT. It will provide you with all
the advantages of a modern, economically effi­cient heating system. Fully developed technology
in combination with a sturdy design guarantee a
high degree of operational reliability and a long
service life.

These Operating and Maintenance Instructions
contain important information for the intended
use, correct operation and proper maintenance of
the PYROT.

Non-compliance with the Operating and Main­tenance Instructions will result in loss of the
guarantee.

If you still need any further information after study­ing the Operating and Maintenance Instructions:

The Assembly and Installation Instructions contain
important information about:

- Standards and regulations

- Structural surroundings of the boiler plant

- Transport and assembly

- Water installation and electrical installation

- Fire protection

- Commissioning

as well as an appendix with diagrams of connec­tions and dimensions and the complete technical
specifications.

Our sales and services offices will be glad to pro­vide you with any further information. Their ad­dresses can be found on the reverse side of these
Operating and Maintenance Instructions.

1.2 Technical standing

The Operating and Maintenance Instructions are
in keeping with the PYROT at the time it is deliv­ered. In the interest of our customers, we reserve
the right to make, without any notification re­quirement, subsequent changes resulting from
further technology developments.

1.3 Intended use

The intended use of the PYROT is for incinerating
wood fuels.

The intended use of the PYROT is stipulated:

- in the regulations of the Assembly and Instal­lation Instructions

- by the limits of the technical specifications

- in Spec Sheet 1010 "Minimum Requirements

for Wood Fuels/Instructions"

- by the safety regulations in these Operating
and Maintenance Instructions.

Any other use of the PYROT or use of it going be­yond this will be considered as unintended use
unless written approval by the manufacturer has
been obtained.

- Operation of the PYROT by unqualified per­sonnel, without any training or knowledge of
the Operating and Maintenance Instructions.

- Disabling the safety or monitoring devices on
the PYROT.

- Removal of any protective covers or cladding
on the PYROT by unauthorised individuals.

- Making any conversions or alterations to the
PYROT without approval by the manufacturer.

- Using spare parts or accessories from other
manufacturers without approval by the manu­facturer.

The operating organisation will be liable for
any damage or accidents in case of any unin­tended use.

1.4 Technical data

The following important limit values apply to the
PYROT heating boiler:

- Max. operating pressure allowed ...........3.0 bar

- Max. boiler temperature allowed .............100°C

- Min. return flow temperature allowed ........65°C

The complete technical specifications are listed in
the appendix of the Assembly and Installation In­structions.

1.5 Information documented

The Operating Instructions contain the information
required according to the EC Directive on Ma­chinery 98/37/EEC, Appendix 1, Number 1.7.4.

Issue: 2007-08_English
Prepared by: KaW/SclM

1.6 CE-certification

The PYROT is delivered with a CE-symbol on its
type plate and an EC attestation of conformity in
accordance with Appendix II A of the EC Directive
on Machinery 98/37/EEC.
If the PYROT is altered by equipment from other
manufacturers being added, or the safety equip­ment or control system are combined with a dif­ferent system and/or integrated into an overriding
system (building control system, etc.), then in the
European Union a new attestation of conformity
has to be issued before it is put on the market.

5

2 Important Information

2.1 Safety instructions
When carrying out work on the heating sys-

tem, such as cleaning and maintenance, wear
appropriate protective equipping when re­quired.
There is a danger of getting injured through:
burning, knocking against corners and edges,
crushing in moving parts and noise.

Mains supply: 400V C

In a risky situation, the PYROT can be discon­nected from the electrical mains at all the leads by
the master switch on the control cabinet

Doors

CAUTION
FIRE HAZARD:
The boiler plant must never be operated with
the doors open! Red-hot objects that might
escape could result in fires.

RISK OF INJURY:
If the doors are open during operation, sparks
or flames could leap out.

Equipment for dissipating excess heat

The operational reliability of the thermal run-off
safety valve should be examined annually by a
competent specialist. The safety heat exchanger
must not by any means be used as an operational
heat exchanger.

Seals

For the functioning and controllability of the
burner, it is important that no unwanted air can
leak in, entering unchecked through leaky spots.
The doors and lids have to shut tight − any dam­aged seals must be replaced immediately.
Tighten the retaining screws and handles snugly.

Operation, cleaning & maintenance

Bear in mind that only if operated and maintained
properly can even the best of products fulfil their
functions well, doing so for a long time and free of
malfunctions.
Compliance with the "Cleaning" section is manda­tory!

2.2 Excess temperature/power failure

CAUTION
DANGER OF THIS SUDDENLY GOING UP IN
FLAMES:
Do not open the doors or lids on the boiler
plant!

- Switch on additional heat consumers.

- The exhaust fan goes out of operation.

- The temperature-limiting safety switch triggers.

- The valve for the thermal run-off safety valve

opens at approx. 95°C. The excess heat is
conducted off into the channel.

If the temperature-limiting safety switch
(TLSS) has triggered, then it has to be manu­ally unlocked. The TLSS is situated at the top
of the boiler.

To reset, unscrew the black cap and press the
button.
NOTE:

Only as of a temperature of approx. 70°C

resetting is possible.
Possible causes for excess temperature:

- Incorrect setting on the control module.

- Defective component of the system (pump or

valve).

- Sudden drop in output to zero. The feed auger
still has to be emptied. The heat yet produced
by this can result in surplus temperature. Acti­vate "DISSIPATE SURPLUS HEAT" function!

2.3 Low water/excess water pressure

Possible causes:

1. Low water: Leakage in the heating system.

2. Excess water pressure: The expansion system
not functioning.

In either case, one should have the facility exam­ined by a competent heating installer.

Unlock this malfunction with either the reset
button for the water level control system or for
the overpressure monitor, and by pressing the
OK key on the control panel.

6

2.4 A fire hazard

With insertion-type firing systems, the conveying
route creates a connection between the silo and
the burning material in the boiler plant.
With the PYROT insertion-type heating boiler, the
feed auger is also the metering auger, and is thus
always filled up with material during operation
There are various safety devices provided to pre­vent burn-back.

Temperature sensors:
By means of temperature sensors on the feed au­ger, in case of excess temperature the loading to
the feed auger is interrupted, and the feed auger's
material is inserted into the combustion chamber.

Slide valve (optional):
This closes in case of a standstill, danger of burn­back or power failure (spring return motor).

Rotary valve (optional):
Instead of a slide valve, in silos with pressurisa­tion.

Drop-off route:
A vertical drop-off section interrupts the con­nected line of burning material.

Fire-extinguishing system (option):
This system, which functions independently of the
electrical power, brings about a flooding of the
material to be burned that is located in the feed
auger. The activation temperature is approx.
95°C.

2.5 Wood fuels, minimum requirements

The PYROT is only suitable for incinerating the
fuels listed in Spec Sheet 1010 "Minimum Re­quirements for Wood Fuels" (see supplement).

If different fuels are used, KÖB will not as­sume any liability for the functioning or ser­vice life of the boiler plant. Refer to the "War­ranty" section in the General Terms and Con­ditions of Delivery.

2.6 Filling the fuel storage unit

2.6.1 By dumping

Rotary sweep extraction and spring-operated
extraction

Heating system in operation:

- If the articulated arms or spring-mounted
plates are still covered by fuel

, refilling can be

carried out immediately.

- If the articulated arms or spring-mounted
plates are no longer covered by fuel

, fill the silo
evenly to approx. 30 cm above the articulated
arm or over the spring-mounted plates. As
soon as the articulated arms or spring­mounted plates have retracted through a re­quest for material, the refilling can be contin­ued.

Heating out of operation

:

- If the articulated arms or spring-mounted
plates are still covered by fuel

, refilling can be

carried out immediately.

- If the articulated arms or spring-mounted
plates are no longer covered by fuel

, fill the silo
evenly to approx. 30 cm above the articulated
arm or over the spring-mounted plates. Then
activate the "SILO FILLING" function. To do
so, press the LOADER SYSTEM key (F4) and
then the left arrow key (<). Then select "YES"
and confirm with "OK". Wait until the articu­lated arms or the spring-mounted blades go
under the cup washer, and then finish evenly
filling the silo. The "SILO FILLING" function
brings about the filling of the fire box.

NOTE: The "SILO FILLING" function cannot be
activated until the heating system has been
out of operation for one hour.

Moving floor conveyor

- Fuel can be refilled automatically.

Funnel extraction system

- It is mandatory that the heating system be in
operation!

2.6.2 By blowing in

The heating system has to be out of operation
(danger of excess pressure or negative pres­sure caused by the action of blowing-in). Fill­ing procedure as described in section 2.6.1.

2.7 Correcting malfunctions in the feed sys-

tems

The cause of motor malfunctions in feed systems
is usually clogging by large pieces of wood or for­eign matter.

CAUTION
DANGER OF INJURY:
Always turn off the master switch before car­rying out any repair of a malfunction on feed
systems and every time before a maintenance
lid is opened or a protective device is re­moved!

The automatic operation of the system makes it
impossible to foresee the time point when the
conveying equipment will switch on.

7

3 How the Boiler Plant is Strucured

(Illustration: PYROT 300)

(1) Feed auger with isolating layer
(2) Drive for moving grate
(3) Automatic ignition device
(4) Controlled combustion air supply system
(5) Moving grate
(6) Drive for automatic de-ashing system (op-

tional)

(7) Rotation fan (KÖB-patented)

(8) Rotation combustion chamber (KÖB-

patented)
(9) Boiler heat exchanger
(10) Boiler door
(11) Heat exchanger for thermal run-off safety

valve
(12) Speed-controlled exhaust fan
(13) Recirculated flue gas pipe (optional)
(14) Automatic cleaning system (optional)

12

11

1

2

3

4

5

6

7

8

9

10

13

4

14

8

4 Commissioning/Operation

4.1 The initial start-up

The initial start-up is carried out either by KÖB
Holzfeuerungen GmbH or a competent individual
named by it.

Be absolutely sure to follow the instructions in
the Assembly and Installation Instructions. No
guarantee may be claimed for damages in
cases of initial start-ups carried out improp­erly at one's own initiative.

First check:

- Is there enough water in the heating system?

- Has the heating system been bled of air?

- Are the slide valves open for the heating-

system's forward and reverse flow?

- Can enough fresh air get into the heating
room?

- Empty ash bin.

- Are the doors and lids on the burner all closed

leak-tight?

4.2 Operation

4.2.1 Heating up

- Press the F1 key "PYROT Wood". The loader
modules will be switched on in the appropriate
order. When there is enough fuel in the com­bustion chamber, the entire loader system
switches off.

- The automatic ignition then takes place. The
ignition process stops as soon as the fire is
started.

4.2.2 Operation

- The material is supplied depending on the light
barriers in the metering container and in the
combustion chamber, allowing for the residual
oxygen.

- The primary and secondary air vents change
their positions depending on the exhaust gas
temperature and residual oxygen.

- Using the setting "Storage Management, Tem­perature, Storage, Average", it is possible to
keep the facility in continuous high­performance operation for as long as possible
– with fewer ignitions, better efficiency and lo­wer emissions.
(Only possible with accumulator option)

- When the boiler temperature set is reached,
the facility switches to "Run Auger Empty".
When the feed auger has been run empty, and
the exhaust gas temperature is less than 90°C,
the exhaust gas fan switches off and the air
vents close.

- When the "System Temperature Setting" is
fallen short of, the facility is automatically star­ted back up.

4.2.3 Switching off

- Press the F1 key "PYROT Wood". As feed­back to this, "Run Auger Empty" will appear on
the control panel.

CAUTION: Do NOT use the master button to
switch off (DANGER OF BACK BURN) !!!

9

5 Oil burners on a Pyrot

Be sure to note:

- The oil burner's firing power may amount to a
maximum of 70% of the rated heat output in
wood-burning operation.

- The selection of the oil burner as well as the
actual nozzle length have to be determined by
the supplier of the oil burner.

- Only either wood-burning operation or oil­burning operation is possible.

- For wood-burning operation, put in the sealing
plug.

- Close the flue gas recirculation system.

- Set the speed of the exhaust fan such that the

flame only reaches halfway up the fireclay­lined flame tube.

10

6 The ECOTRONIC control system

6.1 General information

The ECOTRONIC facility control system is a de­centralised microprocessor system (CAN-BUS)
developed by KÖB with various modules that are
connected by a data transmission line.

Its function

The ECOTRONIC records all the data relevant to
operation and controls the supply of and demand
for heat.
Thus the boiler plant is continuously monitored
during all the operating phases and kept within an
optimum range in terms of emissions.

Factory settings (pre-settings)

All the parameters in the ECOTRONIC, such as
set point values and switching times, are pre-set
and can be called back up at any time. The fig­ures for the factory settings are given in brackets
for the various parameters.

6.1.1 Replacing the battery

There is a battery built in beneath the removable
lid on the control module (type: Panasonic Lith­ium BR2330). It is for buffering the time, date and
settings.

- The battery needs replacing every five
years!

- Do not disconnect the mains voltage while
changing the battery (do not turn off master
switch)!

6.2 The functions of the keys

F1 (PYROT Wood)

Switch WOOD operation on and off

F2 (PYROT Oil)

Switch OIL OPERATION on and off

F3 (PYROT Parameters)

Setting parameters, set point values, the date and
time

F4 (PYROT Loader System)

Setting of cycle switchover switching, advance­flow and post-flow times

F5 (Group 1)

Setting parameters and set point values
(heat distribution, Group 1)

F6 (Group 2)

Setting parameters and set point values
(heat distribution, Group 2)

F7 (Group 3)

Setting parameters and set point values
(heat distribution, Group 3)

F8 (Group 4)

Setting parameters and set point values
(heat distribution, Group 4)

< Go one page to the left in menu masks

> Go one page to the right in menu masks

∧ Go one line up

(Only possible when the scroll up symbol Ï

is displayed.)

∨ Go one line down

(Only possible when the scroll down symbol

Ð is displayed.)

+ Change numeric values and set point val-

ues

- Change numeric values and set point val-

ues

OK Adopt (acknowledge) settings and/or

changes

The following applies to the F3, F4, F5, F6, F7
& F8 buttons:

- Pressing once will take you to the respective
menu. As feedback, the relevant LED will blink.

- If a set point value is changed and not con­firmed with "OK", then it will not be adopted.

- Pressing the function button again will bring
back the standard display.

- When no button is pressed for a period of sixty
seconds, the standard display automatically
reappears.

BE SURE TO NOTE:
Depending on the design and setting, some
menus and texts do not appear.

11

6.3 Boiler and loader system (F3/F4)

6.3.1 The F3 KEY: "PYROT Parameters"
(mask number) parameter (factory setting)

(01) Storage unit temperatures ( - ):

Indication of all the storage unit temperatures
(Indication only for storage unit option)

(02) Return flow, boiler (70°C):

Set point value for boiler backflow circuit valve

(03) Forward flow, boiler (80°C):

Set point value for boiler temperature

(04) Exhaust gas, boiler (200°C):

Limit of maximum exhaust gas temperature

(05) Exhaust gas, residual O2 (7%):

Set point value for residual oxygen for air vent
control

(06) O2-control (ON):

If the lambda sensor is defective, the O2-control
system can be switched off (emergency opera­tion).

(07) Air vents without O2-control system
(100%):

Position of the air vents with O2-control switched
off (only with O2-control system switched off)

(08) Carry away excess heat at (95°C):

Limit temperature for carrying away excess heat

(10) Load storage unit with oil/gas operation to
(storage unit at bottom):

To which heat storage sensor should the storage
unit be loaded with oil/gas operation?
(Indication only with option of storage unit and
oil/gas burner on PYROT ECO)

(11) Load storage unit with oil/gas operation to
(70°C):

To what temperature should the storage unit be
heated up with oil/gas operation?
(Indication only with option of storage unit and
oil/gas burner on PYROT ECO)

(12) System Temperature Set Point Minimum
(50°C):

Minimum forward flow temperature for heat distri­bution provided by customer (only if System Tem­perature Set Point Minimum YES Æ Service
Menu)

(14) Load storage unit to (STORAGE UNIT AT
BOTTOM):

To which heat storage sensor should the storage
unit be loaded with wood operation?
(Indication only for storage unit option)

(15) Load storage unit to (80°C):

To what storage unit temperature should the stor­age unit be heated up with wood operation?
(Indication only for storage unit option)

(16) Storage Unit Management, Temperature,
Storage Unit Average (80°C):

Set point value, average temperature, storage unit
Æ boiler output is reduced according to loading of
storage unit.
(Indication only for storage unit option)

(17) Start boiler when the system temperature
is fallen short of. Set point (accumulator sen­sor at bottom):

When the accumulator sensor falls short of the
system set point, the boiler will be heated up.
(Indication only for storage unit option)

(20) External release for boiler (NO):

Is the boiler to be switched on and off by an ex­ternal floating contact?
(Indication only with the option "Automatic Start,
External Prompt".)

(21) Material take-back larger with air vent po­sitioning (50%):

Material take-back by means of adjustable air
vent positioning.

(23) Feed auger cycle heat-up (5%):

Insertion of material after ignition

(24) Feed auger, maximum (100%):

Maximum insertion of material

(25) Pneumatic boiler tube cleaning system
(500 s):

Cleaning cycle for the pneumatic cleaning system

(28) Wood operation, load ( 0 ):

Operating hours/minutes, full load, PYROT

(30) Oil/Gas operation ( 0 ):

Operating hours/minutes, oil/gas operation, PY­ROT ECO

(31) Date/Year (current):

Set year

(32) Date/Month (current):

Set month

(33) Date/Day (current):

Set day

(34) Date/Day of week (current):

Set day of week
(35) Date/Hours (current):

Set hours

(36) Date/Minutes (current):

Set minutes

(40) Enter permanent code (-):
(41) Measurement operation (NO):

This activates measurement operation for chim­ney sweep measurements.
IMPORTANT: The control of output is then not
functioning: provide for sufficient thermal accep­tance.

12

6.3.2 The F4 KEY: "PYROT Loader System"
(mask number) parameter (factory setting)

(01) Cleaning (NO):

This activates the cleaning function. Exhaust fan
at starting speed, and moving grate on.

(05) Moving grate, pause (60 s):

Cycle switching for the moving grate (adjustable
pause time, impulse fixed, 2 seconds).

(07) Metering container,empty running time
(5s):

Running time for feed auger with the light barrier
for the feed auger clear Æ prompt for material

(08) Conveyor Device 1/Delay (3 s):

Delay before connecting Conveyor System 1
(e.g. rotary valve, conveyor auger, etc.)

(09) Conveyor System 1, after-running (0 s):

After-running of Conveyor System 1
(e.g. pneumatic conveyor, etc.)

(10-37) Conveyor Systems 2-15:

Delay before connecting or after-running of Con­veyor Systems 2 to 15

(38) Extraction System 1/Delay (3 s):

Delay before connecting Conveyor System 1
(e.g. spring-operated extraction system, inclined
extraction system, etc.)

(39) Extraction System 1/Impulse (5 s):

Impulse for the cycle switching for Extraction Sys­tem 1 (e.g. spring-operated extraction system, in­clined extraction system, etc.)

(40) Extraction System 1, Pause (0 s):

Pause in the cycle switching for Extraction Sys­tem 1 (e.g. spring-operated extraction system, in­clined extraction system, etc.)

(41) Extraction System 2/Delay (3 s):

Delay before connecting Conveyor System 2
(e.g. spring-operated extraction system, inclined
extraction system, etc.)

(42) Extraction System 2/Impulse (5 s):

Impulse for the cycle switching for Extraction Sys­tem 2 (e.g. spring-operated extraction system, in­clined extraction system, etc.)

(43) Extraction System 2, Pause (0 s):

Pause in the cycle switching for Extraction Sys­tem 2
(e.g. spring-operated extraction system, inclined
extraction system, etc.)

(44)Extraction System 1/Hydraulics/Delay
(5 s):Delay before connecting hydraulic drive for

Extraction System 1

(45) Extraction System 2/Hydraulics/Delay
(5 s): Delay before connecting hydraulic drive for

Extraction System 2
(50) Silo filling: Start silo filling (only possible

when the facility is not in operation and has
cooled off).

13

6.4 Extended control systems F5 – F8 (op­tional)

The F5 to F8 keys are assigned customer-specific
extended control systems as desired. Each ex­tended control system is assigned a separate key.

6.4.1 Room heating system

Function (ECO-H):

Weather-controlled regulation of heating with digi­tal timer for lowerable operation according to a
daily or weekly programme, with pump control,
frost protection function, ECOcircuit and limited
supply temperature.

Operating modes

- Off:

The room heating system is switched off.

- Day/Night:

Heating operation according to clocked pro­gramme. Normal temperature during the day
and reduced temperature at night.

- Day/Off:

Heating operation according to clocked pro­gramme. Normal temperature during the day
and switched off at night.

- Day:

Normal temperature continuously.

- Night:

Reduced temperature continuously.

- Manual:

Pump on; the valve is not controlled (emer­gency operation).

(mask number) parameter (factory setting)
(01) Operating mode (Day/Night)

Select operating mode

(02) Number of heating periods (1)

The weekly programme has to be entered in the
form of heating periods. Each weekly programme
consists of the heating day, start and end. A
maximum of seven heating periods is available.

(03) Heating Period 1/Heating days (MON to
SUN)

Day or days on which the switching times apply.
Select the heating days with KEYS F1 (for Mon­day) to F7 (for Sunday). Pressing the button once
Æ selects the day, pressing the button again Æ
drops the day.

(04) Heating Period 1/Start (6:00)

Time to switch from lowered temperature (or off)
to normal temperature.

(05) Heating Period 1/End (22:00)

Time to switch from normal temperature (or off) to
lowered temperature.

(06-23) Heating Periods 2-7

These depend on the number of heating periods
(see Mask 2), consisting of heating days, start
and end.

(24) Temperature of flow/at +5°C (43°C)

Desired flow temperature at atmospheric tem­perature of +5°C (see heating curve).

(25) Temperature of flow/at -15°C (64°C)

Desired flow temperature at atmospheric tem­perature of -15°C (see heating curve).

(26) Temperature Room Day (20°C)
Setting for temperature of room during daytime
operation.

(27) Temperature Room Night (15°C)

Setting for temperature of room during nighttime
operation.

(28) Night-time lowering of flow temperature
by (-6°C)

This temperature set is subtracted from the flow
temperature calculated for night-time lowering.

(29) Flow temperature; maximum (70°C)

The maximum limit for the flow temperature.

(30) ECOcircuit (YES)

The ECO automatic savings system makes the
heating switch on and off as required.

(31) Switch off below system temperature (NO)

Should the room heating unit group be switched
off when a minimum system temperature is fallen
short of?

(32) Frost protection function (YES)

With the frost protection function switched on, the
room heating unit is turned on when there is a
danger of frost.

(33) Carry off excess heat (NO)

If the PYROT is at risk of overheating, there is the
option of the excess heat being carried off. The
room unit adjusts to "Flow tempera­ture/Maximum".

14

¥Auto

+5°C
Point 1

-15°C
Point 2

(Diagram: Heating Curve)

e

The heating curve

The correspondence of the flow temperature to
the outdoor temperature can be set directly and
read directly. The setting is carried out by two
points:

Point 1:

Flow temperature at atmospheric temperature of
+5°C (setting range from 20°C to 90°C).

Point 2:

Flow temperature at atmospheric temperature of ­15°C (setting range from 20°C to 90°C).

I M P O R T A N T:

Point 2 always has to be set higher than Point 1!

The two points marked indicate the factory set­ting. Point 1 is set to 43°C and Point 2 to 64°C.
This is equivalent to a steepness of approx. 1.5.

Room thermostat (ECO-ZR-QA):

The Model QAA 35 Room Thermostat can be
used with or without influence by the room tem­perature.

Switch positions possible

:

- Position:
Heating operation according to clocked pro­gramme as set in the ECOTRONIC.

- Position:
Normal temperature continuously.
(The operating mode set in the ECOTRONIC
will be ignored.)

- Position:
Reduced temperature continuously.
(The operating mode set in the ECOTRONIC
will be ignored.)

15

6.4.2 Utility water heater
Function:

- ECO-B1
When the temperature of the utility water
drops, it is reheated by the built-in heat ex­changer from the heat accumulator (hydraulic
switcher). The condition for this is a relevant
difference in temperature (choice of control
according to temperature difference or fixed
temperature).
The heating periods (daily and weekly pro­grammes) can be set using the integrated
timer.

- ECO-B2

When the temperature of the utility water
drops, it is reheated by the built-in heat ex­changer from the heat accumulator (hydraulic
switcher). The condition for this is a relevant
difference in temperature (choice of control
according to temperature difference or fixed
temperature).
The flow rate of the heating water is controlled
by the return temperature (quantity control).
This produces optimum storage stratification
with long-lasting high temperature on the stor­age unit flow pipe.
The heating periods (daily and weekly pro­grammes) can be set using the integrated
timer.

Operating modes:

- Off:
The utility water heating system is switched off.

- Timer:
Utility water heating following clocked pro­gramme. (The boiler is only warmed up during
the heating period.)

- On:
The boiler is heated up when prompted for
heat and when there is sufficient system tem­perature.

- Manual:
Pump on; the valve is not controlled (emer­gency operation).

(mask number) parameter (factory setting)

(01) Operating mode (timer)

Select operating mode

(02) Number of heating periods (1)

The weekly programme has to be entered in the
form of heating periods. Each weekly programme
consists of the heating day, start and end. A
maximum of seven heating periods is available.

(03) Heating Period 1/Heating days (MON to
SUN)

Day or days on which the switching times apply.
Select the heating days with KEYS F1 (for Mon­day) to F7 (for Sunday). Pressing the button once
Æ selects the day, pressing the button again Æ
drops the day.

(04) Heating Period 1/Start (6:00)

Start, clearance, utility water heating.

(05) Heating Period 1/End (22:00)

End, clearance, utility water heating

(06-23) Heating Periods 2-7

These depend on the number of heating periods
(see Mask 2), consisting of heating days, start
and end.

(24) Temperature of utility water (60°C)

Set the desired temperature of the utility water.

Additional parameters for ECO-B2
(mask number) parameter (factory setting)

- Temperature of return flow __°C higher

than the temperature of the utility water
(20°C)

Desired set-point temperature of return flow:

actual boiler temperature plus the amount set
here.

16

6.4.3 Air heater

Function (ECO-L):

The air heaters are supplied at maximum flow
temperature from the boiler plant storage system.
The fans are connected by switches or controllers
provided by the customer. The flow rate of the
heating water is controlled by the temperature of
the return flow and thus adjusted to the air
heater's thermal output (quantity control). This
produces optimum storage stratification with long­lasting high temperature on the storage unit flow
pipe. The heating periods (daily and weekly pro­grammes) can be set using the integrated timer.

Operating modes:

- Off:
The air heater is switched off

- Day/Off:
Heating operation according to clocked pro­gramme. During the day the system is ad­justed to the set point value for return flow, and
at night it is off.

- Day:
Adjusted to the set point value for return flow
(continuous operation).

- Manual:
Pump on; the valve is not controlled (emer­gency operation).

(mask number) parameter (factory setting)
(01) Operating mode (Day/Off)

Select operating mode

(02) Number of heating periods (1)

The weekly programme has to be entered in the
form of heating periods. Each weekly programme
consists of the heating day, start and end. A
maximum of seven heating periods is available.

(03) Heating Period 1/Heating days (MON to
SUN)

Day or days on which the switching times apply.
Select the heating days with KEYS F1 (for Mon­day) to F7 (for Sunday). Pressing the button once
Æ selects the day, pressing the button again Æ
drops the day.

(04) Heating Period 1/Start (6:00)

Time to switch on air heater.

(05) Heating Period 1/End (22:00)

Time to switch off air heater.

(06-23) Heating Periods 2-7

These depend on the number of heating periods
(see Mask 2), consisting of heating days, start
and end.

(24) Temperature of return flow (60°C)

Desired temperature of return flow

(25) ECOcircuit (YES)

The ECO automatic savings system makes the air
heater switch on and off as required.

(26) Switch off below system temperature (NO)

Should the air heater group be switched off when
a minimum system temperature is fallen short of?

(27) Frost protection function (YES)

With the frost protection function switched on, the
room heating unit is turned on when there is a
danger of frost.

(28) Carry off excess heat (NO)

If the PYROT is at risk of overheating, there is the
option of the excess heat being carried off. The
group adjust to "Flow temperature/Maximum".

17

6.4.4 Annex buildings

Function (ECO-N):

The pipeline is usually supplied with a lowered
temperature required by the weather-guided heat­ing control system. The utility water heater is
loaded at the maximum flow temperature set. To
do so, the heating water is re-channelled by a
valve to the utility water heater. The integrated
timer shifts this to non-productive times, where
the room heating unit is quickly interrupted.

Operating modes for the room heating unit

- Off:
The room heating system is switched off.

- Day/Night:
Heating operation according to clocked pro­gramme. Normal temperature during the day
and reduced temperature at night.

- Day/Off:
Heating operation according to clocked pro­gramme. Normal temperature during the day
and switched off at night.

- Day:
Normal temperature continuously.

- Night:
Reduced temperature continuously.

- Manual:
Pump on; the valve is not controlled (emer­gency operation).

(mask number) parameter (factory setting)
(01) Operating mode (Day/Night)

Select operating mode

(02) Number of heating periods (1)

The weekly programme has to be entered in the
form of heating periods. Each weekly programme
consists of the heating day, start and end. A
maximum of seven heating periods is available.

(03) Heating Period 1/Heating days (MON to
SUN)

Day or days on which the switching times apply.
Select the heating days with KEYS F1 (for Mon­day) to F7 (for Sunday). Pressing the button once
Æ selects the day, pressing the button again Æ
drops the day.

(04) Heating Period 1/Start (6:00)

Time to switch from lowered temperature (or off)
to normal temperature.

(05) Heating Period 1/End (22:00)

Time to switch from normal temperature to low­ered temperature (or off).

(06-23) Heating Periods 2-7

These depend on the number of heating periods
(see Mask 2), consisting of heating days, start
and end.

(24) Temperature of flow/at +5°C (43°C)
(25) Temperature of flow/at -15°C (64°C)
(26) Temperature Room Day (20°C)

Setting for temperature of room during daytime
operation.

(27) Temperature Room Night (15°C)

Setting for temperature of room during nighttime
operation.

(28) Night-time lowering of flow temperature
by (-6°C)

This temperature set is subtracted from the flow
temperature calculated for night-time lowering.

(29) Flow temperature; maximum (70°C)

The maximum limit for the flow temperature.

(30) ECOcircuit (YES)

The ECO automatic savings system makes the
heating switch on and off as required.

(31) Switch off below system temperature (NO)

Should the room heating unit group be switched
off when a minimum system temperature is fallen
short of?

(32) Frost protection function (YES)

With the frost protection function switched on, the
room heating unit is turned on when there is a
danger of frost.

(33) Carry off excess heat (NO)

If the PYROT is at risk of overheating, there is the
option of the excess heat being carried off. The
room heating unit adjusts to "Flow tempera­ture/Maximum".

18

The heating curve

See "Extended control system for room heating
unit"

Room thermostat (ECO-ZR-QA):

See "Extended control system for room heating
unit"

Operating modes of the utility water heater:

- Off:
The utility water heating system is switched off.

- Timer:
Utility water heating following clocked pro­gramme. (The boiler is only heated up during
the heating period.)

- On:
The boiler is heated up when prompted for
heat and when there is sufficient system tem­perature.

- Manual:
Pump on; the valve is not controlled (emer­gency operation).

Utility water heater (mask number) parameter
(factory setting)

(34) Operating mode (timer)

Select operating mode

(35) Number of heating periods (1)

The weekly programme has to be entered in the
form of heating periods. Each weekly programme
consists of the heating day, start and end. A
maximum of seven heating periods is available.
(Only with TIMER operating mode)

(36) Heating Period 1/Heating days (MON to
SUN)

Day or days on which the switching times apply.
Select the heating days with KEYS F1 (for Mon­day) to F7 (for Sunday). Pressing the button once
Æ selects the day, pressing the button again Æ
drops the day.

(37) Heating Period 1/Start (6:00)

Start, clearance, utility water heating.

(38) Heating Period 1/End (22:00)

End, clearance, utility water heating

(39-56) Heating Periods 2-7

These depend on the number of heating periods
(see Mask 35), consisting of heating days, start
and end.

(57) Temperature of utility water (60°C)

Set the desired temperature of the utility water.

6.4.5 Pipelining
Function (ECO-F):

This is for an annex building with a separate heat
distribution system, which is supplied with heat via
a pipeline. According to prompts by the heat dis­tribution system, the temperature of the pipeline is
pre-adjusted for the lowest loss in the line.

Operating modes:

- Off
Pump off; valve closed.

- Automatic
Adjustment to the temperature prompted.

- Manual
Pump on; the valve is not controlled (emer­gency operation).

(mask number) parameter (factory setting)
(01) Heating/Operating mode (Automatic)

Select operating mode

(02) Frost protection function (YES)

With the frost protection function switched on, the
pipeline is turned on when there is a danger of
frost.

(03) Flow temperature; minimum (20°C)

Minimum temperature desired

(04) Flow temperature; maximum (60°C)

Maximum temperature desired

19

6.4.6 Additional heat generator
Function (ECO-KP1):

The additional heat generator is automatically
connected when required. This takes place after
the system temperature is fallen short of that is
set for covering the entire heat requirement or a
peak in heat requirement. A boiler plant group is
required to carry off heat for the additional boiler
that will simultaneously provide for maintaining
the return flow.

Operating modes:

- Off:
The additional heat generator is switched off.

- Automatic:
Automatic clearance of the additional heat
generator when either an adjustable connect­ing temperature for the accumulator is fallen
short of or a sensor for the forward flow bar.

- On:
Additional heat generator cleared.

- Manual:
Additional heat generator cleared and pump
on; the valve is not controlled (emergency op­eration).

(mask number) parameter (factory setting)

(01) Operating mode (automatic)

Select operating mode

(02) Delay before connecting (15 min)

Clearance is given when the time set is up.

(03) Connecting temperature, system set-point
temperature (-15°C)

If the system temperature falls by this amount be­low the system set-point temperature, the delay
before connecting (Mask 2) begins to lapse.

(04) Switch-off temperature for system set­point temperature (-5°C)

Switch-off difference in parallel operation

(07) Set-point temperature of return flow
(50°C)

Desired temperature of return flow

(09) Load storage unit to (storage unit at top):

To which heat storage sensor should the storage
unit be loaded?
(Indication only with accumulator option)

(10) Load storage unit to (70°C):

To what temperature on the accumulator sensor
selected should the additional heat generator heat
up the accumulator?
(Indication only with accumulator option)

(12) Service function of additional heat gen­erator

A maintenance function for the specialist

(13) Operating hours counter

20

6.4.7 Solar

Function (ECO-S1):

This is used in simple solar systems with a single
control circuit to heat the utility water in the solar
utility water heater (Art. No: WSS-___). The
ECO-S1 controller is an additional component for
the ECO-B1(2) controller for the utility water
heater. When the solar collector is hotter than the
utility water at the bottom, it is heated up by the
solar collector.

Operating modes

- Off:
Pump off; valve shut.

- Automatic:
Automatic heating of the solar utility water
heater by means of difference-based control.

- Manual:
Emergency operation: Pump on.

(mask number) parameter (factory setting)
(01) Operating mode (automatic)

Select operating mode

(02) Temperature of utility water; maximum
(65°C)

The maximum temperature of the utility water with
solar heating.

(04) Collector/Utility water;
Set difference (10°C)

The difference between the solar collector and the
utility water heater at the bottom

(10) Operating hours counter

Function (ECO-S3):

(Only possible with accumulator option)
This is used in large solar systems to heat the util­ity water in a solar utility water heater (Art. No:
WSS-___) and for supplying heat to the heat ac­cumulator by means of a triple control circuit. The
first circuit is for heating the domestic water, the
second circuit is for heating the heat accumulator
at the back/bottom and the third circuit is for heat­ing the heat accumulator at the front/top. The
heating storage unit is heated up by an externally
situated plate-type heat exchanger. On switchover
from utility water heater to heat accumulator, the
secondary pump is switched on, which is then in
operation with the solar pump. For optimised func­tioning, the flow rate in the secondary circuit has
to be adapted to the primary circuit (e.g. with flow
rate gauges in the primary and secondary cir­cuits).

Operating modes

- Off:
Pump off; valve shut

- Automatic:
Automatic heating of the solar utility water
heater and of the accumulator by means of dif­ference-based control.

- Manual:
Emergency operation Æ Solar pump and sec­ondary pump on; valves are not controlled
(emergency operation).

(mask number) parameter (factory setting)
(01) Operating mode (automatic)

Select operating mode

(02) Temperature of utility water; maximum
(65°C)

The maximum temperature of the utility water with
solar heating.

(03) Priority to utility water (optimised)

- Optimised:

Priority to loading utility water, but if the solar out­put is not sufficient to finish loading the utility wa­ter heater, there is a switchover to solar heated
heating. If the solar output rises (cyclical examina­tion) so much that heating of utility water is possi­ble, there is again a switchover to solar heated
utility water.

- Absolute:

Loading utility water has absolute priority, i.e. so­lar heated heating is not allowed until the utility
water heater has been completely loaded.

- No:

Solar heating of utility water/Heating according to
the temperature difference between the collector
and the utility water at the bottom or the collector
and the storage unit at the bottom.

(04) Collector/Utility water; set difference
(10°C)

The temperature difference between the collector
and the utility water at the bottom for solar utility
water heating.

(05) Collector/Storage unit; set difference
(15°C)

The temperature difference between the collector
and the storage unit at the bottom for solar heat­ing system heating.

(10) Operating hours counter

21

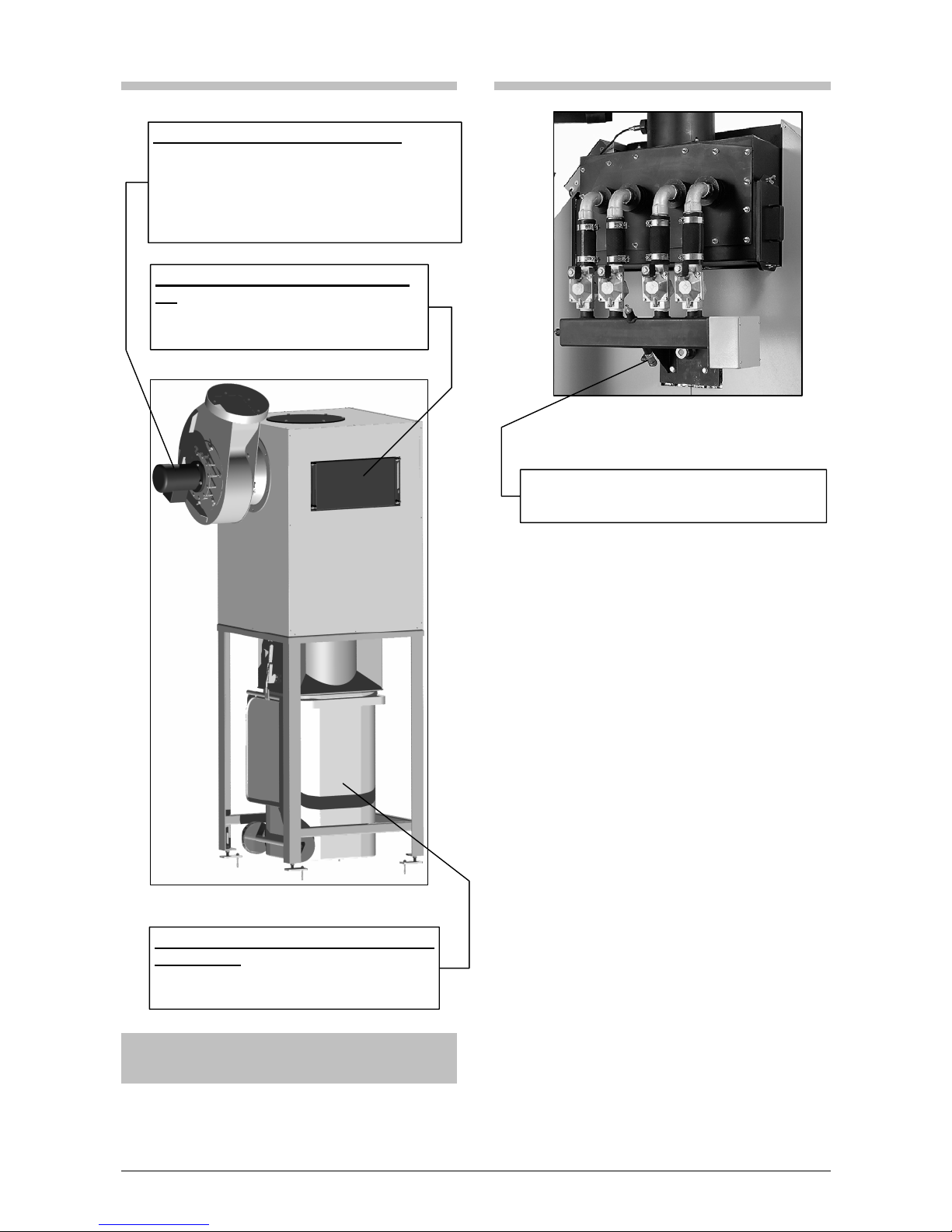

7 Cleaning/Maintenance

7.1 Boiler
Regular cleaning and maintenance of the facility is the customer's most important job for years of

trouble-free operation and to obtain the greatest possible output with the best efficiency.
Here the cleaning intervals for chip material are listed as per ÖNORM M 7133 with clinging bark –

0.8% ash content. The cleaning intervals may vary, depending on the fuel, the amount of fine matter
and the operating method.

CAUTION – RISK OF INJURY: Before beginning cleaning work, put the facility out of operation. Be
absolutely sure to wear protective gloves, protective eyewear if required and use the cleaning uten­sils that come with the facility (danger of blow-ups, burns and getting crushed)!

After approx. 300 operat­ing hours:

Remove ash from the ex­haust gas collector.

After approx. 1000 operating hours:

Unplug the plug from the exhaust gas
fan, unscrew butterfly nuts, pull out mo­tor with impeller and clean with broom or
wire brush.

CAUTION: DANGER OF INJURY – be
absolutely sure to switch off master
switch.

After approx. 300 oper­ating hours:

Take off and clean light
barriers and inspection
windows on the firing
block.
Remove dust and ash de­posits in the openings.

With pneumatic pipe cleaning system, after
approx. 600 operating hours; without pneumatic
pipe cleaning system, after approx. 300 operat­ing hours:

Open boiler door and clean all the heat exchanger
pipes (9) with wire cleaning brush. Use the stoker
to carefully

draw to the front the fly ash lying in the

rotation combustion chamber (8).

IMPORTANT

:
With pneumatic pipe-cleaning system, discon­nect the compressed air line before opening the
boiler door – danger of injury

!

After approx. 300 oper­ating hours:

Open lid across from
feed auger and clear the
slots in the grate (5).

After approx. 1000 op­erating hours:

Clean recirculated flue
gas line.

After approx. 100 operating hours:

Open ash pan doors and empty ash con­tainers.
With automatic de-ashing (optional)

,
cleaning interval of approx. 1000 operat­ing hours.

8

9

5

22

Exhaust gas deduster, detached (optional)

IMPORTANT: Never operate the boiler without
ash container!

Pneumatic tube-cleaning system (optional)

- Operation and maintenance of the compressor
(optional) according to the manual that comes
with the facility.

- The timer that comes with the compressor is for
limiting the running time and should be
mounted between the compressor and the
power supply.

- When the compressed air system is provided
by the customer, the compressor has to be
suited for continuous operation or be secured
against continuous operation (e.g. timer for lim­iting running time).

- Continuous operation of the compressor indi­cates leakage in the air system. Check air sup­ply line and valves for leakage.

After approx. 1000 operating hours:

Unplug the plug, unscrew butterfly nuts, pull
out motor with impeller and clean with broom
or wire brush.

CAUTION: DANGER OF INJURY – be abso­lutely sure to switch off master switch.

After each cleaning of the set of tub­ing

Open lid and clean the guide blades of
the de-duster with hand-brush.

After approx. 300 operating hours (90­litre ash bin):

Empty ash bin beneath the de-duster.

Regularly drain condensation water in the
compressed air distribution bar.

23

7.1 Installing the displacement rods into the
heat exchanger

The displacement rods improve the heat transmis­sion in the heat exchanger and reduce the tem­perature of the exhaust gas, thus improving the ef­ficiency of the heating system. They are taken out
to clean the heat exchanger tubes and then put
back in.

Insert the displacement rods into the heat ex­changer tube with the thick end first. Push until
they are flush with the bottom of the tube. Tole­rance +/- 5 mm.

Remove the displacement rods with a pair of pli­ers, as shown below. The heat exchanger should
be cleaned at the intervals prescribed so that, on
the one hand, performance and efficiency are
maintained, and on the other, the displacement
rods can be easily removed.

Flush with
the bottoms
of the tubes

Fig. 1

Fig. 2

24

7.2 Feed systems

All the geared motors on the feed systems are
maintenance-free.

- A change of lubricant and/or oil is recom-

mended every 20,000 operating hours or every
three years.

- Re-lubricate flange bearings and other lubricat-

ing points regularly with lithium soap grease.

- Check chain drives for wear and, if necessary,

tighten them up and lubricate with chain oil.

- Check all the bolts to be sure they are snug.

- Once a year check the extraction components

in the silo and/or bunker for damage and soil­ing. Remove any foreign matter there might be.

- Rotary sweep extraction system (AG)

- Check and lubricate elbow joints, pivot pins,

tension springs and tension chains. Readjust
elbow joints if necessary.

- Inclined extraction system (AP/APS)

- Lubricate the gasket between the extraction ca-

sing and the geared motor and universal joint
for the auger.

IMPORTANT: Never use inflammable lubri­cants!

8 Shutdown

Heating boiler

- Pipe-type heat exchanger:

When the PYROT is put out of operation for a
long period (such as for summer breaks), be
sure to carefully clean the pipe-type heat ex­changer with a steel brush required.

- Prevent high-temperature corrosion when chip-

boards are incinerated:
If the heating room is moist or there is any other
atmosphere that promotes corrosion (e.g. poor
ventilation, residual enamel near the heating
room, etc.), after carrying out the cleaning, also
spray the pipe-type heat exchanger with bio­diesel.

- If there is a danger of frost, empty the heating

system, following the heating installer's rules, or
have anti-frost agent filled.

Control system

Even when the PYROT is put out of operation for
long periods, the power supply to the control sys­tem should not be interrupted (do not turn off mas­ter switch).

Why?

- The "intermittent control system" switches the
consumer pumps on for five seconds every 24
hours. This prevents the pumps from jamming
during long standstills. This saves on expensive
repairs.

- Prevent the formation of condensation in the
lambda sensor.

- Extend the service life of the buffer battery.

9 Carrying out disposals

Shutdown

- If necessary, first switch off the PYROT using
the F1 or F2 key. When the burn-out has taken
place, and the burner has cooled off, turn off
the master switch.

- Disconnect the mains connection to the control
cabinet.

CAUTION DANGEROUS VOLTAGE!
Only licensed electrical firms are allowed to
disconnect and dismantle the connection to
the electrical network.

- Close the forward flow and return flow slide
valves.

- Open the drain tap on the bottom of the boiler
of the PYROT and drain water.

Only heating system installers may drain the
boiler and dismantle the connections to the
heating system.

- Disconnect the forward flow pipe and return
flow pipe from the PYROT.

Instructions regarding transport to a different
location

The personnel who carry out transports to different
locations have to know the dangers involved of ac­cidents that might arise in doing so and use suit­able measures to prevent such from happening.

Instructions regarding waste disposal

- Comply with customary laws and regulations on
disposing of waste.

- Contract a disposal firm to dispose of and recy­cle waste in an environmentally friendly fashion.

Spec Sheet

Wood Fuels

Minimum Requirements / Information

KÖB Holzfeuerungen GmbH, Flotzbachstr. 33, A-6922 Wolfurt, Tel. [phone], Fax 65707, E-Mail: [e-mail]

Subject to technical changes

1010/d-1

2007-09-12_E

A prerequisite for approval is the express permission for such by the public authority responsible. For claims to
the warranty according to Section 11 of our General Terms and Conditions of Delivery, wood fuels have to meet
the following conditions. If those conditions are not met, then approval is possible with restrictions (warranty,
maintenance, operational safety) with a written statement by the manufacturer in reference to the facility.

1) Non-combustible substances contained

No wood fuels may contain any foreign bodies, such as pieces of metal, stones, masonry remnants or plastics. Nor
must the following limits (per kg of dry fuel) for non-combustible substances contained (ash analysed at a
temperature of 815°C) be exceeded or fallen short of:
Limit Comparison with untreated forest wood

1.1) Chlorine Cl: max. 300 mg/kg 10 mg/kg

1.2) Sulphur S: max. 1000 mg/kg

120 mg/kg

1.3) Total Cl, S: max. 1000 mg/kg 130 mg/kg

1.4) Ash content, total: max. 15.0 g/kg 5.0 g/kg

1.5) Alkali oxides in the ash (K

2

O and Na2O): max. 1.0 g/kg 0.35 g/kg

1.6) Sintering point of the ash: min. 1000°C approx. 1200°C
Consequence of substantial overstepping of limits (1.1, 1.2, 1.3, 1.5, 1.6):
a) Hot-gas corrosion in the heat exchanger → Special maintenance instructions for heat exchanger
→ Shortened service life of heat exchanger
b) Early sintering and melting of the ash → Special maintenance instructions for firing,
→ Increased maintenance costs (firing, boiler door)
If the maintenance instructions are not followed, a process will be created that builds up in a negative fashion with:
→ Cinders change the airflow → Temperature peaks → more slag → etc, until there is fast destruction of the
refractory materials

1.7) Additives in remnant and used wood: Free of heavy metals and halogen compounds

2) Superfines & dust (wood particles smaller than 1.0 mm as per ÖNORM M 7133)

2.1) Without pre-dryer, max. 10.0% of the total mass; consequence of substantial overstepping of limit:
Temperature peaks → Slag formation → Even higher temperature → etc, to the point of destruction;
→ Special maintenance instructions for firing;
Elevated values are especially critical for remnant wood in combination with elevated values as per 1.1, 1.2

2.2) For forest wood chips with pre-dryer, max 4.0% of the total mass; consequence of substantial overstepping of

limit:
→ Moving the exhaust air lines → Special maintenance instructions for cleaning exhaust air line

3) Origin and treatment

3.1) Forest wood and plantation wood (complete trees and trunk wood untreated)

Mature wood from trunks and branches, untreated, chopped as billet wood or chips

3.2) Compressed wood, pellets (conforming to standards, such as: ÖNORM M 7135)

Untreated wood with limited bark content, compressed by machine and calibrated

3.2) Increased proportion of bark, tree cuttings from roadside trees (untreated)

Remnants from the forestry and sawmill industries or from conservation of the countryside (elevated ash
content).

3.3) Remnants from derived timber products

Usually a mixture of untreated and treated wood in the form of shavings from processing machinery and chips
from choppers that run slowly. In cases of elevated proportions of dust and/or limited storage volumes, these
shavings are compressed into briquettes.

3.4) Used wood

This is essentially untreated wood that has been used prior to its energetic utilisation (e.g. pallets). It is reduced
in size by shredders for thermal utilisation. The metal parts have to be removed afterwards (by magnetic
separators).

4) Particle size: adjustment of the conveyor augers

4.1) G30/G50 chips from untreated wood as per ÖNORM M 7133:

made by fast-running and cutting tools;
max. coarse fraction with cross-section and length
G 30 of 20% max. 3 cm

2

max. 8.5 cm;

G 50 of 20% max. 5 cm

2

max. 12 cm;
Required cross-sections of the loading: depends on the boiler output:
up to 150 kW up to 500 kW from 500 kW
Conveyor auger D min. 12 cm; min. 15 cm; min. 20 cm
Drop cross-section A min. 175 cm2 min. 300 cm2 min. 600 cm

2

Spec Sheet

Wood Fuels

Minimum Requirements / Information

KÖB Holzfeuerungen GmbH, Flotzbachstr. 33, A-6922 Wolfurt, Tel. [phone], Fax 65707, E-Mail: [e-mail]

Subject to technical changes

1010/d-2

2007-09-12_E

4.2) Chips not from the forest; origin as per 3.2, 3.3, 3.4; briquettes, origin as per 3.3

Size essentially as per ÖNORM M 7133 G50, additionally, however:

- Fraction of one-offs max. 5% with cross-section of max. 5 cm² up to a length of max. 16 cm

- Frayed surface by chopping tools (shredders) or slow-running choppers

- Briquettes, diameter max. D 60 mm (hydraulic compressors, pressure geared to loading system)
Conveyor augers diameter min. 20 cm; drop-off route, rotary valve cross-section min. 600 cm

2

Consequence of overstepping particle size:

- Extra expenditures for correcting malfunctions

- Shortened service life of the conveyor augers and drives

5) Bulk density S (kg/m³), water content W (%), size G (mm) as per ÖNORM M 7133

In automatically loaded boiler plants, the wood fuels that come to be used should be individually listed in offers and

orders as follows:
a) S 130 W10 to W20 G30/50 Sawdust, untreated (planing shop)
b1) S 200 W20 to W35 G30/50 Sawdust, untreated (sawmill)
b2) S 200 W20 G30/50 Forest wood chips, soft, untreated
c1) S 250 W20 to W35 G30/50 Forest wood chips, soft, untreated
c2) S 250 W35 to W50 G30/50 Sawdust, untreated (sawmill)
d1) S 300 W20 to W35 G30/50 Forest wood chips, soft/hard, untreated
d2) S 300 W35 to W50 G30/50 Forest wood chips, soft, untreated
e1) S 350 W20 to W35 G30/50 Forest wood chips, hard, untreated
e2) S 350 W35 to W50 G30/50 Forest wood chips, soft/hard, untreated
e3) S 350 W50 to W60 G30/50 Forest wood chips, soft, untreated
f1) S 400 W35 to W50 G30/50 Forest wood chips, hard, untreated
f2) S 400 W50 to W60 G30/50 Forest wood chips, soft/hard, untreated
g) S 130 less than W15 G30/50 Shavings & chips from wood remnants, dry, mixed
h) S 200 less than W15 G30/50 Shavings & chips from wood remnants, dry, mixed
i) S 250 less than W15 G30/50 Shavings & chips from wood remnants, dry, mixed
j) S 350 less than W15 G30/50 Briquettes from wood remnants D 40 to 60 mm
k1) S 650 less than W10 Pellets conforming to standards, untreated D 6 to 10 mm
k2) S 650 less than W10 Pellets conforming to standards, untreated D 11 to 15 mm

6) Maximum water content allowed, W, (percentage by weight of th e total mass)

The maximum water content allowed in the fuel when entering the furnace should be taken from the spec sheets for
the furnace series. With a pre-dryer installed between the furnace and the fuel storage site, extra water content can
be in the fuel stored (see specifications in reference to the order). The water content influences the maximum
furnace output possible, the heat emission required to the pre-dryer and thus the maximum heat emission possible
to the consumers.

7) Other information

7.1) Ash and cleaning

Untreated wood without bark has a proportion of ash less than 0.5% of the fuel mass supplied. All the
specifications regarding cleaning involved are based on untreated wood with bark attached with an ash amount
of 0.8%. The cleaning and maintenance involved for other wood fuels should be adapted according to the
amount, the specific weight and the behaviour of the ash.

7.2) Changing fuels

A great change in fuel quality, such as bulk density, water content, dust proportion or ash content might make a
manual correction of the firing parameters necessary (see Operating Manual).

8) Non-woody fuels from biomass

Non-woody fuels from biomass, such as needles, foliage, grain, straw, fruit pits, etc, are usually unsuited as fuel for
trouble-free operation and thus are not approved.

9) Wood fuels: rules, regulations and standards

Germany: 1

st

BImSchV1 dated 14 Mar 97, amended on 2 Aug 2001; page: Fuels nos. 5 to 7
Austria: FAV dated 18 Nov 1997 "Feuerungsanlagenverordnung" (Furnaces Act § 3.(1) 3. Solid Fuels
Switzerland: Luftreinhalteverordnung LRV (Swiss Clean Air Act) dated 16 Dec 1985 (Standing: 28 Mar 2000)
DIN 51731 Compressed Wood from Untreated Wood (1993)
ÖNORM M 7135 Compressed Wood from Untreated Wood or Untreated Bark (1998)
ÖNORM M 7136 Wood Pellets, Quality Assurance, Transport Logistics and Storage Logistics
ÖNORM M 7133 Wood Chips for Energetic Purposes (1998)
EN 303-5 Heating Boilers for Solid Fuels, Table 8 "Test Fuels“
CEN/TS 14961 Solid Organic Fuels

1

BImSchV = Bundes-Immissionsschutzverordnung [German Federal Emissions Control Act]

Malfunction report / malfunction remedy

Pyrot ECO 2005-05-01_E Page 1 of 2

Heat Generation

No.

Text displayed for malfunc-

tion

Malfunction alarm Possible cause Check / Remedy

01

Excess temperature

(F1, F2, F3 lights up red)

- Temperature-limiting safety switch N21

(TLSS) up at the burner.

- In correct setting on the control module

- Defective component (pump or valve)

- Sudden drop in output to zero. The feed auger then

has to be run to zero. The heat then produced by this

can result in excess temperature. Activate the function

“Dissipate excess heat”

.

- Why could the heat not be dissipated?

- Check the burner circuit pump and modulating valve.

- Activate the function “Dissipate excess heat”.

- On the TLSS, screw off the protective cap and press the reset

button (not possible until the burner temperature is less than

70°C) and press OK.

03-17

Interruption or short-circuit,

sensor

(F3 lights up red)

- Sensor . . .

- Damage to the sensor connecting line

- Malfunction alarm defective

- Call in electrician

09

Lambda sensor

(F3 lights up red)

- Lambda sensor on the back of the burner

- Malfunction alarm very soiled

- Malfunction alarm defective

- Error in the electronics

- Readjust lambda sensor

- Acknowledge with OK

18

Permanent code

(F3 lights up red)

- Operating hours lapsed before the perma-

nent code has been entered.

- Permanent code has not been entered - Call burner supplier

19

Repeat heating up

(F3 lights up red)

- Exhaust gas sensor

- Lambda sensor

- Fuel too moist

- Lambda sensor imprecise

- Ignition device defective

- The combustion chamber filling time is too short

- Use suitable, dry fuel.

- Readjust lambda sensor.

- Replace ignition device.

- Readjust combustion chamber.

- Acknowledge with OK

20

Water level in extinguishing

water container

(F3 lights up red)

- Level float switch in extinguishing water con-

tainer

- Too little water in the extinguishing water container.

- Fill extinguishing water container

- Acknowledge with OK

25

Light barrier, ember monitor-

ing system

(F3 lights up red)

- Light barrier for ember monitoring system

- Viewing windows soiled; deposits of ash in the open-

ings

- Defective malfunction alarm

.

- Remove and clean viewing windows on both sides. Remove

dust and deposits of ash from the openings. Refer to the Op-

erating and Maintenance Instructions, “Cleaning” section

- Acknowledge with OK

26

Light barrier, feed auger

(F3 lights up red)

- Light barrier in the metering container for the

feed auger

- Light barrier soiled

- Clogging in the metering container

- Clean light barrier

- Undo clogging

- Acknowledge with OK

96

Feed auger pipe too hot

- Temperature sensor on the feed auger

- Power failure

- Consequent malfunction caused by excess tempera-

ture

- Light barriers for ember monitoring system soiled

- Call in electrician

- Check light barriers for embers.

- Acknowledge with OK

81-93

BUS error, no connection to

the . . .

(F3 lights up red)

- Data transmission line for the bus connec-

tion

- Bus connection interrupted

- Check plug connections

- Replace data transmission line

- Call supplier

Malfunction report / malfunction remedy

Pyrot ECO 2005-05-01_E Page 2 of 2

Loader System

No.

Text displayed for malfunc-

tion

Malfunction alarm Possible cause Check / Remedy

01

Material shortage

(F4 lights up red)

- Light barrier in the metering container

- Light barriers for the ember monitoring sys-

tem

- Silo is empty

- Material clogged

- Fill silo

- Switch off master switch and undo material clogging

- Acknowledge with OK

11-24

Starttec …

(F4 lights up red)

- Starttec (motor starter mounted on clipboard

for the motor)

- Red lamp on the Starttec lights up

- Phase sequence mixed up

- Motor overloaded

- Other causes, depending on the malfunction dis-

played.

- Correct the phase sequence (clockwise rotating magnetic field)

- Undo clogging; make motor smooth-running

- Refer to documentation for Starttec

- Acknowledge with OK

30

Feed auger

(F4 lights up red)

- Reversed control of feed auger - Material clogging in the feed auger - Undo material clogging

31-45

Conveyor device …

(F4 lights up red)

- Maintenance cover limit switch

- One of the maintenance covers is open or not closed

properly.

- Check and close all the maintenance covers.

- Acknowledge with OK

51-52

Extraction system …

(F4 lights up red)

- Maintenance cover limit switch

- One of the maintenance covers is open or not closed

properly.

- Check and close all the maintenance covers.

- Acknowledge with OK

53-54

Extraction system … Hydraulic

drive, temperature/level

(F4 lights up red)

- Level float switch in the oil container for the

sliding bar extraction system

- Thermostat in the oil container

- Oil level too low, (possible loss of oil)

- Oil has been overheated by too high a pressure.

- Refill oil. Check oil line for leakage

- Check and adjust operating pressure (by KÖB)

- Acknowledge with OK.

53-54

Extraction system … silo door

open

(F4 lights up red)

- Limit switch for silo door - Silo door open

- Check and close silo door.

- Acknowledge with OK.

Heat Distribution

No.

Text displayed for malfunc-

tion

Malfunction alarm Possible cause Check / Remedy

01-27

Interruption or short-circuit,

sensor . . .

(F… lights up red)

- Sensor . . .

- Damage to the sensor connecting line

- Malfunction alarm defective

- Call in electrician

Leerseite für Notizen:
Blank page for notes:
Page en blanc pour des notationes:

Leerseite für Notizen:
Blank page for notes:
Page en blanc pour des notationes:

Leerseite für Notizen:
Blank page for notes:
Page en blanc pour des notationes:

KÖB Holzfeuerungen GmbH, Flotzbachstrasse 33, A-6922 Wolfurt

Tel +43 55 74 / 67 70-0, Fax +43 55 74 / 65 7 07
[e-mail], www.koeb-holzfeuerungen.com

Viessmann Group

Verkaufs-Niederlassungen und dazugehörige Service-Außenstellen:

ZENTRALE:

Flotzbachstrasse 33, A-6922 Wolfurt
Tel +43 55 74 / 67 70-0
Fax +43 55 74 / 65 7 07
[e-mail]

ÖSTERREICH – NORD / OST

A-4906 Eberschwang
Tel +43 77 53 / 32 65
Fax +43 77 53 / 32 65
[e-mail]

ÖSTERREICH – SÜD / OST

A-8230 Hartberg Greinbach
Tel +43 33 32 / 64 2 12
Fax +43 33 32 / 63 6 16
[e-mail]

VERTRIEBSTOCHTER SCHWEIZ

KÖB Wärmetechnik AG
CH-9430 St. Margrethen
Tel +41 848 / 87 08 10
Fax +41 848 / 87 08 11

SCHWEIZ – ZENTRAL / OST

CH-9243 Jonschwil
Tel +41 71 / 92 38 2 80
Fax +41 71 / 92 38 2 82
[e-mail]

SCHWEIZ – ZENTRAL / NORD

CH-4704 Niederbipp
Tel +41 32 / 63 30 7 10
Fax +41 32 / 63 30 7 11
[e-mail]

DEUTSCHLAND – SÜD / WEST

D-72639 Neuffen
Tel +49 70 25 / 80 42
Fax +49 70 25 / 83 69 6
[e-mail]

DEUTSCHLAND – SÜD / MITTE

D-89278 Nersingen
Tel +49 73 08 / 91 00 10
Fax +49 73 08 / 52 66
[e-mail]

DEUTSCHLAND – SÜD / OST

D-82549 Königsdorf
Tel +49 8179 / 92 95 65
Fax +49 8179 / 92 95 66
[e-mail]

●

DEUTSCHLAND – NORD / WEST

D-44579 Castrop-Rauxel
Tel +49 23 05 / 7 38 91
Fax +49 23 05 / 8 37 62
[e-mail]

●

DEUTSCHLAND – MITTE / OST

D-89278 Nersingen
Tel +49 7308 / 811347
Fax +49 7308 / 811387
[e-mail]

DEUTSCHLAND – NORD / OST

D-16727 Oberkrämer/ OT Eichstätt
Tel +49 33 04 / 31 70 8
Fax +49 33 04 / 31 70 8
[e-mail]

KOB Italia S.r.l.

I-36063 Marostica
Tel [phone]
Fax [phone]
[e-mail]

LUXEMBOURG

D-72639 Neuffen
Tel +49 70 25 / 80 42
Fax +49 70 25 / 83 69 6
[e-mail]

FRANCE

F-04300 Forcalquier
Tel. +33 492 / 73 10 80
Fax: +33 492 / 73 10 80
[e-mail]

●

FRANCE - OVEST

F-79160 Coulonges/L‘Autize
Tel. +33 549 / 06 06 60
Fax +33 549 / 06 00 60
[e-mail]

1 Serviceleitstelle Zentrale Wolfurt

KÖB Holzfeuerungen GmbH, Flotzbachstrasse 33, A-6922 Wolfurt
Tel +43 55 74 / 67 70-0, Fax +43 55 74 / 65 7 07, [e-mail]

2 Serviceleitstelle für Italien

KOB Italia S.r.l., I-36063 Marostica
Tel [phone], Fax [phone], [e-mail]

3 Serviceleitstelle für Frankreich

F-04300 Forcalquier, Tel. +33 492 / 73 10 80, Fax: +33 492 / 73 10 80
[e-mail]

SERVICE – EST: Electromatic – sarl, F-67550 Vendenheim
Tel +33 607 / 64 06 31, Fax +33 38 / 86 93 7 60. [e-mail]

● Verkaufsorganisation mit eigenem Service

●

NORGE
AS Morgan

N-3933 Porsgrunn
Tel. +47 355 / 693 00
Fax: +47 355 / 693 15
[e-mail]

●

NEDERLAND / BELGIE
LVB Wood Drying + Energy Systems BV

NL-4141 BE Leerdam
Tel. +31 345 / 61 97 88
Fax: +31 345 / 61 69 05
[e-mail]

●

UNITED KINGDOM
3G Energi

UK – TD5 7BH, Kelso
Tel. [phone]
Fax. [phone]
[e-mail]

●

KÖB SVERIGE AB

S-65350 Karlstad
Tel. [phone]
Fax. [phone]
[e-mail]

●

IRLAND
Clearpower Ltd.

Dublin 2
Tel. [phone]
Fax. + 35 31 66 90 978
[e-mail]

●

CANADA
Fink Machine Inc.

Enderby B.C
Tel. [phone]
Fax. [phone]
[e-mail]

1

1

1

1

1

1

1

1

1

1

2

3

1
