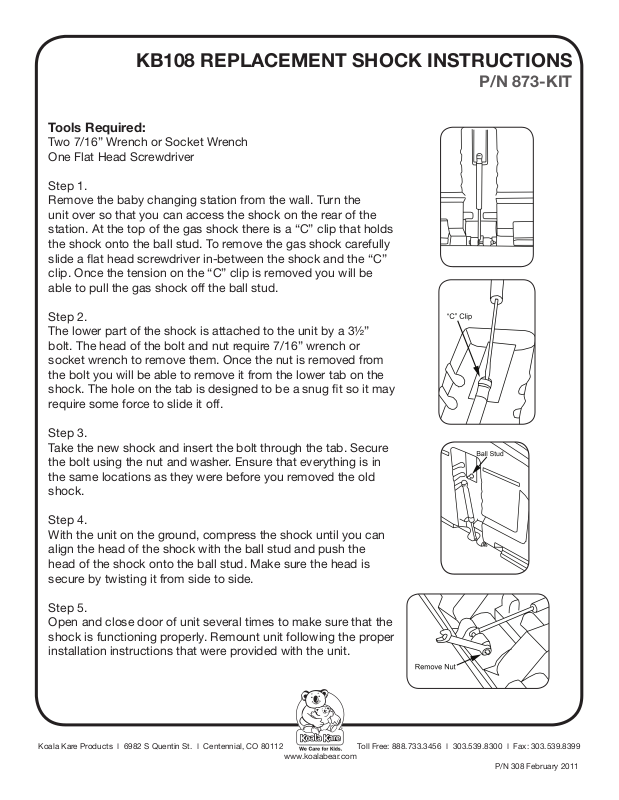

Koala Kare 873-KIT User Manual

KB108 REPLACEMENT SHOCK INSTRUCTIONS

Tools Required:

Two 7/16” Wrench or Socket Wrench
One Flat Head Screwdriver

Step 1.
Remove the baby changing station from the wall. Turn the
unit over so that you can access the shock on the rear of the
station. At the top of the gas shock there is a “C” clip that holds
the shock onto the ball stud. To remove the gas shock carefully
slide a at head screwdriver in-between the shock and the “C”
clip. Once the tension on the “C” clip is removed you will be
able to pull the gas shock off the ball stud.

Step 2.
The lower part of the shock is attached to the unit by a 3½”
bolt. The head of the bolt and nut require 7/16” wrench or
socket wrench to remove them. Once the nut is removed from
the bolt you will be able to remove it from the lower tab on the
shock. The hole on the tab is designed to be a snug t so it may
require some force to slide it off.

P/N 873-KIT

Step 3.
Take the new shock and insert the bolt through the tab. Secure
the bolt using the nut and washer. Ensure that everything is in
the same locations as they were before you removed the old
shock.

Step 4.
With the unit on the ground, compress the shock until you can
align the head of the shock with the ball stud and push the
head of the shock onto the ball stud. Make sure the head is
secure by twisting it from side to side.

Step 5.
Open and close door of unit several times to make sure that the
shock is functioning properly. Remount unit following the proper
installation instructions that were provided with the unit.

®
