INSTALLATION & MAINTENANCE MANUAL
WALL4LSS / WALL5LSS
GENERAL INSTRUCTIONS
These instructions should be read carefully and retained after installation by the end user for
future reference and maintenance.
These instructions should be used to aid installation of the following products:
WALL4LSS / WALL5LSS
SAFETY
• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671)
and current Building Regulations. If in any doubt, consult a qualified electrician
• Please isolate mains prior to installation or maintenance
• Check the total load on the circuit (including when this luminaire is fitted) does not exceed the rating of the
circuit cable, fuse or circuit breaker
• Please note the IP (Ingress Protection) rating of this product when deciding the location for installation
• This product is Class I and must be earthed
• This product series is IP44 rated
INSTALLATION
• Provide power to the required point of installation (refer to BS7671 for correct cabling methods). Suitable IP
rated junction boxes should be used where required

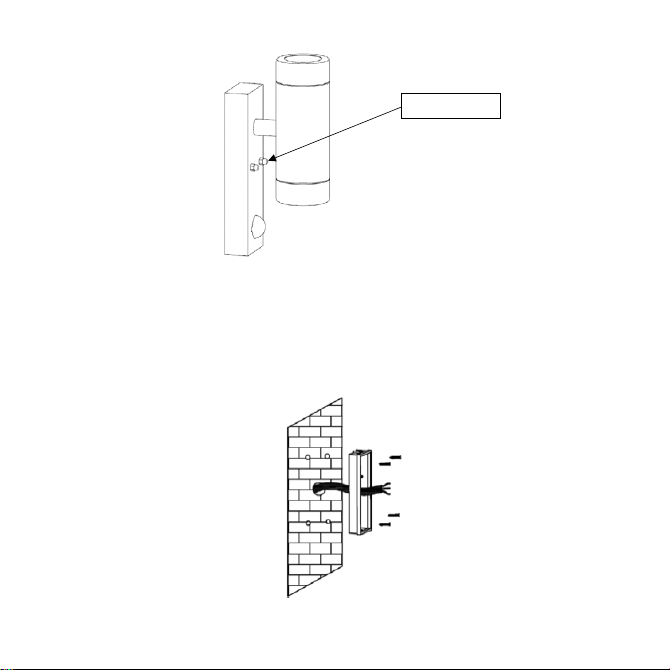

• Carefully remove the two nuts and O-rings securing the baseplate to the luminaire (see Fig. 1)
Remove nuts
Fig. 1
Remove nuts
• Using the baseplate as a template, mark the location for, and drill the fixing holes ensuring not to infringe
with any gas / water pipes or electrical cables
• Feed the mains cable through the rubber grommet to retain IP rating, and secure the baseplate using the
screws provided (see Fig. 2)
Fig. 2
