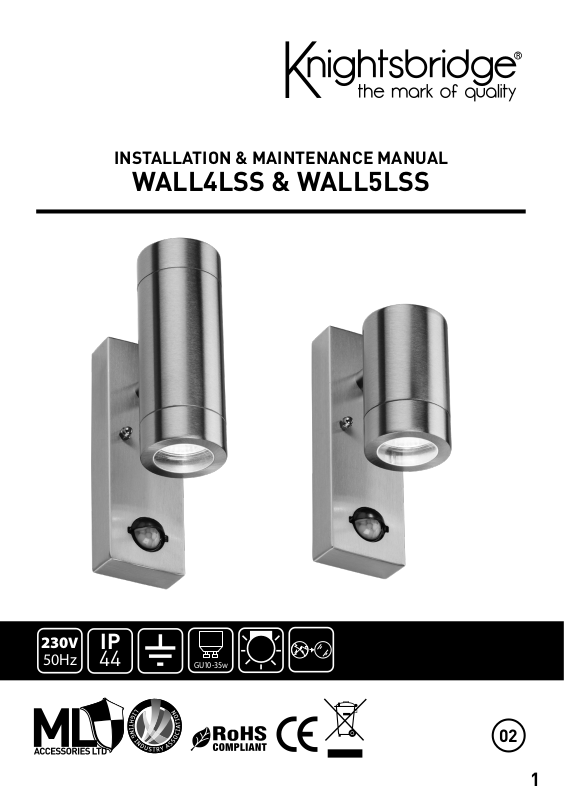

INSTALLATION & MAINTENANCE MANUAL
230V
50Hz
GU10-35w
IP
44
WALL4LSS & WALL5LSS
02
1
GENERAL INSTRUCTIONS
These instructions should be read carefully and retained after installation by the end user for future
reference and maintenance.
These instructions should be used to aid installation of the following products:
WALL4LSS & WALL5LSS
SAFETY
• Installation of this luminaire should only be carried out by a qualified electrician or competent
person to the latest Building and current IEE Wiring Regulations (BS7671)
• Please isolate mains prior to installation/maintenance
• Check the total load on the circuit (including when this luminaire is fitted) does not exceed the
rating of the circuit cable, fuse or circuit breaker
• Please note the IP (Ingress of Protection) rating of this luminaire when deciding the location for
installation
• This product is Class I and requires an earth
• This product is IP44 rated
INSTALLATION
• Provide power to the required point of installation. Suitable IP rated junction boxes should be
used where required
• To access the terminal block remove the rear access panel by removing the 2 bolts on the
front as shown in Fig 1.
Fig1
(WALL4LSS shown in image)
2
2 bolts
