Knightsbridge TPB14LEDA Installation Instructions

INSTALLATION & MAINTENANCE MANUAL

TPB14LEDA

GENERAL INSTRUCTIONS

These instructions should be read carefully and retained after installation by the end user for
future reference and maintenance.
These instructions should be used to aid installation of the following product:
TPB14LEDA

SAFETY

• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671)
and current Building Regulations. If in any doubt, consult a qualified electrician

• Please isolate mains prior to installation or maintenance

• Check the total load on the circuit (including when this luminaire is fitted) does not exceed the rating of the
circuit cable, fuse, or circuit breaker

• Please note the IP (Ingress Protection) rating of this luminaire when deciding the location for installation

• Do not overload this accessory or subject it to conditions outside its rating

• This product is Class II double insulated

• This product is IP44 rated

INSTALLATION

Note - Microwave sensors may not be suitable for all installations, for example enclosed spaces, as they are
able to detect movement through non-metallic surfaces like plasterboard and thin doors.

• Provide power to the required point of installation (refer to BS7671 for correct cabling methods). Suitable IP
rated junction boxes should be used where required

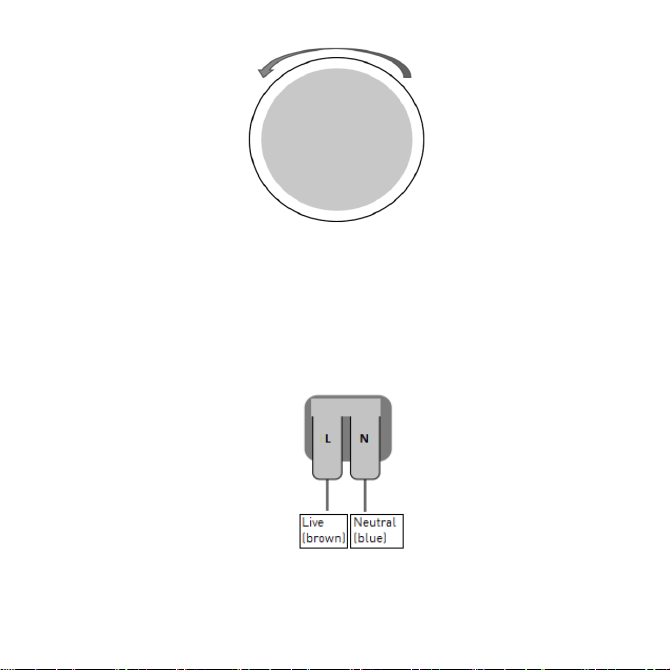

• Remove the diffuser by rotating the bezel anti-clockwise (see Fig. 1)

Fig. 1

• Remove the three fixing screws securing the LED plate

• Remove the LED plate and disconnect from the driver (via the DC socket)

• Drill the fixing holes in the rear of the fitting. Mark the location of the fixing holes and drill ensuring not to
infringe with any gas/water pipes or electrical cables

• Feed the mains cable through the rubber grommet to retain IP rating, and secure the baseplate to the
surface

• Ensuring correct polarity is observed, carefully wire as shown in Fig. 2

Fig. 2

• Adjust sensor settings as required

• Refasten the LED plate screws

• Reattach the diffuser by rotating clockwise

• Switch on and check for correct operation

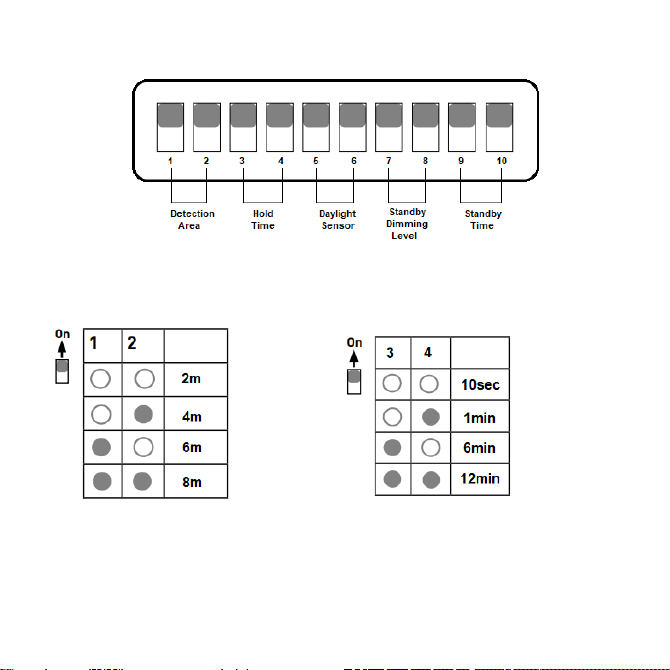

DIP SWITCH LAYOUT

• Adjust sensor settings as required

• Refasten the LED plate screws

• Reattach the diffuser by rotating clockwise

• Switch on and check for correct operation

DIP SWITCH LAYOUT

DIP SWITCH SETTINGS

DIP SWITCH SETTINGS

Detection Area Hold time

Detection area can be adjusted by the
combination of these DIP switches

This is the time period the luminaire remains at full
brightness after no motion is detected

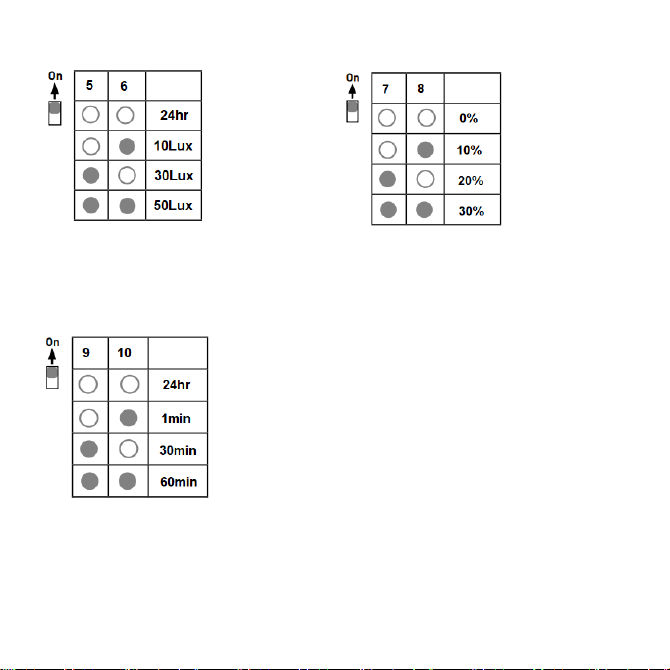

DIP SWITCH SETTINGS

Daylight Sensor Standby Dimming Level

When set to 24hr, the daylight sensor will switch the
luminaire ON when motion is detected regardless of
the ambeint light level

Standby Time

This is the dimming lebel of the luminaire after the
hold time has elapsed

This is the time period in which the luminaire remains
dimmed. If set to 24hr, the luminaire will remain dimmed
until motion is detected

WARNING

This luminaire must be disconnected from the circuit if subjected to any high voltage or insulation resistance
testing. Irreparable damage will occur if this instruction is not followed.

GENERAL

This product contains a light source of energy efficiency class F to Regulation (EU) No 2019/2015.

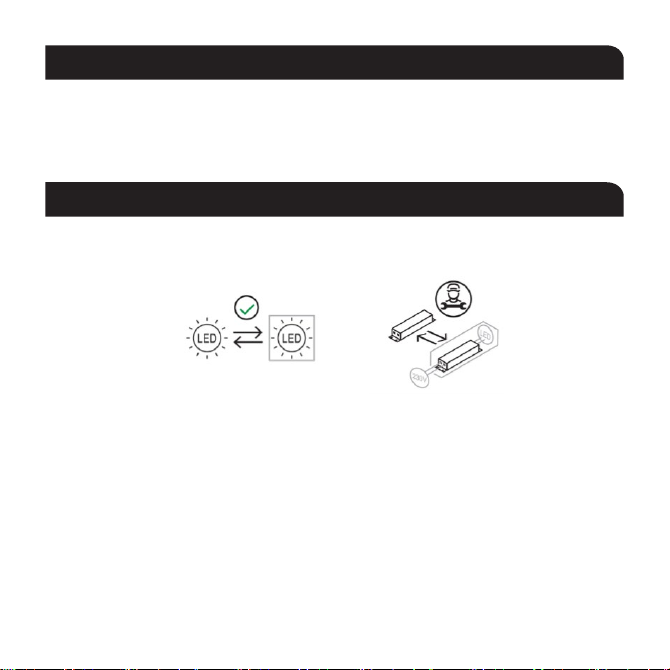

This product contains an LED light source which can be replaced by the end user and a control gear which can
be replaced by a professional.

WARNING

This luminaire must be disconnected from the circuit if subjected to any high voltage or insulation resistance
testing. Irreparable damage will occur if this instruction is not followed.

GENERAL

This product contains a light source of energy efficiency class F to Regulation (EU) No 2019/2015.
This product contains an LED light source which can be replaced by the end user and a control gear which can
be replaced by a professional.

Clean the external surfaces with a damp cloth using a mild solution of detergent and warm water only, do not
use aggressive cleaning products or solvents which may damage the product.
Do not use any source of high-pressure washers to maintain or clean this luminaire.
This product is non-dimmable.
This product should be dismantled for disposal when it reaches the end of its life. Please see website for
dismantling instructions.
This product should be recycled in the correct manner when it reaches the end of its life. Check local authorities
for where facilities exist.

WARRANTY

This product has a warranty of 3 years from date of purchase. Failure to install this product in accordance with
the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal of the batch code will
invalidate the warranty. If this product should fail within its warranty period, it should be returned to the place
of purchase for a free of charge replacement. ML Accessories does not accept responsibility for any installation
costs associated with the replacement product. Your statutory rights are not affected. ML Accessories reserve
the right to alter product specification without prior notice.
