INITIAL COMMISSIONING
3 HOUR TEST
MONTH TEST
1 FUNCTIONAL
2 FUNCTIONAL
3 FUNCTIONAL
4 FUNCTIONAL
5 FUNCTIONAL
6 FUNCTIONAL
7 FUNCTIONAL
8 FUNCTIONAL
9 FUNCTIONAL
10 FUNCTIONAL
11 FUNCTIONAL
12 3 HOUR
TEST RECORD SHEET
SIGNED DATE
FIRST YEAR SECOND YEAR THIRD YEAR FOURTH YEAR FIFTH YEAR
SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE
SUPPLIED BY:
(UK)
ML ACCESSORIES LTD, UNIT E CHILTERN PARK,
BOSCOMBE ROAD, DUNSTABLE LU5 4LT,
WWW.MLACCESSORIES.CO.UK
(EU) AUTHORISED REPRESENTATIVE
SLV LIGHTING GROUP,
DAIMLERSTRASSE 21-23,
52531 ÜBACH-PALENBERG, GERMANY
EMAIL: [email protected]
MADE IN CHINA
230V
50Hz
IP20
0~50°C
TA
INSTALLATION & MAINTENANCE MANUAL
Installed by: Installation date:
54
SPKEVEMKIT
Contact number:
JBJAN24_V1
SPKEVEMKIT INSTRUCTION MANUAL.indd 1-4SPKEVEMKIT INSTRUCTION MANUAL.indd 1-4 18/01/2024 09:54:0518/01/2024 09:54:05
Page 2
GENERAL INSTRUCTIONS
INSTALLATION & MAINTENANCE MANUAL
These instructions should be read carefully and retained after installation by the end user for future reference
and maintenance.
These instructions should be used to aid installation of the following product:
SPKEVEMKIT
SAFETY
• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations
(BS7671) and current Building Regulations. If in any doubt, consult a qualified electrician
• Please isolate mains prior to installation or maintenance
• Check the total load on the circuit (including when this product is fitted) does not exceed the rating of
the circuit cable, fuse or circuit breaker
• Please note the IP (Ingress Protection) rating of this product when deciding the location for installation
• Allow 50mm above and around the fitting for air dissipation (do not cover with insulation)
• Do not overload this accessory or subject it to conditions outside its rating
• This product is Class II double insulated
• This product is IP20 rated
INSTALLATION
• Provide power to the required point of installation
• Connect to the mains supply ensuring the correct polarity is observed: L – Live,
SL – Switched Live (brown), N – Neutral (blue) (see Fig. 1). Remove the SL if not required
• Connect to the luminaire ensuring the correct polarity is observed: L – Live (Brown), N – Neutral (blue)
(see Fig. 1).
These instructions should be read carefully and retained after installation by the end user for
future reference and maintenance.
These instructions should be used to aid installation of the following product:
SPKEVEMKIT
SAFETY
• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671)
and current Building Regulations. If in any doubt, consult a qualified electrician
• Please isolate mains prior to installation or maintenance
• Check the total load on the circuit (including when this product is fitted) does not exceed the rating of the
circuit cable, fuse or circuit breaker
• Please note the IP (Ingress Protection) rating of this product when deciding the location for installation
• Allow 50mm above and around the fitting for air dissipation (do not cover with insulation)
• Do not overload this accessory or subject it to conditions outside its rating
• This product is Class II double insulated
• This product is IP20 rated
INSTALLATION
• Provide power to the required point of installation
• Connect to the mains supply ensuring the correct polarity is observed: L – Live, SL – Switched Live (brown),
N – Neutral (blue) (see Fig. 1). Remove the SL if not required
• Connect to the luminaire ensuring the correct polarity is observed: L – Live (Brown), N – Neutral (blue) (see
Fig. 1).

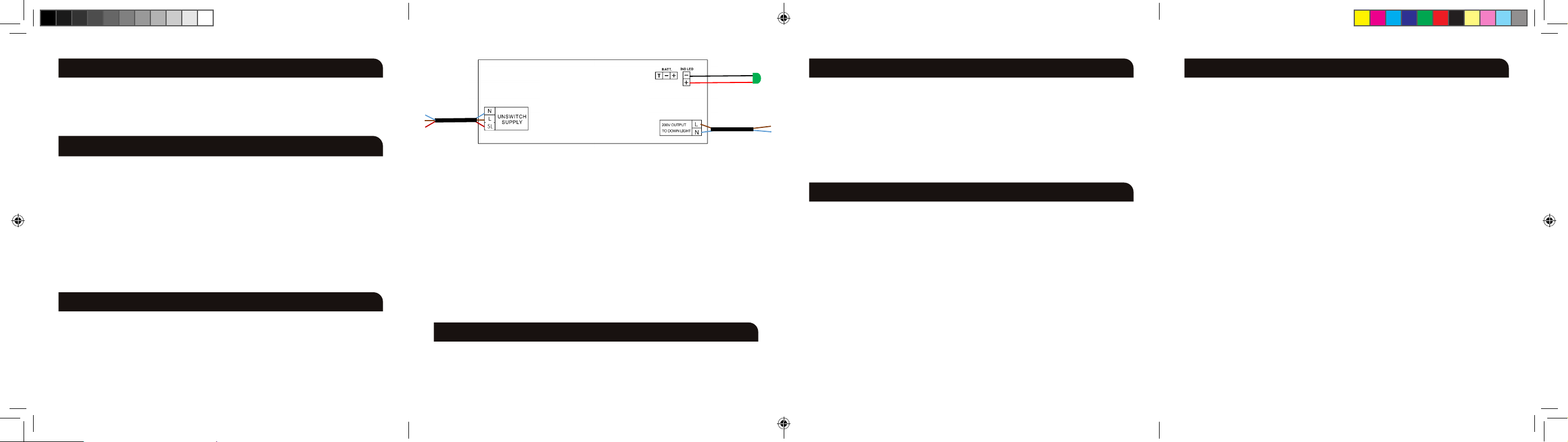

Fig. 1
• The battery will be connected on the PCB. To gain access to the battery, remove the main cover with the aid
of a screwdriver
• Refasten the cover
Note: The LED indicator needs to be visible
• Switch on and check for correct operation ensuring the green indicator LED is illuminated
• We recommend, on commissioning the installation, a minimum charge period of 24 hours before carrying out
an emergency duration test
Note: this fitting shuts off power to the Lithium Ion battery periodically to prevent overcharging. Therefore, the
green LED indicator has been set up to indicate that the emergency inverter is in good condition, not to indicate
the battery is charging. The installer must ensure the battery is connected.
WARNING
This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance
testing. Irreparable damage will occur if this instruction is not followed.
GENERAL
Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may damage the
product.
The maximum constant ambient temperature at the point of installation should not exceed 50°C.
This product is for maintained and non-maintained emergency use.
The batteries in this luminaire are Lithium Ion and must be disposed of correctly. Please contact the local
authorities for the disposal of this toxic waste.
WARRANTY
This product has a warranty of 3 years from date of purchase. Failure to install this product in accordance with
the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal of the batch code will
invalidate the warranty. If this product should fail within its warranty period, it should be returned to the place
of purchase for a free of charge replacement. ML Accessories does not accept responsibility for any installation
costs associated with the replacement product. Your statutory rights are not affected. ML Accessories reserve
the right to alter product specification without prior notice.
TESTING FOR EMERGENCY LUMINAIRES
Recommended routine test procedure in accordance with BS5266:
• Daily check – check LED charge indicator is illuminated
• Monthly functional test - simulate a mains supply failure for approx. 30 seconds by operation of key switch
or switching off circuit breaker. Ensure normal supply is restored after test and ensure charge indicator is
illuminated
• Annual 3-hour duration test - simulate a mains supply failure for 3-hour continuous test by operation of key
switch or switching off circuit breaker. Ensure normal supply is restored after test and ensure charge indicator
is illuminated
• If the luminaire fails any of the above tests, please contact a qualified electrician. See below for test record
sheet
