INSTALLATION & MAINTENANCE MANUAL
SPIKE4BL
Page 2
GENERAL INSTRUCTIONS
These instructions should be read carefully and retained after installation by the end user for
future reference and maintenance.
These instructions should be used to aid installation of the following product:
SPIKE4BL
SAFETY
• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671)
and current Building Regulations. If in any doubt, consult a qualified electrician
• Please isolate mains prior to installation or maintenance
• Check the total load on the circuit (including when this luminaire is fitted) does not exceed the rating of the
circuit cable, fuse or circuit breaker
• Please note the IP (Ingress Protection) rating of this product when deciding the location for installation
• This product is Class I and must be earthed
• This product is IP65 rated
INSTALLATION
Note - If this luminaire is being used in conjunction with an external PIR or sensor, please confirm with the
manufacturer of the sensors that they are compatible with LED luminaires.
• Provide power to the required point of installation (refer to BS7671 for correct cabling methods). Suitable
IP rated junction boxes should be used where required
• The power source connections should be local and accessible via a suitable IP rated enclosure

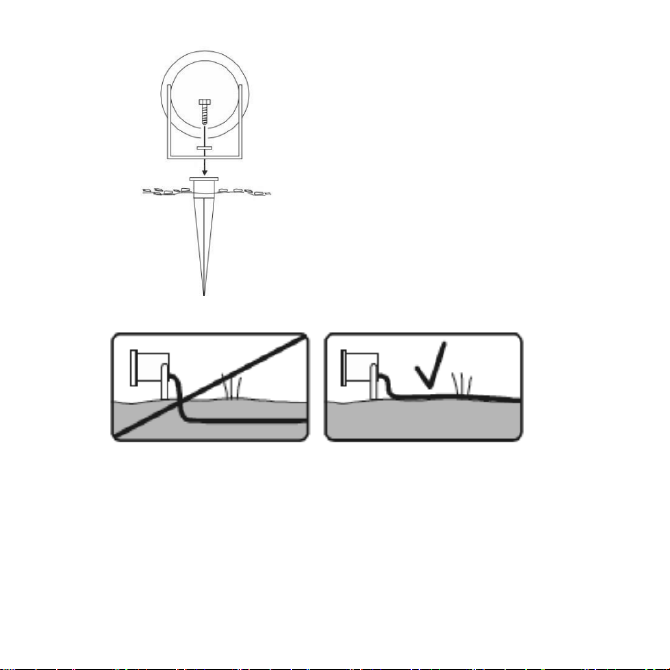

• Choose a position for the luminaire ensuring the ground is suitable to firmly hold the spike and luminaire
in position. Check the ground is not liable to flooding and the spike does not infringe with any underground
pipes or cables (see Fig. 1)
Page 3
• The body of the product should not rest directly
on the ground
Fig. 1
• The pre-installed cable supplied is for above
ground use only. Cables that are to be routed
within walls or below ground must be protected
by means of suitable conduit or trunking
(see Fig. 2)
Fig. 2

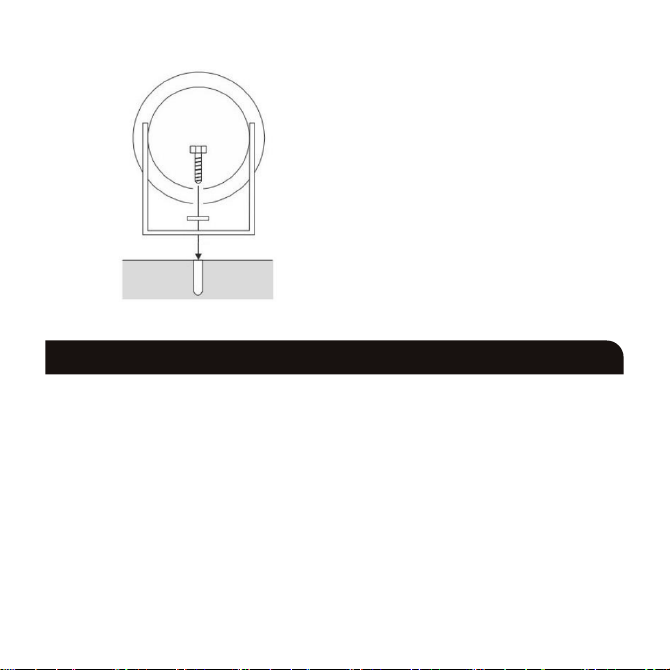

• For wall mounting, using the bracket as a template, mark the location for, and drill the fixing holes ensuring
not to infringe with any gas/water pipes or electrical cables (see Fig. 3)
Page 4
• Connect the luminaire to the mains supply
ensuring the correct polarity is observed: Live
(brown), Earth (green/yellow), Neutral (blue)
• Switch on and check for correct operation
• Should the protective glass be cracked or
damaged it should be replaced immediately
• This fitting must not be used without the
protective glass installed
Fig. 3
WARNING
This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance
testing. Irreparable damage will occur if this instruction is not followed.
This product is not suitable for installation in or near a coastal or marine environment.
Page 5
GENERAL
This product contains a light source of energy efficiency class D to Regulation (EU) No. 2019/2015 and (UK)
2021 No. 1095.

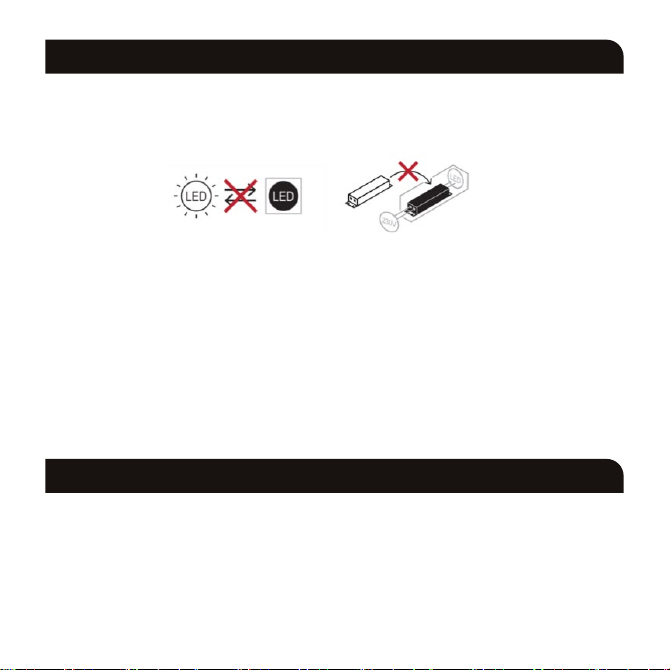

This product contains a non-replaceable LED light source and a non-replaceable control gear.
Clean the external surfaces with a damp cloth using a mild solution of detergent and warm water only, do
not use aggressive cleaning products or solvents which may damage the product.
Do not use any source of high-pressure washers to maintain or clean this luminaire.
This product is non-dimmable.
The external supply cable of this luminaire cannot be replaced; if the cable is damaged, the luminaire should
be destroyed.
This product should be dismantled for disposal when it reaches the end of its life. Please see website for
dismantling instructions.
This product should be recycled in the correct manner when it reaches the end of its life. Check local
authorities for where facilities exist.
WARRANTY
This product has a warranty of 3 years from the date of purchase. Failure to install this product in accordance
with the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal of the batch
code will invalidate the warranty. If this product should fail within its warranty period, it should be returned
to the place of purchase for a free of charge replacement. ML Accessories does not accept responsibility for
any installation costs associated with the replacement product. Your statutory rights are not affected. ML
Accessories reserve the right to alter product specification without prior notice.
Page 6
SUPPLIED BY:
ML ACCESSORIES LTD, UNIT E CHILTERN PARK,
BOSCOMBE ROAD, DUNSTABLE LU5 4LT,
230V
50Hz
(UK) MANUFACTURER
WWW.MLACCESSORIES.CO.UK
(EU) AUTHORISED REPRESENTATIVE
SLV LIGHTING GROUP,
DAIMLERSTRASSE 21-23,
52531 ÜBACH-PALENBERG, GERMANY
EMAIL: [email protected]
MADE IN CHINA
IP65
>80
CRI
25°C
TA
130
DCJAN23_V2
