INSTALLATION & MAINTENANCE MANUAL
SLIGHT2
GENERAL INSTRUCTIONS
These instructions should be read carefully and retained after installation by the end user for
future reference and maintenance.
These instructions should be used to aid installation of the following product:
SLIGHT2
SAFETY
• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671)
and current Building Regulations. If in any doubt, consult a qualified electrician
• Please isolate mains prior to installation or maintenance
• Check the total load on the circuit (including when this luminaire is fitted) does not exceed the rating of the
circuit cable, fuse or circuit breaker
• Please note the IP (Ingress Protection) rating of this product when deciding the location for installation
• The shaver socket is rated to a maximum of 20VA
• This product is for indoor use only
• This product is Class II double insulated
• This product IP20 rated
INSTALLATION
• Provide power to the required point of installation

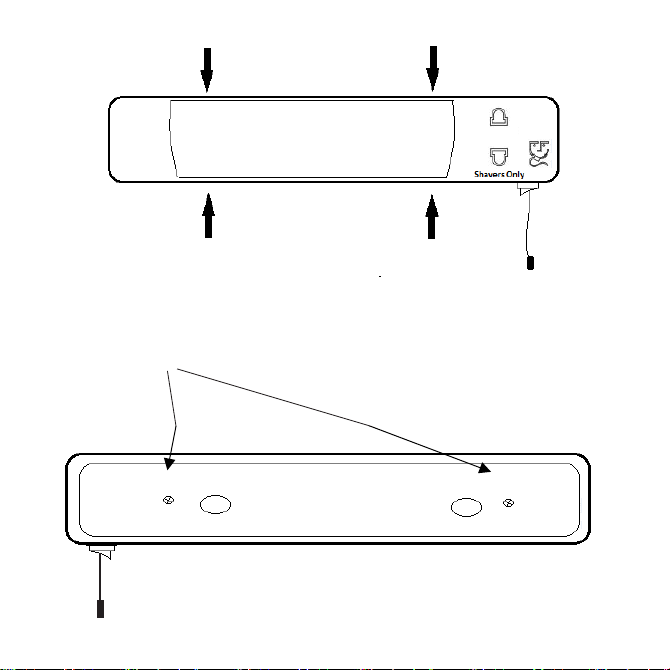

• Remove the diffuser by gently squeezing inwards top and bottom at both ends then pull away from the fitting
(see Fig. 1)
latest Building and current IEE Wiring Regulations (BS7671)
circuit cable, fuse or circuit breaker
Fig. 1
• Remove the LED tube by pushing it in at one end and gently pulling out of the lamp holders
• Using the fitting as a template, mark the location of the fixing holes and drill the holes ensuring not to
infringe with any gas/water pipes or electrical cables
• Remove the two screws at the rear of the fitting and remove the access plate to expose the terminal block
(see Fig. 2)
Fig. 2

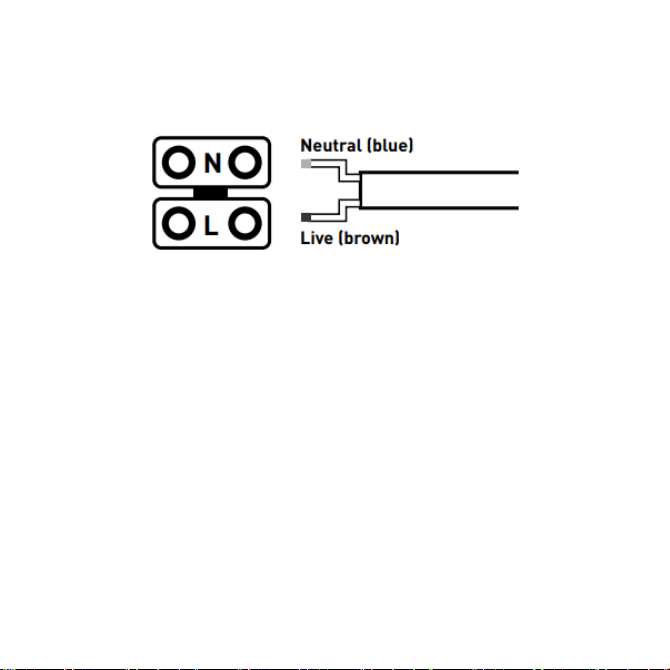

• Feed the cable through the rear of the access plate and ensuring correct polarity is observed carefully wire
as shown in Fig. 3
Fig. 3
• Replace the access plate and screws
• Align the fitting with the previously drilled holes and attach to the surface using the screws and wall plugs
provided
• Carefully insert the LED tube back into the lamp holders and replace the diffuser
• Switch on and check for correct operation
Note - as a safety feature, this product will not operate while the diffuser is removed.
WARNING
This product must be disconnected from the circuit if it subjected to any high voltage or insulation resistance
testing. Irreparable damage will occur if this instruction is not followed.
GENERAL
This product contains a light source of energy efficiency class F to Regulation (EU) No 2019/2015
This product contains an LED light source which can be replaced by the end user.
Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may damage the
product.
This product is non-dimmable.
This product should be recycled in the correct manner when it reaches the end of its life. Check local authorities
for where facilities exist.
WARRANTY
This product has a warranty of 1 year from date of purchase. Failure to install in accordance with the current
edition of the IEE Wiring Regulations, improper use, or removal of the batch codes will invalidate the warranty.
If this product should fail within its warranty period, it should be returned to the place of purchase for a
replacement. ML Accessories does not accept responsibility for any installation costs associated with the
replacement product. Your statutory rights are not affected.
ML Accessories reserve the right to alter product specification without prior notice.
INTERNATIONAL
INTERNATIONAL
CONTACT DETAILS
INTERNATIONAL
CONTACT DETAILS
CONTACT DETAILS
ML Accessories Limited LU5 4LT
www.mlaccessories.co.uk
