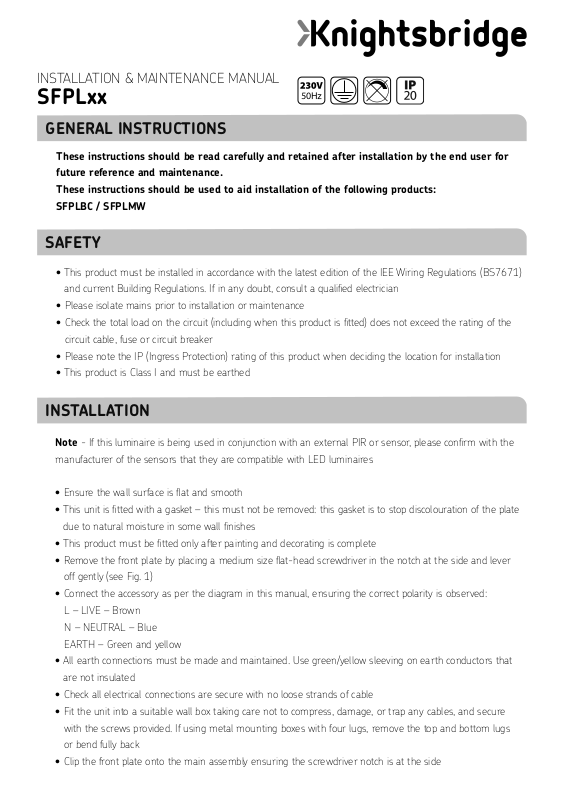

INSTALLATION & MAINTENANCE MANUAL
SFPLxx
GENERAL INSTRUCTIONS
These instructions should be read carefully and retained after installation by the end user for
future reference and maintenance.
These instructions should be used to aid installation of the following products:
SFPLBC / SFPLMW
SAFETY
• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671)
and current Building Regulations. If in any doubt, consult a qualified electrician
• Please isolate mains prior to installation or maintenance
• Check the total load on the circuit (including when this product is fitted) does not exceed the rating of the
circuit cable, fuse or circuit breaker
• Please note the IP (Ingress Protection) rating of this product when deciding the location for installation
• This product is Class I and must be earthed
INSTALLATION
Note - If this luminaire is being used in conjunction with an external PIR or sensor, please confirm with the
manufacturer of the sensors that they are compatible with LED luminaires
• Ensure the wall surface is flat and smooth
• This unit is fitted with a gasket – this must not be removed: this gasket is to stop discolouration of the plate
due to natural moisture in some wall finishes
• This product must be fitted only after painting and decorating is complete
• Remove the front plate by placing a medium size flat-head screwdriver in the notch at the side and lever
off gently (see Fig. 1)

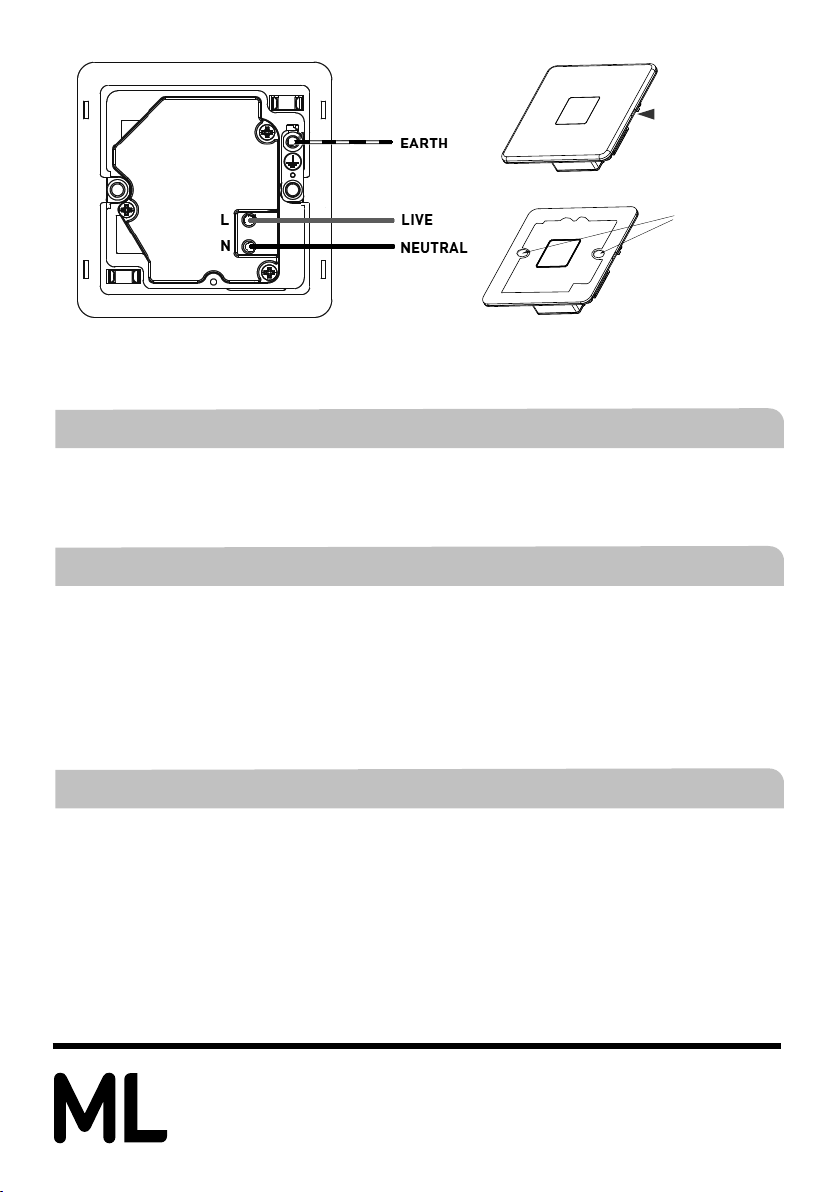

• Connect the accessory as per the diagram in this manual, ensuring the correct polarity is observed:
L – LIVE – Brown
N – NEUTRAL – Blue
EARTH – Green and yellow
• All earth connections must be made and maintained. Use green/yellow sleeving on earth conductors that
are not insulated
• Check all electrical connections are secure with no loose strands of cable
• Fit the unit into a suitable wall box taking care not to compress, damage, or trap any cables, and secure
with the screws provided. If using metal mounting boxes with four lugs, remove the top and bottom lugs
or bend fully back
• Clip the front plate onto the main assembly ensuring the screwdriver notch is at the side
Page 2
ACCESSORIES LTD
Tighten the screws
Yellow and Green core
Blue/black core
Brown/red core
Use the tool open the cover
Mounting screw holes
LED PLINTH LIGHT
Insert screwdriver to
remove cover
Mounting screw holes
Fig. 1
WARNING
This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance
testing. Irreparable damage will occur if this instruction is not followed.
GENERAL
This product should be recycled in the correct manner when it reaches the end of its life. Check local
authorities for where facilities exist
Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may damage the
product and invalidate the warranty
This product is non-dimmable
WARRANTY
This product has a warranty of 2 years from date of purchase. Failure to install this product in accordance
with the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal of the batch
code will invalidate the warranty. If this product should fail within its warranty period it should be returned
to the place of purchase for a free of charge replacement. ML Accessories does not accept responsibility for
any installation costs associated with the replacement product. Your statutory rights are not affected. ML
Accessories reserve the right to alter product specification without prior notice.
