INSTALLATION & MAINTENANCE MANUAL
IP
65
230V
50Hz
RW6 Series
118
1
GENERAL INSTRUCTIONS
RW6 Series
competent person to the latest Building and current IEE Wiring Regulations (BS7671)
exceed the rating of the circuit cable, fuse or circuit breaker
location for installation
be used where required
infringe with electrical cables, water/gas pipes or ceiling joists
72mm
These instructions should be read carefully and retained after installation by the end user for
future reference and maintenance.
These instructions should be used to aid installation of the following products:
RW6WW / RW6CW / RW6CCT
SAFETY
• Installation of this luminaire should only be carried out by a qualified electrician or competent
person to the latest Building and current IEE Wiring Regulations (BS7671)
• Please isolate mains prior to installation/maintenance
• Check the total load on the circuit (including when this luminaire is fitted) does not exceed the
rating of the circuit cable, fuse or circuit breaker
• Please note the IP (Ingress of Protection) rating of this luminaire when deciding the location for
installation
• If used under insulation, the insulation should be laid unbroken over the luminaire
(not packed around it). Only mineral wool style insulation may be used
• This product is Class I and must be earthed
• This product is dimmable with most trailing edge dimmers
• This product is IP65 rated
INSTALLATION
Note: If this luminaire is being used in conjunction with external PIR or sensors, please confirm with
the manufacturer of the sensors that they are compatible with LED luminaires.
• Provide power to the required point of installation. Suitable IP rated junction boxes should be used
where required
• Cut a suitable hole in the ceiling as per the cut-out details in Fig 1 ensuring that it does not infringe
with electrical cables, water/gas pipes or ceiling joists
Fig 1
2

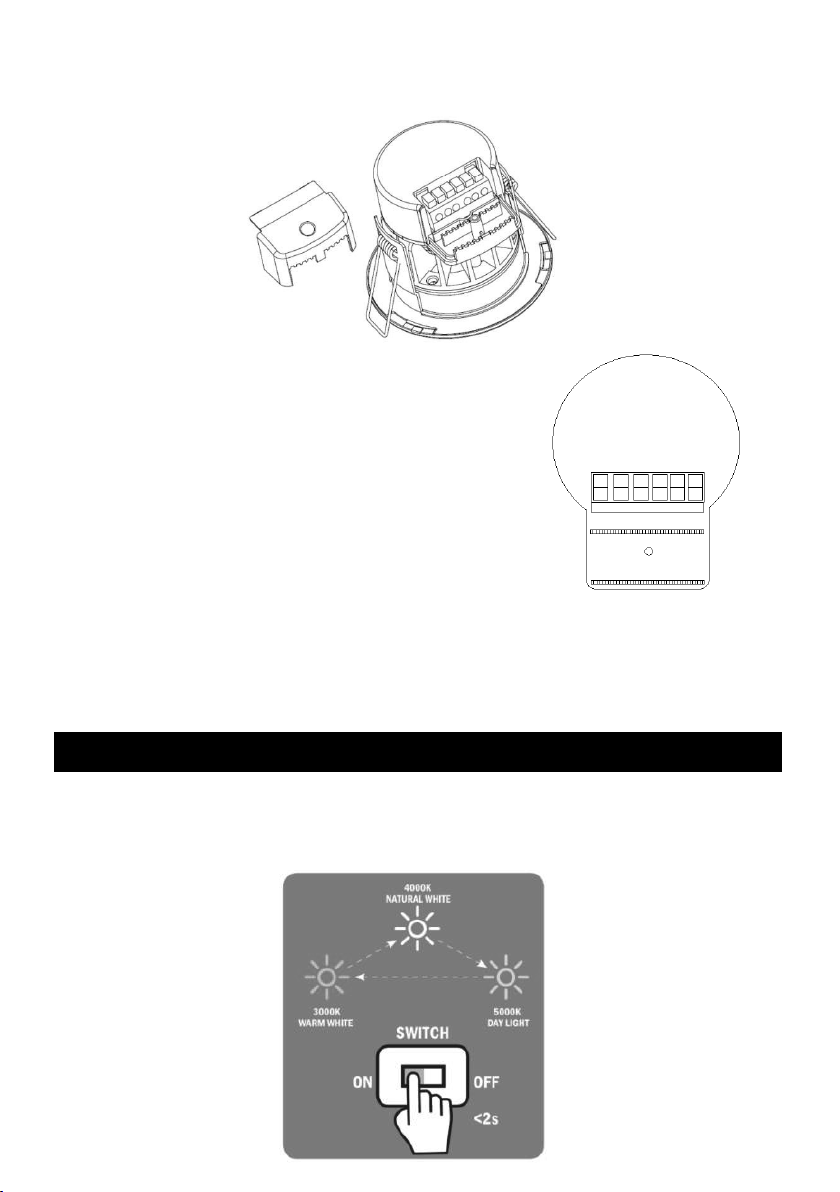

• With the aid of a cross-head screwdriver, remove the cover to access the mains terminal block
L
L EE
N
N
(see Fig 2)
Fig 2
• Connect the luminaire to the mains supply ensuring that
correct polarity is observed
L - Live (brown) E - Earth (yellow/green) and N - Neutral
(blue) (see Fig 3)
Fig 3
• Refit the terminal cover and tighten screw ensuring that the
strain relief grips the cable securely
• To remove the bezel turn anti-clockwise
• To refit the bezel turn clockwise
• Hold back springs and insert fitting into ceiling
• Switch on power supply and check for correct operation
ADJUSTABLE CCT FITTING ONLY (RW6CCT)
COLOUR CHANGE
• To change the colour temperature of the fitting, switch the fitting on, off and on again within 2
seconds. Repeat this switching cycle until desired colour temperature has been achieved
(see Fig 4)
Fig 4
3
MEMORY FUNCTION
• Switch the fittings off/on 4 times within 6 seconds
• Upon the 4th “on” switch, all luminaires will revert back to warm white
ADDITIONAL ACCESSORIES
Part code
Description
RW6BC
RW6C
RW6MB
RW6MW
• The luminaire will always remain the same colour temperature until the above switching cycle has
been carried out
RESET FUNCTION
• To reset the fittings back to warm white, turn on the fittings and leave them on for 5 seconds
• Switch the fittings off/on 4 times within 6 seconds
• Upon the 4th “on” switch, all luminaires will revert back to warm white
ADDITIONAL ACCESSORIES
Bezel - Brushed chrome
Bezel - Chrome
Bezel - Matt black
Bezel - Matt white
GENERAL
The LED lamps fitted in this product are non-replaceable. The unit should be recycled in the
correct manner when it reaches the end of its life. Check local authorities for where facilities exist.
Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may
damage the fitting.
WARRANTY
This product has a warranty of 5 years from date of purchase. Failure to install this product in
accordance with the current edition of the IEE Wiring Regulations, improper use, or removal of
the batch codes will invalidate the warranty. If this product should fail within its warranty period it
should be returned to the place of purchase for a free of charge replacement. ML Accessories does
not accept responsibility for any installation costs associated with the replacement product. Your
statutory rights are not affected. ML Accessories reserve the right to alter product specification
without prior notice.
ML Accessories Limited
LU5 5TA
www.mlaccessories.co.uk
4
SBJAN18_V1
