Knightsbridge OWALL2BCP, OWALL2AP, OWALL1BKP, OWALL1WP, OWALL1AP Installation Instructions

INSTALLATION & MAINTENANCE MANUAL

OWALL1xxP / OWALL2xxP

GENERAL INSTRUCTIONS

These instructions should be read carefully and retained after installation by the
end user for future reference and maintenance.
These instructions should be used to aid installation of the following product
range: OWALL1xxP / OWALL2xxP

SAFETY

• This product must be installed in accordance with the latest edition of the IEE Wiring
Regulations (BS7671) and current Building Regulations. If in any doubt, consult a
qualified electrician

• Please isolate mains prior to installation or maintenance

• Check the total load on the circuit (including when this luminaire is fitted) does not exceed
the rating of the circuit cable, fuse or circuit breaker

• Please note the IP (Ingress Protection) rating of this product when deciding the location
for installation

• This product is Class I and must be earthed

• This product is IP54 rated

INSTALLATION

Note - Round cable should be used for the mains supply. The use of flat cable will cause
water ingress into the fitting

• Provide power to the required point of installation. Suitable IP rated junction boxes should
be used where required

• Remove the baseplate from the luminaire by loosening the screws on either side of the
base

• Using the baseplate as a template, mark the location for, and drill the fixing holes ensuring
not to infringe with any gas/water pipes or electrical cables

• Feed the mains cable through the rubber grommet to retain IP rating

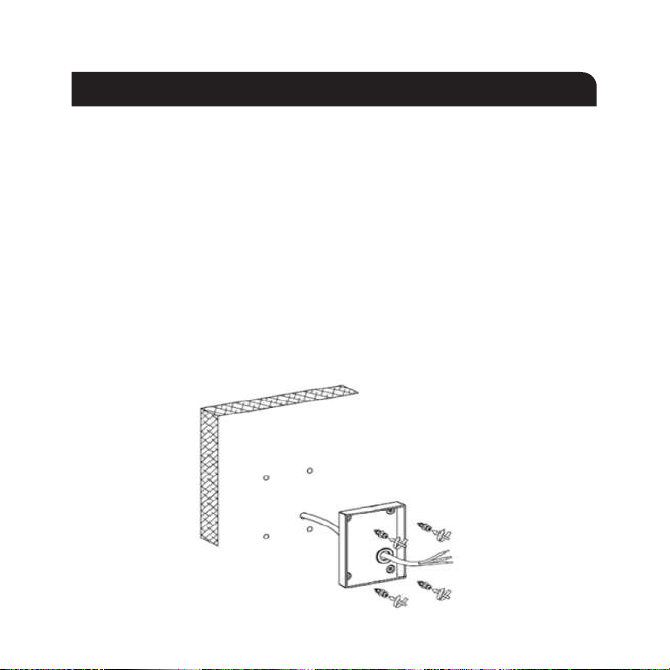

• Fix the baseplate using the screws and wall plugs provided (see Fig. 1)

Fig. 1

• Connect the luminaire to the mains supply ensuring the correct polarity is observed:
L - Live (brown) E - Earth (green/yellow) N - Neutral (blue)

• Align the luminaire with the baseplate and refasten the screws

• Insert suitable GU10 lamps

• Switch on and check for correct operation

Note – the photocell switches the light on when the light level drops below 10-30 lux, and
off when the light level reaches 30-60 lux (these settings are not adjustable). It is sensitive
to artificial light as well as natural daylight.

WARNING

This luminaire must be disconnected from the circuit if subjected to any high voltage or
insulation resistance testing. Irreparable damage will occur if this instruction is not followed.

GENERAL

This product should be recycled in the correct manner when it reaches the end of its life.
Check local authorities for where suitable facilities exist.
Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which
may damage the product.
This product is non-dimmable.

WARRANTY

This product has a warranty of 2 years from date of purchase. Failure to install this product
in accordance with the current edition of the IEE Wiring Regulations (BS7671), improper
use, or removal of the batch code will invalidate the warranty. If this product should fail
within its warranty period, it should be returned to the place of purchase for a free of
charge replacement. ML Accessories does not accept responsibility for any installation
costs associated with the replacement product. Your statutory rights are not affected. ML
Accessories reserve the right to alter product specification without prior notice.

INTERNATIONAL

INTERNATIONAL

CONTACT DETAILS

INTERNATIONAL

CONTACT DETAILS

CONTACT DETAILS

ML Accessories Limited LU5 4LT

www.mlaccessories.co.uk

02

DCOCT21_V3
