INSTALLATION & MAINTENANCE MANUAL
OSPCR
Page 2
GENERAL INSTRUCTIONS
These instructions should be read carefully and retained
after installation by the end user for future reference
and maintenance.
These instructions should be used to aid installation of
the following product:
OSPCR
SAFETY
• This product must be installed in accordance with the latest
edition of the IEE Wiring Regulations (BS7671) and current
Building Regulations. If in any doubt, consult a qualified
electrician
• Please isolate mains prior to installation or maintenance
• Please note the IP (Ingress Protection) rating of this product
when deciding the location for installation
• Do not overload this accessory or subject it to conditions outside
its rating
• This product is IP65 rated (IP20 from rear)
Page 3
INSTALLATION
• Choose a suitable location for installation. Do not install the unit
facing artificial or reflected light, this will cause the sensor to
cycle on and off at night
• The product is designed to fit into a 17mm cut-out within a
suitable IP rated enclosure, it cannot be installed independently
• Using the seals and lockrings supplied, place the sensor into the
hole and fasten securely against the enclosure wall. The inner
lockring may be omitted and the outer lockring tightened against
the body of the sensor, but both seals should be used (see Fig.
1)

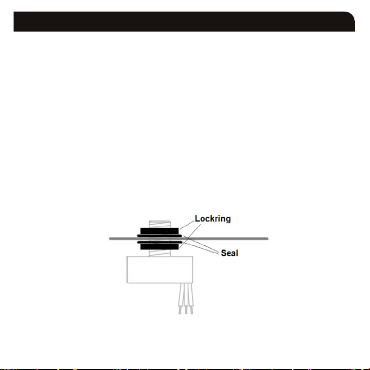

Fig. 1
• Connect as shown in Fig. 2
Page 4

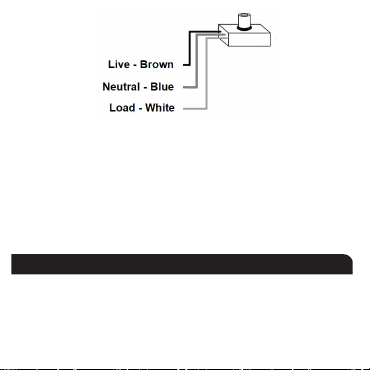

Fig. 2
• Switch on and check for correct operation
• There is a switching delay of 20-120 seconds after the ambient
light level changes. It is normal for the sensor to take a few
minutes to turn off when first installed
• To test, cover with opaque material, do not use fingers as light
passing through fingers may be enough to keep the switch open
WARNING
This product must be disconnected from the circuit if subjected
to any high voltage or insulation resistance testing. Irreparable
damage will occur if this instruction is not followed.
Page 5
GENERAL
This product should be recycled in the correct manner when
it reaches the end of its life. Check local authorities for where
facilities exist.
Clean the external surfaces with a damp cloth using a mild
solution of detergent and warm water only, do not use aggressive
cleaning products or solvents which may damage the product.
Do not use any source of high-pressure washers to maintain or
clean this product.
WARRANTY
This product has a warranty of 2 years from date of purchase.
Failure to install this product in accordance with the current
edition of the IEE Wiring Regulations (BS7671), improper
use, or removal of the batch code will invalidate the warranty.
If this product should fail within its warranty period, it should
be returned to the place of purchase for a free of charge
replacement. ML Accessories does not accept responsibility for
any installation costs associated with the replacement product.
Your statutory rights are not affected. ML Accessories reserve the
right to alter product specification without prior notice.
