INSTALLATION & MAINTENANCE MANUAL

OSHFREC

GENERAL INSTRUCTIONS

These instructions should be read carefully and retained after installation by the
end user for future reference and maintenance.
These instructions should be used to aid installation of the following product:
OSHFREC

SAFETY

• This product must be installed in accordance with the latest edition of the IEE Wiring
Regulations (BS7671) and current Building Regulations. If in any doubt, consult a
qualified electrician

• Please isolate mains prior to installation or maintenance

• Please note the IP (Ingress Protection) rating of this product when deciding the location
for installation

• Do not overload this accessory or subject it to conditions outside its rating

• This product is for indoor use only

• This product is Class II double insulated

• This product is IP20 rated

INSTALLATION

Note - microwave sensors may not be suitable for all installations, for example enclosed
spaces, as they are able to detect movement through non-metallic surfaces like
plasterboard and thin doors

• Provide power to the required point of installation

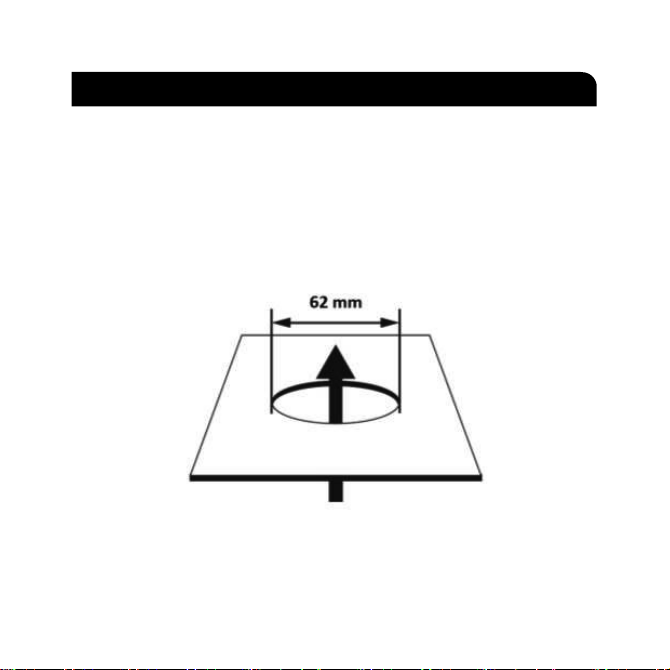

• Cut a suitable hole in the mounting surface as per the cut-out details (see Fig. 1) ensuring
not to infringe with any joists, gas/water pipes or electrical cables

Fig. 1

• Loosen the screw on the terminal cover of the power module

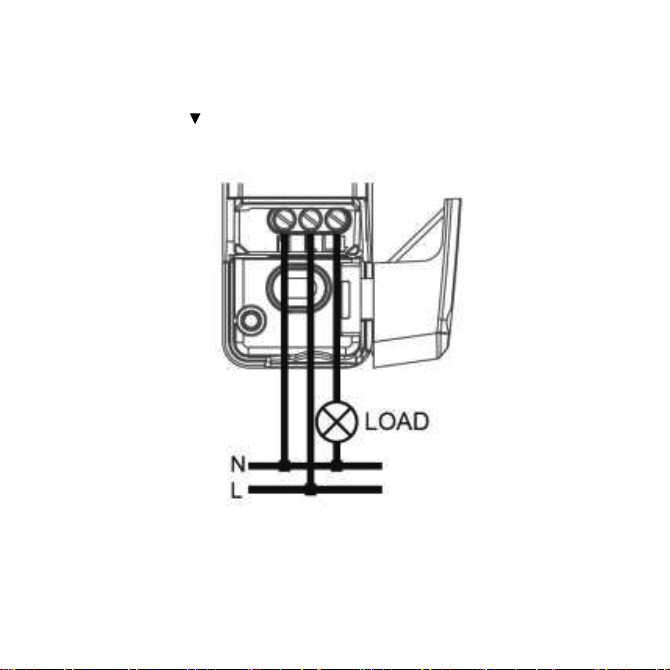

• Ensuring correct polarity is observed, terminate the mains cable Live (Brown), Neutral
(Blue) and the L (Load Live) into the power module (see Fig. 2)

Fig. 2

• Fasten down the screw on the terminal cover ensuring the mains cable is secure under
the cable clamp

• Place the power module into the ceiling cavity

• Lift both spring clips on the sides of the fitting and push into the ceiling (see Fig. 3)

Fig. 3

• Switch on power and check for correct operation

OVERRIDE FACILITY

If the sensor has been wired in conjunction with an external switch, the override function
can be activated by switching off/on twice. The luminaires will remain on for up to 4 hours.
After 4 hours the sensor will automatically revert to auto mode and continue to sense for
motion. To revert to auto mode before the 4 hours, switch it Off-On.

SENSOR SETTINGS

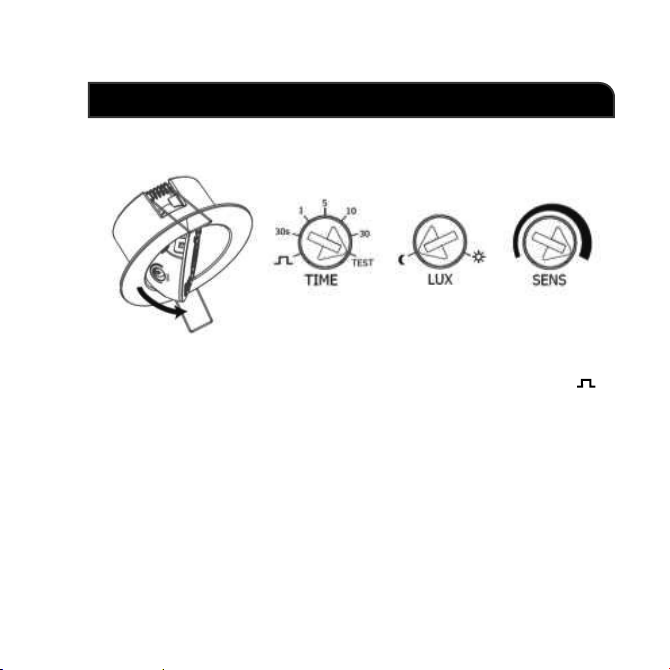

To gain access to the sensor settings, press on one side of the sensor (see Fig. 4)

Fig. 4

Time – the time can be set to 30 sec, 1 min, 5 min, 10 min, 30 min, Test and Pulse

Pulse setting: when motion is detected and depending on the Lux setting, the sensor will
turn the load on for 1 second and then off for 9 seconds until the next detection.
Test setting: the Lux setting is deactivated and when motion is detected the load will turn on
for 3 seconds.
Lux – this controls the light level at which the sensor will operate when motion is detected.
At the maximum position, the sensor will operate during daylight. At the lowest setting, the
sensor will only operate in total darkness.
Sens – this controls the range of the sensor with a minimum distance of 1m and maximum
of 3m.

WARNING

This product must be disconnected from the circuit if subjected to any high voltage or
insulation resistance testing. Irreparable damage will occur if this instruction is not followed.

GENERAL

This product should be recycled in the correct manner when it reaches the end of its life.
Check local authorities for where facilities exist.
Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which
may damage the product.

WARRANTY

This product has a warranty of 2 years from date of purchase. Failure to install this product
in accordance with the current edition of the IEE Wiring Regulations (BS7671), improper
use, or removal of the batch code will invalidate the warranty. If this product should fail
within its warranty period, it should be returned to the place of purchase for a free of
charge replacement. ML Accessories does not accept responsibility for any installation costs
associated with the replacement product. Your statutory rights are not affected.
ML Accessories reserve the right to alter product specification without prior notice.

Supplied By:

ML Accessories Ltd, Unit E Chiltern Park, Boscombe Road, Dunstable LU5 4LT,

nnuks Holding GmbH, Niederkasseler Lohweg 18,

(UK) Manufacturer

www.mlaccessories.co.uk

(EU) Authorised Representative

40547 Düsseldorf, Germany,

Email: [email protected]

85

ML Accessories Limited LU5 4LT

www.mlaccessories.co.uk

Made in China

AVJUL22_V2
