• The time dial can be adjusted to increase the length of time the sensor is activated after the last detection of
movement (see Fig. 4)
• The lux dial can be used to adjust the level of brightness at which the sensor is operational. When set to
2000 lux it will operate during the daytime; when set to <10 lux it will operate only in darkness (see Fig. 4)
WARNING
This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance
testing. Irreparable damage will occur if this instruction is not followed.
GENERAL
Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may damage the
product.
This product should be recycled in the correct manner when it reaches the end of its life. Check local
authorities for where facilities exist.
WARRANTY
This product has a warranty of 2 years from date of purchase. Failure to install this product in accordance with
the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal of the batch code will
invalidate the warranty. If this product should fail within its warranty period, it should be returned to the place
of purchase for a free of charge replacement. ML Accessories does not accept responsibility for any installation
costs associated with the replacement product. Your statutory rights are not affected. ML Accessories reserve
the right to alter product specification without prior notice.
SUPPLIED BY:
UK MANUFACTURER
ML ACCESSORIES LTD, UNIT E CHILTERN PARK,
BOSCOMBE ROAD, DUNSTABLE LU5 4LT,
WWW.MLACCESSORIES.CO.UK
EU AUTHORISED REPRESENTATIVE
SLV LIGHTING GROUP,
DAIMLERSTRASSE 21-23,
52531 ÜBACH-PALENBERG, GERMANY
EMAIL: [email protected]
MADE IN CHINA
230V
50Hz
116
-20
+40°C
TA

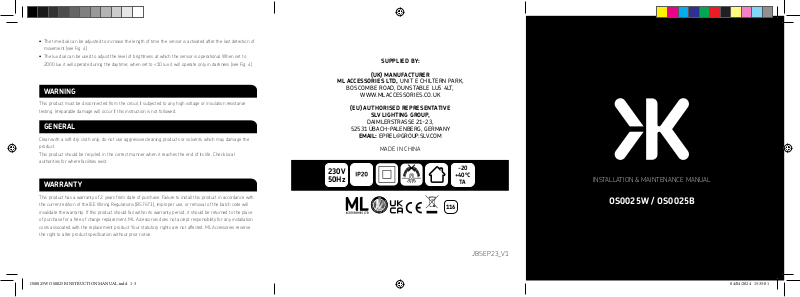

INSTALLATION & MAINTENANCE MANUAL
OS0025W / OS0025B
JBSEP23_V1
OS0025W OS0025B INSTRUCTION MANUAL.indd 1-3OS0025W OS0025B INSTRUCTION MANUAL.indd 1-3 04/04/2024 15:35:0104/04/2024 15:35:01
Page 2
GENERAL INSTRUCTIONS
These instructions should be read carefully and retained after installation by the end user for
future reference and maintenance.
These instructions should be used to aid installation of the following product(s):
OS0025W/OS0025B
SAFETY
• Replace the transparent cover
• Switch on and check for correct operation
• Lift both spring clips on the sides of the fitting and push into the ceiling (see Fig. 3)
• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671)
and current Building Regulations. If in any doubt, consult a qualified electrician
• Please isolate mains prior to installation or maintenance
• Check the total load on the circuit (including when this luminaire/product is fitted) does not exceed the rating
of the circuit cable, fuse or circuit breaker
• Please note the IP (Ingress Protection) rating of this product when deciding the location for installation
• Do not overload this accessory or subject it to conditions outside its rating
• This product is for indoor use only
• This product is Class II double insulated
• These products are IP20 rated
RECESS MOUNTED INSTALLATION
• Provide power to the required point of installation

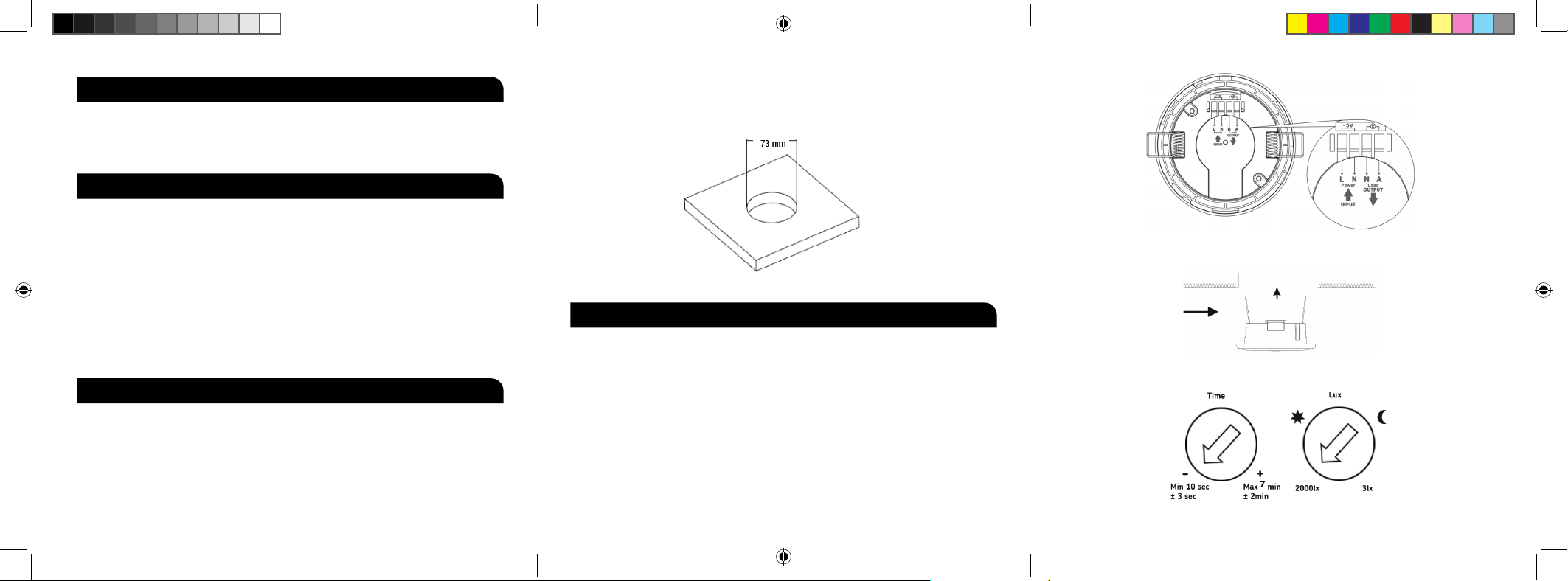

• Cut a suitable hole in the mounting surface as per the cut-out details (see Fig. 1) ensuring not to infringe
with any joists, gas/water pipes or electrical cables
• Remove the transparent cover on the rear to access the connection terminals by pinching together from the
sides
• Wire terminals on the PIR ensuring correct polarity is observed (see Fig. 2)
OS0025W OS0025B INSTRUCTION MANUAL.indd 4-6OS0025W OS0025B INSTRUCTION MANUAL.indd 4-6 04/04/2024 15:35:0204/04/2024 15:35:02
Fig. 1
SURFACE MOUNT INSTALLATION
• Provide power to the required point of installation
• Move the cover anti clockwise and using a screwdriver, unclip to lift the sensor out
• Using the back plate, mark the location for, and drill the fixing holes ensuring not to infringe with any gas/
water pipes or electrical cables
• Remove the transparent cover on the rear to access the connection terminals by pinching together from the
sides
• Wire terminals on the PIR ensuring correct polarity is observed (see Fig. 2)
• Replace the transparent cover
• Switch on and check for correct operation
Fig. 2
Fig. 3
Fig. 4
