INSTALLATION & MAINTENANCE MANUAL
IP
LEDM06 series
230V
50Hz
65
02
1
GENERAL INSTRUCTIONS
LEDM07 series
58mm
These instructions should be read carefully and retained after installation by the end user for future
reference and maintenance.
These instructions should be used to aid installation of the following products:
LEDM06B / LEDM06W
SAFETY
• Installation of this luminaire should only be carried out by a qualified electrician or competent
person to the latest Building and current IEE Wiring Regulations (BS7671)
• Please isolate mains prior to installation/maintenance
• Check the total load on the circuit (including when this luminaire is fitted) does not exceed the
rating of the circuit cable, fuse or circuit breaker
• Please note the IP (Ingress of Protection) rating of this luminaire when deciding the location for
installation
• This product is Class II double insulated
• This product is IP65 rated
• This product is non-dimmable
INSTALLATION
• Cut a suitable hole in the mounting surface as per the cut-out details (Fig 1) ensuring that it does
not infringe with electrical cables or water/gas pipes
Fig 1
• Provide power to the required point of installation. Suitable IP rated junction boxes should be used
where required
• Ensure the power source is via an RCD or an RCBO
• Connect the mains supply, Live (brown) and Neutral (blue) (see Fig 2)
32mm
2
Fig 2
32mm
Live (brown)
Neutral (blue)
• Connect the mains supply, Live (brown), Neutral (blue) and Earth (green/yellow) (see Fig 3)
Fig 3
• The power source connections should be local and accessible via a suitable IP rated enclosure

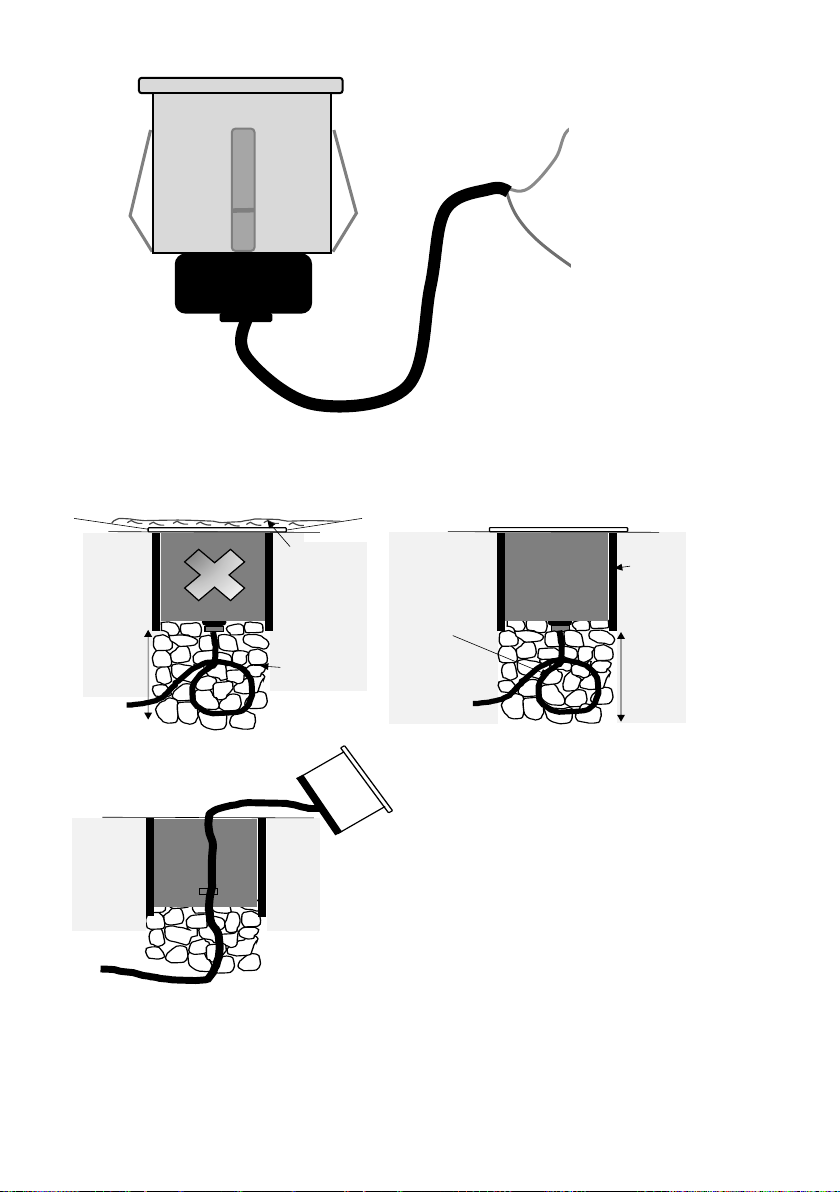

• Avoid installing in areas where water will sit on top of the fitting for long periods of time (see Fig 4)
300mm
minimum
drainage
required
Loop cable to
allow for
maintenance
Pea shingle or
gravel for
drainage
230V AC
Mounting
Sleeve
Fig 4
Fig 5
Avoid installing
in areas with
likelihood of
flooding or
standing water
300mm
minimum
drainage
required
Live (brown)
Earth (green/yellow)
Neutral (blue)
• The power source connections should be local and accessible via a suitable IP rated enclosure
• Avoid installing in areas where water will sit on top of the fitting for long periods of time (see Fig 3)
Fig 5
Fig 3
• Ensure a minimum of 300mm drainage is put in
below the luminaire (see Fig 4).
Note: the drainage below the luminaire should be
able to drain the water away within 30 minutes
• Ensure there is enough cable below the fitting in
order to carry out maintenance work. The final
circuit connection should also be accessible
(see Fig 3, Fig 4 and Fig 5)
• Switch on the power and test for correct operation
Fig 4
3
WARNING
This product must be disconnected from the circuit if it subjected to any high voltage or insulation
resistance testing. Irreparable damage will occur if this instruction is not followed.
This product is unsuitable for installation in or near coastal and marine environments.
Do not use any source of high pressure washers to maintain or clean this product.
This product should be installed vertically with the light facing upwards.
Note: If this product is being used in conjunction with external PIR or sensors, please confirm with
the manufacturer of the sensors that they are compatible with LED products
GENERAL
The LED lamps fitted in this product are non-replaceable. The product should be recycled in the
correct manner when it reaches the end of its life. Check local authorities for where facilities exist.
Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may
damage the product.
A light film of acid-free oil is recommended after installation and maintained periodically
(2-3 times a year) to aid corrosion prevention.
WARRANTY
This product has a warranty of 3 years from date of purchase. Failure to install this product in
accordance with the current edition of the IEE Wiring Regulations, improper use, or removal of
the batch codes will invalidate the warranty. If this product should fail within its warranty period it
should be returned to the place of purchase for a free of charge replacement. ML Accessories does
not accept responsibility for any installation costs associated with the replacement product. Your
statutory rights are not affected. ML Accessories reserve the right to alter product specification
without prior notice.
ML Accessories Limited
LU5 5TA
www.mlaccessories.co.uk
SBNOV17_V3
