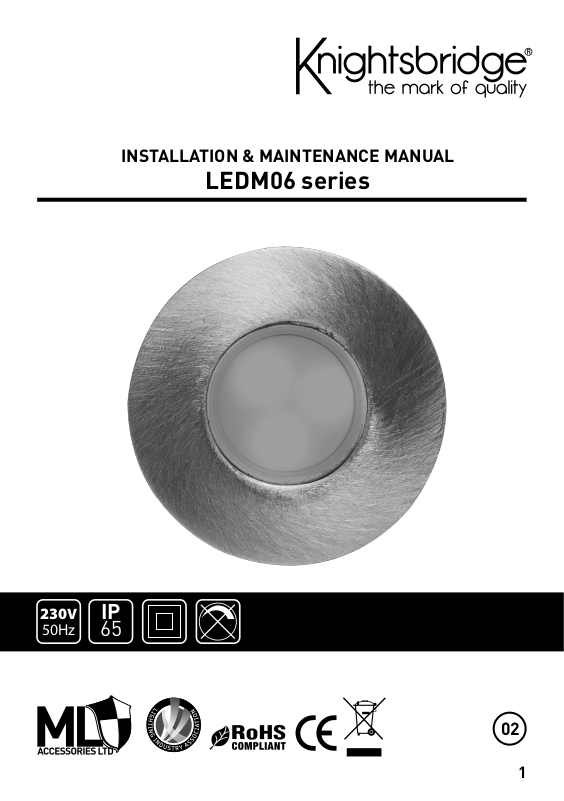

INSTALLATION & MAINTENANCE MANUAL
IP
LEDM06 series
230V
50Hz
65
02
1
GENERAL INSTRUCTIONS
LEDM07 series
58mm
These instructions should be read carefully and retained after installation by the end user for future
reference and maintenance.
These instructions should be used to aid installation of the following products:
LEDM06B / LEDM06W
SAFETY
• Installation of this luminaire should only be carried out by a qualified electrician or competent
person to the latest Building and current IEE Wiring Regulations (BS7671)
• Please isolate mains prior to installation/maintenance
• Check the total load on the circuit (including when this luminaire is fitted) does not exceed the
rating of the circuit cable, fuse or circuit breaker
• Please note the IP (Ingress of Protection) rating of this luminaire when deciding the location for
installation
• This product is Class II double insulated
• This product is IP65 rated
• This product is non-dimmable
INSTALLATION
• Cut a suitable hole in the mounting surface as per the cut-out details (Fig 1) ensuring that it does
not infringe with electrical cables or water/gas pipes
Fig 1
• Provide power to the required point of installation. Suitable IP rated junction boxes should be used
where required
• Ensure the power source is via an RCD or an RCBO
• Connect the mains supply, Live (brown) and Neutral (blue) (see Fig 2)
32mm
2
