INSTALLATION & MAINTENANCE MANUAL
LEDFRA7
Page 2
GENERAL INSTRUCTIONS
These instructions should be read carefully and retained after installation by the end user for
future reference and maintenance.
These instructions should be used to aid installation of the following product:
LEDFRA7
SAFETY
• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671)
and current Building Regulations. If in any doubt, consult a qualified electrician
• Please isolate mains prior to installation or maintenance
• Check the total load on the circuit (including when this product is fitted) does not exceed the rating of the
circuit cable, fuse, or circuit breaker
• Please note the IP (Ingress Protection) rating of this product when deciding the location for installation
• Do not overload this accessory or subject it to conditions outside its rating
• This product is Class III
• This product is IP20 rated
INSTALLATION
• Provide power to the required point of installation
• Position controller inbetween the LED driver and LED flex
• Ensuring correct polarity is observed, connect the secondary side of the LED driver to the primary side of the
LED controller [(+ Red) (- Black)] (see Fig. 1)
• Terminate the 12V or 24V LED flex to the secondary side of the controller: Red to V+ and Black to V-
(see Fig. 1)
Page 3
• Do not overload this accessory or subject it to conditions outside its rating
• This product is Class III
• This product is IP20 rated
INSTALLATION
• Provide power to the required point of installation
• Position controller inbetween the LED driver and LED flex
• Ensuring correct polarity is observed, connect the secondary side of the LED driver to the primary side
of the LED controller [(+ Red) (- Black)] (see Fig. 1)
• Terminate the 12V or 24V LED flex to the secondary side of the controller: Red to V+ and Black to V-
(see Fig. 1)

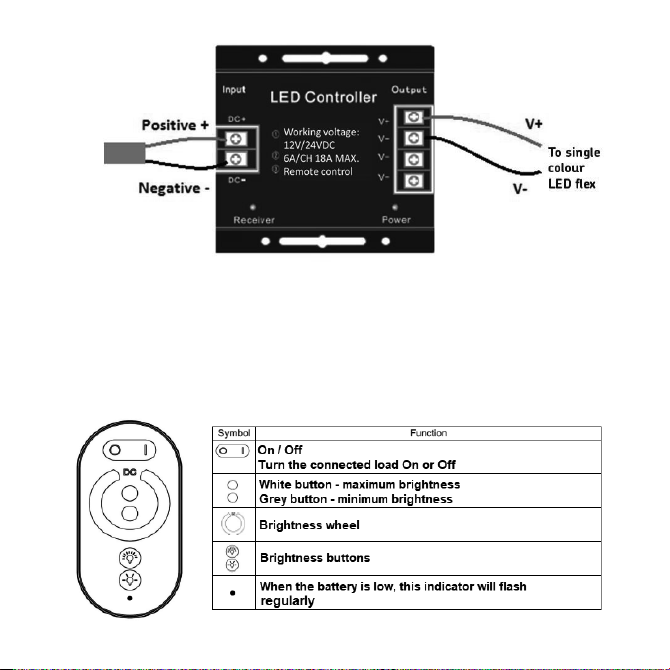

Fig. 1
• Ensure the LED flex does not exceed the maximum wattage of the controller
12V LED flex – up to 216W
24V LED flex – up to 432W
• Switch on and check for correct operation
Note – This product is able to operate at either 12V or 24V. The appropriate driver output voltage should be
selected to match the input voltage requirements of the LED load
REMOTE INTERFACE
Fig. 1
• Ensure the LED flex does not exceed the maximum wattage of the controller
12V LED flex – up to 216W
24V LED flex – up to 432W
• Switch on and check for correct operation
Note – This product is able to operate at either 12V or 24V. The appropriate driver output voltage should be
selected to match the input voltage requirements of the LED load
Note – The remote requires 3 x AAA batteries (not included)
Page 4
WARNING
This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance
testing. Irreparable damage will occur if this instruction is not followed.
GENERAL
Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may damage the
product.
This product should be recycled in the correct manner when it reaches the end of its life. Check local authorities
for where facilities exist.
WARRANTY
This product has a warranty of 1 year from date of purchase. Failure to install this product in accordance with
the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal of the batch code will
invalidate the warranty. If this product should fail within its warranty period, it should be returned to the place
of purchase for a free of charge replacement. ML Accessories does not accept responsibility for any installation
costs associated with the replacement product. Your statutory rights are not affected. ML Accessories reserve
the right to alter product specification without prior notice.
Page 5
Manufacturers Declaration of Conformity
For ML Accessories (Knightsbridge)
Electrical products in accordance with CE marking
ML Accessories Ltd. Declare that all products have been designed, manufactured, and tested in
accordance with the requirements of the relevant legislation
CE marking legislation
In Accordance with the following Directives:
2014/35/EU Low Voltage Directive
2014/30/EU EMC Directive
2014/53/EU Radio Equipment Directive
Including Legislation
1907/2006 REACH
2015/863 RoHS
2021/341 ERP
Safety Standards
Full individual declarations and specific safety standards applicable to relevant product series can be found on
our website www.mlaccessories.co.uk
We hereby declare that the equipment named above has been designed to comply with the relevant
sections of the above referenced specifications. The product complies with all essential requirements of
the directives.
Scott Brewer Catherine Connolly
Technical Manager CEO
ML Accessories Ltd. Unit E Chiltern Park, Boscombe Road, Dunstable. Bedfordshire, LU5 4LT
This declaration becomes invalid if technical or operational modifications are introduced without ML Accessories Ltd. written consent.
Page 6
Manufacturers Declaration of Conformity
For ML Accessories (Knightsbridge)
Electrical products in accordance with UKCA marking
ML Accessories Ltd. declare that all products have been designed, manufactured, and tested in
accordance with the requirements of the relevant legislation
UKCA marking legislation
UK SI 2016 No. 1091 Electro Magnetic Compatibility Regulations 2016
UK SI 2016 No. 1101 The Electrical Equipment (Safety) Regulations 2016
UK SI 2012 No. 3032 Restriction of the use of Certain Hazardous Substances in Electrical and
Electronic Equipment Regulations 2012
UK SI 2017 No. 1206 Radio Equipment regulations 2017
UK SI 2021 No. 1095 The Ecodesign for Energy-Related Products and Energy
Information (Lighting Products) Regulations 2021
Included Legislation
UK SI 2008 No. 2852 UK REACH
UK SI 2013 No. 3113 WEEE
Safety Standards
Full individual declarations and specific safety standards applicable to relevant product series can be found on
our website www.mlaccessories.co.uk
We hereby declare that the equipment named above has been designed to comply with the relevant
sections of the above referenced specifications. The products comply with all essential requirements of
the directives.
Scott Brewer Catherine Connolly
Head of Technical CEO
ML Accessories Ltd. Unit E Chiltern Park, Boscombe Road, Dunstable. Bedfordshire, LU5 4LT
This declaration becomes invalid if technical or operational modifications are introduced without ML Accessories Ltd. written consent.
Page 7
Supplied By:
ML Accessories Ltd, Unit E Chiltern Park, Boscombe Road, Dunstable LU5 4LT,
nnuks Holding GmbH, Niederkasseler Lohweg 18,
(UK) Manufacturer
www.mlaccessories.co.uk
(EU) Authorised Representative
40547 Düsseldorf, Germany,
Email: [email protected]
02
ML Accessories Limited LU5 4LT
www.mlaccessories.co.uk
AVJUL22_V2
