Knightsbridge EMRNST Installation Instructions

INSTALLATION & MAINTENANCE MANUAL

EMRNST

GENERAL INSTRUCTIONS

These instructions should be read carefully and retained after installation by the
end user for future reference and maintenance.
These instructions should be used to aid installation of the following product:
EMRNST

SAFETY

• This product must be installed in accordance with the latest edition of the IEE Wiring
Regulations (BS7671) and current Building Regulations. If in any doubt, consult a
qualified electrician

• Please isolate mains prior to installation or maintenance

• Check the total load on the circuit (including when this luminaire is fitted) does not exceed
the rating of the circuit cable, fuse or circuit breaker

• Please note the IP (Ingress Protection) rating of this product when deciding the location
for installation

• This product is Class II double insulated

• This product is IP20 rated

INSTALLATION

• Provide power to the required point of installation

• The fitting is supplied with the ‘arrow up’ legend as standard. The legend may be changed
if required: the clear plastic front cover should be removed by inserting a screwdriver
beside the plastic tabs top and bottom of the clear cover (see Fig. 1) and twisting gently
to lever the tabs out. Once the top and bottom tabs are free, the cover can be bent
forwards and lifted out gently, taking care not to break any of the tabs. Reverse the
procedure to replace the cover

Fig. 1

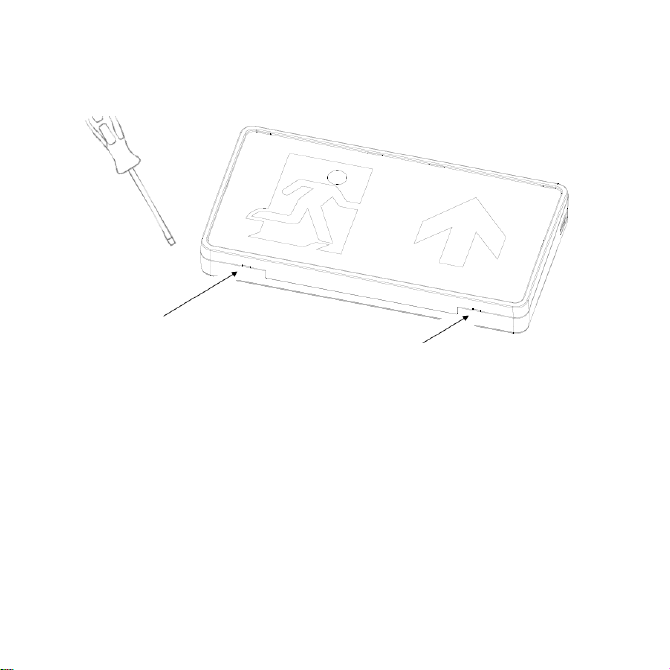

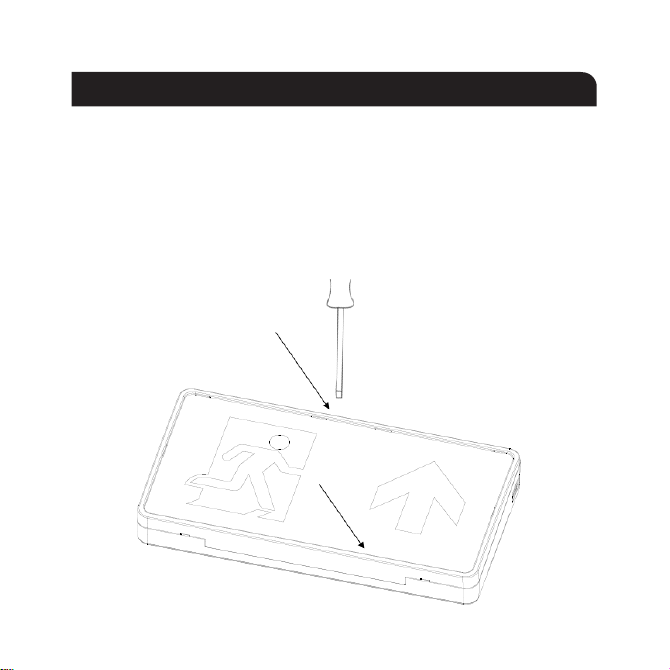

• Open the fitting by inserting a small flat-head screwdriver into the two tabs on the
underside and lever open gently (see Fig. 2)

Fig. 2

• Drill the fixing holes in the rear of the baseplate. Mark the location of the fixing holes and
drill ensuring not to infringe with any gas/water pipes or electrical cables

• Drill out one of the 20mm drilling guides on the top or rear of the fitting, and fit a suitable
grommet or gland (not included)

• Feed the mains cable into the fitting and secure the baseplate to the surface

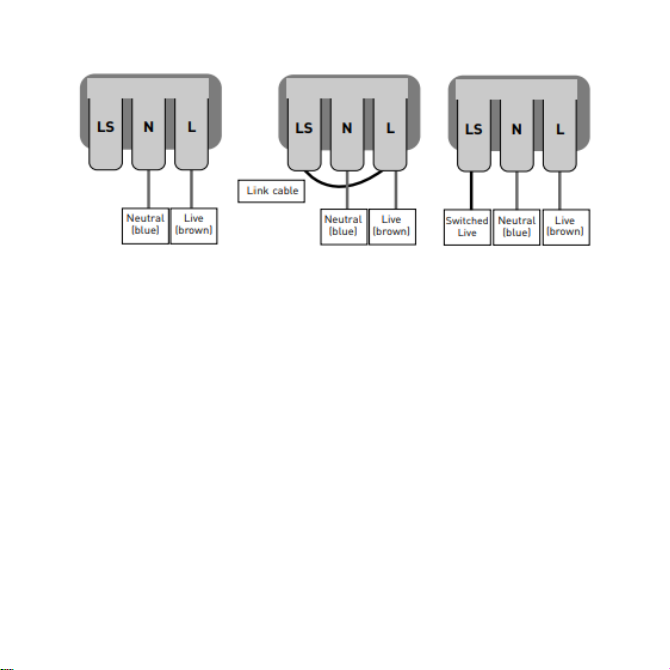

• Wire for non-maintained operation (Fig. 3), maintained operation (Fig. 4) or switched
maintained operation (Fig. 5) as required. Remove the link between LS and L if not
required

Fig. 3 Fig. 4 Fig. 5

• Ensure the battery is connected via the plug and socket to the PCB

• Ensure the lamp is connected to the lamp connector on the PCB

• Refasten the cover

• Switch on and check for correct operation, ensuring the green indicator LED is illuminated

See below for operation of the self-test function.

We recommend, on commissioning the installation, a minimum charge period of 24 hours
before carrying out an emergency duration test.

If the batteries have been left in a discharged state for an extended period, we recommend
that one or more charge and discharge cycles are completed which should help to restore
the battery capacity.

SELF-TEST FUNCTION

This product is programmed to carry out its own self-test function according to the
following programme:

24 hours after first power-on 3-hour duration test

then every 28 days 30 second monthly function test

and every 52 weeks 3-hour duration test

Following self-tests, the unit will revert into charging mode, and any faults will be indicated
by the bi-colour LED indicator as follows:

LED Indicator Status

Solid green Normal conditions / charging / test successful

1 red flash Battery fault

2 red flashes Lamp fault

3 red flashes Duration test failure

NB: to clear a fault indication once a fault condition is rectified, either disconnect and restore
power to the unit or hold the test button for 10 seconds.

Tests can also be initiated manually as follows:

Test button Green LED Status

Short press Off Emergency mode while test button held in

Press for approx. 5
seconds

Press for approx. 7
seconds

Press for approx. 10
seconds

Slow flash Emergency mode for 30 seconds (monthly

function test)

Fast flash Emergency mode for 3 hours (duration test)

End the duration test

WARNING

This product must be disconnected from the circuit if subjected to any high voltage or
insulation resistance testing. Irreparable damage will occur if this instruction is not followed.

GENERAL

The light source of this luminaire is not replaceable; when the light source reaches its end of
life the whole luminaire should be replaced.

Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which
may damage the product.

This product is non-dimmable.

This product should be recycled in the correct manner when it reaches the end of its life.
Check local authorities for where facilities exist.

The batteries in this luminaire are Nickel Cadmium and must be disposed of correctly.
Please contact the local authorities for the disposal of this toxic waste.

WARRANTY

This product has a warranty of 3 years (excluding battery) from date of purchase. Failure
to install this product in accordance with the current edition of the IEE Wiring Regulations
(BS7671), improper use, or removal of the batch code will invalidate the warranty. If this
product should fail within its warranty period, it should be returned to the place of purchase
for a free of charge replacement. ML Accessories does not accept responsibility for any
installation costs associated with the replacement product. Your statutory rights are not
affected. ML Accessories reserve the right to alter product specification without prior notice.

TESTING FOR EMERGENCY LUMINAIRES

Recommended routine test procedure in accordance with BS5266:

• Daily check – check status of bi-colour LED indicator

• Monthly functional test – the luminaire will perform this function without any action from
the user. Alternatively, simulate a mains supply failure for approx. 30 seconds by
operation of key switch, switching off circuit breaker or using test button. Ensure normal
supply is restored after test and check status of bi-colour LED indicator

• Annual three-hour duration test – the luminaire will perform this function without any
action from the user. Alternatively, simulate a mains supply failure for three-hour
continuous test by operation of key switch, switching off circuit breaker or using test
button. Ensure normal supply is restored after test and check status of bi-colour LED
indicator

If the luminaire fails any of the above tests, please contact a qualified electrician. Results
should be recorded, even when obtained via the self-test function. See below for test record
sheet.

TEST RECORD SHEET

INITIAL COMMISSIONING

3 HOUR TEST

MONTH TEST

1 FUNCTIONAL

2 FUNCTIONAL

3 FUNCTIONAL

4 FUNCTIONAL

5 FUNCTIONAL

6 FUNCTIONAL

7 FUNCTIONAL

8 FUNCTIONAL

9 FUNCTIONAL

10 FUNCTIONAL

11 FUNCTIONAL

12 3 HOUR

FIRST YEAR SECOND YEAR THIRD YEAR FOURTH YEAR FIFTH YEAR

SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE

Installed by: Installation date:

Contact number:

SIGNED DATE

INTERNATIONAL

INTERNATIONAL

CONTACT DETAILS

INTERNATIONAL

CONTACT DETAILS

CONTACT DETAILS
