INSTALLATION & MAINTENANCE MANUAL
EMLED5
Page 2
GENERAL INSTRUCTIONS
These instructions should be read carefully and retained after installation by the end user for
future reference and maintenance.
These instructions should be used to aid installation of the following product:
EMLED5
SAFETY
• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671)
and current Building Regulations. If in any doubt, consult a qualified electrician
• Please isolate mains prior to installation or maintenance
• Check the total load on the circuit (including when this luminaire is fitted) does not exceed the rating of the
circuit cable, fuse or circuit breaker
• Please note the IP (Ingress Protection) rating of this product when deciding the location for installation
• This product is Class II double insulated
• This product is IP65 rated
INSTALLATION
• Provide power to the required point of installation. Suitable IP rated junction boxes should be used where
required
• Remove the two screws at either end of the fitting to remove the diffuser
• Release the gear tray by pushing the release tabs outwards (see Fig. 1)
Page 3

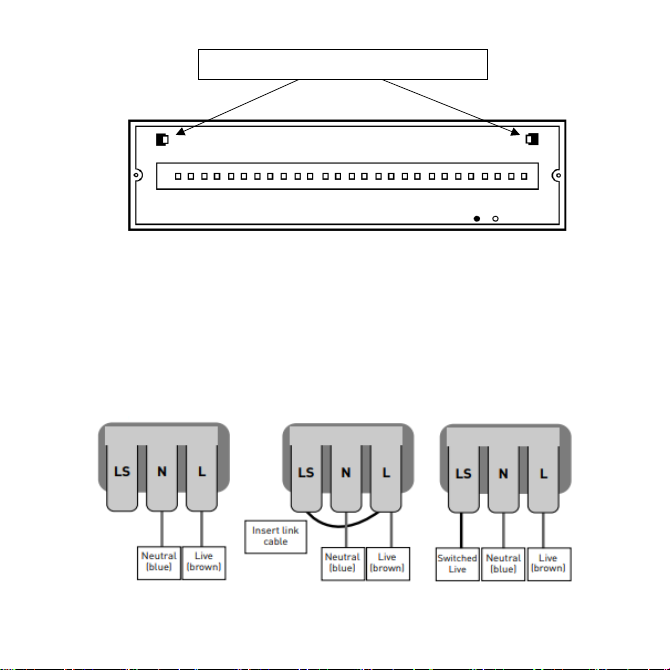

Fig. 1
INSTRUCTIONS EMLED5
Push tabs outwards to release gear tray
Push tabs outwards to release gear tray
• Mark the location of the fixing holes and drill the holes ensuring not to infringe with any gas/water pipes or
electrical cables
• Drill a 20mm hole in the fitting in one of the marked cable entry locations
• Feed the mains cable through the hole using an appropriate compression gland (not supplied) to maintain
IP rating
• Wire for non-maintained operation (Fig. 2), maintained operation (Fig. 3) or switched-maintained operation
(Fig. 4) as required. Remove the link between LS and L if not required
Fig. 2 Fig. 3 Fig. 4
Page 4
• Ensure the battery is connected via the plug and socket to the PCB
• Replace the gear tray and diffuser ensuring seal is in place
• Switch on and check for correct operation, ensuring the green indicator LED is illuminated
See below for operation of the self-test function
We recommend, on commissioning the installation, a minimum charge period of 24 hours before carrying out
an emergency duration test
If the batteries have been left in a discharged state for an extended period, we recommend that one or more
charge and discharge cycles are completed which should help to restore the battery capacity
SELF-TEST FUNCTION
This product is programmed to carry out its own self-test function according to the following
programme:
24 hours after first power-on 3-hour duration test
then every 28 days 30 second monthly function test
and every 52 weeks 3-hour duration test
Following self-tests, the unit will go back into charging mode, and any faults will be indicated by the bi-colour
LED indicator as follows:
LED indicator Status
Solid green Normal conditions / charging / test successful
1 Red flash Battery fault
2 Red flashes Lamp fault
3 Red flashes Duration test failure
NB: power should be cut off and restored to the unit to clear a fault indication once the condition is rectified
Page 5
Tests can also be initiated manually as follows:
Test button Green LED Status
Short press Off Emergency mode while test button held in
Press for approx. 5 seconds Slow flash Emergency mode for 30 seconds (monthly
function test)
Press for approx. 7 seconds Fast flash Emergency mode for 3 hours (duration test)
Press for approx. 10 seconds End the duration test
WARNING
This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance
testing. Irreparable damage will occur if this instruction is not followed
GENERAL
Clean the external surfaces with a damp cloth using a mild solution of detergent and warm water only, do not
use aggressive cleaning products or solvents which may damage the product.
Do not use any source of high-pressure washers to maintain or clean this luminaire.
Installing in areas where the temperature consistently drops below 0°C may shorten the battery life.
This product is non-dimmable.
This product should be recycled in the correct manner when it reaches the end of its life. Check local authorities
for where facilities exist.
The batteries in this luminaire are Nickel Cadmium and must be disposed of correctly. Please contact the local
authorities for the disposal of this toxic waste
Page 6
WARRANTY
This product has a warranty of 3 years (excluding battery) from date of purchase. Failure to install this product
in accordance with the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal
of the batch codes will invalidate the warranty. If this product should fail within its warranty period it should
be returned to the place of purchase for a free of charge replacement. ML Accessories does not accept
responsibility for any installation costs associated with the replacement product. Your statutory rights are not
affected. ML Accessories reserve the right to alter product specification without prior notice.
TESTING FOR EMERGENCY LUMINAIRES
Recommended routine test procedure in accordance with BS5266:
• Daily check – check status of bi-colour LED indicator
• Monthly functional test – the luminaire will perform this function without any action from the user.
Alternatively, simulate a mains supply failure for approx. 30 seconds by operation of key switch, switching off
circuit breaker or using test button. Ensure normal supply is restored after test and check status of bi-colour
LED indicator
• Annual three hour duration test – the luminaire will perform this function without any action from the user.
Alternatively, simulate a mains supply failure for three hour continuous test by operation of key switch,
switching off circuit breaker or using test button. Ensure normal supply is restored after test and check status
of bi-colour LED indicator
• If the luminaire fails any of the above tests, please contact a qualified electrician. Results should be recorded,
even when obtained via the self-test function. See below for test record sheet
Page 7
INITIAL COMMISSIONING
3 HOUR TEST
MONTH TEST
1 FUNCTIONAL
2 FUNCTIONAL
3 FUNCTIONAL
4 FUNCTIONAL
5 FUNCTIONAL
6 FUNCTIONAL
7 FUNCTIONAL
8 FUNCTIONAL
9 FUNCTIONAL
10 FUNCTIONAL
11 FUNCTIONAL
12 3 HOUR
TEST RECORD SHEET
SIGNED DATE
FIRST YEAR SECOND YEAR THIRD YEAR FOURTH YEAR FIFTH YEAR
SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE
Page 8
INTERNATIONAL
INTERNATIONAL
CONTACT DETAILS
INTERNATIONAL
CONTACT DETAILS
CONTACT DETAILS
ML Accessories Limited LU5 4LT
www.mlaccessories.co.uk
