INSTALLATION & MAINTENANCE MANUAL

EMLED2A

GENERAL INSTRUCTIONS

These instructions should be read carefully and retained after installation by the end user for

future reference and maintenance.

These instructions should be used to aid installation of the following product:

EMLED2A

SAFETY

• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671)
and current Building Regulations. If in any doubt, consult a qualified electrician

• Please isolate mains prior to installation or maintenance

• Check the total load on the circuit (including when this luminaire is fitted) does not exceed the rating of the
circuit cable, fuse or circuit breaker

• Please note the IP (Ingress Protection) rating of this product when deciding the location for installation

• This product is Class II double insulated

• This product is IP65 rated

INSTALLATION

Note - If this product is being used in conjunction with an external PIR or sensor, please confirm with the
manufacturer of the sensors that they are compatible with LED luminaires.

• Provide power to the required point of installation (refer to BS7671 for correct cabling methods). Suitable IP
rated junction boxes should be used where required

• Unfasten the screws at each end of the luminaire and remove the diffuser

• Release the gear tray by inserting a small flat-head screwdriver and prising apart the gear tray from the
housing (see Fig. 1)

EMLED2A

the circuit cable, fuse or circuit breaker

IP rated junction boxes should be used where required

housing (see Fig. 1)

infringe with any gas / water pipes or electrical cables

operation (Fig. 4) as required. Remove the link between LS and L if not required. The earth terminal is
non-functional and only provided for convenience

IP rated junction boxes should be used where required

housing (see Fig. 1)

infringe with any gas / water pipes or electrical cables

operation (Fig. 4) as required. Remove the link between LS and L if not required. The earth terminal is
non-functional and only provided for convenience

Fig. 2 non-maintained

Fig. 1

• Drill the fixing holes in the rear of the fitting. Mark the location of the fixing holes and drill ensuring not to
infringe with any gas / water pipes or electrical cables

• Drill out one of the 20mm drilling guides on the side or rear of the fitting, and fit the grommet provided

• Feed the mains cable into the luminaire and secure to the surface

• Wire for non-maintained operation (Fig. 2), maintained operation (Fig. 3) or switched-maintained operation
(Fig. 4) as required. Remove the link between LS and L if not required. The earth terminal is non-functional
and only provided for convenience

Fig. 2 non-maintained

Fig. 3 maintained

Fig. 4 switch maintained

• Ensure the battery is connected via the plug and socket to the PCB

• Replace the gear tray and diffuser ensuring seal is in place

• Switch on and check for correct operation, ensuring the green indicator LED is illuminated

• We recommend, on commissioning the installation, a minimum charge period of 24 hours before carrying
out an emergency duration test

• If the batteries have been left in a discharged state for an extended period, we recommend that one or more
charge and discharge cycles are completed which should help to restore the battery capacity

WARNING

This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance
testing. Irreparable damage will occur if this instruction is not followed.

GENERAL

Clean the external surfaces with a damp cloth using a mild solution of detergent and warm water only, do not
use aggressive cleaning products or solvents which may damage the product.
Do not use any source of high-pressure washers to maintain or clean this luminaire.
Installing in areas where the temperature consistently drops below 0°C may shorten the battery life.
This product is non-dimmable.
This product should be recycled in the correct manner when it reaches the end of its life. Check local authorities
for where facilities exist.
The batteries in this luminaire are Nickel Cadmium and must be disposed of correctly. Please contact the local
authorities for the disposal of this toxic waste.

WARRANTY

This product has a warranty of 3 years (excluding battery) from date of purchase. Failure to install this product
in accordance with the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal
of the batch code will invalidate the warranty. If this product should fail within its warranty period, it should
be returned to the place of purchase for a free of charge replacement. ML Accessories does not accept
responsibility for any installation costs associated with the replacement product. Your statutory rights are not
affected. ML Accessories reserve the right to alter product specification without prior notice.

TESTING FOR EMERGENCY LUMINAIRES

Recommended routine test procedure in accordance with BS5266

• Daily check – check LED charge indicator is illuminated

• Monthly functional test - simulate a mains supply failure for approx. 30 seconds by operation of key switch
or switching off circuit breaker. Ensure normal supply is restored after test and ensure charge indicator is
illuminated

• Annual three-hour duration test - simulate a mains supply failure for three-hour continuous test by
operation of key switch or switching off circuit breaker. Ensure normal supply is restored after test and ensure
charge indicator is illuminated

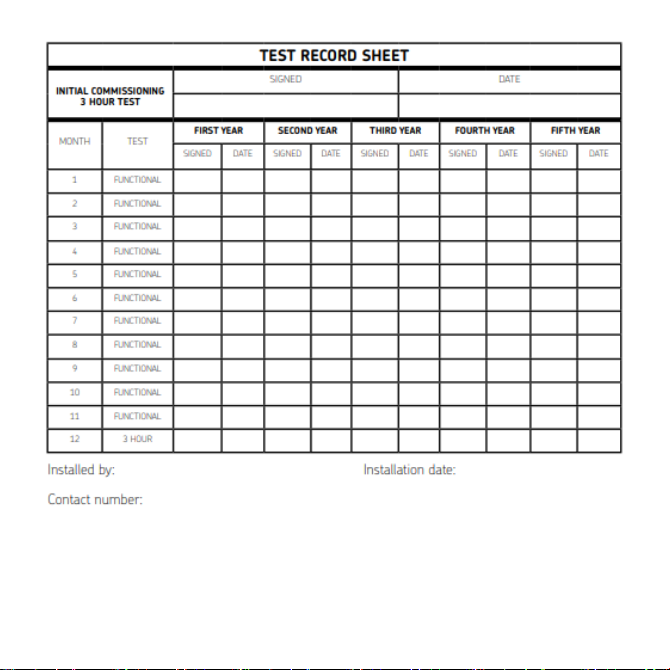

• If the luminaire fails any of the above tests, please contact a qualified electrician. See below for test record
sheet

INTERNATIONAL

INTERNATIONAL

CONTACT DETAILS

INTERNATIONAL

CONTACT DETAILS

CONTACT DETAILS

ML Accessories Limited LU5 4LT

www.mlaccessories.co.uk
