INSTALLATION & MAINTENANCE MANUAL
EMKIT2
Page 2
GENERAL INSTRUCTIONS
These instructions should be read carefully and retained after installation by the end user for future
reference and maintenance.
These instructions should be used to aid installation of the following product:
EMKIT2
SAFETY
• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671)
and current Building Regulations. If in any doubt, consult a qualified electrician
• Please isolate mains prior to installation or maintenance
• Check the total load on the circuit (including when this product is fitted) does not exceed the rating of the
circuit cable, fuse or circuit breaker
• Please note the IP (Ingress Protection) rating of this product when deciding the location for installation
• Choose a suitable location for the fitting allowing a 50mm space above and around the product
• This product must not be covered by insulation
• Do not overload this accessory or subject it to conditions outside its rating
• This product is Class II double insulated
• This product is IP20 rated (indoor use only)
Page 3
INSTALLATION
• Provide power to the required point of installation (refer to BS7671 for correct cabling methods)
• Connect the cable marked “AC Mains” to the permanent Live (Brown) and Neutral (Blue)
(see Fig. 1)

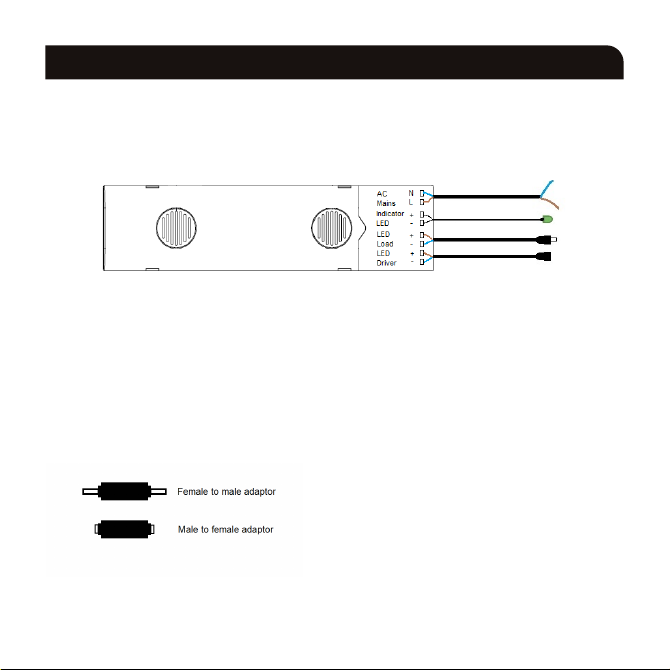

Fig. 1
• Connect the cable marked “LED Load” to the LED
• Connect the cable marked “LED Driver” to the secondary side of the compatible driver
Note: Some luminaires may have the connections reversed, in this case please use the adaptors provided to
convert a Female to a Male connector and a Male to Female connector (see Fig. 2)
Fig. 2
Page 4
• The product comes equipped with two LED indicator holders. To install, mark the location of the LED
indicator holder and drill a 6.5mm/18mm hole ensuring it does not infringe with any joists, gas/water pipes
or electrical cables
Note: The LED indicator needs to be visible
• Switch on and check for correct operation ensuring that the green LED indicator is illuminated
We recommend, on commissioning the installation, a minimum charge period of 24 hours before carrying
out an emergency duration test
If the batteries have been left in a discharged state for an extended period, we recommend that one or more
charge and discharge cycles are completed which should help to restore the battery capacity
WARNING
This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance
testing. Irreparable damage will occur if this instruction is not followed.
GENERAL
This product should be recycled in the correct manner when it reaches the end of its life. Check local
authorities for where facilities exist.
The batteries in this luminaire are Nickel Cadmium and must be disposed of correctly. Please contact the
local authorities for the disposal of this toxic waste.
Page 5
WARRANTY
This product has a warranty of 3 years (excluding battery) from date of purchase. Failure to install this
product in accordance with the current edition of the IEE Wiring Regulations (BS7671), improper use, or
removal of the batch codes will invalidate the warranty. If this product should fail within its warranty period, it
should be returned to the place of purchase for a free of charge replacement. ML Accessories does not accept
responsibility for any installation costs associated with the replacement product. Your statutory rights are not
affected. ML Accessories reserve the right to alter product specification without prior notice.
Page 6
TESTING FOR EMERGENCY LUMINAIRES
Recommended routine test procedure in accordance with BS5266
• Daily check – check LED charge indicator is illuminated
• Monthly functional test - simulate a mains supply failure for approx. 30 seconds by operation
of key switch or switching off circuit breaker. Ensure normal supply is restored after test and ensure
charge indicator is illuminated
• Annual three hour duration test - simulate a mains supply failure for three hour continuous test by
operation of key switch or switching off circuit breaker. Ensure normal supply is restored after test and
ensure charge indicator is illuminated
• If the luminaire fails any of the above tests, please contact a qualified electrician.
See below for test record sheet
INITIAL COMMISSIONING
3 HOUR TEST
MONTH TEST
1 FUNCTIONAL
2 FUNCTIONAL
3 FUNCTIONAL
4 FUNCTIONAL
5 FUNCTIONAL
6 FUNCTIONAL
7 FUNCTIONAL
8 FUNCTIONAL
9 FUNCTIONAL
10 FUNCTIONAL
11 FUNCTIONAL
12 3 HOUR
SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE
TEST RECORD SHEET
SIGNED DATE
FIRST YEAR SECOND YEAR THIRD YEAR FOURTH YEAR FIFTH YEAR
Page 7
INTERNATIONAL
INTERNATIONAL
CONTACT DETAILS
INTERNATIONAL
CONTACT DETAILS
CONTACT DETAILS
ML Accessories Limited LU5 4LT
www.mlaccessories.co.uk
54
AVMAY21_V3
