Knightsbridge EMEXITL Installation Instructions

INSTALLATION & MAINTENANCE MANUAL

EMEXITL

GENERAL INSTRUCTIONS

These instructions should be read carefully and retained after installation by the end user for
future reference and maintenance.
These instructions should be used to aid installation of the following product:
EMEXITL

SAFETY

• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671)
and current Building Regulations. If in any doubt, consult a qualified electrician

• Please isolate mains prior to installation or maintenance

• Check the total load on the circuit (including when this luminaire is fitted) does not exceed the rating of the
circuit cable, fuse or circuit breaker

• Please note the IP (Ingress Protection) rating of this product when deciding the location for installation

• This product is for indoor use only

• This product is Class II double insulated

• This product is IP20 rated

INSTALLATION

• Provide power to the required point of installation

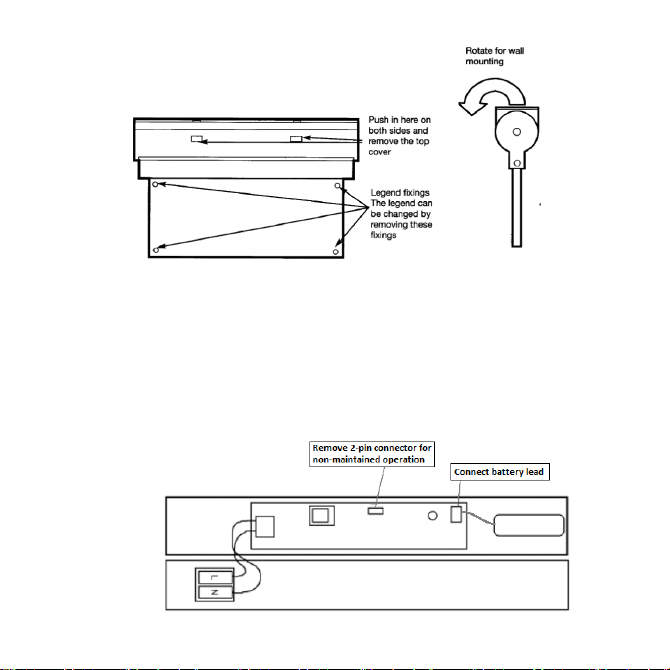

• Remove the top cover (see Fig. 1)

INSTALLATION & MAINTENANCE MANUAL

(BS7671) and current Building Regulations. If in any doubt, c onsult a qualified electrician

the circuit cable, fuse or circuit breaker

Fig. 1

• Using the top cover as a template, mark the location for, and drill the fixing holes ensuring not to infringe with
any gas/water pipes or electrical cables

• Feed the mains cable through the cable entry hole in the top cover, and fix to the surface using appropriate
fixings

• Connect the luminaire to the mains supply ensuring the correct polarity is observed: L - Live (brown),
N - Neutral (blue)

• For non-maintained operation, remove the 2-pin connector from the circuit board (see Fig. 2). For
maintained operation, leave it in place. This fitting cannot be wired for switched maintained operation

Fig. 2

• Connect the battery via the plug and socket to the PCB (see Fig. 2)

• Refit the luminaire to the top cover ensuring all four lugs lock into place

• Switch on and check for correct operation, ensuring the green indicator LED is illuminated

• We recommend, on commissioning the installation, a minimum charge period of 24 hours before carrying
out an emergency duration test

• The test button can be used to simulate a power failure, to test the lamp and battery operation. This can be
used to carry out monthly functional testing, as long as the battery holds at least a small charge

WARNING

This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance
testing. Irreparable damage will occur if this instruction is not followed.

GENERAL

The light source of this luminaire is not replaceable; when the light source reaches its end of life the whole
luminaire should be replaced.
Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may damage the
product.
Installing in areas where the temperature consistently drops below 0°C may shorten the battery life.
This product is non-dimmable.
This product should be recycled in the correct manner when it reaches the end of its life. Check local authorities
for where facilities exist.
The batteries in this luminaire are Lithium Ion and must be disposed of correctly. Please contact the local
authorities for the disposal of this toxic waste.

WARRANTY

This product has a warranty of 3 years from date of purchase. Failure to install this product in accordance with
the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal of the batch code will
invalidate the warranty. If this product should fail within its warranty period, it should be returned to the place
of purchase for a free of charge replacement. ML Accessories does not accept responsibility for any installation
costs associated with the replacement product. Your statutory rights are not affected. ML Accessories reserve
the right to alter product specification without prior notice.

TESTING FOR EMERGENCY LUMINAIRES

Recommended routine test procedure in accordance with BS5266

• Daily check – check LED charge indicator is illuminated

• Monthly functional test - simulate a mains supply failure for approx. 30 seconds by operation of key switch
or switching off circuit breaker. Ensure normal supply is restored after test and ensure charge indicator is
illuminated

• Annual three hour duration test - simulate a mains supply failure for three hour continuous test by operation
of key switch or switching off circuit breaker. Ensure normal supply is restored after test and ensure charge
indicator is illuminated

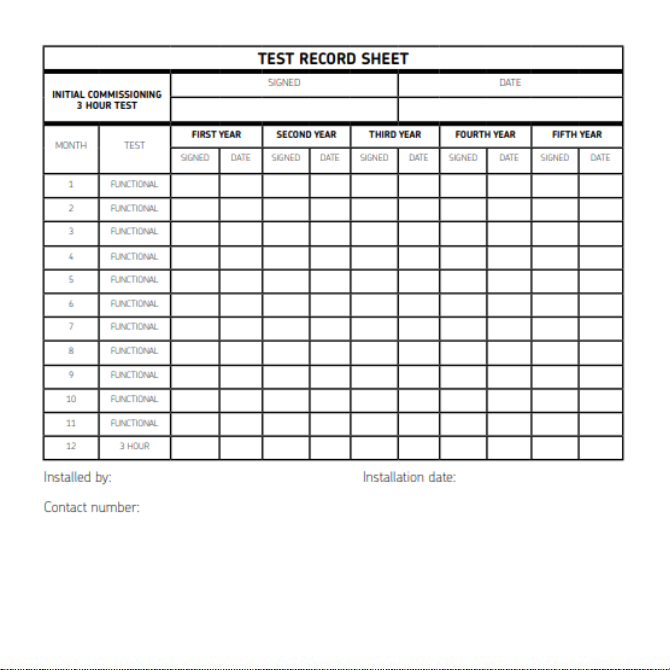

• If the luminaire fails any of the above tests, please contact a qualified electrician. See below for test record
sheet

SUPPLIED BY:

ML ACCESSORIES LTD, UNIT E CHILTERN PARK,

BOSCOMBE ROAD, DUNSTABLE LU5 4LT,

(UK) MANUFACTURER

WWW.MLACCESSORIES.CO.UK

(EU) AUTHORISED REPRESENTATIVE

SLV LIGHTING GROUP,

DAIMLERSTRASSE 21-23,

52531 ÜBACH-PALENBERG, GERMANY

EMAIL: [e-mail]

MADE IN CHINA

0~45°C

TA

54

DCJUN23_V1
