ACCESSORIES LTD

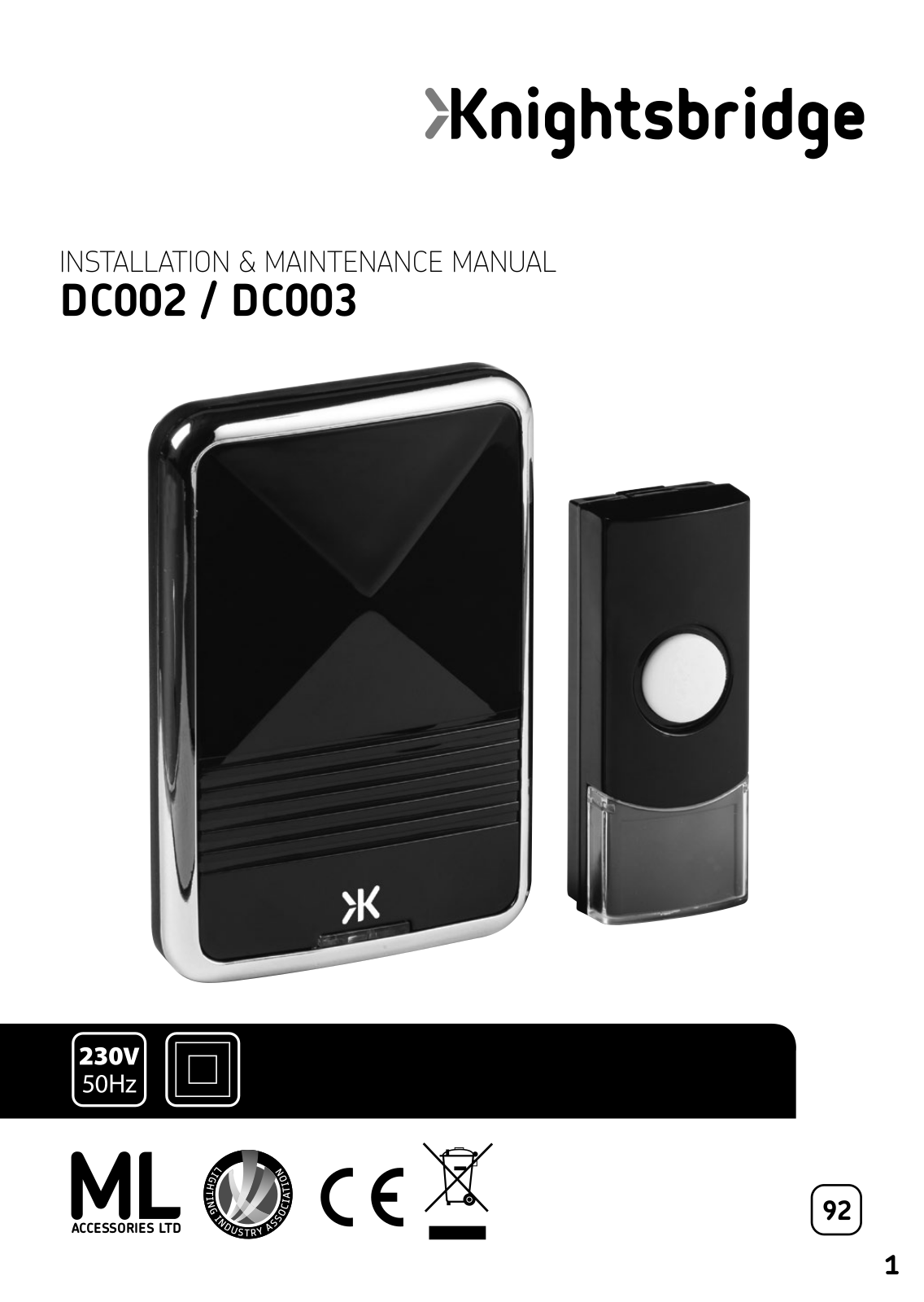

INSTALLATION & MAINTENANCE MANUAL
DC001
INSTALLATION & MAINTENANCE MANUAL
DC002 / DC003

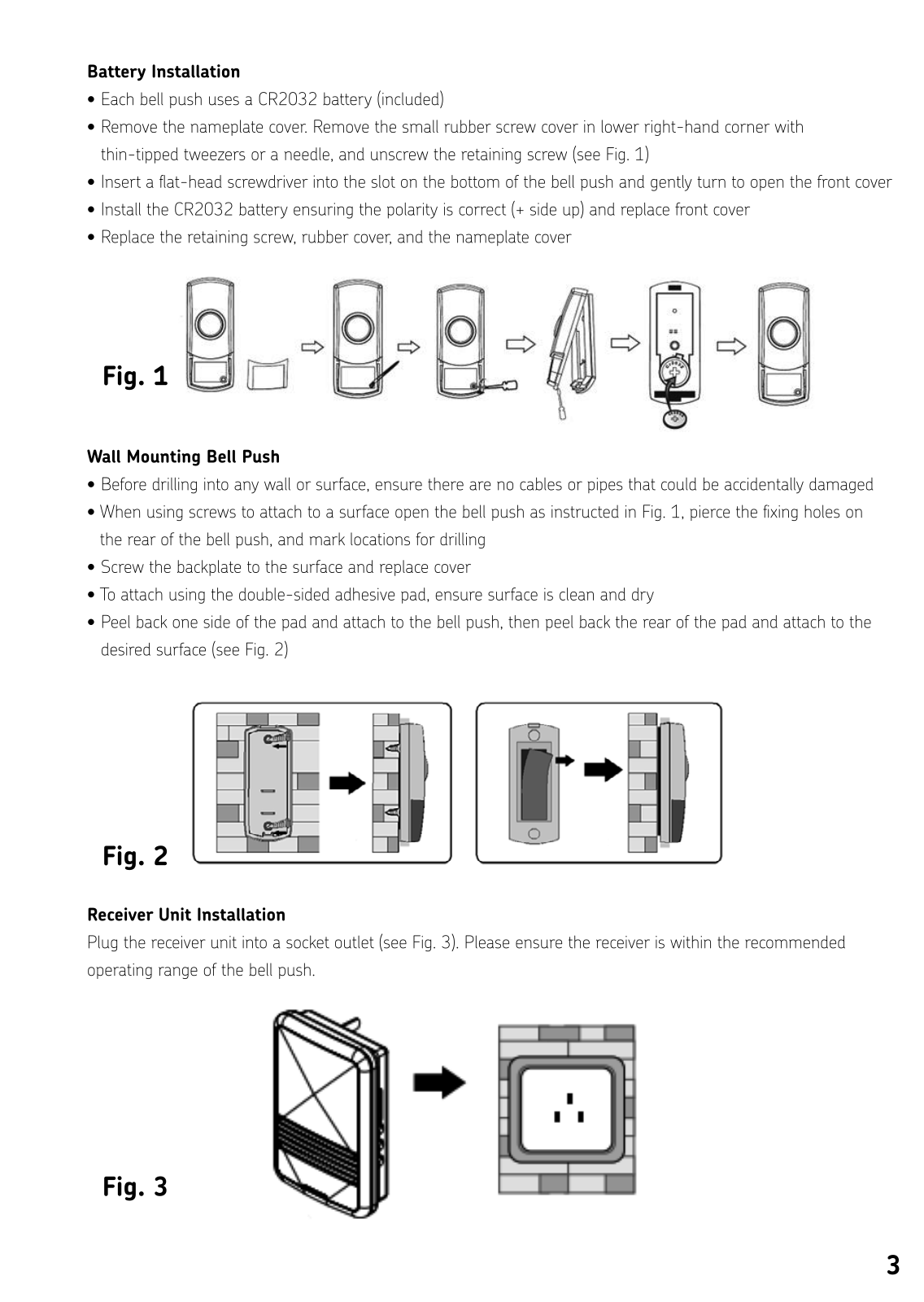

• Before drilling into any wall or surface, ensure there are no cables or pipes that could be
accidentally damaged
• When using screws to attach to a surface, open the bell push as instructed in Fig. 1, pierce
the fixing holes on the rear of the bell push and mark locations for drilling
• Screw the backplate to the surface and replace cover
• To attach using the double-sided adhesive pad, ensure surface is clean and dry
• Peel back one side of the pad and attach to the bell push. Peel back the rear of the pad and
attach to the desired surface (see Fig. 2)
