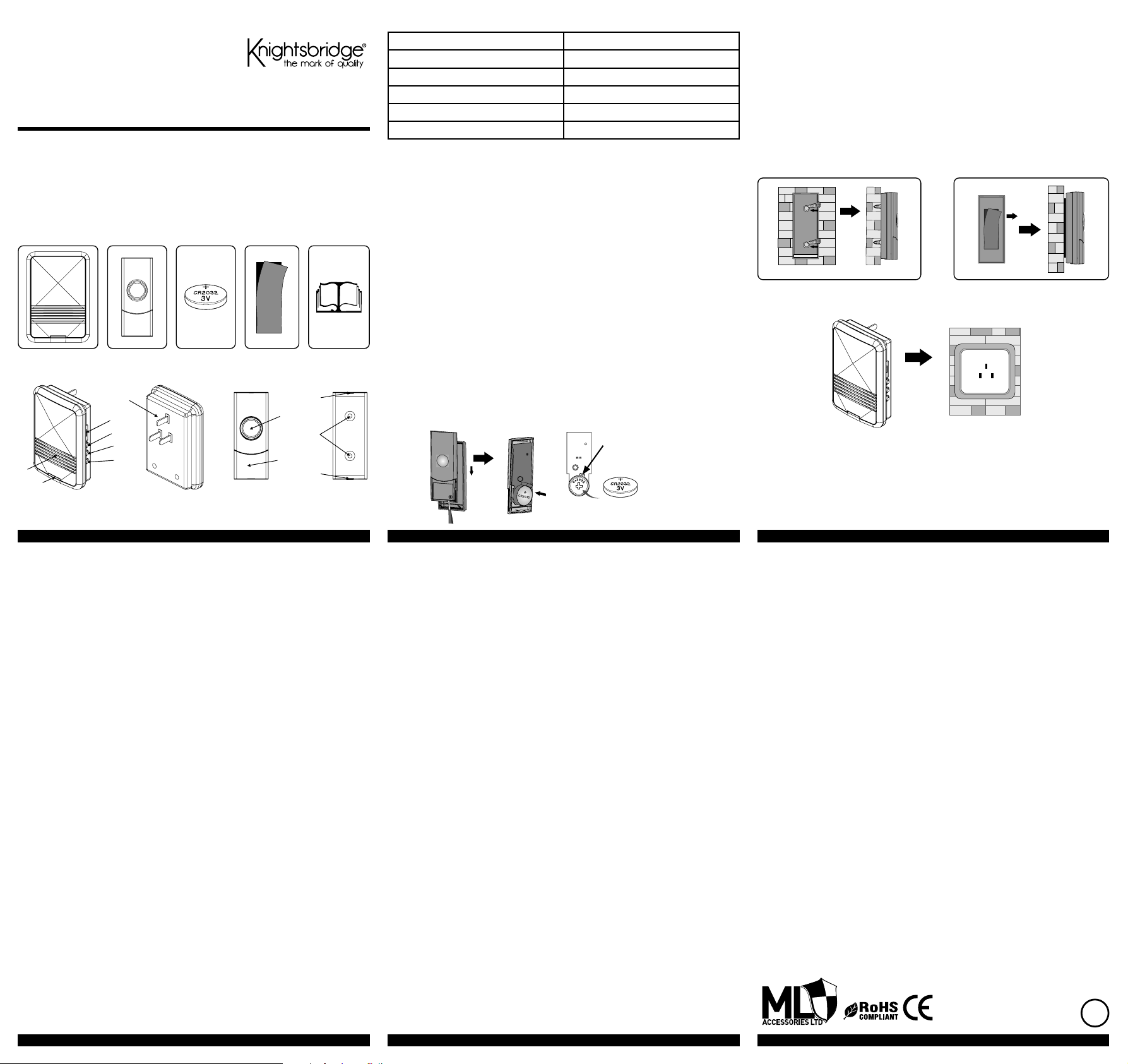

INSTALLATION & MAINTENANCE MANUAL
(1)
(2)
DC002. DC003.
It is very important to install and operate this product according to the following
instructions. Failure to do so may render your guarantee void.
Accessories List
The door chime kit comes with:
• 1 x Receiver
• 1 x Bell push
• 1 x 3V CR2032 battery for bell push
Pictures for accessories
Receiver
Names for parts
Transmitter
(7)
(3)
(4)
(5)
(6)
Receiver front side
Receiver back side
• 1 x Double-sided adhesive pad
• 1 x Instruction manual
CR2032 battery
Double-sided
adhesive
Transmitter front
cover outside
Instruction
(12)
(8)
(11)
(9)
(10)
Transmitter back
cover inside
manual
Names for parts
1. LED indicator 7. Plug
2. Speaker 8. Push button
3. Sound-and-flash switch 9. Nameplate cover
4. Volume button 10. Interface
5. Melody selector 11. Standby holes for screws
6. Auto learning code button 12. Front cover and back cover hook
Notes before installation
1. Before installation and operation, you will require a drill, cross-head screwdriver,
flat-head screwdriver, fixing screws and wall plugs. These items are not supplied
with this kit
2. Try to avoid positioning the bell push on metal frames
3. Avoid positioning above heat sources such as radiators, or in damp areas such as a
kitchens or bathrooms
How to use the door chime kit
Pressing the bell push, a wireless signal will be sent to the receiver. The receiver
will be activated and sound. The operating range is 80m (in the open air) and you
can use the receiver virtually anywhere in the home (indoor use only). However,
the transmission range will be reduced if the signal is transmitted through walls or
ceilings. Metal or PVCu doorframes can also reduce the operating range.
Battery installation
Bell push unit
• The bell push uses a 3V CR2032 battery (included)
• Open the bell push by removing the screw cover and screw with a cross-headed
screwdriver. Use a slotted screwdriver to remove the front cover from the rear
cover. Insert battery ensuring correct polarity is observed.
Press the battery holder
lightly on the side
CR2032 3V lithium battery
Wall mount
To install, you will require a drill and cross-head screwdriver.
IMPORTANT: Before you drill any hole in the wall, please make sure there are no
cables or pipes that may accidentally be damaged.
Transmitter unit
1. Open the bell push with a screwdriver and separate the front cover from the back
cover (as previously described). Penetrate the two standby holes on the back cover
with two screws, and fix the screws onto the wall at a suitable height (see Figure 1).
2. Alternatively, you can stick the bell push with double-sided adhesive tape
(see Figure 2)
Mounting on UPV or metal doorframe surfaces will reduce the transmitting range
Figure 2Figure 1
Receiver unit
Plug the receiver unit into any UK power outlet of 230V ~ 50Hz
Functions instructions
Door chime operation
Press the push button on the bell push unit once, a wireless signal is sent to the
receiver which will sound. The sound will stop as soon as the melody ends. For
repeated sound, press the button again. Please note, holding the button in will not
repeat the sound.
1
Melody selection
There is a melody selector located on the back of the door chime on the right. Press
the selector to choose a different melody.
Sound and flash
There is a switch on the back of the receiver on the left. Slide this switch to the left
position and the receiver will work with sound only; slide to the middle position and
the LED will flash only; slide to the right position for sound and LED flash.
Volume adjustment
There is a volume button between the melody selector and the sound-and-flash
switch. Press to adjust the sound volume - high, medium or low.
Auto-learning code button
(please see detailed operation ‘auto-learning code set up’ in this manual).
Nameplate
There is a nameplate position on the bell push for user identification. Remove the
nameplate cover and insert a suitable sized label with name or required information,
and then replace the cover (label is not included with this kit).
Important
1. The receiver is designed for indoor use only
2. Mounting the bell push onto any metal surface or PVCu doorframes will reduce the
operating range
3. Do not expose either unit directly to rain or immerse in water
4. Do not mount either unit close to a fireplace or expose to high temperatures
5. If leaving the door chime for long periods, please remove the battery from
compartment to prevent leakage
6. Please dispose of old batteries in accordance with the relevant legislation
User hints
If the receiver does not sound, please check the following:
• Flat batteries in either bell push change the batteries
• Wrong battery polarity in either bell push re-insert the batteries
• Units are out of range - operate the receiver within the recommended
operation range
2
Specification
Bell push unit
Power: 1 × 3V CR2032 battery (included)
Receiver unit
Power: 230V AC ~50Hz
Operating temperature: -30 °C (to +400 °C)
Operating distance: 80 meters in the open air (265ft approx.-in open air and
suitable conditions)
Selectable tone: Total 36 melodies available
Digital code type: Auto-learning
What is auto-learning code?
The bell push sends a wireless signal to the receiver. The receiver will automatically
register and memorize the signal as an operation code. The bell push will work with
the receiver by using this code.
Auto-learning code set up
The door chime kit is equipped with auto-learning operation code ability.
IMPORTANT: PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE WHEN
REPLACING BATTERIES
3
