INSTALLATION & MAINTENANCE MANUAL
CPLEM
Page 2
GENERAL INSTRUCTIONS
These instructions should be read carefully and retained after installation by the
end user for future reference and maintenance.
These instructions should be used to aid installation of the following product:
CPLEM
SAFETY
• This product must be installed in accordance with the latest edition of the IEE Wiring
Regulations (BS7671) and current Building Regulations. If in any doubt, consult a
qualified electrician
• Please isolate mains prior to installation or maintenance
• Check the total load on the circuit (including when this product is fitted) does not exceed
the rating of the circuit cable, fuse or circuit breaker
• Please note the IP (Ingress Protection) rating of this product when deciding the location
for installation
• Allow 50mm above and around the product for air dissipation (do not cover the product
with insulation)
• This product is for indoor use only
• This product is Class II double insulated
• This product is IP20 rated
Page 3
INSTALLATION & MAINTENANCE MANUAL
INSTALLATION
• Provide power to the required point of installation

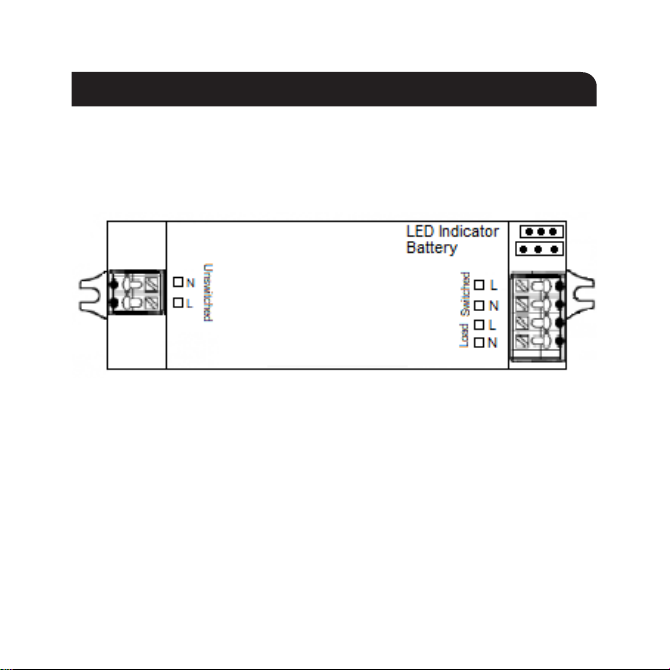

• Ensuring correct polarity is observed, carefully wire as shown in Fig. 1
Fig. 1
Note: both Neutral connections are required for the kit to function. The layout of the
terminals may necessitate installing a junction box adjacent to the product in order to avoid
exposed basic insulation on cables.
• Ensure the battery is connected to the battery connector on the PCB
• Switch on and check for correct operation, ensuring the green indicator LED is illuminated
We recommend, on commissioning the installation, a minimum charge period of 24 hours
before carrying out an emergency duration test
Page 4
WARNING
This product must be disconnected from the circuit if subjected to any high voltage or
insulation resistance testing. Irreparable damage will occur if this instruction is not followed.
GENERAL
This product should be recycled in the correct manner when it reaches the end of its life.
Check local authorities for where facilities exist.
The batteries in this product are Lithium-Ion and must be disposed of correctly. Please
contact the local authorities for the disposal of this toxic waste.
Installing in areas where the temperature consistently drops below 0°C may shorten the
battery life.
The maximum constant ambient temperature at the point of installation should not exceed
50°C.
WARRANTY
This product has a warranty of 3 years (excluding battery) from date of purchase. Failure
to install this product in accordance with the current edition of the IEE Wiring Regulations
(BS7671), improper use, or removal of the batch code will invalidate the warranty. If this
product should fail within its warranty period, it should be returned to the place of purchase
for a free of charge replacement. ML Accessories does not accept responsibility for any
installation costs associated with the replacement product. Your statutory rights are not
affected. ML Accessories reserve the right to alter product specification without prior notice.
Page 5
TEST RECORD SHEET
INITIAL COMMISSIONING
3 HOUR TEST
MONTH TEST
1 FUNCTIONAL
2 FUNCTIONAL
3 FUNCTIONAL
4 FUNCTIONAL
5 FUNCTIONAL
6 FUNCTIONAL
7 FUNCTIONAL
8 FUNCTIONAL
9 FUNCTIONAL
10 FUNCTIONAL
11 FUNCTIONAL
12 3 HOUR
FIRST YEAR SECOND YEAR THIRD YEAR FOURTH YEAR FIFTH YEAR
SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE
Installed by: Installation date:
Contact number:
SIGNED DATE
Page 6
TESTING FOR EMERGENCY LUMINAIRES
INTERNATIONAL
CONTACT DETAILS
INTERNATIONAL
CONTACT DETAILS
Recommended routine test procedure in accordance with BS5266
• Daily check – check LED charge indicator is illuminated
• Monthly functional test - simulate a mains supply failure for approx. 30 seconds by
operation of a key switch or switching off the circuit breaker. Ensure normal supply is
restored after test and ensure charge indicator is illuminated
• Annual three-hour duration test - simulate a mains supply failure for three-hour
continuous test by operation of a key switch or switching off the circuit breaker. Ensure
normal supply is restored after test and ensure charge indicator is illuminated
• If the luminaire fails any of the above tests, please contact a qualified electrician. See
below for test record sheet
ML Accessories Limited LU5 4LT
www.mlaccessories.co.uk
INTERNATIONAL
CONTACT DETAILS
54
AVMAY20_V1
