INSTALLATION & MAINTENANCE MANUAL
CPL6CT / CPL12CT / CPL18CT / CPL24CT
Page 2
GENERAL INSTRUCTIONS
These instructions should be read carefully and retained after installation by the
end user for future reference and maintenance.
These instructions should be used to aid installation of the following products:
CPL6CT / CPL12CT / CPL18CT / CPL24CT
SAFETY
• This product must be installed in accordance with the latest edition of the IEE Wiring
Regulations (BS7671) and current Building Regulations. If in any doubt, consult a qualified
electrician
• Please isolate mains prior to installation or maintenance
• Check the total load on the circuit (including when this luminaire is fitted) does not exceed
the rating of the circuit cable, fuse or circuit breaker
• Please note the IP (Ingress Protection) rating of this luminaire when deciding the location
for installation
• This product is Class II double insulated
• This product series is IP20 rated
Page 3
of the circuit cable, fuse or circuit breaker
installation
INSTALLATION
Surface mounting
Note - When surface mounting, the installer must ensure the bracket is secured, and if
needed, other fixings should be used depending on the installation conditions.
• Provide power to the required point of installation
• Remove the bracket from the luminaire by pulling simultaneously at both ends - do not
pull from the centre of the bracket
• Fix the bracket to the ceiling using the screws and plugs provided
• Connect the luminaire to the mains supply ensuring that correct polarity is observed: Live
(brown) and Neutral (blue). An appropriate junction box should be used (not supplied). It
may be necessary to make a hole in the ceiling in order to recess the junction box
• Select the required colour temperature via the switch on the rear of the fitting
(see Colour Temperature Adjustment)

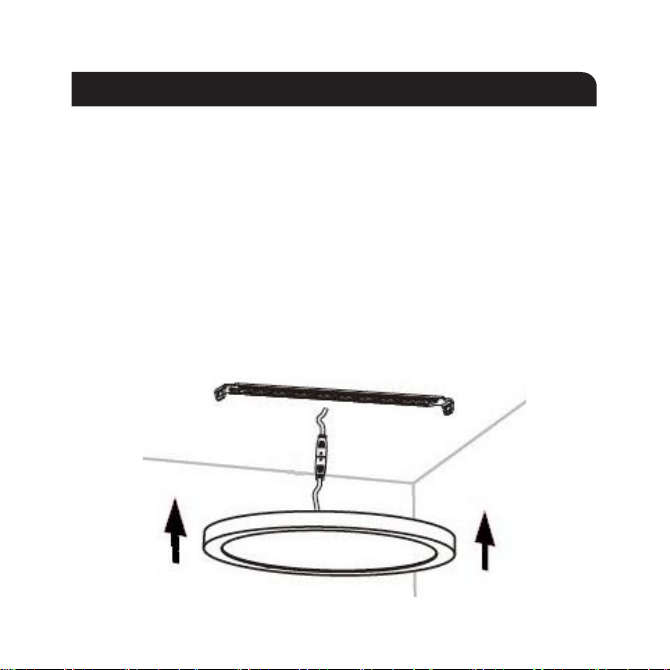

• Push the luminaire directly onto the bracket (see Fig. 1)
Fig.1
• Switch on and check for correct operation
Page 4
Recessed installation
Note - The clips on these luminaries are designed for recessed installation in ceilings with
a thickness between 4mm - 15mm. The design of the clips will safely work on thicker
materials, however, confirmation and testing should be carried out prior to installation.
• Provide power to the required point of installation
• Remove the bracket from the luminaire by pulling simultaneously at both ends - do not
pull from the centre of the bracket
• This luminaire can be mounted beneath a
cut-out of the following dimensions:
• If cutting a hole in the ceiling, please ensure not to infringe with any joists, gas/water
pipes or electrical cables

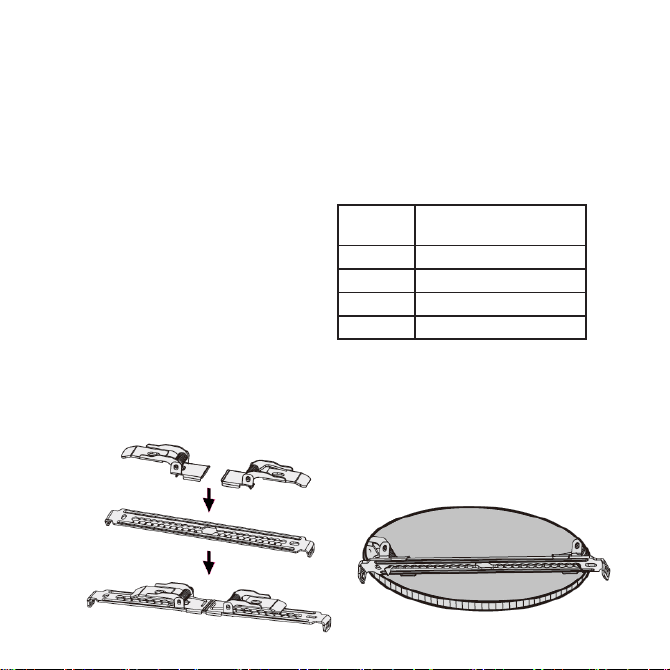

• Insert the springs into the bracket and slide to the required position according to the size
of the cut-out (see Fig. 2)
Product
code
CPL6CT 55 - 100
CPL12CT 55 - 125
CPL18CT 55 - 175
CPL24CT 55 - 250
Cut-out dimensions
(mm)
Fig.2 Fig.3
Page 5
• Lift both springs and fit into the ceiling (see Fig. 3)
• Connect the luminaire to the mains supply ensuring that correct polarity is observed: Live
(brown) and Neutral (blue). An appropriate junction box should be used (not supplied)
• Select the required colour temperature via the switch on the rear of the fitting
(see Colour Temperature Adjustment)

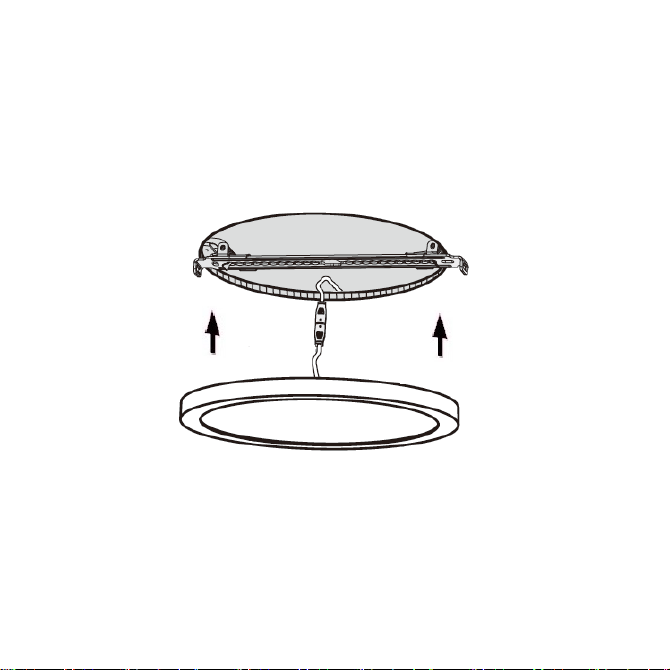

• Push the luminaire directly onto the bracket (see Fig. 4)
Fig.4
• Switch on and check for correct operation
• A range of magnetic bezels are available for this luminaire range, please note these bezels
are not vandal-proof.
Page 6
Colour Temperature Adjustment
The colour temperature may be set by means of a switch on the rear of the luminaire. The
options are:
WW (warm white), CW (cool white), DL (daylight) and SWITCH
The SWITCH option allows the colour temperature to be controlled from an external
wall switch. Switch the luminaire off and on again repeatedly until the desired colour
temperature is achieved. - then switch off and leave off for at least 5 seconds to save the
setting
WARNING
This luminaire must be disconnected from the circuit if subjected to any high voltage or
insulation resistance testing. Irreparable damage will occur if this instruction is not followed
GENERAL
The LED lamps fitted in this product are non-replaceable. The product should be recycled
in the correct manner when it reaches the end of its life. Check local authorities for where
facilities exist
Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which
may damage the product
This product is non-dimmable
Page 7
WARRANTY
This product has a warranty of 3 years from date of purchase. Failure to install this product
in accordance with the current edition of the IEE Wiring Regulations (BS7671), improper
use, or removal of the batch code will invalidate the warranty. If this product should fail
within its warranty period, it should be returned to the place of purchase for a free of
charge replacement. ML Accessories does not accept responsibility for any installation
costs associated with the replacement product. Your statutory rights are not affected. ML
Accessories reserve the right to alter product specification without prior notice.
Page 8
>85
CRI
-20~
40°C
TA
127
