Knightsbridge BWLED9 Installation Instructions

INSTALLATION & MAINTENANCE MANUAL

IP

44

230V

50Hz

BWLED9

96

1

GENERAL INSTRUCTIONS

These instructions should be read carefully and retained after installation by the end user for

future reference and maintenance.

These instructions should be used to aid installation of the following product:

BWLED9

SAFETY

• Installation of this luminaire should only be carried out by a qualified electrician or competent
person to the current IEE Wiring Regulations (BS7671)

• Please isolate mains prior to installation/maintenance

• Check the total load on the circuit (including when this luminaire is fitted) does not exceed the

rating of the circuit cable, fuse or circuit breaker

• Please note the IP (Ingress of Protection) rating of this luminaire when deciding the location for

installation

• This product is Class II double insulated

• This product is IP44 rated

• This product is non-dimmable

INSTALLATION

• Provide power to the point of installation

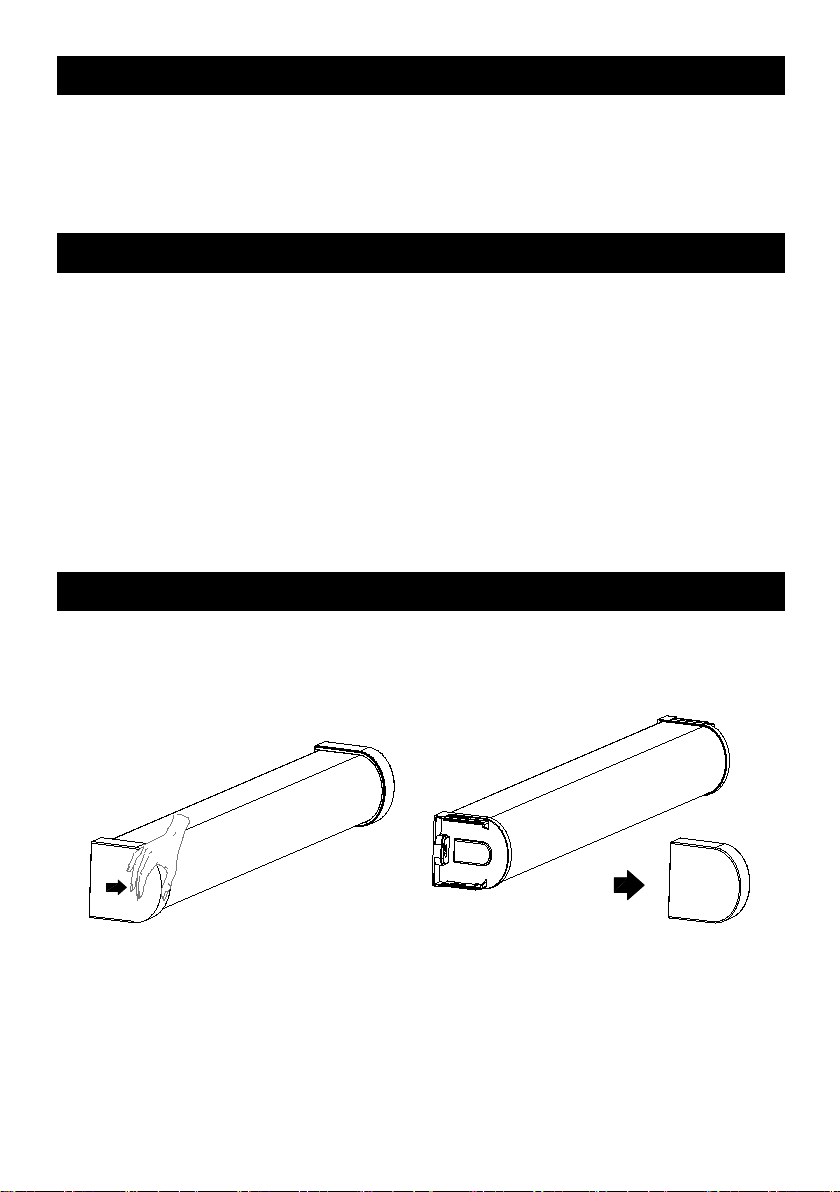

• Remove side plates as shown in Fig 1

Fig 1

• Drill holes ensuring they do not infringe with electrical cables, water/gas pipes or ceiling joists

• Remove the plastic terminal access cover (see Fig 2)

2

Homer Electronics Lighting

Tel: [phone] Fax: [phone]

E-mail:[e-mail]

E-mail:[e-mail]

Homer Electronics Lighting

Tel: [phone] Fax: [phone]

E-mail:[e-mail]

E-mail:[e-mail]

Live (brown)

Neutral (blue)

Fig 2

• Wire the mains cable ensuring correct polarity is observed - Live (brown) and Neutral (blue)
(see Fig 3)

Fig 3

• Push the terminal cover onto the rear of the luminaire (see Fig 4)

Fig 4

• Fix the luminaire to the wall (see Fig 5)

Fig 5

• Switch on power supply and check for correct operation

3

WARNING

This product must be disconnected from the circuit if subjected to any high voltage or insulation
resistance testing. Irreparable damage will occur if this instruction is not followed.

GENERAL

The unit should be recycled in the correct manner when it reaches the end of its life. Check local
authorities for where facilities exist.
Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which may
damage the fitting.

WARRANTY

This product has a warranty of 3 years from date of purchase. Failure to install this product in
accordance with the current edition of the IEE Wiring Regulations, improper use, or removal of
the batch codes will invalidate the warranty. If this product should fail within its warranty period it
should be returned to the place of purchase for a free of charge replacement. ML Accessories does
not accept responsibility for any installation costs associated with the replacement product. Your
statutory rights are not affected. ML Accessories reserve the right to alter product specification
without prior notice.
