Knightsbridge BTEVMW User guide

INSTALLATION & MAINTENANCE MANUAL

BTEVMW

GENERAL INSTRUCTIONS

These instructions should be read carefully and retained after installation by the end user for
future reference and maintenance.
These instructions should be used to aid installation of the following product:
BTEVMW

SAFETY

• This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671)
and current Building Regulations. If in any doubt, consult a qualified electrician

• Please isolate mains prior to installation or maintenance

• Check the total load on the circuit (including when this luminaire is fitted) does not exceed the rating of the
circuit cable, fuse or circuit breaker

• Please note the IP (Ingress Protection) rating of this product when deciding the location for installation

• Do not overload this accessory or subject it to conditions outside its rating

• This product is Class II double insulated

• This product is IP65 rated

INSTALLATION

Note - Microwave sensors may not be suitable for all installations, for example enclosed spaces, as they are

able to detect movement through non-metallic surfaces like plasterboard and thin doors.

• Provide power to the required point of installation (refer to BS7671 for correct cabling methods). Suitable IP
rated junction boxes should be used where required

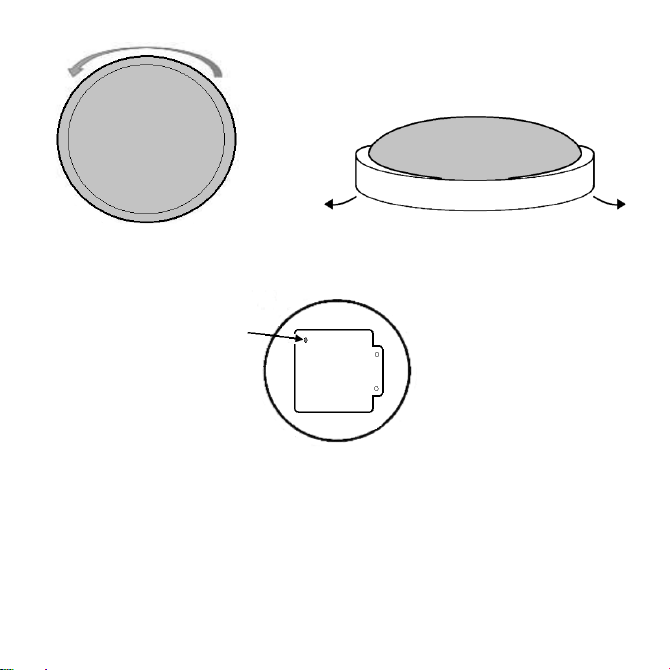

• Remove the bezel surround by unclipping from the luminaire housing, then remove the diffuser by rotating
anti-clockwise (see Fig. 1)

Fig. 1

Fig. 1

• Unscrew the fastening screw securing the LED plate and open the LED plate (see Fig. 2)

Fig. 2

• Drill the fixing holes in the rear of the fitting. Mark the location of the fixing holes and drill ensuring not to
infringe with any gas/water pipes or electrical cables

• Feed the mains cable through the rubber grommet to retain IP rating, and secure the baseplate to the
surface using the plugs and screws provided

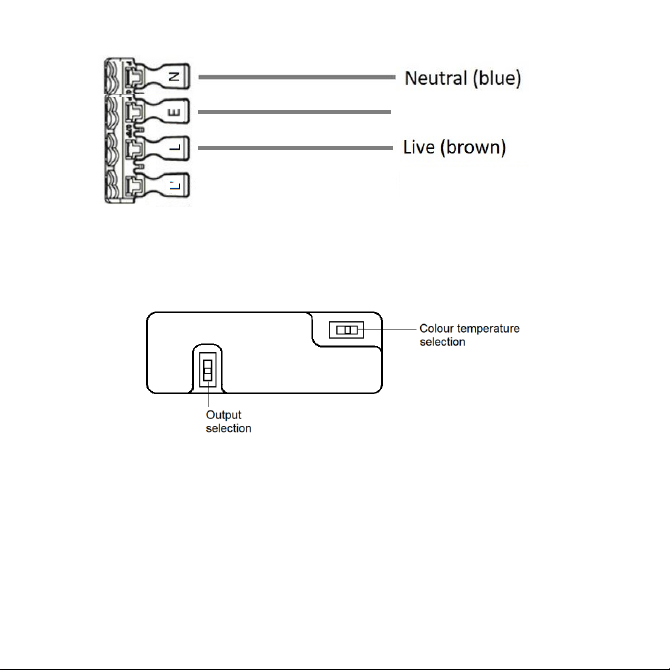

• Connect the luminaire to the mains supply ensuring the correct polarity is observed (see Fig. 3): L – Live
(brown), E – Earth (green/yellow) and N – Neutral (blue). The earth terminal is non-functional and only
provided for convenience. Two cables can be inserted into the push-fit terminal block in order to achieve
loop-in/loop-out

Earth (green & yellow)

Fig. 3

Fig. 3

• The additional terminal L’ is the Slave Live, which enables the sensor to power on additional luminaires. A
max. 400W LED load can be controlled by the sensor

• Choose the required driver output and colour temperature via the switches on the driver (see Fig. 4)

Fig. 4

• Select the required sensor settings (see below)

• Refasten the LED plate screw

• Rotate the diffuser firmly onto the luminaire body, ensuring a tight seal is made, then clip the bezel surround
into place

• Switch on and check for correct operation

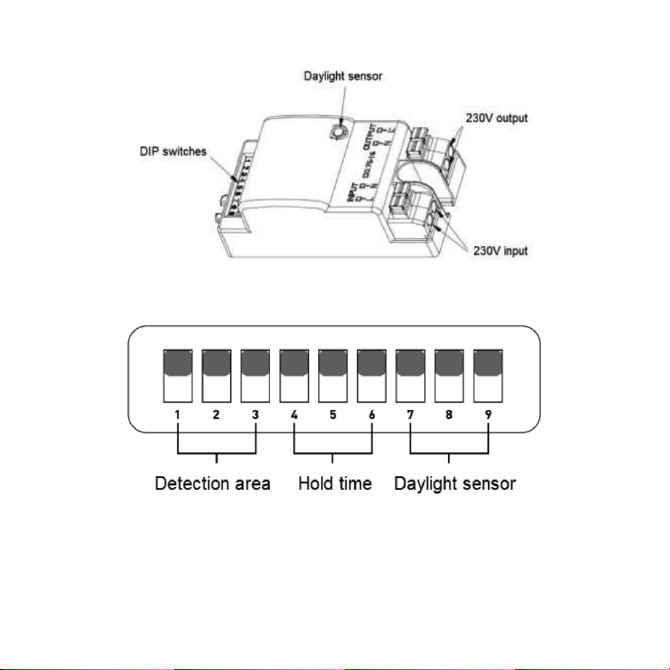

SENSOR LAYOUT

Fig. 4

Earth (green & yellow)

DIP SWITCH LAYOUT

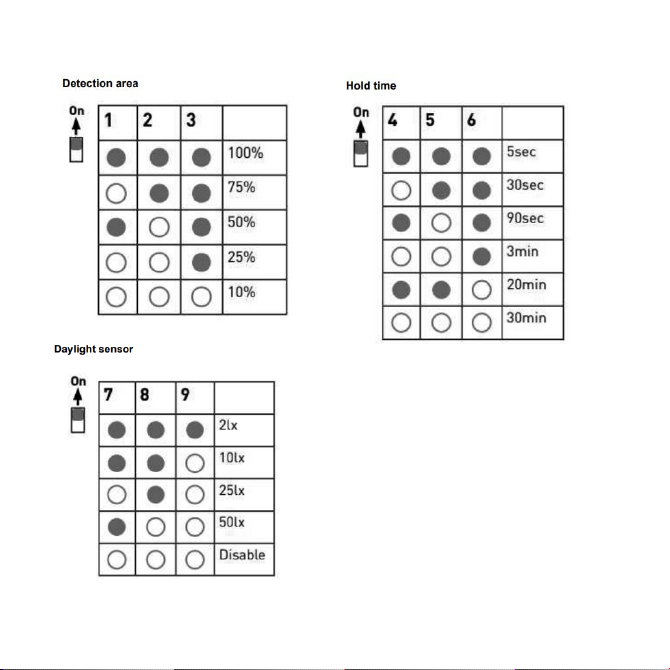

DIP SWITCH SETTINGS

DIP SWITCH LAYOUT

DIP SWITCH SETTINGS

This is the time period the lamp remains
at 100% after no motion is detected

When set to Disable, the daylight sensor will
switch the lamp on when motion is detected
regardless of the ambient light level

Fig. 3

• Choose the required driver output and colour temperature via the switches on the driver (see Fig. 4)

Fig. 4

• Refasten the LED plate screw

• Rotate the diffuser firmly onto the luminaire body, ensuring a tight seal is made, then clip the bezel

surround into place

• Switch on and check for correct operation

WARNING

This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance
testing. Irreparable damage will occur if this instruction is not followed.

GENERAL

This product contains a light source of energy efficiency class D to Regulation (EU) No. 2019/2015 and (UK)
2021 No. 1095.

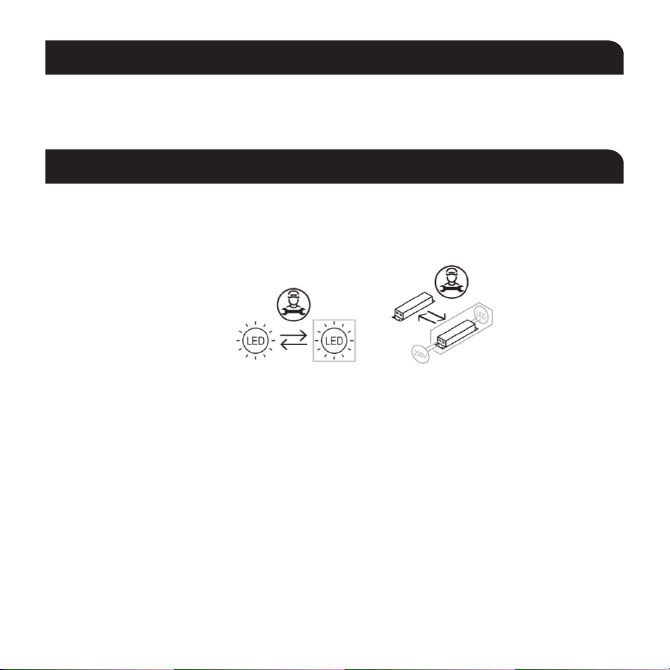

This product contains a LED light source which can be replaced by a professional and a control gear which can
be replaced by a professional.

WARNING

This product must be disconnected from the circuit if subjected to any high voltage or insulation resistance
testing. Irreparable damage will occur if this instruction is not followed.

GENERAL

This product contains a light source of energy efficiency class D to Regulation (EU) No. 2019/2015 and (UK)
2021 No. 1095.
This product contains a LED light source which can be replaced by a professional and a control gear which can
be replaced by a professional.

Clean the external surfaces with a damp cloth using a mild solution of detergent and warm water only, do not
use aggressive cleaning products or solvents which may damage the product
Do not use any source of high-pressure washers to maintain or clean this luminaire.
This product is non-dimmable.
This product should be dismantled for disposal when it reaches the end of its life. Please see website for
dismantling instructions.
This product should be recycled in the correct manner when it reaches the end of its life. Check local authorities
for where facilities exist.

WARRANTY

This product has a warranty of 5 years from date of purchase. Failure to install this product in accordance with
the current edition of the IEE Wiring Regulations (BS7671), improper use, or removal of the batch code will
invalidate the warranty. If this product should fail within its warranty period, it should be returned to the place
of purchase for a free of charge replacement. ML Accessories does not accept responsibility for any installation
costs associated with the replacement product. Your statutory rights are not affected. ML Accessories reserve
the right to alter product specification without prior notice.
