Knightsbridge BT14ACTS, BT9ACTS Installation Instructions

INSTALLATION & MAINTENANCE MANUAL

BTxxACTS

GENERAL INSTRUCTIONS

These instructions should be read carefully and retained after installation by the
end user for future reference and maintenance.
These instructions should be used to aid installation of the following products:
BT9ACTS / BT14ACTS / BT20ACTS

SAFETY

• This product must be installed in accordance with the latest edition of the IEE Wiring
Regulations (BS7671) and current Building Regulations. If in any doubt, consult a
qualified electrician

• Please isolate mains prior to installation or maintenance

• Check the total load on the circuit (including when this luminaire is fitted) does not exceed
the rating of the circuit cable, fuse or circuit breaker

• Please note the IP (Ingress Protection) rating of this luminaire when deciding the location
for installation

• This product is Class II double insulated

• This product is IP65 rated

BTxxACT

(BS7671) and current Building Regulations. If in any doubt, consult a qualified electrician

rating of the circuit cable, fuse or circuit breaker

installation

where required

INSTALLATION

Note - Microwave sensors may not be suitable for all installations, for example enclosed
spaces, as they are able to detect movement through non-metallic surfaces like
plasterboard and thin doors.

• Provide power to the required point of installation. Suitable IP rated junction boxes should
be used where required

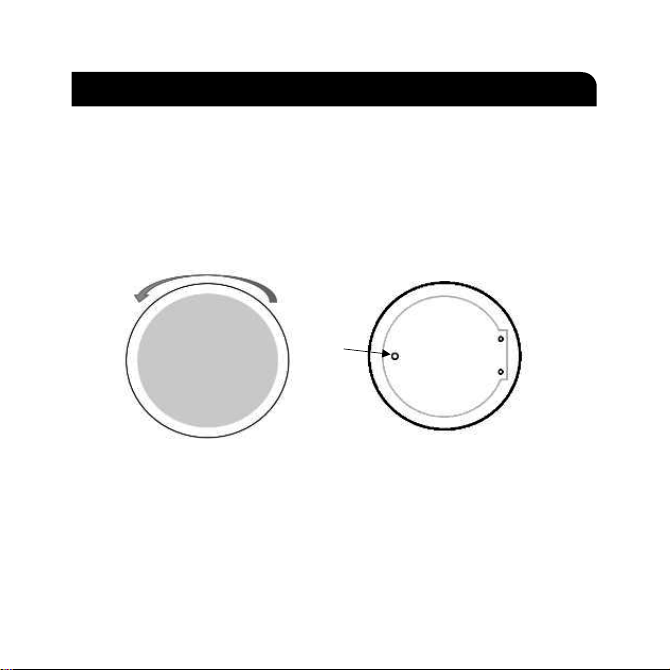

• Remove the diffuser by rotating bezel anti-clockwise (see Fig. 1)

Fig. 1 Fig. 2

• Remove the fastening screw securing the LED plate and open the LED plate (see Fig. 2)

• Mark the location of the fixing holes, and drill the holes ensuring not to infringe with any
gas/water pipes or electrical cables

• Feed the cable via the rubber grommet to retain IP rating, and secure the baseplate to
the surface

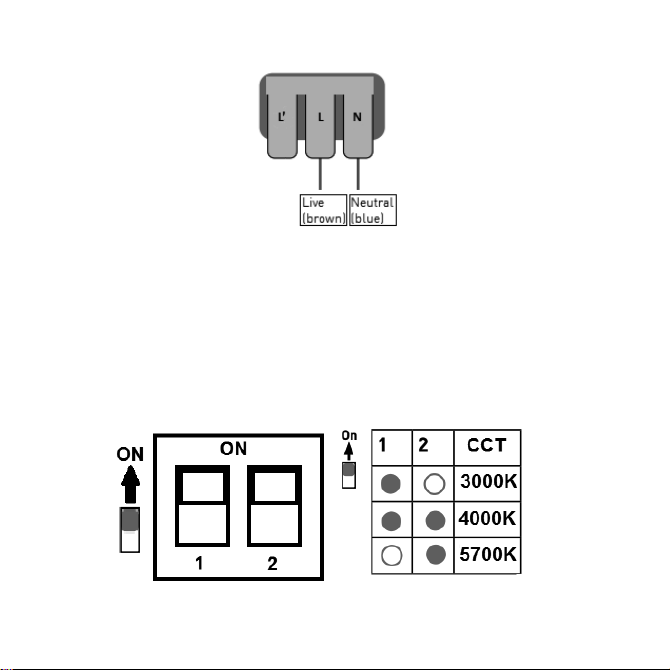

• Connect the Live (brown) and Neutral (blue) to the terminals on the terminal block
(see Fig. 3)

Fig. 3

• The additional terminal called Slave Live (L’) is available to enable the sensor to power on
additional luminaires. A max. LED load of 400W can be controlled by the sensor

• Please see DIP Switch Layout to set up sensor

• Refasten the LED plate screw

• Choose the required colour temperature by means of the DIP switch (see Fig. 4)

Fig. 4

• Reattach the diffuser by rotating clockwise

• Switch on and check for correct operation

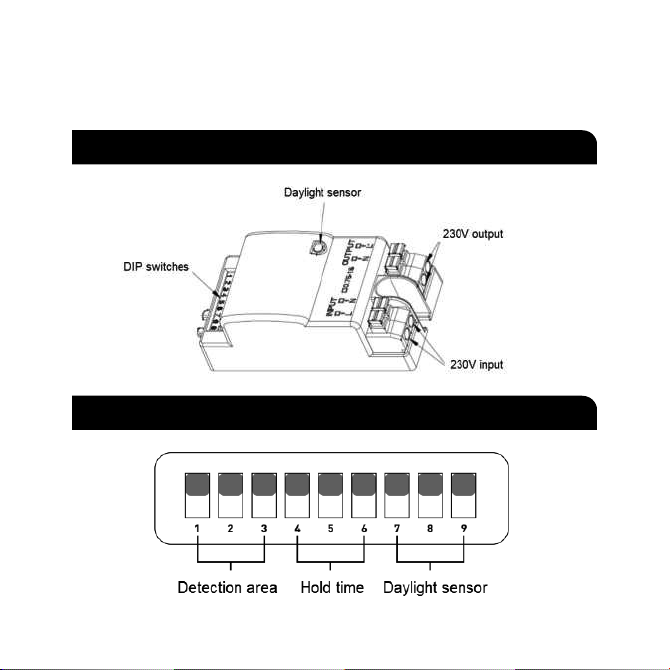

SENSOR LAYOUT

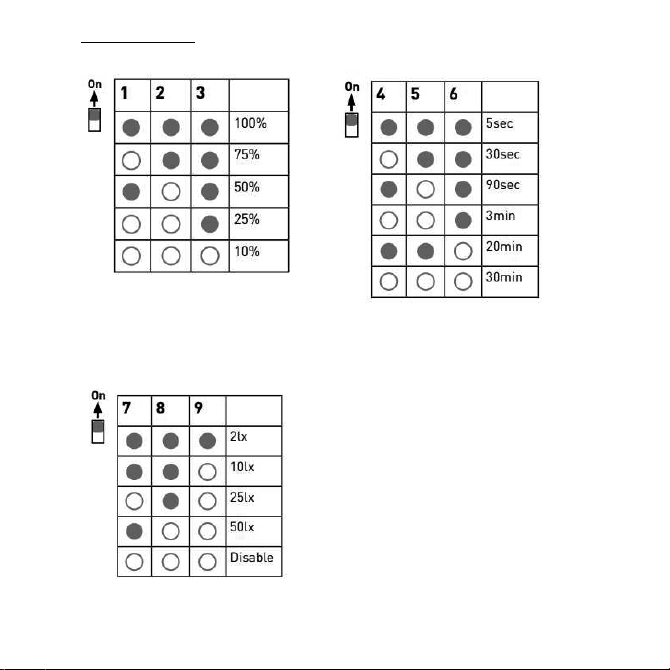

DIP SWITCH LAYOUT

DIP SWITCH SETTINGS

DIP SWITCH SETTINGS

Detection area

Detection area

Daylight sensor

Hold time

This is the time period the lamp remains
at 100% after no motion is detected

When set to Disable, the daylight sensor will
switch the lamp on when motion is detected
regardless of the ambient light level

WARNING

This product must be disconnected from the circuit if subjected to any high voltage or
insulation resistance testing. Irreparable damage will occur if this instruction is not followed.

GENERAL

This product contains a light source of energy efficiency class D (BT9ACTS) / E (BT14ACTS,
BT20ACTS) to Regulation (EU) No. 2019/2015.

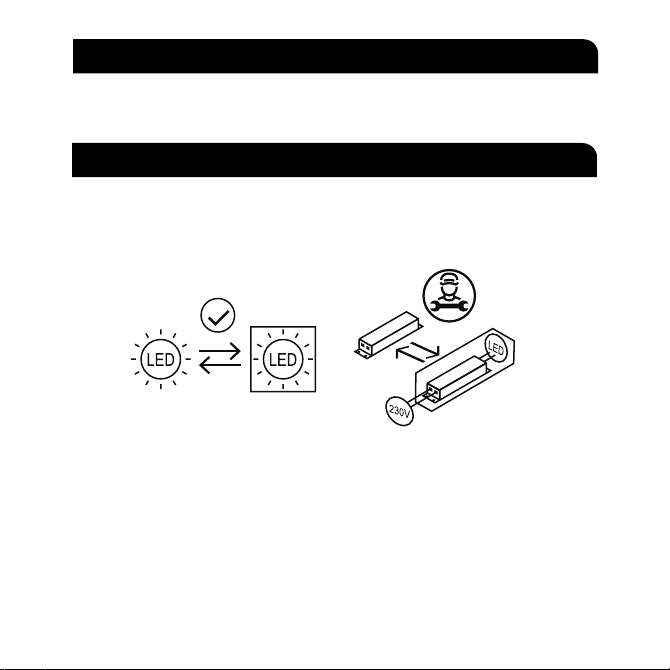

This product contains an LED light source which can be replaced by the end user and a
control gear which can be replaced by a professional.

Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which
may damage the product.
Do not use any source of high-pressure washers to maintain or clean this luminaire.
This product is non-dimmable.
This product should be dismantled for disposal when it reaches the end of its life. Please
see website for dismantling instructions.
This product should be recycled in the correct manner when it reaches the end of its life.
Check local authorities for where facilities exist.

WARRANTY

This product has a warranty of 5 years from date of purchase. Failure to install this
product in accordance with the current edition of the IEE Wiring Regulations, improper
use, or removal of the batch codes will invalidate the warranty. If this product should fail
within its warranty period, it should be returned to the place of purchase for a free of
charge replacement. ML Accessories does not accept responsibility for any installation
costs associated with the replacement product. Your statutory rights are not affected. ML
Accessories reserve the right to alter product specification without prior notice.

ML Accessories Limited LU5 4LT
www.mlaccessories.co.uk
