Knightsbridge BT14ACTEMS, BT20ACTEMS, BT9ACTEMS Installation Instructions

INSTALLATION & MAINTENANCE MANUAL

BTxxACTEMS

BTxxACT

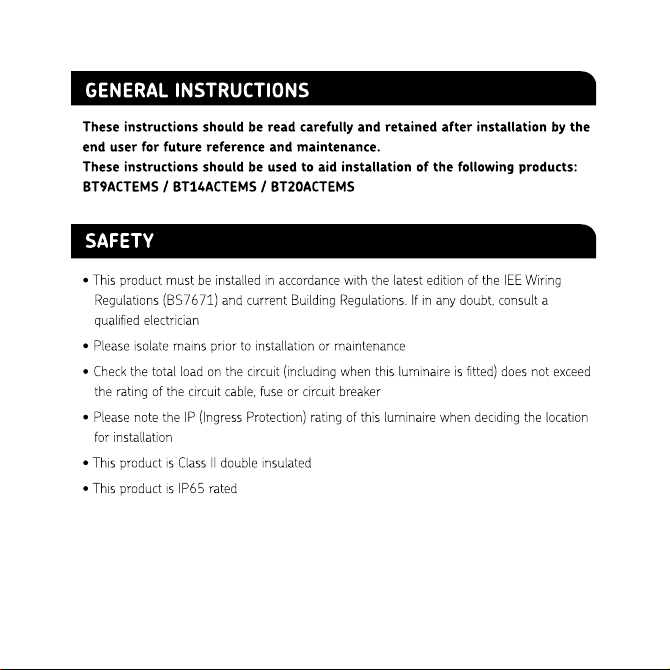

(BS7671) and current Building Regulations. If in any doubt, consult a qualified electrician

rating of the circuit cable, fuse or circuit breaker

installation

where required

• Provide power to the required point of installation. Suitable IP rated junction boxes should be used
where required

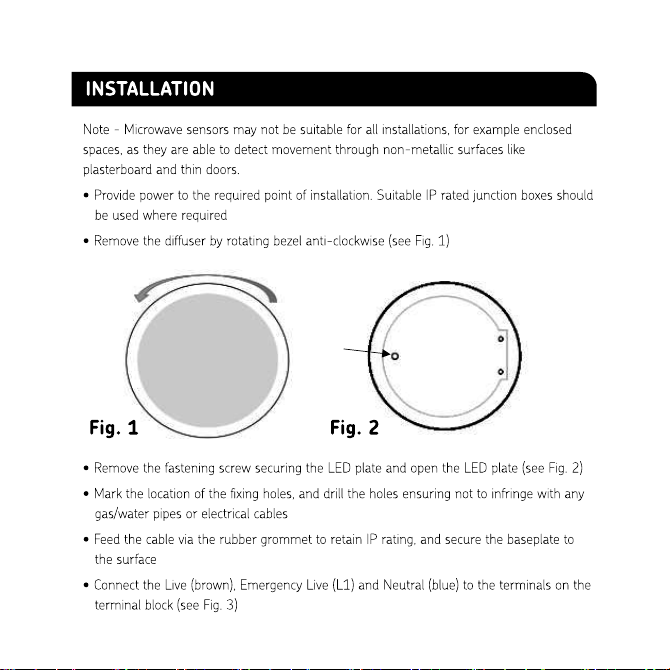

• Remove the diffuser by rotating bezel anti-clockwise (see Fig. 1)

pipes or electrical cables

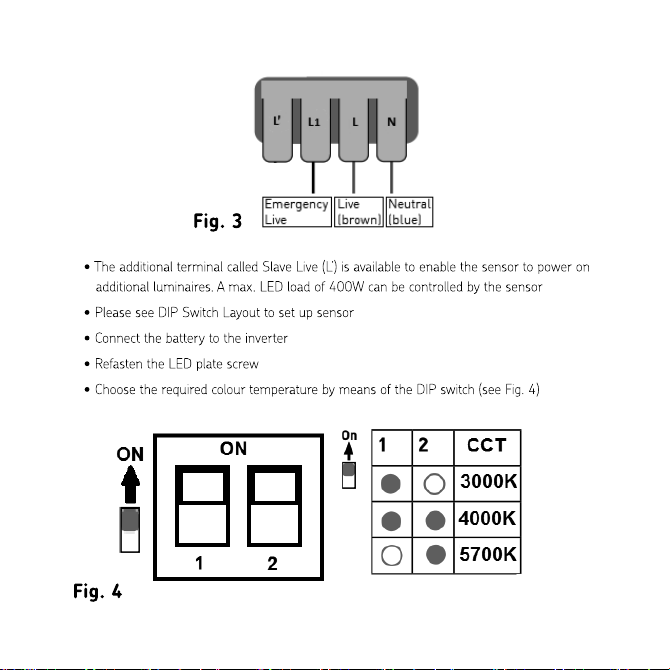

block (see Fig. 3)

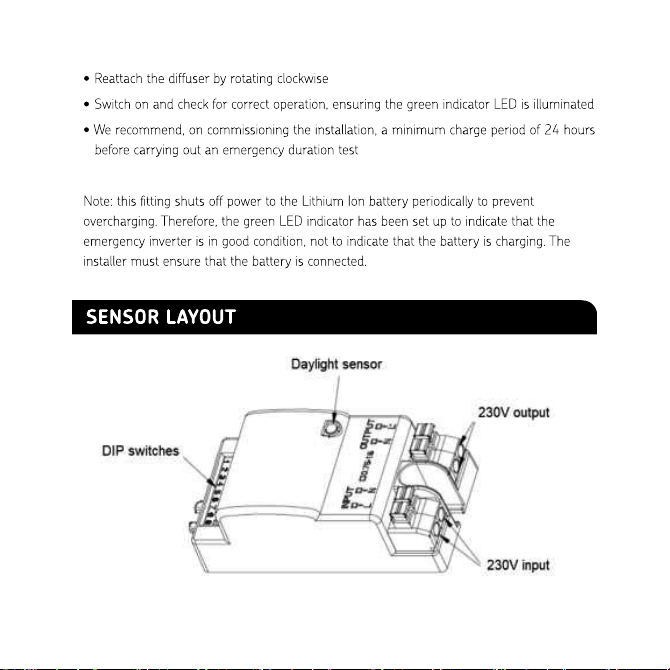

DIP SWITCH SETTINGS

Detection area

DIP SWITCH SETTINGS

Detection area

Hold time

Clean with a soft dry cloth only, do not use aggressive cleaning products or solvents which
may damage the product.
Do not use any source of high-pressure washers to maintain or clean this luminaire.
This product is non-dimmable.
This product should be dismantled for disposal when it reaches the end of its life. Please
see website for dismantling instructions.
This product should be recycled in the correct manner when it reaches the end of its life.
Check local authorities for where facilities exist.
The batteries in this luminaire are Lithium Ion and must be disposed of correctly. Please
contact the local authorities for the disposal of this toxic waste.

WARRANTY

This product has a warranty of 5 years (excluding battery) from date of purchase. Failure
to install this product in accordance with the current edition of the IEE Wiring Regulations,
improper use, or removal of the batch codes will invalidate the warranty. If this product
should fail within its warranty period, it should be returned to the place of purchase for a
free of charge replacement. ML Accessories does not accept responsibility for any installation
costs associated with the replacement product. Your statutory rights are not affected. ML
Accessories reserve the right to alter product specification without prior notice.

TESTING FOR EMERGENCY LUMINAIRES

Recommended routine test procedure in accordance with BS5266

• Daily check – check LED charge indicator is illuminated

• Monthly functional test – simulate a mains supply failure for approx. 30 seconds by
operation of key switch or switching off circuit breaker. Ensure normal supply is restored
after test and ensure charge indicator is illuminated

• Annual 3-hour duration test - simulate a mains supply failure for a 3-hour continuous
test by operation of key switch or switching off circuit breaker. Ensure normal supply is
restored after test and ensure charge indicator is illuminated

• If the luminaire fails any of the above tests, please contact a qualified electrician

ML Accessories Limited LU5 4LT
www.mlaccessories.co.uk

52

Supplied By:

ML Accessories Ltd, Unit E Chiltern

Park, Boscombe Road, Dunstable

(EU) Authorised Representative

nnuks Holding GmbH, Niederkasse-

(UK) Manufacturer

www.mlaccessories.co.uk

40547 Düsseldorf, Germany,

Email: [e-mail]

LU5 4LT,

ler Lohweg 18,

DCJUL22_V3

Manufacturers Declaration of Conformity

For ML Accessories (Knightsbridge)

Electrical products in accordance with CE marking

ML Accessories Ltd. Declare that all products have been designed, manufactured, and tested in
accordance with the requirements of the relevant legislation

CE marking legislation

In Accordance with the following Directives:

2014/35/EU Low Voltage Directive
2014/30/EU EMC Directive
2014/53/EU Radio Equipment Directive

Including Legislation

1907/2006 REACH
2015/863 RoHS
2021/341 ERP

Safety Standards

Full individual declarations and specific safety standards applicable to relevant product series can be found on
our website www.mlaccessories.co.uk

We hereby declare that the equipment named above has been designed to comply with the relevant
sections of the above referenced specifications. The product complies with all essential requirements of
the directives.

Scott Brewer Catherine Connolly
Technical Manager CEO

ML Accessories Ltd. Unit E Chiltern Park, Boscombe Road, Dunstable. Bedfordshire, LU5 4LT

This declaration becomes invalid if technical or operational modifications are introduced without ML Accessories Ltd. written consent.

Manufacturers Declaration of Conformity

For ML Accessories (Knightsbridge)

Electrical products in accordance with UKCA marking

ML Accessories Ltd. declare that all products have been designed, manufactured, and tested in
accordance with the requirements of the relevant legislation

UKCA marking legislation

UK SI 2016 No. 1091 Electro Magnetic Compatibility Regulations 2016
UK SI 2016 No. 1101 The Electrical Equipment (Safety) Regulations 2016
UK SI 2012 No. 3032 Restriction of the use of Certain Hazardous Substances in Electrical and
Electronic Equipment Regulations 2012
UK SI 2017 No. 1206 Radio Equipment regulations 2017
UK SI 2021 No. 1095 The Ecodesign for Energy-Related Products and Energy
Information (Lighting Products) Regulations 2021

Included Legislation

UK SI 2008 No. 2852 UK REACH
UK SI 2013 No. 3113 WEEE

Safety Standards

Full individual declarations and specific safety standards applicable to relevant product series can be found on
our website www.mlaccessories.co.uk

We hereby declare that the equipment named above has been designed to comply with the relevant
sections of the above referenced specifications. The products comply with all essential requirements of
the directives.

Scott Brewer Catherine Connolly
Head of Technical CEO

ML Accessories Ltd. Unit E Chiltern Park, Boscombe Road, Dunstable. Bedfordshire, LU5 4LT

This declaration becomes invalid if technical or operational modifications are introduced without ML Accessories Ltd. written consent.

TEST RECORD SHEET

INITIAL COMMISSIONING

3 HOUR TEST

MONTH TEST

1 FUNCTIONAL

2 FUNCTIONAL

3 FUNCTIONAL

4 FUNCTIONAL

5 FUNCTIONAL

6 FUNCTIONAL

7 FUNCTIONAL

8 FUNCTIONAL

9 FUNCTIONAL

10 FUNCTIONAL

11 FUNCTIONAL

12 3 HOUR

FIRST YEAR SECOND YEAR THIRD YEAR FOURTH YEAR FIFTH YEAR

SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE SIGNED DATE

SIGNED DATE

Installed by: Installation date:

Contact number:

Daylight sensor

When set to Disable, the daylight sensor will
switch the lamp on when motion is detected
regardless of the ambient light level

WARNING

This product must be disconnected from the circuit if subjected to any high voltage or
insulation resistance testing. Irreparable damage will occur if this instruction is not followed.

GENERAL

This product contains a light source of energy efficiency class D (BT9ACTEMS) / E
(BT14ACTEMS, BT20ACTEMS) to Regulation (EU) No. 2019/2015.
This product contains an LED light source which can be replaced by the end user and a
control gear which can be replaced by a professional.
