Knick Stratos Pro A401B PH User Manual

Stratos®Pro A401B PH

094698

User Manual

Basics

Return of products under warranty

Please contact our Service Team before returning a defective device. Ship the cleaned device to the address you have been given. If the device has been in contact with process uids, it must be decontaminated/disinfected before shipment. In that case, please attach a corresponding certicate, for the health and safety of our service personnel.

Disposal

Please observe the applicable local or national regulations concerning the disposal of “waste electrical and electronic equipment”.

About this manual:

This manual is intended as a reference guide to your device – You don't have to read the book from front to back. Take a look at the Table of Contents or the Index to nd the function you are interested in. Each topic is explained on a double-page spread with step-by-step instructions on how to congure the desired function. Clearly legible page numbers and headlines help you to quickly nd the information:

Left page:

How do I get to the function

Conguration

ISM Sensor

Autoclaving counter

56 57

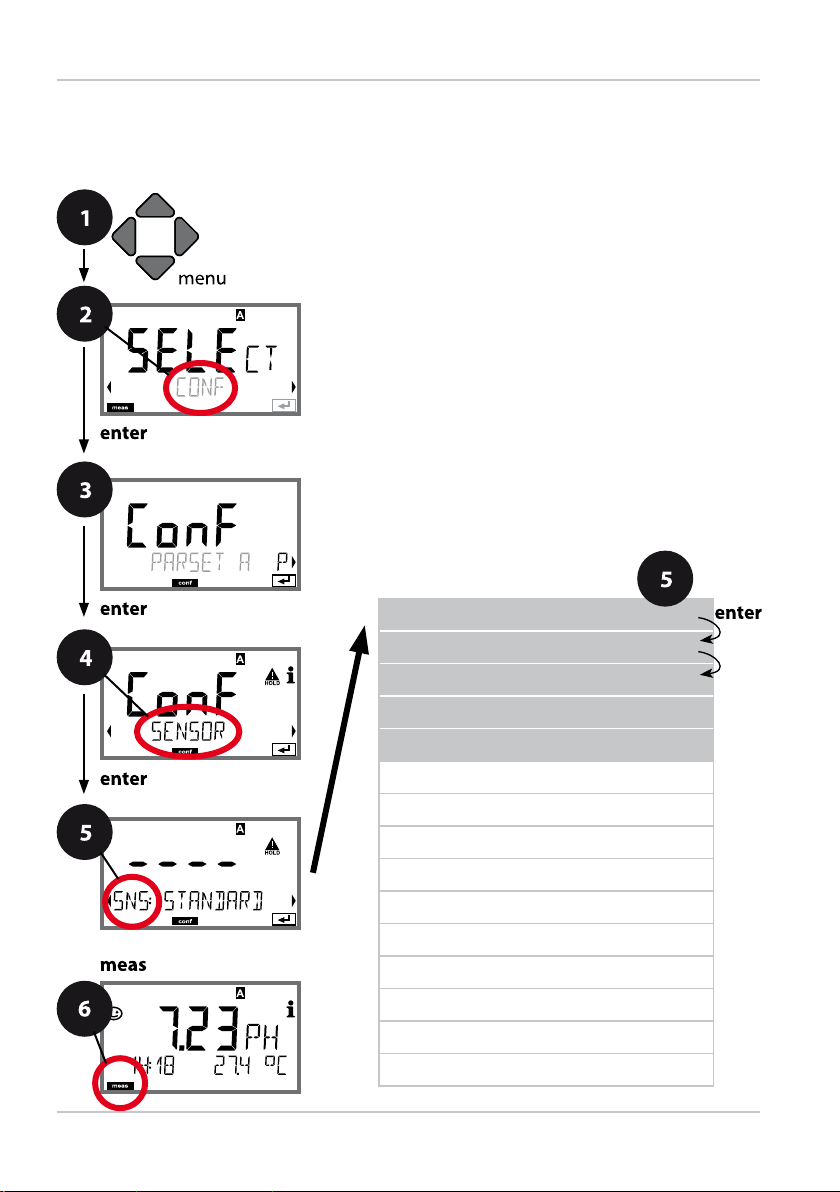

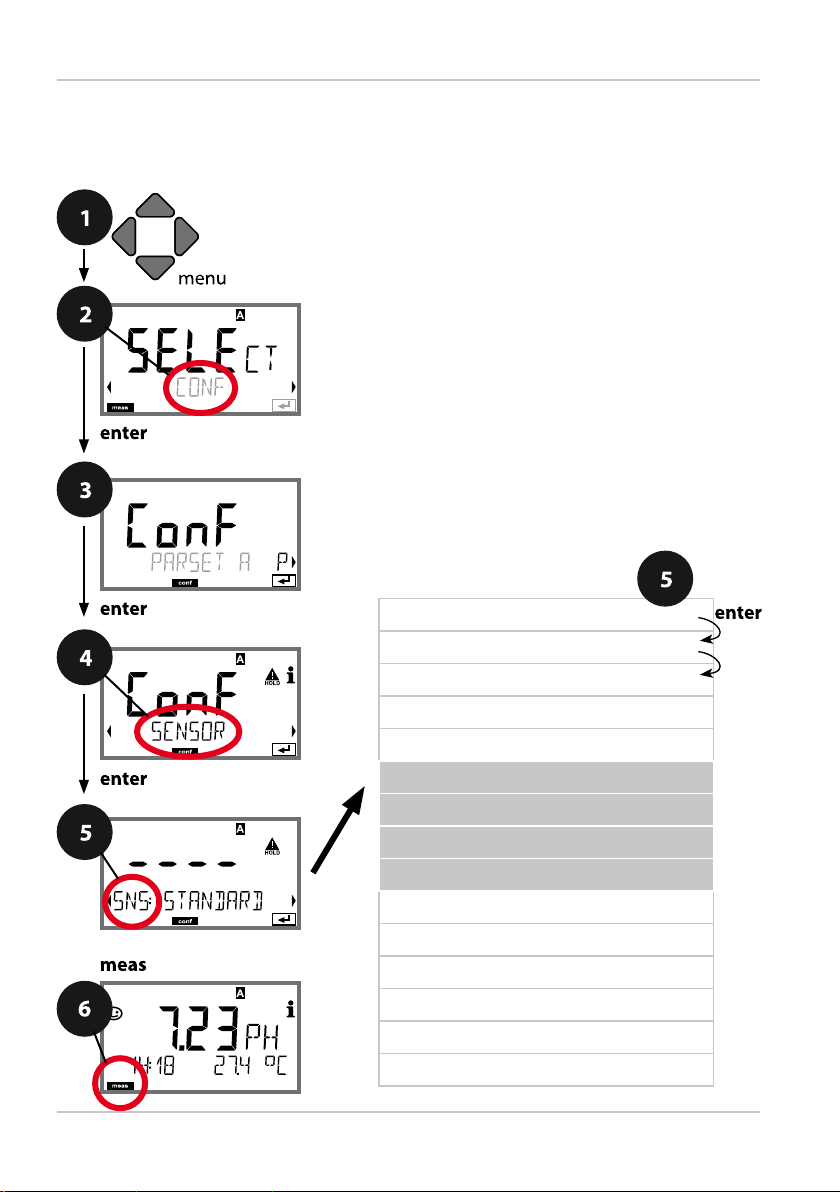

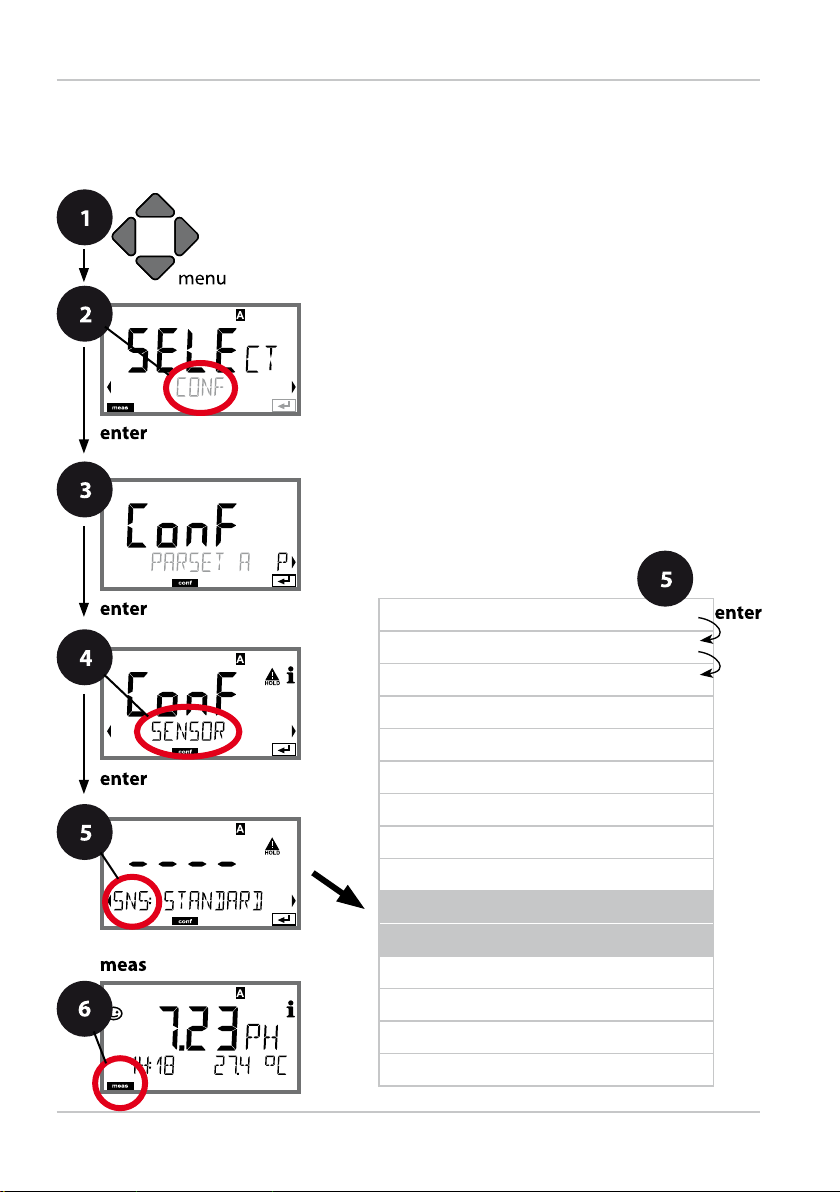

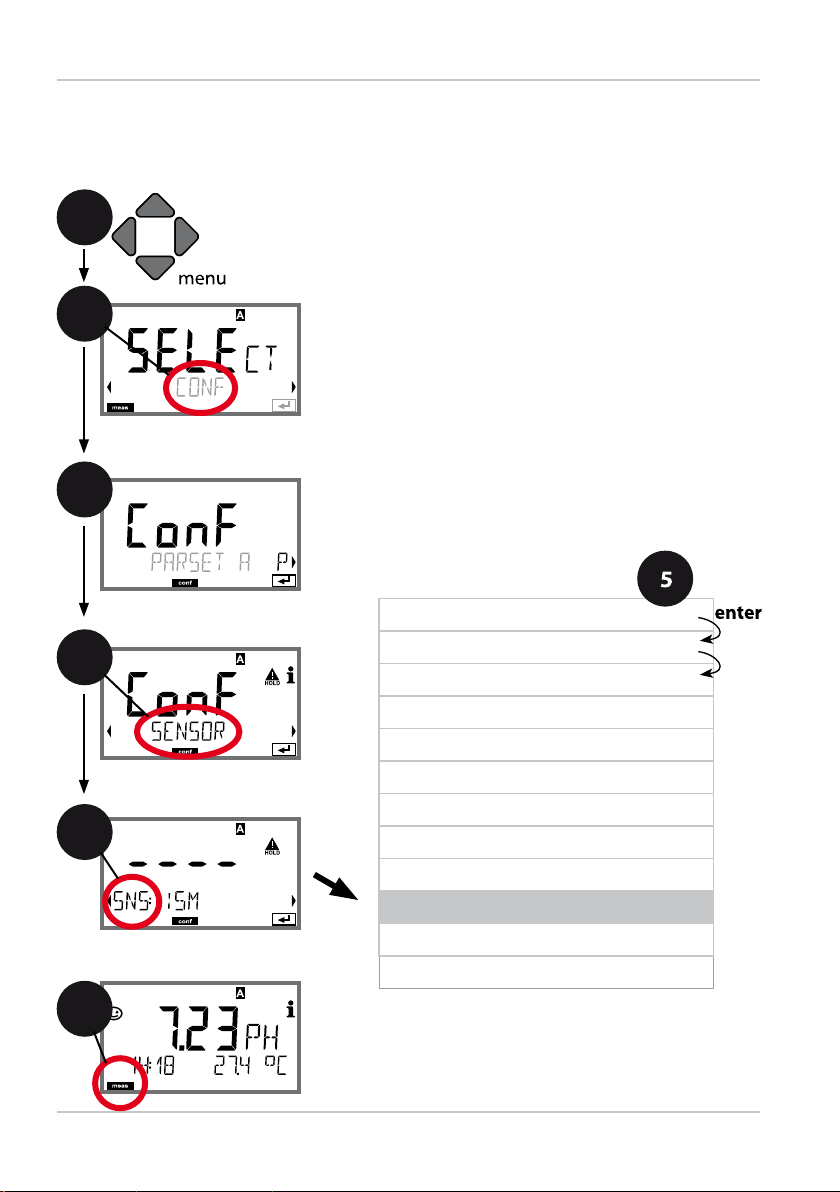

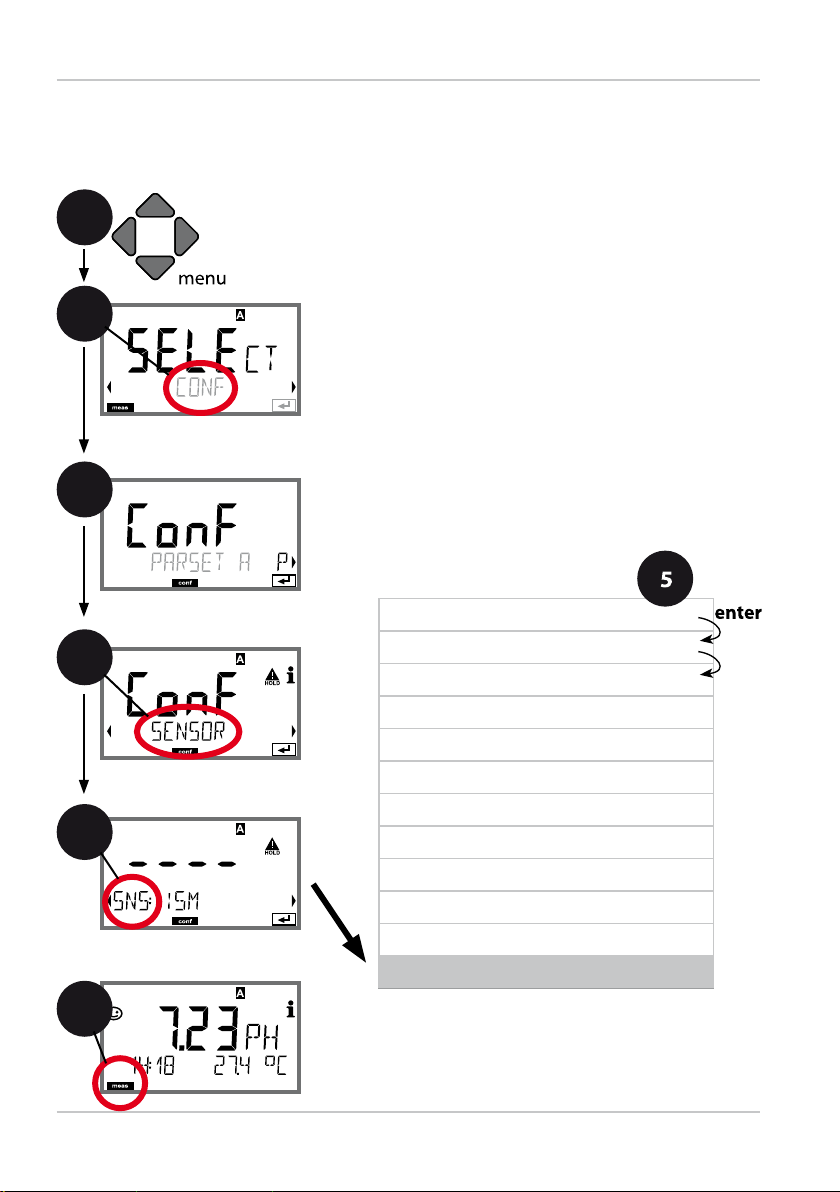

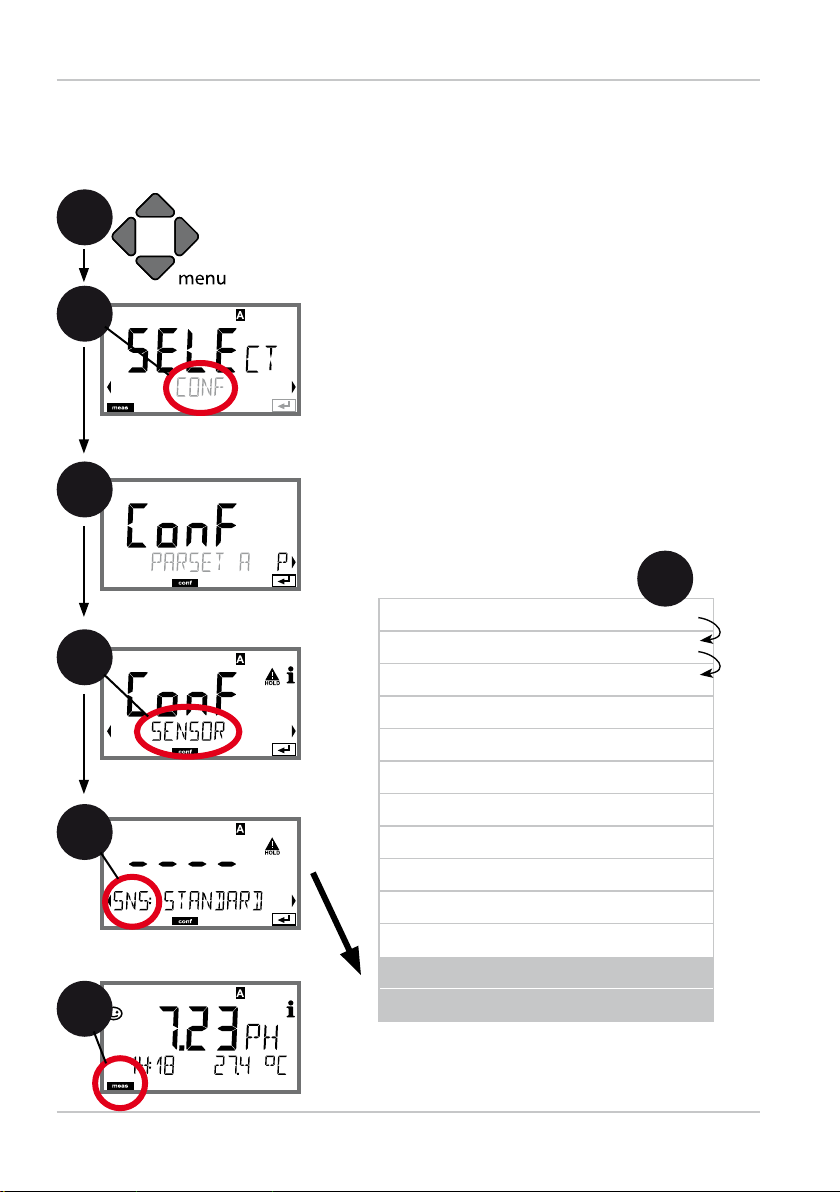

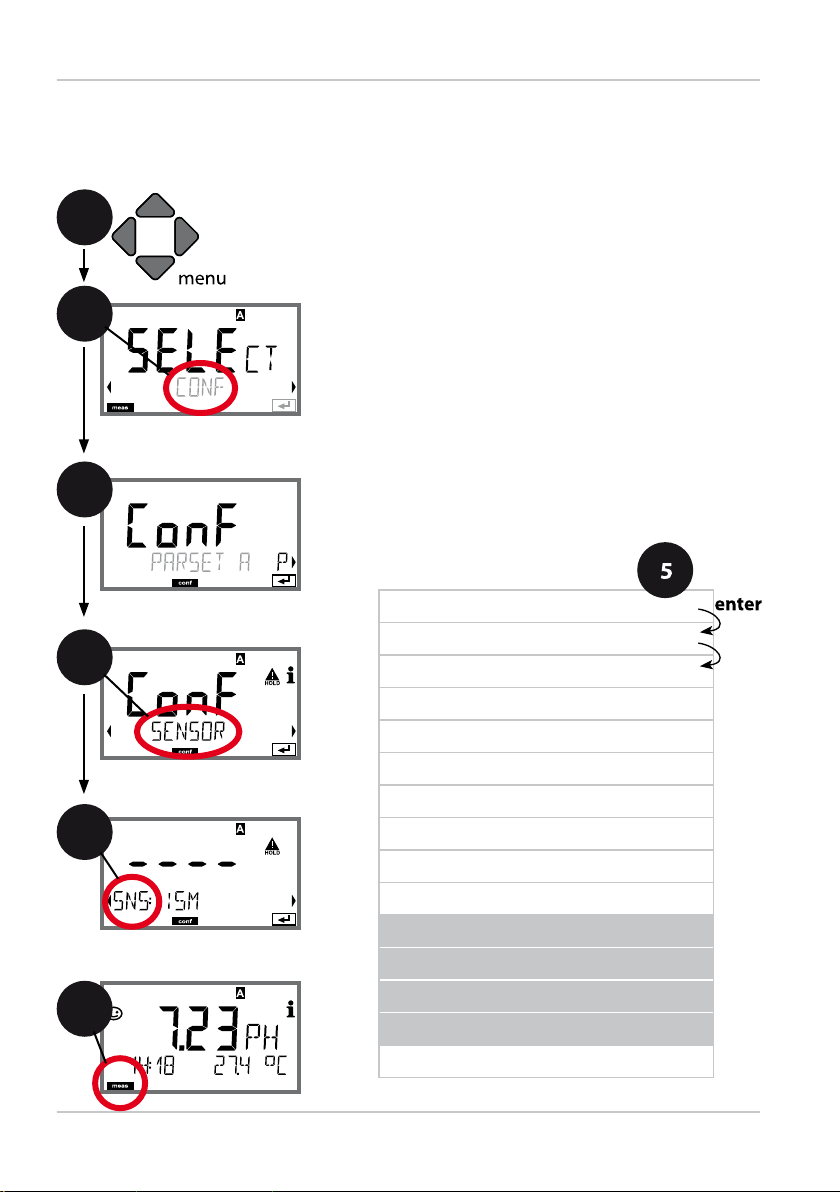

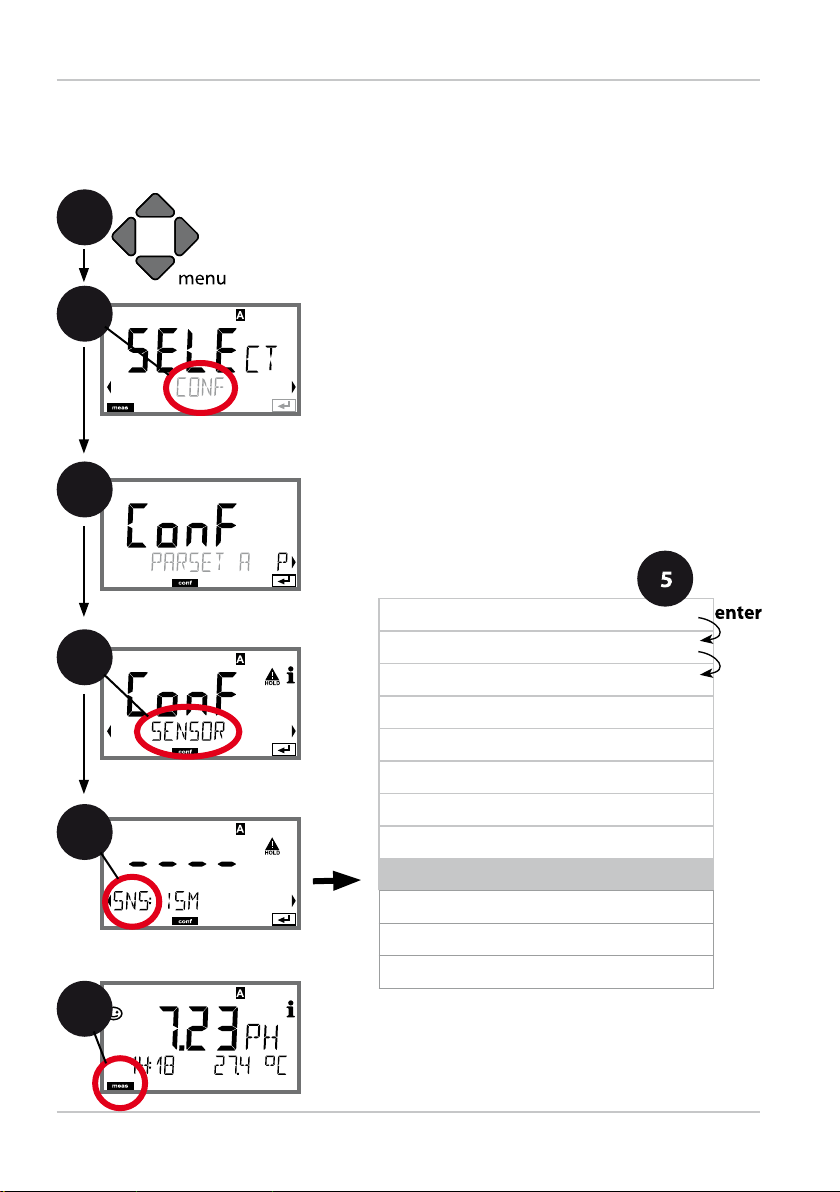

1) Press any arrow key.

2) Select CONF using  keys, press enter.

3) Select parameter set using  keys, press enter.

4) Select SENSOR menu using  keys, press enter.

5) All items of this menu group are indicated by the “SNS:” code. Press enter to select menu, edit using arrow keys (see next page). Confirm (and proceed) by pressing enter.

6) Exit: Press meas key until the [meas] mode indicator is displayed.

Select sensor type

Temperature unit

Temp detection during measurement

(Manual temperature)

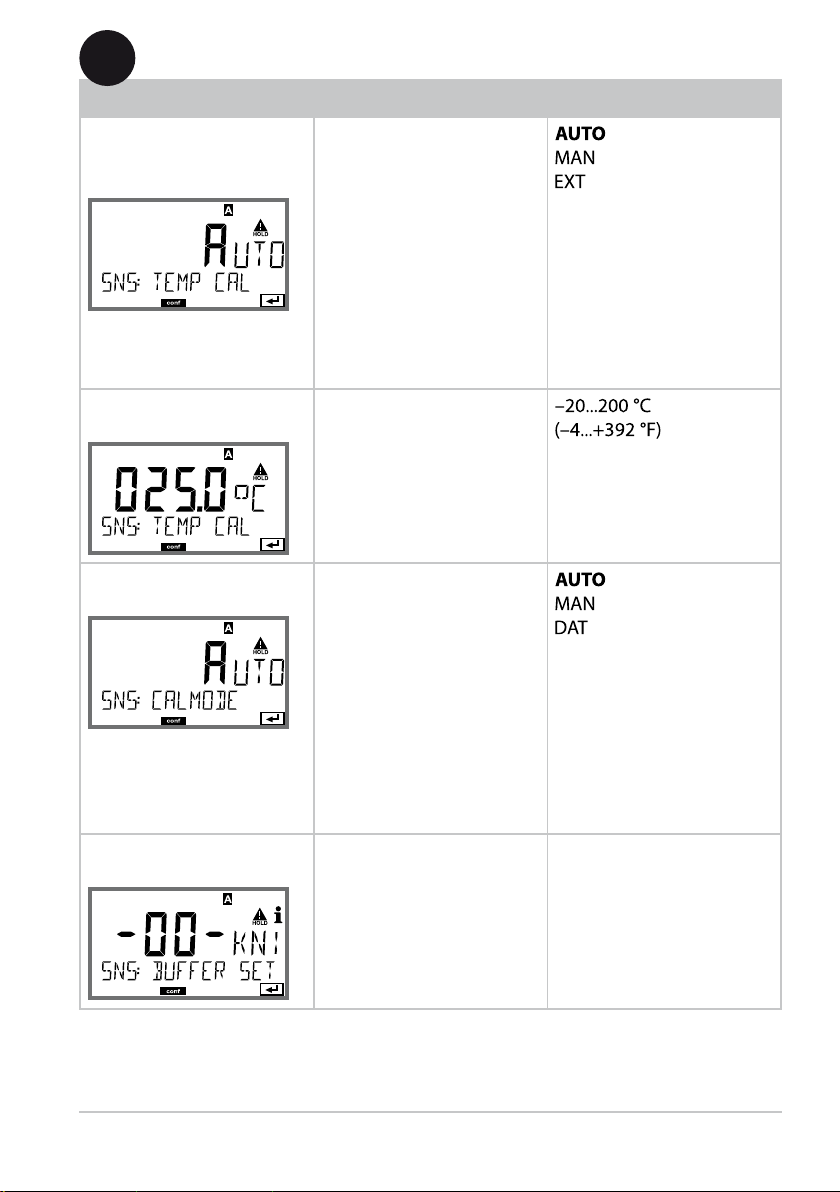

Temp detection during calibration

(Manual temperature)

Calibration mode

(AUTO: Buffer set)

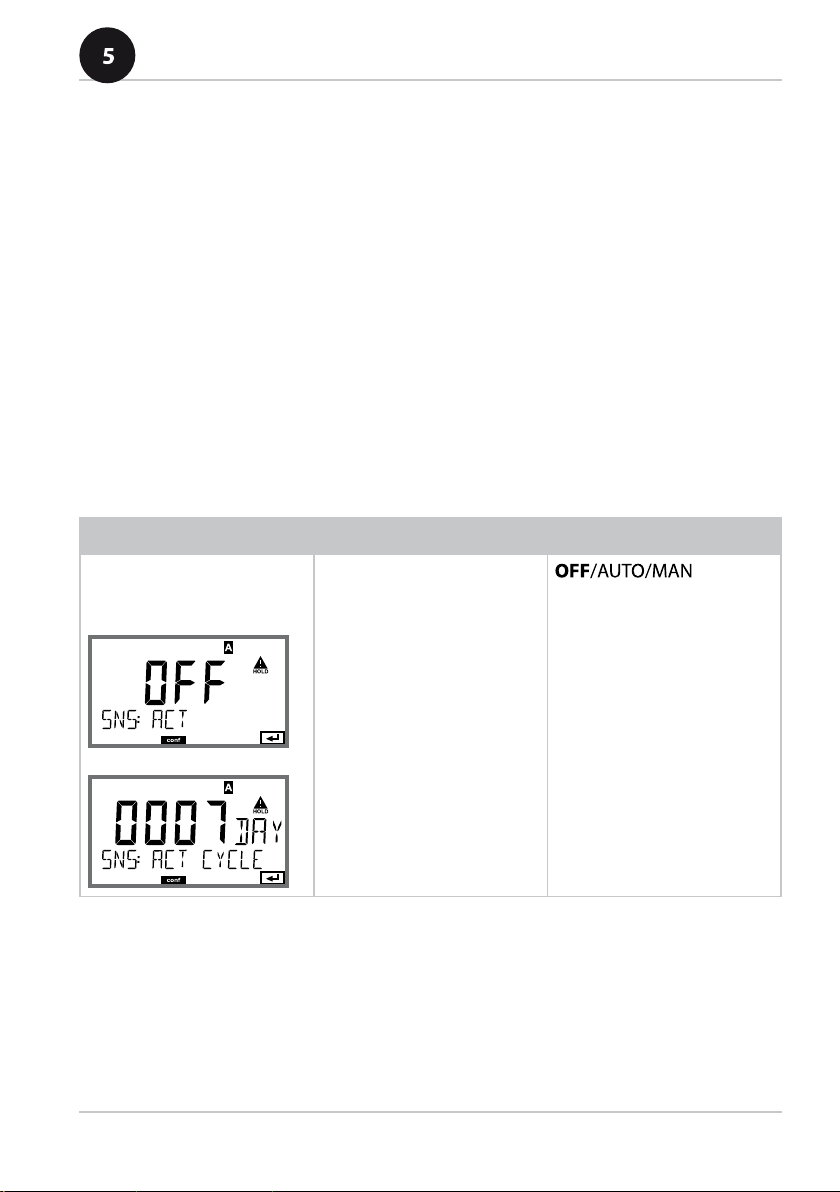

ACT - Adaptive calibration timer

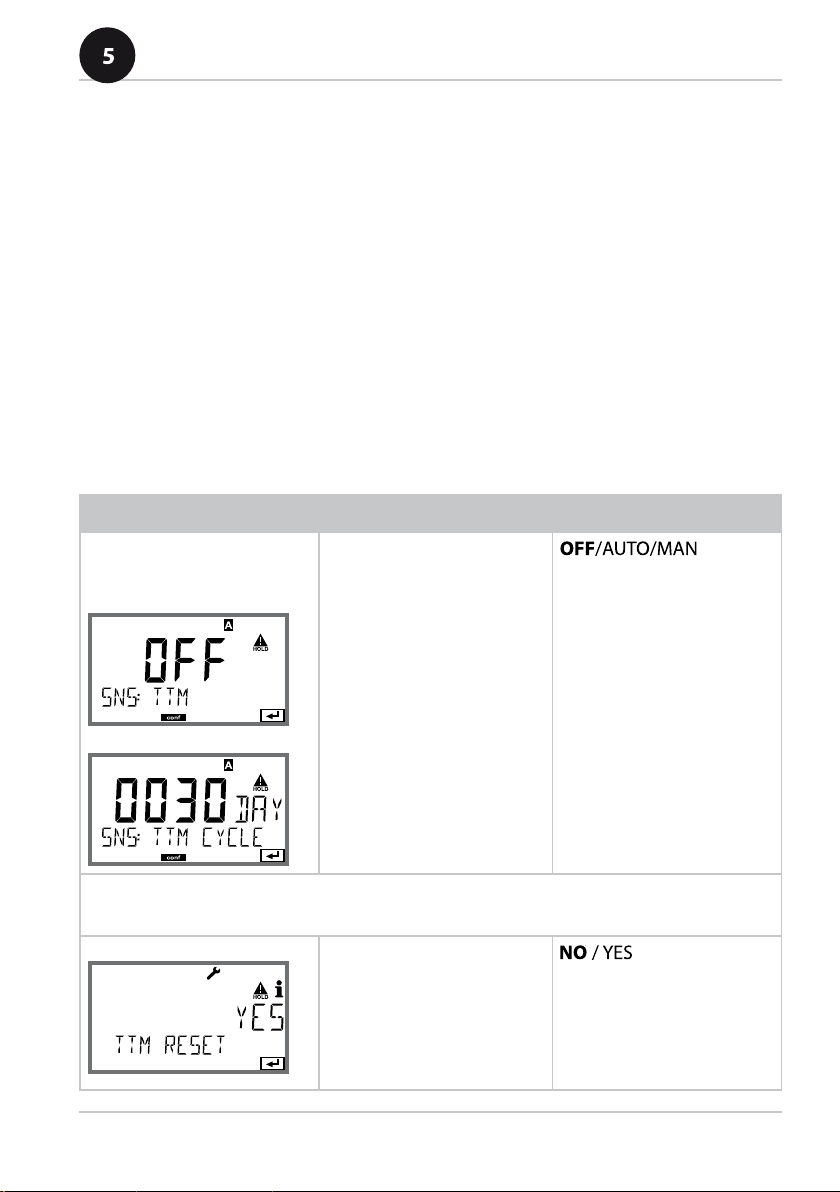

TTM - Adaptive maintenance timer

CIP/SIP cycles

Autoclaving counter

Autoclaving Counter

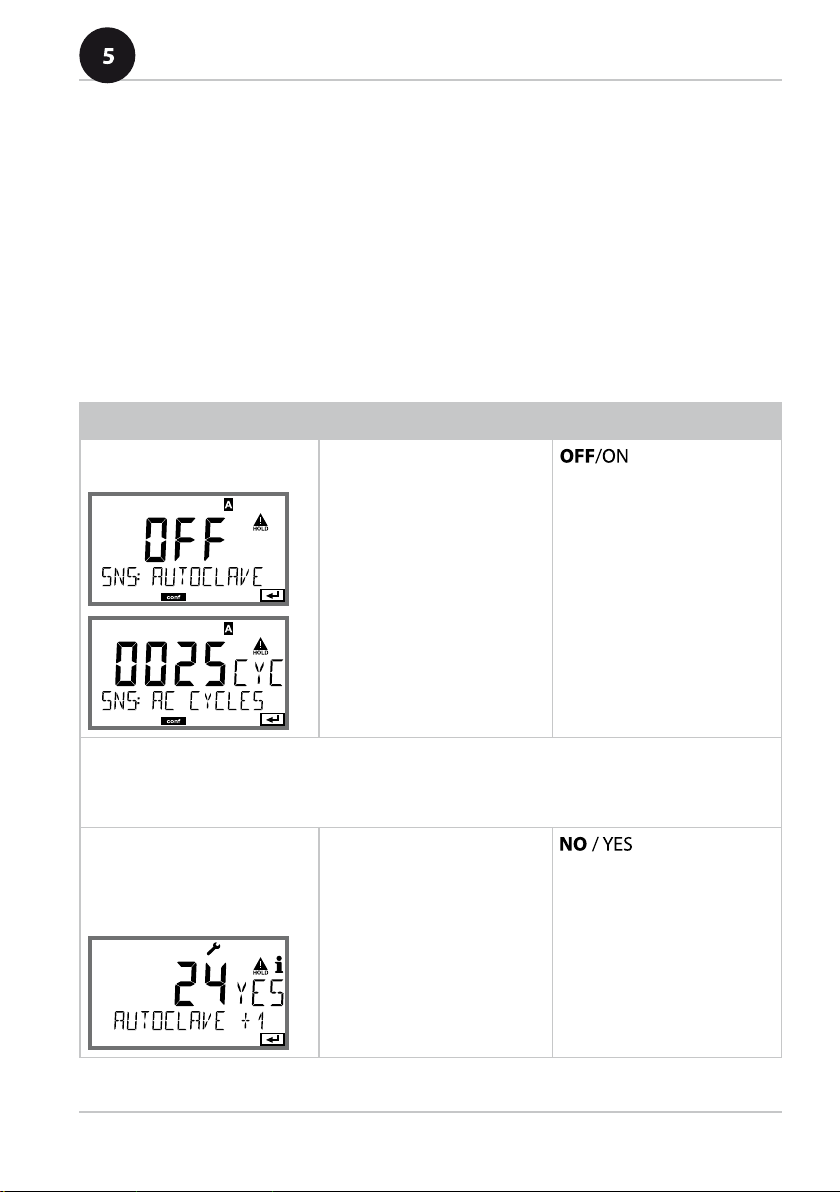

After reaching a specied limit value the autoclaving counter generates a Sensoface message. As soon as the counter has reached the specied value, Sensoface is getting “sad”. Pressing the info key shows the text “AUTOCLAVE CYCLES OVERRUN” which reminds you that the maximum number of autoclaving cycles has been reached. After each autoclaving process, you must manually increment the autoclaving counter in the SENSOR service menu on the transmitter. The transmitter displays “INCREMENT AUTOCLAVE CYCLE” as conrmation. You can congure the current outputs so that a Sensoface message generates a 22-mA error signal, see page 63.

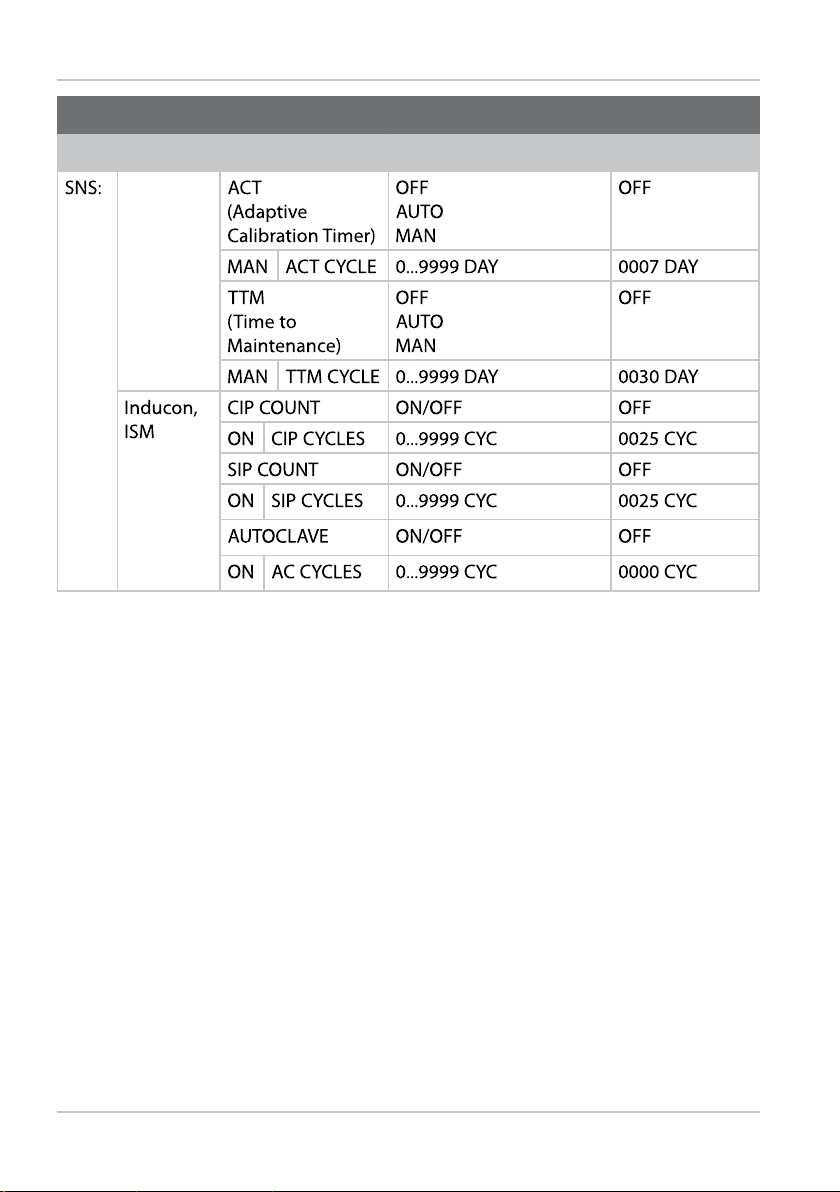

Menu item Action Choices

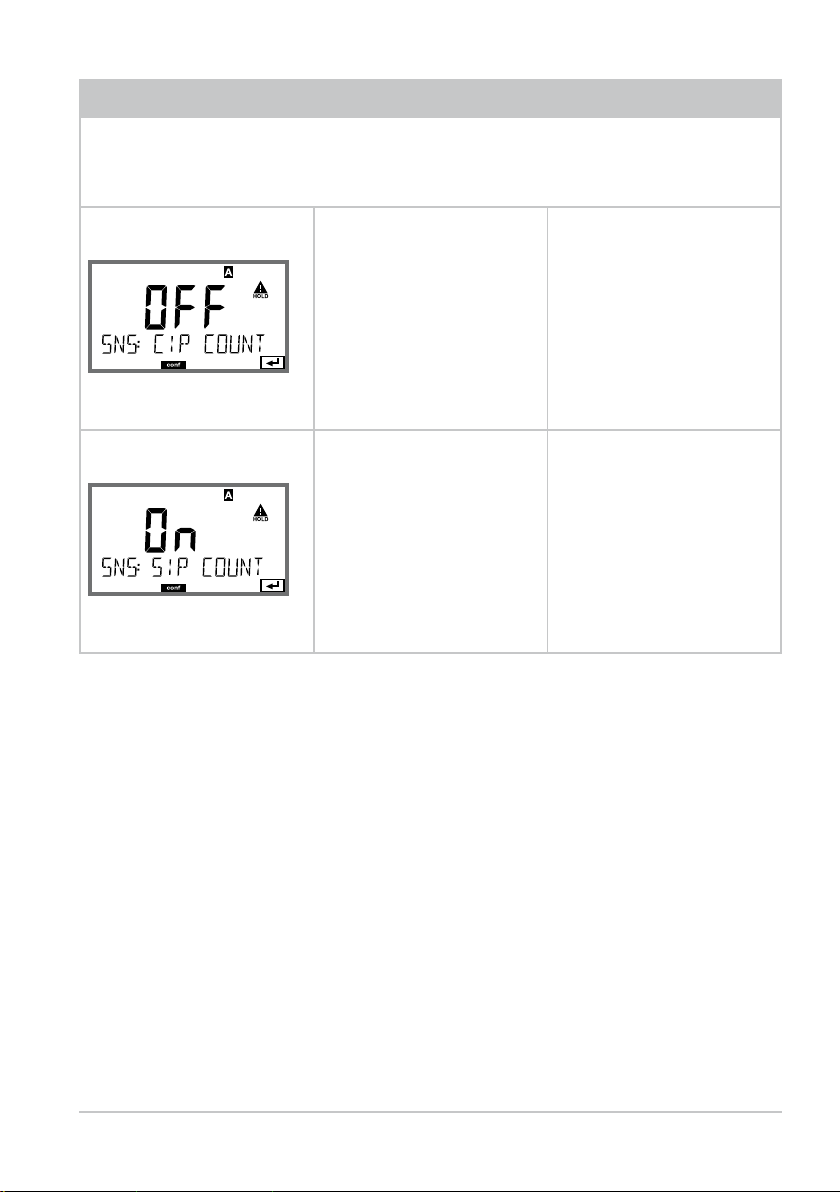

Autoclaving counter

With the autoclaving counter switched on, you must increment the count after each autoclaving process in the SERVICE menu SENSOR/ AUTOCLAVE :

Incrementing the autoclaving counter

(SERVICE menu)

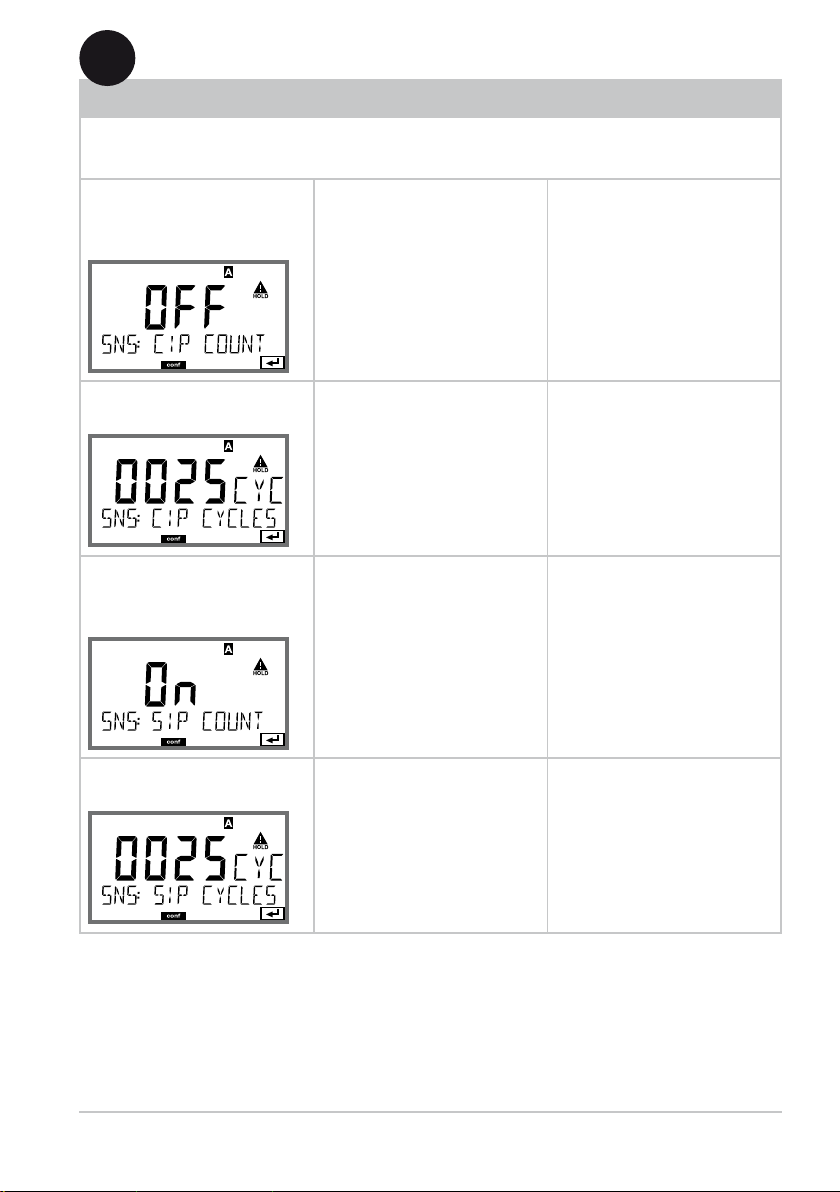

Select using  keys: ON: The cycles are specified manually (0 ... 9999)

Press enter to confirm.

After having completed an autoclaving process, open the SERVICE menu SENSOR / AUTOCLAVE to increment the autoclaving count. To do so, select “YES” and confirm by pressing

enter.

Conguration

Right page:

Which settings are provided for this function

Documents Supplied

Safety Instructions

Quickstart Guides

Installation and rst steps:

• Operation

• Menu structure

• Calibration

• Error messages and recommended actions

Specic Test Report

Control Drawings

Up-to date documentation available on our website:

www.knick.de

Contents

Basics ...................................................................................................................2

Documents Supplied .................................................................................... 3

Introduction ............................................................................................. 7

Intended Use .................................................................................................... 7

Safety Information ................................................................................ 12

Overview of Stratos Pro A401B PH ....................................................14

Assembly ................................................................................................. 15

Package Contents .........................................................................................15

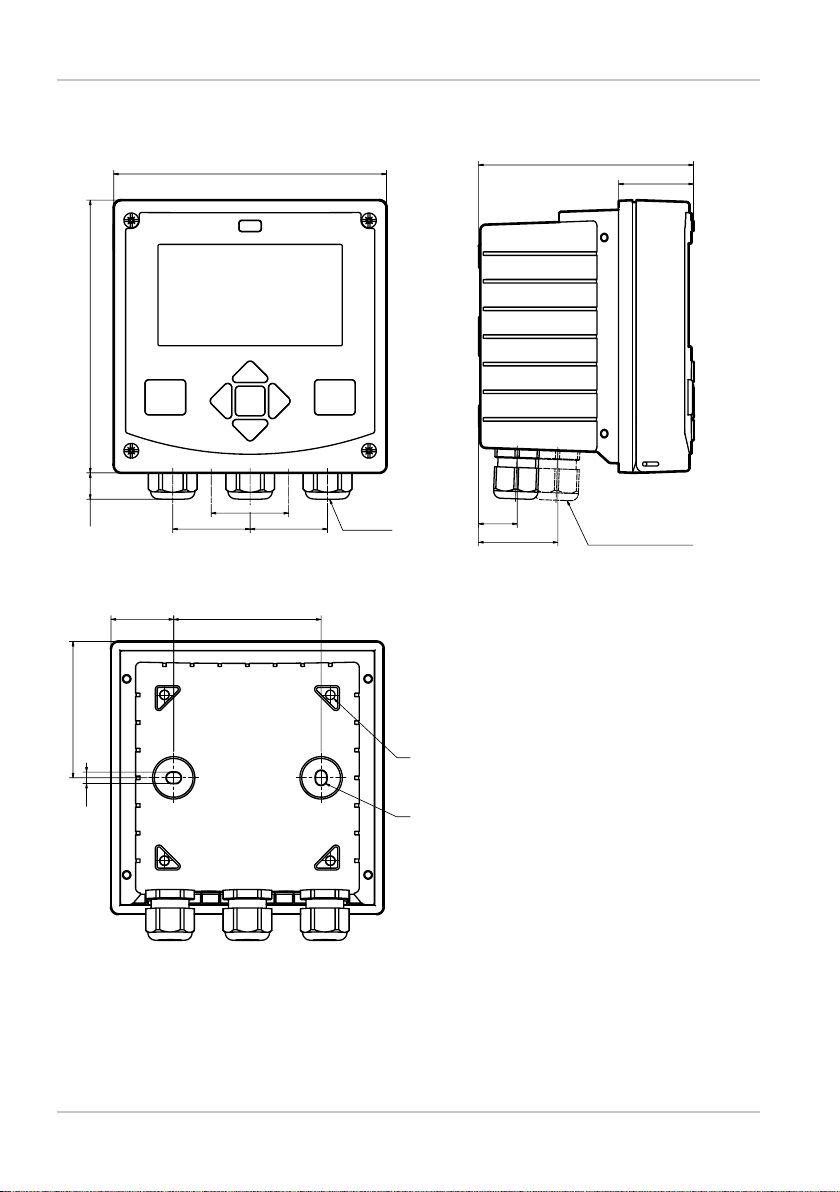

Mounting Plan, Dimensions .....................................................................16

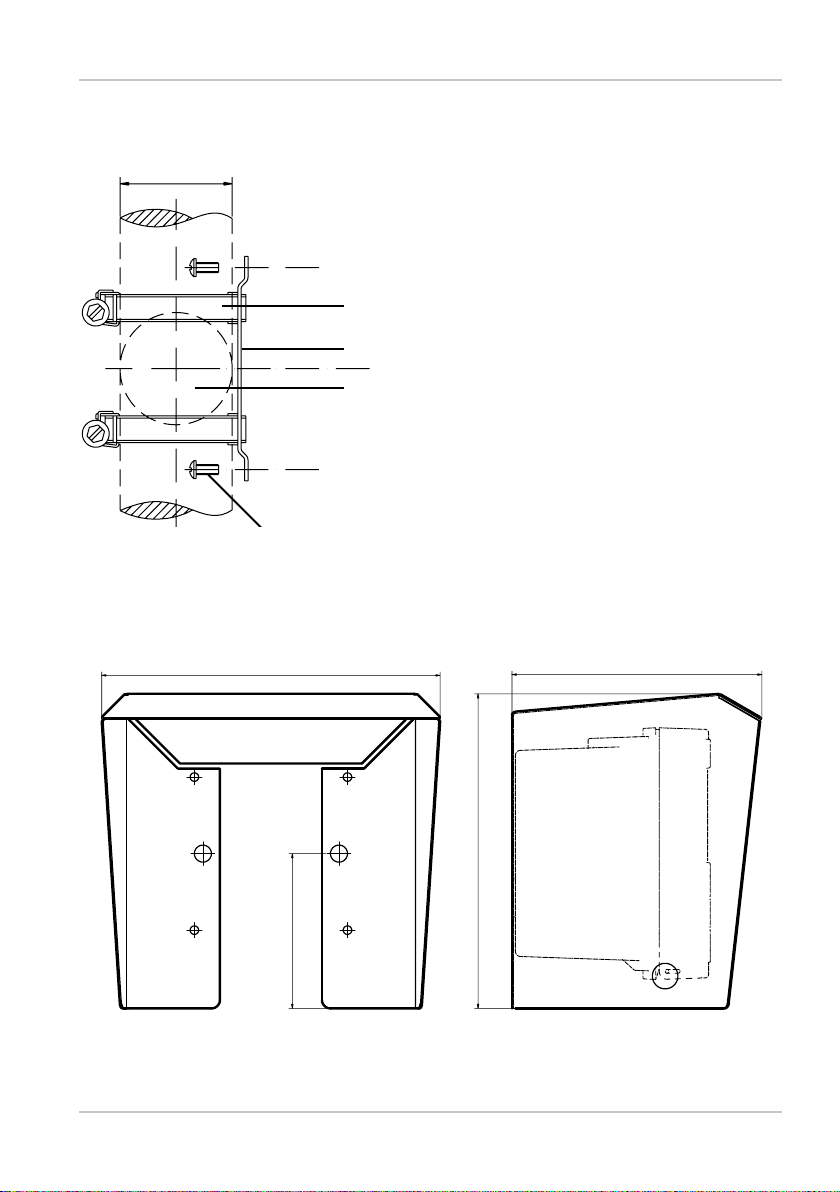

Pipe Mounting, Protective Hood ............................................................17

Panel Mounting .............................................................................................18

Installation .............................................................................................. 19

Safety Precautions for Installation .........................................................19

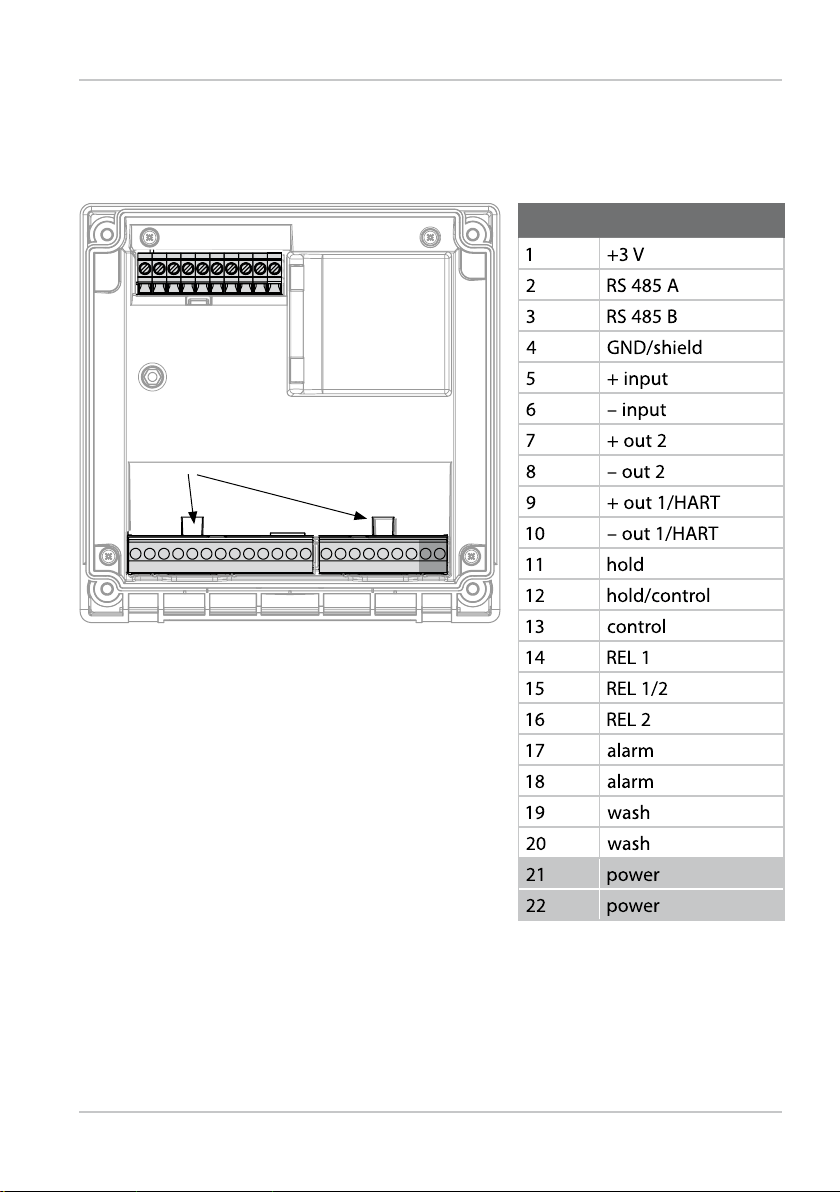

Rating Plates / Terminal Assignments...................................................20

Power Supply, Signal Lines .......................................................................21

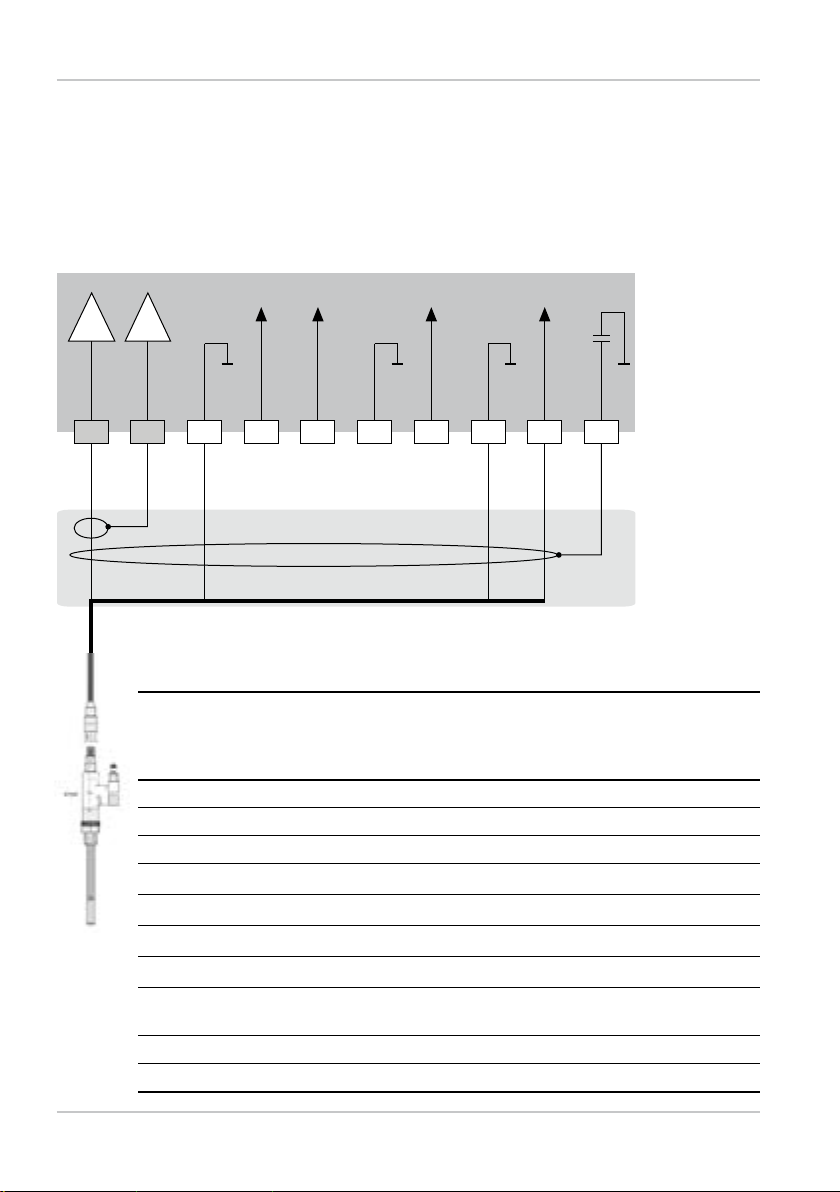

Connecting the Sensor ...............................................................................22

Wiring Examples ...........................................................................................23

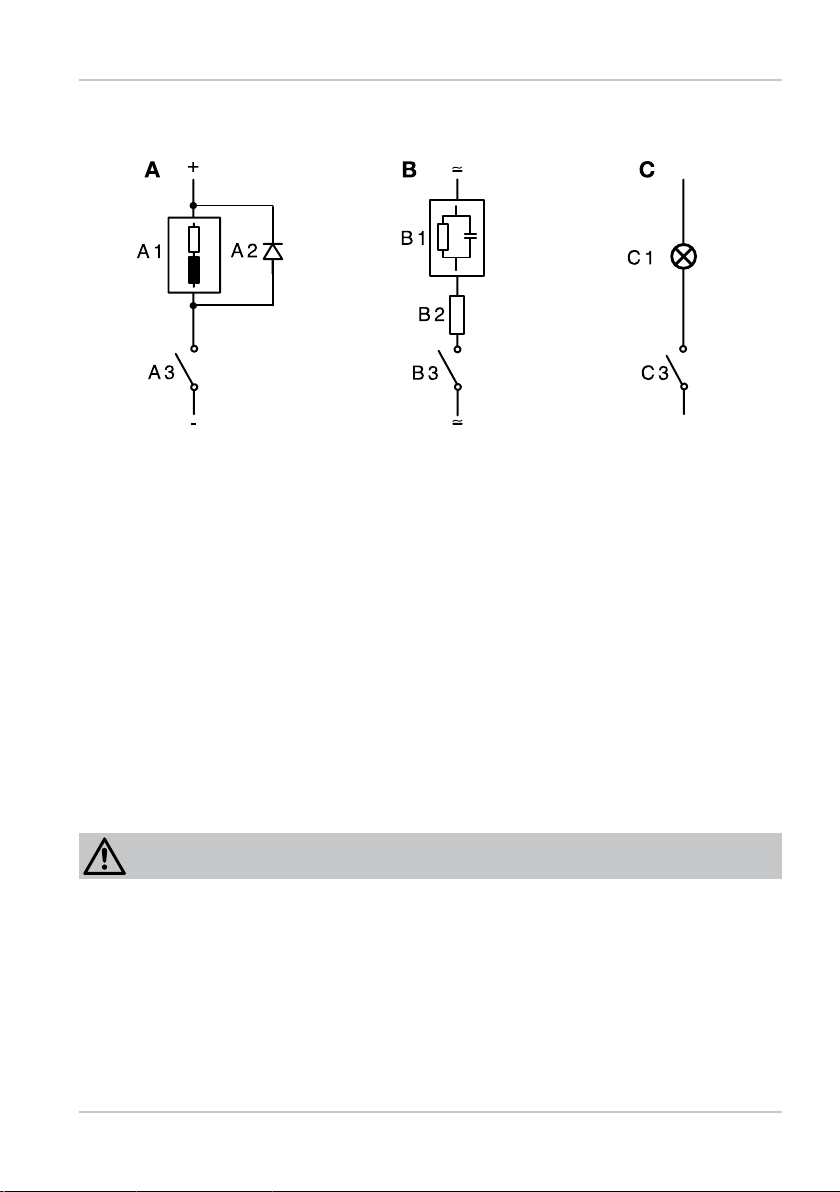

Protective Wiring of Relay Contacts ......................................................32

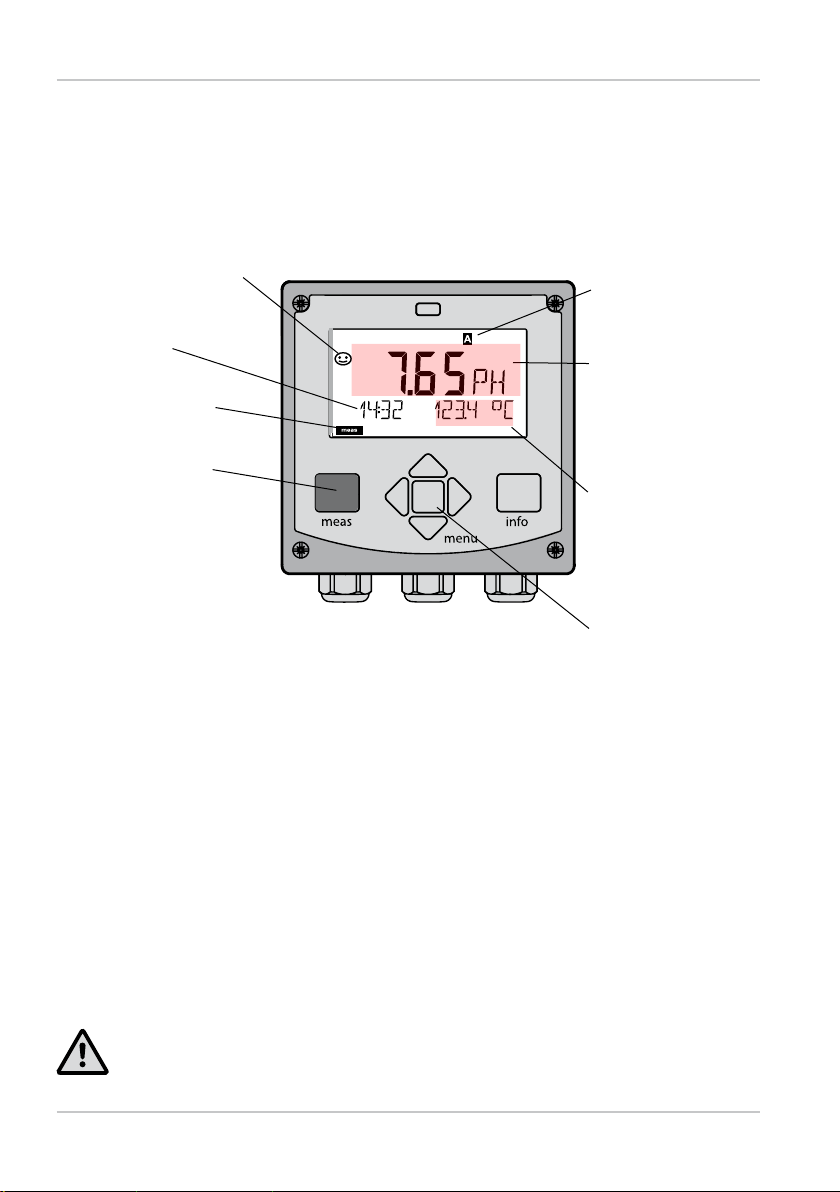

User Interface, Keypad ......................................................................... 34

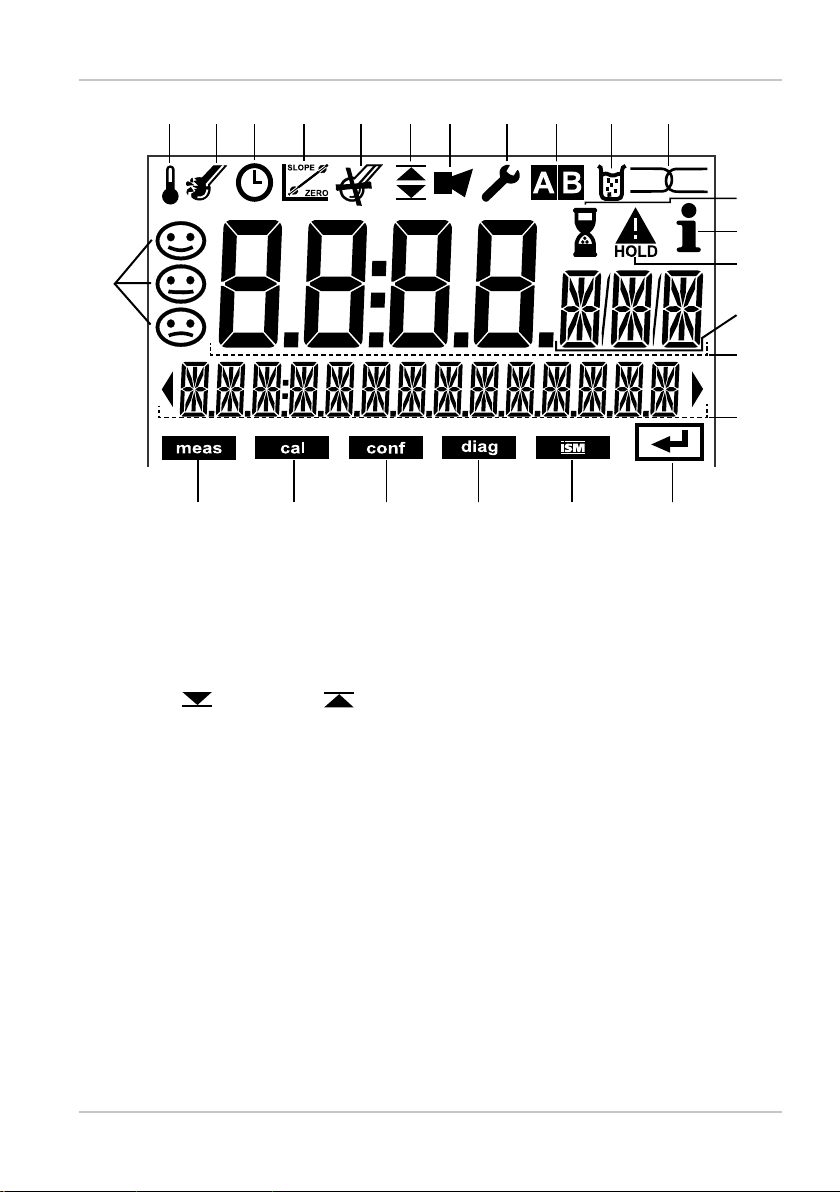

Display ..................................................................................................... 35

Signal Colors (Display Backlighting) ......................................................35

Measuring Mode...........................................................................................36

Selecting the Mode / Entering Values ..................................................37

Display in Measuring Mode................................................................. 38

Color-Coded User Interface ................................................................. 39

Operating Modes ................................................................................... 40

Menu Structure of Modes and Functions ............................................41

HOLD Mode ....................................................................................................43

Alarm .................................................................................................................44

Alarm and HOLD Messages ......................................................................45

Contents

Configuration ......................................................................................... 46

Parameter Set A/B ........................................................................................48

Parameter Sets (Original for Copy) ........................................................56

Sensor ...............................................................................................................60

Current Output 1 ..........................................................................................76

Current Output 2 ..........................................................................................84

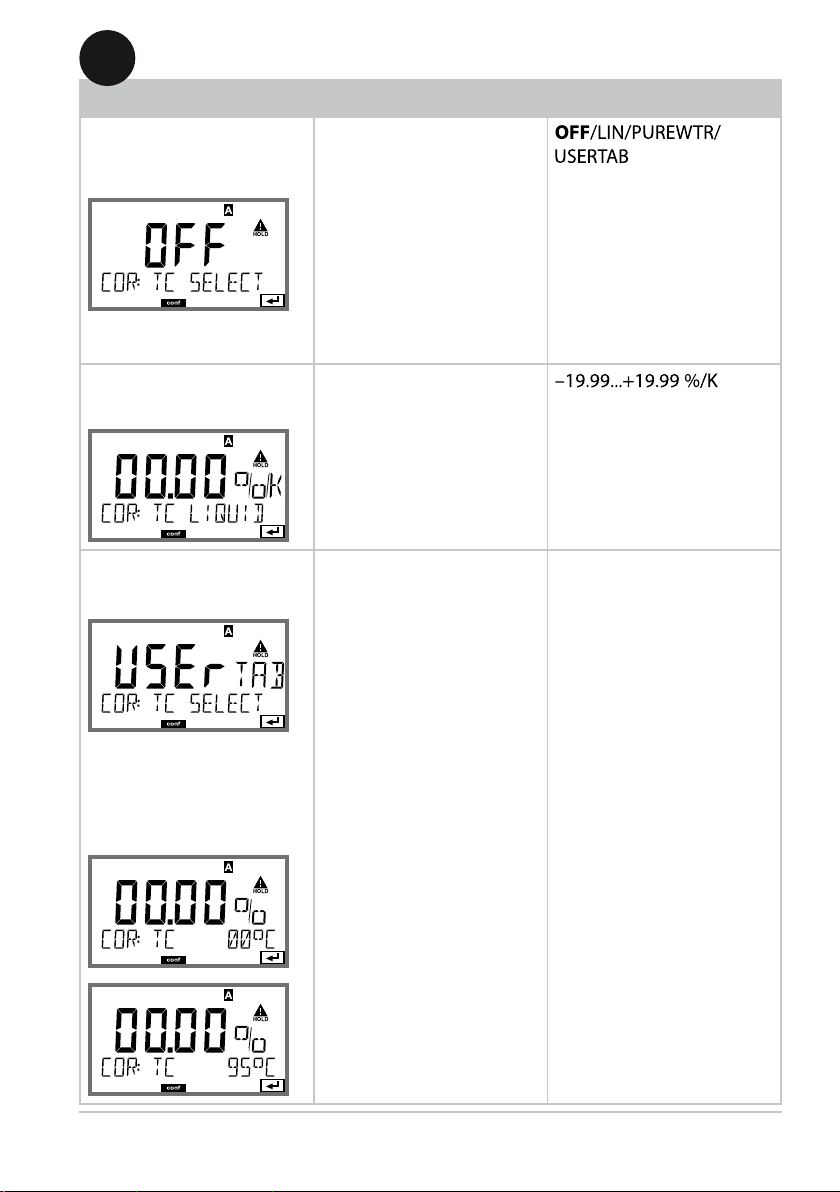

Temperature Compensation ....................................................................86

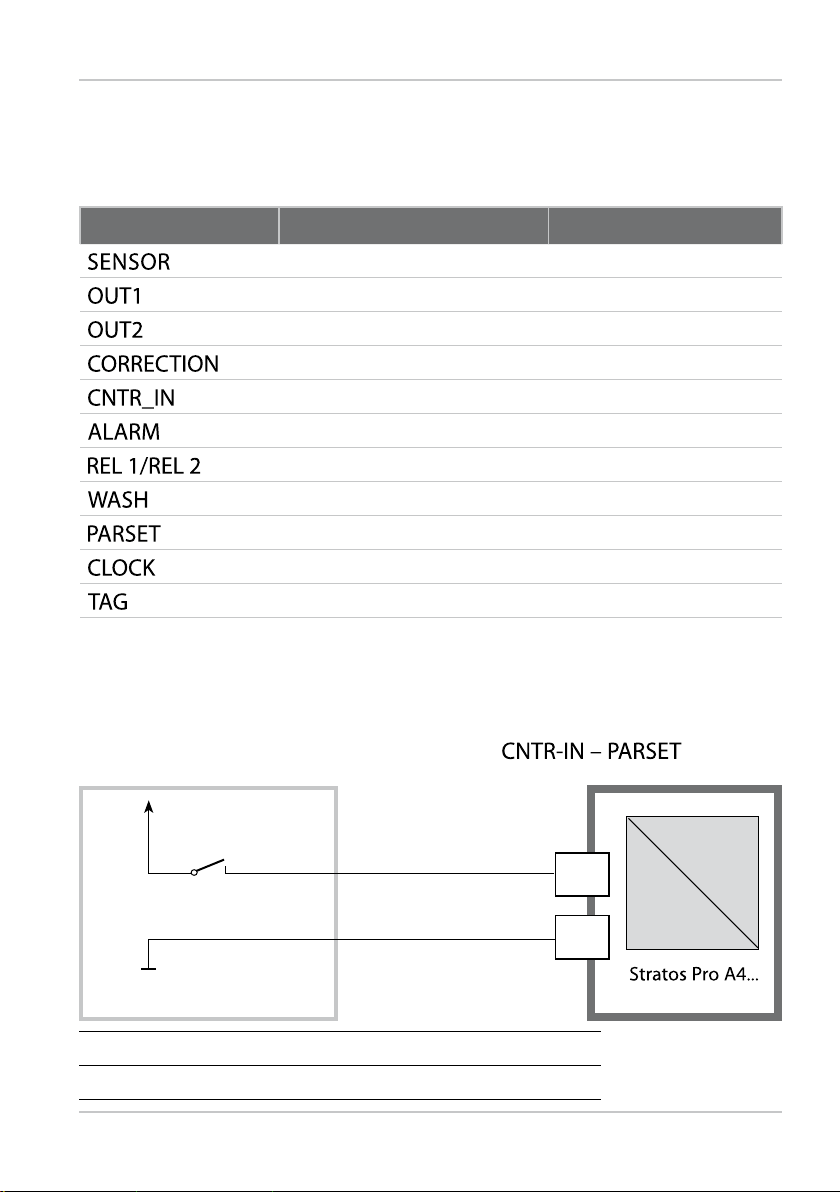

CONTROL Input .............................................................................................90

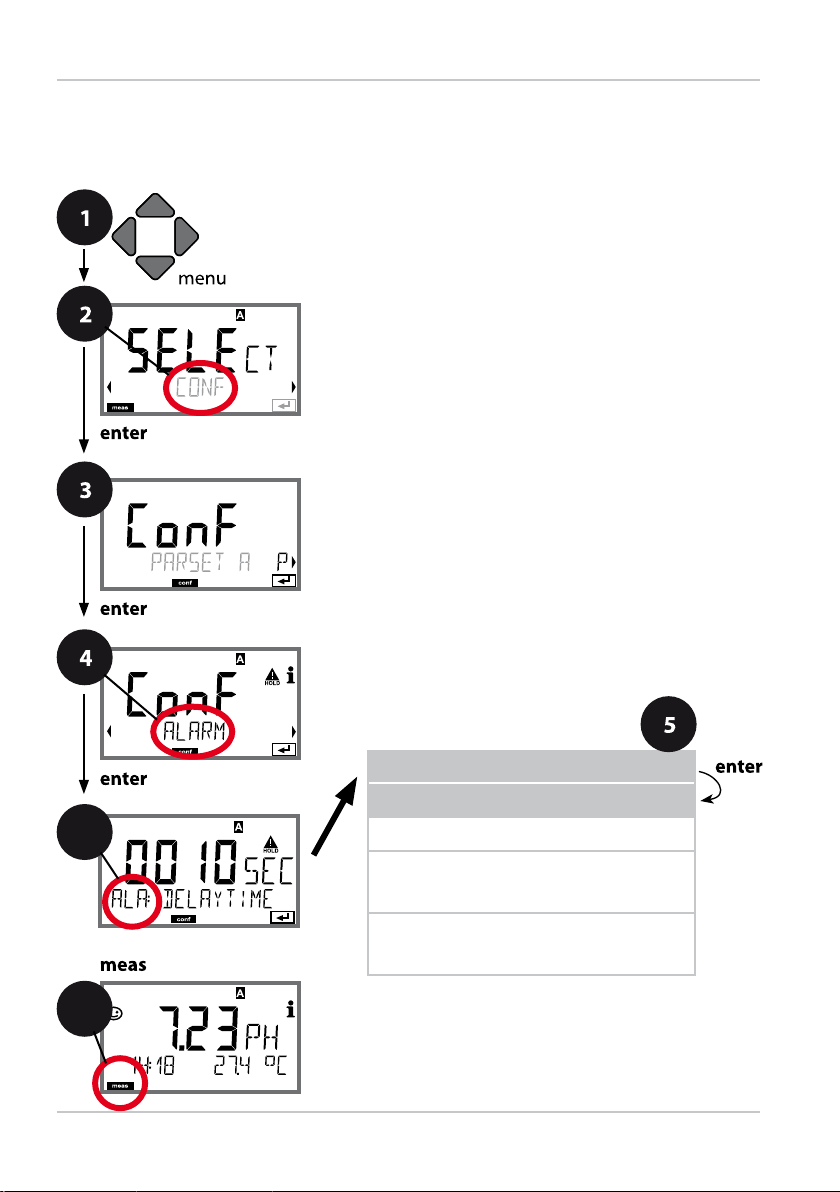

Alarm Settings ...............................................................................................94

Limit Function ................................................................................................98

Pulse Length / Pulse Frequency Controller......................................107

Controller ....................................................................................................108

WASH Contact ............................................................................................ 112

Time and Date ............................................................................................114

Tag Number ................................................................................................ 114

Digital Sensors ..................................................................................... 116

Memosens Sensors:

Calibration and Maintenance in the Lab .......................................... 116

Memosens Sensors: Configuring the Device ................................. 117

Replacing a Sensor....................................................................................118

Calibration ............................................................................................120

Selecting a Calibration Mode ...............................................................121

Zero Adjustment (ISFET) ......................................................................... 122

Automatic Calibration (Calimatic) ....................................................... 124

Manual Calibration with Buffer Entry ................................................126

Data Entry of Premeasured Sensors ................................................... 128

Product Calibration (pH) ......................................................................... 130

ORP (Redox) Calibration ..........................................................................132

Temp Probe Adjustment .........................................................................134

Measurement .......................................................................................135

Diagnostics ...........................................................................................137

Service ...................................................................................................142

Contents

Operating States ..................................................................................147

Product Line and Accessories ...........................................................149

Specifications .......................................................................................150

Buffer Tables ......................................................................................... 158

-U1- Specifiable Buffer Set ..................................................................... 168

Error Handling ...................................................................................... 171

Error Messages ..................................................................................... 172

Sensoface .............................................................................................. 175

FDA 21 CFR Part 11 .............................................................................178

Electronic Signature – Passcodes ........................................................178

Audit Trail ..................................................................................................... 178

Glossary ................................................................................................. 179

Index ......................................................................................................184

Trademarks ..................................................................................................195

Passcodes ..............................................................................................196

Introduction

Intended Use

Stratos Pro A401B PH is used for pH/mV, ORP and temperature measurement in industry, environment, food processing and sewage treatment.

Enclosure and mounting possibilities

• The sturdy molded enclosure is rated IP 67/NEMA 4X for outdoor use. It is made of glass-reinforced PBT / PC and measures 148 mm x 148 mm x 117 mm (H x W x D). It is provided with knockouts to allow:

• wall mounting (with sealing plugs to seal the enclosure), see page 16

• post/pipe mounting (Ø 40 … 60 mm, 30 … 45 mm) see page 17

• panel mounting (138 mm x 138 mm cutout to DIN 43700), see page 18

Weather protector (accessory)

The weather protector, which is available as accessory, provides additional protection against direct weather exposure and mechanical damage, see page 17.

Connection of sensors, cable glands

For connecting the cables, the enclosure provides

• 3 knockouts for cable glands M20x1.5

• 2 knockouts for NPT 1/2” or rigid metallic conduit

For quasi-stationary installations with Memosens sensors, we recommend using the M12 device socket (accessory ZU 0822) instead of a cable gland – it allows simple replacement of the sensor cable without opening the device.

Sensors

The device has been designed for application with commercially available sensors with a nominal zero point at pH 7, ISFET sensors or digital sensors. (It can be easily retrotted for Memosens sensors.)

Introduction

Display

Plain-text messages in a large, backlit LC display allow intuitive operation. You can specify which values are to be displayed in standard measuring mode (“Main Display”, see page 38).

Color-coded user interface

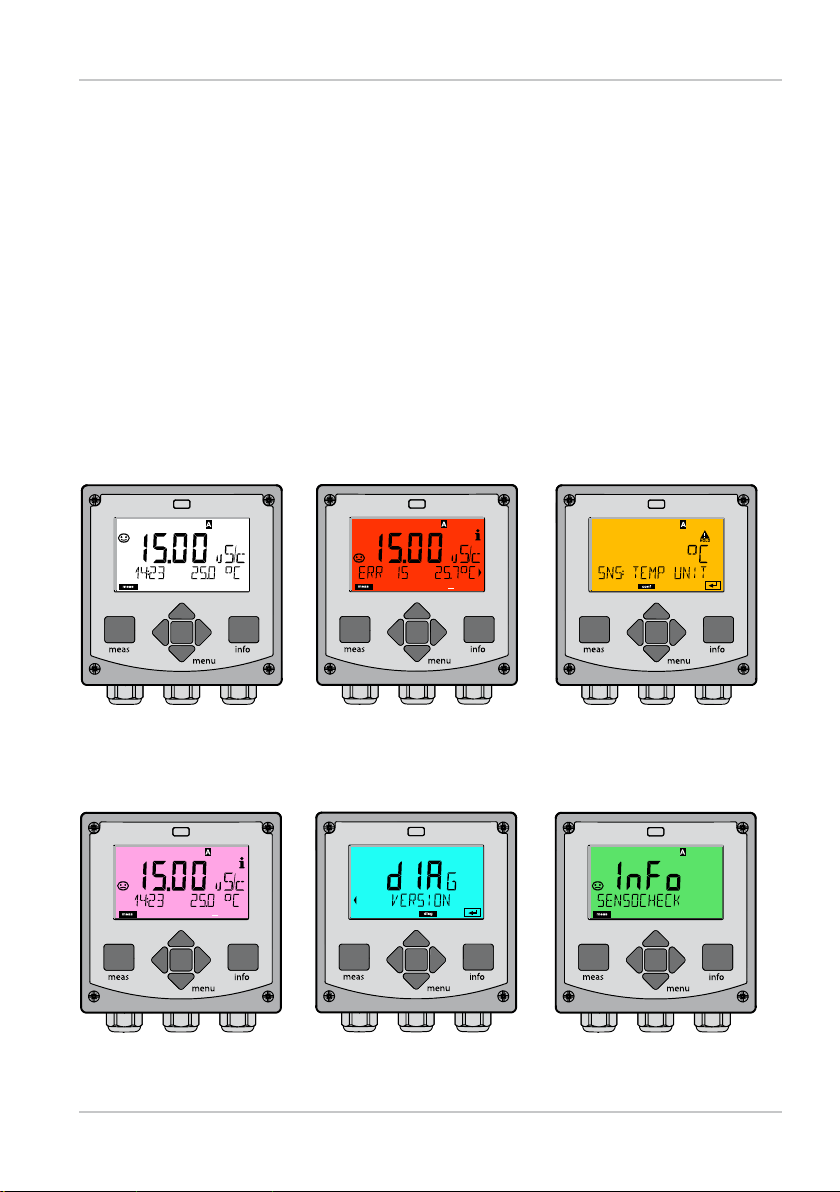

The colored display backlighting signals dierent operating states (e.g. alarm: red, HOLD mode: orange, see page 39).

Diagnostics functions

“Sensocheck“ automatically monitors the glass and reference electrodes; and the “Sensoface“ function clearly indicates the sensor condition, see page 137.

Data logger

The internal logbook (TAN SW-A002) can handle up to 100 entries – up to 200 with AuditTrail (TAN SW-A003), see page 140.

2 parameter sets A, B

The device provides two parameter sets which can be switched manually or via a control input for dierent process adaptations or dierent process conditions. For overview of parameter sets (table for copy), see page 56.

Password protection

Password protection (passcodes) for granting access rights during operation can be congured, see page 146.

Automatic calibration with Calimatic

You can choose from the most commonly used buer solutions, see page 158. An individual buer set can also be entered, see page 168.

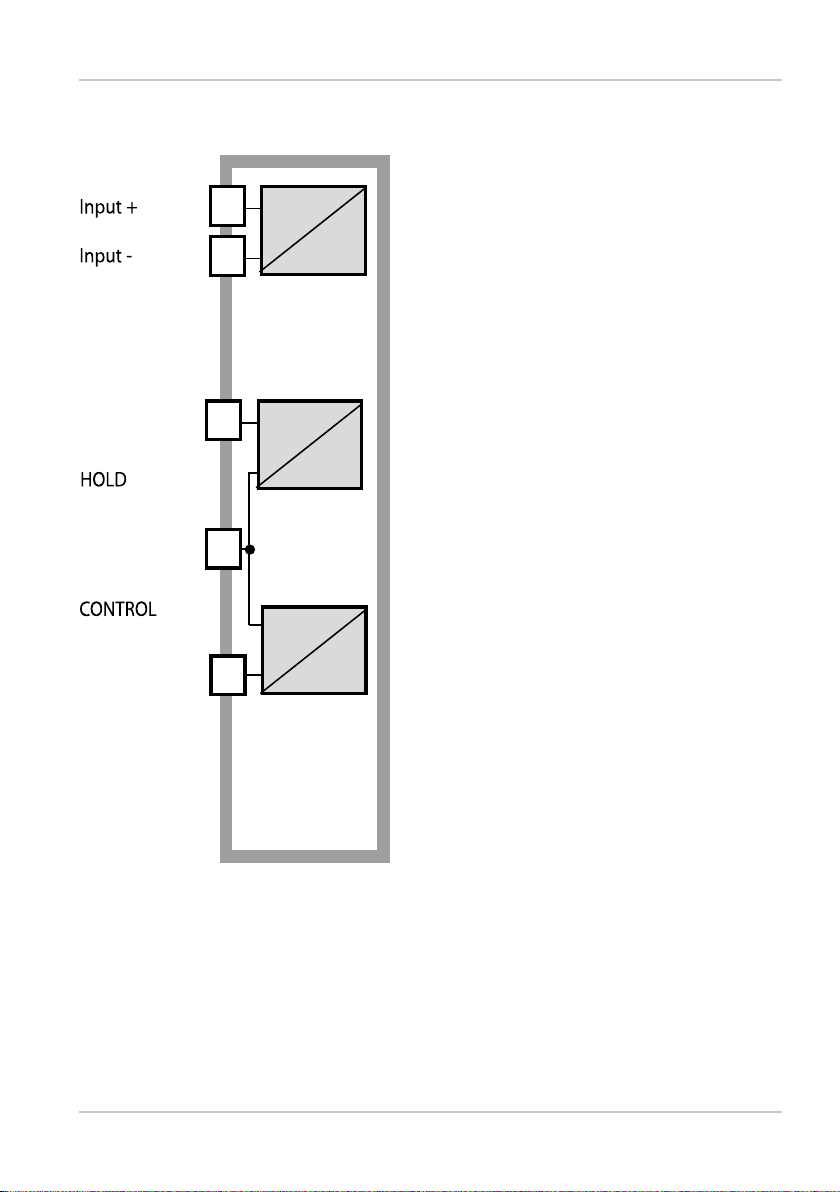

Control inputs

Introduction

Current

input

HOLD

input

CONTROL

input

I input

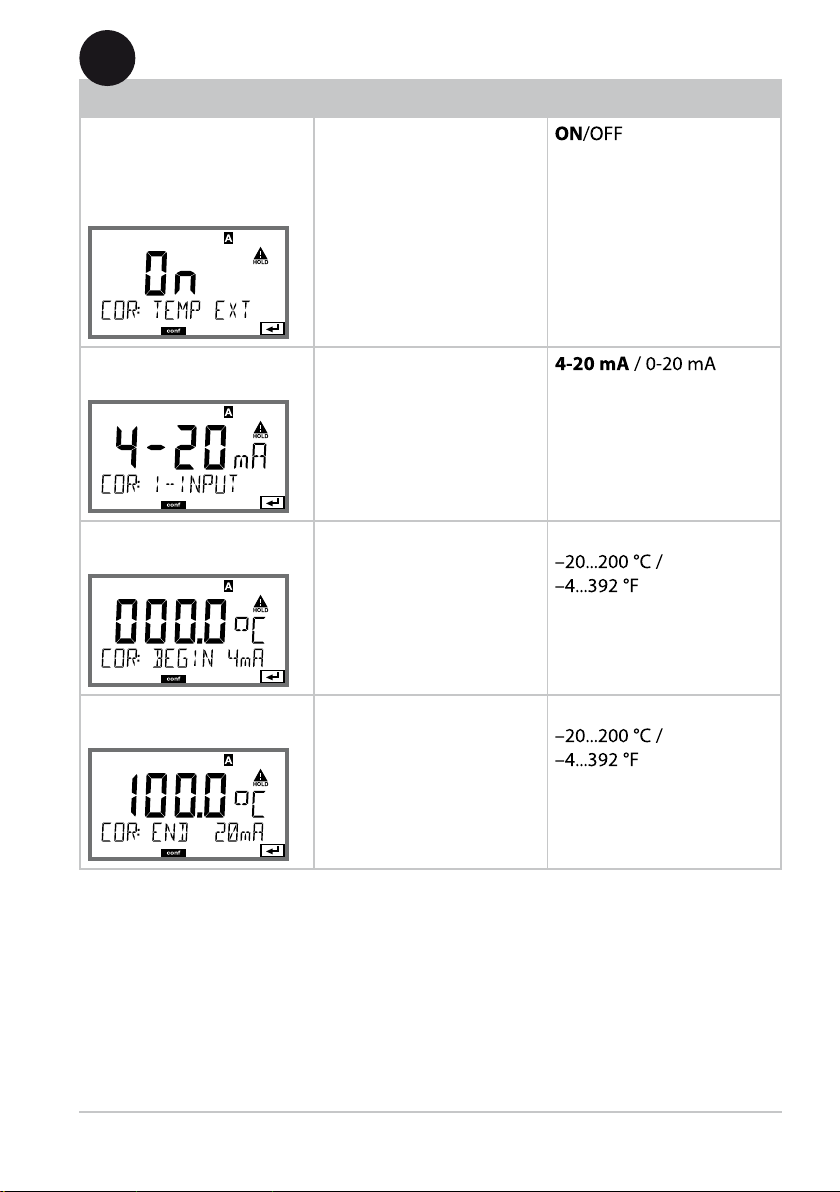

The analog (0) 4 ... 20 mA current input can be used for external temperature compensation (TAN required). See page 88.

HOLD

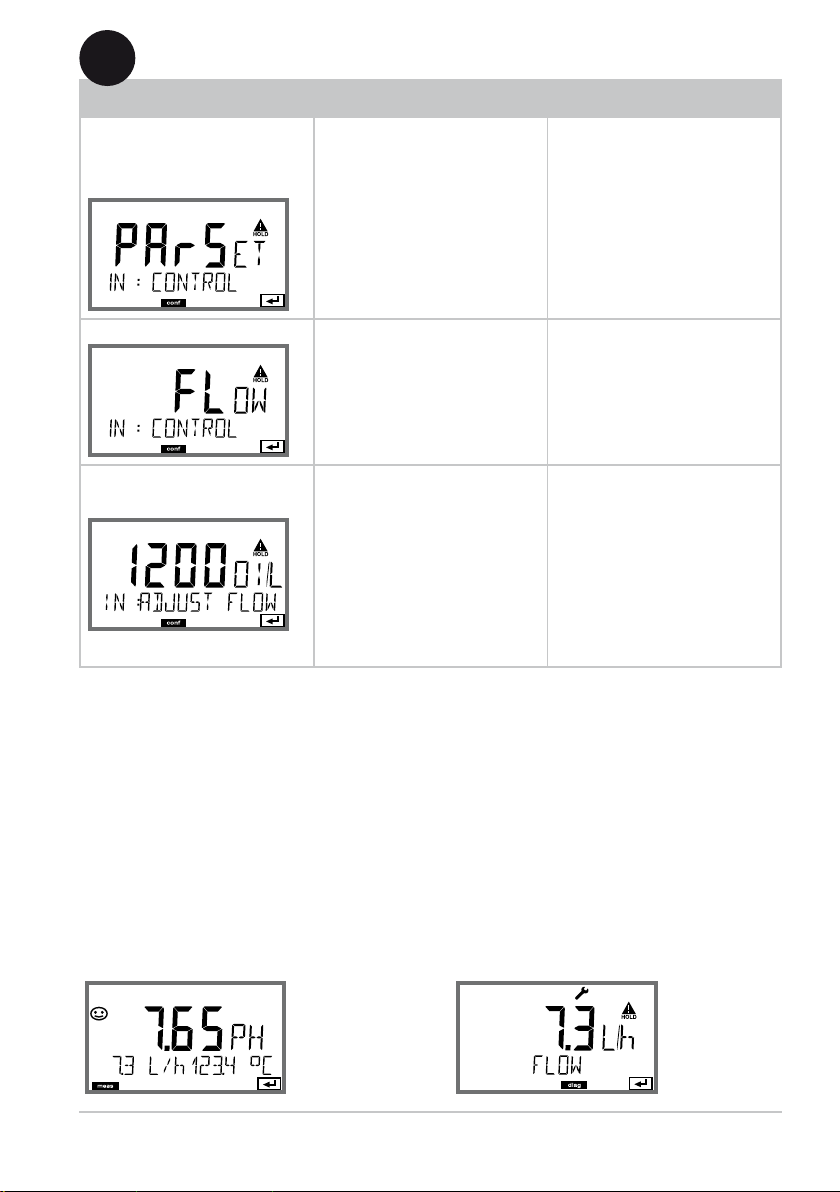

(floating digital control input) The HOLD input can be used for external activation of the HOLD mode, see page 44.

CONTROL

(floating digital control input) The CONTROL input can be used either for parameter set selection (A/B) or for flow monitoring, see page 90. The “Wash” contact can be used for indicating the active parameter set (see next page).

Power supply

Current is provided through a universal power supply 24...230VAC/DC, AC: 45 ... 65 Hz.

Options

Additional functions can be activated by entering a TAN (page 146).

Introduction

Signal outputs

The device provides two current outputs (for transmission of measured value and temperature, for example).

Relay contacts

Four oating relay contacts are available.

Output 1

Output 2

Alarm

Wash

Current outputs

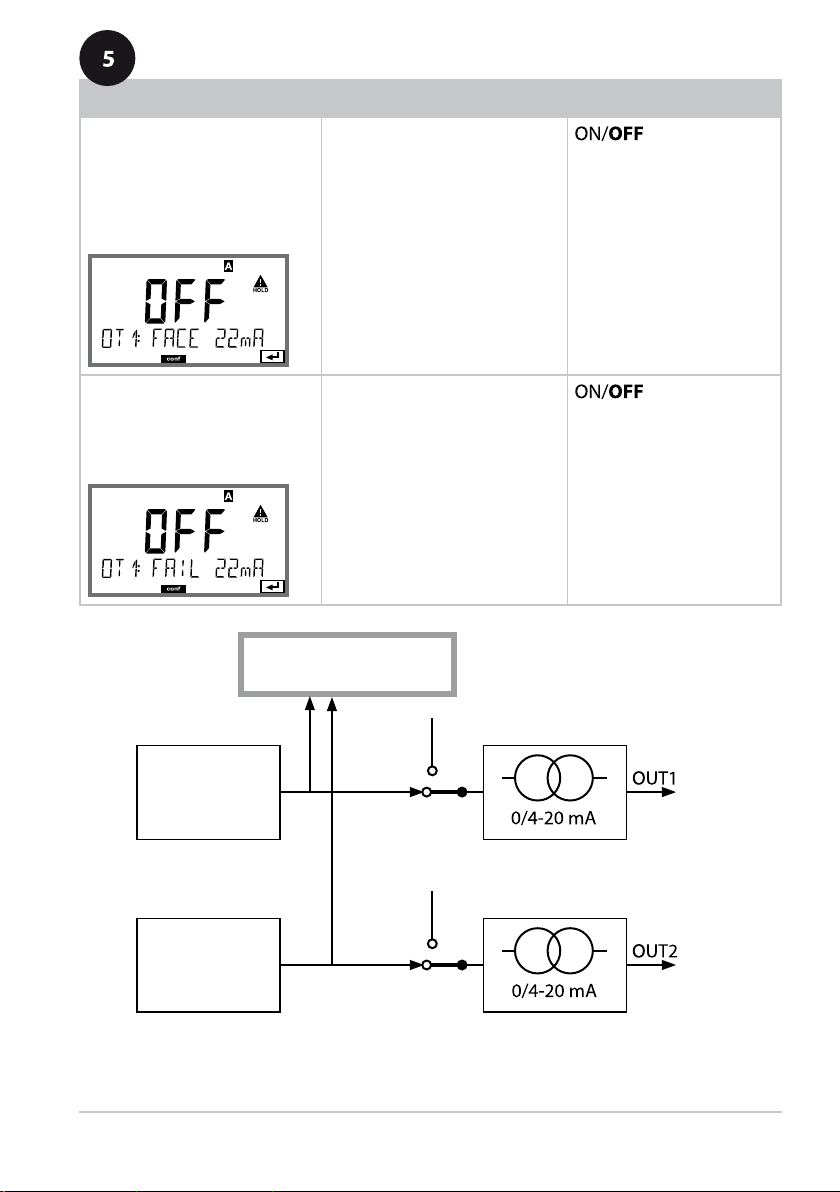

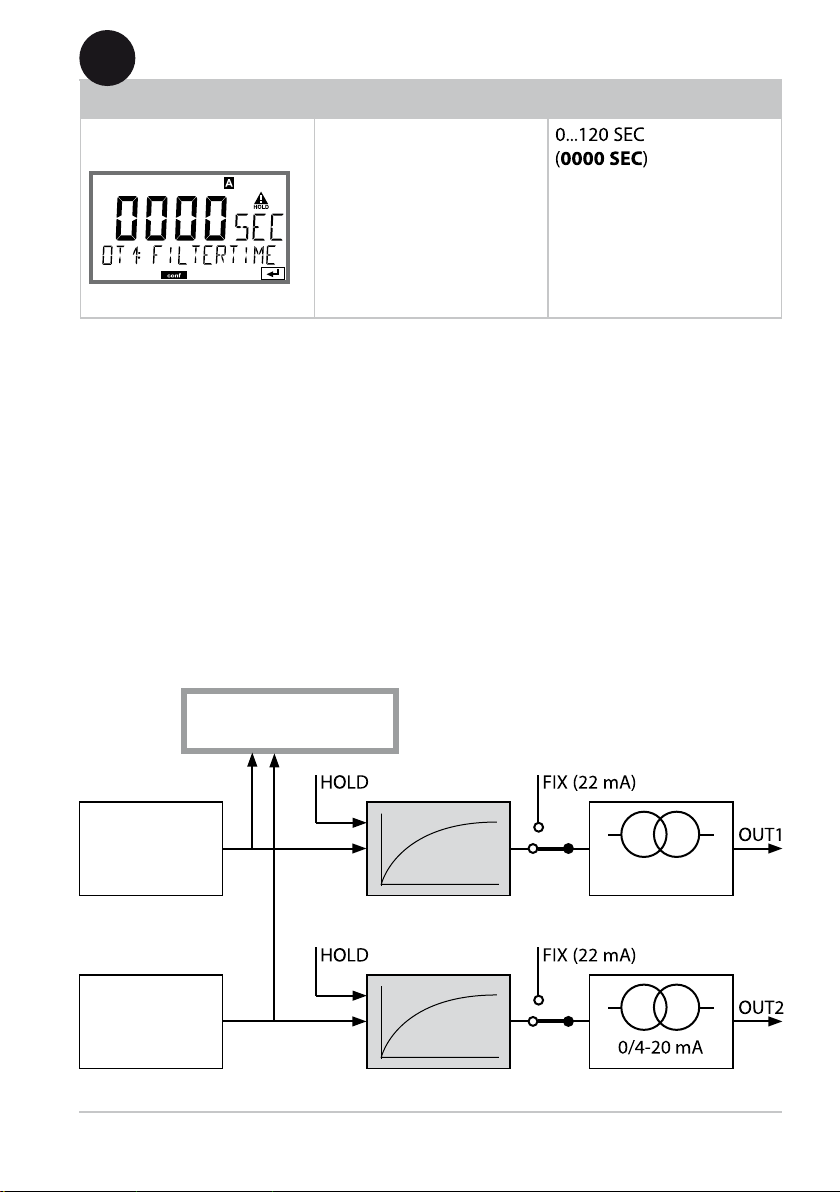

The floating current outputs (0)4...20mA are used for transmitting measured values. An output filter can be programmed, the fault current value can be specified. See page 76.

Relay contacts

2 relay contacts for limit values. Adjustable for the selected process variable: hysteresis, switching behavior (MIN/MAX limit), contact type (N/O, N/C) and delay (page98).

Alarm

An alarm can be generated by Sensocheck, flow monitoring or current failure (page94).

Wash (cleaning function)

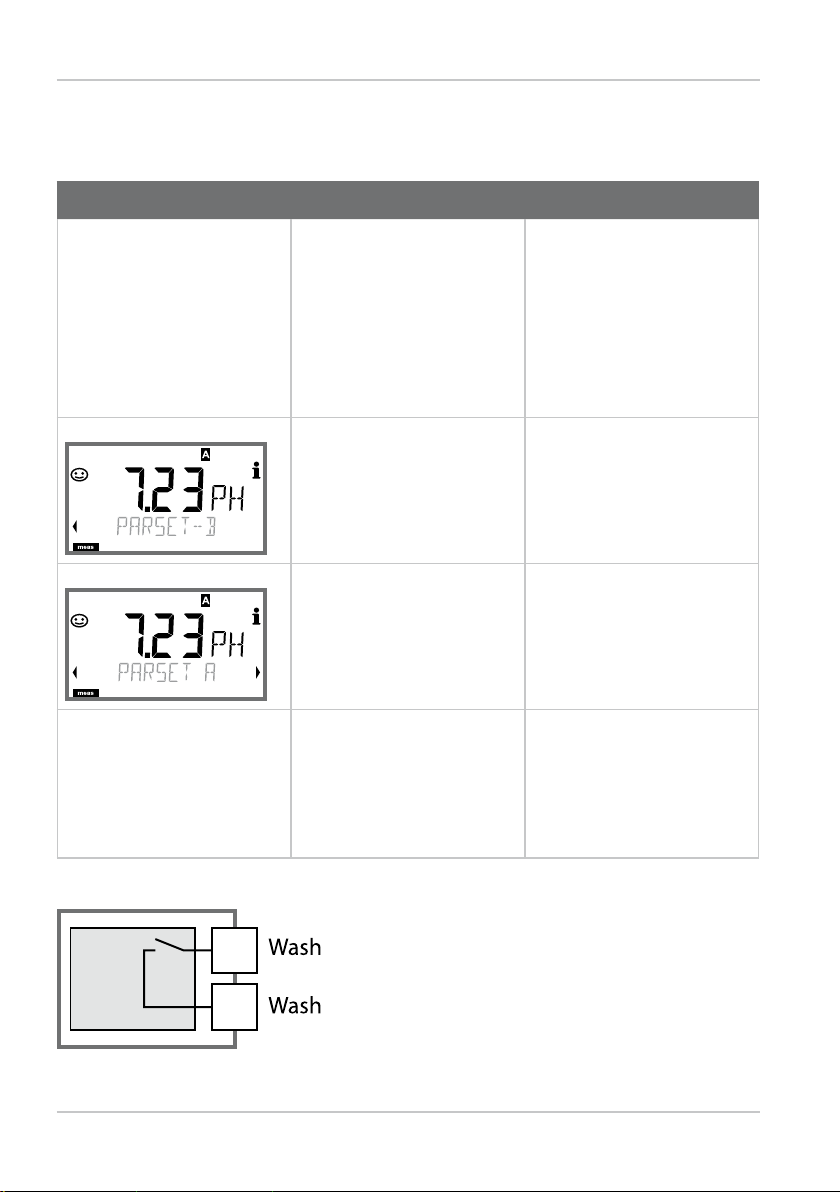

This contact can be used for controlling a rinsing probe or for indicating the active parameter set (page112).

PID controller

Congurable as pulse length or pulse frequency controller (page 105).

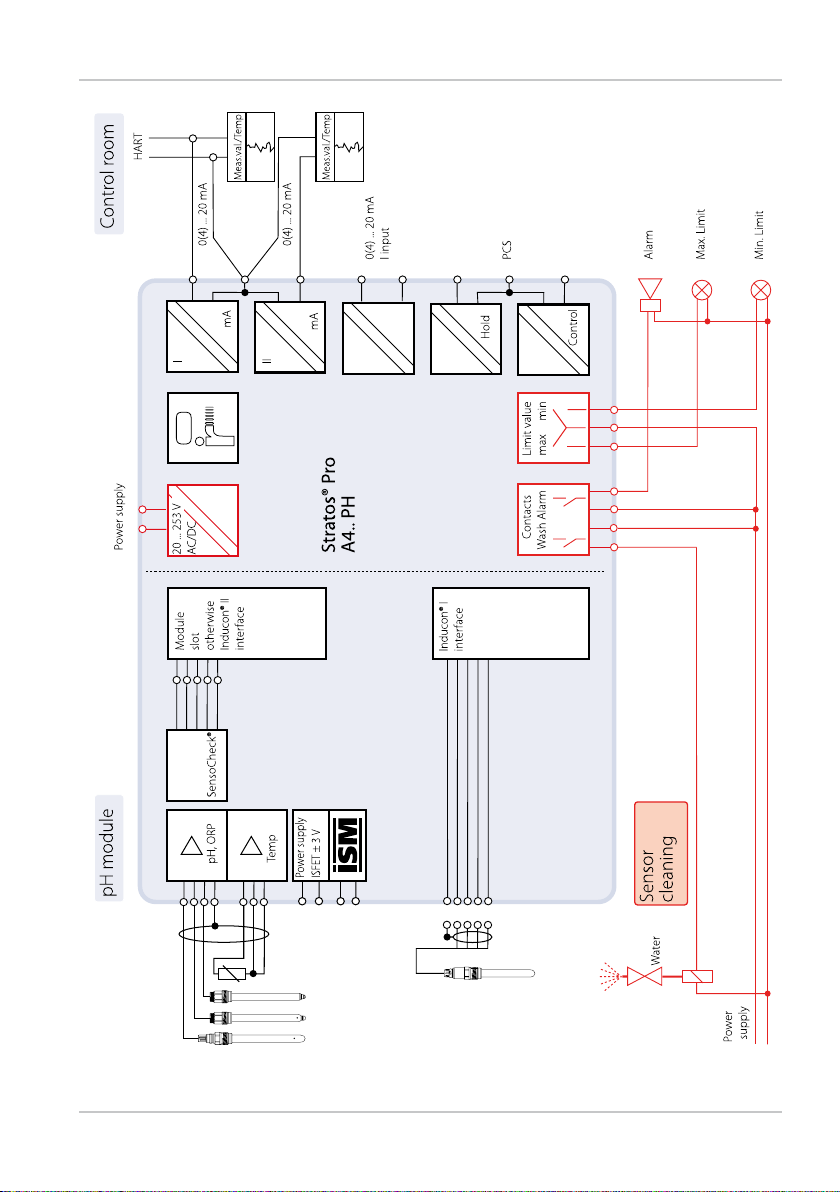

Typical Application of Stratos Pro A401B PH

IrDA

Safety Information

Be sure to read and observe the following safety instructions!

The device has been manufactured using state of the art technology and it complies with applicable safety regulations. When operating the device, certain conditions may nevertheless lead to danger for the operator or damage to the device.

See also separate “Safety Instructions“ document.

CAUTION!

Commissioning must only be performed by trained personnel authorized by the operating company! Whenever it is likely that protection has been impaired, the device shall be made inoperative and secured against unintended operation. The protection is likely to be impaired if, for example:

• the device shows visible damage

• the device fails to perform the intended measurements

• after prolonged storage at temperatures below –30 °C or above 70°C

• after severe transport stresses

Before recommissioning the device, a professional routine test must be performed. This test must be carried out at the manufacturer's factory.

Note:

Before commissioning you must prove that the device may be connected with other equipment.

Safety Information

Application in hazardous locations:

Stratos A401B is approved for operation in hazardous locations. Observe all applicable local codes and standards for the installation of electrical equipment in hazardous locations. For orientation, please refer to NFPA 70 (NEC), ANSI/ISA-RP12.06.01.

• When installing the device in a hazardous location, observe the specications of the Control Drawing (download: www.knick.de).

• Before commissioning, you must provide proof that the device may be connected with other equipment, such as a supply unit including cables and wires.

• In hazardous locations the device shall only be cleaned with a damp cloth to prevent electrostatic charging.

• Devices which have already been used shall be subjected to a professional routine test before they may be operated in another zone or another type of protection.

Overview

Overview of Stratos Pro A401B PH

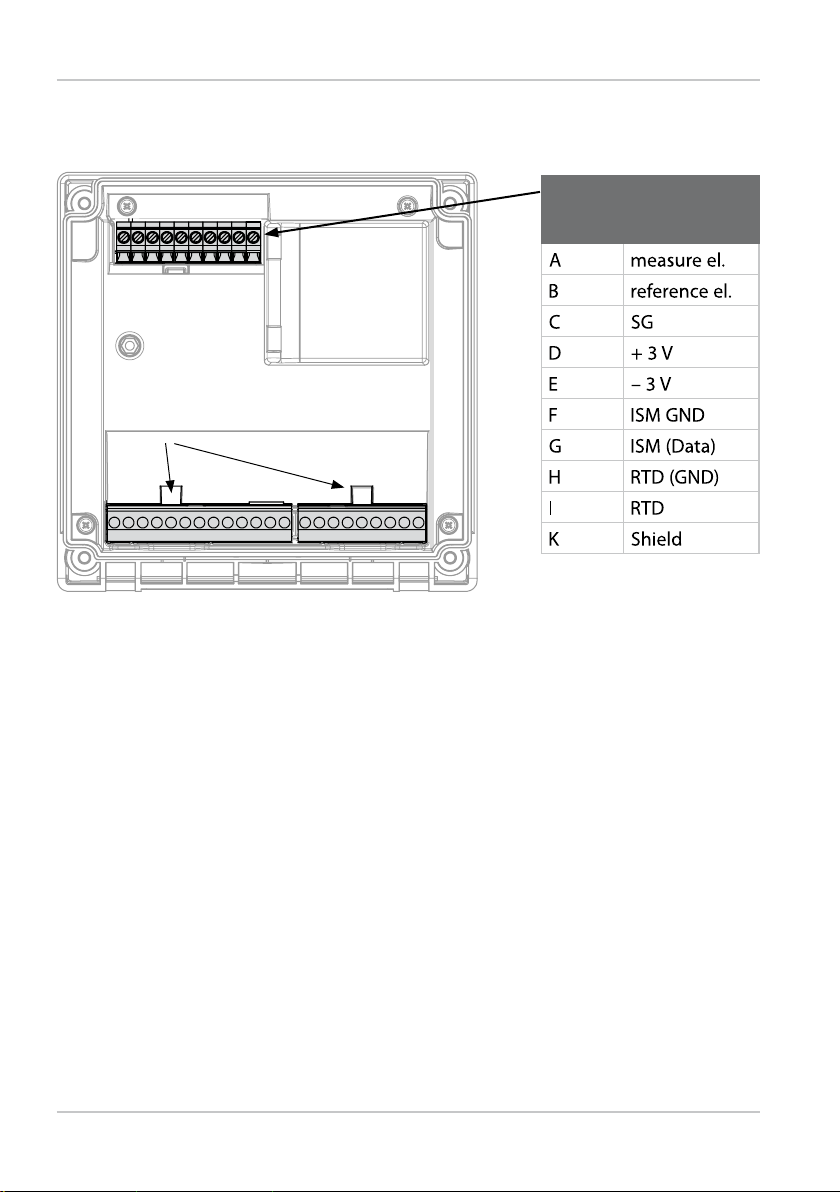

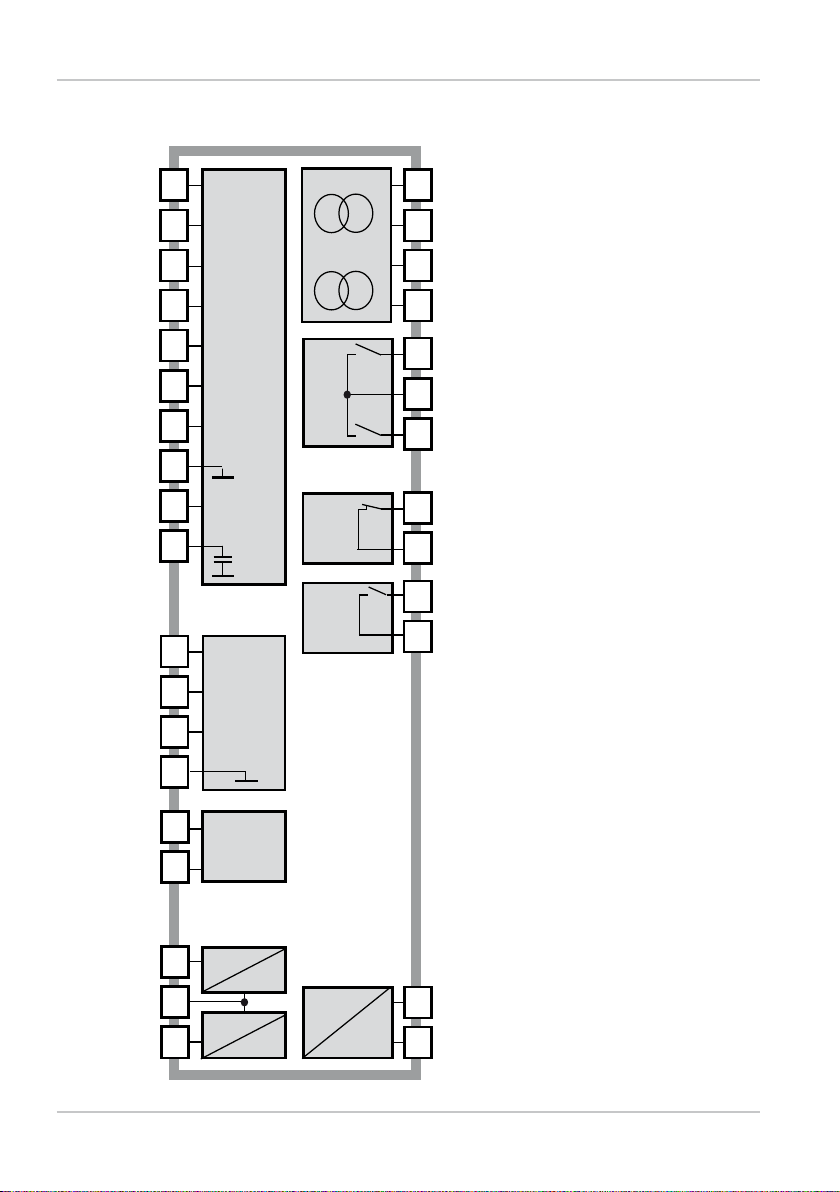

Measure el.

Reference el.

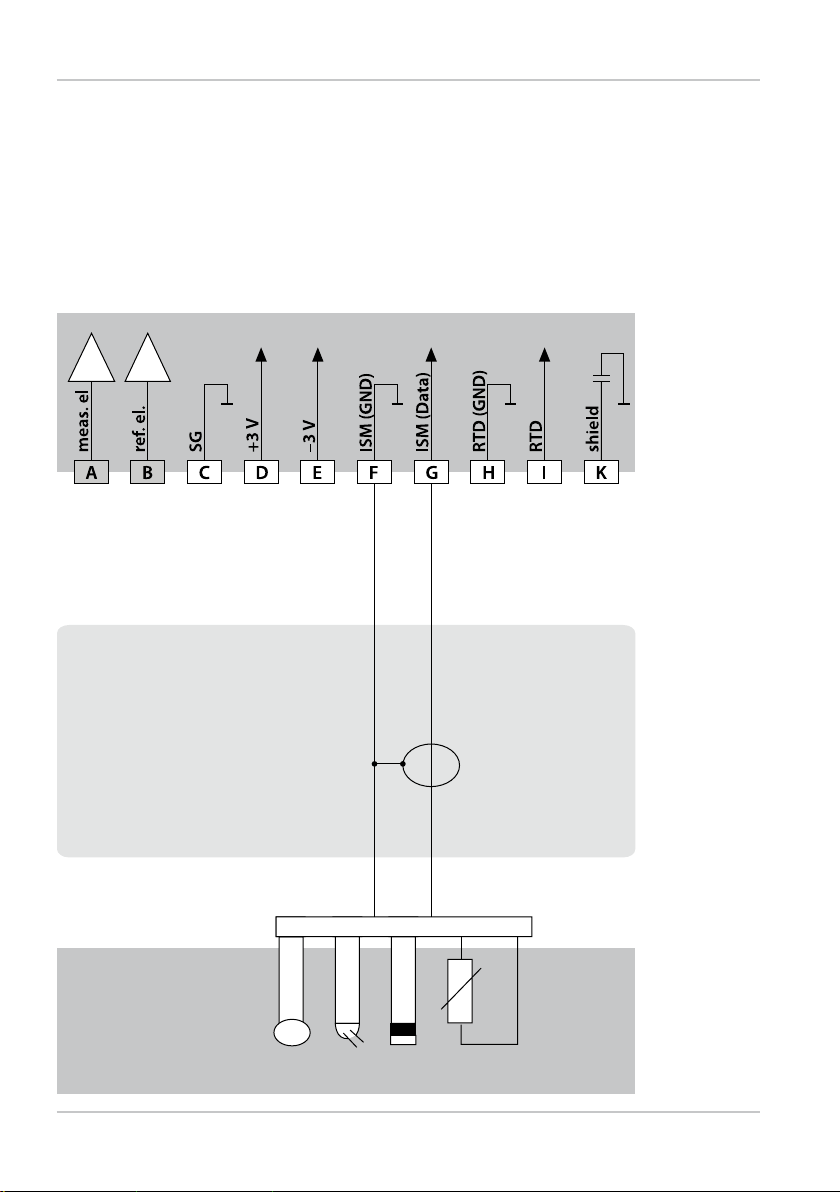

ISFET +3 V

ISFET –3 V

ISM GND

ISM data

RTD

Shield

+3 V

RS 485 A

RS 485 B

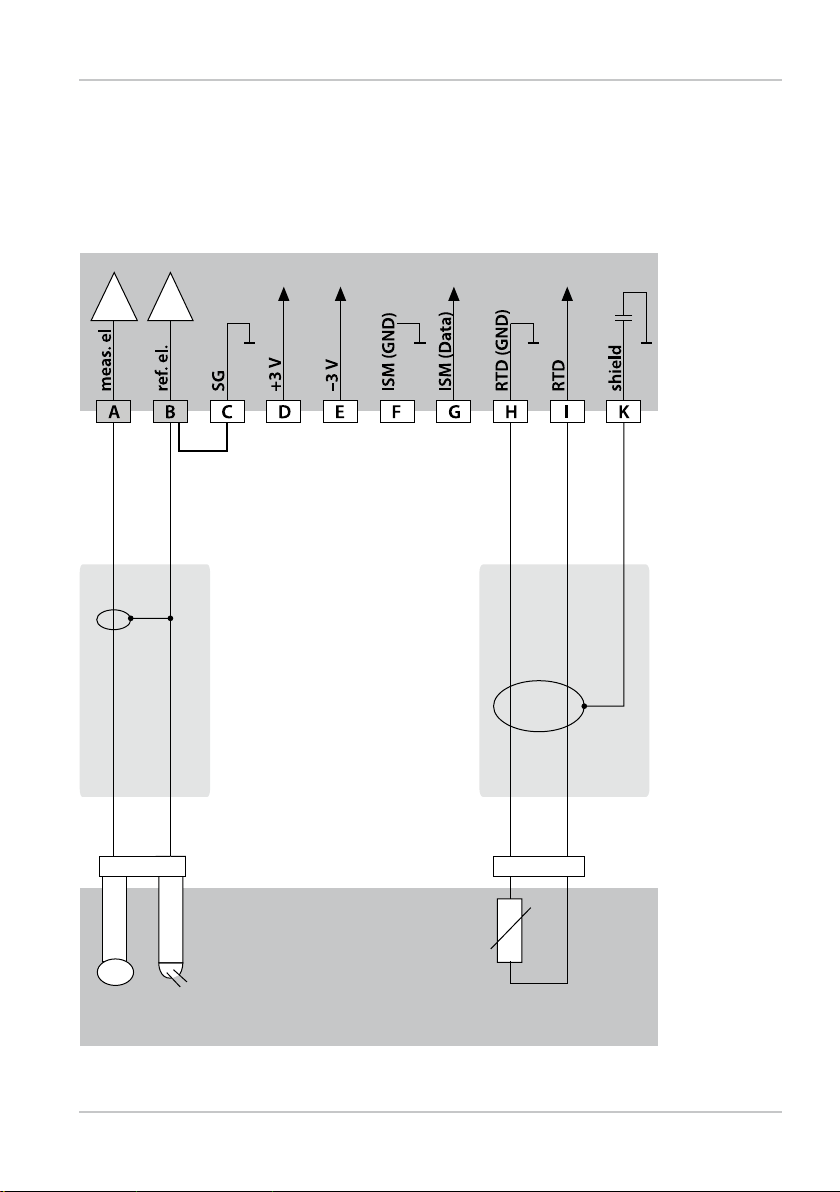

pH / mV / temp input

+3 V /–3 V for ISFET adapter

RS 485

Output 1

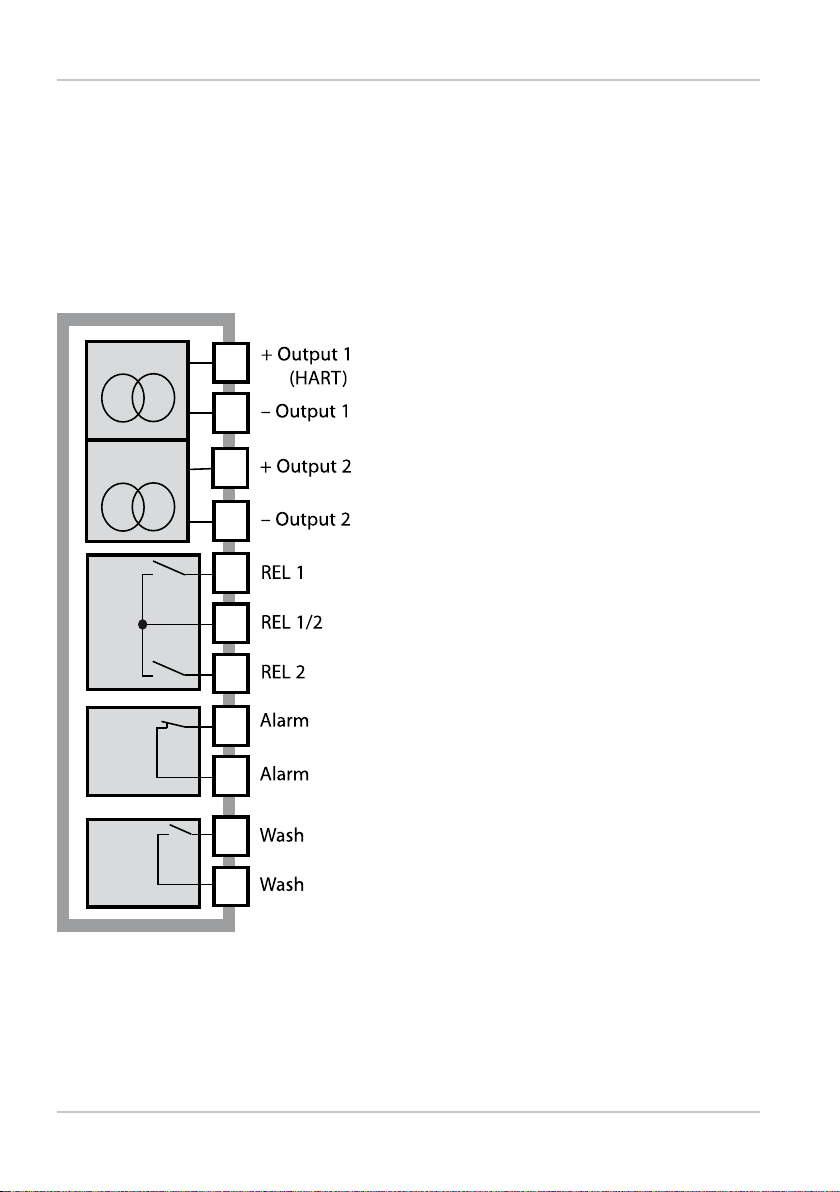

Output 2

Alarm

Wash

+ Output 1/HART

– Output 1/HART

+ Output 2

– Output 2

REL 1

REL 1/2

REL 2

Alarm

Wash

GND/Shield

Input +

Input –

HOLD

HOLD / CONTROL

CONTROL

HOLD

Input

Control

Power

Input

Power

Assembly

Package Contents

Check the shipment for transport damage and completeness!

The package should contain:

• Front unit, rear unit, bag containing small parts

• Specific test report

• Documentation (cf p. 3)

76 5

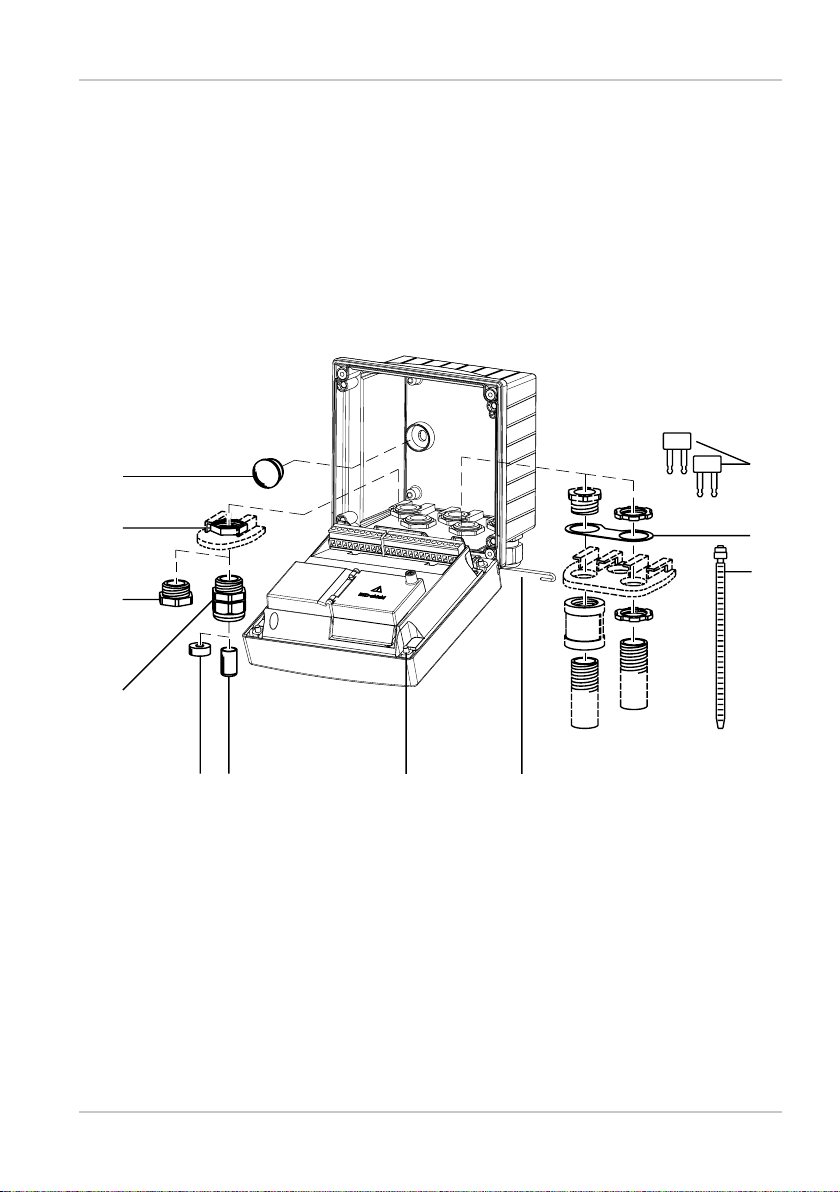

Fig.: Assembling the enclosure

1) Jumper (3 x)

2) Washer (1 x), for conduit mounting: Place washer between enclosure and nut

3) Cable tie (3 x)

4) Hinge pin (1 x), insertable from either side

5) Enclosure screw (4 x)

6) Sealing insert (1 x)

7) Rubber reducer (1 x)

8) Cable gland (3 x)

9) Filler plug (3 x)

10) Hexagon nut (5 x)

11) Sealing plug (2 x), for sealing in case of wall mounting

Assembly

Mounting Plan, Dimensions

148

6.2

148

117

1) Cable gland (3 x)

2) Knockouts for cable gland or ½” conduit,

21.5 mm dia. (2 knockouts)

Conduits not included!

3) Knockout for pipe mounting

(4 x)

4) Knockout for wall mounting (2 x)

Fig.: Mounting plan (All dimensions in mm!)

Assembly

Pipe Mounting, Protective Hood

ø40...ø60

1) Hose clamp with worm gear

drive to DIN 3017 (2 x)

Fig.: Pipe-mount kit, accessory ZU 0274 (All dimensions in mm!)

2) Pipe-mount plate (1 x)

3) For vertical or horizontal posts

or pipes

4) Self-tapping screw (4 x)

147199

185

Fig.: Protective hood for wall and pipe mounting, accessory ZU 0737

(All dimensions in mm!)

Assembly

Panel Mounting

< 30 76 31

1) Circumferential sealing (1 x)

2) Screws (4 x)

3) Position of control panel

4) Span piece (4 x)

5) Threaded sleeve (4 x)

Cutout 138 x 138 mm (DIN43700)

1...22

2345

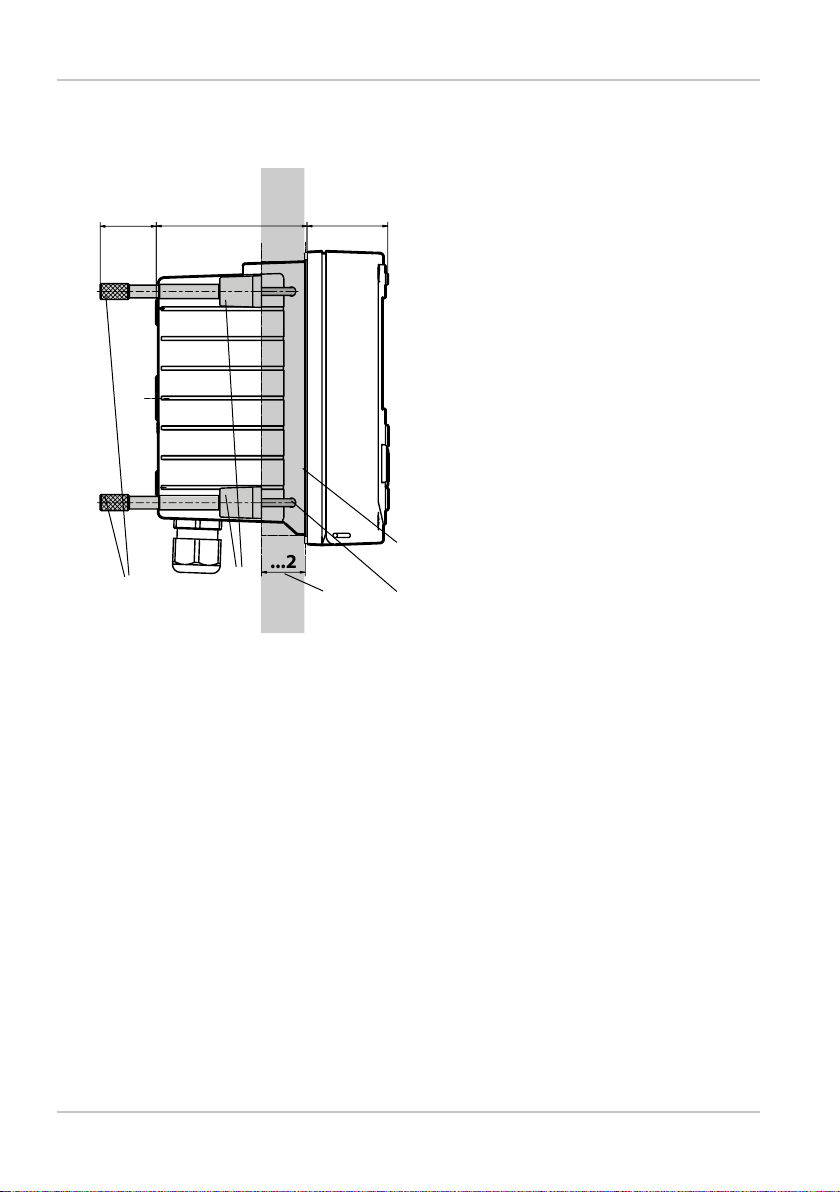

Fig.: Panel-mount kit, accessory ZU 0738 (All dimensions in mm!)

Installation

Safety Precautions for Installation

• Installation of the device must be carried out by trained experts in accordance with this user manual and as per applicable local and national codes.

• Be sure to observe the technical specications and input ratings during installation!

• Be sure not to notch the conductor when stripping the insulation!

• Before connecting the device to the power supply, make sure that its voltage lies within the range 80 ... 230 V AC or 24 ... 60 V DC!

• A signal current supplied to the current input must be galvanically isolated. If not, connect an isolator module.

• All parameters must be set by a system administrator prior to commissioning!

• The electrical installation shall conform to the national regulations for electrical installations and/or other applicable national or local codes or regulations.

• The power supply shall be disconnectable from the device by a two-pole circuit breaker.

• Switch and circuit breaker shall be located in close proximity to the equipment and be easily accessible by the OPERATOR. They shall be marked as disconnect switch for the device.

• Be sure to disconnect the mains supply and any relay contacts which are connected to separate current sources before starting maintenance operations.

Terminals:

Screw terminals, suitable for single or stranded wires up to 2.5 mm2 (AWG 14). Recommended torque for the terminal screws: 0.5 ... 0.6 Nm.

Application in Hazardous Locations

See page 13.

Installation

24 (-15%) to 230 (+10%) V AC, 45 to 65 Hz, < 12 VA

Power:

24 (-15%) to 80 (+10%) V DC , 4 W

FM 3037411/3037411 C CSA.08.2117513

APPR OVED

Made in Germany

14163 Berlin

Enclosure Type 4X

Type

00000 / 0000000 / 1845

A4**B-*/*

+55°C

24 (-15%) to 230 (+10%) V AC, 45 to 65 Hz, < 12 VA

Power:

24 (-15%) to 80 (+10%) V DC , 4 W

FM 3037411/3037411 C CSA.08.2117513

APPRO VED

Made in Germany

14163 Berlin

Enclosure Type 4X

Type

00000 / 0000000 / 1845

A4**B-*/*

+55°C

CONTROL

HOLD

HOLD/

CONTROL

0(4) to

20 mA

0(4) to

20 mA

0(4) to

20 mA

5 4 3 2 1678910111213141516171819202122

ALARM

REL 3/

WASH

REL 2

REL 1

24 to

230 V

AC/DC

Power

Out 2

Out 1 HART

I-InContacts

Digital-In

GND/

SHIELD

WH/CL

GNYE

3 V

RS 485

NE PAS RETIRER NI REMPLACER LE FUSIBLE SOUS TENSION !

DO NOT REMOVE OR REPLACE FUSE WHEN ENERGIZED!

NE PAS SÉPARER SOUS TENSION !

AVERTISSEMENT :

DO NOT SEPARATE WHEN ENERGIZED!

WARNING:

24 (-15%) to 230 (+10%) V AC, 45 to 65 Hz, < 12 VA

Power:

24 (-15%) to 80 (+10%) V DC , 4 W

FM 3037411/3037411 C CSA.08.2117513

APPRO VED

Made in Germany

14163 Berlin

Enclosure Type 4X

Type

00000 / 0000000 / 1845

A4**B-*/*

+55°C

- < <

20 T + 55 °C

FM 3037411/3037411 C

APPR OVED

Type 4X

C/US

I/2/AEx nA IIC T4, Ta=55°C / 22/AEx tD T85°C

S/II,III/2/FG/T4, Ta=55°C

I/2/Ex nA IIC T4, Ta=55°C / 22/Ex tD T85°C DIP/II,III/2/FG/T4, Ta=55°C

NI/I/2/ABCD/T4, Ta=55°C

CONTROL

HOLD

HOLD/

CONTROL

0(4) to

20 mA

0(4) to

20 mA

0(4) to

20 mA

5 4 3 2 1678910111213141516171819202122

ALARM

REL 3/

WASH

REL 2

REL 1

24 to

230 V

AC/DC

Power

Out 2

Out 1 HART

I-InContacts

Digital-In

GND/

SHIELD

WH/CL

GNYE

3 V

RS 485

NE PAS RETIRER NI REMPLACER LE FUSIBLE SOUS TENSION !

DO NOT REMOVE OR REPLACE FUSE WHEN ENERGIZED!

NE PAS SÉPARER SOUS TENSION !

AVERTISSEMENT :

DO NOT SEPARATE WHEN ENERGIZED!

WARNING:

Control drawing 212.002-300

US US

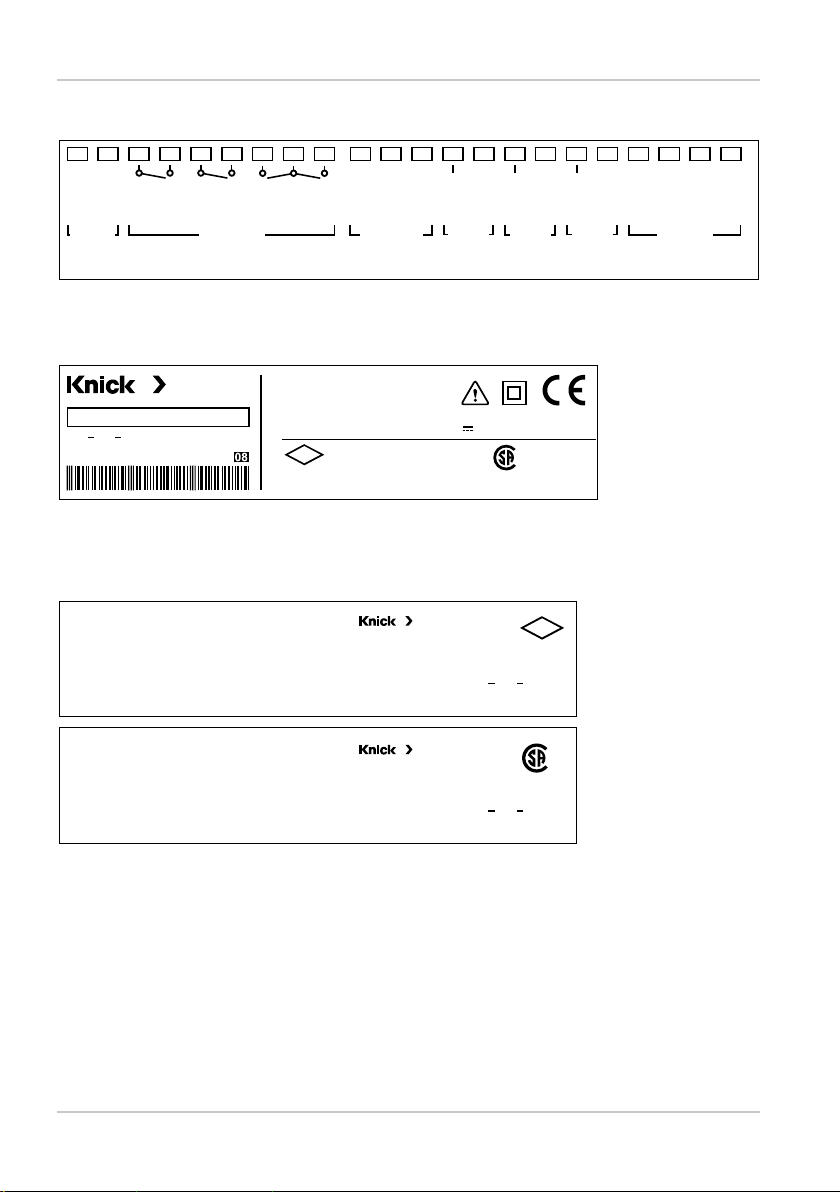

Rating Plates / Terminal Assignments

24 to

230 V

AC/DC

WASH

A4**B-*/*

+55°C

REL 3/

Made in Germany

Power

WARNING:

DO NOT SEPARATE WHEN ENERGIZED! DO NOT REMOVE OR REPLACE FUSE WHEN ENERGIZED!

Fig.: Terminal assignments of Stratos Pro A401B

14163 Berlin

Type

Enclosure Type 4X 00000 / 0000000 / 1845

Fig.: Stratos Pro A401B rating plate, outside at the bottom of the front unit

ALARM

REL 2

REL 1

Power: 24 (-15%) to 230 (+10%) V AC, 45 to 65 Hz, < 12 VA 24 (-15%) to 80 (+10%) V DC , 4 W

APPRO VED

FM 3037411/3037411 C CSA.08.2117513

HOLD/

CONTROL

Digital-In

NE PAS RETIRER NI REMPLACER LE FUSIBLE SOUS TENSION !

HOLD

0(4) to

Out 1

HART

20 mA

5 4 3 2 1678910111213141516171819202122

0(4) to

20 mA

I-InContacts

WH/CL

GND/

SHIELD

RS 485

AVERTISSEMENT :

0(4) to

20 mA

Out 2

NE PAS SÉPARER SOUS TENSION !

GNYE

3 V

FM 3037411/3037411 C

NI/I/2/ABCD/T4, Ta=55°C

C/US

I/2/Ex nA IIC T4, Ta=55°C / 22/Ex tD T85°C

DIP/II,III/2/FG/T4, Ta=55°C

S/II,III/2/FG/T4, Ta=55°C

I/2/AEx nA IIC T4, Ta=55°C / 22/AEx tD T85°C

CSA.08.2117513 C/US

C C

C US

US US

Class I,II,III, Div 2, GP A,B,C,D,E,F,G, T4, Ta=55°C Ex nA II T4, Ta=55°C DIP A22, Class II,III, Div 2, GP E,F,G AEx nA II T4, Ta=55°C Class II,III, Zone 22, AEx tD 22 T85°C

Fig.: Approval plates, at the inside of the front unit (left and right side)

Control drawing 212.002-300

Control drawing 212.002-330

APPR OVED

Type 4X

- < <

20 T + 55 °C

- < <

20 T + 55 °C

Power Supply, Signal Lines

Connect the power supply for Stratos Pro A401B PH to terminals 21 and 22 (24 ... 230 V AC, 45 ... 65 Hz / 24 ... 80 V DC)

Terminal assignments

Areas for placing the screwdriver to pull out the terminals

1 22

Fig.: Terminals, device opened, back of front unit

Connecting the Sensor

Connect the sensor lines with the sensor connection terminals (module terminals A...K).

Sensor connection MK-PH module

Areas for placing the screwdriver to pull out the terminals

1 22

Fig.: Terminals, device opened, back of front unit

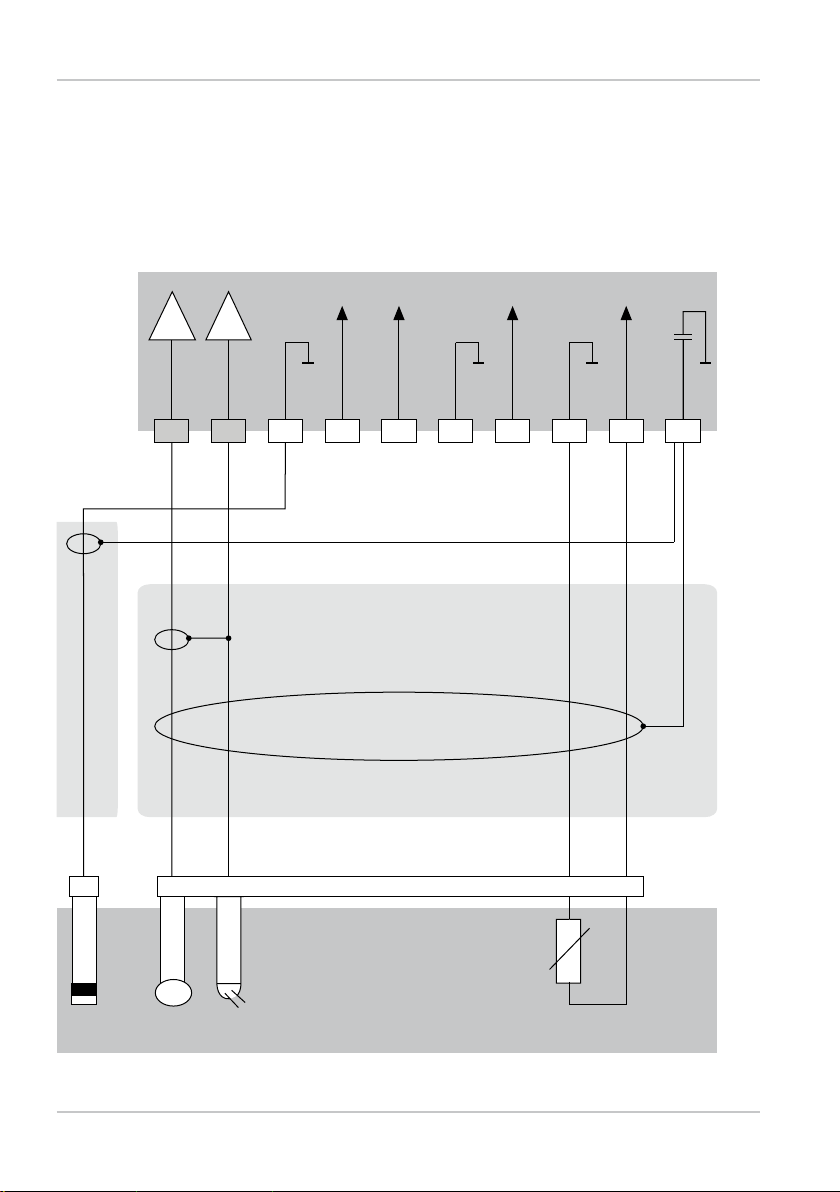

Wiring Examples

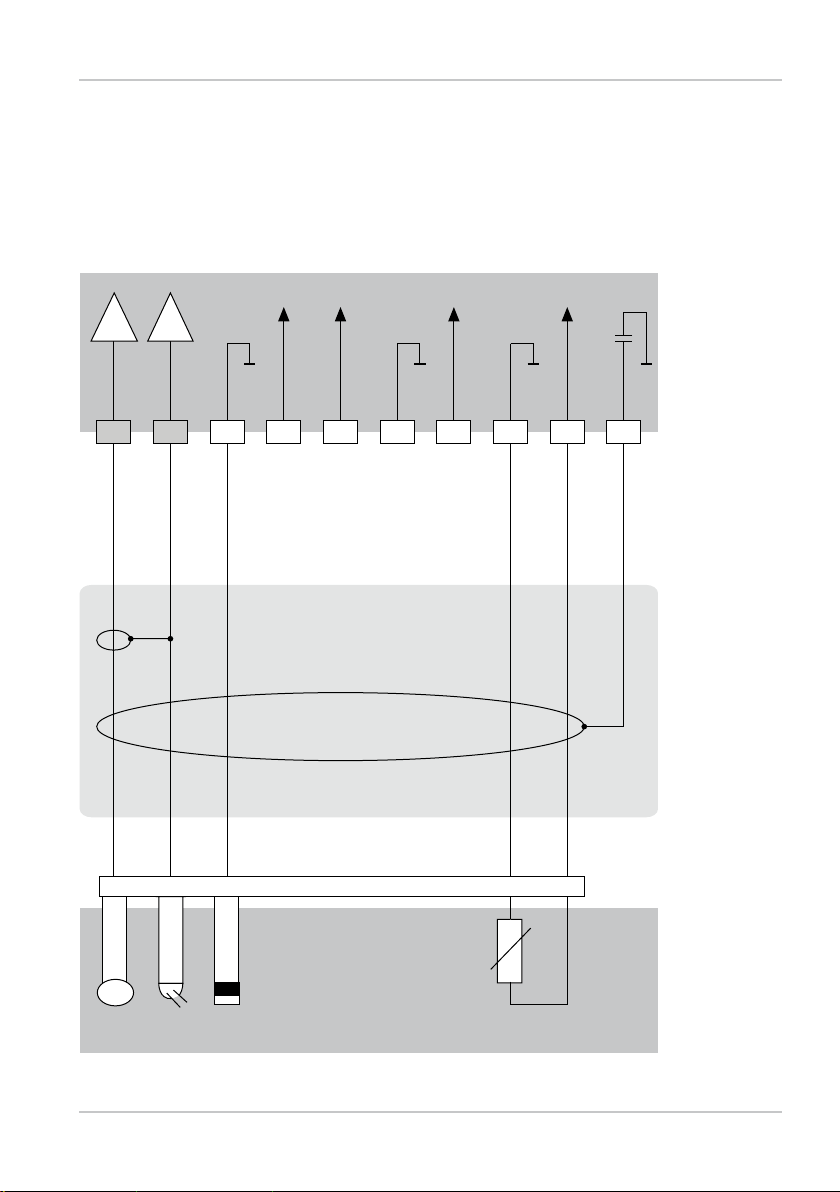

Example 1:

Measuring task: pH, temperature, glass impedance

Sensors (example): SE 555X/1-NS8N

Cable (example): ZU 0318

Jumper!

Core

Shield

Sensor(s) Cable Device

Wiring Examples

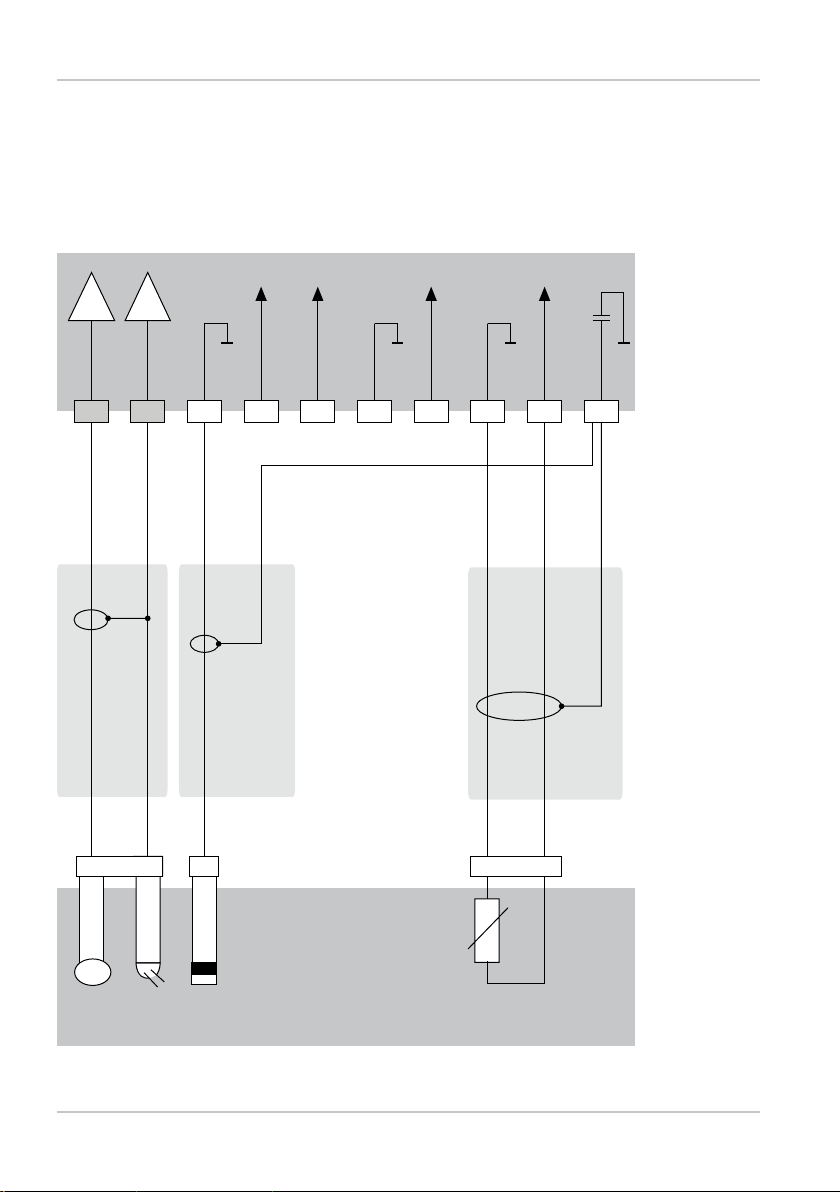

Example 2:

Measuring task: pH/ORP, temp, glass impedance, ref. impedance Sensors (example): SE555X/1-NS8N, equipotential bonding: ZU 0073

Temperature: e.g. Pt1000

Cable (example): 2x ZU 0318

meas. el

ref. el.

+3 V

B C D E F G H

A I K

Core

Shield

Core

Shield

ISM (GND)

–3 V

ISM (Data)

RTD (GND)

RTD

Shield

shield

Sensor(s) Cable Device

Wiring Examples

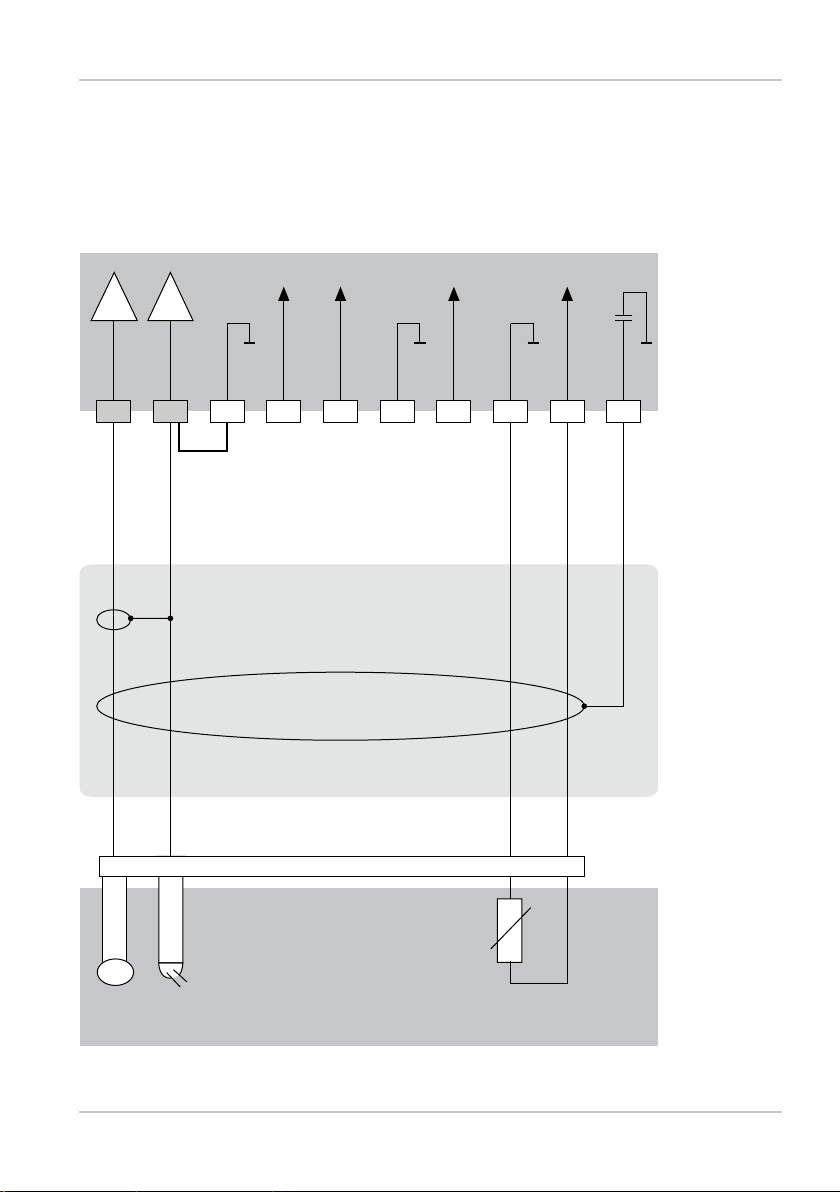

Example 3:

Measuring task: pH, temp, glass impedance

Sensors (example): pH sensor, e.g., SE 554X/1-NVPN,

Cable CA/VP6ST-003A Integrated temperature detector

meas. el

ref. el.

+3 V

–3 V

ISM (GND)

ISM (Data)

RTD (GND)

B C D E F G H

A I K

Jumper!

Red

Clear

RTD

shield

Core

Shield

Green

White

Yellow/Green

Shield

Sensor(s) Cable Device

Wiring Examples

Example 4:

Measuring task: pH/ORP, temp, glass impedance, ref. impedance

Sensors (example): pH sensor, e.g., SE 555X/1-NVPN,

cable CA/VP6ST-003A Integrated temperature detector

Equipotential bonding electrode ZU 0073, cable: ZU 0318

meas. el

ref. el.

+3 V

–3 V

ISM (GND)

ISM (Data)

RTD (GND)

RTD

shield

B C D E F G H

A I K

Clear

Red

Core

Shield

Core

Green

White

Shield

Yellow/Green

Sensor(s) Cable Device

Wiring Examples

Example 5:

Measuring task: pH/ORP, temp, glass impedance, ref. impedance

Sensors (example): PL PETR-120VP (pH/ORP combo sensor, SI Analytics)

Cable (example): CA/VP6ST-003A

meas. el

ref. el.

+3 V

–3 V

ISM (GND)

ISM (Data)

RTD (GND)

RTD

shield

B C D E F G H

A I K

Red

Clear

Core

Shield

Blue

Green

White

Yellow/Green

Shield

Sensor(s) Cable Device

Wiring Examples

Example 6:

NOTICE!

Do not connect an additional analog sensor!

Measuring task: pH/ORP, temp, glass impedance, ref. impedance

Sensors (example): ISM digital InPro 4260i (Mettler-Toledo)

Cable (example): AK9 (Mettler-Toledo)

Core

Shield

Sensor(s) Cable Device

Wiring Examples

Example 7 – Note: Switch o Sensocheck!

Measuring task: ORP, temp, glass impedance, ref. impedance

Sensors (example): ORP: SE 564X/1-NS8N

Cable (example): ZU 0318

Jumper!

Core

Shield

Sensor(s) Cable Device

Wiring Examples

Example 8:

Connecting a Pfaudler probe (TAN SW-A007 required):

meas. el

ref. el.

+3 V

–3 V

ISM (GND)

ISM (Data)

RTD (GND)

RTD

B C D E F G H

A I K

shield

Cable Device

Pfaudler probe

Device pH Reiner

with equipotential bonding, VP screw cap

A meas Coax core Coax WH Coax WH Coax WH

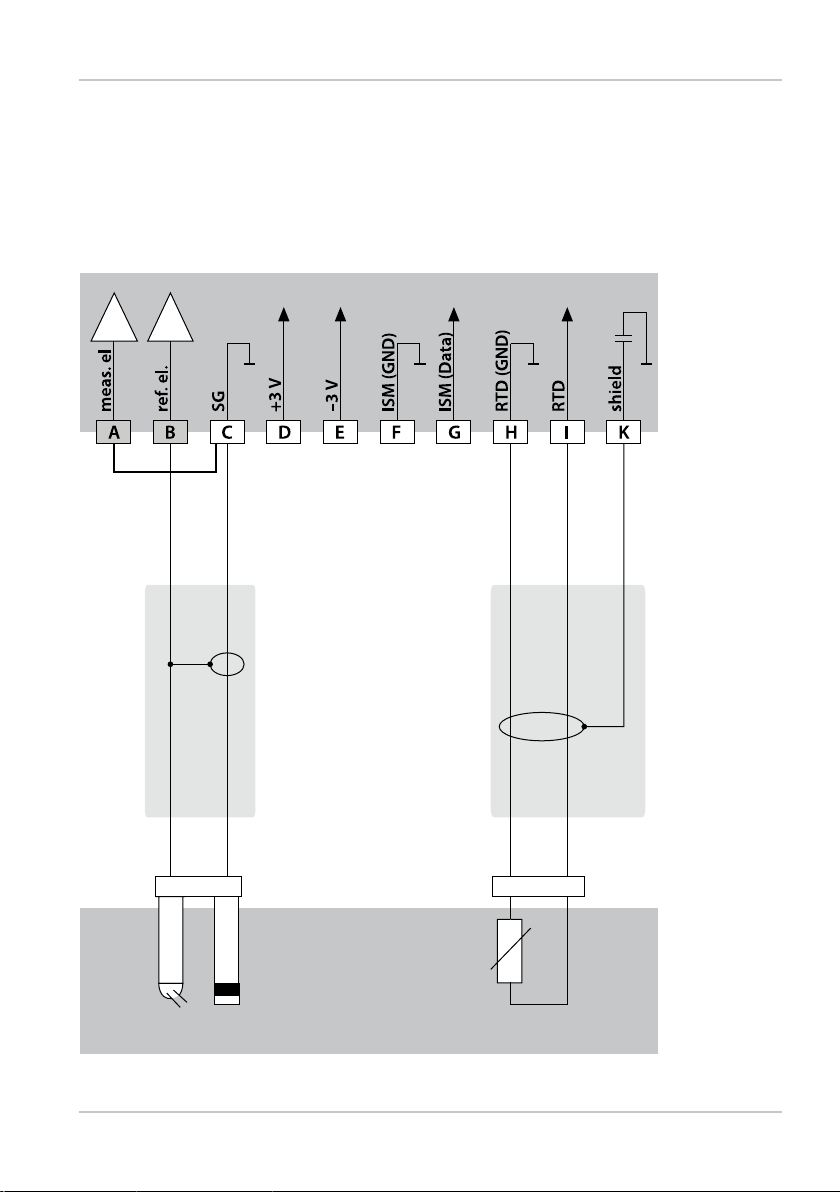

B ref Coax shield Coax BN Coax BN Coax BN

C SG Blue Blue Blue Jumper B/C

H RTD

I RTD White Green, Black Green, Black Green, Black

K Shield Green/Yellow, Gray Orange, Violet Orange, Violet Orange, Violet

Green Brown Brown Brown

(GND)

Differential Models 18/40 with equipotential bonding

Models 03/04 with equipotential bonding

Models 03/04 without equipotential bonding

Wiring Examples

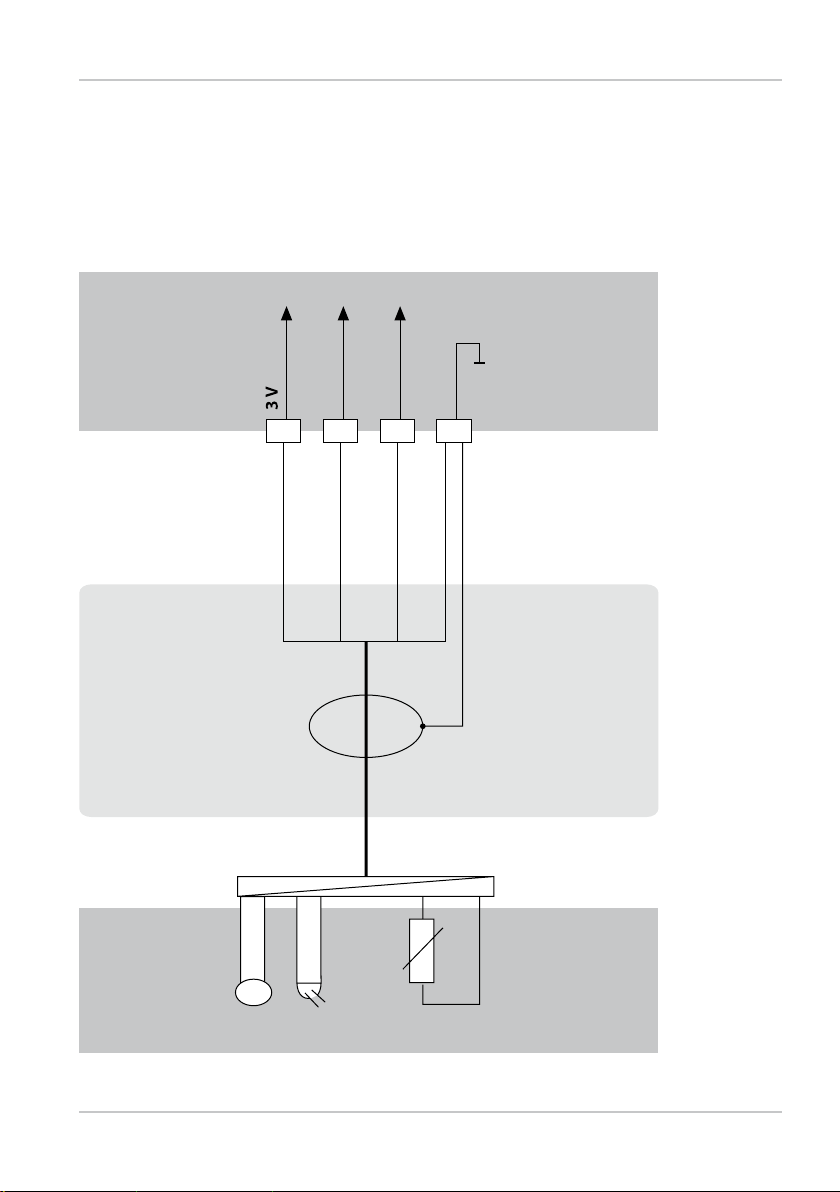

Example 9: Memosens

Measuring task: pH/ORP, temp, glass impedance, ref. impedance

Sensors (example): SE 554X/1-AMSN (Memosens combo sensor)

Cable (example): CA/MS-003NAA

RS 485 (A)

RS 485 (B)

GND/shield

1 2 3 4

Yellow

White

Brown

Green

Shield (clear)

Sensor(s) Cable Device

Protective Wiring of Relay Contacts

Relay contacts are subject to electrical erosion. Especially with inductive and capacitive loads, the service life of the contacts will be reduced. For suppression of sparks and arcing, components such as RC combinations, nonlinear resistors, series resistors and diodes should be used.

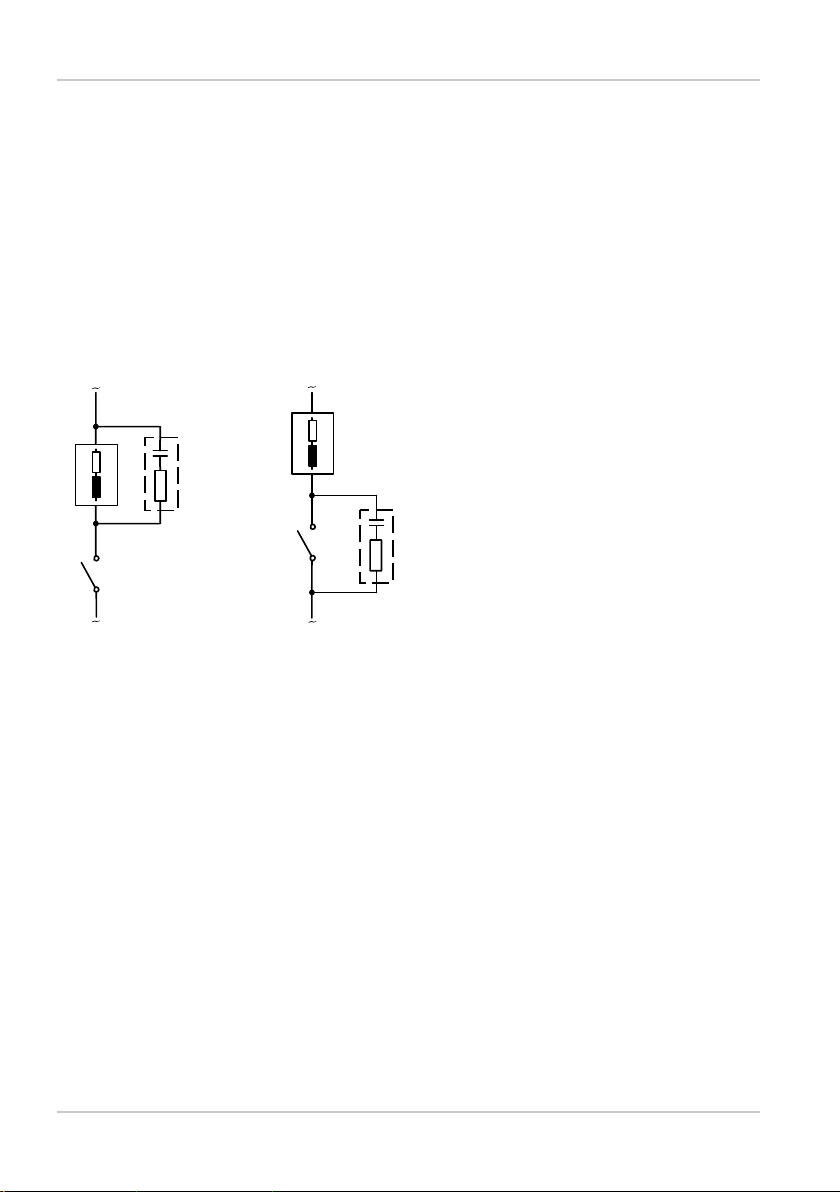

Typical AC applications with inductive load

1) Load

2) RC combination, e.g. RIFA PMR 209 Typical RC combinations for

230 V AC: capacitor 0.1 µF / 630 V, resistor 100 Ω / 1 W

3) Contact

Protective Wiring of Relay Contacts

Typical Protective Wiring Measures

A: DC application with inductive load B: AC/DC applications with capacitive load C: Connection of incandescent lamps

A1 Inductive load A2 Free-wheeling diode, e.g. 1N4007 (Observe polarity) A3 Contact B1 Capacitive load B2 Resistor, e.g. 8 Ω / 1 W at 24 V / 0.3 A B3 Contact C1 Incandescent lamp, max 60 W / 230 V, 30 W / 115 V C3 Contact

WARNING!

Make sure that the maximum ratings of the relay contacts are not exceeded even during switching!

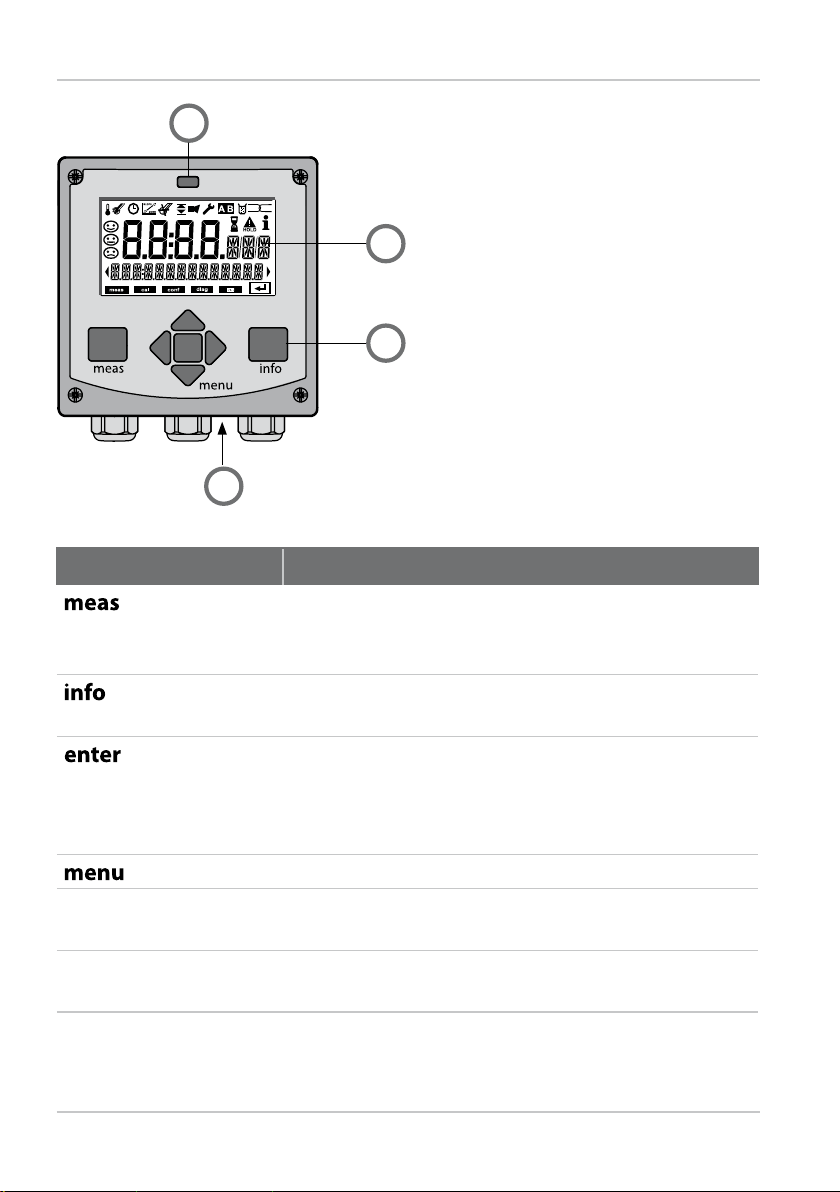

User Interface, Keypad

SENS

MEMO

Key Function

• Return to last menu level

• Directly to measuring mode (press > 2 s)

• Measuring mode: other display

• Retrieve information

• Show error messages

• Conguration: Conrm entries, next conguration step

• Calibration: Continue program ow

• Measuring mode: Call menu

Arrow keys up / down

Arrow keys left / right

• Menu: Increase/decrease a numeral

• Menu: Selection

• Previous/next menu group

• Number entry: Move between digits

1 IrDA transmitter/receiver 2 Display 3 Keypad 4 Rating plate (enclosure bottom)

1 2 3 4 5 6 7 8 9 10 11

1 Temperature 2 Sensocheck 3 Interval/response time 4 Sensor data 5 Not used 6 Limit message: Limit 1 or Limit 2 7 Alarm 8 Service 9 Parameter set 10 Calibration 11 Memosens sensor 12 Waiting time running

MEMO

13 Info available 14 Hold mode active 15 Main display 16 Secondary display 17 Proceed using enter 18 ISM sensor 19 Diagnostics 20 Conguration mode 21 Calibration mode 22 Measuring mode 23 Sensoface 24 Unit symbols

Display

SENS

12 13 14

171819202122

Signal Colors (Display Backlighting)

Red Red blinking Orange HOLD mode (Calibration, Conguration, Service) Turquoise Diagnostics Green Info Purple Sensoface message

Alarm (in case of fault: display values blink) Input error: illegal value or wrong passcode

Measuring Mode

After the operating voltage has been connected, the analyzer automatically goes to “Measuring“ mode. To call the measuring mode from another operating mode (e.g. Diagnostics, Service): Hold meas key depressed (> 2 s).

Sensoface indicator (sensor status)

Time (or ow)

Mode indicator (measuring)

Hold meas key depressed for calling the measuring mode (pressing once more switches the display)

Depending on the conguration, one of the following displays can be set as standard display for the measuring mode (see page 38):

• Measured value, time and temperature (default setting)

• Measured value and selection of parameter set A/B or ow Measured value and tag number (“TAG”)

• Time and date

• Output currents

• Controller Upper display: controller output Y, lower display: setpoint

Active parameter set (conguration)

Display indicates OUT1: e.g. process variable

Display indicates OUT2: e.g. temperature

enter key

Note: By pressing the meas key in measuring mode you can view the

displays for approx. 60 sec.

You must congure the device for the respective measurement task!

Selecting the Mode / Entering Values

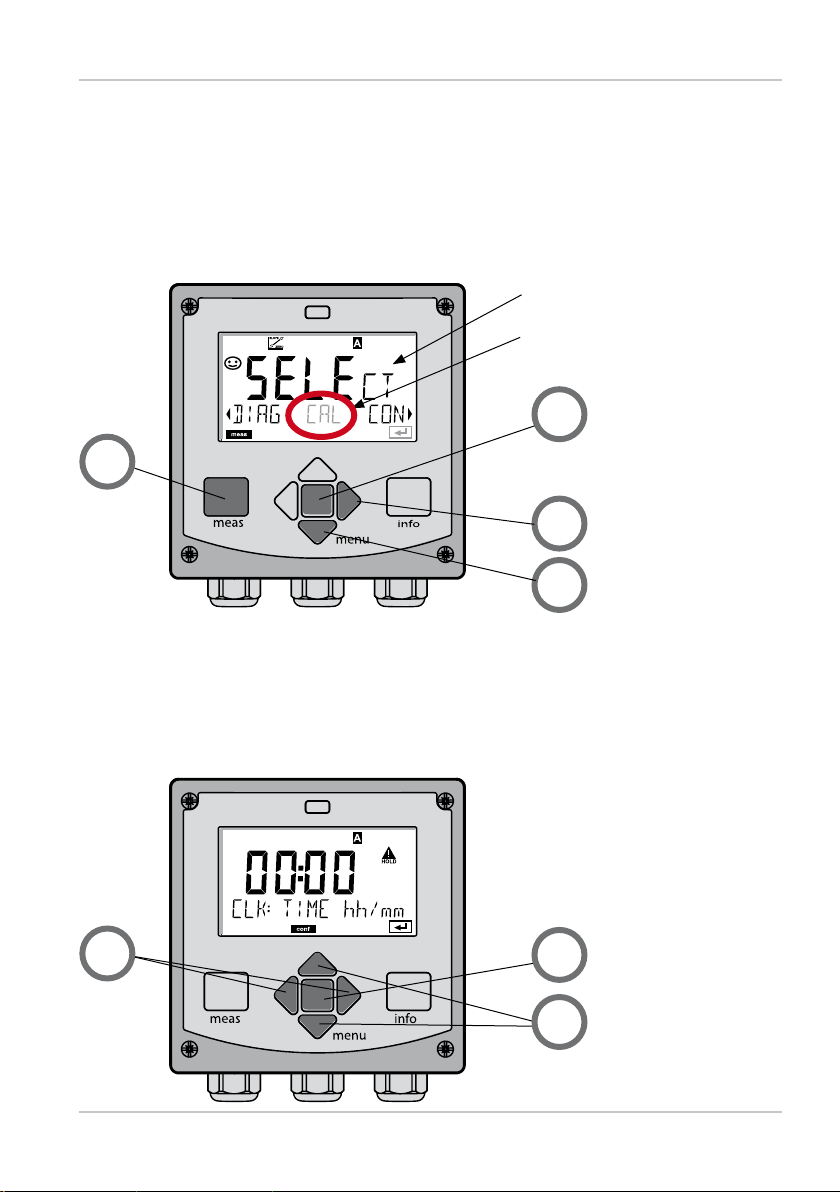

To select the operating mode:

1) Hold meas key depressed (> 2 s) (directly to measuring mode)

2) Press menu key: the selection menu appears

3) Select operating mode using left / right arrow key

4) Press enter to conrm the selected mode

Selection menu

Selected mode (blinks)

To enter a value:

5) Select numeral: left / right arrow key

6) Change numeral: up / down arrow key

7) Conrm entry by pressing enter

Display in Measuring Mode

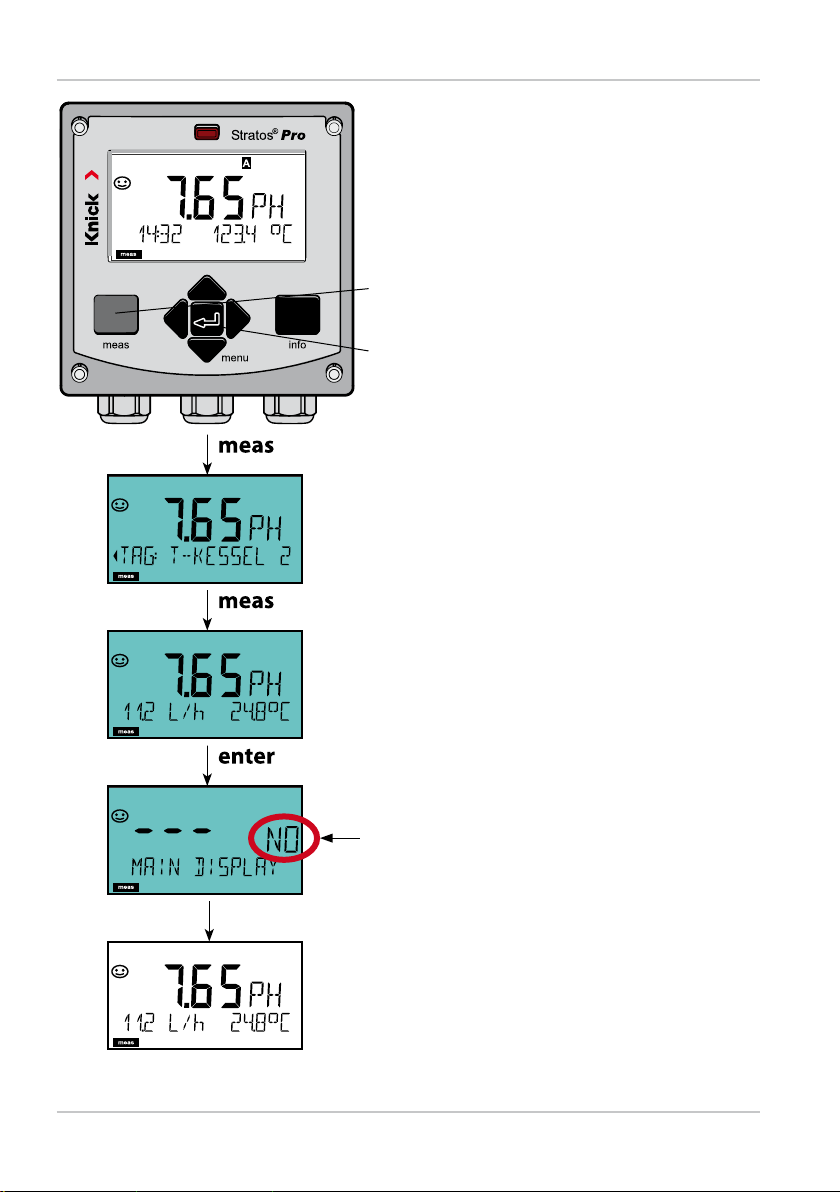

The MAIN DISPLAY is the display which is shown in measuring mode. To call the measuring mode from any other mode, hold the meas key depressed for at least 2 sec.

meas key

enter key

By pressing meas briey you can step through further displays such as tagnumber (TAG) or ow (L/h). These displays are turquoise. After 60 sec they switch back to the main display.

approx. 2 s

Press enter to select a display as MAINDISPLAY – the secondary display shows “MAINDISPLAY – NO“. Use the UP / DOWN arrow keys to select “MAIN DISPLAY – YES“ and conrm by pressing enter. The display color changes to white. This display is now shown in measuring mode.

Color-Coded User Interface

The color-coded user interface guarantees increased operating safety. Operating modes are clearly signaled. The normal measuring mode is white. Information text appears on a green screen and the diagnostic menu appears on turquoise. The orange HOLD mode (e.g. during calibration) is quickly visible as is the magenta screen which indicates asset management messages for predictive diagnostics – such as maintenance request, pre-alarm and sensor wear. The alarm status has a particularly noticeable red display color and is also signaled by ashing display values. Invalid inputs or false passcodes cause the entire display to blink red so that operating errors are noticeably reduced.

White: Measuring mode

Magenta: Maintenance request

Red blinking: Alarm, errors

Turquoise: Diagnostics

Orange: HOLD mode

Green: Information texts

Operating Modes

Diagnostics

Display of calibration data, display of sensor data, performing a device self-test, viewing the logbook entries, display of hardware/software versions of the individual components. The logbook can store 100 events (00...99). They can be displayed directly on the device. The logbook can be extended to 200 entries using a TAN (Option).

HOLD

Manual activation of HOLD mode, e.g. for replacing a digital sensor. The signal outputs adopt a dened state.

Calibration

Every sensor has typical characteristic values, which change in the course of the operating time. Calibration is required to supply a correct measured value. The device checks which value the sensor delivers when measuring in a known solution. When there is a deviation, the device can be “adjusted“. In that case, the device displays the “actual“ value and internally corrects the measurement error of the sensor. Calibration must be repeated at regular intervals. The time between the calibration cycles depends on the load on the sensor. During calibration the device is in HOLD mode.

During calibration the device remains in the HOLD mode until it is stopped by the operator.

Conguration

The analyzer must be congured for the respective measurement task. In the “Conguration“ mode you select the connected sensor, the measuring range to be transmitted, and the conditions for warning and alarm messages. During conguration the device is in HOLD mode.

Conguration mode is automatically exited 20 minutes after the last keystroke. The device returns to measuring mode.

Service

Maintenance functions ( operation, passcode assignment, reset to factory settings, enabling of options (TAN).

current source, relay test, controller test

), IrDA

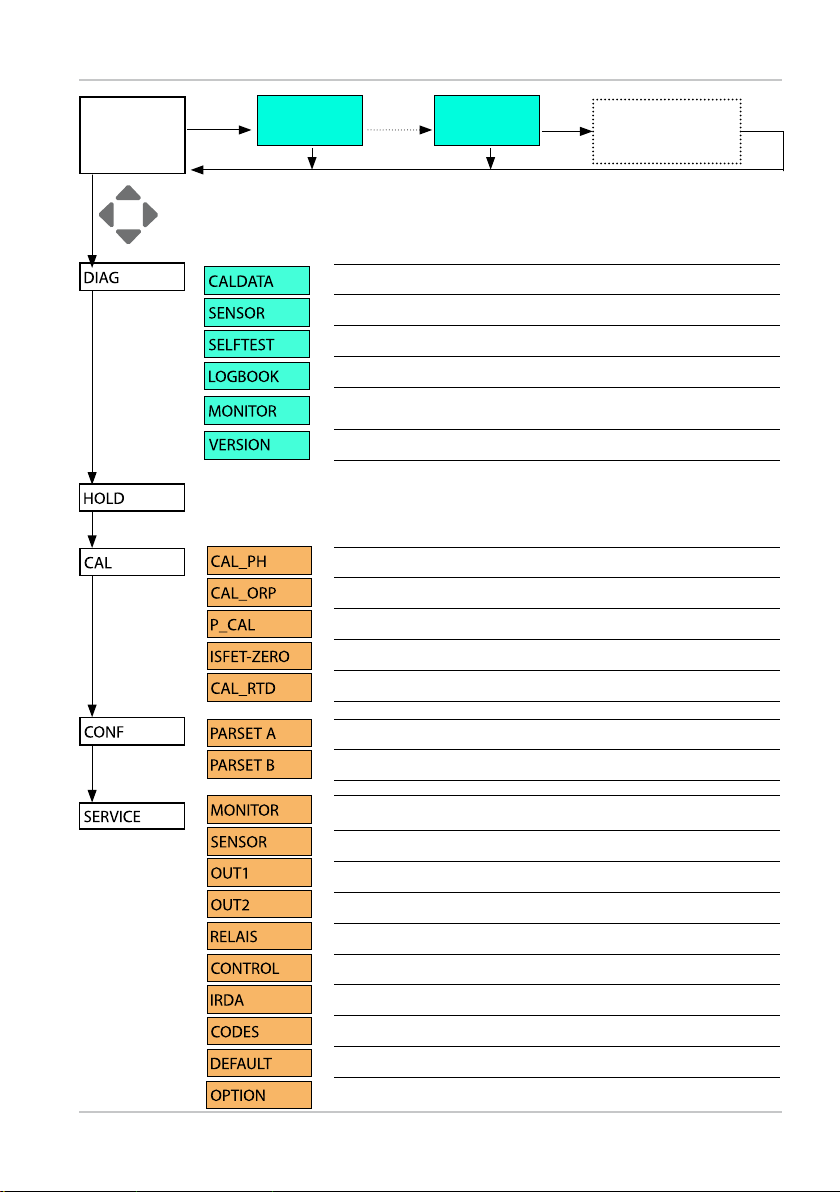

Menu Structure of Modes and Functions

Meas. mode

(main display

selectable)



meas

TAG display CLK display

Pressing the menu key (down arrow) opens the selection menu. Select the menu group using the left/right arrow keys. Pressing enter opens a menu item. Press meas to return.

Manual activation of HOLD mode, e.g. for sensor replacement. The signal outputs behave as configured (e.g. last measured value, 21 mA)

meas

after 60 s after 60 s

Display of calibration data

Display of sensor data

Self test: RAM, ROM, EEPROM, module

100 events with date and time

Display of measured values (mV_pH, mV_ORP, RTD, resistances of glass electrode, reference electrode)

Display of software version, model designation, serial number

pH adjustment (as configured)

ORP adjustment

Product calibration

Zero adjustment (for ISFET only)

Adjustment of temperature probe

Controller

meas

parameter display

(if configured)

meas



(Access via code, factory setting:

5555)

Configuring parameter set A

Configuring parameter set B

Display of measured values for validation (simulators)

For ISM: Reset TTM, increment autoclaving counter

Current source, output 1

Current source, output 2

Relay test

Controller: manual specication of controller output

Activating the IrDA interface

Specifying access codes for operating modes

Reset to factory setting

Enabling an option via TAN

HOLD Mode

The HOLD mode is a safety state during conguration and calibration. Output current is frozen (LAST) or set to a xed value (FIX). The HOLD mode is indicated by orange display backlighting.

HOLD mode, display icon:

Output signal response

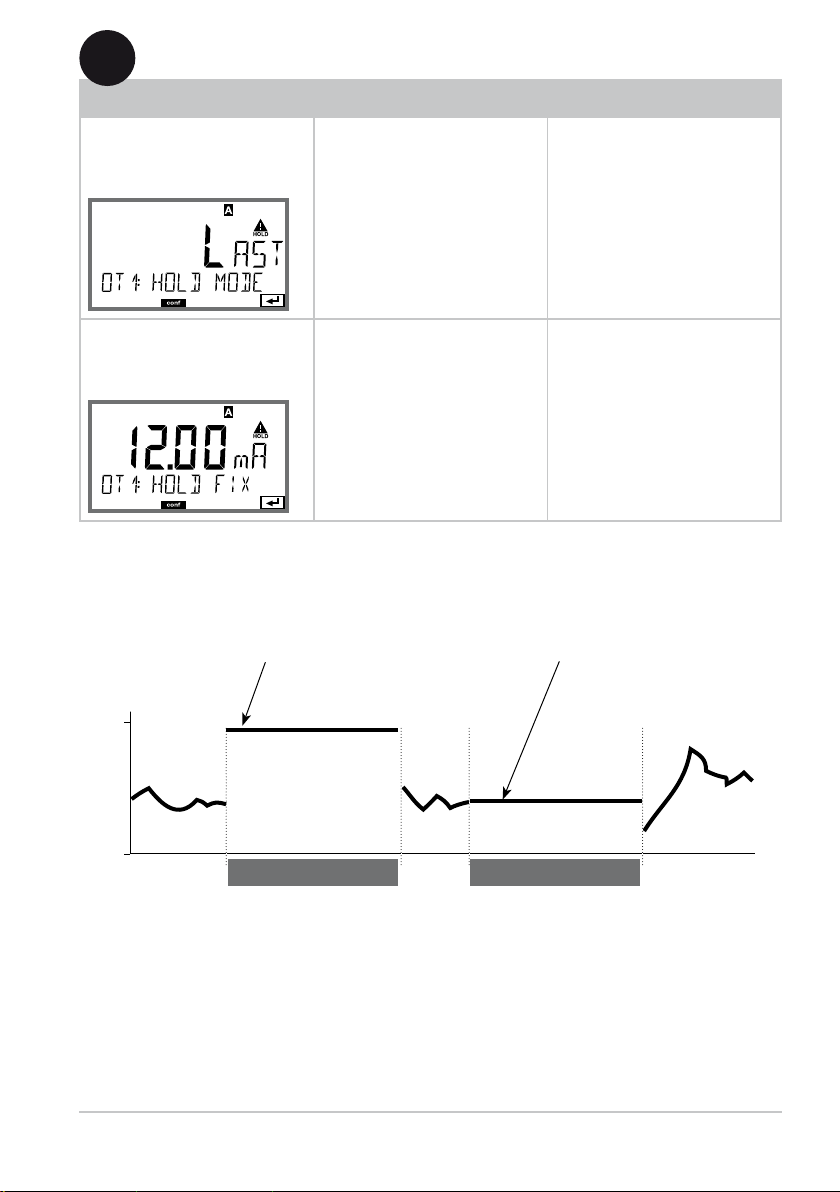

• LAST: The output current is frozen at its last value. Recommended

for short conguration procedures. The process should not change decisively during conguration. Changes are not noticed with this setting!

• FIX: The output current is set to a value that is noticeably dierent

from the process value to signal the control system that the device is being worked at.

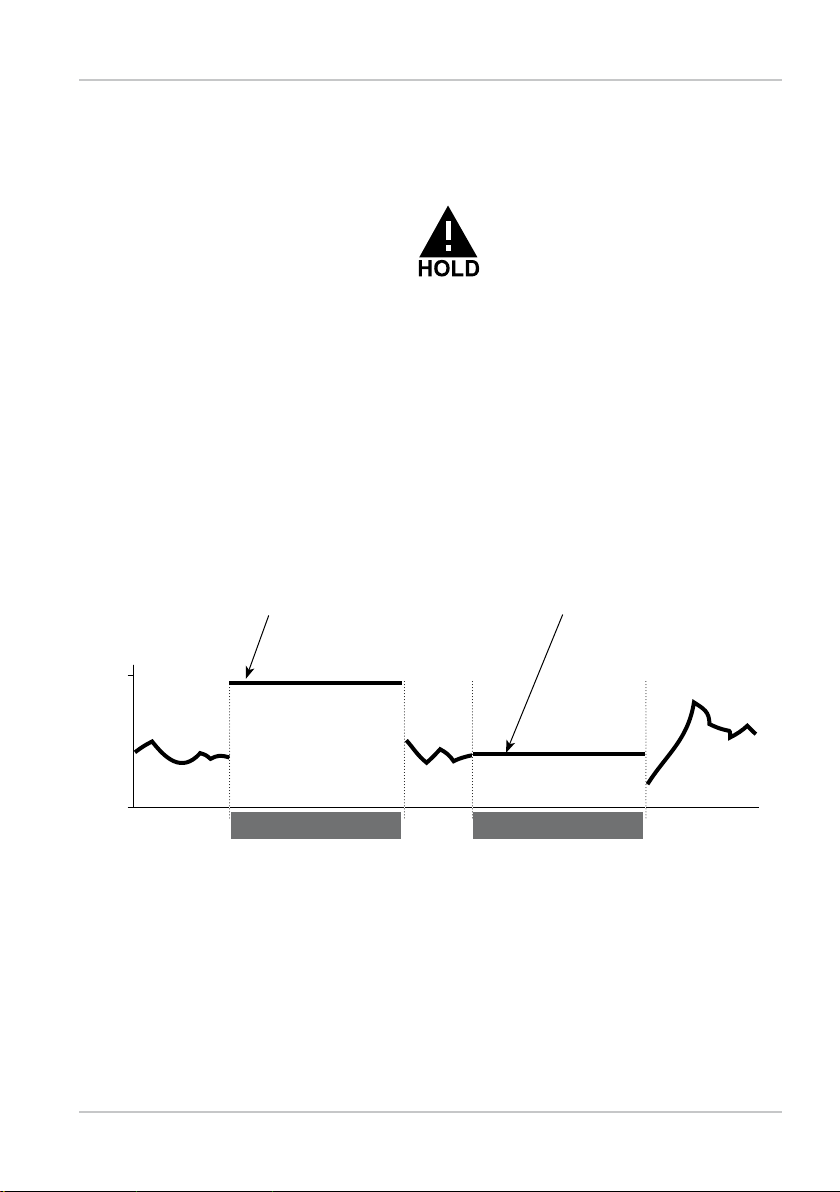

Output signal during HOLD:

Output current [mA]

Output signal for HOLD FIX setting = 21.0 mA

HOLD active

Output signal for HOLD LAST setting

HOLD active

Terminating the HOLD mode

The HOLD mode is ended by switching to measuring mode (hold meas key depressed). The display reads “Good Bye“, after that, the HOLD mode is exited. When the calibration mode is exited, a conrmation prompt ensures that the installation is ready for operation (e.g.: sensor reinstalled, located in process).

Alarm

External activation of HOLD (SW-A005)

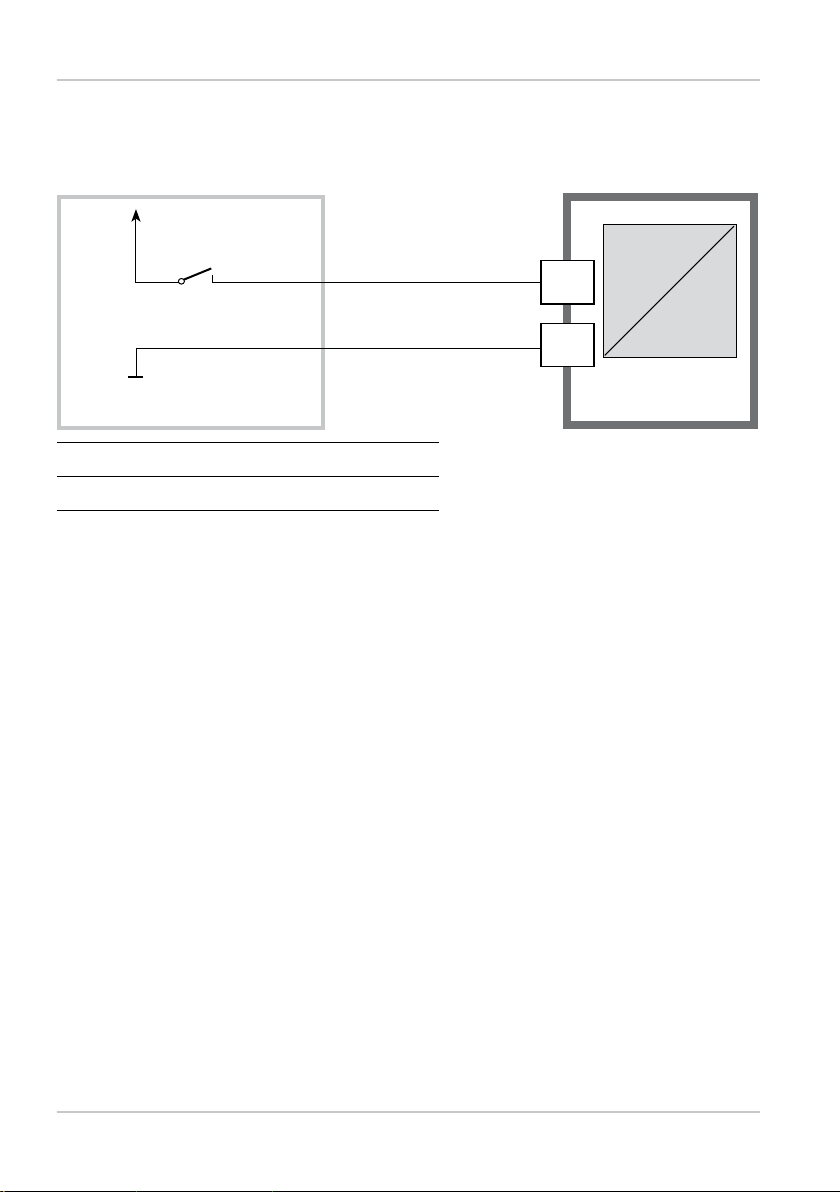

The HOLD mode can be activated from outside by sending a signal to the HOLD input (e.g. from the process control system).

Power supply

12...24 V AC/DC

Process control system

HOLD inactive 0...2 V AC/DC HOLD active 10...30 V AC/DC

Manual activation of HOLD

The HOLD mode can be activated manually from the HOLD menu. This allows checking or replacing a sensor, for example, without provoking unintended reactions at the outputs or contacts. Press meas key to return to selection menu.

HOLD

input

Stratos Pro A4...

Alarm

When an error has occurred, Err xx is displayed immediately. Only after expiry of a user-dened delay time will the alarm be registered and entered in the logbook. During an alarm the display blinks, the display backlighting turns red.

Error messages can also be signaled by a 22 mA output current (see Conguration). The alarm contact is activated by alarm and power failure, see also “Conguration / Alarm Settings“. 2 sec after the failure event is corrected, the alarm status will be deleted.

Alarm and HOLD Messages

Message Released by Cause

Alarm Sensocheck Polarization / Cable (22 mA) Error messages Flow (CONTROL input) Alarm

contact opens

HOLD HOLD HOLD via menu or input (Last/Fix) CONF Conguration

CAL Calibration SERVICE Service

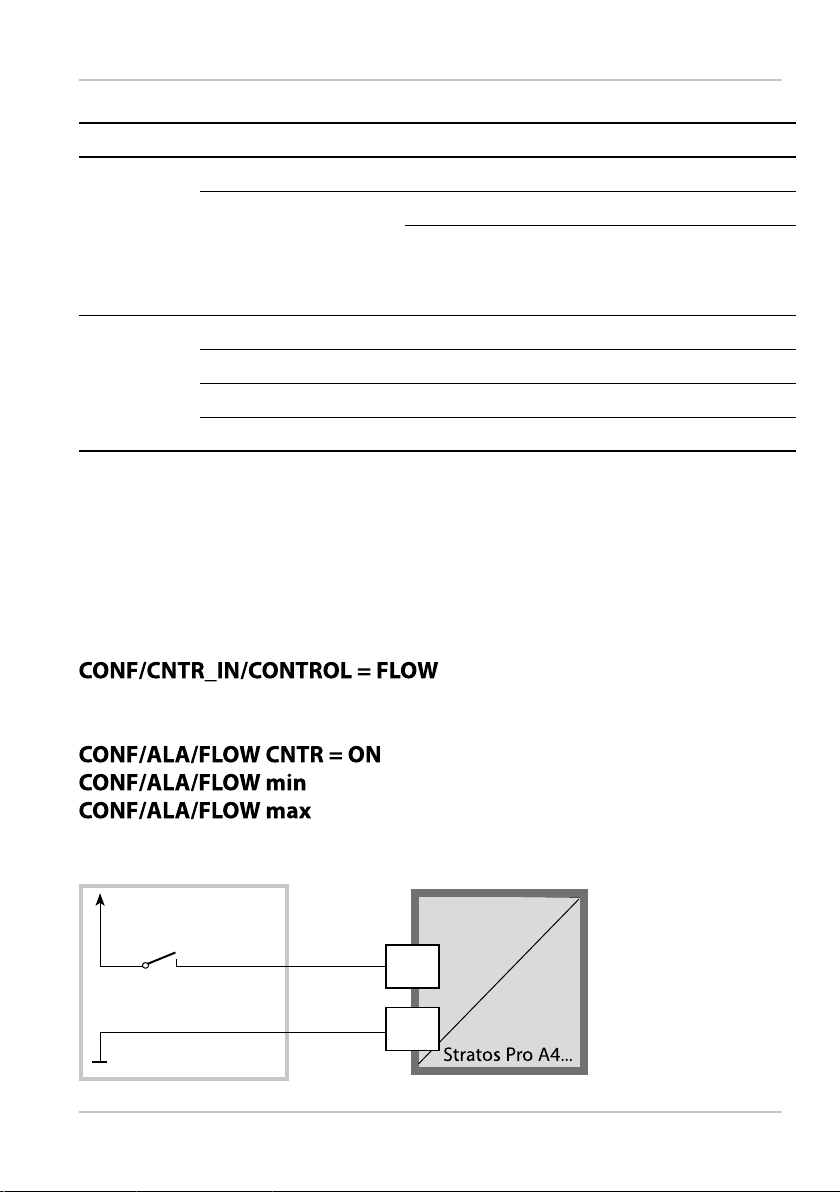

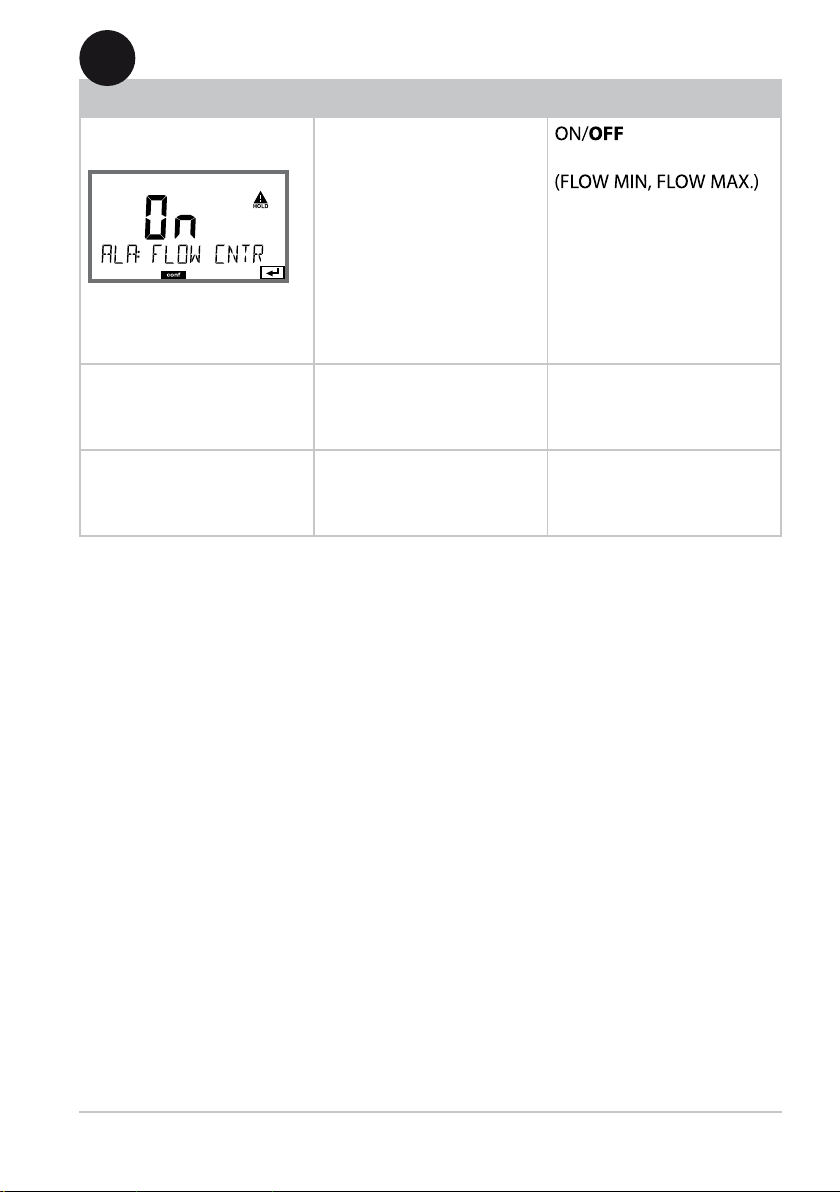

Generating a message via the CONTROL input (min. ow / max. ow)

The CONTROL input can be used for parameter set selection or for ow measurement (pulse principle), depending on its assignment in the “Conguration” menu. When preset to ow measurement

an alarm can be generated when the measured ow exceeds a specied range:

ERR 10: ORP display range violation

< -1999 mV or > 1999 mV

Power supply

12...24 V AC/DC

(specify value, default: 5 liters/h)

(specify value, default: 25 liters/h)

CONTROL

input

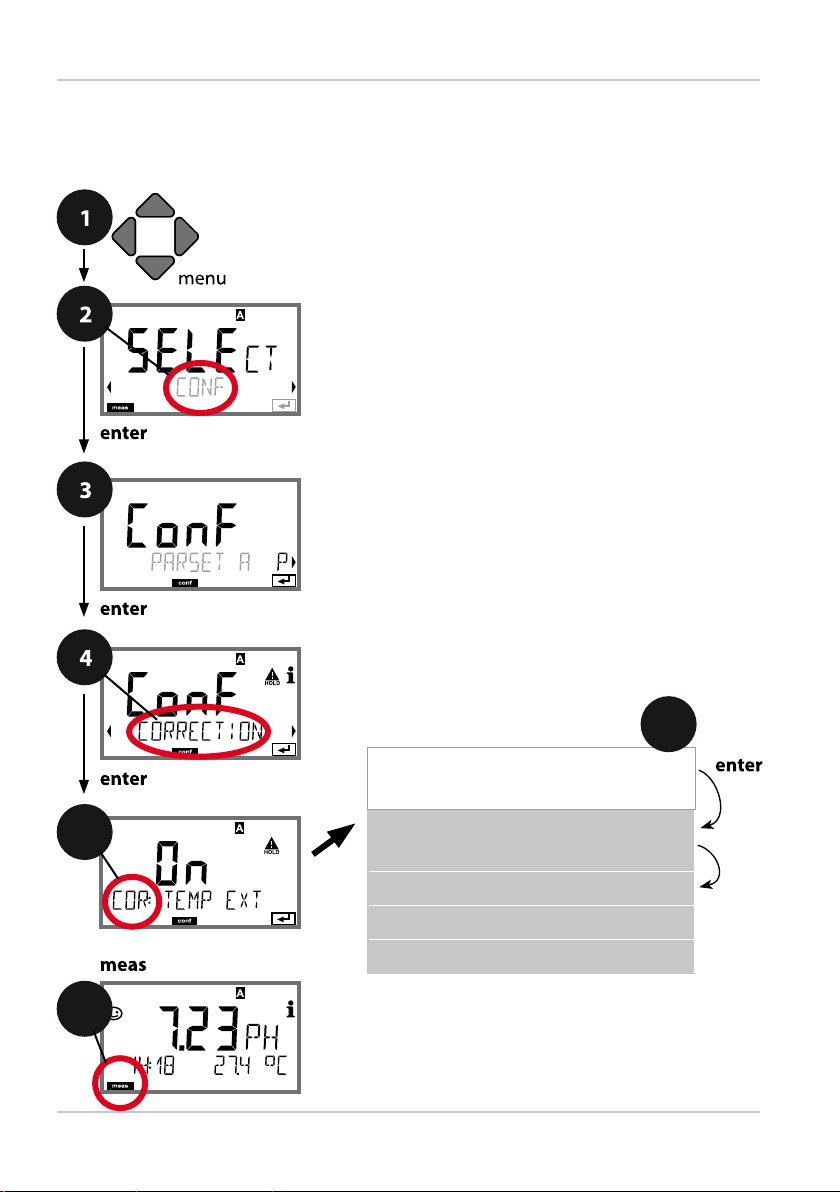

Configuration

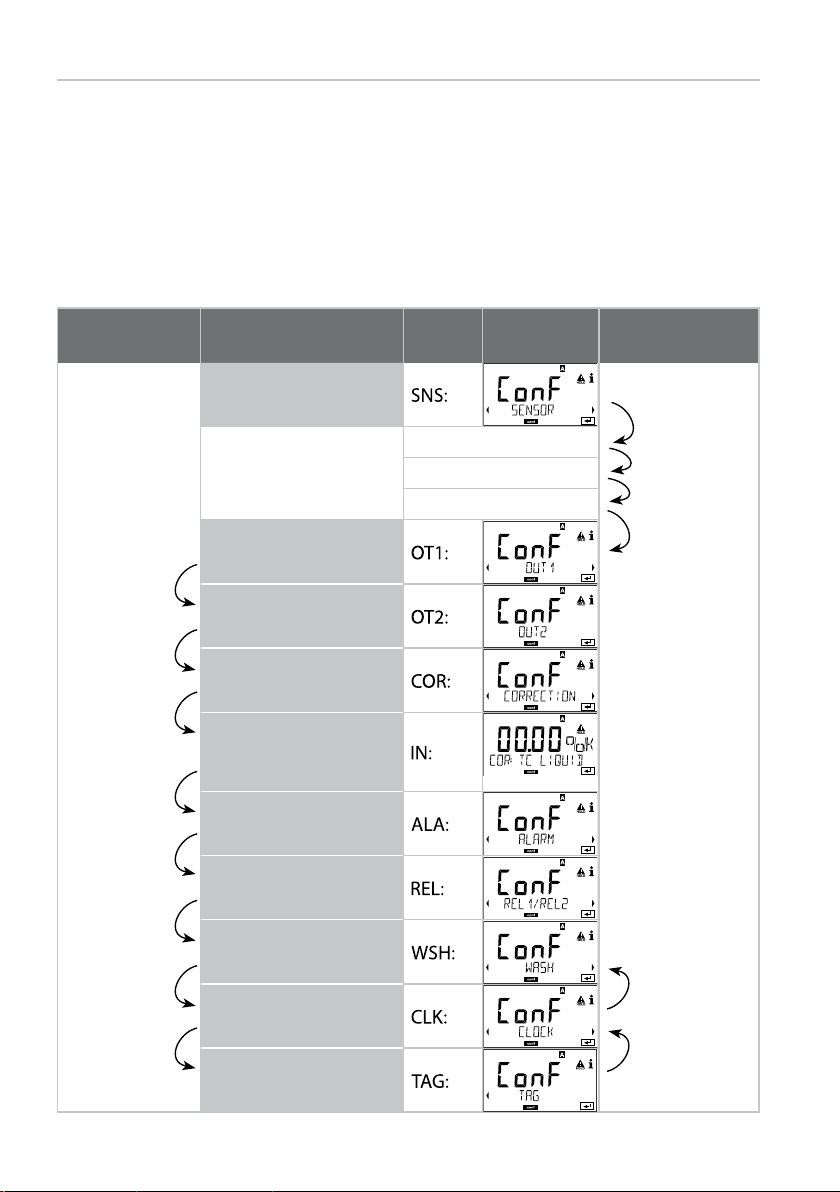

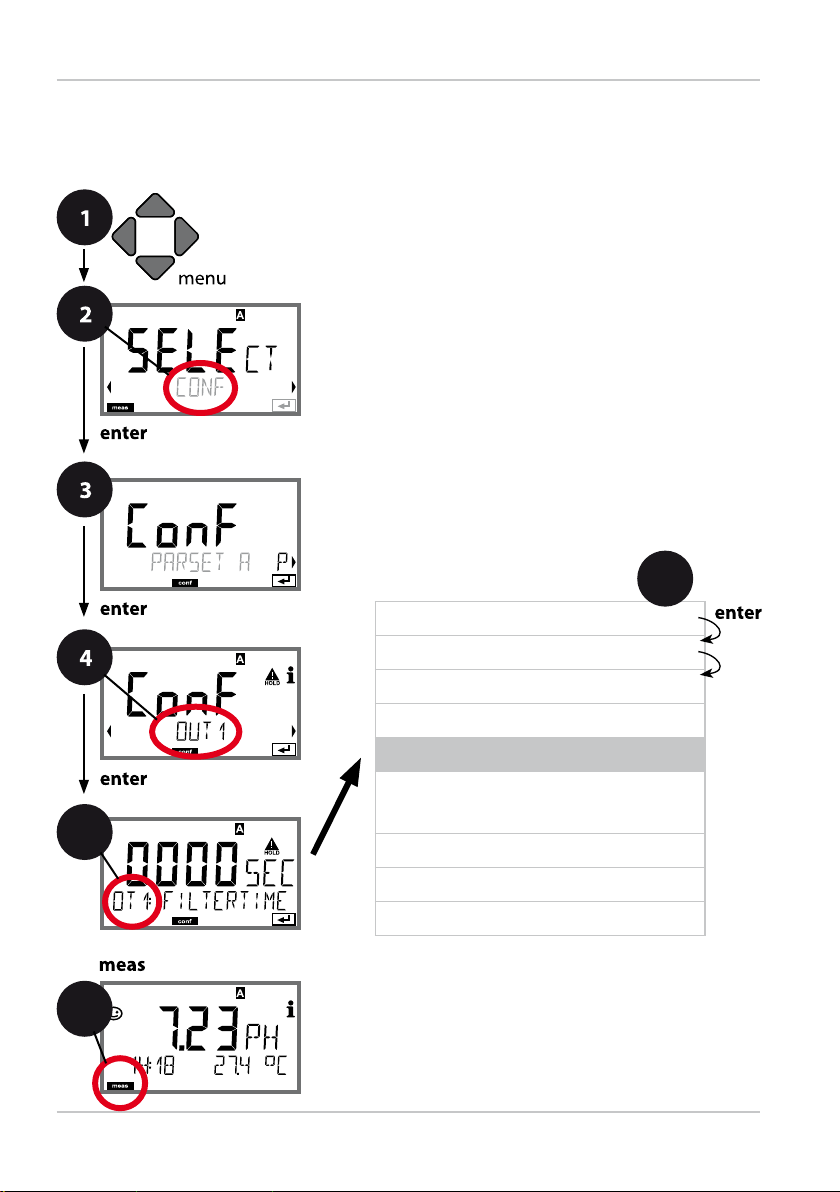

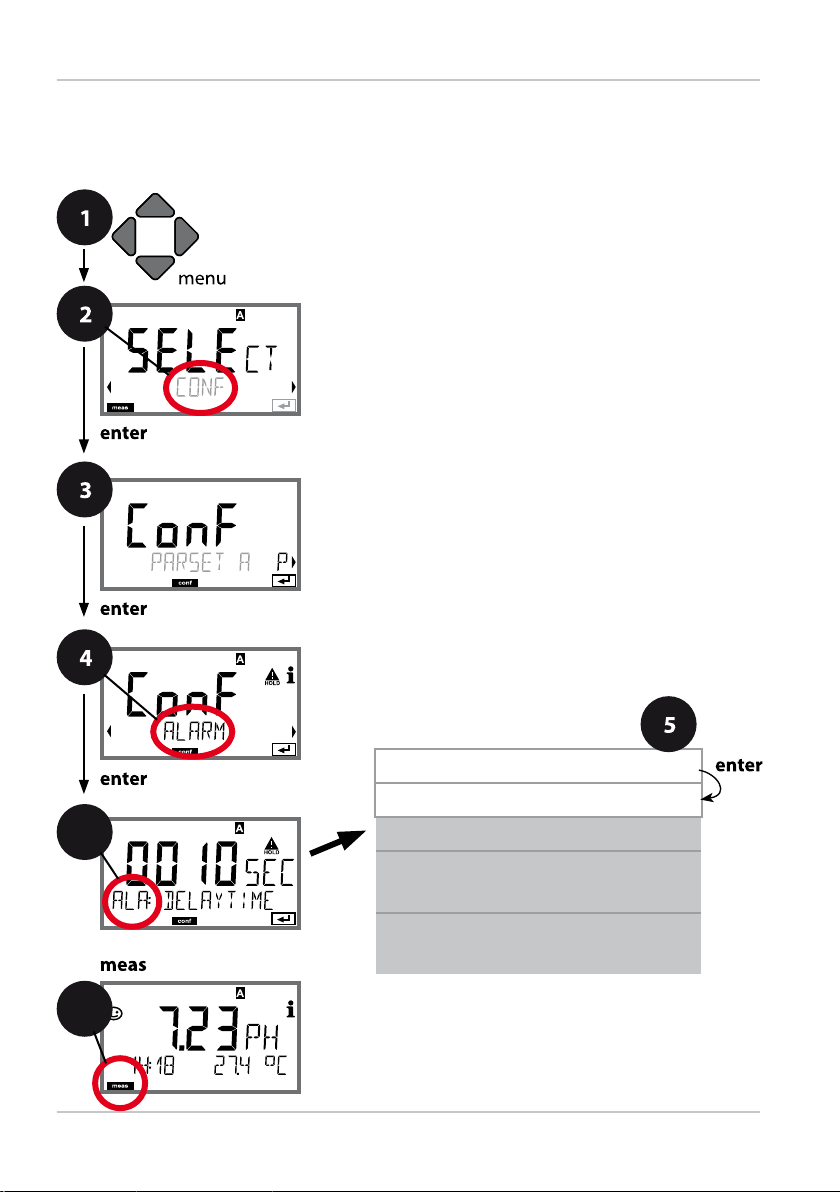

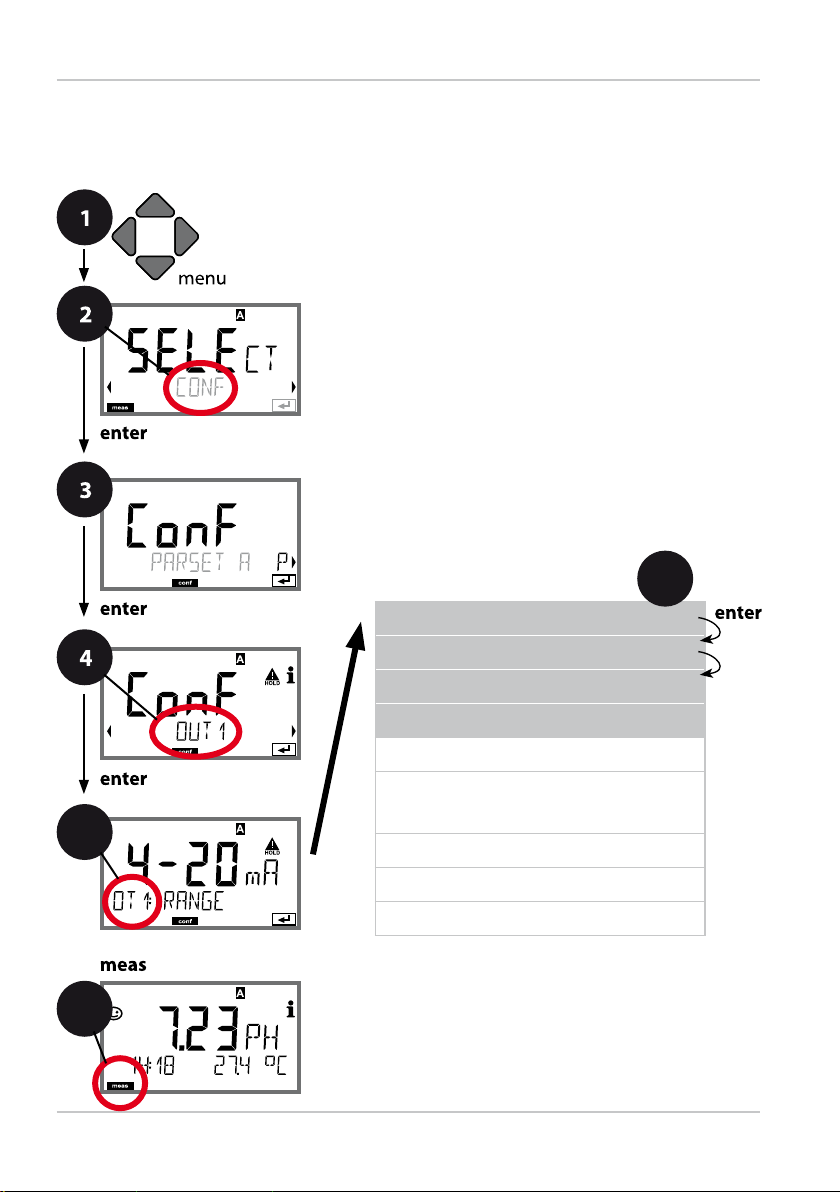

The conguration steps are assigned to dierent menu groups. With the left/right arrow keys you can jump between the individual menu groups. Each menu group contains menu items for setting the parameters. Pressing enter opens a menu item. Use the arrow keys to edit a value. Press enter to conrm/save the settings. Return to measurement: Hold meas key depressed (> 2 s).

Select menu group



Menu group Code Display

Sensor selection

Menu item 1

...

Menu item ...

Current output 1

Current output 2

Compensation

Control input (parameter set or flow measurement)

Alarm mode

Relay outputs

Select menu item

enter



Cleaning



Setting the clock



Tag number

Conguration

Parameter set A/B: congurable menu groups

The device provides 2 parameter sets “A“ and “B“. By switching between the parameter sets you can adapt the device to different measurement situations, for example. Parameter set “B“ only permits setting of process-related parameters.

Menu group Parameter set A Parameter set B

Sensor selection ---

Current output 1 Current output 1 Current output 2 Current output 2 Compensation Compensation Control input --Alarm mode Alarm mode Relay outputs Relay outputs Cleaning --Parameter set selection --Setting the clock --Tag number ---

External switchover of parameter sets A/B

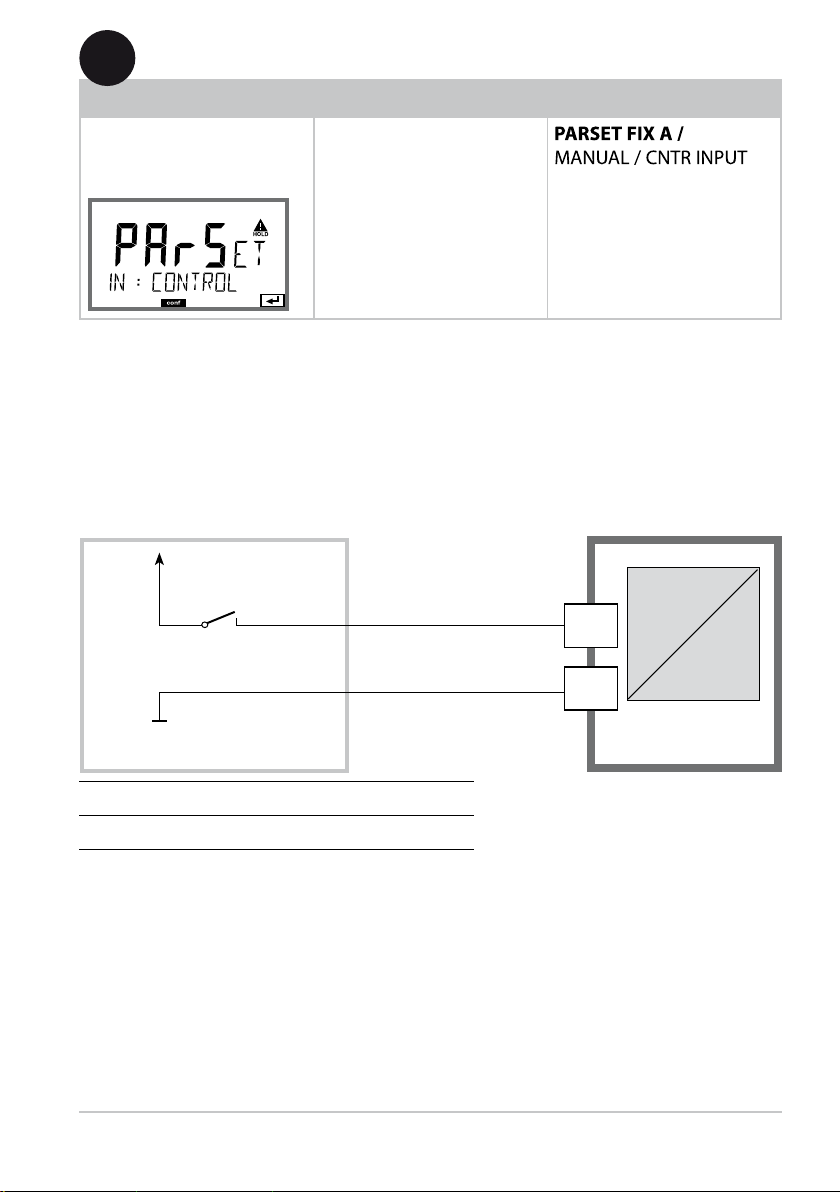

You can switch between parameter sets A and B by applying a signal to the CONTROL input (parameter setting: ).

Max. 30 V AC/DC

CONTROL

input

e.g. process control system

Parameter set A active 0...2 V AC/DC Parameter set B active 10...30 V AC/DC

Conguration

Parameter Set A/B

Manual Selection. Signaling via WASH Contact.

Display Action Remark

To switch between parameter sets: Press meas.

PARSET blinks in the lower line. Select parameter set using and keys

Select PARSET A / PARSET B

Manual selection of parameter sets must have been preset in CONFIG mode. Default setting is a fixed parameter set A. Wrong settings change the measurement properties!

Wash

Press enter to conrm. Cancel by pressing meas.

The active parameter set can be signaled using the WASH contact:

If congured correspondingly, the WASH contact signals: “Parameter set A“ (open contact) “Parameter set B“ (closed contact)

Conguration

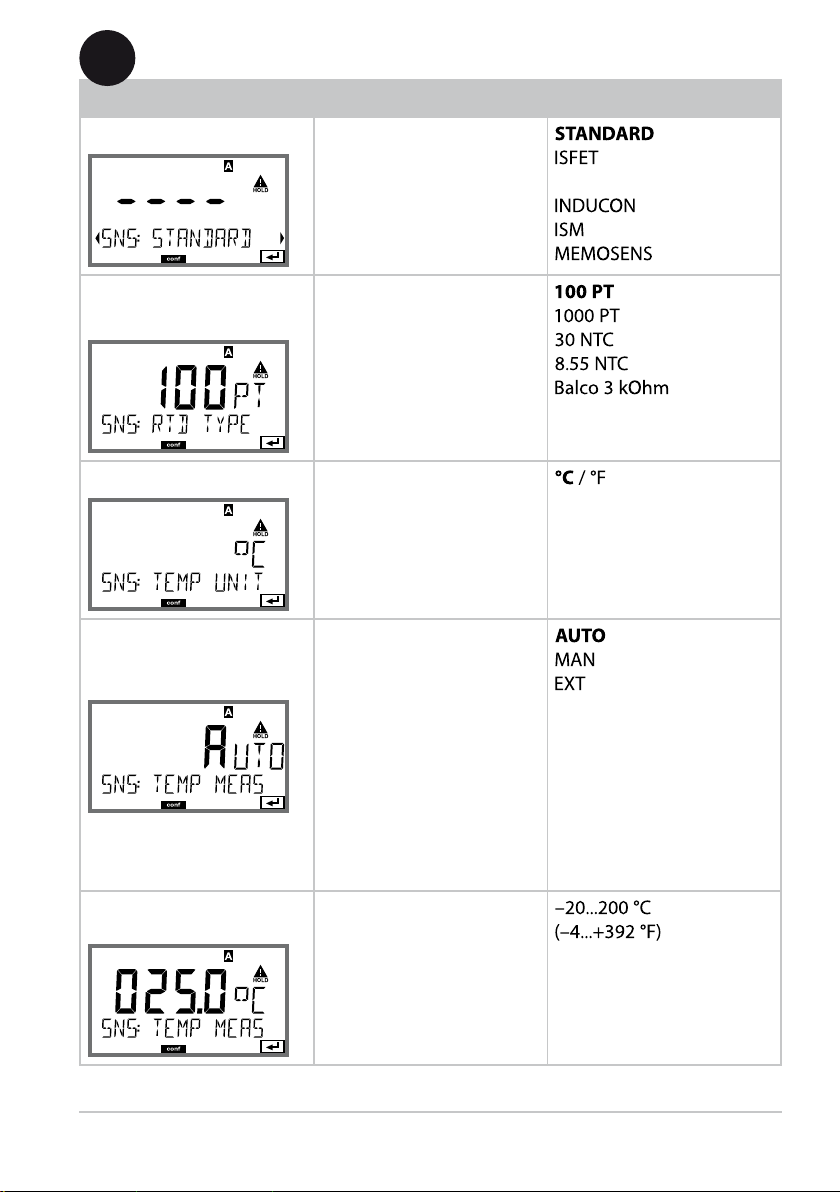

Conguration Select Default

Sensor (SENSOR)

(omitted for ISM)

(EXT. only with I-input enabled via TAN)

Note: Pressing info displays nominal buffer

values + manufacturer

U1 (For specifiable buffer set, see Appendix: “Buffer Tables“)

(omitted for ISM)

*) The setting: TEMP MEAS: AUTO/MAN/EXT applies to all outputs: OUT1/OUT2/limit values/controller/display;

Sensors with deviating zero/slope require the “Pfaudler” option (TAN). Settings with “Sensor: STANDARD” selected (not required for Memosens Pfaudler sensor). **) only with STANDARD and Pfaudler option (TAN), not with Memosens Pfaudler.

Enter values for buffer 1

Enter values for buffer 2

Conguration

Conguration Select Default

Sensor (SENSOR)

ISM (for ISM sensors only)

Conguration

Conguration Select Default

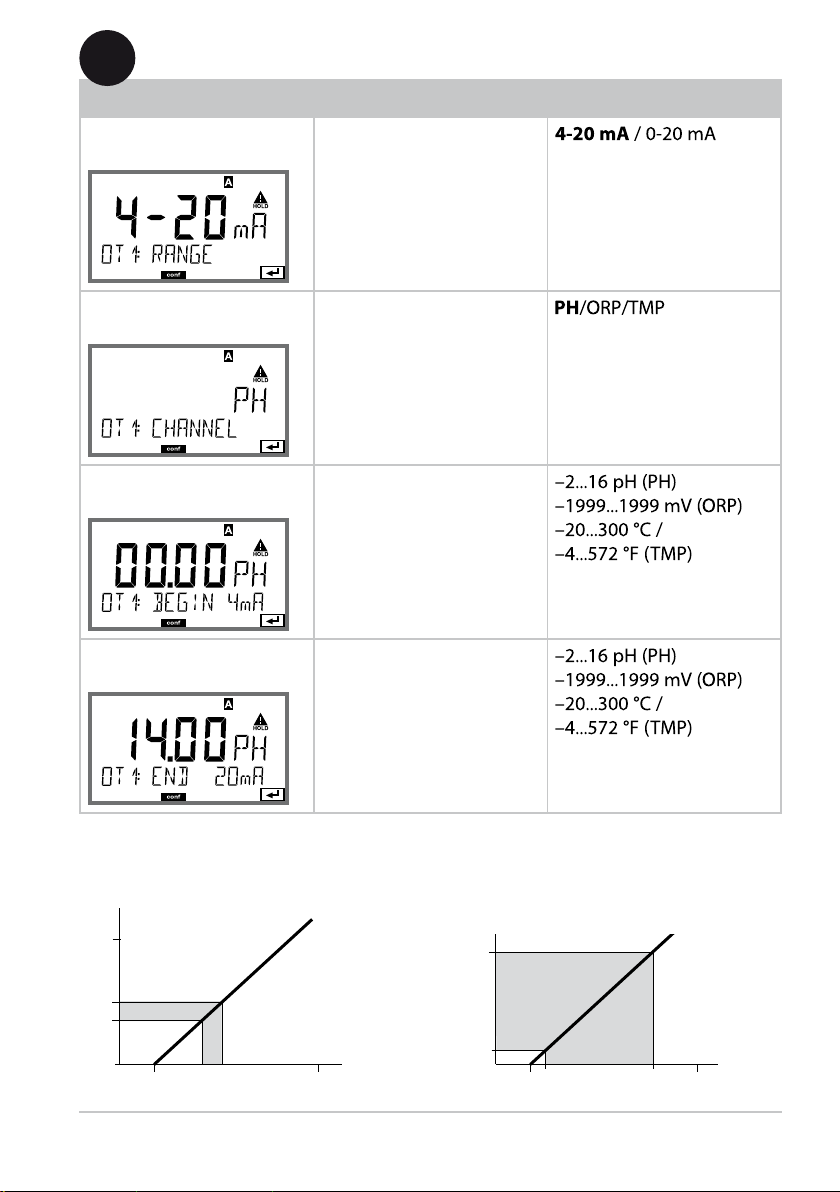

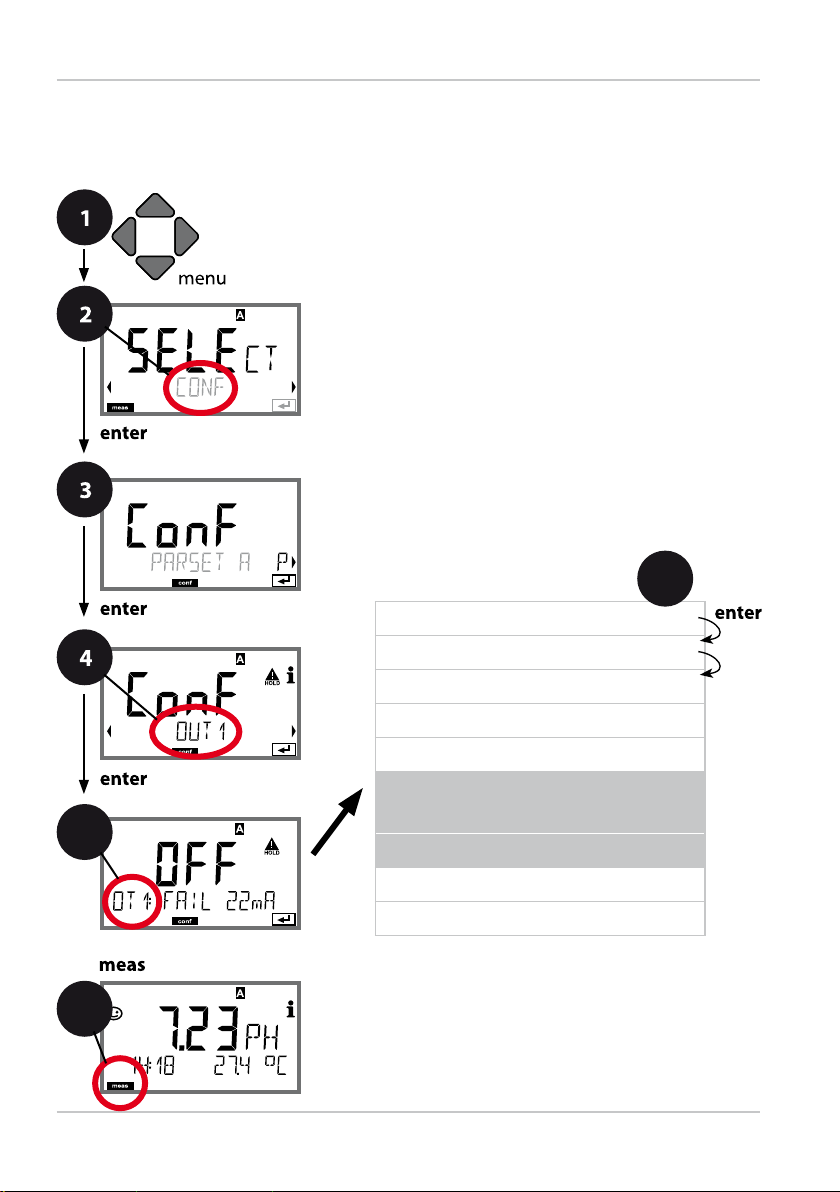

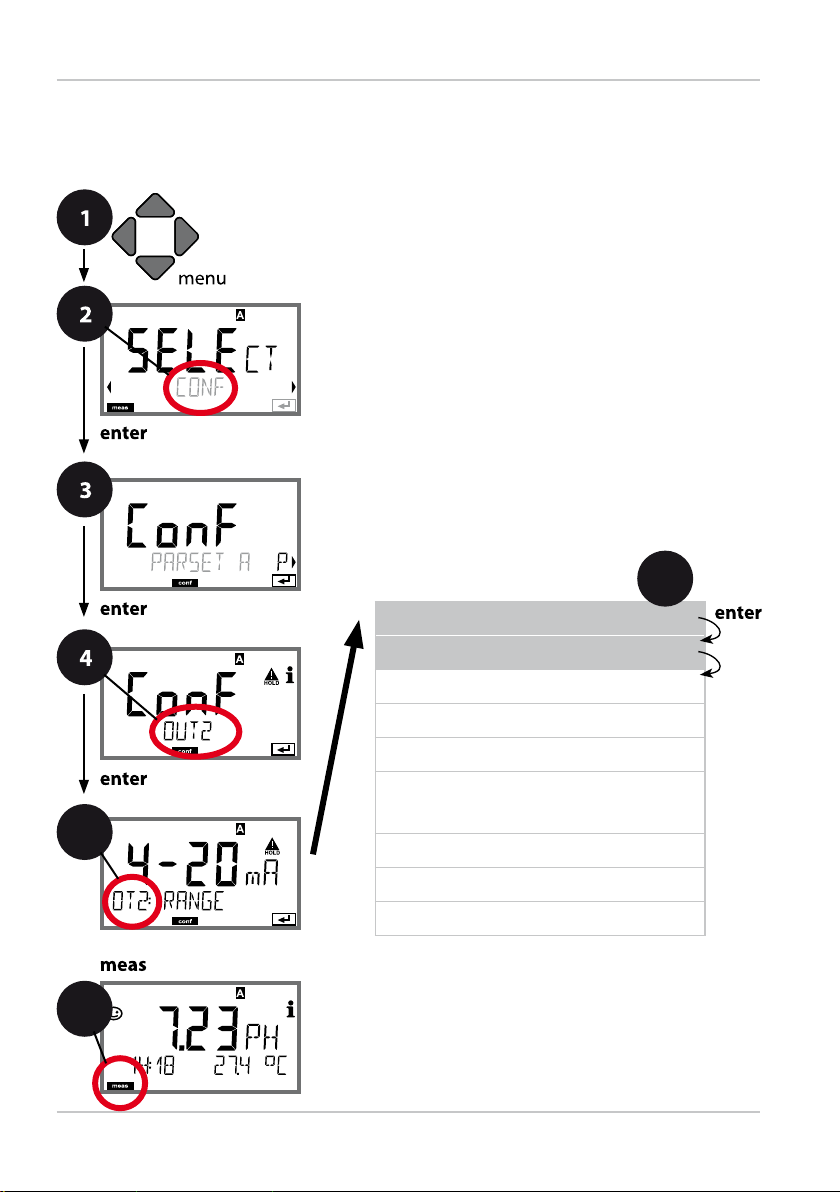

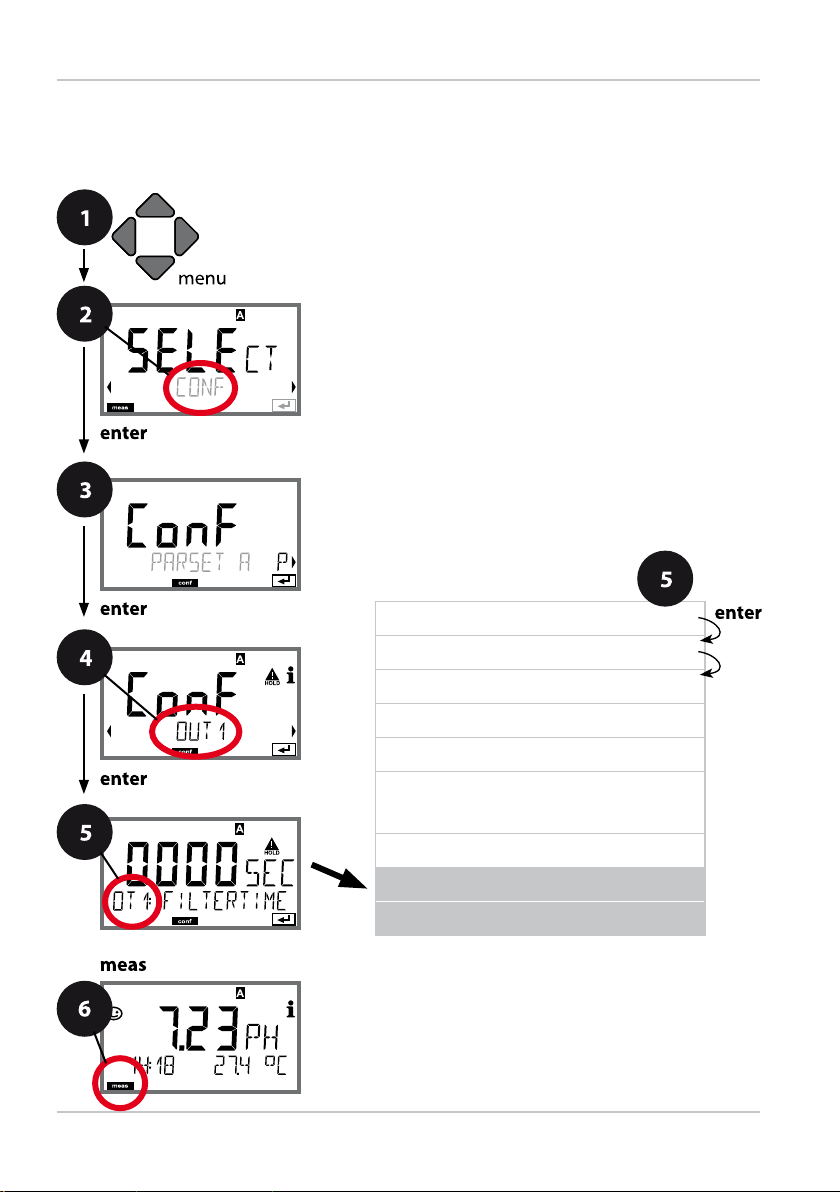

Output 1 (OUT1)

Select°C/°F at

"Sensor“

Output 2 (OUT2)

Select°C/°F at

"Sensor“

Conguration

Conguration Select Default

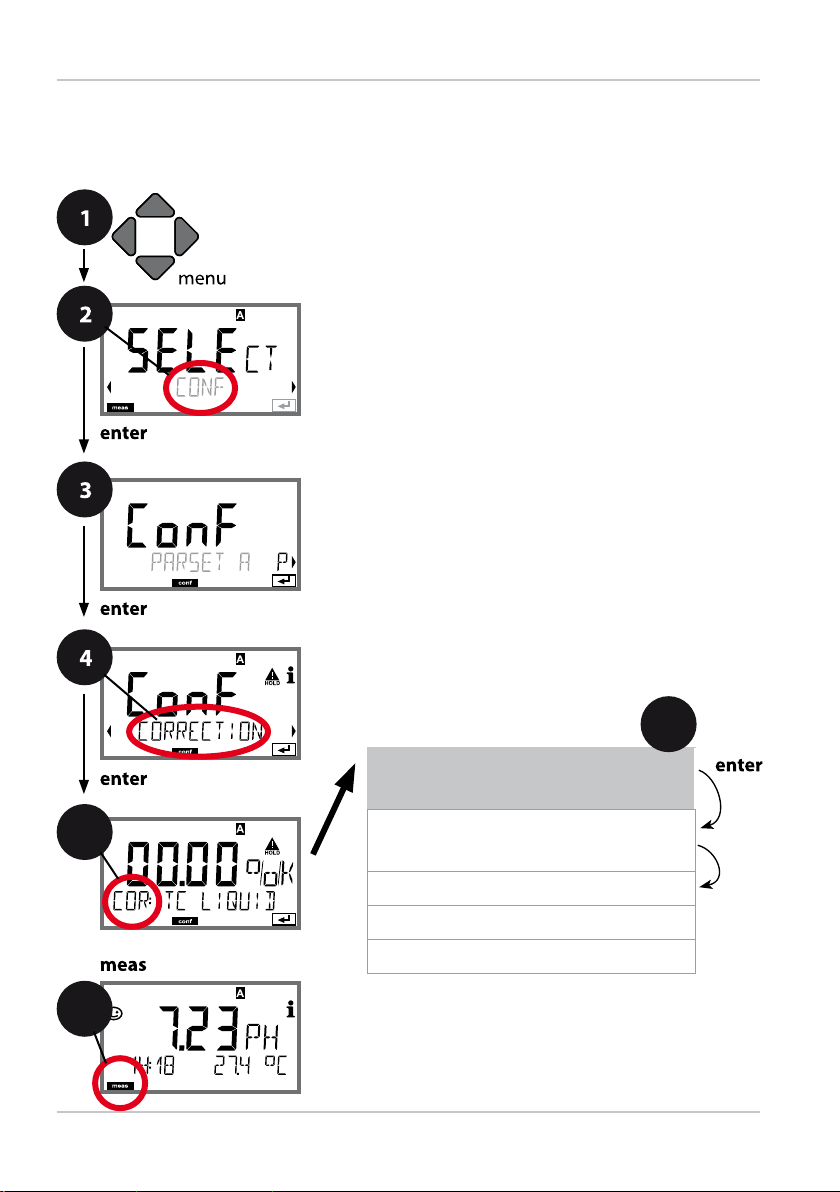

Temperature compensation (CORRECTION)

TC SELECT OFF / LIN / PURE

WTR / USER TAB

LIN TC LIQUID -19.99 ... 19.99 %/K 00.00 %/K

USERTAB EDIT TABLE NO/YES NO

TC xxx °C 0 ... 100 °C in 5K

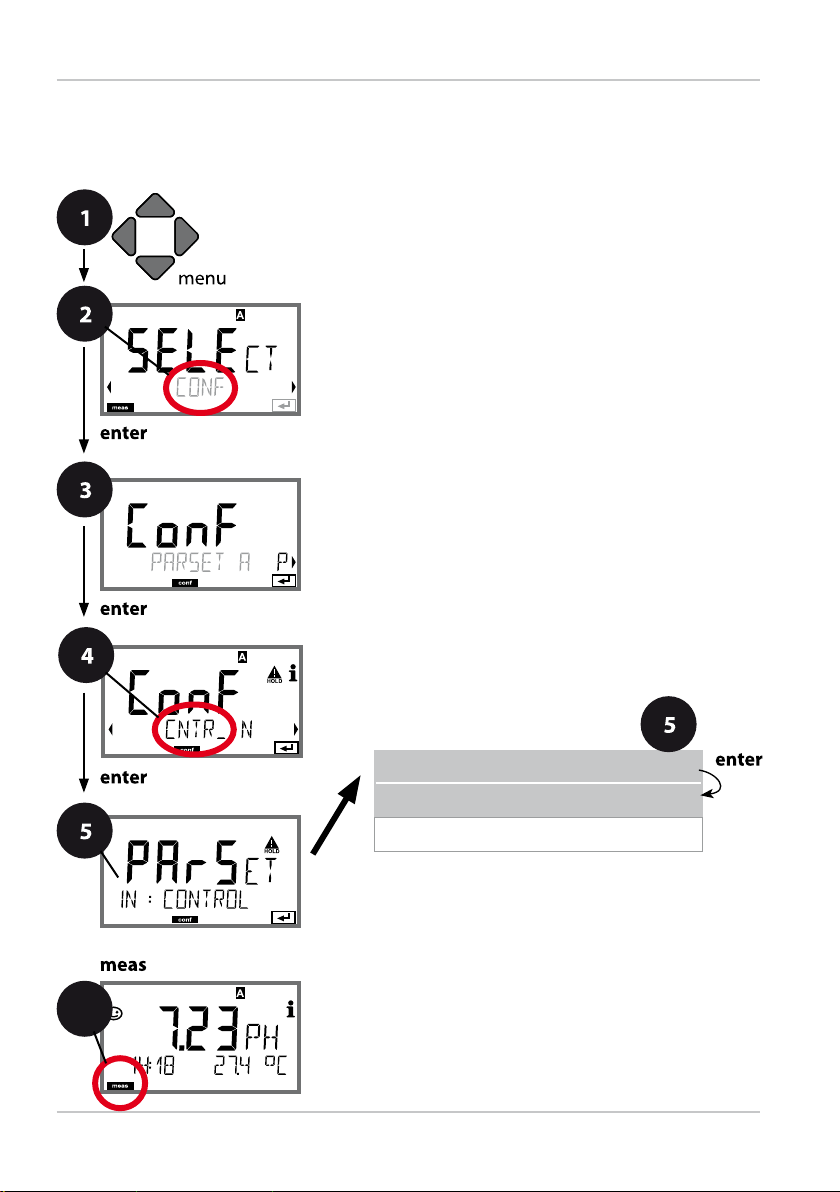

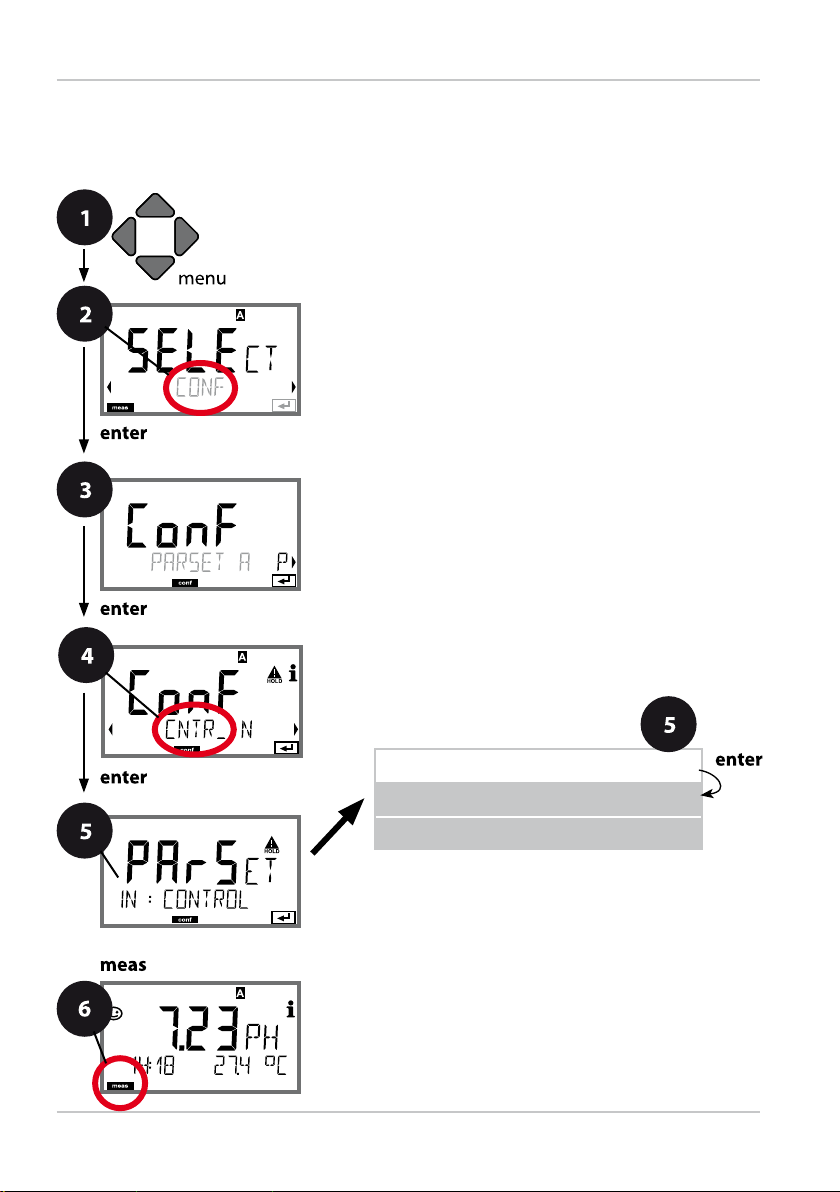

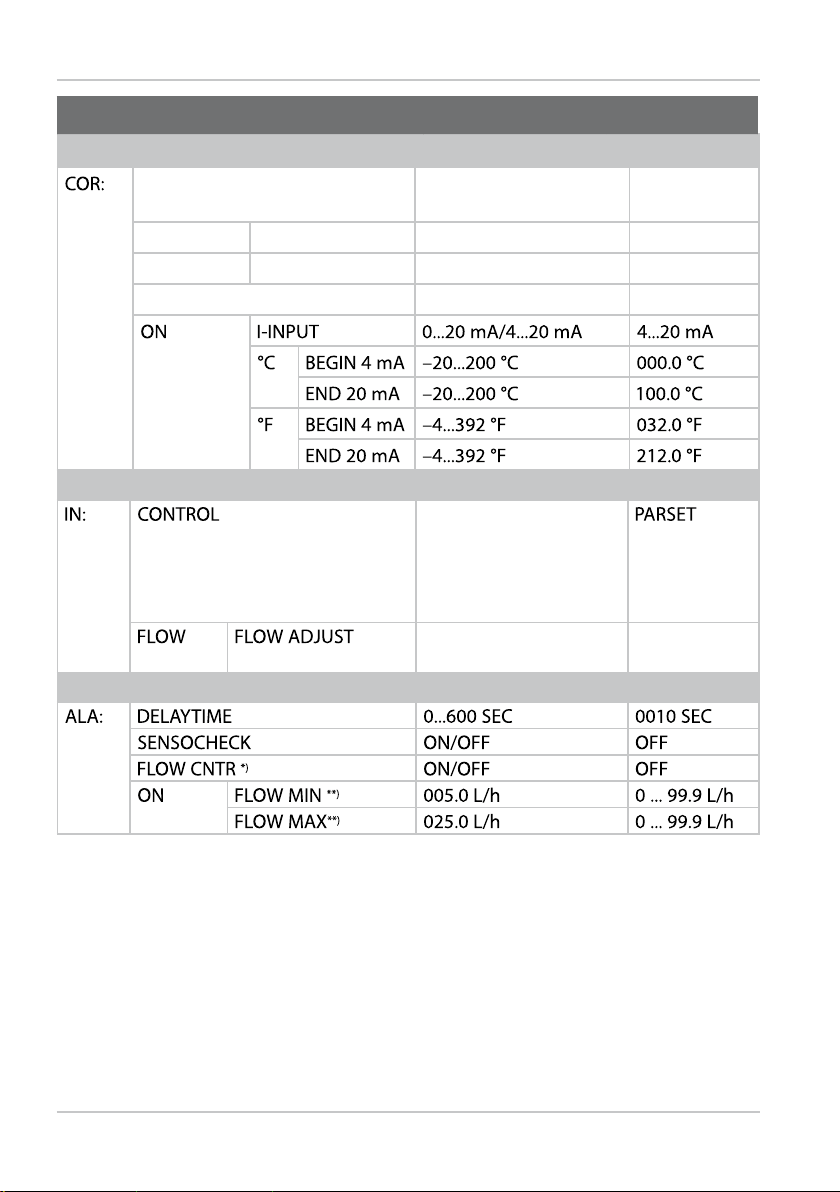

Control input (CNTR_IN)

Parameter-set switchover (PARSET) or flow measurement (FLOW)

12000 pulses/liter

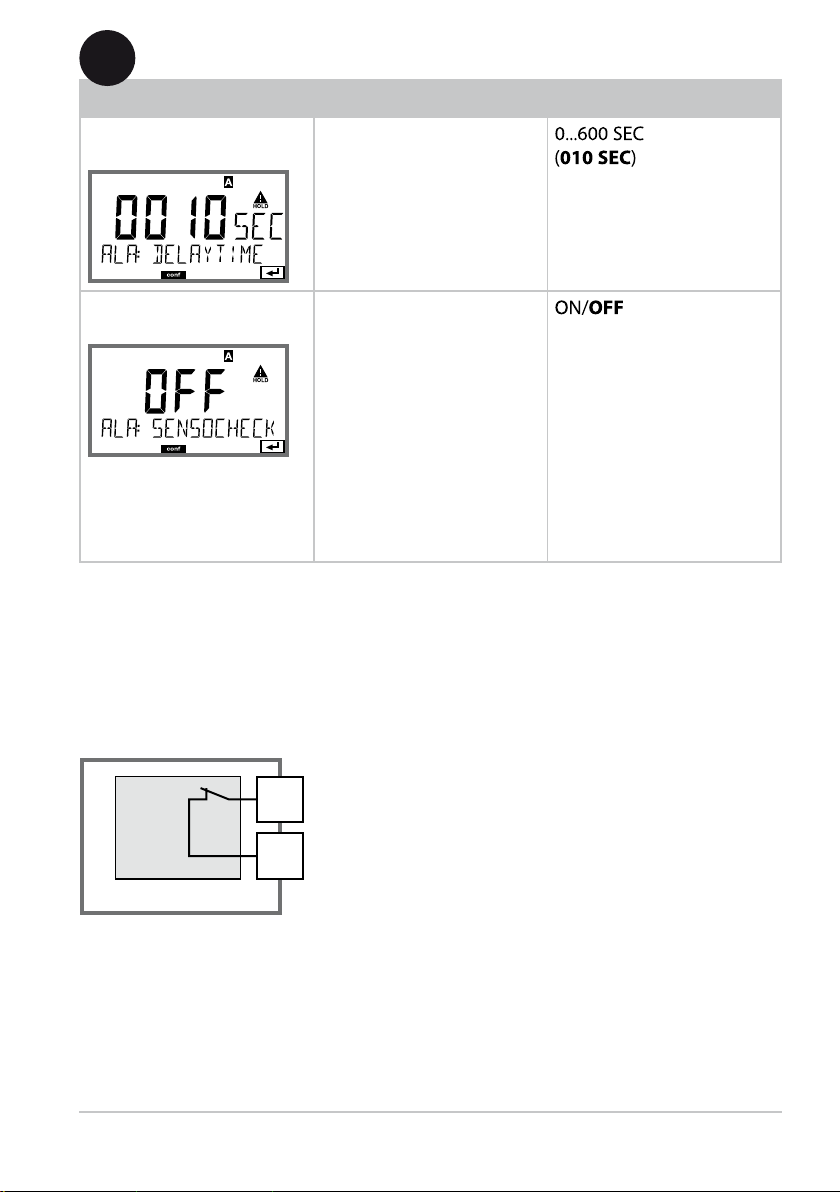

Alarm (ALARM)

OFF

0 ... 20000 pulses/liter

*) is only displayed if enabled and SENSOR: TEMP EXT has been selected. **) Hysteresis fixed at 5% of threshold value

Conguration

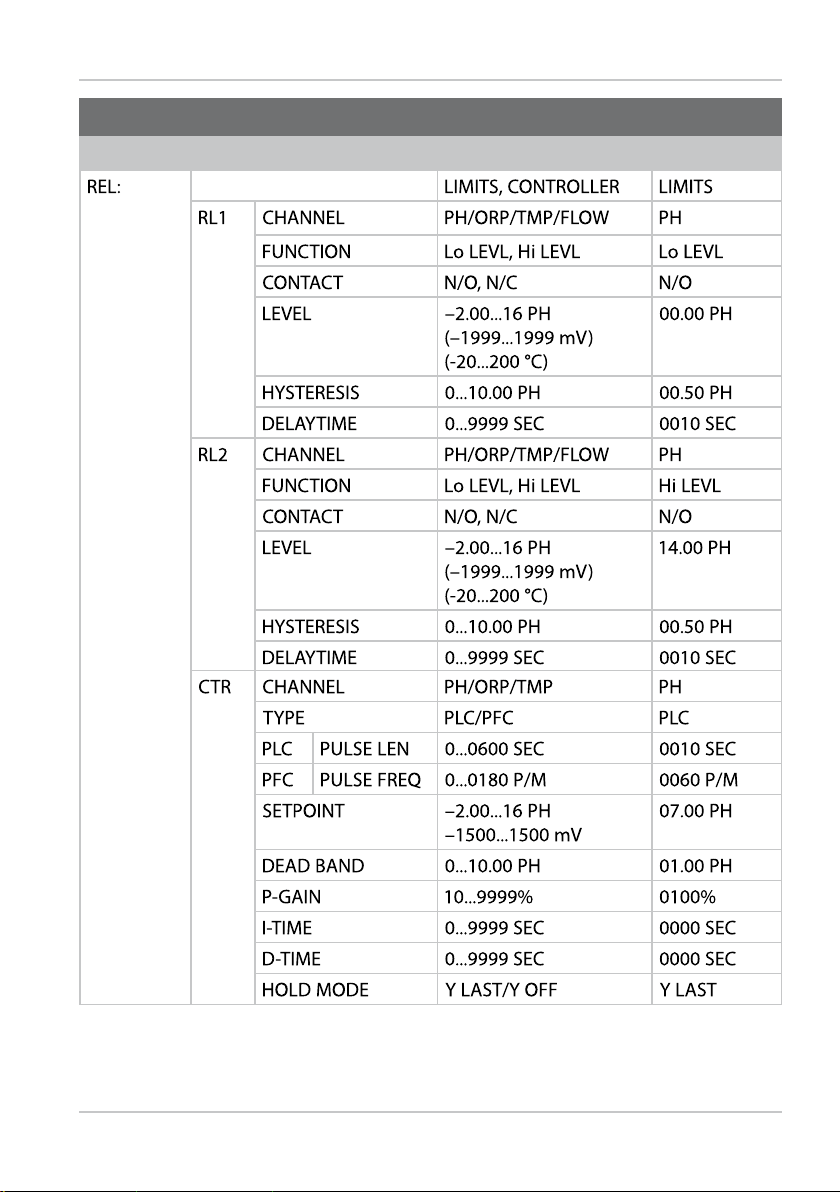

Conguration Choices Default

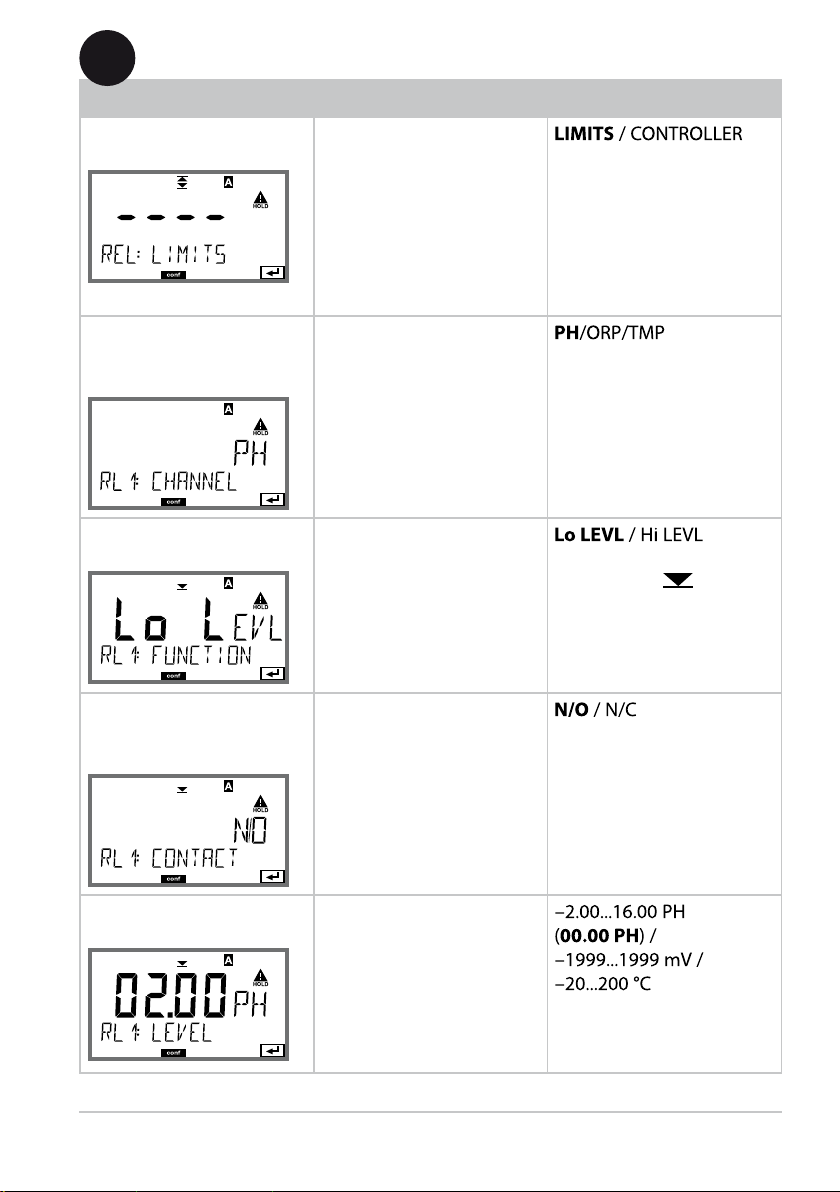

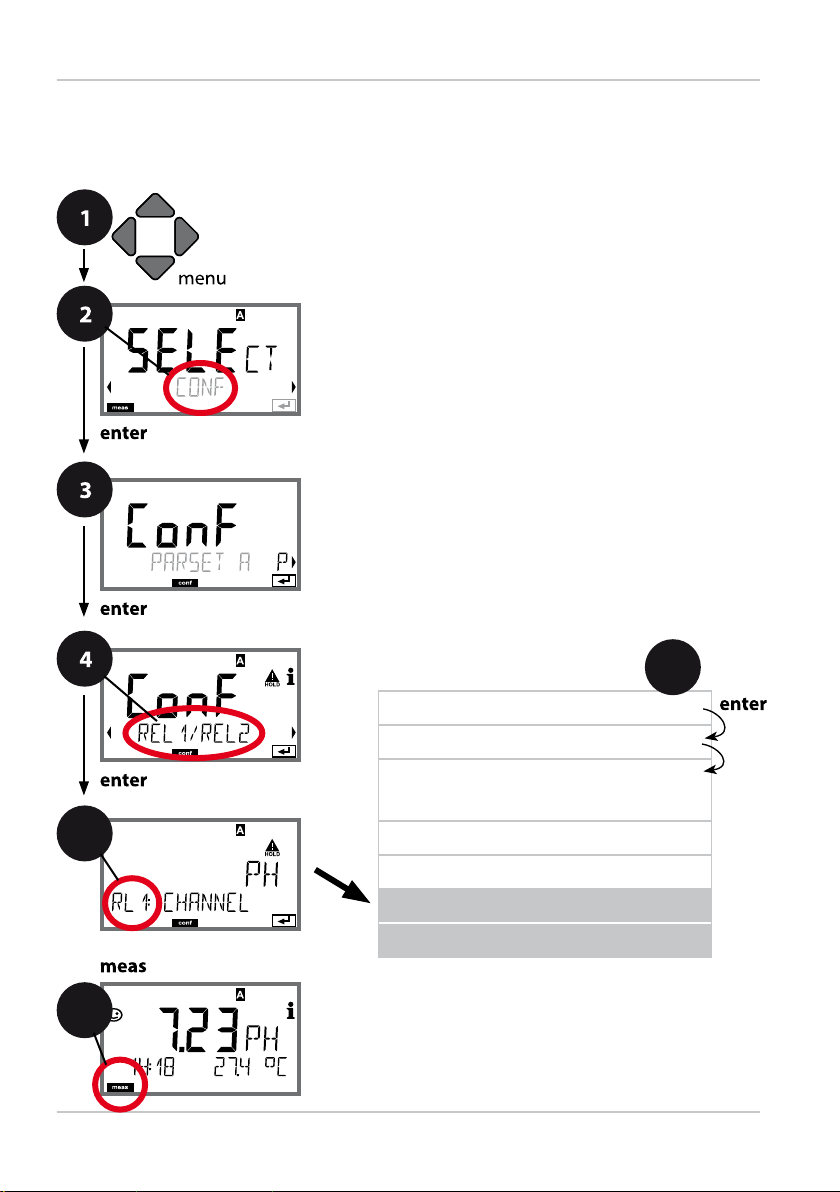

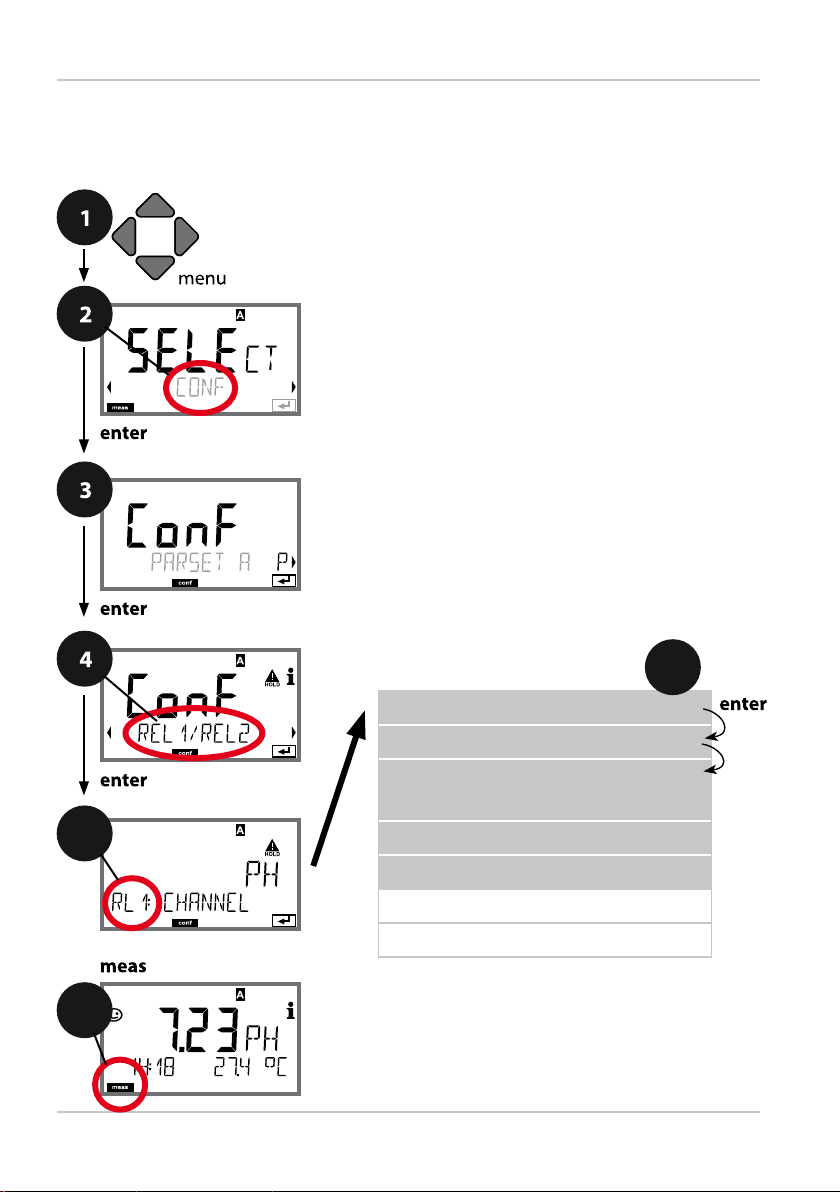

Relay 1/2 (RL1/RL2)

(Selected in text line)

Conguration

Conguration Choices Default

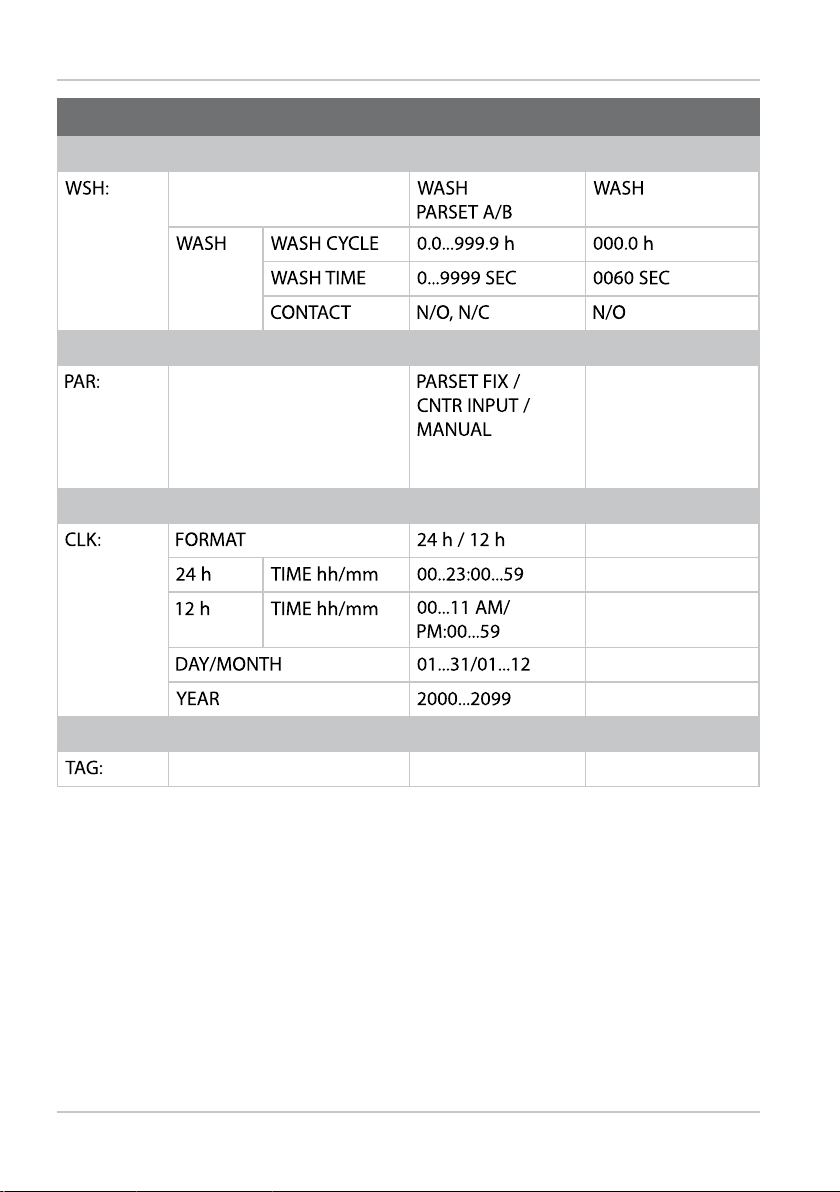

Cleaning contact (WASH)

(Select text line)

Parameter set (PARSET)

Select fixed parameter set (A) or switch between A/B via control input or manually in measuring mode

Real-time clock (CLOCK)

PARSET FIX (fixed parameter set A)

Tag number (TAG)

(Input in text line) ___

Conguration

Support of Pfaudler Sensors

or pH sensors with a zero point other than pH 7 and/or deviating slope, e.g. pH sensors with a zero point at pH 4.6

This requires an additional function (TAN). The option is enabled in the SERVICE / OPT: PFAUDLER menu (see page 148).

For Pfaudler standard pH sensors, you can specify a nominal zero point and a nominal slope. In addition, you can enter a pHiso value. The additional entries appear in the CONFIGURATION / SENSOR menu:

SNS: NOM ZERO (default: 07.00 pH) SNS: NOM SLOPE (default: 59.2 mV) SNS: PH_ISO (default: 07.00 pH)

Prior to measurement, you must enter the values for nominal zero and slope and the isothermal intersection point pHiso as provided by the manufacturer and perform a calibration using suitable buffer solutions. When you use a Memosens Pfaudler sensor, the data will be read from the sensor or will be set to standard values. Here, you do not have to make entries. The respective menu items will be suppressed. The nominal ZERO/SLOPE values are required for the proper functioning of the sensor monitoring and calibration functions (Sensoface, Calimatic), they do not replace an adjustment (calibration)!

Typical values

Probe Pfaudler

enamel probes (Pfaudler specifications)

Nom. slope 55 mV/pH 55 mV/pH 55 mV/pH 55 mV/pH

Nom. zero pH 8.65 pH 8.65 pH 1.35 pH 7 ... 12 pHiso pH 1.35 pH 1.35 pH 1.35 pH 3.00

Probes with absolute pH measurement and Ag/AgCl reference system

Probes with absolute pH measurement and Ag/A (silver acetate) reference system

Differential pH probe

Please note:

Please refer to the operating instructions of the respective sensor for more information on functioning, installation, calibration and configuration.

Parameter Sets (Original for Copy)

Two complete parameter sets are stored in the EEPROM. As delivered, the two sets are identical but can be edited.

Note:

Fill in your conguration data on the following pages or use them as original for copy.

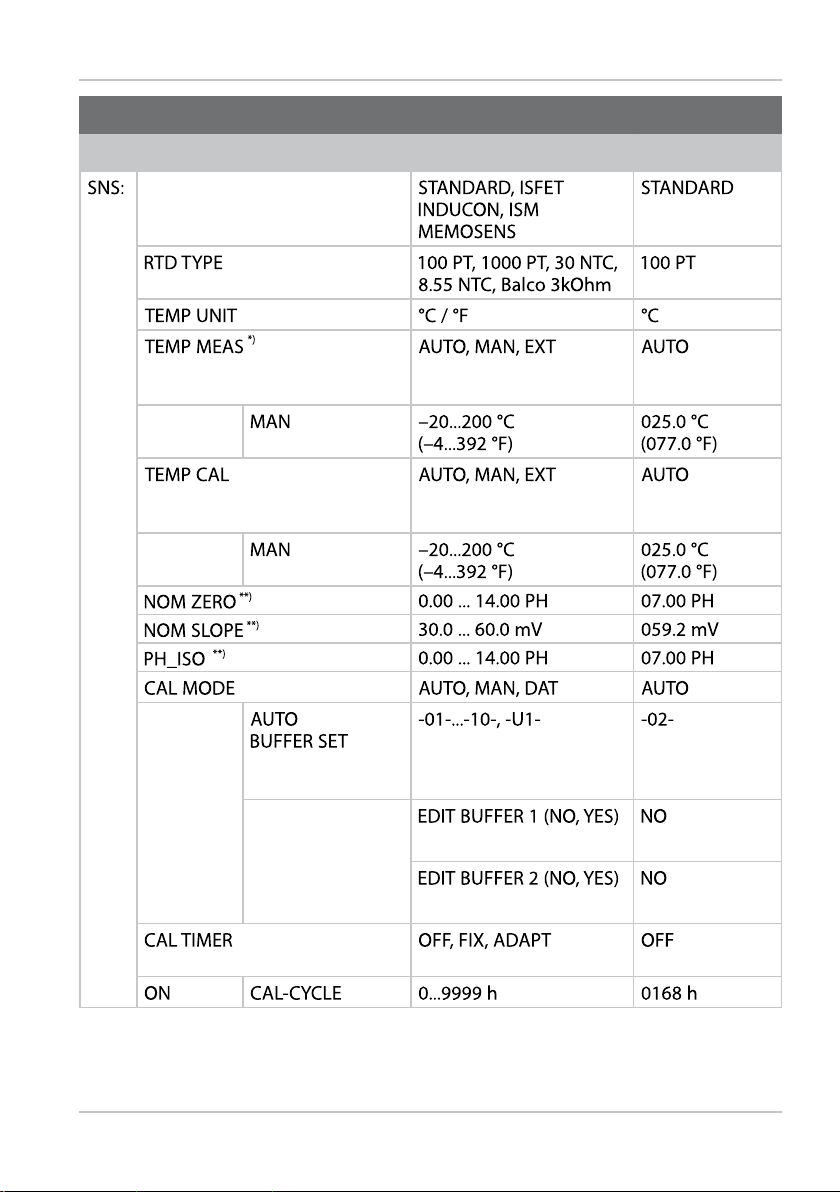

Parameter Parameter set A Parameter set B

SNS: Sensor type

SNS: RTD type

SNS: Temperature unit

SNS: Temp measurement

SNS: Manual meas. temp

SNS: Calibration temp

SNS: Manual cal temp

SNS: Calibration mode

SNS: Select buffer set

(-U1-, see Appendix)

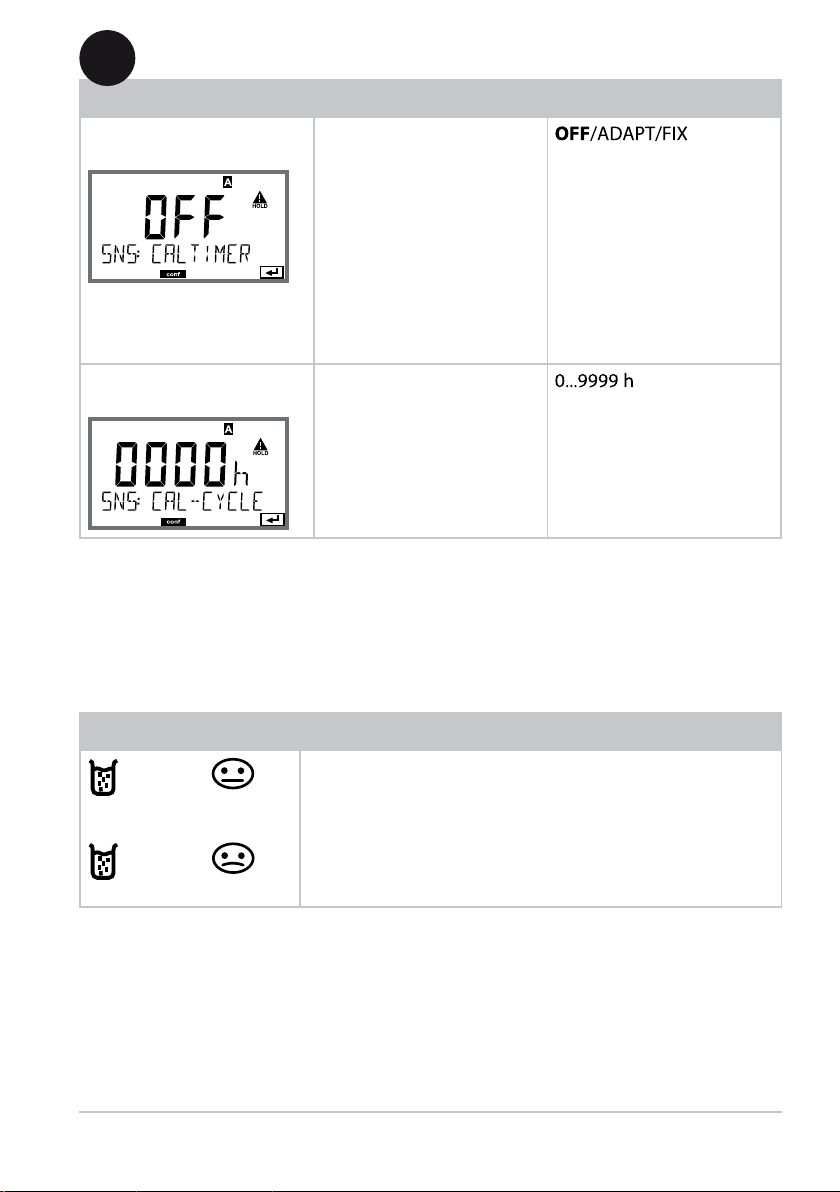

SNS: Calibration timer

SNS: Calibration cycle

SNS: ISM adaptive cal timer (ACT)

SNS: ISM adaptive maintenance timer (TTM)

SNS: CIP counter

SNS: CIP cycles

SNS: SIP counter

SNS: SIP cycles

SNS: Autoclaving counter

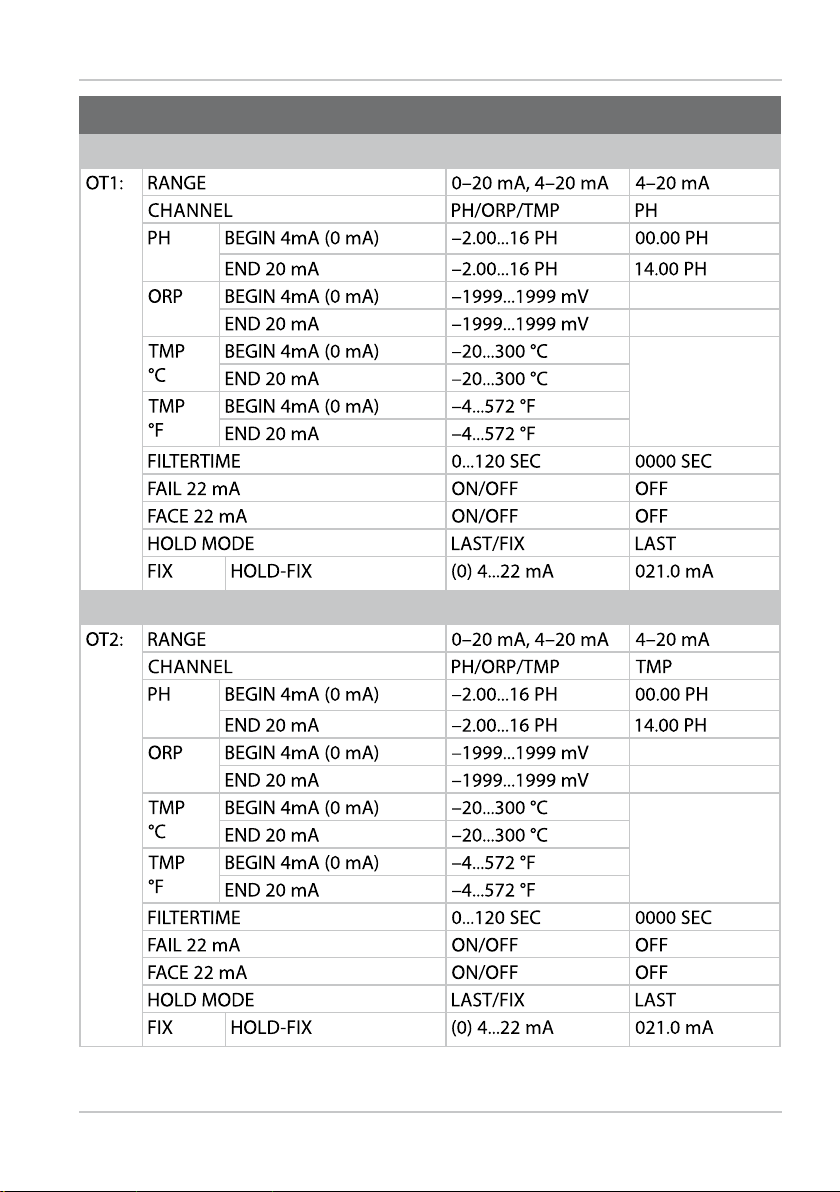

OT1: Current range

OT1: Process variable

*) These parameters cannot be adjusted in parameter set B,

the values are the same as in parameter set A.

Parameter Sets (Original for Copy)

Parameter Parameter set A Parameter set B

OT1: Current start

OT1: Current end

OT1: Filter time

OT1: 22 mA error current

OT1: Sensoface 22mAerror current

OT1: HOLD mode

OT1: HOLD-FIX current

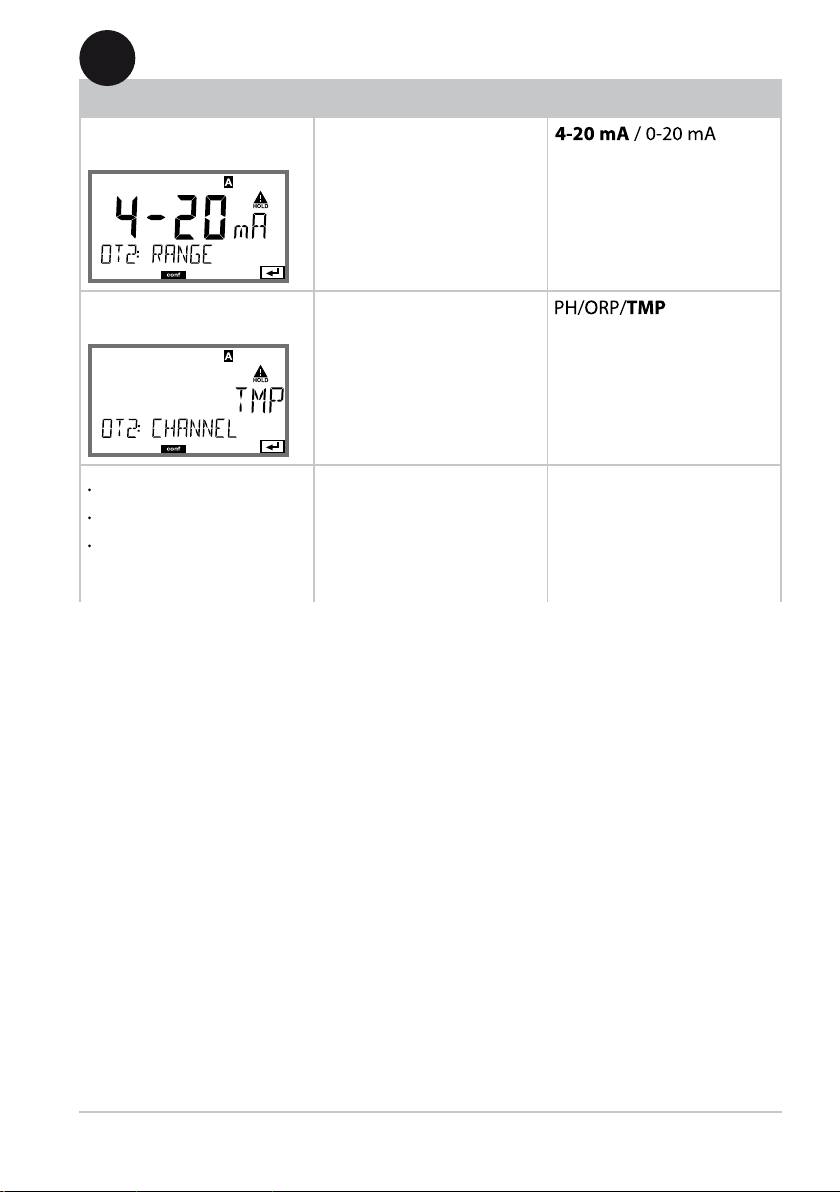

OT2: Current range

OT2: Process variable

OT2: Current start

OT2: Current end

OT2: Filter time

OT2: 22 mA error current

OT2: Sensoface 22mAerror current

OT2: HOLD mode

OT2: HOLD-FIX current

COR: Temp coefficient

COR: Ext. temp input

COR: Current range

COR: Current start

COR: Current end

IN: Parameter set A/B or flow

IN: (Flow meter) Adjusting pulses/liter

ALA: Delay

ALA: Sensocheck on/off

ALA: Flow control FLOW CNTR on/off

ALA: Minimum flow (hysteresis fixed at 5 %)

ALA: Maximum flow (hysteresis fixed at 5 %)

Parameter Sets (Original for Copy)

Parameter Parameter set A Parameter set B

REL: Usage

RL1: Process variable

RL1: Function

RL1: Contact response

RL1: Setpoint

RL1: Hysteresis

RL1: Delay

RL2: Process variable

RL2: Function

RL2: Contact response

RL2: Setpoint

RL2: Hysteresis

RL2: Delay

CTR: Process variable

CTR: Controller type

CTR: Pulse length

CTR: Pulse frequency

CTR: Setpoint

CTR: Neutral zone

CTR: P gain

CTR: I time

CTR: D time

CTR: HOLD mode

WSH: Usage

WSH: Wash cycle

WSH: Wash duration

WSH: Contact response

PAR:

Parameter set

selection

Parameter Sets (Original for Copy)

Parameter Parameter set A Parameter set B

CLK: Time format

CLK: Time hh/mm

CLK: Day/month

CLK: Year

TAG: Tag number

*) These parameters cannot be adjusted in parameter set B,

the values are the same as in parameter set A.

Conguration

Sensor

Select: sensor type, temperature probe, temperature unit,

temp detection during measurement

1) Press menu key.

2) Select CONF using  keys, press enter.

3) Select parameter set using , press enter.

4) Select SENSOR menu using  keys, press enter.

5) All items of this menu group are indicated by the “SNS:” code. Press enter to select menu, edit using arrow keys (see next page). Confirm (and proceed) by pressing enter.

6) Exit: Press meas key until the [meas] mode indicator is displayed.

Select sensor type

Select type of temp probe

Temperature unit

Temp detection during measurement

(Manual temperature)

Temp detection during calibration

(Manual temperature)

Calibration mode

(AUTO: Buffer set)

Calibration timer

Calibration cycle

Cleaning cycles

Cleaning cycle counter

Sterilization cycles

Sterilization cycle counter

Conguration

Menu item Action Choices

Select sensor type

Select sensor type using  keys.

Press enter to confirm.

Digital sensors:

Select type of temp probe

Temperature unit

Temp detection during measurement

(Manual temperature)

(not for digital sensors) Select type of temperature probe using  keys.

Press enter to confirm.

Select °C or °F using  keys.

Press enter to confirm.

Select mode using  keys: AUTO: Measured by sensor MAN: Direct input of temperature, no measurement (see next step) EXT: Temperature specified via current input (only if TAN E enabled) Press enter to confirm.

Modify digit using  keys, select next digit using  keys. Press enter to confirm.

Conguration

Sensor

Select: temp detection during calibration, calibration mode

1) Press menu key.

2) Select CONF using  keys, press enter.

3) Select parameter set using , press enter.

4) Select SENSOR menu using  keys, press enter.

5) All items of this menu group are indicated by the “SNS:” code. Press enter to select menu, edit using arrow keys (see next page). Confirm (and proceed) by pressing enter.

6) Exit: Press meas key until the [meas] mode indicator is displayed.

Select sensor type

Select type of temp probe

Temperature unit

Temp detection during measurement

(Manual temperature)

Temp detection during calibration

(Manual temperature)

Calibration mode

(AUTO: Buffer set)

Calibration timer

Calibration cycle

Cleaning cycles

Cleaning cycle counter

Sterilization cycles

Sterilization cycle counter

Conguration

Menu item Action Choices

Temp detection during calibration

(Manual temperature)

Modify digit using  keys, select next digit using  keys. Press enter to confirm.

Calibration mode

(AUTO: Buer set)

Select CALMODE using  keys: AUTO: Calibration with Calimatic buffer set recognition MAN: Manual entry of buffer solutions DAT: Input of adjustment data of premeasured sensors Press enter to confirm.

Select buffer set using  keys (see buffer tables for nominal values).

Press enter to confirm.

-00-...-10-, (-U1-, see Appendix)

Pressing the info key displays the manufacturer and nominal values in the lower line.

Conguration

Sensor

Adjust: Cal timer, cal cycle

1) Press menu key.

2) Select CONF using  keys, press enter.

3) Select parameter set using , press enter.

4) Select SENSOR menu using  keys, press enter.

5) All items of this menu group are indicated by the “SNS:” code. Press enter to select menu, edit using arrow keys (see next page). Confirm (and proceed) by pressing enter.

6) Exit: Press meas key until the [meas] mode indicator is displayed.

Select sensor type

Select type of temp probe

Temperature unit

Temp detection during measurement

(Manual temperature)

Temp detection during calibration

(Manual temperature)

Calibration mode

(AUTO: Buffer set)

Calibration timer

Calibration cycle

Cleaning cycles

Cleaning cycle counter

Sterilization cycles

Sterilization cycle counter

Conguration

Menu item Action Choices

Calibration timer

Calibration cycle

Note for the calibration timer:

When Sensocheck has been activated in the Conguration – Alarm menu, the expiration of the calibration interval is indicated by Sensoface:

Adjust CALTIMER using  keys: OFF: No timer ADAPT: Maximum cal cycle (adjust in the next step) FIX: Fixed cal cycle (adjust in the next step) Press enter to confirm.

Only with FIX/ADAPT: Modify digit using  keys, select next digit using  keys. Press enter to confirm.

With ADAPT, the calibration cycle is automatically reduced depending on the sensor load (high temperatures and pH values) and for digital sensors also depending on the sensor wear

Display Status

The calibration timer settings apply to both parameter sets A and B.

The time remaining until the next due calibration can be seen in the diagnostics menu (see Diagnostics chapter).

Over 80 % of the calibration interval has already past.

The calibration interval has been exceeded.

Conguration

ISM Sensor

Adaptive cal timer (ACT)

enter

meas

1) Press menu key.

2) Select CONF using  keys, press enter.

3) Select parameter set using  keys, press enter.

4) Select SENSOR menu using  keys, press enter.

5) All items of this menu group are indicated by the “SNS:” code. Press enter to select menu, edit using arrow keys (see next page). Confirm (and proceed) by pressing enter.

6) Exit: Press meas key until the [meas] mode indicator is displayed.

Select sensor type

Temperature unit

Temp detection during measurement

(Manual temperature)

Temp detection during calibration

(Manual temperature)

Calibration mode

(AUTO: Buffer set)

ACT - Adaptive calibration timer

TTM - Adaptive maintenance timer

CIP/SIP cycles

Autoclaving counter

Conguration

Adaptive Calibration Timer (ACT)

By issuing a Sensoface message, the adaptive calibration timer reminds you to calibrate the sensor. After expiration of the ACT interval, Sensoface is getting “sad”. Pressing the info key shows the text “OUT OF CAL TIME CALIBRATE SENSOR” which reminds you that a calibration is due. The ACT interval is either read automatically from the sensor settings or can be specied manually (max. 9999 days). Stressing inuences (temperature, measurement in extreme ranges) shorten the timer interval.

The adaptive cal timer is reset after each calibration.

You can congure the current outputs so that a Sensoface message generates a 22-mA error signal, see page 81.

Menu item Action Choices

Adaptive cal timer (ACT)

Select using  keys: AUTO: The interval stored in the ISM sensor is used (default) MAN: The interval is specified manually (0 ... 9999 days)

Press enter to confirm.

Conguration

ISM Sensor

Adaptive Maintenance Timer (TTM)

enter

meas

1) Press menu key.

2) Select CONF using  keys, press enter.

3) Select parameter set using  keys, press enter.

4) Select SENSOR menu using  keys, press enter.

5) All items of this menu group are indicated by the “SNS:” code. Press enter to select menu, edit using arrow keys (see next page). Confirm (and proceed) by pressing enter.

6) Exit: Press meas key until the [meas] mode indicator is displayed.

Select sensor type

Temperature unit

Temp detection during measurement

(Manual temperature)

Temp detection during calibration

(Manual temperature)

Calibration mode

(AUTO: Buffer set)

ACT - Adaptive calibration timer

TTM - Adaptive maintenance timer

CIP/SIP cycles

Autoclaving counter

Conguration

Adaptive Maintenance Timer

(TTM, Time To Maintenance)

By issuing a Sensoface message, the adaptive maintenance timer reminds you to service the sensor. After expiration of the interval, Sensoface is getting “sad”. Pressing the info key shows the text “OUT OF MAINTENANCE CLEAN SENSOR” which reminds you that a sensor maintenance is due. The TTM interval is either read automatically from the sensor settings or can be specied manually (max.9999 days). Stressing inuences (temperature, measurement in extreme ranges) shorten the timer interval. You can congure the current outputs so that a Sensoface message generates a 22-mA error signal, see page 81.

Menu item Action Choices

Adaptive maintenance timer (TTM)

Select using  keys: AUTO: The interval stored in the ISM sensor is used (default) MAN: The interval is specified manually (0 ... 9999 days)

Press enter to confirm.

The adaptive maintenance timer can be reset in the SERVICE / SENSOR / TTM menu. Here, the interval is reset to its initial value.

To do so, select

“TTM RESET = YES“

and confirm by pressing

enter.

Conguration

Standard and ISFET Sensor

Adjust: CIP cleaning cycles, SIP sterilization cycles

enter

meas

1) Press menu key.

2) Select CONF using  keys, press enter.

3) Select parameter set using  keys, press enter.

4) Select SENSOR menu using  keys, press enter.

5) All items of this menu group are indicated by the “SNS:” code. Press enter to select menu, edit using arrow keys (see next page). Confirm (and proceed) by pressing enter.

6) Exit: Press meas key until the [meas] mode indicator is displayed.

Select sensor type

Select type of temp probe

Temperature unit

Temp detection during measurement

(Man. temperature)

Temp detection during calibration

(Man. temperature)

Calibration mode

(AUTO: Buffer set)

Calibration timer

Calibration cycle

CIP cleaning cycles

SIP sterilization cycles

enter

Conguration

Menu item Action Choices

CIP / SIP

The following adjustments are possible for standard and ISFET sensors:

Cleaning cycles

Sterilization cycles

Select ON or OFF using  keys.

When switched on, the cycles will be entered in the extended logbook but not counted.

Press enter to confirm.

Select ON or OFF using  keys.

When switched on, the cycles will be entered in the extended logbook but not counted.

Press enter to confirm.

ON/OFF

Logging the cleaning and sterilization cycles with connected sensor helps measuring the load on the sensor. Suitable for biochemical applications (process temp approx. 0 ... 50 °C, CIP temp > 55 °C, SIP temp > 115 °C).

Conguration

ISM Sensor

Adjust: CIP cleaning cycles, SIP sterilization cycles

enter

meas

1) Press menu key.

2) Select CONF using  keys, press enter.

3) Select parameter set using  keys, press enter.

4) Select SENSOR menu using  keys, press enter.

5) All items of this menu group are indicated by the “SNS:” code. Press enter to select menu, edit using arrow keys (see next page). Confirm (and proceed) by pressing enter.

6) Exit: Press meas key until the [meas] mode indicator is displayed.

Select sensor type

Temperature unit

Temp detection during measurement

(Manual temperature)

Temp detection during calibration

(Manual temperature)

Calibration mode

(AUTO: Buffer set)

ACT - Adaptive calibration timer

TTM - Adaptive maintenance timer

Cleaning cycle counter

Cleaning cycles

Sterilization cycle counter

Sterilization cycles

Autoclaving counter

Conguration

Menu item Action Choices

CIP / SIP

The following adjustments are possible for ISM sensors : Cleaning cycle

counter

Cleaning cycles

Sterilization cycle counter

Select ON or OFF using  keys.

Press enter to confirm.

Only with CIP COUNT ON: Enter value using   keys.

Press enter to confirm.

Select ON or OFF using  keys.

ON/OFF

0...9999 CYC (0000 CYC)

ON/OFF

Press enter to confirm.

Sterilization cycles

Only with CIP COUNT ON: Enter value using   keys.

Press enter to confirm.

0...9999 CYC (0000 CYC)

The cleaning and sterilization cycles are counted to measure the load on the sensor. Suitable for biochemical applications (process temp approx. 0...50 °C, CIP temperature > 55 °C, SIP temperature > 115 °C).

Conguration

ISM Sensor

Autoclaving counter

enter

meas

1) Press menu key.

2) Select CONF using  keys, press enter.

3) Select parameter set using  keys, press enter.

4) Select SENSOR menu using  keys, press enter.

5) All items of this menu group are indicated by the “SNS:” code. Press enter to select menu, edit using arrow keys (see next page). Confirm (and proceed) by pressing enter.

6) Exit: Press meas key until the [meas] mode indicator is displayed.

Select sensor type

Temperature unit

Temp detection during measurement

(Manual temperature)

Temp detection during calibration

(Manual temperature)

Calibration mode

(AUTO: Buffer set)

ACT - Adaptive calibration timer

TTM - Adaptive maintenance timer

CIP/SIP cycles

Autoclaving counter

Conguration

Autoclaving Counter

After reaching a specied limit value the autoclaving counter generates a Sensoface message. As soon as the counter has reached the specied value, Sensoface is getting “sad”. Pressing the info key shows the text “AUTOCLAVE CYCLES OVERRUN” which reminds you that the maximum number of autoclaving cycles has been reached. After each autoclaving process, you must manually increment the autoclaving counter in the SENSOR service menu on the transmitter. The transmitter displays “INCREMENT AUTOCLAVE CYCLE” as conrmation. You can congure the current outputs so that a Sensoface message generates a 22-mA error signal, see page 81.

Menu item Action Choices

Autoclaving counter

Select using  keys: ON: The cycles are specified manually (0 ... 9999)

Press enter to confirm.

With the autoclaving counter switched on, you must increment the count after each autoclaving process in the SERVICE menu SENSOR/ AUTOCLAVE :

Incrementing the autoclaving counter

(SERVICE menu)

After having completed an autoclaving process, open the SERVICE menu SENSOR / AUTOCLAVE to increment the autoclaving count. To do so, select “YES” and confirm by pressing

enter.

Conguration

Current Output 1

Output current range. Current start. Current end.

1) Press menu key.

2) Select CONF using  keys, press enter.

3) Select parameter set using  keys, press enter.

4) Select OUT1 menu using  keys, press enter.

5) All items of this menu group are indicated by the “OT1:” code. Press enter to select menu, edit using arrow keys (see next page). Confirm (and proceed) using enter.

6) Exit: Press meas key until the [meas] mode indicator is displayed.

Current range Process variable Current start Current end Time averaging lter Output current for error

message Output current for Sensoface Output current during HOLD Output current for HOLD FIX

Conguration

Menu item Action Choices

Current range

Select 4-20 mA or 0-20 mA range using  keys.

Press enter to confirm.

Process variable

Current start

Current end

Select using  keys: PH: pH value ORP: Redox potential TMP: Temperature Press enter to confirm.

Modify digit using  keys, select next digit using  keys.

Press enter to confirm.

Enter value using   keys.

Press enter to confirm.

Assignment of measured values: Current start and current end

Example 1: Range pH 0...14

[pH]

Example 2: Range pH 5...7 Advantage: Higher resolution in

[pH]

range of interest

7 5

Output current

[mA]

20 4

Output current

[mA]

20 4

Conguration

Current Output 1

Adjusting the time interval of the output lter

1) Press menu key.

2) Select CONF using  keys, press enter.

3) Select parameter set using  keys, press enter.

4) Select OUT1 menu using  keys, press enter.

5) All items of this menu group are indicated by the “OT1:” code. Press enter to select menu, edit using arrow keys (see next page). Confirm (and proceed) using enter.

6) Exit: Press meas key until the [meas] mode indicator is displayed.

Current range Process variable Current start Current end Time averaging lter Output current for error

message Output current for Sensoface Output current during HOLD Output current for HOLD FIX

Conguration

Menu item Action Choices

Time averaging lter

Enter value using   keys.

Press enter to confirm.

Time averaging lter

To smoothen the current output, a low-pass lter with adjustable lter time constant can be switched on. When there is a jump at the input (100 %), the output level is at 63 % after the time interval has been reached. The time interval can be set from 0 to 120 sec. If the time interval is set to 0 sec, the current output directly follows the input.

Please note:

The lter only acts on the current output, not on the display, the limit values, or the controller! During HOLD the lter is not applied. This prevents a jump at the output.

Temp

Display / Controller

0/4-20 mA

Time interval 0...120 s

Conguration

Current Output 1

Output current for error message or Sensoface alert

1) Press menu key.

2) Select CONF using  keys, press enter.

3) Select parameter set using  keys, press enter.

4) Select OUT1 menu using  keys, press enter.

5) All items of this menu group are indicated by the “OT1:” code. Press enter to select menu, edit using arrow keys (see next page). Confirm (and proceed) using enter.

6) Exit: Press meas key until the [meas] mode indicator is displayed.

Current range Process variable Current start Current end Time averaging lter Output current for error

message Output current for Sensoface Output current during HOLD Output current for HOLD FIX

Conguration

Menu item Action Choices

Output current for error message (FAIL)

In the case of an error (FAIL), the current output is set to 22 mA.

Select ON or OFF using  keys. Press enter to confirm.

Output current for Sensoface (FACE)

Temp

In the case of a Sensoface alert (FACE), the current output is set to 22 mA.

Select ON or OFF using  keys. Press enter to confirm.

Display

Error (22 mA)

Sensoface alert (22 mA)

Error messages and Sensoface alerts can be set separately for both current outputs. This allows, for example, signaling error messages only over current output 1 and Sensoface alerts only over current output 2.

Conguration

Current Output 1

Output current during HOLD

1) Press menu key.

2) Select CONF using  keys, press enter.

3) Select parameter set using  keys, press enter.

4) Select OUT1 menu using  keys, press enter.

5) All items of this menu group are indicated by the “OT1:” code. Press enter to select menu, edit using arrow keys (see next page). Confirm (and proceed) by pressing enter.

6) Exit: Press meas key until the [meas] mode indicator is displayed.

Current range Process variable Current start Current end Time averaging lter Output current for error

message Output current for Sensoface Output current during HOLD Output current for HOLD FIX

Conguration

Menu item Action Choices

Output current during HOLD

Output current for HOLD FIX

LAST: During HOLD the last measured value is maintained at the output. FIX: During HOLD a value (to be entered) is maintained at the output. Select using  Press enter to confirm.

Only with FIX selected: Enter current which is to flow at the output during HOLD Enter value using   keys.

Press enter to confirm.

Output signal during HOLD:

Output current [mA]

Output signal for HOLD FIX setting = 21.0 mA

LAST/FIX

00.00...22.00 mA (21.00 mA)

Output signal for HOLD LAST setting

HOLD active

Conguration

Current Output 2

Output current range. Current start. Current end ...

1) Press menu key.

2) Select CONF using  keys, press enter.

3) Select parameter set using  keys, press enter.

4) Select OUT2 menu using  keys, press enter.

5) All items of this menu group are indicated by the “OT2:” code. Press enter to select menu, edit using arrow keys (see next page). Confirm (and proceed) using enter.

6) Exit: Press meas key until the [meas] mode indicator is displayed.

Current range Process variable Current start Current end Time averaging lter Output current for error

message Output current for Sensoface Output current during HOLD Output current for HOLD FIX

Conguration

Menu item Action Choices

Current range

Select 4-20 mA or 0-20 mA range using  keys.

Press enter to confirm.

Process variable

Select using  keys: PH: pH value ORP: Redox potential TMP: Temperature Press enter to confirm.

All the following adjustments are made as for current output 1 (see page 76)!

Conguration

Temperature Compensation

TC process medium: Linear, ultrapure water, table

1) Press menu key.

2) Select CONF using  keys, press enter.

3) Select parameter set using  keys, press enter.

4) Select CORRECTION menu using  keys, press enter.

5) All items of this menu group are indicated by the “COR:” code. Press enter to select menu, edit using arrow keys (see next page). Confirm (and proceed) using enter.

6) Exit: Press meas key until the [meas] mode indicator is displayed.

Temperature compensation for process medium

Current input, external temp measurement

Current range Current start Current end

Conguration

Menu item Action Choices

Temp compensation, process medium

Temperature compensation, linear

For pH measurement only: Select temperature compensation of the process medium. Linear: LIN Ultrapure water: PUREWTR Table: USERTAB Select using  key, proceed using enter.

Enter the linear temperature compensation of the process medium. Enter value using   keys. Press enter to confirm.

Temperature compensation, table

Conrm safety prompt, then enter values (5°C step size)

When you have selected temperature compensation via table (USERTAB), you can enter values for a TC table from 0 to 95 °C in 5-K steps. The analyzer displays temperature values in 5°C steps. You must specify the percent deviation of the measured value from each of these temperature values. Intermediate values are linearly interpolated. TC compensation can be defined separately for parameter sets A and B.

0 ... 95 °C (5°C step size)

Conguration

Temperature Compensation

Current input, external temp measurement

1) Press menu key.

2) Select CONF using  keys, press enter.

3) Select parameter set using  keys, press enter.

4) Select CORRECTION menu using  keys, press enter.

5) All items of this menu group are indicated by the “COR:” code. Press enter to select menu, edit using arrow keys (see next page). Confirm (and proceed) using enter.

6) Exit: Press meas key until the [meas] mode indicator is displayed.

Temperature compensation for process medium

Current input, external temp measurement

Current range Current start Current end

Conguration

Menu item Action Choices

Current input, external temp measurement

Only if enabled via TAN and selected during configuration (SENSOR). Select ON or OFF using  keys.

Press enter to confirm.

Current range

Current start

Current end

Select desired range using  keys.

Press enter to confirm.

Modify digit using  keys, select next digit using  keys.

Press enter to confirm.

Enter value using   keys.

Press enter to confirm.

Input range:

Conguration

CONTROL Input

Parameter set selection via external signal or ow measurement

1) Press menu key.

2) Select CONF using  keys, press enter.

3) Select parameter set using , press enter.

4) Select CNTR_IN menu using  keys, press enter.

5) All items of this menu group are indicated by the “IN:” code. Press enter to select menu, edit using arrow keys (see next page). Confirm (and proceed) using enter.

6) Exit: Press meas key until the [meas] mode indicator is displayed.

CONTROL input (function) PARSET FLOW

Conguration

Menu item Action Choices

Select function of CONTROL input

Select using  keys. Press enter to confirm.

(selecting parameter set A/B via signal at CONTROL input)

External switchover of parameter sets

The parameter set A/B can be activated from outside by sending a signal to the CONTROL input (e.g. from the process control system).

Power supply

12...24 V AC/DC

CONTROL

input

Process control system

Parameter set A 0...2 V AC/DC Parameter set B 10...30 V AC/DC

A4...

Conguration

CONTROL Input

Flow measurement

1) Press menu key.

2) Select CONF using  keys, press enter.

3) Select parameter set using , press enter.

4) Select CNTR_IN menu using  keys, press enter.

5) All items of this menu group are indicated by the “IN:” code. Press enter to select menu, edit using arrow keys (see next page). Confirm (and proceed) using enter.

6) Exit: Press meas key until the [meas] mode indicator is displayed.

CONTROL input (function) PARSET / FLOW FLOW: ADJUST

Conguration

Menu item Action Choices

Select function of CONTROL input

Select using  keys. Press enter to confirm.

PARSET

(selecting parameter set A/B via signal at CONTROL input)

Flow (for connecting a pulseoutput flow meter)

Adjust to ow meter

With "Flow" selected, you must adjust the device to the flow meter used. Enter value using arrow keys. Press enter to confirm.

12000 pulses/liter

In the alarm menu you can congure ow monitoring. When you have set CONTROL to FLOW, you can specify 2 additional limit values for maximum and minimum ow. If the measured value lies outside this range, an alarm message and a 22-mA error signal (if congured) will be generated.

Display

Flow measurement in measuring mode

Display

Flow measurement (sensor monitor)

Conguration

Alarm Settings

Alarm delay. Sensocheck.

1) Press menu key.

2) Select CONF using  keys, press enter.

3) Select parameter set using  keys, press enter.

4) Select ALARM menu using  keys, press enter.

5) All items of this menu group are indicated by the “ALA:” code. Press enter to select menu, edit using arrow keys (see next page). Confirm (and proceed) using enter.

6) Exit: Press meas key until the [meas] mode indicator is displayed.

Delay Sensocheck Alarm: CONTROL input For ow monitoring:

Max. ow alarm For ow monitoring:

Min. ow alarm

Conguration

Menu item Action Choices

Alarm delay

Enter value using   keys. Press enter to confirm.

Sensocheck

Alarm

Select Sensocheck (continuous monitoring of glass and reference electrode) Select ON or OFF using  keys. Press enter to confirm. (At the same time, Sensoface is activated. With OFF, Sensoface is also switched off.)

Alarm contact

The alarm contact is closed during normal operation

(N/C). It opens in the case of alarm or power outage. As a result, a failure message is provided even in the case of power failure or line breakage (fail-safe behav-

ior). For contact ratings, see Specifications.

Error messages can also be signaled by a 22-mA output current (see Error messages and Configuration Output 1/Output 2). Operating behavior of the alarm contact: see Operating States table. The alarm delay time delays the color change of the display backlighting to red, the 22-mA signal (if configured), and the alarm contact switching.

Conguration

Alarm Settings

CONTROL input (FLOW MIN, FLOW MAX)

1) Press menu key.

2) Select CONF using  keys, press enter.

3) Select parameter set using  keys, press enter.

4) Select ALARM menu using  keys, press enter.

5) All items of this menu group are indicated by the “ALA:” code. Press enter to select menu, edit using arrow keys (see next page). Confirm (and proceed) using enter.

6) Exit: Press meas key until the [meas] mode indicator is displayed.

ALARM: Delay Alarm: Sensocheck Alarm: CONTROL input For ow monitoring:

Max. ow alarm For ow monitoring:

Min. ow alarm

Conguration

Menu item Action Choices

CONTROL input

Alarm Minimum ow

FLOW MIN

Alarm Maximum ow

FLOW MAX

The CONTROL input can generate an alarm when assigned to FLOW (flow monitoring) in the CONF menu:

FLOW CNTR Flow measurement:

allows monitoring the minimum and maximum flow (pulse counter)

Specify value Default: 05.00 liters/h

Specify value Default: 25.00 liters/h

Conguration

Limit Function

Relay 1

1) Press menu key.

2) Select CONF using  keys, press enter.

3) Select parameter set using  keys, press enter.

4) Select REL1/REL2 menu using  keys, press enter.

5) All items of this menu group are indicated by the “RL1:” code. Press enter to select menu, edit using arrow keys (see next page). Confirm (and proceed) using enter.

6) Exit: Press meas key until the [meas] mode indicator is displayed.

Use of relays Select process variable Limit 1 switching characteris-

tics (function) Limit 1 contact type Limit 1 setpoint Limit 1 hysteresis Limit 1 delay

Conguration

Menu item Action Choices

Use of relays

Select process variable

Select in the text line using  keys:

• Limit function (LIMITS)

• Controller (CONTROLLER)

Press enter to confirm.

Select desired process variable using  keys.

Press enter to confirm.

Note: Selecting CONTROLLER leads to Controller menu group CTR.

Limit 1 function

Limit 1 contact response

Limit 1 setpoint

Select desired function using  keys. Lo Level: active if value falls below setpoint / Hi Level: active if value exceeds setpoint Press enter to confirm.

N/O: normally open contact N/C: normally closed contact Select using  keys. Press enter to confirm.

Enter setpoint using   keys.

Press enter to confirm.

Limit 1 icon:

Conguration

Limit Function

Relay 1

1) Press menu key.

2) Select CONF using  keys, press enter.

3) Select parameter set using  keys, press enter.

4) Select REL1/REL2 menu using  keys, press enter.

5) All items of this menu group are indicated by the “RL1:” code. Press enter to select menu, edit using arrow keys (see next page). Confirm (and proceed) using enter.

6) Exit: Press meas key until the [meas] mode indicator is displayed.

100

Use of relays Select process variable Limit 1 switching characteris-

tics (function) Limit 1 contact type Limit 1 setpoint Limit 1 hysteresis Limit 1 delay

Knick Stratos Pro A401B PH User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Basics

Documents Supplied

Introduction

Intended Use

Safety Information

Overview of Stratos Pro A401B PH

Assembly

Package Contents

Mounting Plan, Dimensions

Pipe Mounting, Protective Hood

Panel Mounting

Installation

Safety Precautions for Installation

Rating Plates / Terminal Assignments

Power Supply, Signal Lines

Connecting the Sensor

Wiring Examples

Protective Wiring of Relay Contacts

User Interface, Keypad

Display

Signal Colors (Display Backlighting)

Measuring Mode

Selecting the Mode / Entering Values

Display in Measuring Mode

Color-Coded User Interface

Operating Modes

Menu Structure of Modes and Functions

HOLD Mode

Alarm

Alarm and HOLD Messages

Configuration

Parameter Set A/B

Parameter Sets (Original for Copy)

Sensor

Current Output 1

Current Output 2

Temperature Compensation

CONTROL Input

Alarm Settings

Limit Function
