Before operating the pump and the accessories, please read the operating instructions and pay attention to the safety precautions.

LAB

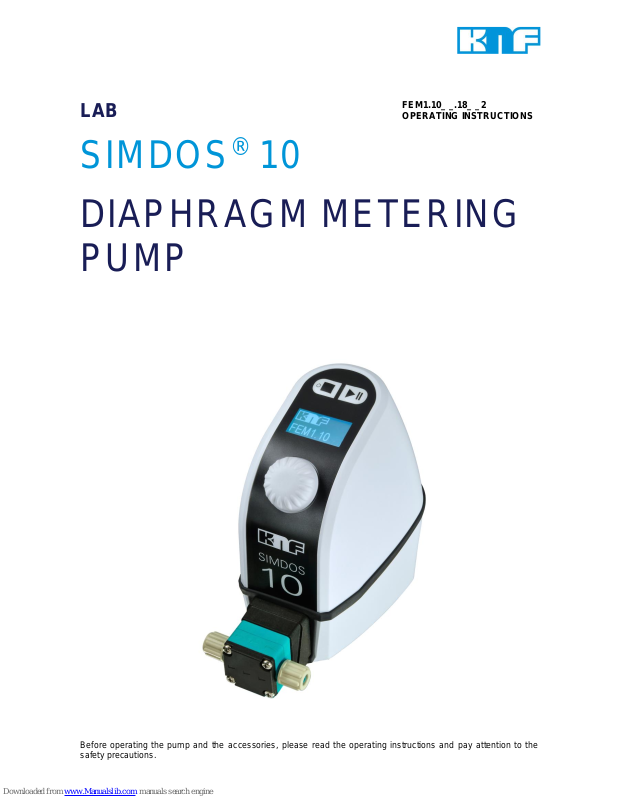

SIMDOS® 10

FEM1.10_ _.18_ _2 OPERATING INSTRUCTIONS

DIAPHRAGM METERING PUMP

KNF Flodos AG Wassermatte 2 6210 Sursee, Switzerland

Tel +41 (0)41 925 00 25 Fax +41 (0)41 925 00 35

www.knf.com

Operating instructions SIMDOS10 EN Contents

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 3

Contents Page

General points .................................................................................. 5

1.1 Information on the instructions 5

1.2 Warnings 6

1.3 Symbols 7

1.4 Disclaimer of liability 8

1.5 Manufacturer's address 8

1.6 Year of manufacture 8

1.7 Other applicable documents 8

1.8 Copyright 8

1.9 Warranty conditions 8

Safety ................................................................................................. 9

2.1 Intended use 9

2.2 Reasonably foreseeable misuse 9

2.3 Owner's responsibility 10

2.4 Personnel requirements 10

2.5 Product-specific dangers 11

2.6 Personal protective equipment 12

2.7 Safety equipment 12

2.8 Environmental protection considerations 13

2.9 Danger areas 13

2.10 Declaration of conformity 13

Technical data ................................................................................. 14

3.1 Items included in delivery 14

3.2 Storage conditions 14

3.3 Pump head materials 14

3.4 Product key 15

3.5 Dimensions 16

3.6 Installation location requirements 17

3.7 Electrical connections and performance data 17

3.8 Remote control (RC version only) 18

3.9 Remote control via RS 232 (RC Plus version only) 18

3.10 Flow rates 19

3.11 Other parameters 19

3.12 Hydraulic connections 19

3.13 Transferred medium 20

3.14 Accuracy/ reproducibility 21

Assembly and function .................................................................. 22

4.1 Metering pump structure 22

4.2 Operating principle 22

4.3 Valves 23

4.4 Pump diaphragm 25

4.5 Pump head 25

4.6 Operating controls 25

4.7 Operating modes 29

Shipment ......................................................................................... 30

5.1 Checking delivery 30

5.2 Registering a complaint 30

5.3 Arranging for return 30

Installation and initial start-up ...................................................... 31

6.1 Safety 31

6.2 Installation 32

6.3 System setup 36

6.4 Initial start-up 38

Contents Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 4 Translation of original operating instructions, English

Operation ......................................................................................... 39

7.1 Safety 39

7.2 Switching pump on / off 40

7.3 Entering settings 41

7.4 Setting the operating mode 42

7.5 Priming the pump 43

7.6 Starting the pump 43

7.7 Interrupting a transferring operation 43

7.8 Stopping the transferring operation 44

7.9 Transferring fluid 45

7.10 Setting metering operation 45

7.11 Setting the fluid type 46

7.12 To calibrate the pump 47

7.13 Cycle metering mode 48

7.14 Setting the system 48

7.15 Back to main menu 48

7.16 Select language setting 49

7.17 Activate autostart 49

7.18 Set contrast 49

7.19 Resetting the pump (Reset) 50

7.20 Shutting down the pump in an emergency 50

Cleaning and maintenance ............................................................ 51

8.1 Safety 51

8.2 Cleaning the pump 52

8.3 Maintenance plan 53

8.4 Cleaning / replacing valve plates and pump diaphragm 54

8.5 Checking that pump is leak-tight 60

RC version (remote control) .......................................................... 61

9.1 Remote control analog input 62

9.2 Digital input 1, Start / Stop 64

9.3 Digital input 2 Reset / Prime / Foot Switch 66

9.4 Digital output 68

RC Plus version (serial communication) ..................................... 69

Shutdown ........................................................................................ 70

11.1 Safety 70

Troubleshooting ............................................................................. 71

12.1 Safety 71

12.2 Displaying of error messages 71

12.3 Rectifying transfer problems 72

Spare parts and accessories ......................................................... 73

13.1 Spare parts 73

13.2 Hoses 73

13.3 Connection nipple 73

13.4 Pressure control valve 73

13.5 Liquid pulsation damper 74

13.6 Filter 74

13.7 Foot switch 74

13.8 Fastening material 74

Decontamination declaration ........................................................ 75

Operating instructions SIMDOS10 EN General points

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 5

General points

1.1 Information on the instructions

The operating instructions contain important notes on how to use the pump. In order to ensure safe working and proper functioning it is essential to observe all the specified safety precautions.

These operating instructions are part of the product, and must be stored in its immediate vicinity in a location accessible to personnel at all times.

These operating instructions are part of the product, and must be passed on to the next owner if the device is resold.

Customer-specific project pumps (pump models which begin with "PL" or "PML") may differ from the operating instructions, in which case the agreed specification is also applicable. It is listed with the other applicable documents.

Illustrations in these operating instructions may be to scale, but do not have be.

The illustrations may differ slightly from the actual product.

Contents

Storage location

Passing on

Project pumps

Illustrations in the instructions

General points Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 6 Translation of original operating instructions, English

1.2 Warnings

Warnings in the operating instructions are identified with the danger symbol, keywords and colours. These provide an indication of the extent of the danger.

DANGER

Indicates a dangerous situation which may lead directly to death or serious injury if it is not avoided.

WARNING

Indicates a dangerous situation which may lead to death or serious injury if it is not avoided.

CAUTION

Indicates a dangerous situation which may lead to moderate or minor injuries if it is not avoided.

NOTE

Indicates a situation which may cause damage to property if it is not avoided.

Operating instructions SIMDOS10 EN General points

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 7

1.3 Symbols

The following symbols appear in the operating instructions, on labels on the device, and on its packaging:

WARNING

Danger of injuries and property damage caused by illegible labels

The labelling on the device may become illegible with time.

➢ Maintain labels on the device in a legible condition. ➢ Replace any illegible labels.

The following symbols in the operating instructions and on the device and its packaging indicate environmental protection considerations:

Recycling

Not to be disposed of in household waste

The following symbols in safety precautions and on the device indicate the nature of the danger:

General danger symbol Further details of the nature of the danger are provided in the

warning highlighted by this symbol.

Electrical danger

Danger of caustic burns or burns

Danger of automatic start-up

This symbol calls for disconnection from the mains.

General points Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 8 Translation of original operating instructions, English

1.4 Disclaimer of liability

In preparing the contents of these operating instructions, account has been taken of applicable regulations.

The manufacturer can accept no liability for any damage or malfunctions caused by failure to follow the operating instructions.

The manufacturer can accept no liability for any damage or malfunctions caused by modification or conversion of the device or improper handling.

The manufacturer can accept no liability for any damage or malfunctions caused by the use of non-approved spare parts and accessories.

1.5 Manufacturer's address

KNF FLODOS AG Wassermatte 2 6210 Sursee, Switzerland

Tel +41 (0)41 925 00 25 Fax +41 (0)41 925 00 35

www.knf.com

1.6 Year of manufacture

The year of manufacture is shown on the device's type plate.

1.7 Other applicable documents

The documents listed must also be taken into consideration.

▪ Chemical resistance list (www.knf.com/downloads) ▪ Sales documents ▪ General Trade Conditions

1.8 Copyright

The information, texts and illustrations in these operating instructions are protected by copyright. The contents of these operating instructions must not be copied, translated or passed to third parties without the written consent of the manufacturer.

1.9 Warranty conditions

The applicable warranty conditions are set out in the General Terms and Conditions of Business and the sales documents.

The warranty does not cover the following:

▪ Malfunctions caused by particles/fibres in the valve system ▪ Sticking of the valve system as a result of inadequate

flushing

Operating instructions SIMDOS10 EN Safety

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 9

Safety

2.1 Intended use

This pump is intended exclusively for use as follows:

▪ Transferring and metering liquids. ▪ Temporary operation in laboratories for research purposes. ▪ Operation in accordance with the operating parameters

specified in the technical data (see Chapter 3) and other applicable documents.

▪ Transferring media which meet the requirements in the

technical data and other applicable documents.

▪ Operation when fully assembled. ▪ Upright operation on a firm table top.

2.2 Reasonably foreseeable misuse

The pump must not be

▪ operated in an explosive atmosphere. ▪ used to transfer explosive media. ▪ used to transfer media with a flashpoint of less than 40 °C ▪ used to transfer foodstuffs or pharmacological products.

Additional certifications are required for this purpose.

▪ used to transfer liquid bromine. ▪ used to transfer media whose compatibility with the pump

head, valves and seals has not been demonstrated.

▪ used to transfer media containing solids with a particle size

exceeding 70 µm.

Safety Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 10 Translation of original operating instructions, English

2.3 Owner's responsibility

The operator is responsible for compliance with the safety precautions in the present operating instructions and with any safety, accident prevention and environmental protection regulations which apply to the medium to be transferred and the range of applications of the device.

These include the following in particular:

▪ The operator must perform a risk assessment to identify

any additional risks which may arise from the specific working conditions at the pump's installation location and the nature of the medium to be transferred. He/she must convert these into instructions for operating the device.

▪ The operator must ensure that any employees working

with the pump have read the operating instructions.

▪ The operator must train his personnel at regular intervals

and inform them of the risks involved.

▪ The operator must provide his personnel with the neces-

sary protective equipment as specified in the safety data sheet for the medium to be transferred.

▪ The operator must maintain the pump in perfect working

order.

▪ The operator must ensure compliance with the mainte-

nance intervals described in the operating instructions.

2.4 Personnel requirements

WARNING

Danger of injuries and property damage caused by insufficiently qualified staff

Improper use of the pump may result in serious injury and damage to property.

➢ Any activities must only be performed by adequately qual-

ified personnel

The following qualifications are specified for various activities in the operating instructions:

These have been instructed in the task assigned to them and made aware of potential dangers and risks. This training is the minimum qualification for working on the device. Where no other qualification is specified, the activity must be performed by a trained individual as a minimum.

The specialist training, knowledge and experience of such personnel, together with their knowledge of the relevant regulations, standards and directives, allow them to perform their assigned duties correctly, and to independently identify and avoid potential dangers and risks.

Individuals whose reactions have been impaired by the consumption of medicines, alcohol, drugs or by other causes and conditions are not authorised to perform activities on the device.

Trained personnel

Specialist personnel

Unauthorised personnel

Operating instructions SIMDOS10 EN Safety

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 11

2.5 Product-specific dangers

This Chapter describes residual risks that have been identified in a risk assessment. Safety precautions and warnings in this Chapter and in other Chapters in the operating instructions must be observed in order to avoid dangerous situations.

DANGER

Danger of injuries and property damage caused by leaks in connections and the pump head

Poisoning and caustic burns, or undesirable reactions caused by escaping hazardous materials

➢ Maintain the tightening torque of connections (see Hy-

draulic connections)

➢ Check tightening torque of head screws regularly ➢ Only use pump if it is in perfect working order ➢ Operate pump in accordance with the technical data

DANGER

Danger of injuries and property damage caused by medium escaping from the discharge outlet

Poisoning and caustic burns, or undesirable reactions caused by escaping hazardous materials

➢ Place the pump in a suitable collecting vessel ➢ Never close the discharge outlet ➢ If medium escapes from the pump's discharge outlet, stop

using the pump and contact your KNF dealer

WARNING

Danger of serious injuries or property damage caused by escaping media in the event of overpressure on the suction side

Excessive pressure on the suction side will result in uncontrolled escaping of the fluid, even if the pump is not operating

➢ Avoid overpressure on the suction side ➢ Fit a pressure control valve (see Section 6.3.3)

CAUTION

Danger of cavitation or particles in the fluid circuit

Errors in metering accuracy

➢ Use a prefilter, especially for media containing particulate

matter or fibres (see Chapter 6.2.2)

➢ Clean valve disk/pump head (see Section 8.4) ➢ Vent the pump and system thoroughly ➢ Set the type of liquid in the case of high-viscosity and vol-

atile media (see Section 7.11)

Safety Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 12 Translation of original operating instructions, English

2.6 Personal protective equipment

Special protective equipment must be used when performing certain tasks. These are indicated separately in the individual Chapters.

Where the wearing of protective equipment is concerned it is essential to observe the safety data sheet for the medium to be transferred.

The following symbols appear in the working area or in the operating instructions:

Safety gloves

to protect skin from contact with the transferred medium in accordance with the safety data sheet.

Safety glasses

to protect the eyes from contact with the transferred medium in accordance with the safety data sheet.

Face protection

to protect skin and eyes from contact with the transferred medium in accordance with the safety data sheet.

2.7 Safety equipment

2.7.1 Safety diaphragm with intermediate flange

DANGER

Danger of injuries and property damage caused by medium escaping from the discharge outlet

Poisoning and caustic burns, or undesirable reactions caused by escaping hazardous materials

➢ Place the pump in a suitable collecting vessel ➢ Check the discharge outlet regularly for leaks ➢ Never close the discharge outlet (see Fig. 1) ➢ If medium escapes from the pump's discharge outlet, stop

using the pump and contact your KNF dealer

In the event that the pump diaphragm ruptures, the safety diaphragm prevents the transferred medium from penetrating into the pump. If the pump diaphragm ruptures, the transferred medium is channelled out of the pump through the discharge outlet (see Fig.

1).

2.7.2 Emergency Stop

Pulling out the mains plug acts as an Emergency Stop. If the pump is installed permanently, an Emergency Stop and a maintenance switch must be fitted.

2.7.3 Pressure control valve (optional)

In the event of overpressure on the suction side, the pump allows the medium to flow through it freely. The pressure control valve maintains a counterpressure of 0.5 bar and prevents the transferred medium from escaping. The pressure control valve is to be used on the pressure side (see Section 6.3.3)

Fig. 1: Discharge outlet

Operating instructions SIMDOS10 EN Safety

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 13

2.8 Environmental protection considerations

All replacement parts should be properly stored and disposed of in accordance with the applicable environmental protection regulations. Ensure adherence to the pertinent national and international regulations. This especially applies to parts contaminated with toxic substances.

Dispose of any packaging material that is no longer required in an environmentally friendly manner. The packaging materials are recyclable.

Dispose of end-of-life equipment in an environmentally friendly manner. Use appropriate waste collection systems for the disposal of end-of-life equipment. Used pumps contain valuable recyclable materials.

2.9 Danger areas

When transferring corrosive, poisonous, ionising, inflammable or biological media, escaping medium may cause a hazard.

The danger area of the pump is to be limited by means of safety work stations complying with DIN EN 12469 and DIN 12980, and collecting tanks.

2.10 Declaration of conformity

Technical data Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 14 Translation of original operating instructions, English

Technical data

3.1 Items included in delivery

▪ SIMDOS metering pump ▪ Mains plug ▪ Operating manual ▪ Abbreviated instructions ▪ Connection kit: Hose and screw-in fittings ▪ Filter

3.2 Storage conditions

▪ Pumps must be stored in a dry place and protected from

contamination.

▪ The storage temperature must be between 5°C and 40°C. ▪ The pump is supplied with protective caps. These protec-

tive caps must be fitted during storage.

▪ Store pump upright and with protection.

3.3 Pump head materials

The type designation KT stands for:

Assembly

Material1)

Medium contact

Pump head

Yes

Valve plate / seals

FFKM

Yes

Diaphragm

PTFE-coated EPDM membrane

Yes Included Filter

PEEK*

Yes

Housing

PP, TPE, PC

Tab. 1: KT materials

according to DIN ISO 1629 and 1043.1

*material for housing and filter mesh

The type designation TT stands for:

Assembly

Material1)

Medium contact

Pump head

PVDF

Yes

Valve plate / seals

FFKM

Yes

Diaphragm

PTFE-coated EPDM membrane

Yes Included Filter

PVDF*

Yes

Housing

PP, TPE, PC

Tab. 2: TT materials

according to DIN ISO 1629 and 1043.1

*material for housing and filter mesh

Operating instructions SIMDOS10 EN Technical data

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 15

The type designation FT stands for:

Assembly

Material1)

Medium contact

Pump head

PTFE

Yes

Valve plate / seals

FFKM

Yes

Diaphragm

PTFE-coated EPDM membrane

Yes Included Filter

PEEK*

Yes

Housing

PP, TPE, PC

Tab. 3: FT materials

according to DIN ISO 1629 and 1043.1

*material for housing and filter mesh

The type designation ST stands for:

Assembly

Material

Medium contact

Pump head

1.4404

Yes

Valve plate / seals

FFKM1)

Yes

Diaphragm

PTFE-coated EPDM membrane

Yes Included Filter

PEEK*

Yes

Housing

PP, TPE, PC1)

Tab. 4: ST materials

according to DIN ISO 1629 and 1043.1

*material for housing and filter mesh

3.4 Product key

Description

Meaning

PML / PL

Customer-specific designs

FEM

Flodos Electronic Metering (designation for metering pumps)

1.10

Pump type

KT / TT / FT / ST

Head material

.18

Laboratory device with housing

S2 / RC2 / RCP2

S2 without remote control RC2 with remote control

(Remote Control)

RCP2 with RS 232 interface

Tab. 5: Product key

FEM 1.10 FT .18 S2

.18

FEM

S2 / RC2 / RCP2

- / PMLxxxx / PLxxxx [Ch. 1]

KT / TT / FT / ST [Ch 4]

1.10

Technical data Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 16 Translation of original operating instructions, English

3.5 Dimensions

Fig. 2: Mounting measurements (measurement tolerances as per DIN

ISO 2768-1, tolerance class V)

Parameter

Value (metric)

Value (imperial)

Width (A)

150 mm

6.102 inches

Depth (B)

93 mm

3.740 inches

Height (C)

144 mm

5.708 inches

Weight of pump 1

0.9 kg

1.98 lb

Tab. 6: Dimensions

Type plate

The type plate is on the bottom of the device. It contains the following information:

▪ Manufacturer's

address

▪ Type ▪ Serial Number ▪ Design pressure

▪ CE mark ▪ Year of manufacture ▪ Electrical connection data

Differences are possible depending on the project

Operating instructions SIMDOS10 EN Technical data

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 17

3.6 Installation location requirements

The pump is designed to be operated in an upright position.

NOTE

An unsuitable location may cause damage to the device

➢ Install in a dry place ➢ Protect the installation location of the pump from water in

the form of rain, spray, splashes and drips

➢ Do not operate the pump in an aggressive or inflammable

environment

➢ Choose a safe location (a level, flat surface) for the pump ➢ Place the pump in a suitable collecting pan ➢ If the stability of the pump cannot be ensured, fasten the

pump in place using two screws

➢ Make sure that the hose connections can be fitted without

strain on the hoses

➢ Protect the pump against shocks, impacts and strong vi-

brations

3.7 Electrical connections and performance data

3.7.1 Power supply

Parameter

Value

Nominal mains voltage AC [V]

100 – 240 +/- 10 %

Frequency [Hz]

50 – 60

Max. power consumption [W]

Pump DC voltage [V]

Power supply protection

Electronic overload protection

Power supply protection type

IP 40

3.7.2 Pump

Parameter

Value

Pump DC voltage [V]

24 V DC

Max. current consumption, DC RMS 24 V [A]

0,5 Max. short-term peak current [A]

1,0

Max. power consumption [W]

Pump protection

Electronic overload protection

Pump protection type

IP 65

Technical data Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 18 Translation of original operating instructions, English

3.8 Remote control (RC version only)

Parameter

Value

Analog input

Signal range, (100%) for 1 – 100% of full scale

0 – 5 V, 0 – 10 V, 0 – 20 mA, 4 – 20 mA

Input resistance []

13.9 k at 0 – 10 V

13.9 k at 0 – 5 V 470  at 4 – 20 mA 470  at 0 – 20 mA

Electric strength [V] TTL

24 V DC

Digital input

Signal range

Pull up at 24 V

Voltage [V] TTL

24 V DC

Low level (ON)

< 0.8 V = low

High level (OFF)

> 2.0 V = high

Digital output

Voltage open collector [V] TTL

24 V DC

Load capability open collector [mA] TTL

10 mA

Tab. 7: Remote control

3.9 Remote control via RS 232 (RC Plus version only)

Parameter

Value

RS 232 interface

TX – RS232

RX – RS232

Ground

Settings (factory)

Baud rate

9600 Kbit/s

Data

Bits 8

Parity

Stop

Bit 1

Mode

Half duplex

Tab. 8: RS 232 interface

Operating instructions SIMDOS10 EN Technical data

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 19

3.10 Flow rates

Parameter

Value

Flow rate [ml/min]

1 - 100

Max. metering volume [ml]

1 - 1000

Metering time [mm:ss] [hh:mm]

1s – 99h 59min

Permissible pressure [bar g]

Suction head [mWG]

Tab. 9: Hydraulic ratings

NOTE

The pump has been calibrated to its nominal flow rate in the factory. The specified flow rate is for water at 20°C with free discharge flow. The flow rate may differ from the calibrated value depending on the medium, its viscosity, density and temperature, pressure and installation type (e.g. cross-section constrictions).

➢ For accurate metering, calibrate the pump in the system

(see Section 7.12)

3.11 Other parameters

Parameter

Value

Permissible ambient temperature [°C]

+5 to +40 Rated speed [rpm]

200

Service life [h]

10,000 (100 million strokes) or 5 years

Noise level

< 40 dBA

Tab. 10: Other parameters

3.12 Hydraulic connections

Pump model

Connection type

FEM 1.10 KT, TT

Hose fitting, i.d 4mm / o.d. 6mm

FEM 1.10 FT, ST

Internal thread NPT 1/8, Hose fitting

i.d 4mm / o.d. 6mm

UFEM 1.10 KT, TT

Hose fitting, i.d 1/8“ / o.d. 1/4"mm

UFEM 1.10 FT, ST

Internal thread NPT 1/8, Hose fitting,

i.d 1/8“ / o.d. 1/4"mm

Tab. 11: Hydraulic connections

Technical data Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 20 Translation of original operating instructions, English

3.13 Transferred medium

Parameter

Value

Permissible medium viscosity [cSt]2

150

Ideally free of solids, max. particle size [µm]

< 70

Permissible media temperature3 [°C]

+5 to +80

WARNING

Poisoning and caustic burns

If corrosive, poisonous, ionising or biological media come into contact with skin, eyes and the respiratory tract they may cause serious injuries

➢ Observe the safety data sheets for the media to be trans-

ferred

➢ Use personal protective equipment ➢ Operate the pump in a suitably protected area ➢ Check the resistance of any parts which come into con-

tact with the fluid (see chemical resistance list or consult your local KNF dealer)

WARNING

Poisoning and caustic burns caused by bromine

Contact with skin, eyes and the respiratory tract causes serious injuries and ulcers

➢ Never transfer bromine

WARNING

Damage caused by ionising radiation

Radioactive materials cause serious damage to health and reduce the service life of the pump.

➢ Decontaminate the pump ➢ Wear personal protective equipment ➢ Mark the pump

NOTE

If it cannot be ensured that the transferred medium is free of solids, a < 70 µm filter with a sufficiently large filter area must be fitted upstream of the pump to prevent it from being damaged (see Chapter 13)

Using the fluid type setting "Visc500cSt" allows media with a viscosity of

500 cSt to be transferred at a limited flow rate. (see Section 7.11)

Applies to water and low-reactivity media. For aggressive media, re-

sistance is to be checked at a higher medium temperature.

Operating instructions SIMDOS10 EN Technical data

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 21

NOTE

Before using a medium, check the compatibility of the materials of the pump head, pump housing, diaphragm and valves with the medium.

➢ Check resistance, see chemical resistance list and Sec-

tion 4.3

➢ Clarify resistance with KNF (see last page)

3.14 Accuracy/ reproducibility

The accuracy of the metering pump is appropriately characterised by the maximum absolute error A and the maximum relative error B:

 max. inaccuracy ≤ A + B

Error

Value

Absolute error A

≤ ± 1‰ nominal value

Relative error B

≤ ±1.9% of setting value

Max. deviation

≤ A+B

Mean accuracy

+/- 2%

Mean reproducibility4

+/- 1%

Tab. 12: Error A and error B

SIMDOS 10, nominal value of 100ml/min For a setting of 20ml/min, the accuracy should therefore be within

the following error limits: Deviation ≤ (±1‰ x 100ml/min) + (±1.9% x 20ml/min) ≤ (±0.1ml/min) + (±0.38ml/min) ≤ ±0.48ml/min ≈ ±2% of setting value

NOTE

Greater inaccuracies may occur for fluids with a viscosity of > 150 cSt or with a tendency to gassing out

➢ Set "fluid type" (see Section 7.11) ➢ Calibrate the pump in the system (see Section 7.12)

NOTE

The flow rate may differ from the calibrated value for some applications, according to the medium, its viscosity, density and temperature, pressure and installation type (e.g. cross-section constrictions)

➢ For accurate metering, calibrate the metering pump in the

system (see Section 7.12)

Under constant environmental conditions and with the same hose con-

figuration

Example:

Assembly and function Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 22 Translation of original operating instructions, English

Assembly and function

4.1 Metering pump structure

1 STOP button 2 START button 3 Display 4 Control knob 5 Inlet 6 Pump head 7 Outlet 8 Power supply connector 9 Remote Control con-

nector (RC version only)

10 Connector for serial

communication (RC Plus version only)

Fig. 3: Diaphragm pump

4.2 Operating principle

1 Outlet valve 2 Inlet valve 3 Working chamber 4 Diaphragm 5 Eccentric 6 Connecting rod 7 Pump drive

Fig. 4: Pump assembly

The diaphragm liquid pumps are based on reciprocating displacement pump technology. The elastic diaphragm (4) is moved up and down by the eccentric (5) and the connecting rod (6). In the downward stroke it aspirates the medium to be transferred via the inlet valve (2). In the upward stroke, the diaphragm pushes the medium out of the pump head via the outlet valve (1). The diaphragm hermetically seals off the working chamber (3) from the pump drive (7).

Principle:

Operating instructions SIMDOS10 EN Assembly and function

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 23

Fig. 5: Low-pulsation operating principle

SIMDOS® diaphragm metering pumps are fitted with a patented drive system. The suction stroke is always driven at maximum speed, but the exhaust process is varied according to the selected speed, ensuring maximum possible uniformity of discharge during the entire stroke (see Fig. 4). This results in a low-pulsation, quasicontinuous transfer process. This is the key difference between SIMDOS® metering pumps and diaphragm metering pumps with linear magnet diaphragm drive or with conventional eccentric diaphragm drive.

The characteristic curve for the suction and exhaust strokes can also be adapted to the medium by setting the appropriate fluid type (see Section 7.11).

4.3 Valves

The SIMDOS is supplied with DuPont™Kalrez

valve disks as standard, but can also be supplied with valve disks made of CHEMRAZ

as an option.

WARNING

Danger of leaks and inaccurate metering caused by nonresistant valve materials

Using the wrong valve materials will result in inaccurate metering and possibly the complete failure of the valve system

➢ Check the resistance of any parts which come into con-

tact with the fluid (see chemical resistance list or consult your local KNF dealer, or contact lab@knf-flodos.ch)

➢ Avoid transferring media containing fluorine ➢ Regularly check that the pump is working properly and is

not leaking, especially when transferring aggressive and corrosive media

DuPont™Kalrez® is a registered trademark of E.I. du Pont de Nemours

CHEMRAZ® is a registered trademark of Greene, Tweed & Co. All rights

reserved.

Patented drive system

Assembly and function Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 24 Translation of original operating instructions, English

4.3.1 Standard valve, DuPont™Kalrez®

The SIMDOS is supplied with DuPont™Kalrez

valve disks as

standard. This material is resistant to most chemicals.

The optional CHEMRAZ® Valve Kit (see Section 13.1) is required for the liquids in Tab. 13.

➢ The resistance of the individual materials can be found in

the chemical resistance list provided.

➢ In case of doubt, please contact your local KNF dealer.

NOTE

The valve material can be identified from the geometry of the valve disk.

➢ DuPont™Kalrez® has one groove in its outer contour

(see Fig. 6)

➢ CHEMRAZ® has six grooves in its outer contour

(see Fig. 7)

➢ If CHEMRAZ® valves are used, the pump is to be labelled

accordingly

➢ The instructions in Section 8.4.2 are to be followed when

removing the valves

4.3.2 CHEMRAZ® Valve Kit

Experience shows that CHEMRAZ® valves should be used for the following liquids:

Solvents

Tetrahydrofuran (THF)

C4H8O

Dimethyl sulfoxide (DMSO)

C2H6OS

Dimethyl formamide (DMF)

C3H7NO

Methylethylketone (MEK)

C4H8O

N-methyl-2-pyrrolidone (NMP)

C5H9NO

Cyclohexane

C6H12

Concentrated acids (75%)

Hydrofluoric acid

Nitric acid

HNO3

Sulphuryl dichloride

SO2CL2

Trifluouroacetic acid

C2HF3O2

Tab. 13: Excerpt from the chemical resistance list for the

CHEMRAZ® Valve Kit

Fig. 6: Kalrez®, standard valve

Fig. 7 Chemraz® valve, optional

Operating instructions SIMDOS10 EN Assembly and function

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 25

4.4 Pump diaphragm

The pump diaphragm is covered with a layer of PTFE to ensure good chemical resistance.

4.5 Pump head

The pump head comprises an intermediate plate (1), a connecting plate (2) and a head plate (3). The intermediate and connecting plates come into contact with the liquid, so the resistance of the corresponding head materials must be established.

4.6 Operating controls

1 STOP button

• Switch pump on/off

• Stop transfer

process

2 START button

• Start and interrupt transfer process

3 Display

• Display operating parameters

4 Control knob

• Set flow rate (turn)

• Navigate through program

(turn)

• Confirm (press)

Fig. 9: Operating controls

Fig. 8: Pump head

Assembly and function Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 26 Translation of original operating instructions, English

4.6.1 Display

The main display shows the principal pump settings.

1 Specified flow 2 Cycle metering mode 3 Current cycle 4 Programmed cycles 5 Autostart 6 Remote control 7 Analog input 8 Digital input 1 9 Digital input 2 10 Operating mode display 11 Flow setting unit 12 Volumeter 13 Time counter

Fig. 10: Main display

Displays the flow rate set (1) if the unit (11) has been set to "ml/min". Displays the metering volume (1) if the unit (11) has been set to "ml".

Displays the pump running time.

▪ Downward count (13) if a timeout (metering) has been

programmed. Time remaining display.

Display of delivery volume (12) since last pump start-up.

Displays whether pump external drive has been activated, and the external drive condition (6, 7, 8, 9).

Displays whether pump has been set to Autostart (5). Displays whether the pump is operating, stopped or paused (10). If this display (2) is active, the programmed number of volumes (3) is metered. During operation the current

cycle number (3) is incremented until the programmed cycle number (4) is reached.

▪ During metering, the transfer time remaining for the current

dose is displayed.

▪ During the pause the pump counts down the pause time

remaining.

Specified flow and unit

Time counter

Volumeter

Remote control

Autostart

Operating condition

Cycle metering mode

Operating instructions SIMDOS10 EN Assembly and function

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 27

4.6.1 Main menu

Display

Function

20.0

ml/min

- - min

- - sec

0.0 ml

Flow rate 1 – 100 ml/min Metering volume 1 – 1000 ml and metering time timeout

Prime

High-speed operation for priming or emptying

Fluid type S

Set the pump for the characteristics of the medium to be transferred

S = Standard: aqueous media D = Volatile: media with a low boiling point V = Visc100 cSt: media up to 100 cSt H = Visc500 cSt: media up to 500 cSt

Cal. 100%

To calibrate the pump

Cycle

Off

Set cycle metering mode (several volumes) Quantity: Repetitions (Off, 2…999, Inf)

Pause: pause time (1s...99 min 59s)

System

Switch to system menu

Assembly and function Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 28 Translation of original operating instructions, English

4.6.2 System menu

Display

Function

Back

Switch to main menu

English

select language

A_in

Off

Analog input of pump*

▪ Off ▪ 0 – 5 V, 0-10 V, 0 – 20 mA, 4 – 20 mA

In1

Off

Digital input 1:*

▪ Off ▪ Start/Stop using level or pulse signal

In2

Off

Digital input 2:*

▪ Off ▪ Reset or high-speed operation

Out

Alarm

Digital output:*

▪ Error/alarm ▪ End of metering volume ▪ Volume pulses

▪ Motor running (level) ▪ Motor pulses

Autostart

Off

Set autostart

▪ Off ▪ On (pump will start running as soon as mains voltage is

applied)

Contrast

Set display contrast

Reset

Reset pump to factory settings

Maintenanc.

Maintenance position for diaphragm replacing

Back

Switch to main menu

NOTE

* RC functions are available for RC pumps only (see Section 3.4). See Chapter 9 for further details of the external drive system.

Operating instructions SIMDOS10 EN Assembly and function

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 29

4.7 Operating modes

In this case, the device transfers at a constant flow rate.

Fig. 11: Continuous transferring

In this case, the device transfers at a constant flow rate, then switches off after a specified time.

Fig. 12: Continuous transferring with timeout

Transferring of a specified volume in a specified time.

Fig. 13: Metered volume with timeout

The pump meters n repetitions of a defined metering cycle with pause time.

Fig. 14: Cycle metering mode

Continuous transferring

Continuous transferring with

timeout

Metered volume

Cycle metering mode

metering several volumes

Shipment Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 30 Translation of original operating instructions, English

Shipment

5.1 Checking delivery

▪ Device delivered and packaged

Check delivery for visible damage Check that delivery is correct and complete using the packing

list In the event of a discrepancy, register a complaint. Keep original packaging in case you have to return the item

5.2 Registering a complaint

▪ Device damaged or incomplete

If there are any visible signs of damage, only accept the deliv-

ery with reservations. Damage and complaints of any kind should be recorded on the

delivery note Notify the manufacturer of any damage and complaints

5.3 Arranging for return

▪ Device damaged or incomplete

Contact KNF before returning the device Flush and decontaminate pump Fill out decontamination declaration Send the pump in its original packaging to a service location or

one of our product centres The pump can be sent by parcel service or post in its original

packaging

Prior requirements

Procedure

Prior requirements

Procedure

Prior requirements

Procedure

Operating instructions SIMDOS10 EN Installation and initial start-up

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 31

Installation and initial start-up

6.1 Safety

WARNING

Danger as a result of incorrect installation

Injuries or damage to equipment caused by escaping media

➢ Follow installation instructions ➢ After assembly, test the system with a harmless liquid ➢ Only use pump if it is in perfect working order

WARNING

Danger of serious injuries or property damage caused by escaping media in the event of rupturing of the pump diaphragm

Poisoning and caustic burns caused by escaping media as a result of rupturing of the pump diaphragm. If the pump diaphragm ruptures, the medium is channelled out of the pump through the discharge outlet.

➢ When transferring critical media, operate the pump in a

collecting tank

➢ Check discharge outlet for leaks

WARNING

Danger of serious injuries or property damage caused by escaping media in the event of overpressure on the suction side

Overpressure on the suction side will result in uncontrolled escaping of the fluid, even if the pump is not operating.

➢ Avoid overpressure on the suction side ➢ Fit a pressure control valve (see Section 6.3.3)

The following requirements apply to all the activities described in this chapter:

▪ Device is in perfect working order ▪ The system is operated with water ▪ Must be assembled by specialist personnel ▪ Not required

Prior requirements

Personnel

Personal protective equipment

Installation and initial start-up Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 32 Translation of original operating instructions, English

6.2 Installation

Before installation, store the pump at the installation location to bring it up to ambient temperature.

NOTE

For problem-free, safe operation the following instructions should be followed:

➢ Install in a dry place. ➢ Protect the installation location of the pump from water in

the form of rain, spray, splashes and drips.

➢ Do not operate the pump in an aggressive or inflammable

environment.

➢ Choose a safe location (a level, flat surface) for the pump. ➢ If the stability of the pump cannot be ensured, fasten the

pump in place using two screws.

➢ Make sure that the hose connections can be fitted without

strain on the hoses.

➢ Protect the pump against shocks, impacts and strong vi-

brations.

6.2.1 Connect mains plug

DANGER

Risk of electric shock

➢ Only operate the pump with the power supply unit sup-

plied

➢ Connect the cable from the mains plug to the pump's

power supply socket

➢ Connect the mains plug into a correctly installed and

properly earthed mains socket

➢ Ensure that the mains plug is protected from water

splashes

➢ Do not open pump housing or power supply unit ➢ Disconnect pump from power supply during maintenance

work

➢ If pump is installed permanently, fit a maintenance switch

When connecting the device to a power source, the relevant norms, directives, regulations and technical standards must be observed.

Use suitable adapters in the power supply unit Connect power supply unit to pump

Fig. 15: Electrical connection

Operating instructions SIMDOS10 EN Installation and initial start-up

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 33

6.2.2 Connect filter

CAUTION

Danger of excessive banking-up pressure (resistance) in the filter as a result of high particle concentration in the medium or a mesh size which is too small

This reduces the flow rate and causes errors in metering accuracy

➢ Use filters with a sufficiently large mesh size ➢ Filter fluid beforehand where appropriate ➢ Check filter penetration regularly, cleaning or replacing

the filter where necessary (see filter data sheet)

CAUTION

Danger of blocked filters as a result of excessive particle concentration in the medium

This reduces the flow rate and causes errors in metering accuracy

➢ Filter fluid beforehand where necessary ➢ Check filter penetration regularly, cleaning or replacing

the filter where necessary (see filter data sheet)

Many media contain solids or fibres that are not visible to the naked eye. In order to maintain reliable pump operation, a filter is to be used on the suction side.

Connect the filters supplied on the suction side

(for Order No. see Section 13.6). Set up the system in the fol-

lowing steps Rotate pump 90° anticlockwise Prime pump so that the air can escape from the filter. If there are no air bubbles in the system, the pump can be put

into operation.

NOTE

Air in the pump head causes inaccurate metering.

Empty pump Refill pump

Fig. 16: Prime pump vertically

Installation and initial start-up Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 34 Translation of original operating instructions, English

6.2.3 Connect hydraulics

Only connect components to the pump that are designed to

handle the hydraulic characteristics of the pump (see Chapter

3).

Only use hoses that are suitable for the maximum operating

pressure of the pump (see Section 3.10).

Only use hoses that are sufficiently chemically resistant to the

liquids being transferred.

The connections described below apply to standard products.

Different connections may apply for customer-specific projects (PML or PL).

NOTE

Arrows on the pump head indicate the flow direction.

Clamp ring / hose connection fitting, FEM 1.10KT, FEM 1.10TT, UFEM 1.10KT, UFEM 1.10TT

1 Hose 2 Union nut 3 Clamp ring 4 Connector

Fig. 17: 4/6 hose / clamp ring connection fitting (FEM)

1/8” / 1/4” hose / clamp ring connection fitting (UFEM)

Remove protective covers from the connections. With a sharp knife, cut the suction and pressure lines (FEM: hose with i.d. 4 mm, o.d. 6 mm; UFEM: hose with i.d.

1/8”, o.d. 1/4”) to the required length, with square straight edg-

es. Push the union nut (2) and clamp ring (3) onto the hose (1). Push the hoses onto the connectors as far as they will go. Hand-tighten the union nut (2). Check that the hoses and hose/connector transitions are

correctly and securely attached. Check that the system is leak-tight (see Section 8.5)

Connected

components

Hoses

Customer-specific

pumps (PL, PML)

Operating instructions SIMDOS10 EN Installation and initial start-up

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 35

Cutting ring / hose connection fitting with threaded socket FEM 1.10FT/ST, UFEM 1.10FT/ST

1 Hose 2 Threaded socket 3 PTFE sealing tape 4 Union ring 5 Cutting ring 6 Sealing ring 7 Connector

Fig. 18: 4/6 hose / cutting ring FT connection fitting

1/8” / 1/4” hose / cutting ring FT connection fitting (UFEM)

Remove protective covers from the connections. Screw the threaded socket (2) with Teflon sealing tape (3) into

the pump head.

Using a sharp knife, cut the suction and pressure lines (FEM:

hose with i.d. 4 mm, o.d. 6 mm; UFEM: hose with i.d. 1/8”, o.d.

1/4”) to the required length, with straight square edges.

Push the union nut (4), cutting ring (5) and sealing ring (6) onto

the hose (1).

HINWEIS

Push the cutting ring and sealing ring over the hose only far enough for the hose end to protrude around 1 mm.

Push the hoses onto the connectors as far as they will go. Hand-tighten the union nut (4).

Check that the hoses and hose/connector transitions are

correctly and securely attached.

Check that the system is leak-tight (see Section 8.5)

Fig. 19: Position of cutting ring and

sealing ring on hose

Installation and initial start-up Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 36 Translation of original operating instructions, English

6.3 System setup

6.3.1 Recommended setup

In order to maintain reliable pump operation, the following setups should be considered.

Description of symbols for the following diagrams:

Symbol

Meaning

Symbol

Meaning

Pump

Pressure control valve (adjustable)

Filter

Storage container

Tab. 14: Description of symbols

6.3.2 The storage container is level with the pump or underneath it

Fig. 20: Storage container underneath pump

In order to achieve the specified metering accuracy (see Section

3.14) the following instructions should be followed:

▪ Select suction head lower than Δh=1 mWG ▪ Keep suction hose as short as possible ▪ Select a suction hose with a large cross-section ▪ Vent the pump ▪ For constant results, keep the level of liquid constant (use

a container with a large base)

Operating instructions SIMDOS10 EN Installation and initial start-up

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 37

6.3.3 Storage container above the pump

Fig. 21: Storage container above the pump.

NOTE

Overpressure on the suction side reduces the accuracy of the pump

In order to avoid uncontrolled escaping of the medium, a pressure control valve must be used on the pressure side (see Fig. 21).

➢ Set up the system as shown in Fig. 21 ➢ Suitable pressure control valves are available as accesso-

ries (see Section 13.3)

➢ Set the pressure control valve to 0.5 bar. This allows a Δh

of less than 4.5 m to be compensated for

6.3.4 Metering volatile media

For precise metering of liquids with a low vapour pressure, such as solvents, the system should be set up as shown in Fig. 22

Fig. 22: Volatile media

Set up the system as shown in Fig. 22 The pressure control valve should be set to 0.5 bar To avoid cavitation, set the fluid type "Volatile" or "Visc500cSt"

(see Section 7.11)

6.3.5 Protection against overpressure

In order to protect the system against overpressure, a safety valve must be fitted immediately downstream of the pump (see Fig. 23).

Fig. 23: Overpressure protection

Installation and initial start-up Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 38 Translation of original operating instructions, English

6.4 Initial start-up

CAUTION

Danger of bursting of the fluid system as a consequence of overpressure

The pump builds up pressure. In a closed system the max. permitted operating pressure may be exceeded, thus causing damage to the pump and/or the system

➢ In the case of parts that are in contact with the fluid, only

select those that are designed for the pump's operating pressure as a minimum

➢ Do not transfer against shut-off devices or closed sys-

tems, or

➢ install pressure relief/safety valves and set them to 6 bar

(in the KNF product range)

CAUTION

Danger of unexpected chemical reactions with water

Water residues left in the pump from testing in the factory may react with the transferred medium.

➢ Before putting the pump into service, flush it with a non-

critical medium

Before switching on the pump, check the following points:

Prerequisites for start-up

▪ All hoses attached properly ▪ Specifications of the power supply must correspond with

the data on the pump and mains plug type plates.

▪ The pump outlet must be clear of any obstruction. ▪ All cables properly connected

Tab. 15: Prerequisites for start-up

Only operate the pump under the operating parameters and

conditions described in Section 3.10.

Make sure the pump is used properly

(see Section 2.1).

Avoid improper use of the pump

(see Section 2.2).

Observe all safety precautions (see Chapter 2).

6.4.1 Test the system

In order to prevent damage, the safety, leak-tightness and functioning of the test set-up should be checked using a suitable harmless medium, such as water.

Operating instructions SIMDOS10 EN Operation

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 39

Operation

7.1 Safety

DANGER

Danger of injuries and property damage caused by hazardous materials

Poisoning and caustic burns, or undesirable reactions caused by escaping hazardous materials

➢ Observe the safety data sheets for the media to be trans-

ferred

➢ Determine the resistance of the head materials ➢ Maintain the tightening torque of connections (see 6.2) ➢ Check tightening torque of head screws regularly (see

Section 8.4)

➢ Check that pump and system are leak-tight ➢ Service pump regularly ➢ Only use pump if it is in perfect working order ➢ Operate pump in accordance with the technical data

WARNING

Danger of undetected rupturing of diaphragm

The diaphragm may be damaged by aggressive media, and the medium may escape from the discharge outlet

➢ Operate the pump in a collecting pan ➢ Flush pump thoroughly after use or if it is not to be used

for an extended period (see Chapter 8)

➢ Check the discharge outlet regularly for leaks ➢ Observe the service lives of diaphragms and other elas-

tomer parts (see Maintenance)

WARNING

Danger of splashing media

If corrosive, poisonous, ionising or biological media come into contact with skin, eyes and the respiratory tract they may cause serious injuries

➢ Observe the safety data sheets for the media to be trans-

ferred

➢ Check that the system is leak-tight before use ➢ Use personal protective equipment

CAUTION

Danger of cavitation or particles in the fluid circuit

Errors in metering accuracy

➢ Use a prefilter for media containing particulate matter ➢ Clean valve disk/pump head (see Section 8.4) ➢ Vent the pump and system thoroughly ➢ Set the type of liquid in the case of high-viscosity and vol-

atile media (see Section 7.11)

Operation Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 40 Translation of original operating instructions, English

CAUTION

Incompatible media will cause valve parts to swell

This swelling will cause errors in metering accuracy

➢ Check the resistance of any parts which come into con-

tact with the fluid (see chemical resistance list or consult your local KNF dealer)

The following requirements apply to all the activities described in this chapter:

▪ Device is in perfect working order ▪ The system has previously been operated and tested with

a suitable harmless medium (e.g. water).

▪ Trained personnel ▪ The type of protective equipment required will depend on

the medium to be transferred.

▪ Observe safety data sheets and regulations for the han-

dling of the media to be transferred.

▪ At medium temperatures of over 50°C, take safety precau-

tions against burns.

▪ When transferring aggressive, biological, inflammable or

ionising media, a suitable work station with a safety and extraction system is to be used.

7.2 Switching pump on / off

The default setting is for the pump to remain off when connected to the mains power supply.

Switch on

Hold the “STOP” button down for at least 2 seconds

 the pump will now switch itself on  The display lights up, and the pump is ready for use.

Switch off

Hold the “STOP” button down for at least 2 seconds.

 The pump will now switch off completely.

NOTE

When the pump is stopped, after ten minutes without any user input it switches into standby condition (display goes dark). However, the pump is still ready for use immediately when required.

➢ Press “STOP” or any other key to reactivate the pump

from standby condition.

➢ The external drive reactivates the pump from standby as

soon as a control signal is present.

Prior requirements

Personnel

Personal protective equipment

Special tools required

Fig. 24: Switching on the pump

Fig. 25: Switching off the pump

Operating instructions SIMDOS10 EN Operation

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 41

7.3 Entering settings

➢ Turn the control knob to scroll the display up or down.

Fig. 26: Moving the operating menu up / down

➢ The lines in the middle of the display are enclosed in a

frame, and can now be selected with the control knob.

Fig. 27: Select the framed lines by pressing the control knob

➢ The selected settings are marked with an inverted display.

Now turn the control knob to change the value as required.

Fig. 28: Inverted display of editable values

➢ Press on the control knob to confirm your input, and move

to the next value in the same line, if any.

Fig. 29: Confirming the setting value by pressing the control knob

Ending the setting operation: Method 1

Keep pressing the control knob until no values are selected

(values marked with inverted display).

Turn the control knob until the main display can be seen at the

top of the operating menu.

Press the “STOP” button:

 The pump will stop when this operation is carried out.

This ends the input operation, and the display switches back to the main display.

Operation Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 42 Translation of original operating instructions, English

Method 2

Press the “START” button: this ends the input operation, and

the display switches back to the main display.

 The pump starts when this operation is carried out.

7.4 Setting the operating mode

Press control knob, Fig. 30 appears

 The transfer value can be set by turning the control

knob Press the control knob to confirm the input Turn control knob Press control knob, Fig. 31 appears

 The following operating modes can be set by turning

the control knob.

▪ [ml/min] for transferring at a fixed flow rate ▪ [ml] for metering a volume

Press the control knob to confirm the input

Input

Unit

Setting range

Flow rate

Millilitres per minute [ml/min]

1 - 100

Metering volume

Millilitres [ml]

1 - 1000.0

Tab. 16: Operating mode setting ranges

Fig. 30: Specified flow

Fig. 31: Flow unit

Operating instructions SIMDOS10 EN Operation

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 43

7.5 Priming the pump

This function is for rapidly priming and emptying the pump head and hoses.

Press the control knob and hold in place for the

duration of the priming / emptying operation.

 The pump will run at a higher speed

during this time.

IMPORTANT

The priming function interrupts any metering operation that is currently in progress.

NOTE

Air bubbles in the hose system prevent precise metering.

➢ Prime the system until no more bubbles are visible. ➢ Avoid bubble formation in the fluid ➢ Hold pump with filter in vertical direction of flow and prime

(see Section 6.2.2)

7.6 Starting the pump

Press the “START” button.

 The unit will begin transferring. The triangle symbol

will appear in the display.

NOTE

An externally actuated pump will only start if the external control signals allow a pump start-up (see Chapter 9).

7.7 Interrupting a transferring operation

Press the “START” button

 The transferring operation is interrupted. The pause

symbol will appear in the display.

NOTE

In "Pause" operating mode:

➢ when restarted, any interrupted transfer is continued. ➢ the pump responds to external control signals.

Fig. 32: Prime

Fig. 33: Starting the pump

Fig. 34: Interrupting a transferring

operation

Operation Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 44 Translation of original operating instructions, English

7.8 Stopping the transferring operation

Press the “STOP” button,

 The transferring operation is interrupted. The pause

symbol will appear in the display. Press the “STOP” button again

 The pump will now switch to “Stop” condition, and re-

set the time counter and volumeter.

NOTE

The first time the user presses the “STOP” button puts the work-

ing pump into Pause condition.

The pump goes into “Stop” condition only when the “STOP”

button is pressed for the second time.

Stopping the pump with the “STOP” button is called a “Master

Stop”.

NOTE

Transferring after a Master Stop is only possible if:

▪ the Master Stop is manually cancelled using the "START"

button;

▪ or if a "Reset" command is present at digital input 2.

Fig. 35: Stopping the transferring

operation

Master Stop

Operating instructions SIMDOS10 EN Operation

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 45

7.9 Transferring fluid

Specify the required transfer value (see Section 7.4) Set operating mode to [ml/min] (see Section 7.4) Press the control knob to confirm the input Press the “START” button

 Pump transfers at the desired flow rate

NOTE

When operating:

▪ a timeout can be programmed.

 The pump transfers at a set flow rate until the time

has elapsed

▪ if a timeout is not specified (see Fig. 31),

 the pump transfers at the set flow rate until stopped

by a Pause or Stop command

▪ the time counter can be switched to hours and minutes.

To do this, set the minute setting to more than 59 min

Timeout with time counter

The timeout function can be configured as follows.

Input

Meaning

Setting range

- - min - - sec

Timeout not active

- -

mm min ss sec

Timeout active

1sec – 99h 59min

Tab. 17 Timeout

7.10 Setting metering operation

Specify the required transfer value (see Section 7.4) Set operating mode to [ml] (see Section 7.4) Press the control knob to confirm the input Press the “START” button

 The pump transfers the desired volume

NOTE

When metering a volume [ml]:

▪ the permissible setting range for the time counter is re-

stricted so that the flow rate will not exceed or fall below the permissible flow rate for the pump.

▪ the time counter cannot be deactivated. The setting [- -

min - - sec] is not possible.

Fig. 36: Time setting in seconds

Fig. 37: Time setting in hours

Operation Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 46 Translation of original operating instructions, English

7.11 Setting the fluid type

The "fluid type" setting is used to adjust the pump characteristic curve for different types of fluid.

Turn control knob until "Fluid Type" appears in the selection

window

Press control knob

 The current setting is shown by character on the right-

hand edge

The following settings are available for selection:

Fluid type: Standard

Symbol: S This is the optimum setting for all media with a viscosity similar to

that of water. A uniform flow characteristic curve is obtained with short suction times and appropriate linearisation.

Fluid type: Volatile

Symbol: D This is the appropriate setting for media with a low boiling point. As

these media are sensitive to any pressure drop and deceleration phenomena:

▪ The pump suction rate is reduced ▪ The transferring characteristic curve reduces fluid acceler-

ation and deceleration

Fluid type: Viscosity up to 100 cSt

Symbol: V The setting "Visc100cSt" is for media with a viscosity of up to

approx. 100 cSt. This setting alters the characteristics of the pump as follows:

▪ Suction rate is reduced ▪ Maximum flow rate is limited to 50 ml/min

Fluid type: Viscosity up to 500 cSt

Symbol: H This setting "Visc500 cSt" is for media with a viscosity of up to

approx. 500 cSt. This setting alters the characteristics of the pump as follows:

 The pump suction rate is significantly reduced  The maximum flow rate is limited to 20 ml/min

Fig. 38: Fluid type

Fig. 39: "Standard" fluid type

Fig. 40: "Volatile" fluid type

Fig. 41: “Visc100cSt” fluid type

Fig. 42: "Visc500cSt" fluid type

Operating instructions SIMDOS10 EN Operation

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 47

7.12 To calibrate the pump

The pump has already been precisely adjusted in the factory. However, the device will operate even more precisely if it is calibrated. Calibration eliminates any variances caused by supply lines, back-pressure and viscosity.

Calibration can be used to adjust the pump flow rate by ±20%.

Set up system Take an accurate measurement of the flow rate or metering

volume

Use the control knob to make the required menu selection [Cal.

100.0%]

Input the measured actual value with the control knob and

confirm (see Fig. 44)

Check the calibration with a repeat measurement.

NOTE

The calibration function uses the specified flow setting as the target value. This means the pump can always be calibrated for the current operating point.

NOTE

If the target flow rate still cannot be achieved after several calibration attempts, see "Troubleshooting" (Chapter 12).

Fig. 43: Calibration

Fig. 44: Inputting the calibration

actual value

Operation Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 48 Translation of original operating instructions, English

7.13 Cycle metering mode

The "Cycle" settings in the main menu allow several volumes to be metered with a specific pause time.

Use control knob to set desired volume

▪ Set metering volume as volume in [ml]. ▪ Set metering volume as flow rate and time in [ml/min].

Select "Cycle" menu (see Fig. 45) Press control knob

 The display in Fig. 46 appears

Turn control knob

 Specify number of cycles (Off, 2...999, unlimited) Press control knob Specify pause time

 The following intervals are possible: 1s...99min 59s Press control knob

 Main display appears (see Fig. 47)

NOTE

If the pump is disconnected from the mains or switched off, cycle operation is deactivated for safety reasons.

NOTE

The "PAUSE" button can be used to temporarily interrupt the process. The process can be restarted by pressing the "PAUSE" button again.

7.14 Setting the system

Select “System” to call up a second menu allowing the other pump

settings to be entered.

7.15 Back to main menu

Click on “Back” to return to the main menu for entering pump

default settings. Other options for returning to the main display are as follows:

➢ Press the “STOP” button: this ends the input operation,

and the display switches back to the main display

 The pump will stop when this operation is carried out

➢ Press the “START” button: this ends the input operation,

and the display switches back to the main display

 The pump starts when this operation is carried out

➢ Wait for 10 seconds without entering any inputs

 The pump ends the input operation and switches back

to the main display

Fig. 45: Cycle display

Fig. 46: Setting menu

Fig. 47: Main display

Fig. 48: System menu

Fig. 49: Back to main menu

Operating instructions SIMDOS10 EN Operation

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 49

7.16 Select language setting

The language setting operation selects the required language for

the operating menu.

7.17 Activate autostart

WARNING

Automatic start-up when autostart function is activated

The pump starts up by itself and without warning.

➢ Do not switch on the autostart function until the system

has been tested and is ready for operation

➢ Clearly identify the fact that the autostart option for the

pump has been activated

➢ Before start-up, check that hoses and equipment are

leak-tight and correctly connected

➢ Do not operate the pump with hazardous media

If you want the pump to respond automatically to external signals

as soon as the power supply is switched on, you can activate the

autostart option.

The “Autostart” setting defines the process for switching on the

pump.

Input

Meaning

Off

Pump does not start by itself

Pump starts automatically when the power supply to the pump is switched on.

Tab. 18: Autostart

When the “Autostart” option is on, this is indicated in the main

display with the “AS” symbol (see Fig. Fig. 52).

7.18 Set contrast

Display contrast adjustment. Adjust the contrast if the display is

difficult to read.

Fig. 50: Language selection

Autostart and external drive

Fig. 51: Autostart

Fig. 52: Autostart symbol in

display

Fig. 53: Contrast

Operation Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 50 Translation of original operating instructions, English

7.19 Resetting the pump (Reset)

The “Reset” function is used to reset the pump to its factory set-

tings.

Input

Meaning

No reset takes place

Yes

Pump is reset to its factory settings

Code

No function

Tab. 19: Reset

The reset function will restore the following settings:

Value

Setting = factory setting

Flow rate [ml/min]

10.0

Unit

ml/min

Time counter

Off --min -- sec

Fluid type

Standard

Calibration

100%

Language

English

Analog input

Off

Digital input 1

Off

Digital input 2

Off

Digital output

Alarm

Autostart

Off

Contrast

Tab. 20: Reset factory settings

7.20 Shutting down the pump in an emergency

In order to shut the pump down in an emergency, pull out the mains plug. Or shut the pump down using the "Stop" button

Fig. 54: Reset

Operating instructions SIMDOS10 EN Cleaning and maintenance

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 51

Cleaning and maintenance

8.1 Safety

DANGER

Danger of injuries caused by hazardous materials

Poisoning and caustic burns caused by contact with aggressive, inflammable or radioactive media

➢ Flush the pump thoroughly (see Chapter 8.2) ➢ Decontaminate the pump if necessary ➢ Observe the safety data sheets for the media to be trans-

ferred

➢ Wear suitable protective equipment

WARNING

Danger of heat build-up as a result of chemical reactions with the flushing liquid

Significant heat build-up will damage the diaphragms, O-rings and valve system, resulting in leaks

➢ Avoid chemical reactions in the pump ➢ Observe the safety data sheets for the liquid to be trans-

ferred

➢ Observe the following advice

The following requirements apply to all the activities described in

this chapter:

▪ none ▪ Specialist personnel ▪ The type of protective equipment required will depend on

the medium to be transferred.

▪ Observe the safety data sheets for the media to be trans-

ferred.

Prior requirements

Personnel

Personal protective equipment

Cleaning and maintenance Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 52 Translation of original operating instructions, English

8.2 Cleaning the pump

In order to maintain the service life of the pump, after each use and before any long periods of inactivity the pump must be flushed through with neutral media.

IMPORTANT:

To ensure satisfactory start-up when the unit is again required, it is important to ensure that the pump is free of any crystallising, adhesive or curing media.

8.2.1 Metering medium: acids

➢ Flush pump with a suitable neutralising liquid in a circular

flow for 10 minutes

➢ Then flush with distilled water for 5 minutes

8.2.2 Metering medium: bases

➢ Flush pump with a suitable neutralising liquid in a circular

flow for 10 minutes

➢ Then flush with distilled water for 5 minutes

8.2.3 Metering medium: organic solvents

➢ Flush pump with isopropyl alcohol (C3H8O) in a circular

flow for 10 minutes

NOTE

Never flush non-polar solvents immediately with water

8.2.4 Metering medium: biological solution

➢ Flush pump with 10% hydrogen peroxide in a circular flow

for 10 minutes

➢ Then flush with distilled water for 10 minutes

NOTE

The procedure described in Section 8.2.4 is not a sterilisation

Operating instructions SIMDOS10 EN Cleaning and maintenance

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 53

8.3 Maintenance plan

Interval

Assembly

Action

Personnel

When changing the transfer medium

Complete pump

Flushing the pump

Specialist personnel

Daily

Complete pump

Visually inspect the pump for pollu-

tion/contamination.

If pollution/contamination is found,

clean the pump.

Check the discharge outlet on the

intermediate flange for leaks

Trained personnel

Complete pump

Visually inspect the pump for exter-

nal damage.

If damage is found, take corrective

action (see Chapter "Troubleshooting")

Trained personnel

Complete pump

Visually inspect the pump for leaks If leaks are found the pump must

under no circumstances be used. (see "Troubleshooting")

Specialist personnel

Complete pump

Check pump capacity If pump capacity falls, clean the

pump head and replace elastomer parts where necessary.

Specialist personnel

Weekly

Filter (accessory)

Check filter for contamination. If contamination is found, clean or

replace the filter

Specialist personnel

1,000 hours of operation

Pump diaphragm, valves and seal

Replace pump diaphragm, valves

and seal

Specialist personnel

as required

Pump head

Replace pump head

Specialist personnel

Tab. 21: Servicing schedule

Cleaning and maintenance Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 54 Translation of original operating instructions, English

8.4 Cleaning / replacing valve plates and pump diaphragm

DANGER

Danger from hazardous materials

Poisoning and caustic burns or undesirable reactions caused by escaping hazardous materials as a result of incorrect maintenance/servicing or the transferring of incompatible media.

➢ Follow the maintenance instructions ➢ Ensure cleanliness during maintenance

(particles on seal faces cause leaks)

➢ Check that pump and system are leak-tight after mainte-

nance

WARNING

Danger of poisoning and caustic burns

If they come into contact with skin and eyes, aggressive media cause poisoning and caustic burns.

➢ Flush pump as described in Section 8.2, Cleaning the

pump.

➢ Wear protective equipment, e.g. protective gloves, safety

glasses.

▪ Pump switched off and disconnected from mains ▪ The pump must be free of any hazardous substances ▪ Hoses must be disconnected from the pump head ▪ Specialist personnel ▪ The type of protective equipment required will depend on

the medium to be transferred.

▪ Observe the safety data sheets for the media to be trans-

ferred.

Qty

Tools/materials

Phillips screwdriver no. 1

Spare parts kit (see Section 13.1)

Torque screwdriver that can be set to 0.55 Nm.

Tab. 22: Tools/materials

Always replace valve disks, valve seats and seals at the same time, to maintain satisfactory flow rate performance.

Prior requirements

Personnel

Personal protective equipment

Tools and materials

Information on procedure

Operating instructions SIMDOS10 EN Cleaning and maintenance

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 55

8.4.1 Cleaning the pump head

Disassemble the pump head as described in Section 8.4.2 Rinse connecting plate (3) and intermediate plate (8) and wipe

with a soft cloth. Blow dry with compressed air

Remove valve seats (5) carefully. The sealing washers (4) are

not present in the FT head, see Fig. 55

Remove O-Rings (6) and valve disk (7).

NOTE

Do not damage the sealing rings.

➢ Do not use any abrasive agents. ➢ Do not clean head parts with hard materials.

➢ Check head parts, especially sealing edges and seal fac-

es, for damage

➢ Replace any damaged parts

Wash all parts with flushing agent and blow dry with com-

pressed air Wipe the pump diaphragm with a soft damp cloth Assemble the pump head as described in Section 8.4.2 Check that the pump is leak-tight (see Section 8.5)

Fig. 55: Head, KT, TT

Head, FT

NOTE

The pump head should only be cleaned if:

➢ the pump is no longer sucking properly, ➢ the flow rate is too low, ➢ reverse suction can be seen, or ➢ the pump head cannot be cleaned satisfactorily by flush-

ing.

Ensure cleanliness when replacing valves, as pollution/contamination may prevent the valve from working properly.

1 Head screws 2 Head plate 3 Connecting plate 4 Sealing washer 5 Valve seat 6 O-ring 7 Valve disk 8 Intermediate plate

Cleaning and maintenance Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 56 Translation of original operating instructions, English

8.4.2 Replacing the valve

WARNING

Danger of poisoning/injuries as a result of choosing the wrong valve material

Aggressive media alter valve materials, thus preventing the pump from working properly

➢ Determine the resistance of the valve material – see Sec-

tion 4.3 or the chemical resistance list (www.knf.com/downloads)

➢ Use resistant valve materials and mark the pump accord-

ingly, also

➢ marking if it deviates from the standard

Ensure cleanliness when replacing valves, as pollution/contamination may prevent the valve from working properly.

Undo head screws (1)

Completely remove head (10) Remove head plate (2) and head screws (1) Check diaphragms (20) for damage and replace where nec-

essary

Fold the connecting plate (3) and the intermediate plate (8)

apart

Operating instructions SIMDOS10 EN Cleaning and maintenance

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 57

Remove valve seats (5) carefully Replace sealing washers (4)

The FT head does not contain a sealing washer or valve seats

Caution!

Sealing washer must lie flat in the valve seat, otherwise pump will not be leak-tight

Remove valve disks (7) and O-rings (6) Fit O-rings (6) flat on the base, taking care not to twist them

Fit valve disks (7), which must lie flat on the valve

Caution! Observe material coding (below)

Check valve material before using. For further information, see

Section 4.3

DuPont™Kalrez

CHEMRAZ®

Place pre-assembled valve

seats (5) in connecting plate (3)

Fit the connecting plate (2) and the intermediate plate (1) togeth-

Cleaning and maintenance Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 58 Translation of original operating instructions, English

Assemble head plate (2) and head screws (1) with head (follow-

ing the direction of the arrows)

Caution! Once fitted together, the seals and O-rings must not be moved again

➢ Hold the complete head together

Fully assemble head (10) Tighten head screws (1) to 0.55 Nm.

Check that the pump is leak-tight (see Section 8.5)

0.55 Nm

Operating instructions SIMDOS10 EN Cleaning and maintenance

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 59

8.4.3 Replacing the pump diaphragm

▪ Pump must be free of any hazardous substances

▪ Hoses must be disconnected from the pump head

▪ Pump is connected to the mains

▪ specialist personnel trained by KNF

▪ The type of protective equipment required will depend on

the medium to be transferred.

▪ Observe the safety data sheets for the media to be trans-

ferred.

Ensure cleanliness when replacing diaphragms, as pollution/contamination may prevent the pump from working properly.

1 Support / Connecting rod 2 Insert ring 3 Pump diaphragm

Fig. 56: Replacing the pump diaphragm

Removal

Activate the diaphragm maintenance function in the pump

system menu Disassemble pump head as described in Section 8.4.2 Lift pump membrane (3) at opposite side edges, grip and

screw out by turning anticlockwise (see arrow in Fig. 56) Inspect all parts for pollution/contamination and damage,

cleaning them if necessary

Installation

Activate diaphragm maintenance in the pump system menu (if

no longer active) Fit insert ring (2). Screw pump membrane (3) clockwise onto connecting rod (1)

and hand-tighten. Press the “STOP” button, Activate "Prime" in main menu for 2s

 Diaphragm moves into housing Assemble the pump head as described in Section 8.4.2. Check that the pump is leak-tight (see Section 8.5)

NOTE

If the pump diaphragm is not fitted correctly, the pump may be mechanically obstructed and become damaged as a result.

➢ Screw the pump membrane in properly as far as it will go ➢ Do not damage the PTFE surface of the diaphragm

Prior requirements

Personnel

Personal protective equipment

Cleaning and maintenance Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 60 Translation of original operating instructions, English

8.5 Checking that pump is leak-tight

WARNING

Danger of bursting of the fluid system as a consequence of overpressure.

The pump builds up pressure. In a closed system the max. permitted operating pressure may be exceeded, thus causing damage to the pump and/or the system.

➢ In the case of parts that are in contact with the fluid, only

select those that are designed for the pump's operating pressure

➢ Do not transfer against shut-off devices or closed sys-

tems, or

➢ install pressure relief/safety valves and set them to 6 bar

(in the KNF product range)

In order to ensure correct assembly and hence reliability, it is essential to perform a leak test.

Fig. 57: Pressure test setup

Set up the system as shown in Fig. 57. Use distilled water as test medium. Set pressure control valve to working pressure. Make sure that the fitting is leak-tight

(see Section 6.2.3). Operate pump carefully for 5 minutes. Check pump for leaks.

If no traces of medium are visible on the head, the pump can be used in accordance with its specification (see Chapter 3).

Caution!

If it is found that liquid is escaping, under no circumstances should the pump continue to be used.

Check that connections are leak-tight. Check tightening torque of head screws. Check that elastomer parts are clean. Check leak-tightness again.

If these actions have no effect, contact your local KNF dealer and do not under any circumstances continue to use the pump.

Operating instructions SIMDOS10 EN RC version (remote control)

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 61

RC version (remote control)

WARNING

Danger of automatic start-up

The pump starts up by itself and without warning.

➢ Do not switch on the autostart function until the system

has been tested and is ready for operation

➢ Clearly identify the fact that the autostart option for the

pump has been activated

➢ Before start-up, check that hoses and equipment are

leak-tight and working properly

➢ Do not operate the pump with hazardous media

These remote control functions are only available in the RC version.

Connect cable for remote control (RC cable) to a suitable

signal source. Remove protective caps from RC connector plug. Connect RC cable to pump.

1 Analog input

• Brown

2 Digital input 1

• White

3 Digital input 2

• Blue

4 Open collector output

• Black

5 Ground

• Grey

Fig. 58: KNF Flodos RC cable pin assignment

Wire colour

Description

Function

max. value

brown

Analog input

1% to 100% up to flow rate

10 V DC

white

Digital input 1

Start / stop

24 V DC

blue

Digital input 2

Reset / Prime / Foot Switch

24 V DC

black

Digital output

Various output signals

open collector max. 10 mA max. 24 V DC

grey

Ground

Tab. 23: RC cable pins

RC cable

RC version (remote control) Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 62 Translation of original operating instructions, English

When external drive is activated, this is indicated in the main display by the “RC" symbol (1) (see Fig. Fig. 59).

According to the inputs activated, the display also shows symbols for analog input (2), digital input 1 (3) and digital input 2 (4).

9.1 Remote control analog input

The analog input can be used to externally specify a pump flow rate (see Fig. 61)

The analog input can only be activated in transfer operation [ml/min].

NOTE

When analog input is active:

➢ the pump can be started only if a valid analog signal is

present

➢ the time counter is deactivated ➢ manual inputting of flow metering volume is disabled

Control signals

Input

Meaning

Signal

Off

Analog input not active

- -

0-5 V

Voltage control [V]

0.05 - 5

0-10 V

Voltage control [V]

0.1 - 10

4-20 mA7

Current control [mA]

4.16 - 20

0-20 mA

Current control [mA]

0.2 - 20

Tab. 24: Analog input options

On/off thresholds

In order to obtain clear switching criteria, a switching hysteresis is implemented.

Input

On threshold

Off threshold

0 – 5 V

0.05 V

0.04 V

0 – 10 V

0.1 V

0.09 V

4 – 20 mA

4.16 mA

4.08 mA

0 – 20 mA

0.2 mA

0.18 mA

Tab. 25: On/off thresholds

If the input is less than 2 mA, the pump will go into alarm mode, and the

alarm is automatically reset as soon as the input exceeds 2 mA.

Fig. 59: RC main display

Activate analog input

Fig. 60: Analog input

Operating instructions SIMDOS10 EN RC version (remote control)

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 63

Fig. 61: Flow rate range selection

Starting and stopping the pump with an analog signal

Set analog input to correct signal type Press the “START” button.

 Pump switches to "Pause" condition.

Apply analog signal.

 The pump now starts operating, and switches to “Run”

condition.

Reduce analog signal to below cut-off threshold.

 Pump stops and switches to "Pause" condition.

NOTE

After the pump has been stopped, there is a pause time of 0.2 seconds before it can be restarted.

Stopping the pump with the “STOP” button is called a “Master Stop”. The pump can then only be restarted manually (see Section

7.6).

NOTE

The pump is supplied with Master Stop. For initial start-up with external drive, it is therefore essential to press “START” once to cancel Master Stop.

For an external restart after a power cut, use autostart (see Section 7.17) or Reset on digital input 2 (see Section 9.3).

START / STOP analog signal

Master Stop

RC version (remote control) Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 64 Translation of original operating instructions, English

9.2 Digital input 1, Start / Stop

The pump can be started and stopped externally via digital input 1.

➢ If digital input 1 is active, the pump can only be started via

the digital input.

➢ If analog actuation is also used, a valid analog signal must

be present.

Control signals

Input

Meaning

Signal

Off

Digital input 1 not active

- -

Level

Start / Stop according to signal level

< 0.8V = On > 2.0V = Off

Pulse

Start / Stop on signal pulse

< 0.8V = On > 2.0V = Off

Tab. 26: Digital input 1 options

NOTE

To ensure that the digital input operates correctly:

➢ after the pump has been stopped, there must be a pause

time of 0.2 seconds

➢ select a pulse duration of more than 0.1 seconds ➢ use debounced switches

START / STOP in “Pump ml/min without timeout” condition

Set digital input 1 "In_1" to Level. Press the “START” button.

 Pump switches to "Pause" condition.

Apply signal 1.

 The pump will start to operate if the level is below 0.8

V, and stop if it is above 2.0 V (see Fig. 63).

Fig. 63: Start / Stop level actuation

Fig. 62: Digital input 1

Start / Stop level

Operating instructions SIMDOS10 EN RC version (remote control)

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 65

Set digital input 1 "In_1" to Pulse Press the “START” button.

 Pump switches to "Pause" condition.

Apply signal 1.

 The pump will start to operate when a pulse of less

than 0.8V is generated, and stop on the next pulse of more than 2.0V.

Fig. 64: Start / Stop pulse actuation

Start / Stop level with timeout

Set digital input 1 "In_1" to Level. Press the “START” button.

 Pump switches to "Pause" condition.

Apply signal 1.

 The pump will start to operate when the level is con-

nected to ground, and stop when the level rises above

2.0 V.

Fig. 65: Start ml/min with time counter level control

NOTE

If timeout / time counter is activated

➢ to stop the pump, use digital input 2, “Reset” (see Section

9.3)

➢ For precise dosing use pulse-mode

Start / Stop pulse

Start / Stop level with timeout

RC version (remote control) Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 66 Translation of original operating instructions, English

Set digital input 1 "In_1" to Pulse Press the “START” button

 Pump switches to "Pause" condition.

Apply signal 1

 The pump will start to operate when a pulse to ground

is generated, and stop when the set time has elapsed.

Fig. 66: Start ml/min with time counter pulse control

9.3 Digital input 2 Reset / Prime / Foot Switch

Digital input 2 can be used for an externally activated error "Reset" or fluid system "Priming" operation.

The level and pulse settings are the same as for digital input 1. Digital input 2 is mainly used with a foot switch (see Section 13.7).

Control signals

Input

Meaning

Signal

Off

Digital input 2 not active

- -

Reset

Reset of pump errors and cancel metering with time counter

< 0.8V = Reset

Priming

Rapid priming of pump head and hoses (see Section 7.12)

< 0.8V = Prime

Combined

Reset of pump errors and cancel metering with time counter, then prime

< 0.8V reset for falling signal edge

Prime after 1 second < 0.8V

Level

Start / Stop according to signal level

< 0.8V = On > 2.0V = Off

Pulse

Start / Stop on signal pulse

< 0.8V = On > 2.0V = Off

Tab. 27: Digital input 2 options

Start / Stop pulse with timeout

Fig. 67: Digital input 2

Operating instructions SIMDOS10 EN RC version (remote control)

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 67

Digital input 2 Reset

The “Reset” setting activates the following functions on application of a signal to digital input 2:

➢ Interrupt a metering process

➢ Reset pump errors

➢ Cancellation of an active Master Stop, pump is now in

“Pause” operation condition, and responds to external con-

trol signals.

Digital input 2 Prime

The “Prime” setting activates the following functions on application of a signal to digital input 2:

➢ Interrupt a metering process

➢ Reset pump errors

➢ Pump runs in high-speed “Prime” mode for the duration of

the signal

➢ Cancellation of an active Master Stop, pump is now in

“Pause” operation condition, and responds to external con-

trol signals.

Digital input 2 Combined

The “Combined” setting activates the following functions on appli-

cation of a signal to digital input 2:

➢ Interrupt a metering process

➢ Reset of pump errors on signal edge

➢ If the signal is applied for longer than 1 second, the pump

will operate in “Prime” at high speed for the duration of the

signal

➢ Cancellation of an active Master Stop, pump is now in

“Pause” operation condition, and responds to external control signals.

Fig. 68: Combined function sequence

START / STOP with foot switch using level

Set digital input 2 "In_2" to Level. Connect foot switch to pump. Press “START” – the pump goes into “Pause” condition.

 The pump will keep operating as long as the foot

switch is pressed.

NOTE

If time counter is switched on, pump will perform a complete metering cycle.

Reset

Priming

Combined

Start / Stop level

RC version (remote control) Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 68 Translation of original operating instructions, English

START / STOP with foot switch using pulse

Set digital input 2 "In_2" to Level. Connect foot switch to pump. Press “START” – the pump goes into “Pause” condition.

 Each time the foot switch is pressed the pump is

started or stopped.

NOTE

If timeout / time counter is switched on, pump will perform a complete metering cycle.

9.4 Digital output

The digital output can be used to feed back a number of messages to the control system.

The output is an open collector output (see Section 3.8).

Output signals

Input

Meaning

Signal

Alarm

Pump error signal

Level

Motor

Signal when pump motor running

Level

Vol.End

Signal when volume metering ends

Level

Mot.Pul.

10 pulses per revolution of the pump motor

Pulse

Vol.Pul.

One pulse per 100 µl of fluid transferred

Pulse

Tab. 28: Digital output options

Start / Stop pulse

Fig. 69: Digital output

Operating instructions SIMDOS10 EN RC Plus version (serial communication)

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 69

RC Plus version (serial communication)

WARNING

Danger of automatic start-up

The pump starts up by itself and without warning.

➢ Do not transmit a start command until the system has

been tested and is ready for operation

➢ Mark remote-controlled pumps ➢ Before start-up, check that hoses and equipment are

leak-tight and working properly

➢ Do not operate the pump with hazardous media

The functions for remote control via the RS 232 interface are only available with the RC Plus version.

Connect cable for remote control (RC cable) to a suitable

signal source. Remove protective caps from RC connector plug. Connect the RC cable to the pump. The commands and protocol are available on

www.knf.com/downloads (search: “communication protocol”)

Pumpside

Master

D-Sub 9 connector

Fig. 70: KNF Flodos RC cable pin assignment

RC cable

Shutdown Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 70 Translation of original operating instructions, English

Shutdown

11.1 Safety

DANGER

Danger of injuries caused by hazardous materials

Poisoning and caustic burns caused by contact with aggressive, inflammable or radioactive media

➢ Flush the pump thoroughly (see Chapter 8.2) ➢ Decontaminate the pump if necessary ➢ Observe the safety data sheets for the media to be trans-

ferred

➢ Wear suitable protective equipment

The following requirements apply to all the activities described in this chapter:

▪ System depressurised ▪ Specialist personnel ▪ The type of protective equipment required will depend on

the medium to be transferred.

▪ Observe the safety data sheets for the media to be trans-

ferred.

Flush the whole system including the pump with a neutral liquid Pump the pump empty (see Section 8.2). Press the STOP button to end the transferring operation Unplug the pump from the power supply Dispose of pump properly

Prior requirements

Personnel

Personal protective equipment

Operating instructions SIMDOS10 EN Troubleshooting

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 71

Troubleshooting

12.1 Safety

Disconnect the mains plug from the power supply before working on the pump head.

▪ Pump has been thoroughly flushed/decontaminated

▪ Specialist personnel

▪ none

12.2 Displaying of error messages

Display

Description

Fault remedy

Error 1 Motor

Control deviation too high, motor is overloaded

➢ Pump blocked

➢ Switch pump on / off

Error 2 Temperature

Motor overheating

➢ Allow pump to cool ➢ Reduce ambient tem-

perature

Error 3 Supply

Supply voltage is less than 21 V

➢ Supply with 24 V and

sufficient power

Error 4 Encoder

Position measuring malfunction

➢ Switch pump on / off

Error 5 4 – 20 mA

Analog set point setting less than 2 mA

➢ Check control signal ➢ Check cable

Error 6 Flash

Error in memory

➢ Switch pump on / off

Error 7 Overpressure

System pressure exceeds 7 bar

➢ Check pump for closed

valves and blocked filters

If the fault cannot be rectified, please contact your local KNF dealer (see last page for address)

Prior requirements

Personnel

Personal protective equipment

Troubleshooting Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 72 Translation of original operating instructions, English

12.3 Rectifying transfer problems

Symptom

Possible cause

Fault remedy

Pump cannot be switched on

Pump not connected to the mains.

Connect pump to the mains. Check mains voltage

Pump does not work

Connections or hoses are blocked.

Check hoses and connections. Remove blockage.

Pump does not work

External valve is closed or filter is clogged or too small.

Check external valves and filters.

Flow rate too low

Particles in the pump head

Clean valves (see Maintenance) Clean pump head (see Maintenance) Use prefilter

Insufficient vacuum

Flow rate too low

Materials chemically damaged by pumped media.

Select a type of material that is resistant

and suitable (see chemical resistance list).

Replace valves (see Section 8.4)

Flow rate too low

Worn diaphragm or valve plates/seals.

Replace diaphragm and valve

plates/seals (see Section 8.4).

Pump not drawing any vacuum

Pump can only draw vacuum against atmosphere.

Change pressure conditions on pres-

sure side.

Unstable flow rate

Cross-section of hydraulic hoses or connectors too narrow or restricted.

Disconnect the pump from the system

and determine output values.

Remove restriction (e.g. valve) if neces-

sary.

If applicable, use larger-diameter hoses or connectors.

Leakage in pump head

Worn diaphragm or valve plates/seals.

Tighten head screws to 0.55 Nm Replace diaphragm and valve

plates/seals (see Section 8.4).

Leakage from discharge port.

Leakage at pump diaphragm

Contact KNF dealer Send pump to KNF dealer for safety

check

Tab. 29: Pump does not work

If the fault cannot be rectified, please contact your local KNF dealer (see last page for address)

Returning the pump

Flush the pump to clear the pump head of any hazardous or

aggressive liquids (see Cleaning the pump). Disconnect the pump. Send the pump, with completed decontamination declaration

(see Chapter 13), to KNF Customer Service stating the nature

of the pumped medium (see Arranging for return).

Operating instructions SIMDOS10 EN Spare parts and accessories

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 73

Spare parts and accessories

13.1 Spare parts

Spare part

Order No.

SIMDOS 10 KT Complete Head Kit; Standard Kalrez® (without diaphragm)

167666

SIMDOS 10 TT Complete Head Kit; Standard Kalrez® (without diaphragm)

167667

SIMDOS 10 FT Complete Head Kit; Standard Kalrez® (without diaphragm)

167668

SIMDOS 10 FT Complete Head Kit; Option, Chemraz® (without diaphragm)

167669

SIMDOS 10 ST Complete Head Kit; Standard, Kalrez® (without diaphragm)

167670

SIMDOS 10 ST Complete Head Kit; Option, Chemraz® (without diaphragm)

167671

SIMDOS 10 UFEM KT Complete Head Kit; Standard Kalrez® (without diaphragm)

167674

SIMDOS 10 UFEM TT Complete Head Kit; Standard Kalrez® (without diaphragm)

167675

SIMDOS 10 UFEM FT Complete Head Kit; Standard Kalrez® (without diaphragm)

167676

SIMDOS 10 UFEM FT Complete Head Kit; Option, Chemraz® (without diaphragm)

167677

SIMDOS 10 UFEM ST Complete Head Kit; Standard, Kalrez® (without diaphragm)

167678

SIMDOS 10 UFEM ST Complete Head Kit; Option, Chemraz® (without diaphragm)

167679

SIMDOS Valve Kit Standard Kalrez®

168036

SIMDOS Valve Kit Option Chemraz®

168037

SIMDOS 10 diaphragm Kit PTFE/EPDM

167672

13.2 Hoses

Hoses

Typ

Material

Order No.

Hose ID 4 mm – OD 6 mm, L=2m

FEM

PTFE

160268

Hose ID 4 mm – OD 6 mm, L=2m

FEM

PELD

160267

Hose ID 1/8" - OD 1/4“, L=2m

UFEM

PVC

160269

Hose ID 1/8" - OD 1/4“, L=2m

UFEM

PFA

160271

13.3 Connection nipple

Connection nipple

Typ

Material

Order No.

Internal thread fitting, NPT1/8“ – DN4/6

FEM

PFA

151977

Internal thread fitting, NPT1/8“ – 1/8"-1/4“

UFEM

PFA

160116

13.4 Pressure control valve

Pressure control valve - kit

Order No.

SIMDOS 10 Accessory Set FDV 30 KT

166283

SIMDOS 10 Accessory Set FDV 30 TT

166284

SIMDOS 10 Accessory Set FDV 30 FT

166285

SIMDOS 10 Accessory Set UFDV 30 KT

167598

SIMDOS 10 Accessory Set UFDV 30 TT

167599

SIMDOS 10 Accessory Set UFDV 30 FT

167600

Spare parts and accessories Operating instructions SIMDOS10 EN

KNF Flodos BA_SIMDOS10_EN_05_167721.docx 74 Translation of original operating instructions, English

13.5 Liquid pulsation damper

Liquid pulsation damper kit

Order No.

SIMDOS 10 Accessory Set FPD10 KT

167817

SIMDOS 10 Accessory Set FPD 10 TT

167818

SIMDOS 10 Accessory Set FPD 10 FT

167819

SIMDOS 10 Accessory Set UFPD 10 KT

167821

SIMDOS 10 Accessory Set UFPD 10 TT

167822

SIMDOS 10 Accessory Set UFPD 10 FT

167823

13.6 Filter

Included Filter

Head material

Mesh size

Material*

Order No.

Filter FS 25 T

70µm

PVDF

165211

Filter FS 25 X

KT, FT, ST

35µm

PEEK

165213

*Material for housing and filter mesh

13.7 Foot switch

Foot switch

Order No.

Pulse foot switch

155872

13.8 Fastening material

Fasteners

Order No.

Tripod holder

160474

Mounting plate

160473

Operating instructions SIMDOS10 EN Decontamination declaration

KNF Flodos BA_SIMDOS10_EN_05_167721.docx Translation of original operating instructions, English 75

Decontamination declaration

NOTE

KNF shall only undertake to repair the pump on condition that the customer provides certification of the transferred media and the cleaning of the pump (decontamination declaration).

Copy this page, or print out the decontamination declaration

from our website http://www.knf.com/downloads.

Enter the pump model, the Serial No. and the transferred

media in the form below and send the signed form together with the flushed and cleaned pump to KNF Customer Service.

Customer decontamination declaration for repair order

We confirm that the pump below has been used to pump the following media, and that the pump has been flushed and cleaned.

Pump model

Serial No.

Pumped media

The pump does not contain aggressive, biological, radioactive, poisonous, or other dangerous media.

Company

Date/Signature

KNF Flodos AG Wassermatte 2 6210 Sursee, Switzerland

Tel +41 (0)41 925 00 25 Fax +41 (0)41 925 00 35

www.knf.com
