KNF RC600 Operating Instructions Manual

Before operating the rotary evaporator and the accessories, please
read the operating instructions on the web site
(www.knf.com/downloads) and pay attention to the safety precau­tions!

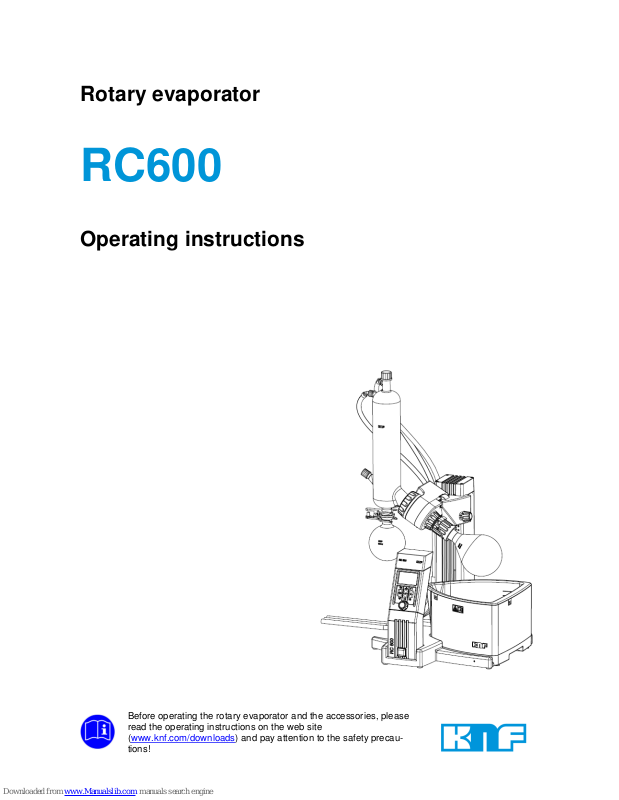

Rotary evaporator

RC600

Operating instructions

KNF Neuberger AG
Stockenstrasse 6
8362 Balterswil, Switzerland

Tel [phone]
Fax [phone]

www.knf.com

Operating Instructions RC600 EN Contents

Translation of original Operating and Installation Instructions, English,
BA_RC600_EN_304763_20170608.docx 3

Contents Page

1 General information ............................................................................ 4

1.1 Information about the instructions 4

1.2 Warnings 5

1.3 Symbols 6

1.4 Disclaimer of liability 7

1.5 Manufacturer's address 7

1.6 Year of manufacture 7

1.7 Other applicable documents 7

1.8 Copyright 7

1.9 Warranty conditions 7

2 Use ........................................................................................................ 8

2.1 Intended use 8

2.2 Improper use 9

3 Safety ................................................................................................. 10

4 Technical data ................................................................................... 12

4.1 Rotary evaporator 12

4.2 Equipment delivered with RC 600 14

5 Components and functions ............................................................. 15

5.1 Components of the rotary evaporator 15

5.2 Rotary evaporator functions 16

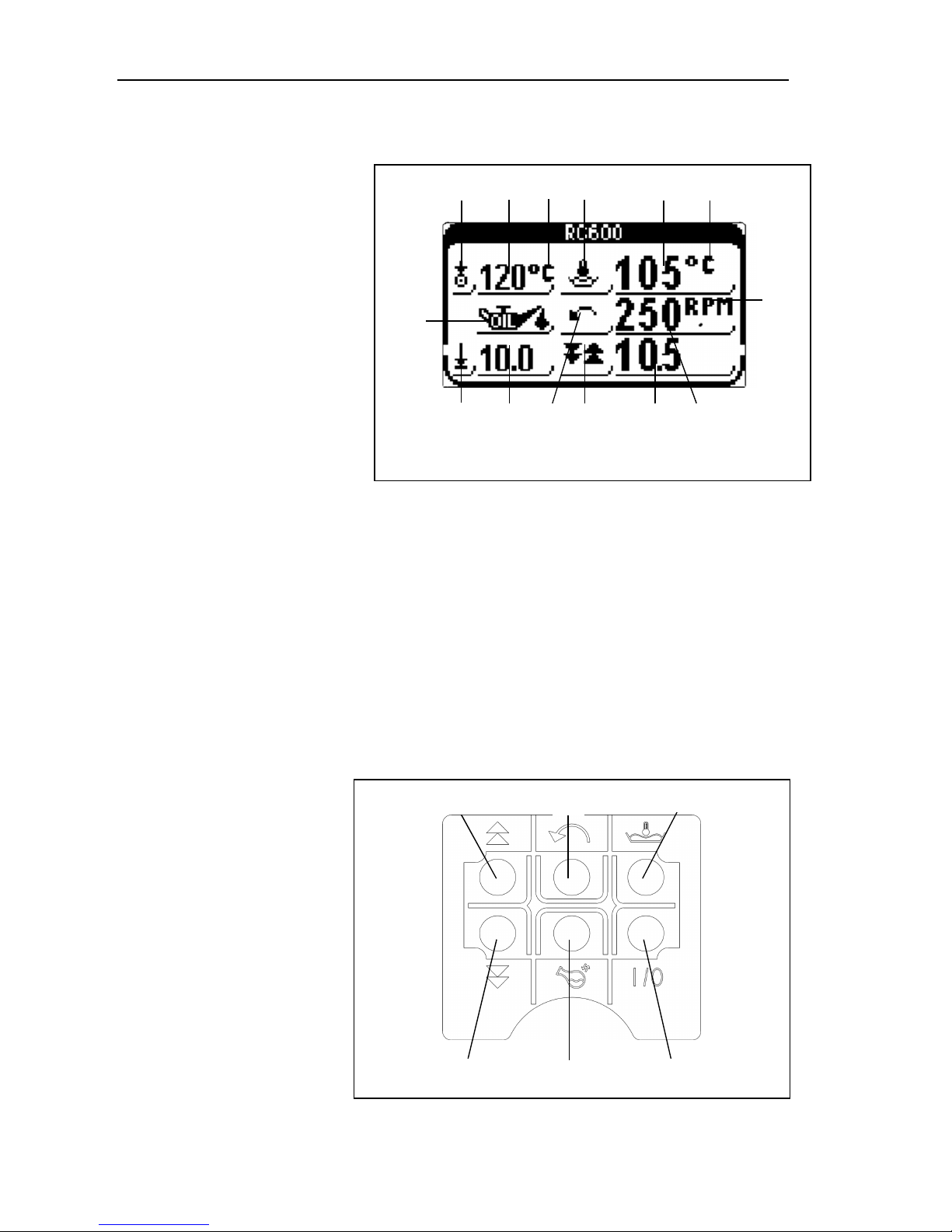

5.3 Terminal 17

5.4 USB connection 17

6 Setup and connection....................................................................... 18

6.1 Installation 18

6.2 Connections 28

7 Operation ........................................................................................... 29

7.1 Initial start-up 29

7.2 Shutdown 32

8 Operating the rotary evaporator ...................................................... 33

8.1 Terminal 33

8.2 Change the evaporation flask 37

9 Servicing ............................................................................................ 38

9.1 Servicing schedule 38

9.2 Cleaning 38

9.3 Changing vapour tube 40

9.4 Changing seal 42

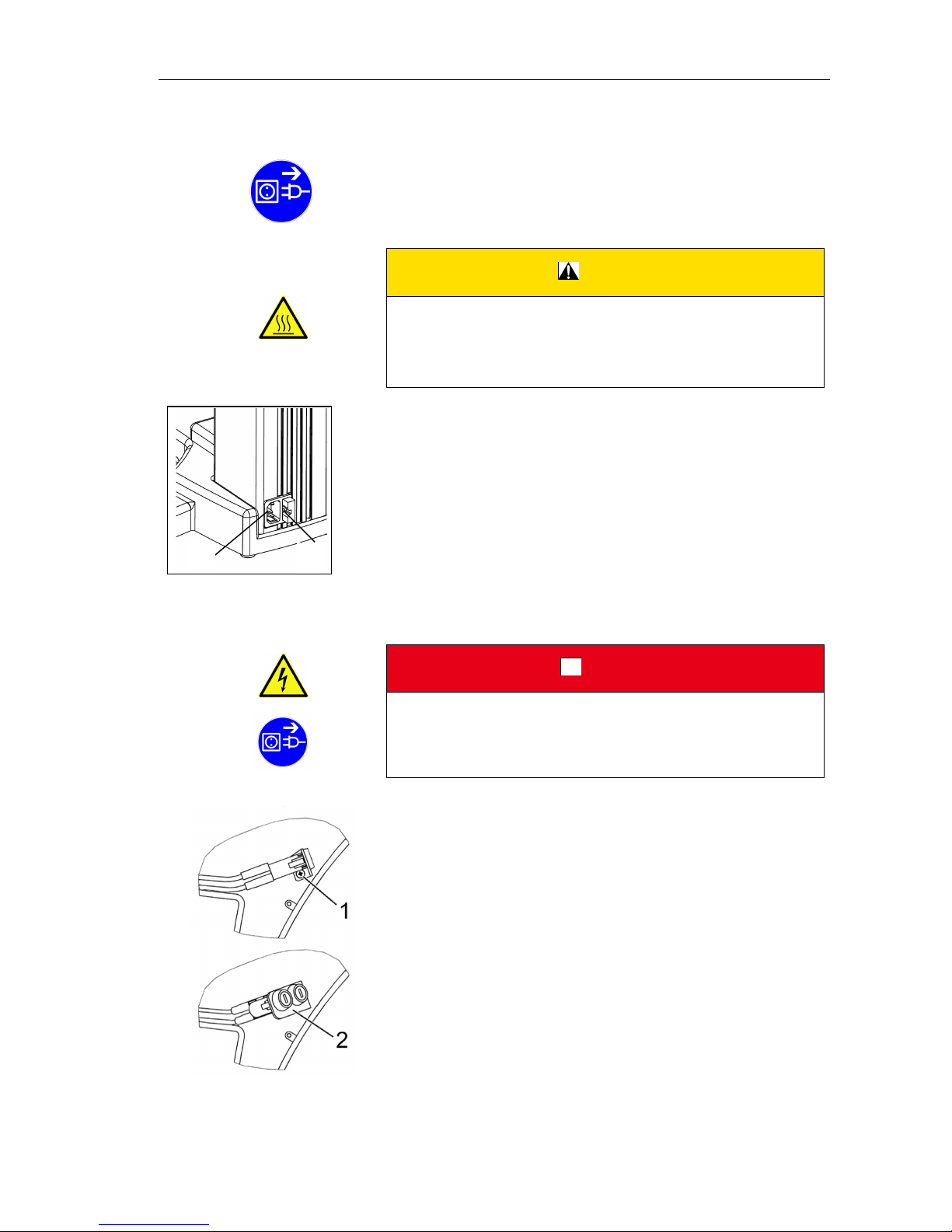

9.5 Changing fuses 43

10 Troubleshooting ................................................................................ 44

11 Solvent library ................................................................................... 48

12 Spare parts and accessories ........................................................... 50

12.1 Spare parts 50

12.2 Accessories (see also Chapter 6) 50

12.3 Glass product 51

13 Returns ............................................................................................... 52

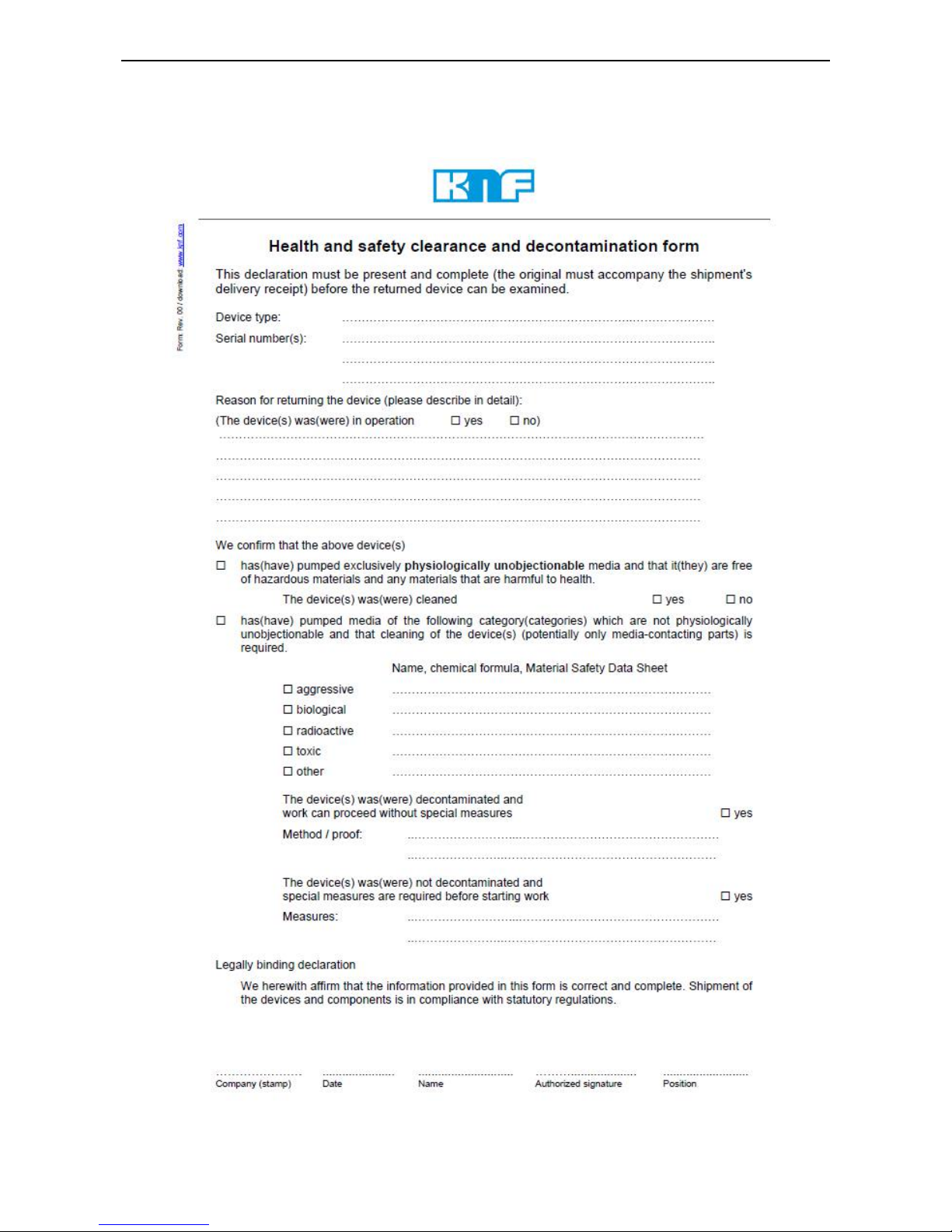

14 Declaration of No Objection and Decontamination ....................... 53

General information Operating Instructions RC600 EN

4 Translation of original Operating and Installation Instructions, English BA_RC600_EN_304763_20170608.docx

1 General information

1.1 Information about the instructions

The operating instructions contain important information on how to
use the rotary evaporator In order to ensure safe working and
proper functioning it is essential to observe all the specified safety
precautions.

These operating instructions are part of the product, and must be
stored in its immediate vicinity in a location accessible to personnel
at all times.

These operating instructions are part of the product, and must be
passed on to the next owner if the device is resold.

Illustrations in these operating instructions may or may not be to
scale.

The illustrations may differ slightly from the actual product.

Contents

Storage location

Passing on

Illustrations in the instructions

Operating Instructions RC600 EN General information

Translation of original Operating and Installation Instructions, English, BA_RC600_EN_304763_20170608.docx 5

1.2 Warnings

Warnings in the operating instructions are identified with the dan­ger symbol, keywords and colours. These provide an indication of
the extent of the danger.

DANGER

Indicates a dangerous situation which will lead directly to death or
serious injury if it is not avoided.

WARNING

Indicates a dangerous situation which may lead to death or seri­ous injury if it is not avoided.

CAUTION

Indicates a dangerous situation which may lead to moderate or
minor injuries if it is not avoided.

NOTE

Indicates a situation which may cause damage to property if it is
not avoided.

General information Operating Instructions RC600 EN

6 Translation of original Operating and Installation Instructions, English BA_RC600_EN_304763_20170608.docx

1.3 Symbols

The following symbols appear in the operating instructions, on
labels on the device, and on its packaging:

WARNING

Risk of injuries and property damage caused by illegible
labels

The labelling on the device may become illegible with time.

 Maintain labels on the device in a legible condition.
 Replace any illegible labels.

The following symbols in the operating instructions and on the
device and its packaging indicate environmental protection
considerations:

Recycling

Not to be disposed of in household waste

The following symbols in safety precautions and on the device
indicate the nature of the danger:

General warning sign

Warning about electrical danger

Warning about low temperature/frost

Warning about hot surface

This symbol calls for disconnection from the mains.

Operating Instructions RC600 EN General information

Translation of original Operating and Installation Instructions, English, BA_RC600_EN_304763_20170608.docx 7

1.4 Disclaimer of liability

In preparing the contents of these operating instructions, ac­count has been taken of applicable regulations and the state of
the art.

The manufacturer can accept no liability for any damage or
malfunctions caused by failure to follow the operating instruc­tions.

The manufacturer can accept no liability for any damage or
malfunctions caused by modification or conversion of the de­vice or improper handling.

The manufacturer can accept no liability for any damage or
malfunctions caused by the use of non-approved spare parts
and accessories.

1.5 Manufacturer's address

KNF Neuberger AG
Stockenstrasse 6
8362 Balterswil, Switzerland

Tel [phone]
Fax [phone]

www.knf.com

1.6 Year of manufacture

The year of manufacture is shown on the device's type plate.

1.7 Other applicable documents

The documents listed must also be taken into consideration.

 Chemical resistance list (www.knf.com/downloads)

 Sales documents

 GTCs

1.8 Copyright

The information, texts and illustrations in these operating in­structions are protected by copyright. The contents of these
operating instructions must not be copied, translated or passed
to third parties without the written consent of the manufacturer.

1.9 Warranty conditions

The applicable warranty conditions are set out in the General
Terms and Conditions of Business and the sales documents.

Use Operating Instructions RC600 EN

8 Translation of original Operating and Installation Instructions, English BA_RC600_EN_304763_20170608.docx

2 Use

2.1 Intended use

The RC 600 rotary evaporator is designed for use in chemical,
pharmaceutical and biological laboratories. It is intended solely
to separate solutions (distillation, drying, recovery, extraction,
etc.).

Make sure that the installation location is dry and the rotary
evaporator is protected against water in the form of rain, spray,
splashes and drips.

The rotary evaporator may be used exclusively in indoor areas.

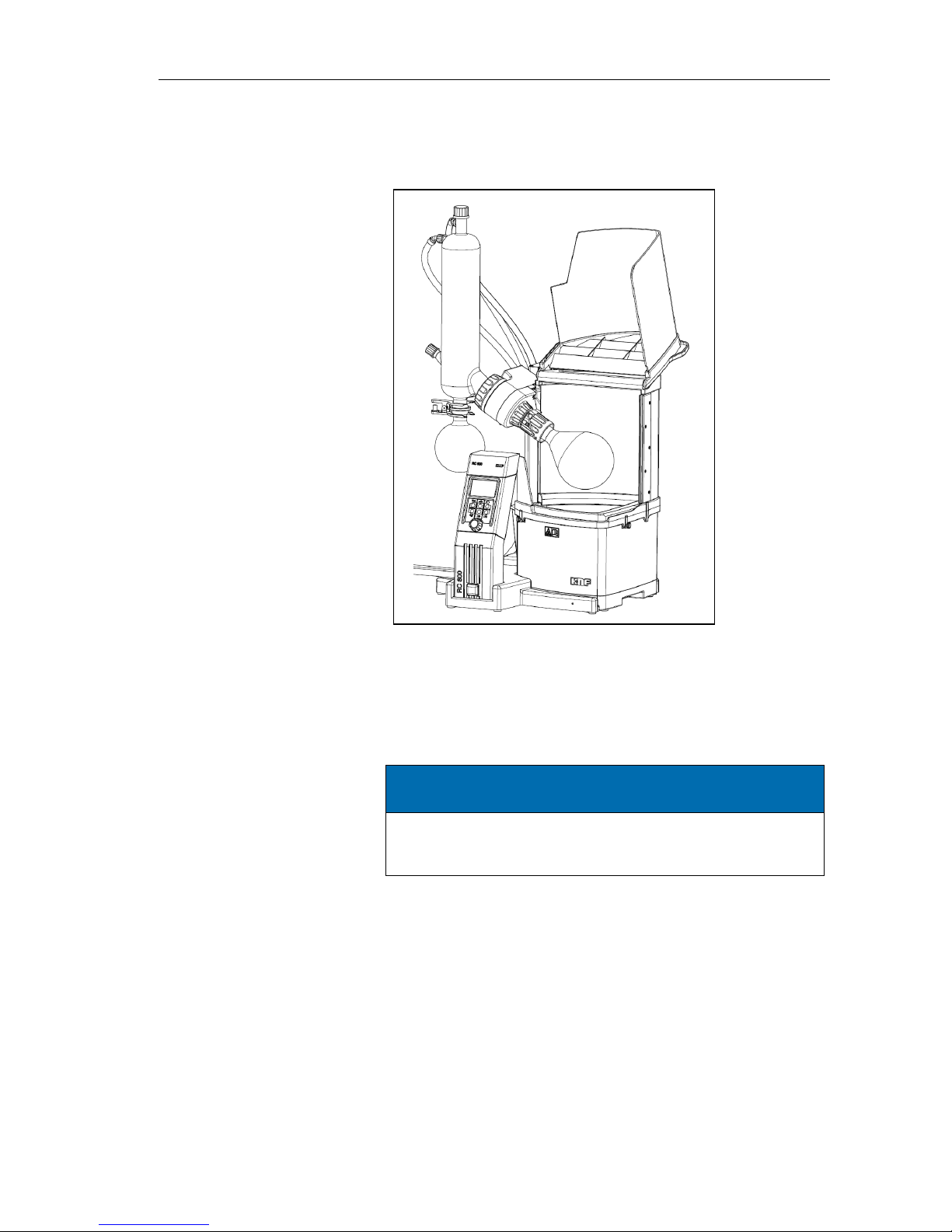

The rotary evaporator may be used only under a fume hood or
with the properly installed protective cover (accessory).

Owner's responsibility

Only install and operate the rotary evaporator under the oper­ating parameters and conditions described in Chapter 4. Tech­nical data.

Protect the rotary evaporator from moisture.

Ensure that no hazardous materials can enter the surrounding
environment (including heating and cooling media), even in the
event of glass breakage, leaks, or loss of cooling.

Ensure that no hazardous materials/reactions can be produced
through contact of processed solutions and solvents with the
heating and cooling media or the ambient air. It may be neces­sary to operate the unit only under a suitable fume hood.

Whenever the rotary evaporator is operated outside a suitable
fume hood (after eliminating these sources of danger), the pro­tective cover must be used (refer to Chapter 12.2 Accessories
(see also Chapter 6), p.50).

Before using a substance, investigate its compatibility with the
materials used in the seals and hoses.

Before using a substance, investigate whether it can be evapo­rated without risk.

Make sure the hoses for gas and coolant are correctly as­signed on the chilled condenser.

Adequately cool the chilled condenser at all times.

Laboratory equipment and supplemental components attached
to the rotary evaporator must meet the specifications provided
in Chapter 4.

Operating parameters and

conditions

Use under a fume hood

Requirements for

processed

substances

Chilled condenser

Accessories

Operating Instructions RC600 EN Use

Translation of original Operating and Installation Instructions, English, BA_RC600_EN_304763_20170608.docx 9

2.2 Improper use

The rotary evaporator may not be used in potentially explosive
atmospheres.

The rotary evaporator may not be used in a corrosive environ­ment.

The heating bath of the rotary evaporator may not be used to
warm food. It serves exclusively to add heat to the evaporation
flask.

Never apply excess pressure to the rotary evaporator's vacu­um connection.

The lift drive may not be blocked or put under load.

Safety Operating Instructions RC600 EN

10 Translation of original Operating and Installation Instructions, English BA_RC600_EN_304763_20170608.docx

3 Safety

The rotary evaporator is constructed according to generally
recognised rules of technology and in accordance with perti­nent occupational safety and accident prevention regulations.
Nevertheless, potential dangers during use can result in inju­ries to the user or others, or in damage to the rotary evaporator
or other property.

Use the rotary evaporator only in a technically flawless condi­tion, in accordance with its intended use, with awareness of
safety and potential hazards, and in observance of the operat­ing instructions.

Ensure that only trained and instructed personnel or specially
trained laboratory personnel work on the rotary evaporator.
This applies also to assembly, connection and servicing work.

Make sure that the personnel has read and understood the op­erating instructions, and in particular the "Safety" chapter.

Ensure adherence to all pertinent accident prevention and
safety regulations when working on and operating the rotary
evaporator. The protective clothing required for safety in the
laboratory must be worn, i.e. protective glasses, gloves, etc.

Safety regulations for handling initial substances and those
that are produced in the process must be observed. This ap­plies equally to the heating and cooling media.

Be aware that the rotary evaporator is not designed to be ex­plosion-proof.

Ensure that the distillation residue is not explosive.

Make sure that the temperature of the medium is always suffi­ciently below its ignition temperature in order to avoid ignition
or explosion. This also applies to unusual operating situations.

Consider any external sources of energy, such as sources of
radiation, that could additionally heat the medium.

In case of doubt, consult KNF customer service.

Proper handling of the initial and resulting substances / heating
and cooling media must be ensured.

Manufacturer regulations must be observed when disposing of
the heating and cooling media. Be aware that the heating and
cooling media may become contaminated.

Personnel

Working in a

safety-conscious manner

Handling dangerous media

Handling flammable

media

Operating Instructions RC600 EN Safety

Translation of original Operating and Installation Instructions, English, BA_RC600_EN_304763_20170608.docx 11

When ventilating the rotary evaporator with air or inert gas, be
sure to prevent formation of reactive or explosive media. The
maximum permissible operating pressure of the chilled con­denser is 0.1 bar rel.

Ensure that the evaporation flask rotates throughout the entire
heating phase (even during submersion/lifting) in order to avoid
heating only one side of the evaporation flask or experiencing
a vaporization delay.

Ensure that the evaporation flask is immersed or raised only at
a low speed. Increase speed only to the extent that no heating
medium is ejected from the heating bath.

All replacement parts should be properly stored and disposed
of in accordance with the applicable environmental protection
regulations. Ensure adherence to the pertinent national and in­ternational regulations. This especially applies to parts contam­inated with toxic substances.

The rotary evaporator meets the safety stipulations of Directive
2004/108/EC for electromagnetic compatibility, Directive
2006/42/EC for machines, and Directive 2011/65/EU (RoHS2).
The following harmonised standards are fulfilled:

 DIN EN 61010-1

 DIN EN 61010-2-010

 DIN EN 61326-1

The rotary evaporator complies with the following according to
IEC 664:

 Overvoltage category II

 Contamination level 2

All repairs to the rotary evaporator must be carried out by the
responsible KNF Customer Service team.

Housing parts with live parts may be opened by trained per­sonnel only.

Use only genuine parts from KNF for servicing work.

Take special care with glass parts.

Carry out a visual inspection on glass parts before each use.
Do not use any damaged parts.

Ensure that fumes are extracted from a fume hood.

Do not evaporate unknown fluids. Ensure the unit is tight.

Ensure that the pressures in the system remain within the pre­scribed range.

Do not touch hot surfaces or liquids. Wait until the liquids and
surfaces have cooled down sufficiently after switching off the
unit..

Do not wear loose clothing or jewelry, such as scarves, ties,
bracelets or necklaces.

Ventilating the

rotary evaporator

Vaporization delay

Environmental protection

Standards

Customer service and re-

pairs

Glass breakage

Hazardous fumes

High internal pressure

Hot surfaces

and fluids

Rotating parts

Technical data Operating Instructions RC600 EN

12 Translation of original Operating and Installation Instructions, English BA_RC600_EN_304763_20170608.docx

4 Technical data

4.1 Rotary evaporator

Materials for parts in contact with the medium

Glass parts Borosilicate glass

Vapour tube seal PTFE compound

Refilling valve's fitting* PP

Fitting seal Silicon

Plug seals PTFE-coated

Coolant line materials

Fittings on condenser PP

Fitting seal Silicon

Vacuum line materials

Fitting on condenser PP

Pneumatic data

Max. permissible operating
pressure [bar rel]

0.1

Electrical data

Nominal voltage [V] See type label

Frequency [Hz] 50-60

Heating power [W] 1300

Total power [W] max. 1500

Total operating current [A] See type label

Fuse [A] 2 x 8A delayed at 220-240V

2 x 16A delayed at 100-127V

Protection class IP20

Heating bath

Empty weight [kg] 1.85

Volume [ml] 5000

Fill volume [ml] 4000

Heating temperature [°C] 20 - 180

Pull-out length [mm] 70

Coolant supply (chilled condenser)

Permissible pressure [bar rel] 3

Permissible temperature - 15°C to + 20°C

Cooled surface [cm2] 1230

Tab. 1 (1st part) * Accessory

Operating Instructions RC600 EN Technical data

Translation of original Operating and Installation Instructions, English, BA_RC600_EN_304763_20170608.docx 13

Evaporation flask parameters

Evaporation flask size 50 - 3000 ml

Speed [rpm] 25 - 280

Vertical travel [mm] 150

Lifting speed [mm/s] approx. 38

Angle of inclination [°] 12 - 45

General

Total weight [kg] 9.1

Dimensions W x D x H [mm]:

- without glass set (footprint)

- with glass set (approx.)

431 x 447 x 464
487 x 447 x 823

Vacuum, coolant, and
refilling connections

GL14

Maximum permissible ambient
relative humidity

80 % for temperatures up to
31°C, decreasing linearly to 50%
at 40°C

Maximum altitude of installa­tion [m above sea level]

2000

Safety functions

Drive motor protection Electronic overcurrent protection

Protection against overheating
of heating bath

Thermal circuit breaker (manual
reset)

Electronic temperature limit

Electronic cut-out if insufficient
water

Protection during power failure Evaporation flask automatically

lifted from the heating bath

Protection against glass
breakage

Digitally-adjustable stop

Monitoring of protective cover
(accessory)

Hall effect sensor

Tab. 1 (2nd part)

Technical data Operating Instructions RC600 EN

14 Translation of original Operating and Installation Instructions, English BA_RC600_EN_304763_20170608.docx

4.2 Equipment delivered with RC 600

 Rotary evaporator

 Glass set, comprising:

-

Vapour tube

-

Chilled condenser

-

Collecting flask, 1000 ml

-

Bracket for collection flask

-

Evaporation flask, 1000 ml

 Heating bath

 Set of hose fittings

-

1x Hose fitting ID8 (vacuum)

-

2x Hose fittings ID8 (coolant)

-

2x Hose clamps ID8

 Protective cover (optional)

 Refilling valve (optional)

 Power cable

 Operating instructions

 Abbreviated instructions

 Table of solvents

 CD with digital operating instructions

Operating Instructions RC600 EN Components and functions

Translation of original Operating and Installation Instructions, English, BA_RC600_EN_304763_20170608.docx 15

5 Components and functions

5.1 Components of the rotary evaporator

1

Power switch

2 Terminal
3 Collection flask (coated)
4 Flask clamp for 3
5 Refilling connection
6 Chilled condenser
7 Tension nut for chilled

condenser

8 Flask mechanism
9 Tension nut for vapour tube
10 Flask nut
11 Tower
12 Rotary knob for pivot angle
13 Evaporation flask
14 Heating bath

15 Vacuum line
16 Coolant line
17 Coolant line
18 Rotary knob for pivot angle
19 USB connection
20 Fuses
21 Mains plug connection

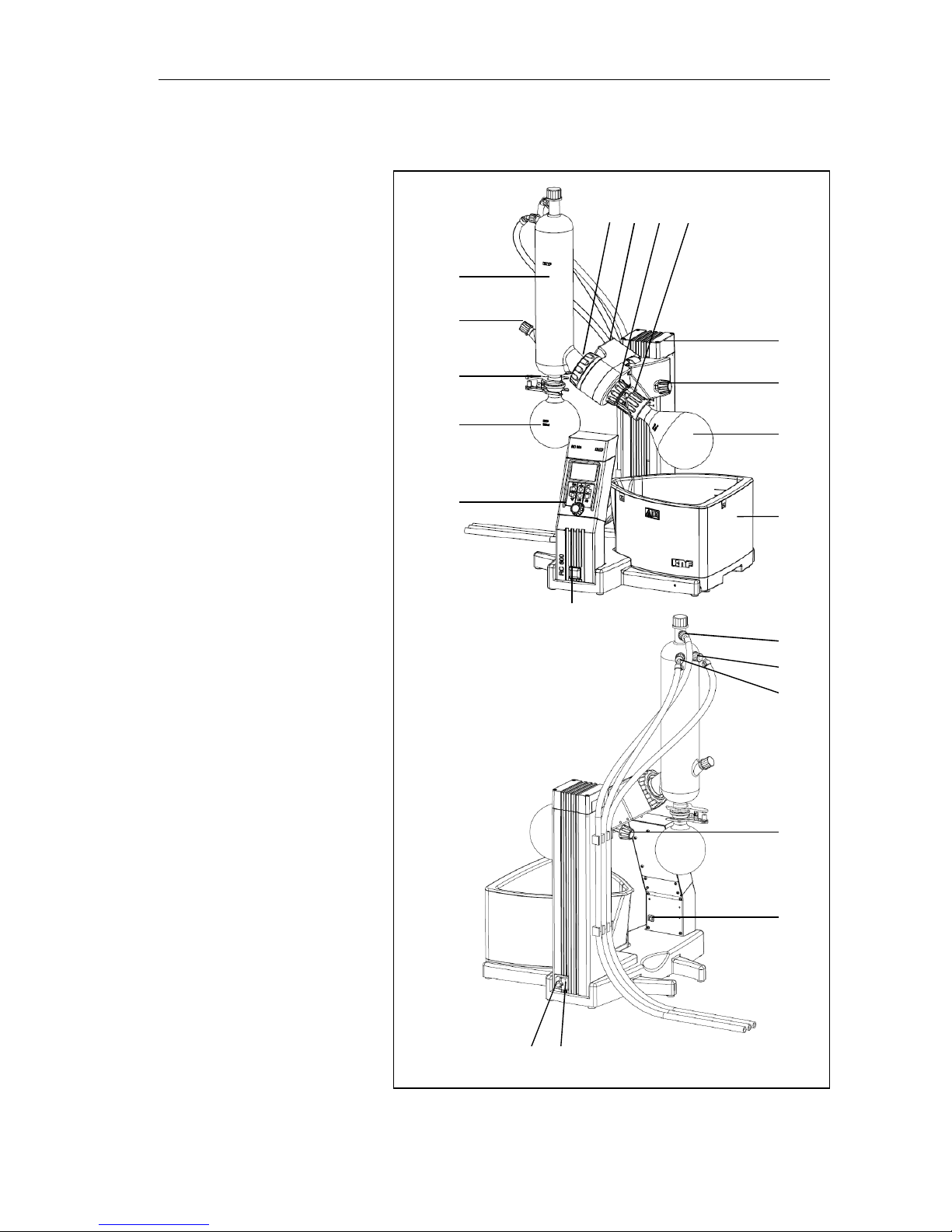

Fig. 1: Rotary evaporator RC 600

2

3

4

5

6

7

8 9 10

11

12

13

14

15

16

17

18

19

20 21

1

Components and functions Operating Instructions RC600 EN

16 Translation of original Operating and Installation Instructions, English BA_RC600_EN_304763_20170608.docx

The RC 600 rotary evaporator is designed for distillation and
evaporation of solutions. The rotary evaporator is operated via
the terminal (Fig. 1/2, p. 15).

The solution that is to be evaporated is located in the evapora­tion flask (13). The solution is evaporated through a suitable
combination of temperature and vacuum. The evaporation
flask is immersed into the heating bath (14), in which a heating
liquid is located, typically water or a suitable oil. The drive (8)
continually rotates the evaporation flask in the heating bath.
Once the solvent begins to evaporate, it rises through the va­pour tube and into the chilled condenser (6), which is continu­ally cooled with cooling water or another cooling medium. Here
the vapour is cooled to the point where it condenses and col­lects (again in liquid form) in the collection flask (3).

The chilled condenser and collection flask have a transparent
coating that protects them against implosion.

A protective cover (accessory) is placed onto the heating bath
to protect the evaporation flask from implosion and to protect
against spray.

5.2 Rotary evaporator functions

 Evaporation flask

Use the rotary knobs (Fig. 1/12+18) to adjust the evapora­tion flask's angle of inclination. Together with the ability to
move the evaporation flask up and down and to displace
the heating bath, the rotary evaporator may be adapted to
various shapes and sizes of evaporation flasks.
The drive (8) rotates the evaporation flask, thereby
achieving a high rate of evaporation:

-

A more homogeneous distribution of temperature is
achieved both in the heating bath and in the evapora­tion flask (optimisation of temperature control and heat
transfer).

-

The moistened surface inside the evaporation flask is
enlarged (increases heat transfer and the boiling sur­face).

-

Formation of a concentration gradient in the solution is
avoided.

Additional advantages of rotation include:

-

The risk of boiling delay is reduced

-

No localized overheating, no crust formation

The terminal (2) is used to switch the rotation of the evapo­ration flask on or off and to select the desired speed (see
Chapter 8, Operating the rotary evaporator).
In the event of a power failure the evaporation flask is au­tomatically lifted from the heating bath.

 Heating bath

Use the rotary evaporator's heating bath (14) to
achieve and maintain the temperature for optimum dis­tillation according to requirements.
The heating bath may be pulled out on guide rails in

Operating Instructions RC600 EN Components and functions

Translation of original Operating and Installation Instructions, English, BA_RC600_EN_304763_20170608.docx 17

order to permit the use of a wide range of evaporation
flask sizes (see section Evaporation flasks).
The specially shaped pouring lip makes it easier to
empty the heating bath.

5.3 Terminal

Assembly

1

Rotary knob for:

 Entering setpoints:

o Heating tempera-

ture

o Rotation
o Fine adjustment

of immersion
depth

2 Button to lower lift
3 Button to raise lift
4 Button for rotation on/off
5 Display
6 Button for heating bath

selection

7 Button for exchange flask

function

8 Button for heating bath

on/off

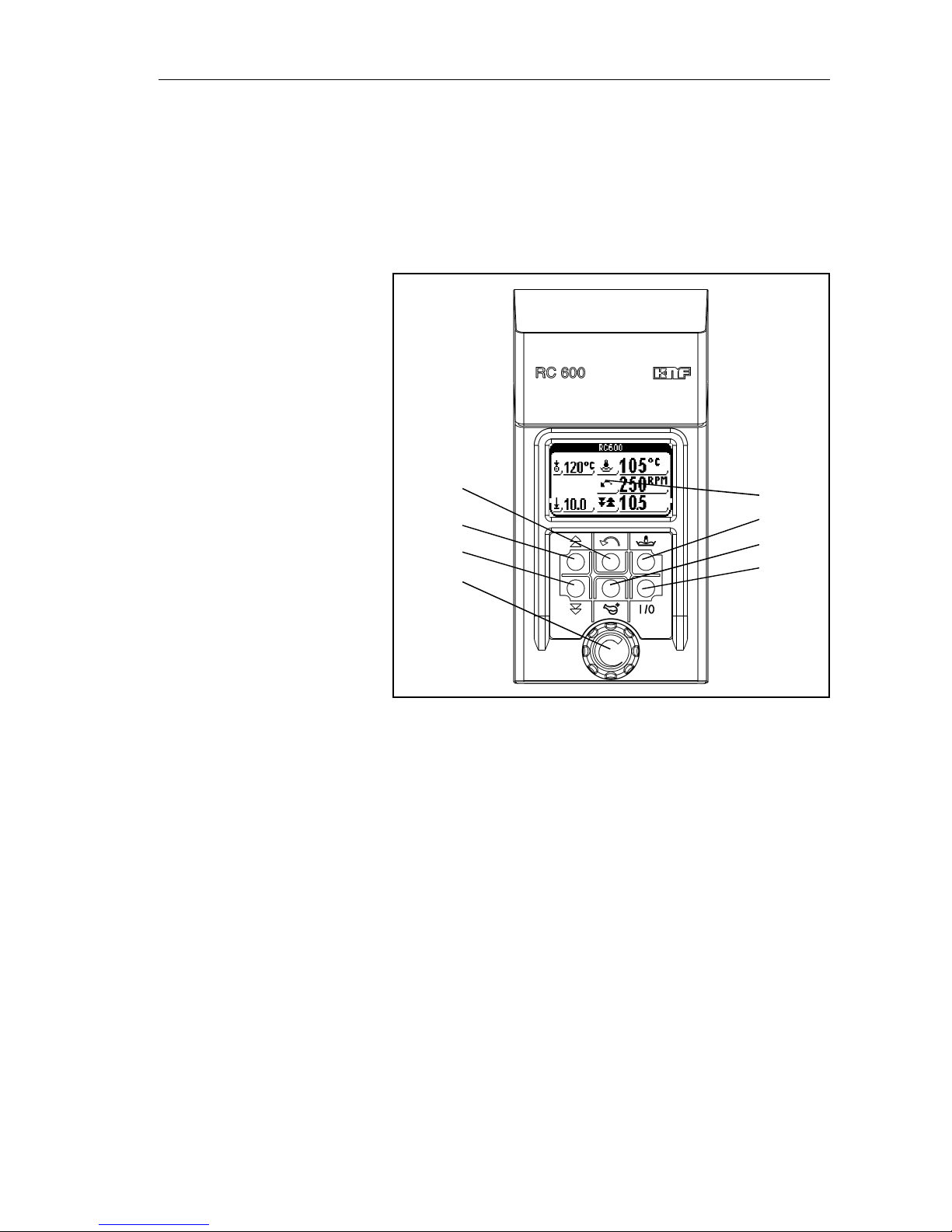

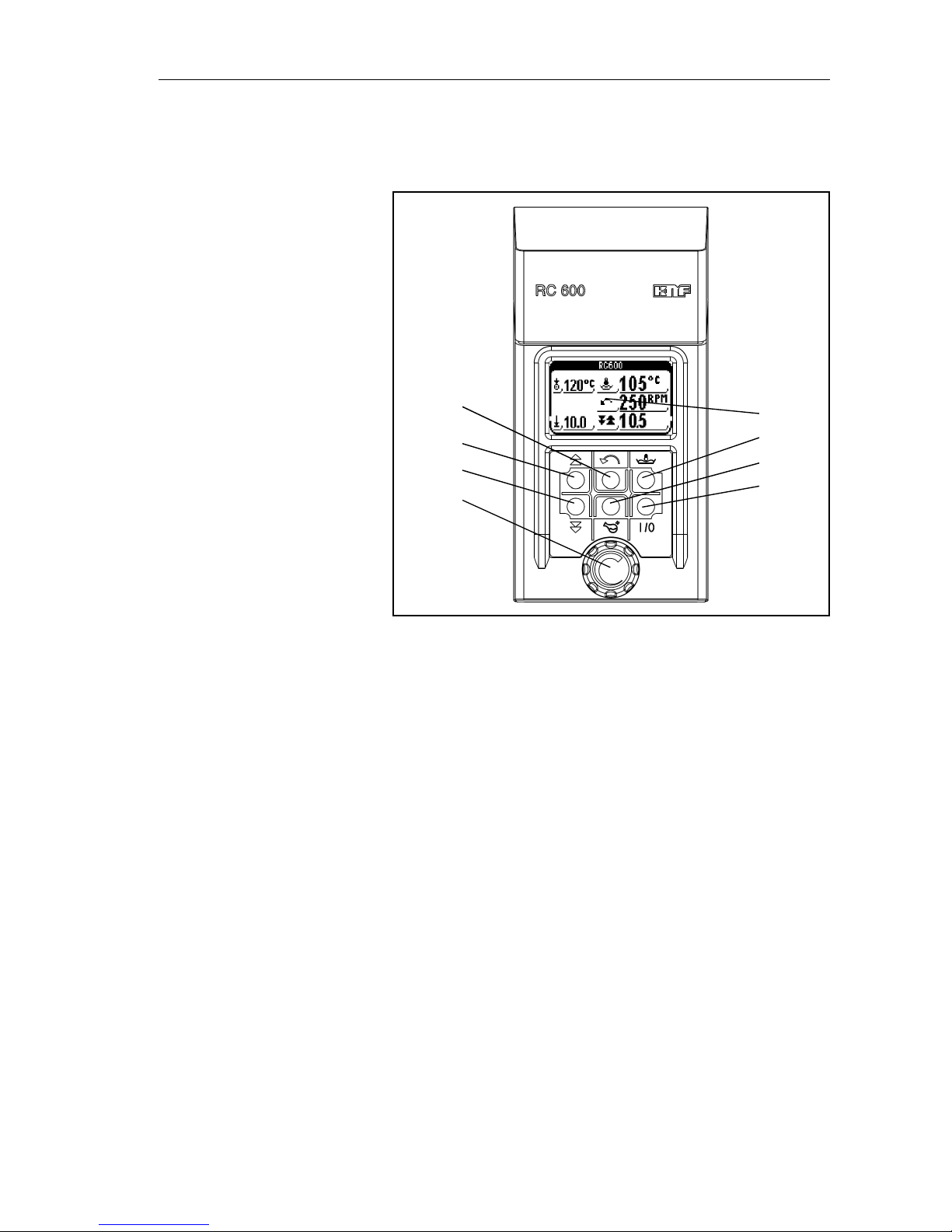

Fig. 2: Terminal RC 600

Function

The terminal is used to set the process parameters with which
the RC 600 rotary evaporator works.

Settings are adjusted via the terminal's membrane buttons
(Fig. 2/2+3+4+6+7+8) or with the rotary knob (1).

The speed, heating bath setpoint and actual temperature, the
lift position and the value of the digital end stop are shown on
the display (5).

5.4 USB connection

The USB Connection (Fig. 1/19) is used for technical service
and software update. The current software version is dis­played shortly once the RC600 is turned on. Consult with your
KNF provider for the latest software version.

1

2

3

4

8

7

6

5

Setup and connection Operating Instructions RC600 EN

18 Translation of original Operating and Installation Instructions, English BA_RC600_EN_304763_20170608.docx

6 Setup and connection

Connect the rotary evaporator only under the operating pa­rameters and conditions described in Chapter 4 Technical data
(pages 12 + 13).

Observe all information about the device's intended use and
safety precautions (see Chapter 2 and 3, page 8ff).

WARNING

Risk of personal injury from poisoning or explosion and
damage to the rotary evaporator.

Hazardous gases and vapours may be produced during distilla­tion.

 Gas drawn out of the rotary evaporator must be safely di-

verted.

6.1 Installation

The rotary evaporator may be carried only by the components
marked grey in Fig. 3. Carrying the rotary evaporator by any
point other than the indicated points may result in damage to
the unit.

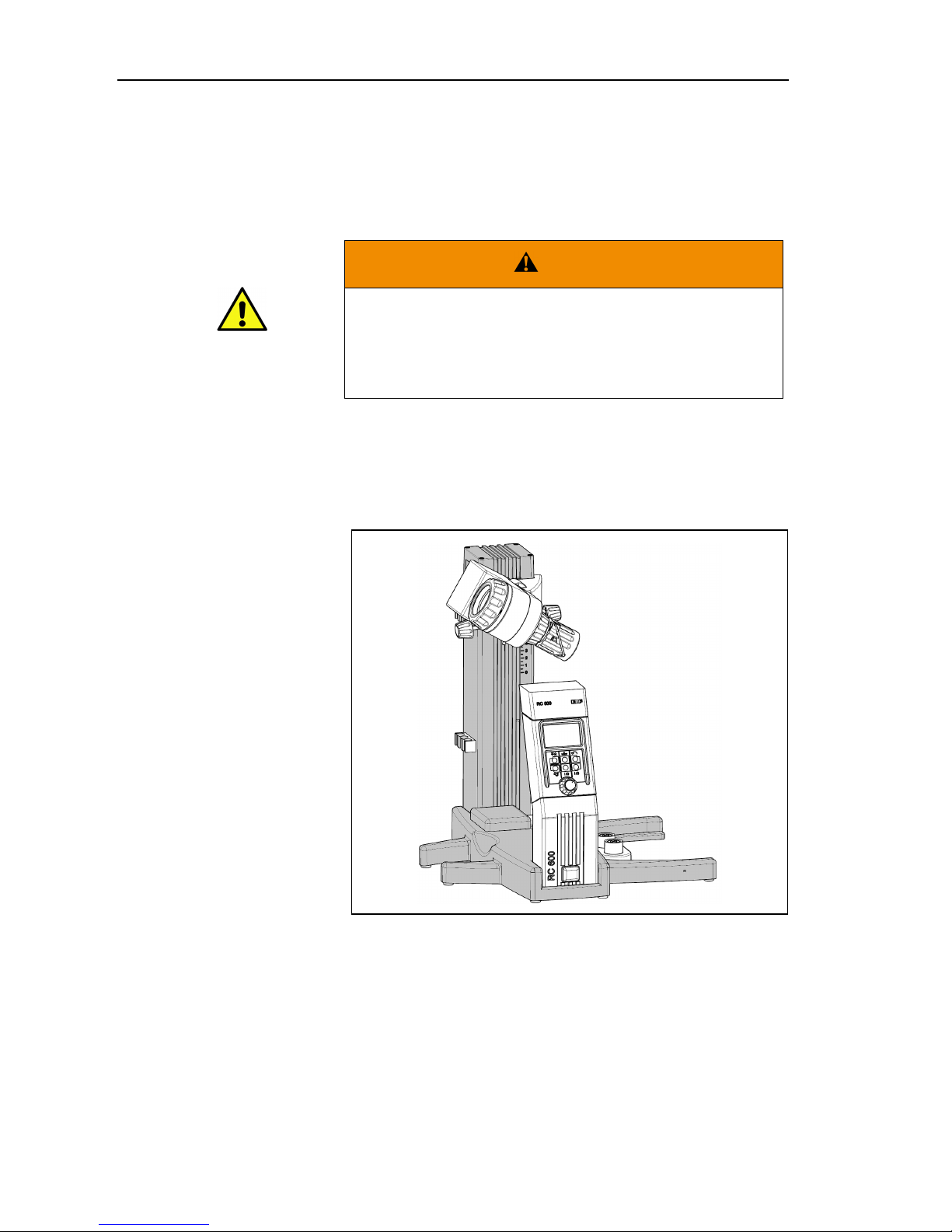

Fig. 3: Carrying the rotary evaporator

Before setting up the rotary evaporator, allow it to reach ambi­ent temperature at the location where it will be used.

Make sure that the installation location is dry and the rotary
evaporator is protected against water in the form of rain, spray,
splashes and drips.

Choose a safe location (flat, stable surface) for the rotary
evaporator.

Protect the rotary evaporator from dust.

Protect the rotary evaporator from vibration and impact.

Shipment

Installation location

Operating Instructions RC600 EN Setup and connection

Translation of original Operating and Installation Instructions, English, BA_RC600_EN_304763_20170608.docx 19

Attach to the rotary evaporator only components that are de­signed for the rotary evaporator's pneumatic data and/or cool­ant-supply parameters (see Chapter 4 Technical data).

Place the included heating bath (Fig. 1/14, p. 15) onto the base
connector.
Once in place, the heating bath can be shifted along the axis of
rotation (for maximum pull-out length, see Chapter 4 Technical
data).

NOTE

When installing glass parts, allow sufficient space above the
rotary evaporator because the glass structure may exceed the
dimensions of the rotary evaporator itself.

The chilled condenser (Fig. 1/6, page 15) is delivered unin­stalled. Install as follows:

Loosen tension nut (7) for chilled condenser until the

1.
chilled condenser can be inserted.

Insert chilled condenser (6).

2.

Retighten tension nut (7) for chilled condenser.

3.

NOTE

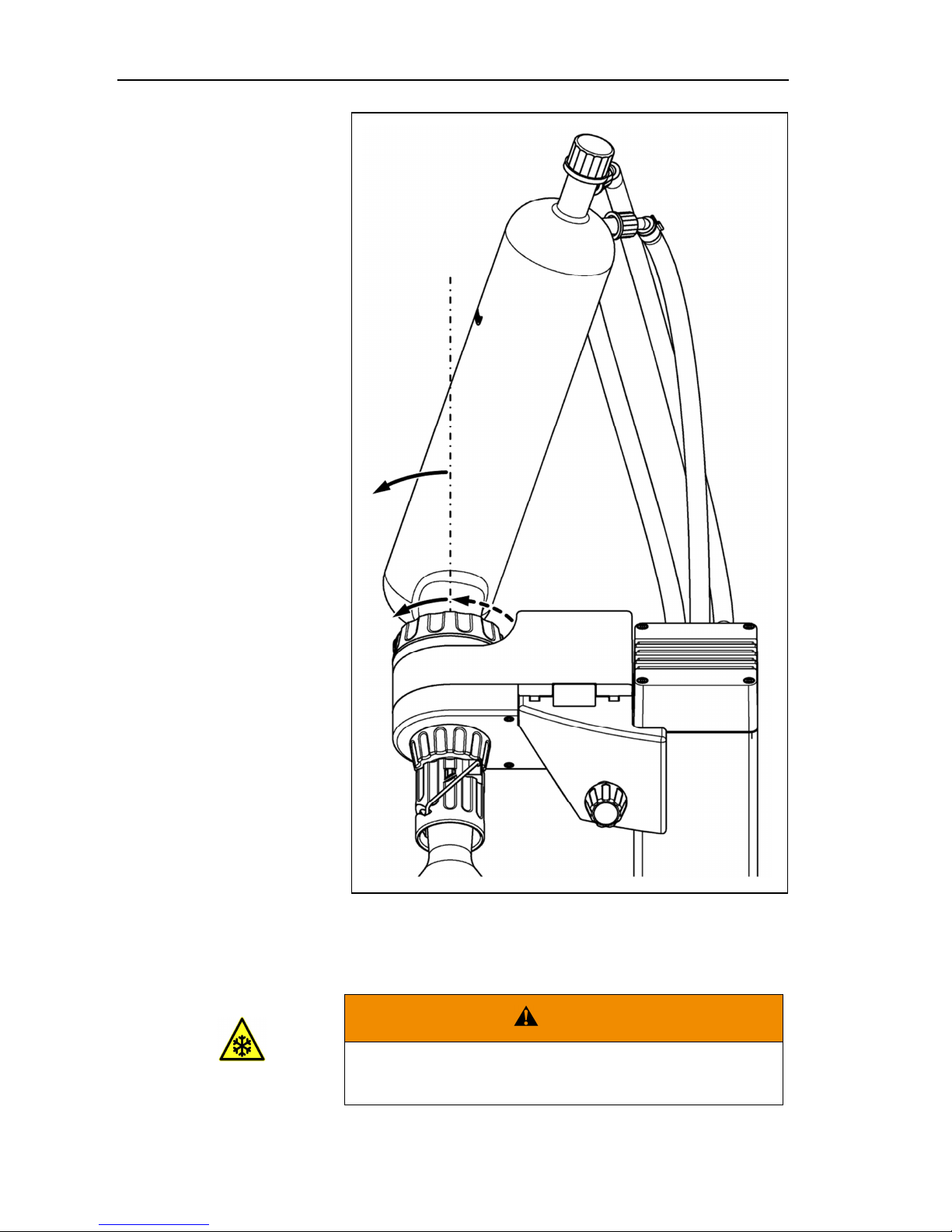

To finish tightening the tension nut, grasp the chilled condenser
with your other hand and use it as a lever (see Fig. 4).

Connected

components

Installing the heating bath

Installing the chilled con-

denser

Setup and connection Operating Instructions RC600 EN

20 Translation of original Operating and Installation Instructions, English BA_RC600_EN_304763_20170608.docx

- - - -

Tighten tension nut

——

Use chilled condenser to

aid in fully tightening the
tension nut

Fig. 4: Fully tightening the tension nut

Attach coolant hoses (Fig. 5/2 and 3) to the condenser or

4.
fill the dry ice condenser with dry ice.

WARNING

Extreme cold may cause personal injury

There is a risk of serious local freezing when handling dry ice.

 Observe the manufacturer's hazard notices.

Operating Instructions RC600 EN Setup and connection

Translation of original Operating and Installation Instructions, English, BA_RC600_EN_304763_20170608.docx 21

NOTE

When installing the hoses, make sure that they are sufficiently
long for the entire stroke distance.

1

Vacuum - black

2 Coolant inlet - blue
3 Coolant outlet - red

Fig. 5: Attaching lines for coolant and vacuum

The chilled condenser is now fastened to the rotary evaporator.

NOTE

In order to ensure a proper seal, retighten the tension nut once
more while under vacuum.

1

2

3

Setup and connection Operating Instructions RC600 EN

22 Translation of original Operating and Installation Instructions, English BA_RC600_EN_304763_20170608.docx

Requirements:

 Loosen hoses

 Remove collection flask (see below)

Loosen tension nut (7) until the chilled condenser can be

1.
pulled out.

NOTE

When loosening the tension nut, grasp the chilled condenser with
your other hand and use it as a lever (refer to Fig. 4).

Remove chilled condenser (6).

2.

Install the separate collection flask (Fig. 1/3, page 15) using
the included flask clamp (Fig. 1/4, page 15).

Requirements:

 Rotary evaporator must be ventilated

WARNING

Personal injury by poisoning

When opening the process space, such as when removing the
flasks, residual solvent vapours may escape to the surrounding
atmosphere.

 Extract any solvent vapours (e.g. under a fume hood)

WARNING

Personal injury by hazardous materials

The distillate in the collection flask may be a hazardous material.

 Observe all safety regulations and disposal requirements

for the distillate!

Loosen the flask clip (Fig. 1/4, page 15) and remove the collec­tion flask (Fig. 1/3, page 15). Empty the collection flask if nec­essary.

Removing the chilled con-

denser

Installing the collection

flask

Remove collection flask

and empty if necessary

Operating Instructions RC600 EN Setup and connection

Translation of original Operating and Installation Instructions, English, BA_RC600_EN_304763_20170608.docx 23

Install the included evaporation flask (Fig. 1/13, page 15):

WARNING

Risk of injury from glass splinters, chemical reactions (sol­vent with heating medium), solvent, and hot liquids.

The evaporation flask may slide down during installation and
become damaged (glass breakage).

 When tightening the flask nut, make sure the fastening

clip is not lifted.

Loosen flask nut (10) by about 2-3 revolutions.

1.

Slide evaporation flask (13) onto the tapered adapter. The

2.
flask nut's (10) fastening clip must audibly engage. If it
does not, further loosen the flask nut and slide the evapo­ration flask back into place.

NOTE

The wire clip now securely holds the evaporation flask in place.

Tighten evaporation flask via vacuum or by lightly tighten-

3.
ing the flask nut (10).

Adjust the angle and heating bath position to the size of

4.
the evaporation flask.

When working outside the fume hood, use the protective

5.
cover (see Chapter 11, Spare parts and accessories).

The evaporation flask is now installed and secure.

Requirements:

 Completely lift out the evaporation flask and allow it to

cool sufficiently.

 Stop rotation

 Rotary evaporator must be ventilated

WARNING

Personal injury by poisoning

When opening the process space, such as when removing the
flasks, residual solvent vapours may escape to the surrounding
atmosphere.

 Extract any vapours

(e.g. under a fume hood).

Installing the evaporation

flask

Removing the evaporation

flask

Setup and connection Operating Instructions RC600 EN

24 Translation of original Operating and Installation Instructions, English BA_RC600_EN_304763_20170608.docx

WARNING

Personal injury by hazardous materials

The content of the evaporation flask may be a hazardous material.
Additionally, mixing with the heating medium may produce haz­ardous materials.

 Observe all safety regulations and disposal requirements

for the solvent!

1. If present, open or lift off the protective cover (see Chapter
11, Spare parts and accessories).

NOTE

If the protective cover is opened and the listed requirements are
not fulfilled, an acoustic warning will sound.

2. If the flask nut (10) is tightened, loosen it.

WARNING

Risk of burns from hot media.

If the flask nut is rotated too far out, there is a risk that the evapo­ration flask could fall into the heating bath.

 Make sure that the flask nut is loosened by no more than

three revolutions.

NOTE

If the evaporation flask is securely in place, the flask nut can be
used to assist in removal.

NOTE

The fastening clip prevents the evaporation flask from sliding out.

3. Grasp the evaporation flask and lift up the fastening clip.

WARNING

Risk of burns from hot surfaces.

Skin contact with the hot evaporation flask may result in burns.

 Allow evaporation flask to cool
 Grasp evaporation flask at the cooler neck

4. Pull off evaporation flask

Set the evaporator flask's angle of inclination via the rotary
knobs (12 and 18).

Adjust the angle of the

evaporator flask

Operating Instructions RC600 EN Setup and connection

Translation of original Operating and Installation Instructions, English, BA_RC600_EN_304763_20170608.docx 25

WARNING

Risk of injury from glass splinters, chemical reactions (sol­vent with heating medium), solvent, and hot liquids.

Evaporation flask and flask nut may collide with the wall or base of
the heating bath during lowering and become damaged (glass
breakage).

 Always monitor lowering of the evaporation flask. (If nec-

essary, adjust the heating bath position, inclination, and
immersion depth to the size of the evaporation flask).

Adjust the immersion depth of the evaporation flask using the
terminal (see Chapter 8, Operating the rotary evaporator).

NOTE

In the event of power failure, in the interest of safety, the evapora­tion flask will automatically lift out of the heating bath to its upper
endpoint.

If needed, install the refilling valve (see Chapter 11, Spare
parts and accessories) (see Fig. 6):

1

PTFE hose

2 Refilling valve
3 Drip washer

Fig. 6: Position of drip washer

Slide the PTFE tube (1) onto the refilling valve's (2) corre-

1.
sponding glass fitting.

Slide the drip washer (3) onto the PTFE tube (1).

2.

Insert the PTFE tube (1) through the chilled condenser and

3.
into the evaporation flask.

Ideally, the drip washer (3) will rest on the insertion tube
(see Fig. 6).

Position the refilling valve (2) and securely tighten the un-

4.
ion nut. The refilling valve is now installed.

Adjusting the immersion

depth of the evaporator

flask

Installing and using the re-

filling valve (accessory)

Setup and connection Operating Instructions RC600 EN

26 Translation of original Operating and Installation Instructions, English BA_RC600_EN_304763_20170608.docx

NOTE

If the rotary evaporator is not operated under a fume hood (heat­ing temperature no more than 90°C), then installation of the
protective cover on the heating bath is mandatory for protection
against implosion (airborne glass splinters and liquid) and hot
spray water!

NOTE

The protective cover may be used only with heating bath tempera­tures up to 90°C. When temperatures are higher, the evaporator
must be used without the protective cover and under a fume hood!

NOTE

The protective cover is not included in delivery and must be
ordered separately (see Chapter 11, Spare parts and accesso-
ries).

NOTE

Do not carry the heating bath by the protective cover!

Place the protective cover (Fig. 7/1) on the heating bath

1.
(2).

Fasten the protective cover (1) to the heating bath:

2.
To do this, tighten the three knurled screws (3).

Installing protective cover

(accessory)

1

3

2

Operating Instructions RC600 EN Setup and connection

Translation of original Operating and Installation Instructions, English, BA_RC600_EN_304763_20170608.docx 27

Fig. 7: Protective cover closed

The walls of the protective cover are transparent, permitting
observation of events inside the evaporator flask. It also has a
flap (Fig. 8/1) that permits rapid access to the evaporator flask.

Fig. 8: Protective cover open

The protective cover and flap are monitored electronically. Us­ing the terminal, you can select how the rotary evaporator will
react when the protective cover is removed or the flap opened
during operation (see Chapter 8.1).

NOTE

When working without the protective cover (under fume hood),
electronic monitoring of the protective cover must be deactivated
at the terminal (see Chapter 8.1.2).

Setup and connection Operating Instructions RC600 EN

28 Translation of original Operating and Installation Instructions, English BA_RC600_EN_304763_20170608.docx

6.2 Connections

Connect the suction side of the vacuum pump to the vacu-

1.
um connection (Fig. 5/1, page 21).

NOTE

Use a vacuum hose for this purpose.

NOTE

Safely divert gas emissions (from the pump) so no gases escape
into the ambient air.

Attach coolant feed and return lines to the chilled conden-

2.
ser (Fig. 5/2+3, p. 21, connections exchangeable).

NOTE

If the rotary evaporator is cooled with a dry ice condenser, addi­tional coolant is not required.

WARNING

Risk of rupturing from excess pressure

If the discharge line is blocked, the permitted operating pressure
of the chilled condenser may be exceeded.

 Block only the inlet of the coolant line

If necessary for safety reasons, connect an inert gas feed

3.
line in order to ventilate the glass parts.

Insert the power cable plug into a properly installed

4.
earthed socket.

Operating Instructions RC600 EN Operation

Translation of original Operating and Installation Instructions, English, BA_RC600_EN_304763_20170608.docx 29

7 Operation

7.1 Initial start-up

Before switching on the rotary evaporator, check the following
points:

Prerequisites for start-up

 All hoses attached properly

 Specifications of the power supply correspond with the

data on the rotary evaporator’s type plate

 Coolant connection on the chilled condenser is operation-

al

 The rotary evaporator is at room temperature

 User ensures that the lift drive can move freely and with-

out obstruction

 User ensures that the hoses on the condenser are long

enough for the entire stroke

Tab. 1

Operate the rotary evaporator only under the operating param­eters and conditions described in Chapter 4 Technical data
(pages 12 + 13).

Make sure the rotary evaporator is used properly (see Chapter

2.1, page 8).

Make sure that the rotary evaporator cannot be misused (see
Chapter 2.2, page 9).

Observe the safety precautions (see Chapter 3, page 10+11).

WARNING

Inadequate cooling may result in personal injury and damage
to the rotary evaporator.

If cooling is inadequate, there will be a danger of the vacuum
pump system sucking solvent vapours from the chilled condenser.

 Make sure that no solvent can enter the ambient atmos-

phere in the event of a cooling failure.

NOTE

In order for the chilled condenser to recover solvent from the rising
gas, it must be cooled with a coolant.

Check the fill level of condensate in the collection flask (Fig.
1/3, page 15) at suitable intervals. Empty the collection flask if
necessary.

The position of the heating bath must be adapted to the size
and inclination of the evaporation flask.

Inspecting and emptying

the collection flask

Shifting heating bath

Operation Operating Instructions RC600 EN

30 Translation of original Operating and Installation Instructions, English BA_RC600_EN_304763_20170608.docx

WARNING

Risk of burns from hot media.

Hot vapours may be produced when filling the heating bath.

 Ensure that the heating bath temperature is always lower

than the boiling temperature of the medium.
Note that if the water level is low, the actual temperature
of the heating coil may be significantly higher than the in­dicated temperature.

WARNING

Risk of burns from hot media.

When lowering the evaporation flask into the heating bath, the
heating bath may overflow if the fill volume is too high.

 When filling the heating bath, consider how the evapora-

tion flask will displace the heating medium in the bath.

 Oil can expand strongly under heat, use accordingly less.

WARNING

Risk of burns from hot media.

Hot media may be spilled when sliding or carrying the heating
bath.

 Make sure that the heating bath is sufficiently cooled be-

fore sliding or carrying.

WARNING

Personal injury by poisoning

Risk of poisoning through inhaling oil vapours.

 Use under a suitable fume hood

NOTE

The heating bath contains a scale that indicates the maximum fill
volume based on the size of the selected evaporation flask.

To more accurately estimate the proper filling volume, the evapo­ration flask may be lowered into the heating bath before filling
(see Chapter 8, Operating the rotary evaporator).

NOTE

Do not use de-ionised or distilled water

Filling heating bath

Operating Instructions RC600 EN Operation

Translation of original Operating and Installation Instructions, English, BA_RC600_EN_304763_20170608.docx 31

Fill heating bath with heating medium.

WARNING

Risk of burns from hot surfaces.

If the heating bath is not sufficiently filled, the base of the bath in
particular may overheat.

 Ensure that the heating bath contains sufficient heating

medium at all times and that it does not run dry through
evaporation during operation.

NOTE

If there is insufficient fluid in the heating bath (dry start or runs
dry), it switches off automatically and an error message is dis­played (see Chapter 10).

The temperature of the heating coil is limited in two ways (elec­tronically and electromechanically).

WARNING

Risk of personal injury from poisoning or explosion

Hazardous mixtures may be produced when refilling the evapora­tion flask.

 Ensure that this does not result in a hazardous situation.

Using the refilling valve, the evaporation flask may be refilled
under vacuum during operation, as follows:

Connect the refilling valve to the additional medium.

1.

Open the refilling valve.

2.

The additional medium will be drawn into the evaporation flask.

Switching on the rotary evaporator

Switch on the rotary evaporator at the power switch (see Fig.
1/1, page 15).

NOTE

For information about operating the rotary evaporator, refer to
Chapter 8, page 33.

Refilling evaporation flask

Operation Operating Instructions RC600 EN

32 Translation of original Operating and Installation Instructions, English BA_RC600_EN_304763_20170608.docx

7.2 Shutdown

 Stop the current process.

 Ventilate rotary evaporator

WARNING

Risk of personal injury from poisoning or explosion and
damage to the rotary evaporator.

Ventilation of the rotary evaporator may result in poisonous or
explosive mixtures.

 If necessary, ventilate the rotary evaporator with inert gas.

 Switch off rotary evaporator at the power switch (Fig.

1/1, page 15).

WARNING

Risk of burns from hot media.

Skin contact with hot surfaces and medium may occur when
emptying the heating bath and evaporation flask.

 Allow heating bath and evaporation flask to cool com-

pletely.

 Empty heating bath

WARNING

Personal injury by hazardous materials

The media located in the evaporation and collection flasks may be
hazardous materials.

 Observe all safety regulations and disposal requirements

for the media!

WARNING

Personal injury by poisoning

When opening the process space, such as when removing the
flasks, residual solvent vapour may enter the surrounding atmos­phere.

 Extract any solvent vapours

(e.g. under fume hood).

 Empty evaporation and collection flasks.

 Stop the feed of coolant, separate any coolant connec-

tions.

 Separate vacuum connection, if present.

Operating Instructions RC600 EN Operating the rotary evaporator

Translation of original Operating and Installation Instructions, English, BA_RC600_EN_304763_20170608.docx 33

8 Operating the rotary evaporator

8.1 Terminal

8.1.1 General functions and displays

1

Rotary knob for:

 Entering setpoints:

o Heating tempera-

ture

o Rotation
o Fine adjustment

of immersion
depth

2 Button to lower lift
3 Button to raise lift
4 Button for rotation on/off
5 Display
6 Button for heating bath

selection

7 Button for exchange flask

function

8 Button for heating bath

on/off

Fig. 9: Terminal

The rotary evaporator is operated via the terminal with the aid
of:

 the rotary knob (Fig. 9/1) and

 the membrane buttons (Fig. 9/ 2+3+4+6+7+8).

The rotary knob has the following functions:

 Rotate the knob:

-

Entering setpoints:

 Speed of evaporator flask

 Fine adjustment of immersion depth

 Temperature of heating bath

Content of the display:

 Displays setpoint and actual temperature (Fig. 10/ 2+4,

page 34);

 Displays the height of the digital end stop and the

evaporator flask (Fig. 10/ 7+10)

 Displays the speed of the evaporator flask (Fig. 10/ 12)

 Display Oil mode (Fig. 10/ 13)

1

2

3

4

8

7

6

5

Operating the rotary evaporator Operating Instructions RC600 EN

34 Translation of original Operating and Installation Instructions, English BA_RC600_EN_304763_20170608.docx

Fig. 10: Displays on the screen

The membrane keyboard has the following functions:

 Operating keys (Fig. 11) with the functions:

Switch heating bath on and off (6)

Heating bath selection (3)

Switch rotation on and off (2)

Lift selection through short press of the buttons (1/4)

Raise lift (1)

Lower lift (4)

Exchange flask function (5)

Menus, fields, and buttons

1 Button to raise lift
2 Button for rotation on/off
3 Button for heating bath

selection

4 Button to lower lift
5 Button for exchange flask

function

6 Button for heating bath

on/off or activate Oil mode
(since SW Version 6.00)

Fig. 11: Buttons on the membrane keyboard

Displays

1 Heating bath status display
2 Heating bath setpoint
3 Selection icon for heating

bath

4 Actual value of heating bath
5 Unit of temperature
6 Icon for digital end point
7 Set digital end point
8 Selection icon / status

display for speed

9 Selection icon for lift
10 Lift position
11 Unit of speed
12 Speed
13 Oil mode (since SW Ver-

sion 6.00)

1

2

3

4 5

6

1 2

3

4

5

6

7

89

10

5

11

12

13

Operating Instructions RC600 EN Operating the rotary evaporator

Translation of original Operating and Installation Instructions, English, BA_RC600_EN_304763_20170608.docx 35

8.1.2 Operation
Base settings

When the rotary evaporator is switched on, a start screen is
displayed for 2-5 seconds with the logo and version number of
the firmware.

a) Activate/deactivate electronic monitoring of the protective
cover

If the rotary evaporator is not operated under a suitable fume
hood, the protective cover (accessory) must be used (see
Chapter 6.1) and electronic monitoring must be switched on.

The various safety settings can be changed by pressing the
buttons simultaneously (Fig. 11/2+3).

 After 3 seconds, a single sound indicates that the

EMERGENCY STOP function is inactive. When the rotary
evaporator is running with the cover open, a continuous
acoustic warning will be heard.

 After 6 seconds, you will hear two acoustic signals in quick

succession. They indicate that the EMERGENCY STOP
function is active. If the cover is opened during operation,
the evaporator flask is automatically raised from the heat­ing bath and rotation stops.

 After 9 seconds, you will hear three acoustic signals in

quick succession. This deactivates the electronic monitor­ing of the protective cover

b) To change the unit of temperature, press button 3 (Fig. 11/3)
for 5 seconds. This is confirmed with an acoustic signal.

c) To change the heating fluid (Oil mode since SW Version

6.00), press button 6 (Fig. 11/6) for 4 seconds. This is con­firmed with an acoustic signal and with an icon on the display
(Fig. 10/ 13).

Switch heating bath and rotation of evaporation flask on
and off.

Use the button (Fig.11/6) to switch the heating bath on and
press it again to switch it off.

Rotation of the evaporator flask is activated and deactivated
via the button (2).

NOTE

When the heating bath or rotation of the evaporation flask is
switched on, the corresponding icon will flash (Fig. 10/1+8).

Operating the rotary evaporator Operating Instructions RC600 EN

36 Translation of original Operating and Installation Instructions, English BA_RC600_EN_304763_20170608.docx

Entering setpoints

The following setpoints may be selected through the mem­brane keyboard:

Input field * Function

Setpoint

range

1 - 4 (+ Rotary knob) Immersion depth 0…12.9

2 + Rotary knob Speed [rpm] 25…280

3 + Rotary knob

Heating bath temperature

- [°C]

- [°F]

- [K]

20…180
68…356

293…453

Tab. 2 * according to Fig. 11

 Press input field for the desired setpoint.

NOTE

The selected input field will be highlighted on the display with a
black background.

 Use the rotary knob to adjust the setpoint.

 After 2 seconds, the display returns to the starting

state.

NOTE

The speed is selected in the starting state.

Changing the immersion depth

WARNING

Risk of burns from hot media

When the evaporation flask is being immersed in the heating bath,
heating medium may spray out of the bath if the rotation speed is
too fast.

 Before immersing the evaporation flask in the heating

bath, reduce the rotation speed.

The immersion depth can be raised via button 1(see Fig. 11/1)
or lowered via button 4 (see Fig. 11/4).

 Press button 1 or 4 (see Fig. 11/1+4) and then turn ro-

tary knob 1 (see Fig. 9/1) to finely adjust the lift.

 Hold button 5 (see Fig. 11/5) for 5 seconds to apply

the current position of the evaporation flask. The flask
cannot pass the stored position. Press the button
again for 5 seconds to delete the stored position.

Operating Instructions RC600 EN Operating the rotary evaporator

Translation of original Operating and Installation Instructions, English, BA_RC600_EN_304763_20170608.docx 37

Exchange flask function

WARNING

Risk of injury from glass splinters, chemical reactions (sol­vent with heating medium), solvent, and hot liquids.

When using the "Exchange flask" button, any changes to the size
or shape of the evaporation flask may cause the flask to collide
with the heating bath tank or other parts.

 The heating bath position, angle and immersion depth

must not be changed while the evaporating flask is being
exchanged.

 Replace only with a flask with the same size and shape.

 When you press the Exchange flask function button

(Fig. 11/5) the flask moves to its top position. Rotation
is stopped.

 Change the evaporation flask.

 When you press the Exchange flask function button (5)

again, the evaporator flask returns to the stored posi­tion and rotation is started again.

8.2 Change the evaporation flask

See Chapter 6.1 for information on installing and removing the
evaporation flask.

NOTE

It may be necessary to coordinate the angle of inclination, heating
bath position, and immersion depth (lower stop position).

Servicing Operating Instructions RC600 EN

38 Translation of original Operating and Installation Instructions, English BA_RC600_EN_304763_20170608.docx

9 Servicing

If you have any questions about servicing, call your KNF tech­nical adviser (see last page for contact telephone number).

9.1 Servicing schedule

Component Servicing interval

Rotary evaporator Inspect regularly for external damage or

leaks

Heating bath medi­um

Inspect regularly for contamination of the
heating medium

Tab. 3

9.2 Cleaning

NOTE

When cleaning, make sure that no liquids enter the inside of the
housing.

WARNING

Personal injury by hazardous materials

After operation, the components of the rotary evaporator may be
contaminated with aggressive materials.

 Always wear protective clothing (protective glasses,

gloves, etc.) as required for workplace safety in a labora­tory.

9.2.1 Cleaning the rotary evaporator

Clean the outside of the rotary evaporator only with a moist
cloth. Do not use flammable cleaning agents.

9.2.2 Cleaning glass parts

 Glass parts adequately cooled

 Rotary evaporator must be ventilated

 For chilled condenser only:

- Remove any coolant that is present

- Chilled coil or dry ice condenser is at room tempera­ture

Collection flask

Remove collection flask (see Ch. 6.1)

1.

Dispose of contents in collection flask according to local

2.
regulations.

Rinse collection flask with suitable cleaning agent.

3.

Re-install collection flask (see Ch. 6.1)

4.

Requirements

Operating Instructions RC600 EN Servicing

Translation of original Operating and Installation Instructions, English, BA_RC600_EN_304763_20170608.docx 39

Evaporation flask

1. Remove evaporation flask (see Ch. 6.1).

2. Dispose of contents in evaporation flask according to local
regulations.

3. Rinse evaporation flask with suitable cleaning agent.

4. Re-install evaporation flask (see Ch. 6.1).

Chilled condenser

1. Remove chilled condenser (see Ch. 6.1).

2. Rinse chilled condenser with suitable cleaning agent.

3. Re-install chilled condenser (see Ch. 6.1).

Vapour tube

1. Remove vapour tube (see Ch. 9.3).

2. Rinse vapour tube with suitable cleaning agent.

3. Re-install vapour tube (see Ch. 9.3)

9.2.3 Clean seal

1. Remove seal (see Ch. 9.4.)

2. Clean seal with suitable cleaning agent.

3. If necessary, clean seal receiver with suitable cleaning
agent.

4. If necessary, clean vapour tube (see Ch. 9.2.2).

5. Re-install seal (see Ch. 9.4)

9.2.4 Clean heating bath

WARNING

Personal injury and heating bath damage by short circuit.

In case that Water gets into the heating bath case, there is
danger of a short circuit.

 Do not immerse the heating bath in water or overflow it

with water.

 Wipe the heating bath clean.

 Heater must be shut off
 Heating bath adequately cooled
 Evaporation flask in upper stop position
 Protective cover removed (if present)

1. Remove heating bath

2. Dispose of contents of heating bath according to local reg­ulations.

3. Clean heating bath with suitable cleaning agent.

4. Re-install heating bath

9.2.5 Cleaning protective cover (accessory)

Rinse protective cover with clear water; clean with a soft cloth.

NOTE

Synthetic glass scratches easily and is sensitive to solvents.

Requirements

Servicing Operating Instructions RC600 EN

40 Translation of original Operating and Installation Instructions, English BA_RC600_EN_304763_20170608.docx

9.3 Changing vapour tube

 Rotary evaporator disconnected from mains power and

de-energised

 Heating bath empty

 Evaporation flask removed (see Ch. 6.1).

 Rotary evaporator free of hazardous materials

 Rotary evaporator must be ventilated

 Protective cover removed (if present)

WARNING

Dangerous substances in the rotary evaporator can cause a
health hazard

Depending on the distilled solvent, caustic burns or poisoning are
possible.

 Wear protective clothing if necessary, e.g. protective

gloves.

CAUTION

Danger of burns from hot parts

Glass parts and the heating bath may be hot even after the rotary
evaporator has been shut off.

 Allow the rotary evaporator to cool off after operation.

1. Screw off flask nut (Fig. 12/1).

NOTE

With the other hand, hold the vapour tube's tension nut (3).

2. Loosen the vapour tube's tension nut (3) until the vapour
tube (2) can be pulled out.

NOTE

While doing this, press and hold the block for the rotation drive
(4).

3. Pull out the vapour tube (2).

4. Insert the new vapour tube (2) until it engages.

NOTE

If you have difficulty finding the engagement point, slightly tighten
the tension nut after inserting the vapour tube.

Requirements

Operating Instructions RC600 EN Servicing

Translation of original Operating and Installation Instructions, English, BA_RC600_EN_304763_20170608.docx 41

NOTE

Finding the engagement point may also be easier when the con­denser is removed (see Ch. 6.1).

5. Lightly tighten the vapour tube's tension nut (3).

NOTE

While doing this, press and hold the block for the rotation drive
(4).

6. Screw on the flask nut (1).

NOTE

With the other hand, hold the vapour tube's tension nut (3).

1

Flask nut

2 Vapour tube
3 Vapour tube's tension nut
4 Catch for the
rotation drive

Fig. 12: Changing vapour tube

1

2

3

4

Servicing Operating Instructions RC600 EN

42 Translation of original Operating and Installation Instructions, English BA_RC600_EN_304763_20170608.docx

9.4 Changing seal

Remove chilled condenser (see Ch. 6.1).

1.

Remove vapour tube (see Ch. 9.3).

2.

Remove old seal (see Fig. 13).

3.

Re-install vapour tube (see Ch. 9.3).

4.

Slide the new seal (see Ch. 12.1 "Spare parts") onto the

5.
vapour tube.

NOTE

The lip of the seal must be aligned inward (see Fig. 13).

Install vapour tube (see Ch. 9.3).

6.

Install chilled condenser (see Ch. 6.1).

7.

Properly dispose of old seal.

8.

Fig. 13: Aligning the seal

Operating Instructions RC600 EN Servicing

Translation of original Operating and Installation Instructions, English, BA_RC600_EN_304763_20170608.docx 43

9.5 Changing fuses

 Rotary evaporator disconnected from mains power and

de-energised

 Heating bath empty

 Rotary evaporator free of hazardous materials

CAUTION

Danger of burns from hot parts

Glass parts and the heating bath may be hot even after the rotary
evaporator has been shut off.

 Allow the rotary evaporator to cool off after operation.

220-240 Volt units

a)

Loosen cover (Fig. 14/1) and remove (Fig. 14/2).

1.

Replace blown fuses (Fuse specification, see Chapter 4,

2.
page 12).

Replace cover (Fig. 14//1).

3.

100-127 Volt units

b)

DANGER

Risk of electric shock, danger of death

Separate the rotary evaporator from the power supply before
working on the rotary evaporator.

 Make sure that the pump is de-energised.

Unscrew the eight rubber feet (Fig. 15/ 1) and carefully

1.
remove the bottom plate under the rotary evaporator.

Remove screw (Fig. 15/ 1) and pull the fuse holder out .

2.

Open the cover of the fuse holder with a screwdriver (Fig. 15/

3.

2), remove the damaged fuse and replace it with a new one
(fuse specifications on chapter 4, page 12).

Close fuse holder (Fig. 15/2) and reinstall it (Fig. 15/ 1).

4.

Place the bottom plate carefully in position and fixate it by

5.
screwing the rubber feet on.

Requirements

Fig. 14: Changing fuses

(200-240V)

Fig. 15: Changing fuses

(100-127V)

1

2

Troubleshooting Operating Instructions RC600 EN

44 Translation of original Operating and Installation Instructions, English BA_RC600_EN_304763_20170608.docx

10 Troubleshooting

DANGER

Risk of electric shock, danger of death

Separate the rotary evaporator from the power supply before
working on the rotary evaporator.

 Make sure that the pump is de-energised.

 Rotary evaporator generally: see Tab. 4.

 Terminal generally: see Tab. 5.

 Error message in display: see Tab. 6.

Rotary evaporator generally

Error

Possible cause

Remedy

The rotary evaporator is
switched on, but the power
switch does not illuminate.

Power cable not plugged
in.

Plug the rotary evaporator's mains power
cable into a properly installed grounded
socket.

No voltage in the mains.

Check the room's fuses.

Power cable's internal fuse
is burned out.

Use a suitably-sized power cable (see
rotary evaporator's type label for power
consumption).

Replace power cable's fuse if necessary.

Fuses in rotary evaporator
are blown.

Identify and eliminate cause of

4.
overload.

Change the rotary evaporator's

5.
mains fuses (see Ch. 9.5, page 43).

The desired vacuum is not
reached.

The attached vacuum
device is inadequate.

Attach an adequate vacuum device.

Leaks in the hose connec­tions at the tower and
chilled condenser.

Check hoses and fittings; tighten or
replace as necessary.

Sealing caps on chilled
condenser have leaks.

Check the caps' internal seals; retighten
/ replace as necessary.

The refilling valve (acces­sory) is not fully closed.

Close the refilling valve.

Securely tighten the refilling valve's
through cap. Check the cap's seal if
necessary.

The rotary drive's seal is
worn.

Replace seal (see Ch. 9.4.).

The vapour tube's sealing
surface is damaged.

Replace vapour tube (see Ch. 9.3).

Solvent evaporating in
collecting flask

Empty collecting flask

Operating Instructions RC600 EN Troubleshooting

Translation of original Operating and Installation Instructions, English, BA_RC600_EN_304763_20170608.docx 45

The rotary drive does not
reach the selected speed
or does not move.

Flask drive blocked by
foreign parts.

Remove foreign parts.

The wrong speed setpoint
has been selected.

Correct the setpoint
(see Ch. 8.1.2, page 35).

Condensate residue is
adhered to the seal.

Clean seal
(see Ch. 9.2.3, page 38).

Evaporation flask or flask
nut collide with the heating
bath.

Lift evaporation flask (see Ch. 8.1.2,
page 36) or reposition heating bath.
Observe Chapter 6.1 (page 18) when re­immersing evaporation flask.

Evaporation flask cannot
be lowered / raised.

Foreign parts / objects are
blocking lift drive.

Remove foreign parts / objects.

Setpoint for immersion
depth is reached.

Change the evaporation flask's immer­sion depth (see Ch. 8.1.2, page 36).

Heating bath does not
heat.

Heating bath is not
switched on (symbol in
display not flashing).

Switch on heating bath
(see Ch. 8.1.2, page 35).

Not enough heating medi­um in heating bath (error
message, see Table Feh-

ler! Verweisquelle konnte
nicht gefunden werden.).

Replenish heating medium
(see Ch. 7.1, page 30).

Heating bath has no elec­trical contact.

Make sure heating bath sits properly on
rotary evaporator.

Make sure no foreign parts are under­neath heating bath.

Thermal circuit breaker has
triggered.

Reset circuit breaker (see Fig. 16).

Condensate in separators /
vacuum system's second­ary condensers.

Cooling capacity inade­quate for the volume of
vapour (chilled condenser
backs up with liquid).

Ensure that the chilled condenser is
supplied with sufficient cooling medium
(observe volume and temperature, Ch.

2.1).

Adapt vapour volume to available cool­ing capacity.

Inside of chilled condenser
is fogged up to the vacuum
connection.

Tab. 4: General troubleshooting

Troubleshooting Operating Instructions RC600 EN

46 Translation of original Operating and Installation Instructions, English BA_RC600_EN_304763_20170608.docx

Resetting the heating bath's thermal circuit breaker

If an error occurs and the temperature of the heating bath exceeds
240°C the circuit breaker will automatically switch off the heating
bath. The circuit breaker must then be reset manually, as follows:

Allow heating bath to cool

1.

Empty heating bath

2.

Determine cause of error and remove

3.

NOTE

If you are unable to determine the cause of the error, call your
KNF technical adviser (see last page for telephone number).

Reset circuit breaker

4.

NOTE

Use a pointed object such as a pencil or a pointed tool to press
the button on the underside of the heating bath (see arrow in Fig.

16).

Fig. 16: Resetting the heating

bath's circuit breaker

Operating Instructions RC600 EN Troubleshooting

Translation of original Operating and Installation Instructions, English, BA_RC600_EN_304763_20170608.docx 47

Terminal

Error

Possible cause

Remedy

Temperature display shows
implausible values.

Temperature unit was
changed.

 Select the desired temperature unit.

Tab. 5: Terminal troubleshooting

Error message in the display

with simultaneous acoustic warning

Error message Meaning Possible cause

E01

Temperature sensor defective or
temperature difference between the
two temperature sensors too high

No Heating bath or it is not properly
placed on the contacts.

E02

Heating bath has run dry Heating bath is empty or oil has been

heated below 100 °C without selecting Oil
mode (Oil mode since SW Version 6.00).

E04

Heating coil defective Circuit breaker below hating bath has not

been reset (see Fig. 16).

E05

Flask rotation mechanism blocked Catch for the rotation drive is blocked

(Fig. 12/ 4)

E08

Display defect (with an intermittent
acoustic warning)

Internal cause.

E09

Heating bath temperature sensor
defective

Internal cause.

E10

Flask drive defective Internal cause.

Tab. 6: Error message

Fault persists

If you are still unable to diagnose the problem, please send the
rotary evaporator to KNF customer service (see address on last
page).

1. Clean rotary evaporator, heating bath, and any parts that come
into contact with the medium (see Chapter 9.2, page 38ff).

2. Send the rotary evaporator, together with completed Declara­tion of No Objection and Decontamination (Chapter 14, page

53), to KNF stating the nature of the distilled medium.

Solvent library Operating Instructions RC600 EN

48 Translation of original Operating and Installation Instructions, English BA_RC600_EN_304763_20170608.docx

11 Solvent library

Solvent Formula Molar

mass
[g/mol]

Evaporation
enthalpy [J/g]

Boiling point at
1013mbar [°C]

Density
[g/cm3]

Vakuum benö­tigt für Siede­punkt von 40°C

Aceton CH3H6O 58.1

553

56

0.790

556

Acetonitril C2H3N 41.1

833

82

0.786

230

n-pentanol C5H12O 88.1

595

37

0.814

11

Benzol C6H6 78.1

5448

80

0.877

236

n-butanol C4H10O 74.1

620

118 0.810

25

tert-butanol C4H10O 74.1

590

82

0.789

130

2-Butanon C4H8O 72.1

473

80

0.805

243

Chlorbenzol C6H5Cl 112.6

377

132 1.106

36

Chloroform CHCl3 119.4

264

62

1.483

474

Cyclohexan C6H12 84.0

389

81

0.779

235

Diethylether C4H10O 74.0

389

35

0.714

850
1,2­Dichlorethan

C2H4Cl

2

99.0

335

84

1.235

210

cis-1,2­Dichlorethan

C2H2Cl

2

97.0

322

60

1.284

479

trans-1,2­Dichlorethan

C2H2Cl2 97.0

314

48

1.257

751

Diisopro­pylether

C6H14O 102.0

318

68

0.724

375

Dioxan C4H8O

2

88.1

406

101 1.034

107

dimethylfor­mamide
(DMF)

C3H7NO 73.1

-

153 0.949

11

Essigsäure C2H4O

2

60.0

695

118 1.049

44

Ethanol C2H6O

46.0

879

79

0.789

175
Ethylacetat C4H8O

2

88.1

394

77

0.900

240
Heptan C7H

16

100.2

373

98

0.684

120
Hexan C6H

14

86.2

368

69

0.660

360
Isopropanol C3H8O 60.1

699

82

0.786

137
Isopentanol C5H12O 88.1

595

129 0.809

14

Methylethylke­ton (Butanon)

C4H8O 72.1

473

80

0.805

243

Methanol CH4O 60.1

787

97

0.804

67

Dichlormethan CH2Cl

2

84.9

373

40

1.327

850
Pentan C5H

12

72.1

473

80

0.805

243
n-propanol C3H8O 60.1

787

97

0.804

67

Pentachlor­ethan

C2HCl

5

202.3

201

162 1.680

13

1,1,2,2,-tetra­chlorethan

C2H2Cl

4

167.9

247

146 1.595

20

tetrachlor­methan

CCl

4

153.8

226

77

1.594

271

1,1,1- C2H3Cl

3

133.4

251

74

1.339

300

Operating Instructions RC600 EN Solvent library

Translation of original Operating and Installation Instructions, English, BA_RC600_EN_304763_20170608.docx 49

Solvent Formula Molar

mass
[g/mol]

Evaporation
enthalpy [J/g]

Boiling point at
1013mbar [°C]

Density
[g/cm3]

Vakuum benö­tigt für Siede­punkt von 40°C

trichlormethan
Tetrachlor­ethen

C2Cl

4

165.8

234

121 1.623

53

THF (tetrahy­drofuran)

C4H8O 72.1

- 67

0.889

374

Tuelene C7H

8

92.2

427

111 0.867

77

Trichlorethan C2HCl

3

131.3

264

87

1.464

183

Wasser H2O 18.0

2261

100 1.000

72

Xylole C8H10 106.2

389

- - 25

o-xylole C8H10 106.2

-

144 0.880

-

m-xylole C8H10 106.2

-

139 0.864

-

p-xylole C8H10 106.2

-

138 0.861

-

Tab. 7: Solvent library

Spare parts and accessories Operating Instructions RC600 EN

50 Translation of original Operating and Installation Instructions, English BA_RC600_EN_304763_20170608.docx

12 Spare parts and accessories

12.1 Spare parts

Spare part Order No.

Seal 113046

Mains cable D 026363

Mains cable CH 027523

Mains cable UK 129326

Mains cable USA/JP 127875

Norprene® hose ID6 (sold by the me­tre*)

055535

Hose fitting ID6 with cap GL14 301092

Hose clamp ID6 127329

Collection flask 500 ml (coated) 128158

Collection flask 1000 ml (coated) 113939

Flask clamp collection flask 025968

Evaporation flask 1000 ml NS29/32 128159

Evaporation flask 1000 ml NS24/40 128893

Vapour tube NS29/32 126059

Vapour tube NS24/40 128762

Flask nut NS29/32 126056

Flask nut NS24/40 128781

Mains fuses

- 240 V, 50/60Hz: T 8 (2x)

- 115 V, 50/60Hz: T 15 (2x)
NOTE: Observe Chapter 9.5 when

changing fuses.

136067
136309

Tab. 8: * Indicate desired length in whole metres.

12.2 Accessories (see also Chapter 6)

Accessories Order No.

Protective cover for heating bath
NOTE: Always activate the protection

function when using the protective
cover outside of a suitable fume hood
(see Chapter 8.1.2).

127204

Refilling valve 300639

Insulation for cooling hoses (375 mm) 301270

Norprene® hose ID10 (sold by meter*) 028187

Hose fitting ID10 with cap GL14 301198

Tab. 9: * Indicate desired length in whole metres.

Operating Instructions RC600 EN Spare parts and accessories

Translation of original Operating and Installation Instructions, English, BA_RC600_EN_304763_20170608.docx 51

12.3 Glass product

Glass product Order No.

Collection flask (coated) 100 ml 300557

250 ml 300558

500 ml 128158

1000 ml 113939

2000 ml 113938

Evaporation flask NS29/32 50 ml 113079

100 ml 113080

250 ml 113081

500 ml 113082

1000 ml 128159

2000 ml 113083

3000 ml 113084

Evaporation flask NS24/40 50 ml 300561

100 ml 300562

250 ml 300563

500 ml 300564

1000 ml 128893

2000 ml 300565

3000 ml 300566

Powder flask NS29/32 500 ml 300588

1000 ml 300589

2000 ml 300590

Powder flask NS24/40 500 ml 300591

1000 ml 300592

2000 ml 300593

Vapor tube with foam brake NS29/32 302144

NS24/40 302145

Foam brake NS29/32 301114

NS24/40 301115

Tab. 10: Glass products

Returns Operating Instructions RC600 EN

52 Translation of original Operating and Installation Instructions, English BA_RC600_EN_304763_20170608.docx

13 Returns

Pumps and systems used in laboratories and process-based
industries are exposed to a wide variety of conditions. This means
that the components contacting transferred media could become
contaminated by toxic, radioactive, or otherwise hazardous sub­stances.

For this reason, customers who send any pumps or systems back
to KNF must submit a Declaration of No Objection and Decontami­nation in order to avoid a hazardous situation for KNF employees.
This Declaration of No Objection and Decontamination provides
information about, for example:

 physiological safety

 whether medium-contacting parts have been cleaned

 whether decontamination was completed

 media that have been transferred or used

and must declare physiological safety. To ensure worker safety,
work may not be started on pumps or systems without a signed
Declaration of No Objection and Decontamination.

For optimal processing of a return, a copy of this declaration
should be sent in advance via e-mail, regular mail, or fax to KNF
Customer Service (refer to final page for address). In order to avoid
endangering employees who open the shipment's packaging,
despite any residual hazards, the original version of the Declara­tion of No Objection and Decontamination must accompany the
delivery receipt on the outside of the packaging.

The form for the Declaration of No Objection and Decontamination
is included with these operating instructions and may also be
downloaded from the KNF website.

The customer must specify the device type(s) and serial number(s)
in the Declaration of No Objection and Decontamination in order to
provide for the unambiguous assignment of the Declaration to the
device that is sent to KNF.

In addition to the customer's declaration of physiological safety,
information about operating conditions and the customer's applica­tion are also of importance to ensure that the return shipment is
handled appropriately. Therefore, the Declaration of No Objection
and Decontamination requests this information as well.

Operating Instructions RC600 EN

Declaration of No Objection and Decontamination

Translation of original Operating and Installation Instructions, English,
BA_RC600_EN_304763_20170608.docx 53

14 Declaration of No Objection and Decon-

tamination

KNF worldwide

Netherlands

KNF Verder B.V.

Utrechtseweg 4a
NL-3451 GG Vleuten
Tel. [phone]
Fax [phone]
E-mail: [e-mail]

www.knf-verder.nl

Belgium, Luxembourg

KNF Verder N.V.

Kontichsesteenweg 17
B-2630 Aartselaar
Tel. [phone]
Fax [phone]

E-mail: [e-mail]
www.knf.be

China

KNF Neuberger Trading

(Shanghai) Co., Ltd
No. 36 Lane 1000
Zhang Heng Road
Shanghai 201203, P.R. China
Tel. [phone]
Fax [phone]
E-mail: [e-mail]

www.knf.com.cn

Germany

KNF Neuberger GmbH

Alter Weg 3 D-79112 Freiburg
Tel. [phone]
Fax [phone]
E-mail: [e-mail]

www.knf.de

France, Morocco,
Algeria

KNF Neuberger

4, Bld. d’Alsace Z.I.
F-68128 Village-Neuf
Tel. [phone]
Fax [phone]
E-mail: [e-mail]

www.knf.fr

United Kingdom

KNF Neuberger U.K. Ltd.

Avenue 2
Station Lane
Industrial Estate
Witney Oxon OX28 4FA
Tel. [phone]
Fax [phone]
E-mail: [e-mail]

www.knf.co.uk

India

KNF Pumps + Systems
(India) Pvt. Ltd.

RAJIV GANDHI INFOTECH PARK
Phase 1
Ganga Estate, Survey No. 152/2/2
Above AXIS BANK
Hinjewadi
Pune 411 057
Tel. [phone]
0091 (0)20 640 08 923
Fax [phone]
E-mail: [e-mail]

www.knfpumps.in

Italy

KNF ITALIA S.r.l.

Via Flumendosa, 10
I-20132 Milano
Tel. [phone]
Fax [phone]
E-mail: [e-mail]

www.knf.it

Japan

KNF Japan Co.Ltd.

Chichibu, Bldg. 7F
1-8-6 Shinkawa, Chuo-ku,
Tokyo, Japan 104-0033
Tel. [phone]
Fax [phone]
E-mail: [e-mail]

www.knf.co.jp

Korea

KNF Neuberger Ltd.

Woosan Bldg.RM#202,
336-4, Hwikyung-Dong
Dongdaemun-Ku.,
130-090, Seoul
Tel. [phone]
Fax [phone]
E-mail: [e-mail]

www.knfkorea.com

Sweden, Denmark, Finland, Norway

KNF Neuberger AB

Mejerivägen 4,
P.O. Box 44060
SE-10073 Stockholm
Tel. [phone]
Fax [phone]
E-mail: [e-mail]

www.knf.se

Switzerland

Sales

KNF Neuberger AG

Stockenstrasse 6
CH-8362 Bichelsee-Balterswil
Tel. [phone]
Fax [phone]
E-mail: [e-mail]

www.knf.ch

Taiwan

KNF Neuberger Ltd.

9-2 FL., No., 24, Lane 123, Section 6,
Ming Chuan East Road
Taipei City, Taiwan
Tel. [phone]
Fax [phone]
E-mail: [e-mail]

www.knftwn.com.tw

USA, Canada, South America

KNF NEUBERGER, INC.

Two Black Forest Road
Trenton, New Jersey
08691-1810
Tel. [phone]
Fax [phone]
E-mail: [e-mail]

www.knf.com/usa.htm

South America
Direct Phone: [phone]
E-mail: [e-mail]

KNF product centres

Product centre for
gas pumps:

Germany

KNF Neuberger GmbH

Alter Weg 3
D-79112 Freiburg
Tel. [phone]
Fax [phone]
E-mail:

[e-mail]

www.knf.de

Product centre for
liquid pumps:

Switzerland

KNF FLODOS AG

Wassermatte 2
CH-6210 Sursee
Tel. [phone]
Fax [phone]
E-mail:

[e-mail]

www.knf-flodos.ch

Product centre for
micro pumps:

Switzerland

KNF Micro AG

Zelglimatte 1b
CH-6260 Reiden
Tel. [phone]
Fax [phone]
E-mail:

[e-mail]

www.knf-micro.ch

Declaration of No Objection and Decontamination

KNF Flodos BA_RC600_EN_304763_20170608.docx

56

Translation of original Operating and Installation Instructions
