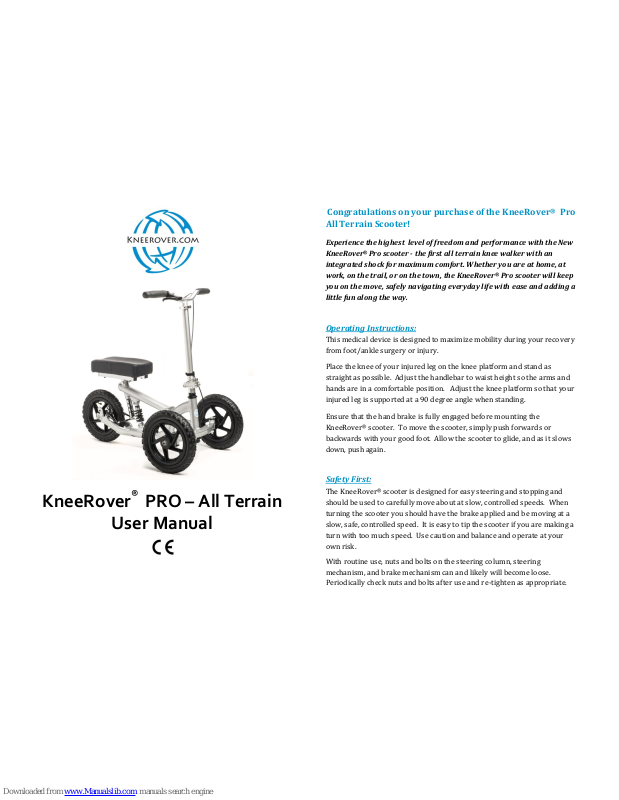

Page 1
KneeRover® PRO – All Terrain
User Manual
Congratulations on your purchase of the KneeRover
®
Pro
All Terrain Scooter!
Experience the highest level of freedom and performance with the New
KneeRover® Pro scooter - the first all terrain knee walker with an
integrated shock for maximum comfort. Whether you are at home, at
work, on the trail, or on the town, the KneeRover® Pro scooter will keep
you on the move, safely navigating everyday life with ease and adding a
little fun along the way.
Operating Instructions:
This medical device is designed to maximize mobility during your recovery
from foot/ankle surgery or injury.
Place the knee of your injured leg on the knee platform and stand as
straight as possible. Adjust the handlebar to waist height so the arms and
hands are in a comfortable position. Adjust the knee platform so that your
injured leg is supported at a 90 degree angle when standing.
Ensure that the hand brake is fully engaged before mounting the
KneeRover® scooter. To move the scooter, simply push forwards or
backwards with your good foot. Allow the scooter to glide, and as it slows
down, push again.
Safety First:
The KneeRover® scooter is designed for easy steering and stopping and
should be used to carefully move about at slow, controlled speeds. When
turning the scooter you should have the brake applied and be moving at a
slow, safe, controlled speed. It is easy to tip the scooter if you are making a
turn with too much speed. Use caution and balance and operate at your
own risk.
With routine use, nuts and bolts on the steering column, steering
mechanism, and brake mechanism can and likely will become loose.
Periodically check nuts and bolts after use and re-tighten as appropriate.
Page 2
KneeRover® Set Up Instructions:
Please follow the step by step instructions on the following pages to
properly assemble your KneeRover® All Terrain scooter. The
diagram below identifies the key components of the scooter to aid
with assembly. Visit kneerover.com for assembly videos.
Setup Instructions:
Step 1: Install Front Axle
Please take your time to carefully complete all steps before operating your new
KneeRover® scooter. First, remove the kneepad from bottom of the scooter and
put aside for step 4. Next, place the front axle with 12” wheels under the
scooter frame, ensuring the round bolts by the wheels are facing up (as shown
below). Align the axle and frame holes, insert front axle bolts and tighten
completely using the allen wrench provided.
Step 2: Install Tie Rods
The fully assembled tie rods should be as follows (from top down): LEFT tie
rod, washer, black guide, washer, RIGHT tie rod, washer, and nut. Insert the
bolt into the top (LEFT) tie rod so that head of the bolt is sitting flush. Next
insert the bolt thru the washer and black guide (as shown below). Place a
washer and bottom (RIGHT ) tie rod onto bolt from below the black guide.
Finally insert a washer and nut, and then fully tighten.
Washer
Pneumatic
12” Wheels
Handlebar Height
Adjustment
Quick Release
Clamp
Steering Column
Brake Cable
Removable Front
Axle
Hand Brake Lever
Weight Capacity = 350 pounds
Knee Platform
Rear Brake
Mechanism
Integrated Shock
Technology
Tie Rod
Bolt
Washer
Black Guide
Tighten
Nut
Round Bolt
Scooter Frame
Front Axle
Bolt
Front Axle
Page 3
Step 3: Install Steering Column
The steering column will be in a folded position when unpacking. When
facing the front of the KneeRover® scooter, raise the steering column and
push the security pin in the clamp to the left to allow the column to lock
into place. Raise the clamp lever upward and tighten by turning it
clockwise. Finally, push clamp lever down firmly to secure the steering
column. Reverse these steps when needing to lower steering column for
transport.
Step 4: Install Knee Platform & Inflate Tires
The knee platform is designed to be used with either the right or left leg.
Insert the knee platform post into the receptacle tube and set the knee
platform at your desired height for use by inserting the locking pin
through the aligned holes. Finally, tighten the clamp to secure the knee
platform in place.
The pneumatic tires come partially inflated. It is important to inflate all
three tires to the correct pressure (a maximum of 40 psi) the same way
you inflate a bike tire. Be careful not to over inflate the tires.
Step 5: Brake Operation & Adjustment
To engage the brake, squeeze the brake lever on handle bar. Your
KneeRover® scooter comes equipped with a brake lock / parking brake.
Simply squeeze brake handle firmly and press the button to engage the
lock. To release the lock, squeeze the brake handle again.
If needed, the brake can be adjusted to avoid brake pad(s) from rubbing
a spinning back wheel with a disengaged brake. Use the provided
smaller allen wrench to make adjustments. Approaching the scooter
from behind you can loosen or tighten the brake cable by loosening the
top right bolt, adjusting brake cable, and re-tightening bolt.
Ongoing Maintenance
With routine use, nuts and bolts on the steering column, tie rod steering
mechanism, and brake assembly can become loose. To ensure safe
continuous operation of this KneeRover® scooter, it is important to
periodically inspect the scooter for loose nuts and bolts and re-tighten
as appropriate. Also, check the tire pressure routinely to ensure that
tires are properly inflated up to 40 psi maximum. Be careful not to over
inflate the tires. Please visit kneerover.com/pages/kneerover-
maintenance-videos for additional support in maintaining your
KneeRover..
Clamp
Locking Pin
2) Push Clamp Lever to Left
to Release Security Pin
To Lower Steering Column:
1) Lift Clamp Lever & Pull
Toward You
Brake Lock
Top Right Bolt –
Use Allen
Wrench
Page 4
Your Satisfaction is Our Top Priority:
Thank you for your business – we appreciate having you as a customer!
We are committed to providing innovative and affordable mobility
solutions to get you moving as soon as possible after injury or surgery
and for the duration of your recovery – free to go about your busy,
active life – and have a little fun doing it.
We hope that you are completely satisfied with your purchase. If you
have any issues, please contact us and we will do everything possible
to help you. Reviews have a significant impact on our small business.
If you purchased this product on Amazon or eBay, we would greatly
appreciate a review once you’ve had a chance to use your new
KneeRover® scooter. We hope we’ve earned a 4 or 5 star review – if
not, please give us the opportunity to help you before leaving a review.
Thank you for your support. We appreciate you!
Need Help – Contact Us:
Phone: 877-737-9877
Email: [email protected]
Web: www.kneerover.com
Assembly Support: kneerover.com/pages/assembly-video
EU AUTHORIZED REPRESENTATIVE
Murray's Medical Equipment Ltd
Airton Park, Airton Road, Tallaght,
Dublin 24 (Eircode D24 DY09), Ireland
T: 00 353 1 855 5696
www.murrays.ie
Limited Lifetime Warranty
This warranty applies only to the original purchaser.
This device was built to exacting standards and carefully inspected
prior to shipment. Your KneeRover® brand product is warranted to
be free of defects in materials and workmanship for a period of one
year from the date of purchase. The side frames and cross braces
are warranted for the lifetime of the KneeRover® scooter.
This warranty does not cover device failure due to owner misuse,
negligence, or normal wear and tear. The warranty does not extend
to non-durable components, which are subject to normal wear and
need periodic replacement. These components include, but are not
limited to tires, grips, brake pads and upholstery.
The warranty shall not apply for damages or defects caused by
unauthorized parts, attachments or repairs, negligence, accident, or
any circumstances beyond the control of KneeRover®, such as
improper operation, maintenance or storage.
If you have any questions regarding your KneeRover® product or
this warranty, please contact our Customer Care Team. We are
available, for your convenience, toll free at 1-877-737-9877,
Monday – Friday from 9 am to 5 pm Eastern.
Need Parts or Accessories?
Add an accessory like a knee pad cover, cup holder or headlight to
enhance your experience on your new KneeRover® scooter. Keep
your scooter operating in top shape with original manufacturer
parts. Visit kneerover.com, to explore our full range of parts and
accessories.
KneeRover® is a registered trademark of Rover Mobility, LLC.
