Description

Valid late 2004 into 2008—
see Rev. E of this data
sheet for information on the
new case and board.

The KMC TPE–1464 series of pressure transducers
incorporate a gauge pressure transmitter featuring
low hysteresis, excellent repeatability, and long­term stability.

Up to four field-selectable input ranges are available
in most models. The field selectable feature
provides a single model that can be configured to
cover all the input pressure ranges for any given
application.

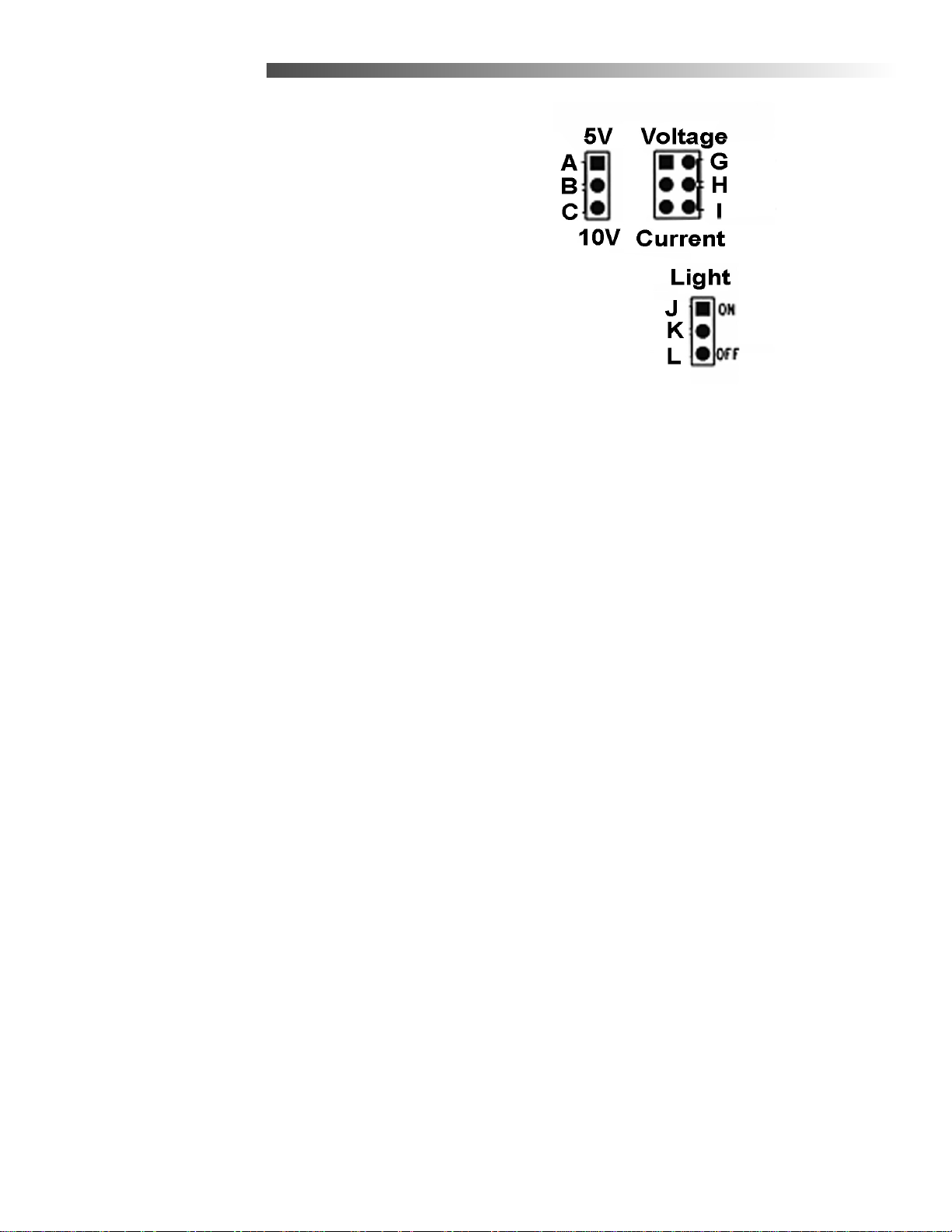

Three output ranges are field selectable, 4 to 20mA,
0 to 5 VDC, and 0 to 10 VDC. The output signal is
factory calibrated and temperature compensated
for the highest start-up accuracy.

TPE–1464 Series

Pressure Transducer

The TPE–1464 can be powered from either a 24
VAC nominal, or 12 to 30 VDC power source.
TPE–1464 incorporates a rugged NEMA 4
enclosure.

Features

◆ Push-button and remote zeroing terminal

◆ Normal or slow surge damping switch to

prevent false alarms and reduce noise

◆ Output polarity reverse switch

Models

The following models are available

TPE–1464–1 0 to 10/20/50/100 psig/d

TPE–1464–2 0 to 20/40/100/200 psig/d

TPE–1464–3 0 to 50/100/250/500 psig/d

Application

KMC TPE–1464 Pressure Transducers are suited for
any application requiring a reliable pressure
monitor providing a dependable conditioned and
compensated signal output.

The TPE–1464 may be used with any liquid or gas
that is compatible with 17–4 PH stainless steel.

DO NOT USE for these applications:

◆ Oxygen service

◆ Explosive/hazardous environments

◆ Flammable or combustible materials

Specifications and design subject to change without notice.

Enclosure

Specifications

Media compatibility

17-4 PH stainless steel

Supply Voltage 24 VAC or 15 to 30 VDC
Supply Current 35 mA, maximum @ 24VDC
Output Signal 4 to 20mA, 0 to 5 or 0 to 10

VDC, field selectable

Pressure Ranges Field selectable:

TPE-1464-1 0 to 10/20/50/100 psig/d
TPE-1464-2 0 to 20/40/100/200 psig/d
TPE-1464-3 0 to 50/100/250/500 psig/d

Proof Pressure Max. 2X F.S. range
Burst Pressure Max. 5X F.S. range
Accuracy ±1% F.S. combined linearity,

hysteresis, and repeatability.
Range 4 accuracy ±2% F.S.

Pressure cycles > 100 million
Surge Damping normal 4-second averaging,

slow 8-second averaging, switch
selectable

Sensor Operating Range -40° to 220°F (-40° to

105°C)

Temperature Compensation Error

32° to 130°F (0° to 55°C)

Long term stability ±0.25% typical (1 year)
Zero Adjust push-button auto-zero and

digital input

Operating Environment

32° to 122°F (0° to 50°C), 10
to 90% RH, non-condensing

Fittings 1/8” NPT female
Enclosure 5" x 5" x 2.25" (127mm x

127mm x 57mm);
IP 54 (NEMA 4)

Weight 1.33 lbs. (.60 kg)
Shock 100G, 11 mSec, 1/2 sine
Vibration 20G peak 20 to 2400 Hz

KMC Controls, Inc.

19476 Industrial Drive

New Paris, IN 46553

574.831.5250

www.kmccontrols.com

© 2005 KMC Controls Inc. 717-035-15D
