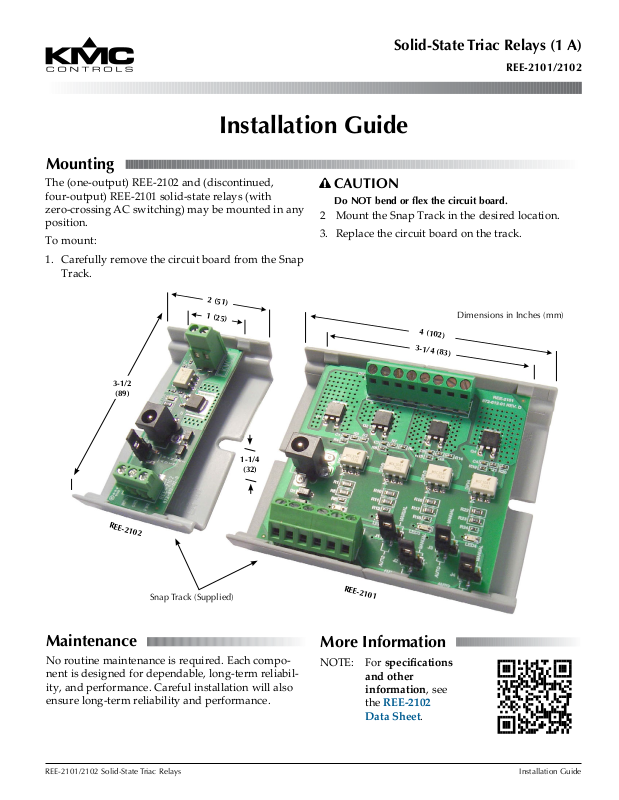

KMC Controls REE-2102 User Manual

Mounting

Solid-State Triac Relays (1 A)

REE-2101/2102

Installation Guide

The (one-output) REE-2102 and (discontinued,
four-output) REE-2101 solid-state relays (with
zero-crossing AC switching) may be mounted in any
position.

To mount:

1. Carefully remove the circuit board from the Snap
Track.

2 (51)

1 (25)

3-1/2

(89)

1-1/4

(32)

CAUTION

Do NOT bend or flex the circuit board.

2 Mount the Snap Track in the desired location.

3. Replace the circuit board on the track.

Dimensions in Inches (mm)

4 (102)

3-1/4 (83)

REE-2102

Snap Track (Supplied)

Maintenance

No routine maintenance is required. Each compo­nent is designed for dependable, long-term reliabil­ity, and performance. Careful installation will also
ensure long-term reliability and performance.

REE-2101

More Information

NOTE: For specications

and other
information, see

the REE-2102

Data Sheet.

REE-2101/2102 Solid-State Triac Relays Installation Guide

Connections and Wiring

1. Remove the “AUTO-MANUAL-OFF” jumper and
save.

2. Wire the input(s) common ground to (–) “GND”
of the Input terminal block.

3. Wire the individual (+ 10–14 VDC) input(s) to the
appropriate terminal(s) of the Input block.

NOTE: If the “MANUAL” mode is to be used,

wire power (+ 10–14 VDC) to the “PWR”
terminal of the Input terminal block. This

must have the same reference (–) ground
as the inputs.

4. Wire the individual output(s) to the appropriate
terminals of the Output terminal block.

NOTE: Triacs are for switching AC only. The triac

output must be in series with the load
and transformer output. Output rating is
up to 1 A at 30 VAC. See the data sheet for

additional specications.

5. Reinsert the jumper in the “AUTO” position.

Important Notices

The material in this document is for information
purposes only. The contents and the product it
describes are subject to change without notice. KMC
makes no representations or warranties with respect
to this document. In no event shall KMC be liable for
any damages, direct or incidental, arising out of or
related to the use of this document.

© 2014 KMC Controls, Inc. 872-019-02I
