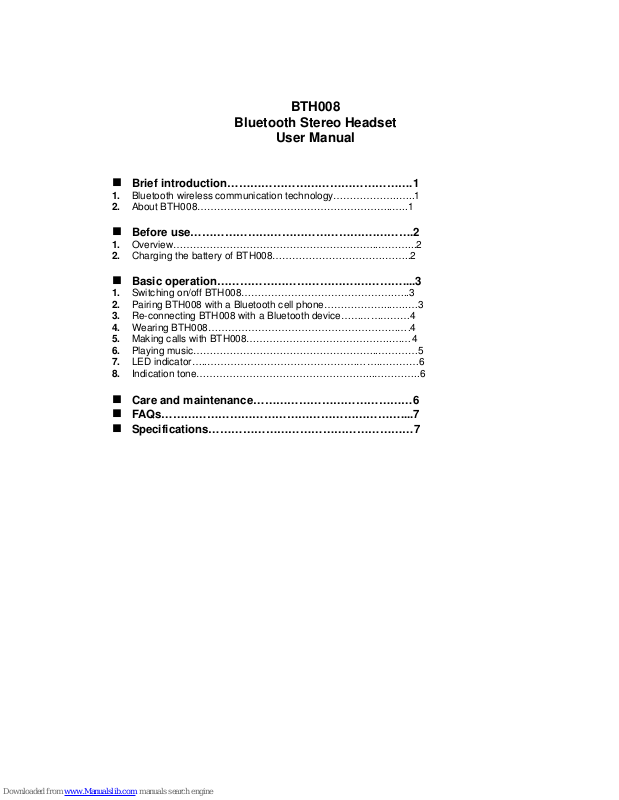

BTH008
Bluetooth Stereo Headset
User Manual
Brief introduction………………………………………….1
1. Bluetooth wireless communication technology………………..…..1
2. About BTH008…………………………………………………..…..1
Before use………………………………………….……….2
1. Overview……………………………………………………..………...2
2. Charging the battery of BTH008…………………………….……..2
Basic operation……………………………….…………....3
1. Switching on/off BTH008……………………………………….…..3
2. Pairing BTH008 with a Bluetooth cell phone………………...…..…3
3. Re-connecting BTH008 with a Bluetooth device…………………4
4. Wearing BTH008…………………………………………………….4
5. Making calls with BTH008……………………………………..……4
6. Playing music………………………………………………..…………5
7. LED indicator…..…………………………………………….…………6
8. Indication tone……………………………………………...…………..6
Care and maintenance……………………………………6
FAQs………………………………………………………....7
Specifications………………………………………………7
Welcome to use this stereo Bluetooth headset, BTH008. Please read this user manual
carefully before use.
Brief introduction
1. Bluetooth wireless communication technology
Bluetooth is a standard of close range radio-communication technology that was
drawn up by Ericsson, IBM, Intel, Nokia and Toshiba. With Bluetooth technology, we can
achieve the highest transmission rate among cell phones, computers, printers, PDAs and
other devices. The max transmission range of class 2 is 10 meters while the max
transmisson range of class 1 can reach up to 100 meters.
2. About BTH008
BTH008 is a stereo Bluetooth headset. It supports the following Bluetooth profiles:
HSP —— Headset Profile
HFP —— Hands-free Profile
A2DP—— Advanced Audio Distribution Profile
AVRCP——Audio/Video Remote Control Profile
You can enjoy music wirelessly using the BTH008. It has the following features:
1) Pairing with Bluetooth cell phones and PDAs which support HFP.
Answer call, end call and reject call
Redial last call
Voice dial
Adjust the volume
Transfer call between the Bluetooth headset and a Bluetooth cell phone
Microphone mute
2) Pairing with Bluetooth music devices and Bluetooth transmitters which support A2DP.
Enjoy music wirelessly
Adjust the volume
Remote control the function of pause/play
Remote control last/next song
3) Easy to switch between conversation and music, you will not miss incoming calls
while listening to music.
4) Every time BTH008 is turned on, it will connect to the last connected device
automatically.
Note: Even though the paired device and BTH008 support the same Bluetooth profiles,
functions may vary due to specification differences of the paired devices.
Before using
1. Overview
Multi-function button
1
(MFB)
2 Volume+
3 Volume4 Microphone
5 LED indicator
6
7
8 Right loudspeaker
9 Left loudspeaker
10 Charging port
11 Connection cable
Last song
Next song
2. Charging the battery of BTH008
First use—You must charge the battery of BTH008 fully before first use.
Low power—When the red LED flashes and you hear 3 “Dong” tones every 20 seconds,
the BTH008’s battery is low power and needs to be recharged.
The charging steps are as follows:
Step1: Connect charger or charging cable to standard power outlet;
Step2: Connect the end of charger or charging cable to charging port of BTH008;
Step3: The red LED is on while charging. It takes about 2.5 hours to fully charge the
battery;
Step4: When charging is completed, the red LED will switch off.
Remarks:
1) The battery will dry up if you don’t use BTH008 for a long time. If this happens you
have to charge the battery of BTH008 for about 30 minutes before the LED indicator
will be on.
2) Please don’t attempt to take out the battery from BTH008, as this might damage it.
3) If charging via a USB port, this USB port is used only for charging purposes, no
any data is transferred over the USB port.
Warning:
1) The battery is recycled.
2) Do not expose the battery to fire, as this may cause explosion.
Press and hold
Basic operation
1. Switching on/off BTH008
Function Operation LED indicator Indication tone
Switching on
BTH008
Switching off
BTH008
Remark: In order to save power, BTH008 will switch off automatically if no devices can be
connected after 5 minutes.
2. Pairing BTH008 with a Bluetooth cell phone
1) How to enter pairing mode
Function Operation LED indicator Indication
Entering
pairing mode
Remark: The pairing mode will last 2 minutes. BTH008 will switch to standby mode
automatically if no devices can be connected after 2 minutes.
2) Pairing BTH008 with a Bluetooth cell phone
You have to pair BTH008 with a Bluetooth cell phone before first using it. Please
make sure your cell phone is Bluetooth-enabled and turn on Bluetooth. Specific pairing
steps may vary with different cell phones. Please refer to your cell phone’s user manual
for further information. The general pairing steps are as follows:
1) Keep BTH008 and Bluetooth cell phone within 1 meter when pairing;
2) Enter BTH008’s pairing mode (please refer to “How to enter pairing mode);
3) Switch on the cell phone’s Bluetooth function and search for Bluetooth device. After
the search is completed, select “BTH008” from the Bluetooth device list;
4) According to the indication, enter password or PIN No:”0000”, and press ” Yes” or
“confirm”.
5) After successful pairing, select “BTH008” from the Bluetooth device list and press
“connect”.
6) After successful connecting, the blue LED of BTH008 will flash twice or three times
every 5 seconds.
Remarks:
If the pairing is not successful, please switch off BTH008 and try re-pairing according
to the steps 1-6 mentioned above.
After pairing is successful, BTH008 and the cell phone will remember each other,
BTH008 will not need to re-pair next time. BTH008 can remember 8 paired devices.
When the number of paired devices exceeds 8, the first one will be replaced.
Press and hold
MFB button for
57 seconds
Blue LED is on
steadily for 1
second
Red LED is on
MFB button for
seconds
steadily for 1
second
Make sure BTH008 is off, and press
and hold MFB button for about 79
seconds and release it when the red
and blue LEDs flash alternately
A long tone
A long tone
Red and Blue
LEDs flash
alternately
tone
Two short tones
Every time you switch on BTH008, it will connect to last connected devices
automatically. If you want to pair it with other devices, please switch off the Bluetooth
function of the current Bluetooth device first and then pair BTH008 with the new
device according to steps 16 mentioned above.
3. Re-connecting BTH008 with a Bluetooth device
1) Automatic connecting
Every time you turn on BTH008, it will connect to the last connected device
automatically.
2) Connecting manually
When BTH008 is in standby mode, press MFB button twice to connect BTH008 to the
last connected device.
Remarks:
BTH008 only tries to connect to the last connected device that supports HFP.
Before connecting to a Bluetooth device, please switch on the Bluetooth device’s
Bluetooth function.
On some Bluetooth devices, take some Nokia cell phones for example, you have to
allow automatic connecting in the cell phone’s settings. Please refer to the cell
phone’s manual for further information.
4. Wearing BTH008
Both sides of the headset are labeled, either with the letter “L” for the left side or with the
letter “R” for the right side. Make sure to wear BTH008 as intended. If you want to use the
microphone, align it towards your mouth to get the best conversation quality.
5. Making calls with BTH008
Function
Voice dial
Redial last
call
Answer call Incoming call
Reject call Incoming call
Volume up
Volume down
The status of
BTH008
Standby mode
(connected to
Bluetooth
device)
Standby mode
(connected to
Bluetooth
device)
Conversation
mode
Conversation
mode
Operation
Press (Last song button) for 2s,
and release it when hearing
indication tone
Short press MFB button twice quickly
Short press MFB button
Press and hold MFB button for 2
seconds and release it when hearing
indication tone
Short press or long press volume+ Nothing
Short press or long press volume- Nothing
Indication
tone
One tone
One tone
One tone
One tone
End call
Transfer call
Microphone
mute
Cancel mute
Clear the
pairing list
Warning: Don’t turn up the headset’s volume too much as this may cause hearing loss.
Conversation
mode
Conversation
mode
Conversation
mode
Conversation
mode
(microphone
muted)
Power off
Short press MFB button
Press and hold MFB button for 2
seconds and release it when hearing
indication tone
Short press MFB button twice quickly.
When the microphone is muted you
will hear two tones every 5 seconds
Short press MFB button twice quickly
Switch off the headset firstly, press the
MFB button and Volume+ button
simultaneously for 8s, and release the
buttons when the Red LED flashes
Once. Now the pairing list would be
empty.
One tone
One tone
One tone
One tone
Remarks:
Not all cell phones support all functions listed above. Please refer to your cell phone’s
user manual for further information.
Some functions and indication tones may vary with different cell phones.
When the volume is adjusted to max or min, you will hear an indication tone.
When pressing the answer button on some cell phones, the conversation will be sent
to the cell phone. You have to switch the call to BTH008 manually then. Please refer
to your cell phone’s user manual for further information.
6. Playing music
After connecting BTH008 to a Bluetooth cell phone or a Bluetooth transmitter which
supports A2DP, you can enjoy music with BTH008 wirelessly and remotely.
Function
Volume up Playing music Short or long press volume+
The status of
BTH008
Operation
Volume down Playing music Short or long press volume-
Last song Playing music
Next song Playing music
Pause Playing music Short press MFB button
Play Pausing
Remarks:
When playing music on some cell phones, the music will be transmitted to the cell
phone’s speaker instead to the BTH008. You have to select to transmit the sound via
Bluetooth in the settings menu then and choose “BTH008” as speaker device. The
music will be transmitted to the BTH008 then. Please refer to the your cell phone’s
user manual for further information.
Short press button
Short press button
Short press MFB button
When the volume of BTH008 is adjusted to max. or min, you will hear an indication
tone.
To remotely control the last song/next song/pause/play function, your audio source
needs to support AVRCP. Please refer to your cell phone’s or your Bluetooth
transmitter’s user manual for further information.
7. LED indicator
1) When charging BTH008
LED indicator The status of BTH008
Red LED is on Charging
Red LED is off Charging finished
2) When Pairing with a Bluetooth device
LED indicator The status of BTH008
Red and blue LEDs flash alternately Pairing mode
Blue LED flashes once quickly every 2 seconds Standby mode (not
connected to a Bluetooth
device)
Blue LED flashes twice quickly every 4-5 seconds HFP or A2DP profile is
actived
Blue LED flashes three times quickly every 4~5
seconds
Blue LED is circularly gradual on and off
Red LED flashes twice every 20seconds Low power
HFP and A2DP profile is
actived simultaneously
Conversation mode
8. Indication tone
Indication tone The status of BTH008
Two indication tones every 5 seconds Conversation mode and
microphone muted
Three “DU” tones every 20 seconds Low power
Care and maintenance
Read the following recommendations before using BTH008. Following these you will
be able to enjoy our product for many years.
Keep it dry and don’t take it to damp places to avoid the product’s internal circuit
being affected.
Keep the product away from direct sunlight or hot places. High temperatures will
shorten the life of electronic devices, destroy the battery or distort certain plastic
parts.
Don’t expose the product to cold areas. It may damage the internal circuit board.
Don’t try to disassemble the product as it may get damaged if you are not
professional.
Don’t let it fall down onto the floor or other hard surfaces. The internal circuit might
get damaged.
Don’t use intensive chemical products or detergent to clean the product.
Don’t scratch the surface with sharp things.
In case the product doesn’t function properly, send it to the store you bought it. The
staff will help you to solve the problem.
FAQ
1 Why does the red LED flash twice every 20 seconds ?
Because the battery is low power, it needs to be recharged.
2 Why doesn’t the red LED light up while charging?
a) Please make sure the charging device is properly connected with BTH008;
b) If you have not used BTH008 for a long time, the battery of BTH008 will dry
up. If this happens, you have to charge the battery of BTH008 for about 30
minutes before the red LED turns on.
.
3 How far is the effective range between BTH008 and a Bluetooth cell phone?
According to the Bluetooth standard, the max. controllable range of Class2
headsets is 10 meters. It varies under different environments.
4 Why can’t my cell phone find BTH008?
If BTH008 is not in pairing mode, the cell phone will not be able to find it. Make
sure BTH008 is in pairing mode and in the effective working range.
5 Why is there no sound from BTH008?
a) Make sure BTH008 has been switched on;
b) Make sure the volume is not too low or muted;
c) Ensure BTH008 is properly connected to your cell phone;
d) Make sure BTH008 is in the effective working range.
6 Why is the sound not clear in conversation?
a) Make sure your cell phone is in a strong signal area;
b) Ensure BTH008 is in the function range of your Bluetooth device.
7 Why can’t I remotely control the pause, play, last song and next song
functions with BTH008 when playing music?
This function needs the Bluetooth device paired with BTH008 to support AVRCP
(Audio/Video Remote Control Profile). Please make sure your device supports
AVRCP.
8 Why can’t I switch on BTH008?
Please charge the battery of BTH008.
Specification
Bluetooth version
Bluetooth profiles
Effective range
Working time
Standby time
Charging input
Charging time
Dimensions
Bluetooth V2.1
Headset, Hands-free, A2DP, AVRCP
10m
Music: up to 3.5 hours
Talk: Up to 4 hours
Up to 90 hours
DC 5.0V 80mA
Approx. 2.5 hours
41*31*21.4mm
Weight
Approx. 20g
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference
received, including interference that may cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to operate
the equipment.
Loading...
