BEFORE YOU START
KM H-K1 is a high quality pure racing 1/10 GP touring car and it’s not a toy!
Please follow the below steps before you start:
1. Keep out of children when you open the box
2. Beginners or rst builders should seek the advice of experienced modelers about the important points for assembly
3. Read throught the instruction manual carefully before opening the part’s plastic bag
4. Check all parts to nd out if there are missing parts
5. Follow the steps and orders in the instruction manual for assembly
6. If you nd out missing parts,defective parts or any problems in the open box condition,please contact your local
dealers or KM distributors immediately
Assembly Tips
1. Self-tapping screws cut threads into the plastic parts when being tightened.Do not use excessive force
when tightening the self-tapping screws because you may strip out the thread in the plastic.
2. Make sure all screws are properly tightened.Check them periodically.
3. Clean all ball-bearings to make sure them move very easily and freely.Check them periodically
4. The free movement of the moving parts is very important for the car performance
5. Seek advice from experienced drivers.
Safty Precautions
1. Keep out of children when operating the car
2. Be very careful when using tools or sharp accessories
3. Be careful when assembly because some parts may have sharp edge
4. Always switch on your transmitter before you switch on your receiver in the car.Always switch off
the receiver before switch off your transmitter
5. Always check the brakes/throttle/steering before starting your engine
6. Only operating outdoor since exhausts and fuel vapors are noxious to health
7. Keep hands and objects away from the engine and tune pipe after running the car because of
the extremely high temperature,only can touch it until it’s cool down
8. Never smoking when operating the car because the fuel is highly inammable
9. Do not run the car near real car,road,animals and people
10. Always disconnect the receiver battery after running
11. Only use model fuel for running the car
To prevent any serious personal injury or damage
to the public,please be responsible when operating the car!
Customer support
If you have any difculties,problems,or questions,please do not hesitate to
contact our KM distributor in your country or e-mail to: info@km-group.com.hk.
Also,please visit our web-site: www.km-rc.com to nd the latest news,set-up information,new option parts,and many more.
Note
■ We will be continually up-grading the H-K1 to even higher performance,the exact specications of the kit may vary.
We KM do reserve all right to change any specication without prior notice.
■ Now, please enjoy our 1/10 Scale Super Luxury Full Option 4WD GP Touring Car H-K1,
and wish you get all the great race results with the Pure Free Fighting (K1) Machine!!!
P. 2
►

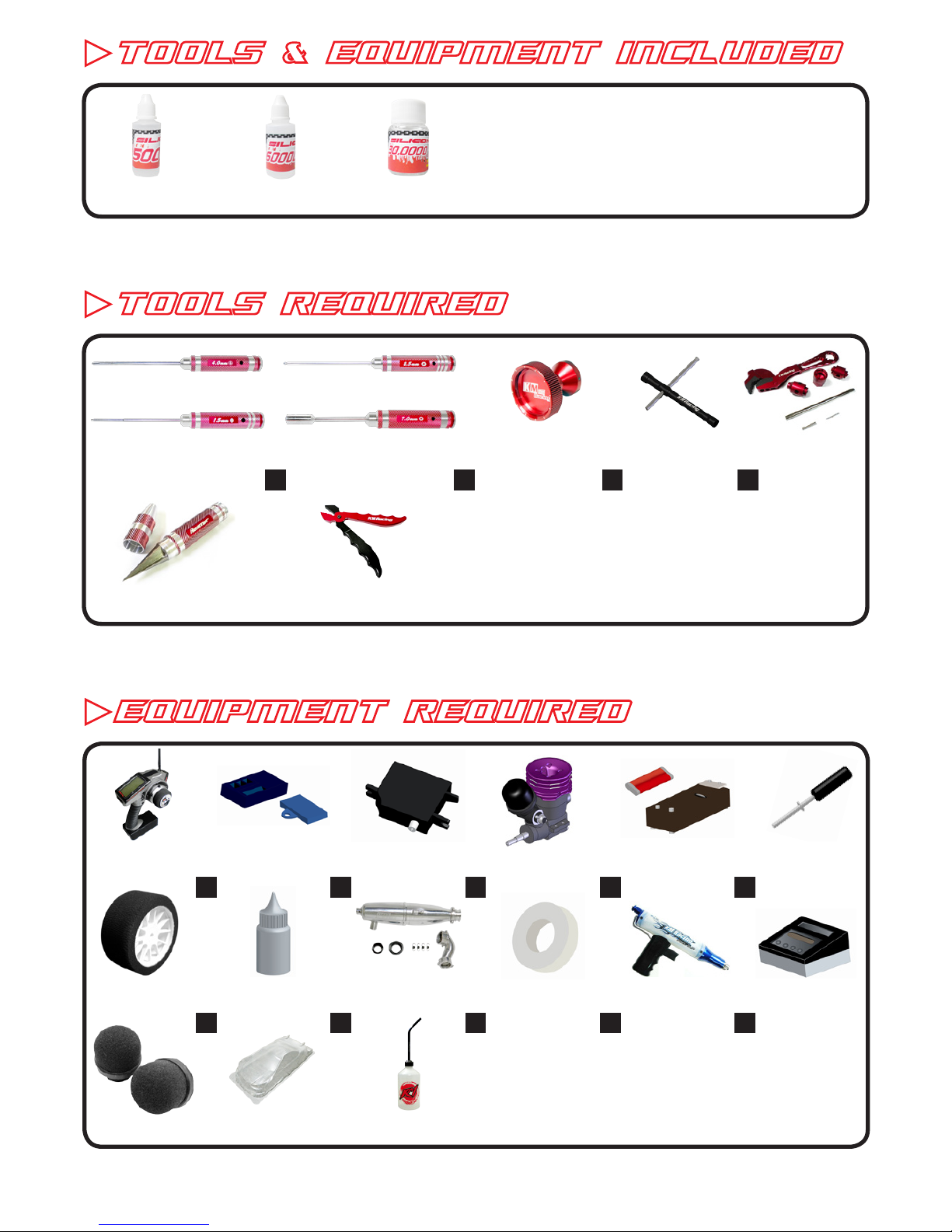

TOOLS & EQUIPMENT INCLUDED
►
TOOLS REQUIRED
►
EQUIPMENT REQUIRED
Transmitter
Foam Tyres
Tape
KM Manifold &
Exhaust (KMP-2653S)
Bodyshell
( KMB-1668 )
Shock Pliers
( KMR - A035 )
20ml
60000 Silicone Oil
20ml
30,0000 Silicone Oil
Battery Charger
Air Filter
( KMR - A023 )
20ml
500 Silicone Oil
Hex. Wrench 1.5/2.0/2.5/3.0mm
( KMR-H15,H20,H25,H30 )
Nut 7.0mm (KMR-N70)
Ball End Hex 2.5/3.0mm
(KMR-B25,B30)
Phillips 4.0mm (KMR-F40)
Fuel Bottle
( KMR - A038 )
Clutch Nut Tool
( KMR - A033 )
Fuel Gun
(KMR-A001V3)
Glowplug Wrench
( KMR - GW01 )
Threadlock Glue
Receiver & Personal
Transponder
Steering &
Throttle Servos
Engine
Starter Box &
Battery Pack
Glowplug lgniter
Body Reamer
( KMR - BR01 )
Flywheel Tool &
Pinion Tools
( KMR - A036 )
P. 4P. 3
1
2
3
4
5
5

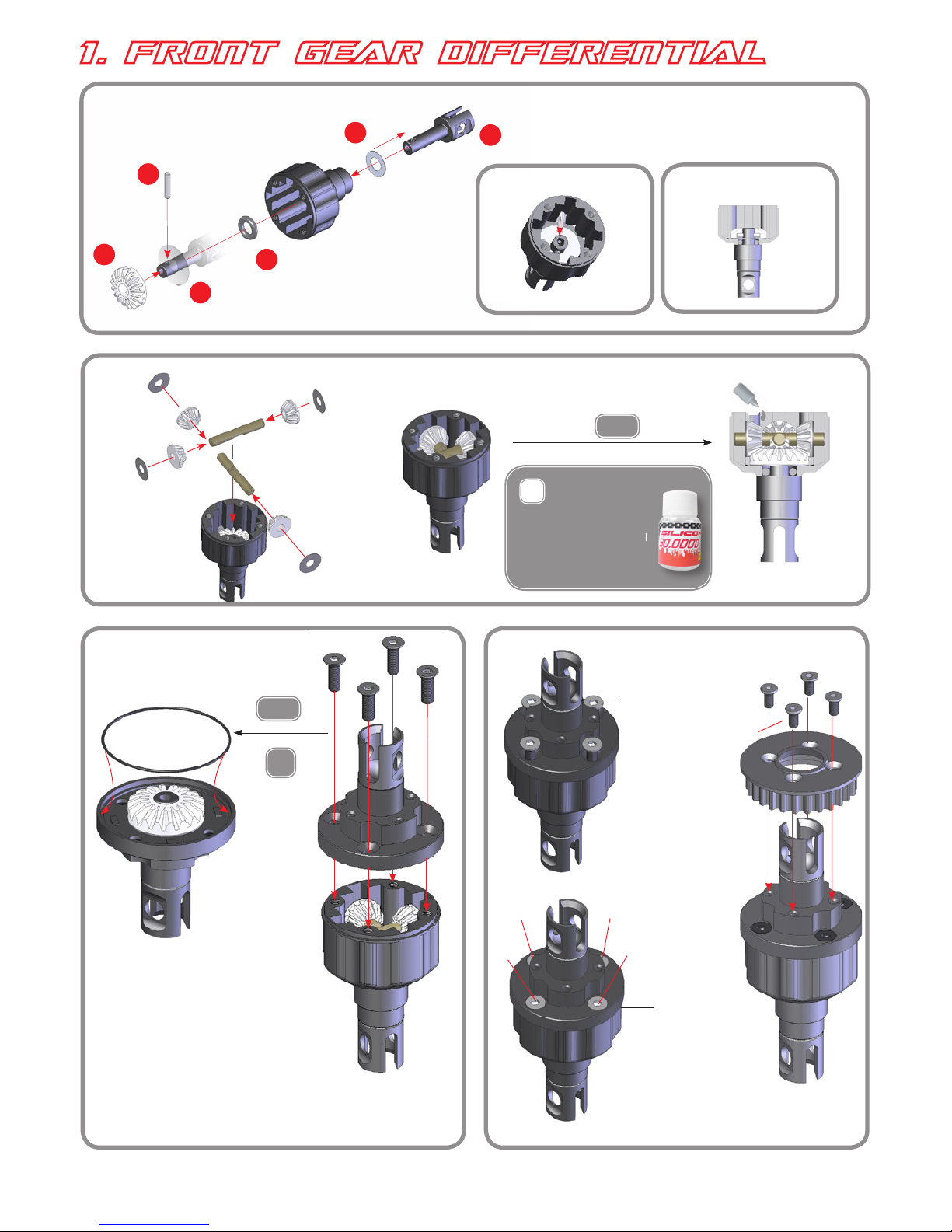

1. FRONT GEAR DIFFERENTIAL
HK200 — Front Diff. Case
EVO2-201 — EVO2 Front Diff. Cover
EVO3-202F — Harden Red Steel Front Cup Joint
HK203 — Big Bevel Diff. Gear
HK204 — Small Bevel Diff. Gear
HK205A — Alum. 7075-T6 Hard Coated Diff. Shaft
HK207 — Big Bevel Diff. Gear Shims
HK208 — Small Bevel Diff. Gear Shims
x 1
x 1
x 2
x 2
x 4
x 2
x 2
x 4
HK209 — Outside Diff. Joint Shims
HK210 — Diff. Gear O-Ring
HK211 — Diff. Case O-Ring
MV-461-27T-P — MV Plastic Front Diff. Pulley-27T
HK487 — D2 x 9.7 Pin
HK936 — FH M2 x 6
HK939 — FH M2.5 x 8
x 2
x 2
x 1
x 1
x 2
x 4
x 4
►
Item No. ► Description ► Quantity
►
Item No. ► Description ► Quantity
5
6
6
STEP
❺ - ❻
DETAIL
HK205A
HK487
HK208
HK204
HK487
EVO3-202F
HK209
HK200
HK210
HK207
HK203
HK204
HK208
HK208
HK211
HK939
HK936
HK209
EVO3-202F
MV--461-27T-P
EVO2-201
HK210
HK207
HK208
BAG 1
Front Diff. Full Set
MV-218
P. 5
1. FRONT GEAR DIFFERENTIAL
1
2
3
4
5
6
STEP ❺ DETAIL
Use tweezers
to insert pin
CUTAWAY VIEW
+OIL
TIP
Fill in the silicone oil
up to the top of the
diff pins. DO NOT fill
the oil to the top of
the case.
!
+OIL
!
After disassembling the differential the large
O-ring may have an increased size and may
be more difficult to re-stall. We recommend
either replacing the O-ring or carefully
inserting the O-ring in the diff cover.
P. 4
Follow this order to
finish tightening the
screws.
Tighten the screws equally
but do NOT tighten them
completely.
❶
❹
❷
❸
❶
❹
❷
❸
( FH M2 x 6 )
( FH M2.5 x 8 )
P. 6P. 5
2. REAR GEAR DIFFERENTIAL
HK220 — Rear Diff. Case
HK221 — Rear Diff. Cover
EVO3-202R — Harden Red Steel Rear Cup Joint
HK203 — Big Bevel Diff. Gear
HK204 — Small Bevel Diff. Gear
HK205A — Alum. 7075-T6 Hard Coated Diff. Shaft
HK207 — Big Bevel Diff. Gear Shims
x 1
x 1
x 2
x 2
x 4
x 2
x 2
HK208 — Small Bevel Diff. Gear Shims
HK209 — Outside Diff. Joint Shims
HK210 — Diff. Gear O-Ring
HK211 — Diff. Case O-Ring
HK487 — D2 x 9.7 pin
HK939 — FH M2.5 x 8
x 4
x 2
x 2
x 1
x 2
x 4
EVO3-202R
HK939
HK209
HK487
HK221
HK210
HK211
HK207
HK203
HK205A
HK204
HK203
HK208
HK208
HK220
EVO3-202R
HK487
2
1
3
4
5
6
►
Item No. ► Description ►Quantity
►
Item No. ► Description ► Quantity
HK209
HK210
HK207
HK204
HK208
BAG 2
5
6
STEP ❺-❻ DETAI
L
Rear Diff. Full Set
MV-228
P. 7
2
1
3
4
5
6
+OIL
1
2
3
4
+OIL
STEP ❺ DETAIL
CUTAWAY VIEW
!
After disassembling the differential the large O - ring
may have an increased size and may be more difficult
to re-stall. We recommend either replacing the O - ring
or carefully inserting the O - ring in the diff cover.
Tighten the screws
equally but do
NOT tighten them
completely.
Follow this order
to finish tightening
the screws.
2. REAR GEAR DIFFERENTIAL
P. 6
TIP
Fill in the silicone oil up
to the top of the diff pins.
DO NOT ll the oil to the
top of the case.
Remove the nozzle of the
silicone oil bottle to allow
easy lling of the diff.
!
( FH M2.5 x 8 )
Use tweezers
to insert pin
P. 7
3. FRONT SHOCK x2
HK301 — Shock Absorber
HK302B — Alum. Upper Shock Cap (Blue)
HK303 — Shock Head Ball End
HK304F — Front Shock Piston
MV-305F — MV Front Harden Shock Shaft
HK306 — Alum. Shock Body
HK307 — O-Ring Slims
HK308B — Alum. Spring Adj Nut (Blue)
HK309B — Alum. Lower Shock Cap (Blue)
HK310F — Front Lower Spring Cap
x 1
x 1
x 1
x 1
x 1
x 1
x 2
x 1
x 1
x 1
HK311 — Shock O-Ring
HK312 — Shock Piston Shim
HK313 — Adj. Nut O-Ring
HK321 — Front Shock Spring
HK536B — Link Plastic 17.5mm
HK850S — Ball Universal 5.8mm Hex (Short)
HK850L — Ball Universal 5.8mm Hex (Long)
HK905 — BH M3 x 12
HK951 — M2.5 Nut
x 2
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
HK536B
HK310F
HK321
HK309B
HK308B
HK313
HK307
HK306
HK312
HK311
HK951
MV-300F
MV-305F
HK850S
HK304F
HK301
HK302B
HK303
HK850L
BAG 3
BAG 4
ASSEMBLED VIEW
1 2 3 4
+OIL
!
!
!
!
!
NOTE THE LENGTH
NOTE DIFFERENT
►
Item No. ► Description ►Quantity
►
Item No. ► Description ► Quantity
NOTE DIFFERENT
NOTE DIFFERENT
NOTE THE LENGTH
P. 8
4. REAR SHOCK x2
HK536B
HK310R
HK331
HK309B
HK308B
HK313
HK307
HK306
HK312
HK311
MV-300R
HK951
MV-305R
HK850S
HK304R
HK301
HK302B
HK303
HK850L
HK301 — Shock Absorber
HK302B — Alum. Upper Shock Cap (Blue)
HK303 — Shock Head Ball End
HK304R — Rear Shock Piston
MV-305R — MV Rear Harden Shock Shaft
HK306 — Alum. Shock Body
HK307 — O-Ring Slims
HK308B — Alum. Spring Adj. Nut (Blue)
HK309B — Alum. Lower Shock Cap (Blue)
HK310R — Rear Lower Spring Cap
x 1
x 1
x 1
x 1
x 1
x 1
x 2
x 1
x 1
x 1
HK311 — Shock O-Ring
HK312 — Shock Piston Shim
HK313 — Adj. Nut O-Ring
HK331 — Rear Shock Spring
HK536B — Link Plastic 17.5mm
HK850S — Ball Universal 5.8mm Hex (Short)
HK850L — Ball Universal 5.8mm Hex (Long)
HK902 — BH M3 x 6
HK951 — M2.5 Nut
x 2
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
BAG 5
BAG 6
ASSEMBLED VIEW
1 2
3
4
!
!
!
!
!
NOTE THE LENGTH
NOTE DIFFERENT
►
Item No. ► Description ►Quantity
►
Item No. ► Description ► Quantity
NOTE DIFFERENT
NOTE DIFFERENT
NOTE THE LENGTH
+OIL
P. 9

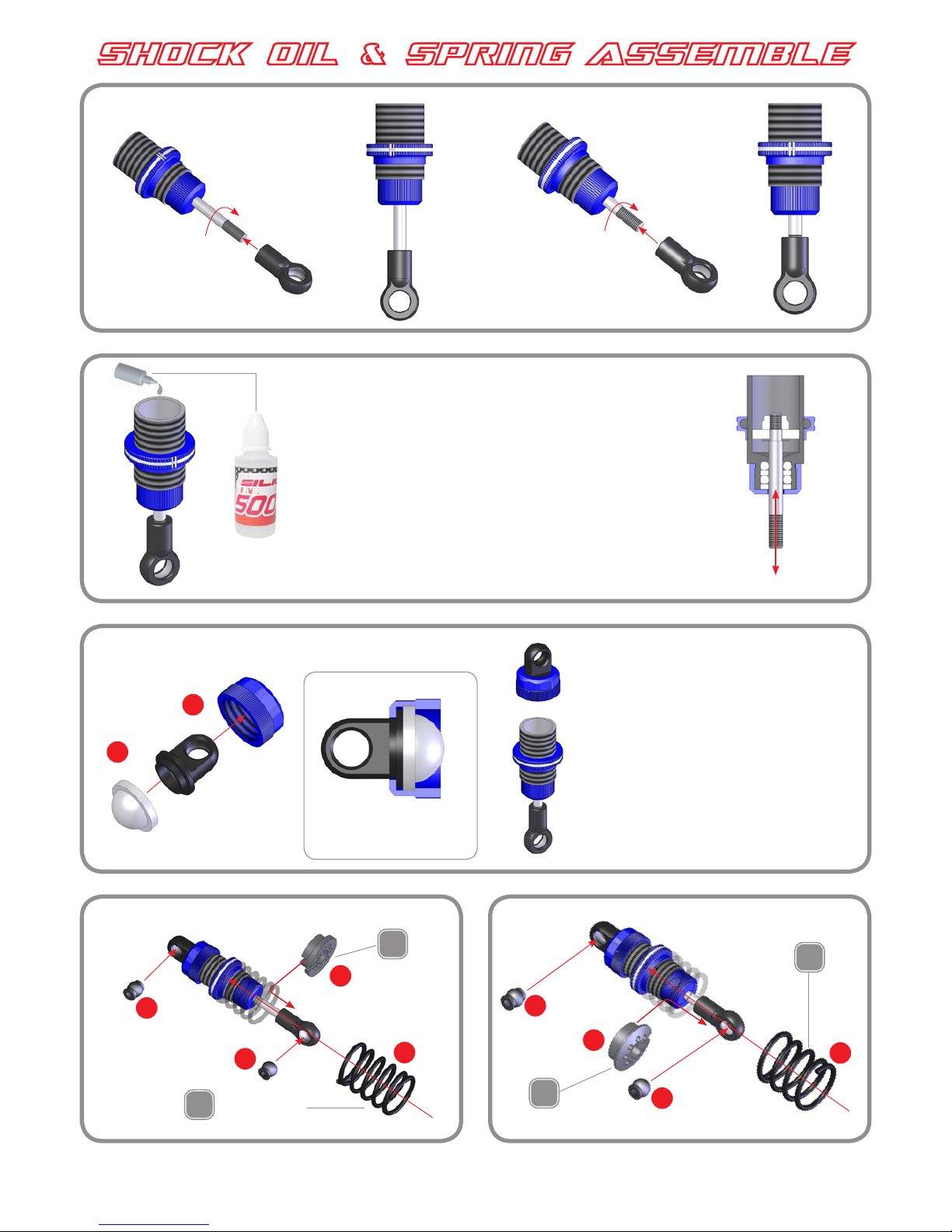

SHOCK OIL & SPRING ASSEMBLE
SHOCK OIL FILLING
❶
Fully extend the piston rod so the piston is at the bottom of the shock body.
❷
Hold the shock upright and slightly overll the shock body with shock oil.
❸
Let the oil settle and allow air bubbies to rise to the top. Slowly move
the piston up and down until no more air bubbies appear. Add shock oil
as necessory.
❹
Pull the piston rod most of the way out of the shock body. Let the shock
rest for 5 minutes to allow the air bubbles to escape.
* When installing the shock cap assembly on the shock
body, some oil will leak out.... this is normal.
* Fully tighten the cap and clean off any excess oil.
* After the shock is assembled, the shock rod will push
itself out of the shock body fairly quickly.
❶
Insert the shock ball end into
the shock cap.
❷
Insert the absorber properly
into the slot.
CUTAWAY VIEW
# 500 Silicone Oil
1
1
1
2
2
3
3
3
3
2
Rear Shock Front Shock
Front ShockRear Shock
!
!
!
!
NOTE DIFFERENT
NOTE DIFFERENT
NOTE DIFFERENT
NOTE DIFFERENT
P. 11P. 11P. 10
5. FRONT SUSPENSION
HK953
HK408
HK-B6124
HK-B10154
HK852A
EVO2-483A
HK913
HK912
HK505A
HK492-1
HK-B10154
HK563
HK937
HK403B
HK971-4
HK102-4
HK902
MV-218
HK502C-R
HK937
MV-404LB
Foam Tyre
HK502C-L
HK852A
MV-500C
HK402LB
HK930
HK902
HK902
HK913
HK902
HK564AP
HK487
HK904
MV-401LB
HK902
HK902
HK101L-A
HK903
HK480
HK506B
HK506A
EVO2-400LB
HK902
HK902
HK508B1
HK508B2
HK506B
HK507A1
HK507A2
HK902
BAG 7 & Main Chassis
HK492-2
Front Suspension
Complete View
MV-501C
HK481
MV-300F
(BAG 3-4)
HK902
(Not Included)
HK505B
HK906
HK907
HK404-1B
P. 12
HK003 — FOAM BUMPER
HK115 — CARBON BET HEAD ADAPOTOR
HK530 — BAT HEAD BUMPER
HK531 — LOWER BUMPER
HK532 — FRONT BODY POST
x 1
x 1
x 1
x 1
x 2
SBH — M3 x 8
SHB — M3 x 10
SHB — M3 x 14
SHB — M3 x 10
M3 _ NUT
x 2
x 2
x 2
x 4
x 2
►
ID
►
NAME ► AMOUNT
►
ID
►
NAME ► AMOUNT
HK
HK
HK003
HK532
HK
HK
HK115
HK531
HK
HK
HK530
HK532
HK
HK
1. FRONT BUMPER
BAG 4
P. 11
!
NOTE
ORIENTATION
CUTAWAY VIEW
❷
❶
Pre-thread mount
with the setscrew.
❷
After anti-roll bar is inserted,
install tighten the setscrew.
!
HK101L-A — Alum. Front Belt Adj. Bearing Hub Holder Left
HK101R-A — Alum. Front Belt Adj. Bearing Hub Holder Right
HK102-4 — 4mm Front Carbon Shock Tower
MV-201B-P — MV 5mm Bando Plastic 201mm Front Belt
EVO2-400LB — EVO2 Alum. Front Upper Bulkhead Left (Blue)
EVO2-400RB — EVO2 Alum. Front Upper Bulkhead Right (Blue)
MV-401LB — MV Alum. Front Lower Bulkhead Left (Blue)
MV-401RB — MV Alum. Front Lower Bulkhead Right (Blue)
HK402LB — Front Suspension Arm Holder L (Blue)
HK402RB — Front Suspension Arm Holder R (Blue)
HK403B — Alum. Front Lower Suspension Arm Mount (Blue)
MV-404LB — MV Alum. Front Anti-Roll Bar Mount Left (Blue)
MV-404RB — MV Alum. Front Anti-Roll Bar Mount Right (Blue)
HK404-1B — Alum. Front Anti-Roll Bar Mount Collar (Blue)
HK408 — Alum. Hex Hub Adaptor
HK480 — Front Upper Arm Pin
HK481 — Front Lower Arm Pin
EVO2-483A — EVO2 Red Steel / Alum. Front Universal Shaft
HK487 — D2 x 9.7 Pin
HK492-1 — Front Anti-Roll Bar Shaft Cup
HK492-2 — Front Anti-Roll Bar Shaft Ball
MV-500C —MV Hard Front Upper Arm with Carbon
MV-501C — MV Hard Front Lower Arm with Carbon
HK502C-L — Front Knuckle Arm Left with Carbon
HK502C-R — Front Knuckle Arm Right with Carbon
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 2
x 2
x 2
x 2
x 2
x 2
x 1
x 1
x 2
x 2
x 1
x 1
HK505A — Front Lower Arm Spacer 2mm
HK505B — Front Lower Arm Collar 2mm
HK506A — 1mm Caster Cips
HK506B — 2mm Caster Cips
HK507A1 — Roll Centre Collar A1
HK507A2 — Roll Centre Collar A2
HK508B1 — Roll Centre Collar B1
HK508B2 — Roll Centre Collar B2
HK563 — Front & Rear Bearing Bushing
HK564AP — Alum.Ball Cup Screw
HK852A — Alum. 7075-T6 8.5mm Ball Screw
HK902 — BH M3 x 6
HK903 — BH M3 x 8
HK904 — BH M3 x 10
HK906 — BH M3 x 14
HK907 — BH M3 x 16
HK912 — SS M3 x 5
HK913 — SS M3 x 8
HK930 — FH M3 x 6
HK937 — FH M3 x 10
HK953 — M4 Lock Nut
HK971-4 — Collar 3 x 4 x 9
HK-B6124 — Steel Bearing 6 x 12 x 4
HK-B10154 — Steel Bearing 10 x 15 x 4
x 2
x 2
x 2
x 4
x 2
x 2
x 2
x 2
x 2
x 4
x 4
x 13
x 2
x 4
x 2
x 2
x 2
x 4
x 1
x 2
x 2
x 2
x 2
x 4
►
Item No.
►
Description
►
Quantity
►
Item No.
►
Description
►
Quantity
( BH M3 x 6 )
( FH M3 x 10 )
All screw suggest applied
threadlock glue !
TD
THREADLOCK
All screw suggest applied
threadlock glue !
TD
THREADLOCK
( SS M3 x5 )
❶
P. 13P. 13
5. FRONT SUSPENSION
!
NOTE
ORIENTATION
!
NOTE
ORIENTATION
❶
❷
❸
❹
❺
❻
❻
❼
❽
❶
❶
❸
❹
❼
❻
❽
❺
❸
❷
❷
❸
❶
Ensure that the suspension arms move freely.
Ensure that the eccentric holders move freely.
DETAIL
DETAIL
2.5mm
2.5mm
!
FRONT ANTI - ROLL BAR
( Standard Type )
Do not insert ball into cup too deeply
or bars will bind during operation.
Long Setting
Using HK906
( BH M3 x 14 )
Short Setting
Using HK907
( BH M3 x 16 )
Both bushings MUST
be pluged into the
same position of the
alum. hub slot.
+1.5
-0.5 -1.5
+0.5
INITIAL SETTING
There are two different frames, rounded and square,
however both feature the same eccentric
holders
TO TIGHTEN FRONT BELT
Plug the bushing into the following
Alum. hub position
1mm
2mm
+0.5mm
2mm
TD
THREADLOCK
( BH M3 x 6 )
MV-201B-P
( BH M3 x 6 )
( BH M3 x 14 )
All screw
suggest applied
threadlock glue !
P. 12
INITIAL POSITION
❷
❾
All screw suggest applied
threadlock glue !
TD
THREADLOCK
Remark: Large Diameter
(Φ6.0mm)
!
( BH M3 x 10 )
Initial Setting
is short
!
NOTE
ORIENTATION
HK505B
HK505A
INITIAL POSITION =3
TO LOOSEN FRONT BELT
Plug the bushing into the following
Alum. hub position
( SS M3 x8 )
( SS M3 x8 )
INITIAL POSITION =3
P. 14
HK003 — FOAM BUMPER
HK115 — CARBON BET HEAD ADAPOTOR
HK530 — BAT HEAD BUMPER
HK531 — LOWER BUMPER
HK532 — FRONT BODY POST
x 1
x 1
x 1
x 1
x 2
SBH — M3 x 8
SHB — M3 x 10
SHB — M3 x 14
SHB — M3 x 10
M3 _ NUT
x 2
x 2
x 2
x 4
x 2
►
ID
►
NAME ► AMOUNT
►
ID
►
NAME ► AMOUNT
HK
HK
HK003
HK532
HK
HK
HK115
HK531
HK
HK
HK530
HK532
HK
HK
1. FRONT BUMPER
BAG 4
5. FRONT SUSPENSION
P. 13
❶
❷
❸
❹
❺
DETAIL
During initial assembly, tighten each POM hex nut
until the pivot ball starts to have resistance,
then loosen slightly. Verify that the pivot
balls move freely.
Tight up the
set screw
( FH M3 x 6 )
!
Ball screw must move freely.
Note:- Screw up the Ball
Screw after adding oil.
+OIL
P. 15
HK112A
HK902
HKB5825
HKB5825
HK851
HK431
HK435H
HK850L
HK434B
HK433
HK536B
HK536B
HK536B
HK801Ti-48
HK801Ti-48
HK850L
HK850L
1
2
6
3
5
6. STEERING
HK112A — Carbon Servo Saver Plate A
HK112B — Carbon Servo Saver Plate B
HK430-P — Plastic D-Type Upper Servo Saver
HK431 — Alum. D-Type Bottom Servo Saver
HK432 — Alum. D-Type Servo Saver Bearing Holder
HK433 — Alum. Servo Saver Shaft
HK434B — Alum. Servo Saver Spring adj Nut (Blue)
HK435H — Hard Servo Saver Spring
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
HK536B — Link Plastic 17.5mm
HK801Ti-48 — Titanium Steering Turnbuckles 48mm
HK850L — Ball Universal 5.8mm Hex (Long)
HK851 — Ball Stud 4.8mm
HK-B5825 — Steel Bearing 5 x 8 x 2.5
HK902 — BH M3 X 6
x 4
x 2
x 4
x 1
x 2
x 2
4
BAG 8
Steering
Complete View
INITIAL PRELOAD
►
Item No. ► Description ►Quantity
►
Item No. ► Description ► Quantity
+OIL
LUBRICANT
P. 14
HK432
HK430-P
All screw suggest applied
threadlock glue !
TD
THREADLOCK
P. 16P. 15
6. STEERING
ASSEMBLED VIEW
1:1
!
!
!
!
!
!
Opposite
( BH M3 x 6 )
STEP ❹ &
❺
1
2
3
4
4
5
6
5
6
( BH M3 x 6 )
( BH M3 x 6 )
( BH M3 x 6 )
ACKERMANN SETTINGS
2.8mm3.6mm
INITIAL
SETTING
4.4mm
A A
B
C
B
C
5
All screw suggest applied
threadlock glue !
TD
THREADLOCK
Opposite
OppositeOpposite
!
NOTE
ORIENTATION
!
NOTE
ORIENTATION
70mm
70mm
( FH M3 x 6 )
( Bag 7 )
P. 17P. 17P. 16
7. REAR SUSPENSION
HK953
Foam Tyre
(NOT INCLUDED)
HK408
HK911
MV-300R
(BAG 5-6)
HK904
HK508B1
HK508B2
HK902
HK903
HK904
HK-B6124
HK914
HK913
HK487
HK975
HK854
HK538C
HK854
HK482
HK902
HK902
HK930
HK506A
HK802Ti-21
HK412LB
HK902
HK901
HK110L-A
HK563
HK-B10154
HK902
HK413B
HK902
HK228
HK411LB
HK533
HK533
EVO3-109
EVO2-414B
EVO3-108
HK902
HK411RB
HK507A1
HK507A2
HK913
HK564AP
HK852A
HK503C
HK-B10154
EVO3-484RU-A
HK504C
BAG 9
Rear Suspension Complete View
HK901
HK902
MV-300R
(BAG 5-6)
HK412RB
EVO2-539
EVO2-538
HK903
P. 18
HK003 — FOAM BUMPER
HK115 — CARBON BET HEAD ADAPOTOR
HK530 — BAT HEAD BUMPER
HK531 — LOWER BUMPER
HK532 — FRONT BODY POST
x 1
x 1
x 1
x 1
x 2
SBH — M3 x 8
SHB — M3 x 10
SHB — M3 x 14
SHB — M3 x 10
M3 _ NUT
x 2
x 2
x 2
x 4
x 2
►
ID
►
NAME ► AMOUNT
►
ID
►
NAME ► AMOUNT
HK
HK
HK003
HK532
HK
HK
HK115
HK531
HK
HK
HK530
HK532
HK
HK
1. FRONT BUMPER
BAG 4
P. 17
EVO3-108 — 4mm Carbon Camber Plate
EVO3-109 — 4mm Rear Carbon Shock Tower
HK110L-A — Alum. Belt Adj. Bearing Hub Holder Left
HK110R-A — Alum. Belt Adj. Bearing Hub Holder Right
EVO2-177B-P — EVO2 5.5mm Bando Plastic 177mm Rear Belt
HK408 — Alum. Hex Hub Adaptor
HK411LB — Alum. Rear Upper Bulkhead Left (Blue)
HK411RB — Alum. Rear Upper Bulkhead Right (Blue)
HK412LB — Alum. Rear Lower Bulkhead Left (Blue)
HK412RB — Alum. Rear Lower Bulkhead Right (Blue)
HK413B — Alum. Rear Arm Holder (Blue)
EVO2-414B — EVO2 Alum. Rear Back Cover (Blue)
HK482 — Rear Lower Arm Pin
EVO3-484RU-A — Red Steel / Alum. Rear Univeral Shaft
HK487 — D2 x 9.7 Pin
HK503C — Rear Hub with Carbon
HK504C — Hard Rear Lower Arm with Carbon
HK506A — 1mm Caster Clips
HK507A1 — Roll Centre Collar A1
HK507A2 — Roll Centre Collar A2
HK508B1 — Roll Centre Collar B1
HK508B2 — Roll Centre Collar B2
HK533 — Rear Body Post
EVO2-538 — Rear Body Support Mount
EVO2-539 — Rear Body Support Bolt
x 1
x 1
x 1
x 1
x 1
x 2
x 1
x 1
x 1
x 1
x 1
x 1
x 2
x 2
x 2
x 2
x 2
x 4
x 2
x 2
x 2
x 2
x 2
x 2
x 2
HK538C — 6.8mm Ball End 20mm
HK563 — Bearing Bushing
HK564AP — Alum. Ball Cup Screw
HK802Ti-21 — Titanium Turnbuckle 21mm
HK852A — Alum. 7075-T6 8.5mm Ball Screw
HK854 — Ball Universal 6.8mm Hex
HK901 — BH M3 x 5
HK902 — BH M3 x 6
HK903 — BH M3 x 8
HK904 — BH M3 x 10
HK913 — SS M3 x 8
HK914 — SS M3 x 16
HK930 — FH M3 x 6
HK953 — M4 Lock Nut
HK975 — Collar 3 x 6 x 3.5
HK-B10154 — Steel Bearing 10 x 15 x 4
HK-B6124 — Steel Bearing 6 x 12 x 4
x 4
x 2
x 4
x 2
x 4
x 4
x 2
x 14
x 6
x 2
x 4
x 2
x 2
x 2
x 2
x 4
x 2
►
Item No.
►
Description
►
Quantity
►
Item No.
►
Description
►
Quantity
P. 19P. 19
EVO2-106 — EVO2 2.5mm Carbon Rear Gear Box Upper Plate
HK107 — 2.5mm Carbon Brake Arm
EVO3-111-H — Stainless Steel Brake Plate With Pad
HK116 — Carbon Main Shaft Collar
EVO2-410LB — EVO2 Alum. 2 Speed Shaft Stand Left
(Blue)
EVO3-410RB — Alum. 2 Speed Shaft Stand Right
(Blue)
HK415B — Alum. Brake Arm Holder
(Blue)
MV-461-18T-P — MV Plastic Pulley 18T
EVO2-460-20T-P — EVO2 Plastic Brake Pulley 20T
EVO2-486-HW — EVO2 Two Speed Steel Shaft (Hollow)
HK487 — D2 x 9.7 Pin
MV-489 — MV Harden 2mm Brake Disc
EVO3-490 — Alum. Brake Post
HK536B — Link Plastic 17.5mm
x 1
x 1
x 2
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 2
x 1
x 1
x 4
HK801Ti-23 — Titanium Turnbuckle 23mm
HK850S — Ball Universal 5.8mm Hex ( Short )
EVO2-853A — EVO2 Alum. Rear Roll Bar Ball
HK902 — BH M3 x 6
HK903 — BH M3 x 8
HK904 — BH M3 x 10
HK911 — SS M3 x 3
HK930 — FH M3 x 6
K8-976-25 — Alum.7075-T6 Hard Coated Anti Roll Bar Stopper
HK981 — Spring For Carbon Brake
HK983 — Rear Anti Roll Bar 2.0
EVO3-986 — Brake Return Guide Pin
HK-B5825 — Steel Bearing 5 x 8 x 2.5
HK-B6124 — Steel Bearing 6 x 12 x 4
x 2
x 2
x 2
x 8
x 2
x 2
x 1
x 1
x 2
x 2
x 1
x 2
x 4
x 2
HK116
HK902
HK850S
HK801Ti-23T
EVO2-853A
HK983
HK-B5825
HK801Ti-23
HK536B
HK415B
HK911
HK487
EVO3-490
HK903
HK850S
HK902
HK107
HK930
HK-B6124
EVO2-486-HW
HK487
HK-B5825
HK902
HK903
EVO2-460-20T-P
MV-489
HK-B5825
EVO3-986
HK981
EVO3-111-H
EVO3-410RB
HK-B6124
HK536B
HK902
8. REAR GEAR BOX ASSEM
BAG 10
►
Item No. ► Description ►Quantity
►
Item No. ► Description ► Quantity
P. 18
EVO2-106
EVO2-410LB
MV-461-18T-P
Rear Gear Box
Complete View
HK536B
HK536B
EVO2-853A
EVO3-111-H
HK904
K8-976-25
K8-976-25
P. 20
HK003 — FOAM BUMPER
HK115 — CARBON BET HEAD ADAPOTOR
HK530 — BAT HEAD BUMPER
HK531 — LOWER BUMPER
HK532 — FRONT BODY POST
x 1
x 1
x 1
x 1
x 2
SBH — M3 x 8
SHB — M3 x 10
SHB — M3 x 14
SHB — M3 x 10
M3 _ NUT
x 2
x 2
x 2
x 4
x 2
►
ID
►
NAME ► AMOUNT
►
ID
►
NAME ► AMOUNT
HK
HK
HK003
HK532
HK
HK
HK115
HK531
HK
HK
HK530
HK532
HK
HK
1. FRONT BUMPER
BAG 4
8. REAR GEAR BOX ASSEM
P.19
DETAIL
COMPLETED
ASSEMBLY
LEFT REAR ARM
RIGHT REAR ARM
❸
❹
❷
❶
2.5mm2.5mm
( BH M3 x 10 )
( BH M3 x 6 )
( BH M3 x 6 )
( BH M3 x 6 )
( BH M3 x 5 )
( SS M3 x 8 )
( SS M3 x 8 )
❷
❶
All screw suggest applied
threadlock glue !
TD
THREADLOCK
All screw suggest applied
threadlock glue !
TD
THREADLOCK
All screw must be applied
threadlock glue !
TD
THREADLOCK
Tighten both screws
❹
P. 21P. 21
ASSEMBLED VIEW
STEP ❺ DETAIL
Tighten setscrew
onto at spot
!
!
NOTE
ORIENTATION
❸
❺
❶
❷
❹
❺
❺
❻
❻
❼
❼
❹
❸
❶
❷
❽
8. REAR GEAR BOX ASSEM
+1.5
-0.5 -1.5
+0.5
INITIAL SETTING
There are two different frames, rounded and
square, however both feature the same eccentric
holders
1mm
1mm
B2 +0.5mm
EVO2-177B-P
B2 +0.5mm
A2 +0.5mm
( FH M3 x 6 )
( BH M3 x 6 )
( BH M3 x 6 )
P. 20
All screw suggest applied
threadlock glue !
TD
THREADLOCK
( BH M3 x 6 )
P. 22
HK003 — FOAM BUMPER
HK115 — CARBON BET HEAD ADAPOTOR
HK530 — BAT HEAD BUMPER
HK531 — LOWER BUMPER
HK532 — FRONT BODY POST
x 1
x 1
x 1
x 1
x 2
SBH — M3 x 8
SHB — M3 x 10
SHB — M3 x 14
SHB — M3 x 10
M3 _ NUT
x 2
x 2
x 2
x 4
x 2
►
ID
►
NAME ► AMOUNT
►
ID
►
NAME ► AMOUNT
HK
HK
HK003
HK532
HK
HK
HK115
HK531
HK
HK
HK530
HK532
HK
HK
1. FRONT BUMPER
BAG 4
P. 21
Pin MUST protrude
equally on both sides
of brake post
The brake disk MUST freely
move between the brake
pads. If not, loosen the
two screws holding
the brake pads.
Both bushings MUST
be in same position.
!
!
NOTE
ORIENTATION
!
NOTE
ORIENTATION
!
NOTE
ORIENTATION
❸
❸
❹
❷
❷
❶
❶
8. REAR GEAR BOX ASSEM
❶
❷
❸
❹
REAR BELT TENSION ADJUSTMENT
TD
THREADLOCK
All screw suggest
applied threadlock glue !
( BH M3 x 6 )
( BH M3 x 6 )
( BH M3 x 6 )
( SS M3 x 3 )
( BH M3 x 6 )
( BH M3 x 8 )
TO LOOSEN REAR BELT
Plug the bushing into the
following Alum. hub position
❷
TD
THREADLOCK
All screw suggest
applied threadlock glue !
Both bushings MUST
be in same position.
REAR BELT TENSION ADJUSTMENT
INITIAL POSITION = -2
TO TIGHTEN REAR BELT
Plug the bushing into the
following Alum. hub position
INITIAL POSITION = -2
P. 23P. 23
Note the angle difference
between the ball joints
Do NOT fully tighten the setscrew; the joint
MUST fit over the anti-roll bar wire
!
❶
❷
DETAIL
COMPLETE
VIEW
DETAIL
Wire should be flush with end
of ball screw
Tight up the set screw after
the bearing are positioned
Ball screw MUST move freely
During initial assembly, tighten
each aluminum hex nut until
the ball screw starts to have
resistance, then loosen
silightly. Verify that the
b a l l sc r ew m o v e f r ee l y.
!
❶
❷
❷
8. REAR GEAR BOX ASSEM
45mm ( 1:1 )
HK 536B
17.5mm ( 1:1 )
( BH M3 x 8 )
P. 22
ASSEMBLED
VIEW
Tight up the
set screw
!
❶
!
❷
P. 24
HK003 — FOAM BUMPER
HK115 — CARBON BET HEAD ADAPOTOR
HK530 — BAT HEAD BUMPER
HK531 — LOWER BUMPER
HK532 — FRONT BODY POST
x 1
x 1
x 1
x 1
x 2
SBH — M3 x 8
SHB — M3 x 10
SHB — M3 x 14
SHB — M3 x 10
M3 _ NUT
x 2
x 2
x 2
x 4
x 2
►
ID
►
NAME ► AMOUNT
►
ID
►
NAME ► AMOUNT
HK
HK
HK003
HK532
HK
HK
HK115
HK531
HK
HK
HK530
HK532
HK
HK
1. FRONT BUMPER
BAG 4
P. 23
Note the 90º angle difference
between the ball joints
!
❶
❶
❷
❸
❹
❷
❷
8. REAR GEAR BOX ASSEM
INITIAL POSITION
INITIAL POSITION
6mm
❺
❻
45.5mm (1:1 )
HK 538C
20mm ( 1:1 )
( BH M3 x 6 )
( SS M3 x 16 )
Tight up the
set screw
!
Ensure that both suspension
assemblies move freely.
Repeat it AFTER the camber
links are installed.
Note:- Screw up the ball
Screw after adding oil.
+OIL
!
All screw suggest applied
threadlock glue !
TD
THREADLOCK
P. 25P. 25
HK470 — Alum. 2 Speed Gear Housing
HK471 — Alum. 1st Gear Housing With One Way Bearing
HK472V2 — Harden Steel 2 Speed Adapter
( Version 2)
EVO2-473 — EVO2 Red Steel 2 Speed Roller Pin
HK478 — Spring For 2 Speed Shoes
HK550 — 2 Speed Shoes
x 1
x 1
x 1
x 2
x 2
x 2
HK551-59T — Spur Gear 59T (1st)
HK552-54T — Spur Gear 54T (2nd)
HK912 — SS M3 x 5
HK922 — SH M2.5 x 12
HK930 — FH M3 x 6
HK962 — E- Clip For 6.0 Shaft
x 1
x 1
x 2
x 2
x 6
x 1
HK551-59T
HK552-54T
HK471
HK930
EVO2-473
HK478
HK912
HK922
HK478
HK930
HK922
HK930
HK912
HK550
HK550
HK472V2
HK470
HK930
9. TWO SPEED TRANSMISSION
BAG 11
2 Speed Complete View
❷
❶
ASSEMBLED VIEW
Tight up the set screw
►
Item No. ► Description ►Quantity
►
Item No. ► Description ► Quantity
!
P. 24
HK962
P. 26
HK003 — FOAM BUMPER
HK115 — CARBON BET HEAD ADAPOTOR
HK530 — BAT HEAD BUMPER
HK531 — LOWER BUMPER
HK532 — FRONT BODY POST
x 1
x 1
x 1
x 1
x 2
SBH — M3 x 8
SHB — M3 x 10
SHB — M3 x 14
SHB — M3 x 10
M3 _ NUT
x 2
x 2
x 2
x 4
x 2
►
ID
►
NAME ► AMOUNT
►
ID
►
NAME ► AMOUNT
HK
HK
HK003
HK532
HK
HK
HK115
HK531
HK
HK
HK530
HK532
HK
HK
1. FRONT BUMPER
BAG 4
9. TWO SPEED TRANSMISSION
P. 25
ASSEMBLED VIEW
Do not overtighten gap-setting
setscrews. Only tighten until
roller pins contact the center
hub.
Use
to slightly chamfer the edges
on all 3 holes for screws.
Use
to slightly chamfer the edges
on all 3 holes for screws.
Top of screw head
should be level with
hole bottom edge.
Setscrew MUST
NOT protrude.
DETAIL
!
!
!
!
NOTE
ORIENTATION
!
NOTE
ORIENTATION
!
NOTE
ORIENTATION
!
NOTE
ORIENTATION
❹
❺
❶
❸
❶
❺
❹
❷
❶
❸
❹
❺
❷
❷
( SS M3 x 5 )
( SS M3 x 5 )
( FH M3 x 6 )
( FH M3 x 6 )
( SH M2.5 x 12 )
( SH M2.5 x 12 )
59
54
54
59
P. 27P. 27
EVO2-114 — Carbon Belt Tension Stand
EVO2-130C — 2.5mm Carbon Middle Plate
HK387B — Bando Middle Belt
MV-440B — MV Alum. Centre Mount with
POM Bushing (Blue)
EVO2-450LB — EVO2 Alum. Radio Plate Mount
Left (Blue)
EVO2-450RB — EVO2 Alum. Radio Plate Mount
Right (Blue)
HK452 — Belt Tension Shaft
HK453 — Belt Bearing Housing With Bearing
EVO2-457-1 — Alum. Middle Plate Mount
EVO2-457-2 — Alum. Middle Plate Mount B
MV-462-19T-P — MV Plastic Pulley 19T
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
EVO2-461-25T-P — EVO2 Plastic Pulley 25T
EVO3-485HW — Harden Steel Hollow Middle Shaft
HK901 — BH M3 x 5
HK902 — BH M3 x 6
HK905 — BH M3 x 12
HK930 — FH M3 x 6
HK932 — FH M2.5 x 6
HK938 — FH M3 x 12
EVO2-954 — Steel Side Belt Bearing Nut
HK975 — Collar 3 x 6 x 3.5
HK-B6124 — Steel Bearing 6 x 12 x 4
x 1
x 1
x 2
x 4
x 2
x 2
x 4
x 1
x 1
x 2
x 2
HK387B
HK905
HK453
HK452
EVO2-114
EVO2-954
HK902
HK975
EVO2-450LB
EVO2-450RB
HK-B6124
HK-B6124
HK902
EVO3-485HW
MV-440B
MV-462-19T-P
HK905
HK938
10. MIDDLE TRANSMISSION
BAG 12
►
Item No. ► Description ►Quantity
►
Item No. ► Description ► Quantity
P. 26
HK901
EVO2-461-25T-P
HK930
EVO2-457-2
HK932
EVO2-457-1
EV02-130C
P. 28
HK003 — FOAM BUMPER
HK115 — CARBON BET HEAD ADAPOTOR
HK530 — BAT HEAD BUMPER
HK531 — LOWER BUMPER
HK532 — FRONT BODY POST
x 1
x 1
x 1
x 1
x 2
SBH — M3 x 8
SHB — M3 x 10
SHB — M3 x 14
SHB — M3 x 10
M3 _ NUT
x 2
x 2
x 2
x 4
x 2
►
ID
►
NAME ► AMOUNT
►
ID
►
NAME ► AMOUNT
HK
HK
HK003
HK532
HK
HK
HK115
HK531
HK
HK
HK530
HK532
HK
HK
1. FRONT BUMPER
BAG 4
10. MIDDLE TRANSMISSION
P. 27
❶
❶
❷
❸
❷
❸
( BH M3 x 5 )
( BH M3 x 6 )
( FH M3 x 6)
( BH M3 x 12 )
( BH M3 x 12 )
( FH M3 x 12 )
❹
❶
Tight up the set screw
!
!
NOTE
ORIENTATION
All screw suggest applied
threadlock glue !
TD
THREADLOCK
All screw suggest
applied threadlock glue !
TD
THREADLOCK
( FH M2.5 x 6 )
( FH M2.5 x 6 )
( FH M2.5 x 6 )
P. 29P. 29
EVO3-002
Fuel Tank
HK510
HK965
HK938
HK902
HK528-4
HK951
NOT
INCLUDED
HK528-2
HK979
HK528-1
HK977
MV-100
HK905
HK534
HK930
HK436A/B/C
HK850L
HK535
MV-522B
HK903
HK903
HK526A/B/C/D
HK930
EVO2-491
HK532
HK524A
HK525B1/B2/B3
HK982
HK528-4
HK528-2
HK528-5
HK528-3
HK907
HK909
HK924
HK965
HK904
HK1003
HK520S
HK1003
HK528-6
HK978
HK965
HK801Ti-23
11. UPPER DECK ASSEMBLY
BAG 13
Complete View
P. 28
HK455A/B/C
NOT INCLUDED
NOT INCLUDED
HK528-4
HK495
HK-B3625
HK933
HK938
HK902
EVO2-104
HK529
NOT
INCLUDED
MV-496B
HK930
MV-498B
MV-498B
HK930
MV-499-1B
HK527A/B/C
HK933
HK938
MV-499-1B
P. 30
HK003 — FOAM BUMPER
HK115 — CARBON BET HEAD ADAPOTOR
HK530 — BAT HEAD BUMPER
HK531 — LOWER BUMPER
HK532 — FRONT BODY POST
x 1
x 1
x 1
x 1
x 2
SBH — M3 x 8
SHB — M3 x 10
SHB — M3 x 14
SHB — M3 x 10
M3 _ NUT
x 2
x 2
x 2
x 4
x 2
►
ID
►
NAME ► AMOUNT
►
ID
►
NAME ► AMOUNT
HK
HK
HK003
HK532
HK
HK
HK115
HK531
HK
HK
HK530
HK532
HK
HK
1. FRONT BUMPER
BAG 4
MV-100 — MV 2mm Carbon Upper Deck
EVO2-104 — EVO2 Alum. Battery Holder
HK1003 — Upper Deck O-Ring
HK436A — Steering Servo Horn for KO,JR,SANWA
HK436B — Steering Servo Horn for FUTABA,SAVOX
HK436C — Steering Servo Horn for HITEC
HK455A — Alum. Throttle Servo Horn for KO,JR,SANWA
HK455B — Alum. Throttle Servo Horn for FUTABA,SAVOX
HK455C — Alum. Throttle Servo Horn for HITEC
EVO2-491 — EVO2 Alum. Fuel Tank Support Shaft
HK495 — Harden Steel Front Swing Bearing Mount
MV-496B — MV Servo Stand A (Blue)
MV-498B — MV Servo Stand C (Blue)
MV-499-1B — MV Servo Mount Washer (Blue)
HK510 — Handle
HK520S — Receiver Box
MV-522B — MV Alum. Servo Mount Plate (Blue)
HK524A — Throttle Servo Holder A
HK525B1 — Throttle Servo Holder B1 HITEC,SAVOX
HK525B2 — Throttle Servo Holder B2 KO,FUTABA
HK525B3 — Throttle Servo Holder B3 SANWA,JR
HK526A — Servo Shims 7.5mm
HK526B — Servo Shims 8.5mm
HK526C — Servo Shims 9.5mm
HK526D — Servo Shims 10.5mm
HK527A — Servo Shims 1.0mm
HK527B — Servo Shims 2.0mm
HK527C — Servo Shims 3.0mm
x 1
x 1
x 2
x 1
x 1
x 1
x 1
x 1
x 1
x 3
x 1
x 1
x 2
x 4
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 2
x 2
x 2
x 2
x 2
x 2
x 2
HK528-1 — Brake Adj. Nut
HK528-2 — Linkage Pivot
HK528-3 — Throttle Servo Link Cap
HK528-4 — Linkage Stopper
HK528-5 — Throttle Link
HK528-6 — Brake Post Link
HK529 — Receiver Tray
HK532 — Front Body Post
HK534 — 4.8mm Ball End
HK535 — 5.8L Type Ball End
HK801Ti-23 — Titanium Turnbuckle 23mm
HK850L — Ball Universal 5.8mm Hex ( Long )
HK902 — BH M3 x 6
HK903 — BH M3 x 8
HK904 — BH M3 x 10
HK905 — BH M3 x 12
HK907 — BH M3 x 16
HK909 — BH M3 x 20
HK924 — SH M2.5 x 10
HK930 — FH M3 x 6
HK933 — FH M3 x 8
HK938 — FH M3 x 12
HK951 — M2.5 Nut
HK965 — Body Clip
HK977 — Fuel Tank Shaft Rubber ( Bottom )
HK978 — Fuel Tank Shaft Rubber ( Top )
HK982 — Throttle Spring
HK-B3625 — Flanged Bearing 3x6x2.5
x 1
x 2
x 1
x 4
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 4
x 3
x 2
x 1
x 4
x 4
x 2
x 8
x 4
x 6
x 2
x 4
x 3
x 3
x 1
x 1
P. 29
Note the 90º angle difference
between the ball joints.
Around ~ 48mm ( 1:1 )
❶
❷
❸
❹
11. UPPER DECK ASSEMBLY
►
Item No. ► Description ►Quantity
►
Item No. ► Description ► Quantity
( FH M3 x 12 )
( FH M3 x 6 )
HK436A = KO,JR,SANWA
HK436B = FUTABA,SAVOX
HK436C = HITEC
( BH M3 x 12 )
( FH M3 x 6 )
!
All screw suggest applied
threadlock glue !
TD
THREADLOCK
!
NOTE
ORIENTATION
P. 31P. 31
❷
❸
❶
❶
❸
❹
❹
❶
❶
❷
❷
11. UPPER DECK ASSEMBLY
HK525B1 = HITEC,SAVOX
HK525B2 = KO,FUTABA
HK525B3 = SANWA,JR
BH M3 x 16
OR
BH M3 x 20
Depend on which
shims are using
NOT INCLUDED
HK 965
HK 965
( BH M3 x 8 )
Switch on the radio to get the neutral
position then put on the servo arm.
SERVO HORN CLEARANCE
Use appropriate shims to ensure
there is at least 2.5mm clearance
between the servo horn and the
front middle shaft
2.5mm ~ 3.5mm
FH M3 x 8
OR
FH M3 x 12
Depend On Which
Shims Are Using
1.0mm thickness
2.0mm thickness
3.0mm thickness
7.5mm thickness 9.5mm thickness
8.5mm thickness
10.5mm thickness
!
P. 30
HK3200
LiFe 1300mAh 6.6V Side
battery For H-K1
Use tape to mount the
Side battery to the
Alum. battery holder..
❷
❸
❸
❸
( BH M3 x 6 )
( BH M3 x 6 )
ASSEMBLED VIEW
Alum. Battery Holder
( BH M3 x 8 )
( FH M3 x 6 )
ASSEMBLED VIEW
Servo Mount Set is suitable for the Servo
within thickness of 21mm or less
P. 32
HK003 — FOAM BUMPER
HK115 — CARBON BET HEAD ADAPOTOR
HK530 — BAT HEAD BUMPER
HK531 — LOWER BUMPER
HK532 — FRONT BODY POST
x 1
x 1
x 1
x 1
x 2
SBH — M3 x 8
SHB — M3 x 10
SHB — M3 x 14
SHB — M3 x 10
M3 _ NUT
x 2
x 2
x 2
x 4
x 2
►
ID
►
NAME ► AMOUNT
►
ID
►
NAME ► AMOUNT
HK
HK
HK003
HK532
HK
HK
HK115
HK531
HK
HK
HK530
HK532
HK
HK
1. FRONT BUMPER
BAG 4
P. 31
Attach steering linkage
to sevo saver
Antenna
( NOT INCLUDED )
Receiver
( NOT INCLUDED )
Steering
Servo arm MUST be perpendicular to
linkage when servo is an neutral.
DETAIL
11. UPPER DECK ASSEMBLY
( BH M3 x 6 )
( BH M3 x 10 )
HK529 - Receiver Tray
can be used depend
on personal need
HK495
HK-B3625
( BH M3 x 6 )
BAG 7
( BH M3 x 6 )
BAG 7
( BH M3 x 6 )
BAG 7
( FH M3 x 6 )
BAG 13
11. UPPER DECK ASSEMBLY
P. 32
❶
❷
❸
❹
❹
❺
❻
❼
Lock Nut M2.5
( SH M2.5 x 10 )
( FH M3 x 6 )
BAG 10
COMPLETE VIEW
Bend the link to appropriate shape
in order to t different servo.
Servo Screw
( NOT INCLUDED )
!
Tight up the set screw
!
Tight up the set screw
!
Tight up the set screw
!
HK455A = KO,JR,SANWA
HK455B = FUTABA,SAVOX
HK455C = HITEC
!
Throttle Servo Horn
( SH M2.5 x 10 )
HK979 Fuel Tube
( Bag 15 )
Detail for Adjustment
of Throttle Linkage .
Please See the Page 37.
!
P. 33
HK925
EVO2-607
HK614
HK602-16T
HK-B5104
HK601
HK611
HK610Y
HK608
HK604
KM Engine
(NOT INCLUDED)
HK923
HK972E
HK-B5825
HK603-21T
HK972C
HK613
HK612
HK609
HK606
HK903
HK441v2B
HK605-7
HK923
12. ENGINE & CLUTCH
BAG 14
HK441v2B — Engine Mount (Blue)
HK601 — Steel Clutch Bell
HK602-16T — Pinion Gear 16T
HK603-21T — Pinion Gear 21T
HK604 — Flywheel
HK605-6 — Tapered collar 6mm
HK605-7 — Tapered collar 7mm
HK606 — Flywheel Nut
EVO2-607 — EVO2 Red Steel Clutch Bell Bushing
HK608 — Clutch Flyweight
HK609 — Clutch Disc
HK610Y — Clutch Shoe (Yellow)
HK611 — Clutch Spring
HK612 — Spring Catch
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 1
x 3
x 1
x 1
x 1
x 1
HK613 — Spring Nut
HK614 — Trust Bearing
HK903 — BH M3 x 8
HK923 — SH M3 x 10
HK925 — SH M3 x 15
HK972A — S 5 x 7 x 0.1 Shims
HK972B — S 5 x 7 x 0.2 Shims
HK972C — S 5 x 7 x 0.3 Shims
HK972D — S 5 x 7 x 0.4 Shims
HK972E — S 5 x 7 x 0.5 Shims
HK995 — Muffler Stay Spring Link
HK-B5104 — Bearing 5 x 10 x 4
HK-B5825 — Steel Bearing 5 x 8 x 2.5
x 1
x 1
x 4
x 4
x 1
x 2
x 2
x 2
x 2
x 2
x 1
x 1
x 2
►
Item No. ► Description ►Quantity
►
Item No. ► Description ► Quantity
HK 605-6
Can Be Used Depend
On Different Engine
KM Engine M12
(NOT INCLUDED)
KM Air Filter KMR-A023
(NOT INCLUDED)
Complete View
!
!
Must used HK605-6
or HK605-7
HK995
!
Suggest to add
threadlock glue
P. 34
12. ENGINE & CLUTCH
❶
❷
KM Engine Manifold Silicone
Suggest to use KMR-A007
( NOT INCLUDED )
( BH M3 x 8 )
( SH M3 x 10 )
Large
Small
Note the direction
Engine
!
0.4mm ~ 0.7mm
1.0mm
DETAIL
❶
❸
P. 35
HK003B — Bat Head Foam Bumper
MV-115 — MV Carbon Bat Head Adapter
HK530 — Bat Head Bumper
HK531 — Lower Bumper
HK532 — Front Body Post
HK534 — 4.8mm Ball End
HK536B — Link Plastic 17.5mm
MV-536D — MV Link Plastic 12.7mm
HK801Ti-23 — Titanium Turnbuckle 23mm
HK850L — Ball Universal 5.8mm Hex (Long)
HK851 — Ball Stud 4.8mm
EVO2-853A — EVO2 Alum. Rear Roll Bar Ball
HK903 — BH M3 x 8
x 1
x 1
x 1
x 1
x 2
x 1
x 1
x 4
x 1
x 3
x 1
x 2
x 4
HK904 — BH M3 x 10
HK905 — BH M3 x 12
HK913 — SS M3 x 8
HK914 — SS M3 x 16
HK933 — FH M3 x 8
HK952 — M3 Nut
HK966 — Body Clip (Large)
HK971 — EVO2 Collar 3x6x5
K8-976-25 — Alum.7075-T6 Hard Coated Anti Roll Bar Stopper
HK979 — Fuel Tube
MV-984-23 — MV Front Anti Roll Bar 2.3
HK-B5825 — Steel Bearing 5x8x2.5
x 2
x 2
x 2
x 1
x 4
x 2
x 10
x 1
x 2
x 1
x 1
x 2
HK933
HK952
HK003B
HK532
HK903
HK905
MV-115
HK531
HK952
HK904
HK530
HK532
HK905
HK933
13. FRONT BUMPER & REAR STIFFENER
&
FRONT ANTI ROLL BAR
BAG 15
►
Item No. ► Description ►Quantity
►
Item No. ► Description ► Quantity
!
You can attach the shocks
before put on the foam bumper
HK851
HK850L
HK914
HK971
HK536B
HK801Ti-23
HK534
EVO2-105
EVO2 Ballend Titanium
Rear Stiffener
HK-B5825
MV-536D
MV-984-23
K8-976-25
HK913
HK903
EVO2-853A
MV-536D
HK850L
!
Opposite
26.5 mm
!
Opposite
MV-536D
12.7mm
❶
❷
❶
❷
1:1
( SS M3 x 8 )
MV Front Anti Roll Bar
(Wire Type)
Front Bumper
( BH M3 x 8 )
!
Front Anti Roll Bar
independent used standard
type or wire type only
P. 36
❶
❶
❸
❸
❷
❹
( BH M3 x 10 )
( BH M3 x 12 )
( BH M3 x 12 )
( BH M3 x 8 )
( FH M3 x 8 )
HK966 - Body Clip ( Large )
( M3 NUT )
( FH M3 x 8 )
❶
❷
❷
Tight up the
set screw
!
❶
13. FRONT BUMPER & REAR STIFFENER
&
FRONT ANTI ROLL BAR
P. 37
HK971
EVO2 Collar 3x6x5
8 mm
ASSEMBLED VIEW
HK851
45 mm
❶
❶
❷
( SS M3 x 16 )
Neutral
* Turn on the transmitter and receiver and set the
engine control servo trim to the neutral position.
* Adjust the idling adjusting screw on the carburetor
to be open approx. 1mm.
* Adjust the position of (HK528-4).
* Adjust the movement of each part to move smoothly
* Adjust the engine while it is not running.
High Throttle
* Adjust the servo-horn hole position to make the
carburetor fully open.
* Change the position of (HK528-4) when the carburetor
is not opening fully or if it is opening excessively.
Or if available on the transmitter, adjust the
throttle high end point.
Brake
* Adjust (HK528-1) so the brakes work smoothly.
* If the brakes apply too much or not enough,
adjust (HK528-4) accordingly. Or if acailable on the
transmitter, adjust the throttle high end point.
Adjustment of Throttle Linkage
SETUP FRONT SWING
FRONT SWING - ON
Remove Two Screw (BH M3x6)
FRONT SWING - OFF
Add Two Screw (BH M3x6)
HK528-4HK528-4
Approx. 0.5mm
Idling Adjusting
Screw
HK528-1
HK528-4
HK528-4
13. FRONT BUMPER & REAR STIFFENER
&
FRONT ANTI ROLL BAR
P. 39P. 39
FINAL ASSEMBLY
P. 38
( HK 971-4 ) BAG 7
( BH M3 x 6 )
BAG 5-6
( BH M3 x 12 )
BAG 3-4
KM Foam Tyres Series
( NOT INCLUDED )
( M4 Lock Nut )
BAG 9
( M4 Lock Nut )
BAG 7
1. Release the Screw.
2. Move Belt Bearing Housing as needed.
3. Re-tighten the Screw.
To adjust Belt
Bearing Housing
Screw
!
ASSEMBLED VIEW
❷
❶
Tight up the
set screw
!
Tight up the
set screw
!
❸
❸
KM Tune Pipe & Manifold
Suggest to use KMP-2563
( NOT INCLUDED )
Engine Manifold Spring
Suggest to use KMR-A005
( NOT INCLUDED )
P. 40
HK003 — FOAM BUMPER
HK115 — CARBON BET HEAD ADAPOTOR
HK530 — BAT HEAD BUMPER
HK531 — LOWER BUMPER
HK532 — FRONT BODY POST
x 1
x 1
x 1
x 1
x 2
SBH — M3 x 8
SHB — M3 x 10
SHB — M3 x 14
SHB — M3 x 10
M3 _ NUT
x 2
x 2
x 2
x 4
x 2
►
ID
►
NAME ► AMOUNT
►
ID
►
NAME ► AMOUNT
HK
HK
HK003
HK532
HK
HK
HK115
HK531
HK
HK
HK530
HK532
HK
HK
1. FRONT BUMPER
BAG 4
FINAL ASSEMBLY
P. 39
REAR TIRES ( WIDE )
FRONT TIRES (NARROW )
DETAIL
SHOCK TOWER
ARM
INITAL POSITION
( BH M3 x 6 )
BAG 5-6
1
2
3
( BH M3 x 10 )
BAG 9
HK966 ( Large )
BAG 15
( HK533 ) BAG 9
( HK 971-4 ) BAG 7
( BH M3 x 12 )
BAG 3-4
FRONT SHOCKS
( SHORTER SPRINGS )
INITAL POSITION
( M4 Lock Nut )
BAG 7
( M4 Lock Nut )
BAG 9
❶
❷
❸
❹
( EVO2-538 ) BAG 9
( EVO2-539 ) BAG 9
( BH M3 x 8 )
BAG 9
P. 41P. 41
FINAL COMPLETE VIEWS
Cut 2 Pieces of silicone tubing
and install as follows :
* Pressure line - between exhaust
pipe and fuel tank cap.
* Fuel line - between fuel tank and
carburetor.
P. 40
FINAL ASSEMBLY
P. 42
HK003 — FOAM BUMPER
HK115 — CARBON BET HEAD ADAPOTOR
HK530 — BAT HEAD BUMPER
HK531 — LOWER BUMPER
HK532 — FRONT BODY POST
x 1
x 1
x 1
x 1
x 2
SBH — M3 x 8
SHB — M3 x 10
SHB — M3 x 14
SHB — M3 x 10
M3 _ NUT
x 2
x 2
x 2
x 4
x 2
►
ID
►
NAME ► AMOUNT
►
ID
►
NAME ► AMOUNT
HK
HK
HK003
HK532
HK
HK
HK115
HK531
HK
HK
HK530
HK532
HK
HK
1. FRONT BUMPER
BAG 4
P. 41
FINAL COMPLETE VIEWS
P. 43P. 43P. 42
Pic. Item No Description QTY Pic. Item No Description QTY
MV-001 MV 3mm 7075-T6 Main Chassis 1 EVO3-202R
EVO3 Harden Red Steel Rear Cup
Joint
2
EVO3-002 EVO3 Fuel Tank 1 HK203 Big Bevel Diff. Gear 4
HK003B Bat-Head Foam Bumper 1 HK204 Small Bevel Diff Gear 8
MV-100 MV 2mm Carbon Upper Deck 1 HK205A
Alum. 7075 T-6 Hard Coated Diff.
Shaft
4
HK101L-A
Alum. Front Belt Adjust Bearing
Hub Holder Left
1 HK207 F&R Big Bevel Diff. Gear Shims 4
HK101R-A
Alum. Front Belt Adjust Bearing
Hub Holder Right
1 HK208 Small Bevel Diff. Gear Shims 8
HK102-4 4mm Front Carbon Shock Tower 1 HK209 Outside Diff. Joint Shims 4
EVO2-104 EVO2 Alum. Battery Holder 1 HK210 Diff. Gear O-Ring 4
EVO2-106
EVO2 2.5mm Carbon Rear Gear
Box Upper Plate
1 HK211 Diff. Case O-Ring 2
HK107 2.5mm Carbon Brake Arm 1 HK220 Rear Diff. Case 1
EVO3-108 EVO3 4mm Carbon Camber Plate 1 HK221 Rear Diff. Cover 1
EVO3-109
EVO3 4mm Rear Carbon Shock
Tower
1 HK301 Shock Shock Absorber 4
HK110L-A
Alum. Rear Belt Adjust Bearing Hub
Holder Left
1 HK302B Alum. Upper Shock Cap (Blue) 4
HK110R-A
Alum. Rear Belt Adjust Bearing Hub
Holder Right
1 HK303 Shock Head Ball End 4
EVO3-111-H EVO3 Stainless Steel Brake Pad 2 HK304F Front Shock Piston 2
HK112A 2mm Carbon Servo Saver Plate A 1 HK304R Rear Shock Piston 2
HK112B 2mm Carbon Servo Saver Plate B 1 MV-305F MV Front Harden Shock Shaft 2
EVO2-114 EVO2 Carbon Belt Tension Stand 1 MV-305R MV Rear Harden Shock Shaft 2
MV-115 MV Carbon Bat Head Adapotor 1 HK306 Alum. Shock Body 4
HK116 Carbon Main Shaft Collar 6x8x2.7 1 HK307 O-Ring Slims 8
EVO2-130C 2.5mm Carbon Middle Plate 1 HK308B Alum. Spring Adj. Nut (Blue) 4
EVO2-177B-PEVO2 5.5mm Bando Plastic
177mm Rear Belt
1 HK309B Alum. Lower Shock Cap (Blue) 4
MV-201B-P
MV 5mm Bando Plastic 201mm
Front Belt
1 HK310F Front Lower Spring Cap 2
HK200 Front Diff. Case 1 HK310R Rear Lower Spring Cap 2
EVO2-201 EVO2 Front Diff. Cover 1 HK311 Shock O-Ring 8
EVO3-202F
EVO3 Harden Red Steel Front Cup
Joint
2 HK312 Shock Piston Shims 4
H-K1 ( Meen Version 2 )Parts List For Index
P. 44P. 43
Pic. Item No
Description
QTY Pic. Item No
Description
QTY
HK313 Adj. Nut O-ring
4
HK432
Alum. D-Type Servo Saver Bearing
Holder
1
HK321 Front Shock Spring
2
HK433 Alum. Servo Saver Shaft
1
HK331 Rear Shock Spring
2
HK434B
Alum. Servo Saver Spring Nut
(Blue)
1
HK387B Bando Middle Belt 1 HK435H Hard Servo Saver Spring
1
EVO2-400LB
EVO2 Alum. Front Upper BulkHead
Left (Blue)
1 HK436AB
Steering Servo Horn for
KO,JR,SANWA (Blue)
1
EVO2-400RB
EVO2 Alum. Front Upper BulkHead
Right (Blue)
1 HK436BB
Steering Servo Horn for
FUTABA,SAVOX (Blue)
1
MV-401LB
MV Alum. Front Bottom Bulkhead
Left (Blue)
1 HK436CB
Steering Servo Horn for HITEC
(Blue)
1
MV-401RB
MV Alum. Front Bottom Bulkhead
Right (Blue)
1 MV-440B
MV Alum. Centre Mount with POM
Bushing (Blue)
1
HK402LB
Front Suspension Arm Holder Left
(Blue)
1 HK441v2B Alum. Engine Mount (Blue) 1
HK402RB
Front Suspension Arm Holder Right
(Blue)
1 EVO2-450LB
EVO2 Alum. Radio Plate Mount
Left (Blue)
1
HK403B
Alum. Front Lower Suspention Arm
Mount (Blue)
1 EVO2-450RB
EVO2 Alum. Radio Plate Mount
Right (Blue)
1
HK404-1B
Alum. Front Anti-Roll Bar Mount
Collar (Blue)
2 HK452 Belt Tension Shaft 1
MV-404LB
MV Alum. Front Anti-Roll Bar Mount
Left (Blue)
1 HK453 Belt Bearing Housing 1
MV-404RB
MV Alum. Front Anti-Roll Bar Mount
Right (Blue)
1 HK455AB
Alum. Throttle Servo Horn for JR,
KO, SANWA (Blue)
1
HK408 Alum. Hex Hub Adaptor 4 HK455BB
Alum. Throttle Servo Horn for
FUTABA, SAVOX (Blue)
1
EVO2-410LB
EVO2 Aluminium 2 Speed Shaft
Stand L (Blue)
1 HK455CB
Alum. Throttle Servo Horn for
HITEC (Blue)
1
EVO3-410RB
EVO3 Alum. 2 Speed Shaft Stand
Right (Blue)
1 EVO2-457-1 Alum. Middle Plate Mount 1
HK411LB
Alum. Rear Upper Bulkhead Left
(Blue)
1 EVO2-457-2 Alum. Middle Plate Mount B 1
HK411RB
Alum. Rear Upper Bulkhead Right
(Blue)
1
MV-462-19T-
P
MV Plastic Front Pulley 19T 1
HK412LB
Alum. Rear Bottom Bulkhead Left
(Blue)
1
MV-461-18T-
P
MV Plastic Rear Side Pulley 18T 1
HK412RB
Alum. Rear Bottom Bulkhead Right
(Blue)
1
EVO2-460-
20T-P
EVO2 Plastic Brake Pulley 20T 1
HK413B Alum. Rear Arm Holder (Blue) 1
EVO2-461-
25T-P
EVO2 Plastic Front Side Pulley 25T 1
EVO2-414B
EVO2 Alum. Rear Back Cover
(Blue)
1
MV-461-27T-
P
MV Plastic Front Diff. Pulley-27T
1
HK415B Alum. Brake Arm Holder (Blue) 1 HK470 Alum. 2 Speed Gear Housing 1
HK430-P Plastic D-Type Upper Servo Saver
1
HK471
Alum. 1st Gear Housing With One
Way Bearing
1
HK431 Alum. D-Type Bottom Servo Saver
1
HK472V2
Harden Steel 2 Speed Adapter
(Version 2)
1
H-K1 ( Meen Version 2 )Parts List For Index
P. 44
Pic. Item No
Description
QTY Pic. Item No
Description
QTY
EVO2-473 EVO2 Red Steel 2 Speed Roller Pin 2 HK505B Front Lower Arm Collar 2mm 2
HK478 2 Spped Shoes Spring 2 HK506A 1mm Caster Clips 6
HK480 Front Upper Arm Pin 2 HK506B 2mm Caster Clips 4
HK481 Front Lower Arm Pin 2 HK507A1 Roll Centre Collar A1 4
HK482 Rear Lower Arm Pin 2 HK507A2 Roll Centre Collar A2 4
EVO2-483A
EVO2 Red Steel / Alum. Front
Unversal Shaft
2 HK508B1 Roll Centre Collar B1 4
EVO3-
484RU-A
EVO3 Red Steel/Alum. Rear
Univeral Shaft
2 HK508B2 Roll Centre Collar B2 4
EVO3-
485HW
EVO3 Harden Steel Hollow Middle
Shaft
1 HK510 Handle 1
EVO2-486-HWEVO2 Two Speed Steel Shaft
(Hollow)
1 HK520S Receiver Box 1
HK487 D2 x 9.7 Pin
10
MV-522B MV Alum. Servo Mount plate (Blue) 1
MV-489 MV Harden 2mm Brake Disc 1 HK522 Steering Servo Mount 1
EVO3-490 EVO3 Alum. Brake Post 1 HK523 Streering Servo Holder 2
EVO2-491
EVO2 Alum. Fuel Tank Support
Shaft
3 HK524A Throttle Servo Holder A 1
HK492-1 Front Anti-Roll Bar Shaft Cup 1 HK525B1
Throttle Servo Holder B1
HITEC,SAVOX
1
HK492-2 Front Anti-Roll Bar Shaft Ball 1 HK525B2
Throttle Servo Holder B2
KO,FUTABA
1
HK495
Harden Steel Front Swing Bearing
Mount
1 HK525B3
Throttle Servo Holder B3
SANWA,JR
1
MV-496B MV Servo Stand A (Blue) 1 HK526A Servo Shims 7.5mm 2
MV-498B MV Servo Stand C (Blue) 2 HK526B Servo Shims 8.5mm 2
MV-499-1B MV Servo Mount Washer (Blue) 4 HK526C Servo Shims 9.5mm 2
MV-500C
MV Hard Front Upper Arm with
Carbon
2 HK526D Servo Shims 10.5mm 2
MV-501C
MV Hard Front Lower Arm with
Carbon
2 HK527 Switch Plate 1
HK502C-L Front Knuckle Arm Left with Carbon 1 HK527A Servo Shims 1.0mm 2
HK502C-R
Front Knuckle Arm Right with
Carbon
1 HK527B Servo Shims 2.0mm 2
HK503C Rear Hub with Carbon 2 HK527C Servo Shims 3.0mm 2
HK504C Hard Rear Lower Arm with Carbon 2 HK528-1 Brake Adj. Nut 1
HK505A Front Lower Arm Spacer 2mm 2 HK528-2 Linkage Pivot 2
H-K1 ( Meen Version 2 )Parts List For Index
P. 45
Pic. Item No
Description
QTY Pic. Item No
Description
QTY
HK528-3 Throttle Servo Link Cap 1 HK606 Flywheel Nut 1
HK528-4 Linkage Stopper 4 EVO2-607
EVO2 Red Steel Clutch Bell
Bushing
1
HK528-5 Throttle Link 1 HK608 Clutch Flyweight 3
HK528-6 Brake Post Link 1 HK609 Clutch Disc 1
HK529 Reciver Tray 1 HK610Y Clutch Shoe(yellow) 1
HK530 Bat Head Bumper 1 HK611 Clutch Spring 1
HK531 Lower Bumper 1 HK612 Spring Catch 1
HK532 Front Body Post 3 HK613 Spring Nut 1
HK533 Rear Body Post 2 HK614 Trust Bearing 1
HK534 4.8mm Ball End 2 HK801Ti-23 Titanium Turnbuckle 23mm 4
HK535 5.8 L Type Ball End 1 HK801Ti-48
Titanium Steering Turnbuckles
48mm
2
HK536B Link Plastic 17.5mm 13 HK802Ti-21 Titanium Turnbuckle 21mm
2
MV-536D MV Link Plastic 12.7mm 4
HK850L Ball Universal 5.8mm Hex (Long) 12
HK538C 6.8mm Ball End 20mm
4 HK850S Ball Universal 5.8mm Hex (Short) 6
EV02-538 Rear Body Support Mount 2 HK851 Ball Stud 4.8mm
2
EVO2-539 Rear Body Mount Bolt 2 HK852A Alum. 7075-T6 8.5mm Ball Screw 8
HK550 2 Speed Shoe 2 EVO2-853A EVO2 Alum. Rear Roll Bar Ball 4
HK551-59T Spur Gear 59T (1st) 1 HK854 Ball Universal 6.8mm Hex 4
HK552-54T Spur Gear 54T (2nd) 1 HK901 BH M3 x 5 4
HK563 Front & Rear Bearing Busing 4 HK902 BH M3 x 6 47
HK564AP Alum. Ball Cup Screw 8
HK903 BH M3 x 8 21
HK601 Steel Clutch Bell 1 HK904 BH M3 x 10 12
HK602-16T Pinion Gear 16T 1
HK905 BH M3 x 12 7
HK603-21T Pinion Gear 21T 1 HK906 BH M3 x 14 6
HK604 Flywheel 1 HK907 BH M3 x 16 6
HK605-6 Tapered Collar 6mm 1 HK908 BH M3 x 18 4
HK605-7 Tapered Collar 7mm 1 HK909 BH M3 x 20 4
H-K1 ( Meen Version 2 )Parts List For Index
P. 46
Pic. Item No
Description
QTY Pic. Item No
Description
QTY
HK911 SS M3 x 3 18 HK972B S 5x7x0.2 shims 2
HK912 SS M3 x 5 4 HK972C S 5x7x0.3 Shims 2
HK913 SS M3 x 8 10 HK972D S 5x7x0.4 shims 2
HK914 SS M3 x 16 3 HK972E S 5x7x0.5 Shims 2
HK915 SS M4 x4 5 HK975 Collar 3x6x3.5 4
HK921 SH M2.5 x 8 1 K8-976-25
Alum.7075-T6 Hard Coated Anti
Roll Bar Stopper
4
HK922 SH M2.5 x 12 2 HK977 Fuel Tank Shaft Rubber (bottom) 3
HK923 SH M3 x 10 4 HK978 Fuel Tank Shaft Rubber (top) 3
HK924 SH M2.5 x 10 2 HK979 Fuel Tube 1
HK925 SH M3 x 15 1 HK981 Spring For Carbon Brake 2
HK930 FH M3 x 6
22
HK982 Throttle Spring 1
HK932 FH M2.5 x 6 4 HK983 Rear Anti Roll Bar 2.0 1
HK933 FH M3 x 8
8
MV-984-23 MV Front Anti Roll Bar 2.3 1
HK936 FH M2 x 6 4 HK995 Muffler Stay Spring Link 1
HK937 FH M3 x 10 2 EVO3-986 EVO3 Brake Return Guide Pin 2
HK938 FH M3 x 12 7 HK-B10154 Steel Bearing 10x15x4 8
HK939 FH M2.5 x 8 9 HK-B3625 Flanged Bearing 3x6x2.5
1
HK951 M2.5 Nut 6
HK-B5104 Steel Bearing 5x10x4 1
HK952 M3 Nut 2 HK-B5825 Steel Bearing 5x8x2.5
10
HK953 M4 Lock Nut 4 HK-B6124 Steel Bearing 6x12x4 8
EVO2-954 Steel Side Belt Bearing Nut 1 HK1003 Upper Deck O-Ring 2
HK962 E-Clip For 6..0 Shaft 1 HK1100 20ml 500 Silicone Oil 1
HK965 Body Clip (Small) 4 HK1200 20ml 60000 Silicone Oil 1
HK966 Body Clip (Large) 10 HK1300 20ml 300000 Silicone Oil 1
HK971 EVO2 Collar 3x6x5 1 HK2001 H-K1 Decal (New) 1
HK971-4 Collar 3x4x9 2 HK3200
LiFe 1300mAh 6.6V side Battery
For H-K1
1
HK972A S 5x7x0.1 shims 2
H-K1 ( Meen Version 2 )Parts List For Index
► Item No. ► Description ► Bag
Below New Parts Included
EVO3-202F EVO3 Harden Red Steel Front Cup Joint
EVO3-202R EVO3 Harden Red Steel Rear Cup Joint
HK430FS-P Plastic D-Type Upper/Alum. Bottom Servo Save Full Set
EVO3-108 EVO3 4mm Carbon Camber Plate
EVO3-109 EVO3 4mm Rear Carbon Shock Tower
EVO3-484RU-A EVO3 Red Steel/Alum. Rear Univeral Shaft
EVO3-111-H EVO3 Stainless Steel Brake Pad
EVO3-410RB EVO3 Alum. 2 Speed Shaft Stand Right (Blue)
EVO3-490 EVO3 Alum. Brake Post
EVO3-986 EVO3 Brake Return Guide Pin
EVO3-485HW EVO3 Harden Steel Hollow Middle Shaft
EVO3-002 EVO3 Fuel Tank
K8-976-25 Alum.7075-T6 Hard Coated Anti Roll Bar Stopper
1
2
8
9
9
9
10
10
10
10
12
13
10,15
Loading...
