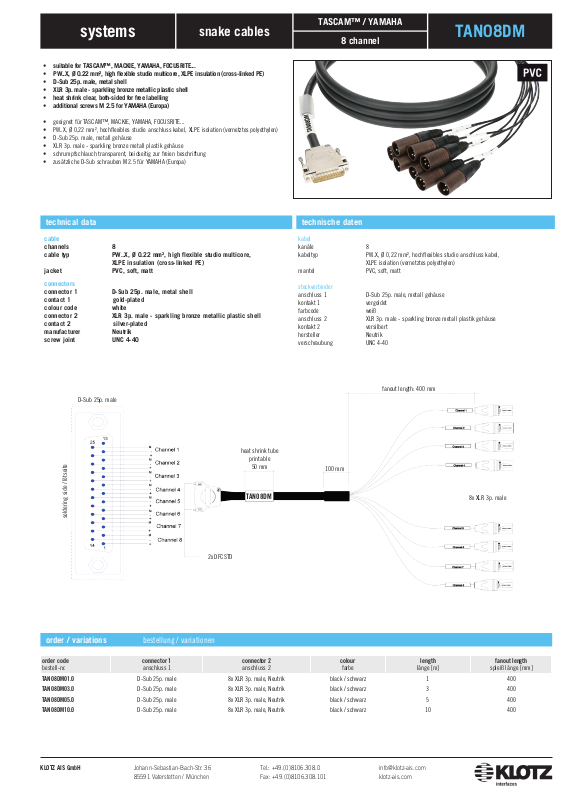

Page 1
TASCAM™ / YAMAHA
systems
• suitable for TASCAM™, MACKIE, YAMAHA, FOCUSRITE...
• PW..X, Ø 0.22 mm², high flexible studio multicore, XLPE insulation (cross-linked PE)
• D-Sub 25p. male, metal shell
• XLR 3p. male - sparkling bronze metallic plastic shell
• heat shrink clear, both-sided for free labelling
• additional screws M 2.5 for YAMAHA (Europa)
• geeignet für TASCAM™, MACKIE, YAMAHA, FOCUSRITE...
• PW..X, Ø 0,22 mm², hochflexibles studio anschluss kabel, XLPE isolation (vernetztes polyethylen)
• D-Sub 25p. male, metall gehäuse
• XLR 3p. male - sparkling bronze metall plastik gehäuse
• schrumpfschlauch transparent, beidseitig zur freien beschriftung
• zusätzliche D-Sub schrauben M 2.5 für YAMAHA (Europa)
technical data technische daten
cable
channels 8
cable typ PW..X, Ø 0.22 mm², high flexible studio multicore,
XLPE insulation (cross-linked PE)
jacket PVC, soft, matt
connectors
connector 1 D-Sub 25p. male, metal shell
contact 1 gold-plated
colour code white
connector 2 XLR 3p. male - sparkling bronze metallic plastic shell
contact 2 silver-plated
manufacturer Neutrik
screw joint UNC 4-40
snake cables
8 channel
kabel
kanäle 8
kabeltyp PW..X, Ø 0,22 mm², hochflexibles studio anschluss kabel,
XLPE isolation (vernetztes polyethylen)
mantel PVC, soft, matt
steckverbinder
anschluss 1 D-Sub 25p. male, metall gehäuse
kontakt 1 vergoldet
farbcode weiß
anschluss 2 XLR 3p. male - sparkling bronze metall plastik gehäuse
kontakt 2 versilbert
hersteller Neutrik
verschraubung UNC 4-40

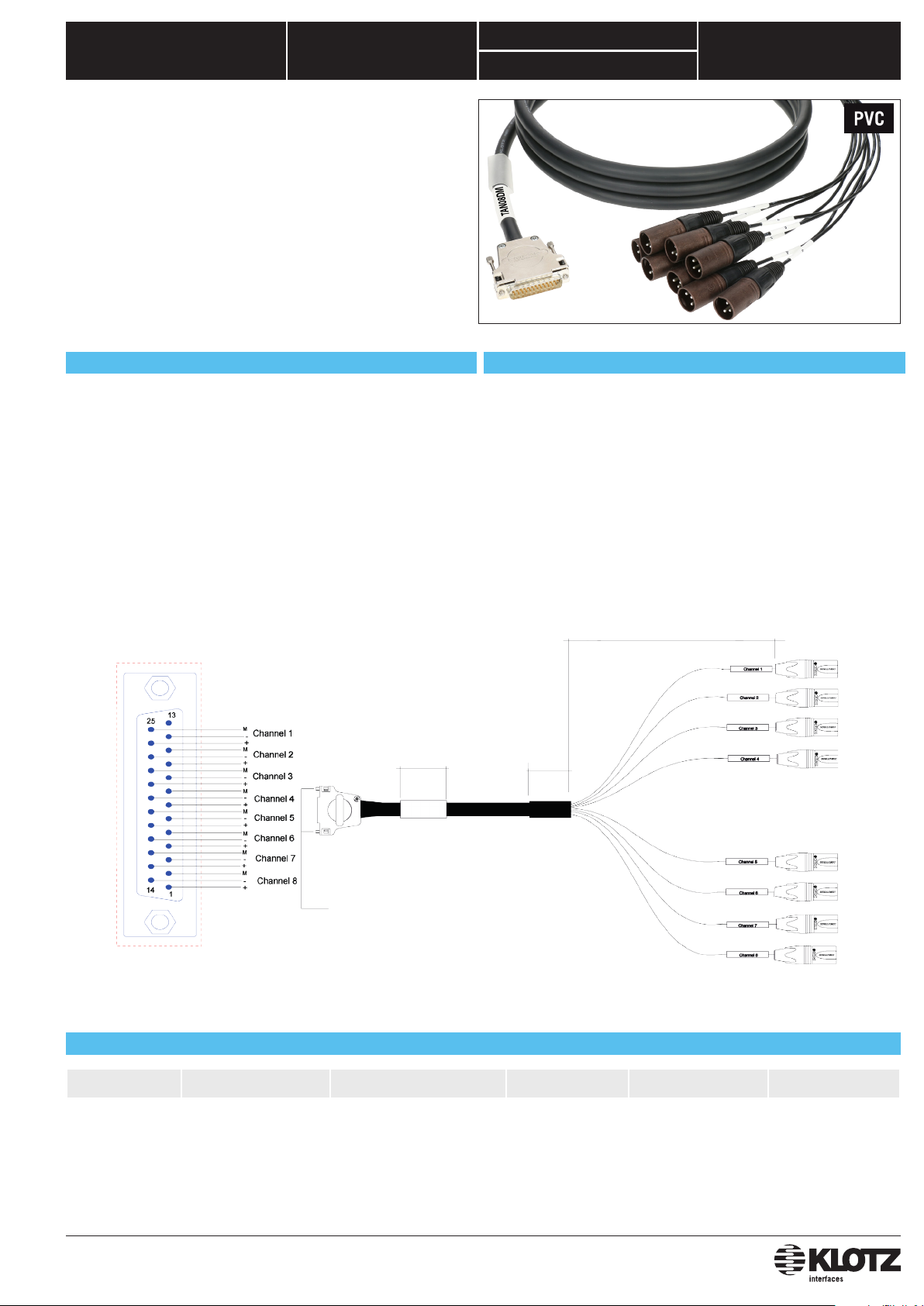

TAN08DM
fanout length: 400 mm
D-Sub 25p. male
heat shrink tube
printable
50 mm
TAN08DM
soldering side / lötseite
2x DFCSTD
100 mm
8x XLR 3p. male
order / variations bestellung / variationen
order code
bestell-nr.
TAN08DM01.0 D-Sub 25p. male 8x XLR 3p. male, Neutrik black / schwarz 1 400
TAN08DM03.0 D-Sub 25p. male 8x XLR 3p. male, Neutrik black / schwarz 3 400
TAN08DM05.0 D-Sub 25p. male 8x XLR 3p. male, Neutrik black / schwarz 5 400
TAN08DM10.0 D-Sub 25p. male 8x XLR 3p. male, Neutrik black / schwarz 10 400
connector 1
anschluss 1
connector 2
anschluss 2
colour
farbe
length
länge [m]
fanout length
spleiß länge [mm]
