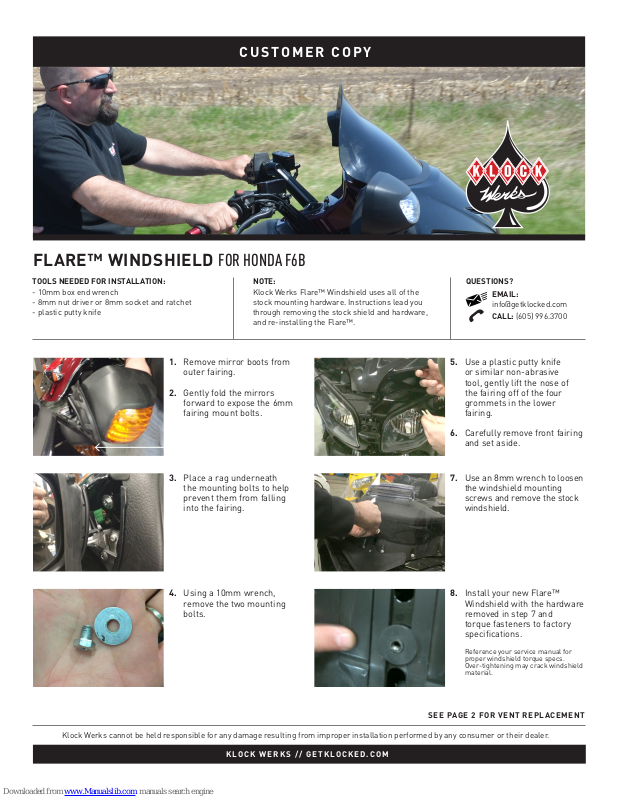

KLOCK WERKS Flare Installation Instruction

CUSTOMER COPY

FLARE™ WINDSHIELD FOR HONDA F6B

TOOLS NEEDED FOR INSTALLATION:

- 10mm box end wrench

- 8mm nut driver or 8mm socket and ratchet

- plastic putty knife

1. Remove mirror boots from
outer fairing.

2. Gently fold the mirrors
forward to expose the 6mm
fairing mount bolts.

3. Place a rag underneath
the mounting bolts to help
prevent them from falling
into the fairing.

NOTE:

Klock Werks Flare™ Windshield uses all of the
stock mounting hardware. Instructions lead you
through removing the stock shield and hardware,
and re-installing the Flare™.

QUESTIONS?

EMAIL:

[e-mail]

CALL: [phone]

5. Use a plastic putty knife

or similar non-abrasive
tool, gently lift the nose of
the fairing off of the four
grommets in the lower
fairing.

6. Carefully remove front fairing
and set aside.

7. Use an 8mm wrench to loosen
the windshield mounting
screws and remove the stock
windshield.

4. Using a 10mm wrench,
remove the two mounting
bolts.

Klock Werks cannot be held responsible for any damage resulting from improper installation performed by any consumer or their dealer.

KLOCK WERKS // GETKLOCKED.COM

8. Install your new Flare™

Windshield with the hardware
removed in step 7 and
torque fasteners to factory
specifications.

Reference your service manual for
proper windshield torque specs.
Over-tightening may crack windshield
material.

SEE PAGE 2 FOR VENT REPLACEMENT

VENT REPLACEMENT

1. Remove the two button head fasteners holding the vent

halves together

a. The vent shown uses a 3mm allen wrench and an

8mm socket

2. Disconnect the small plastic tab at the bottom of the vent

3. Rock the inner half up and off of the lip of the outer half and

the two pieces should release from the windshield

4. Install the vent in reverse order into your new Klock Werks
vented Flare™ windshield.
