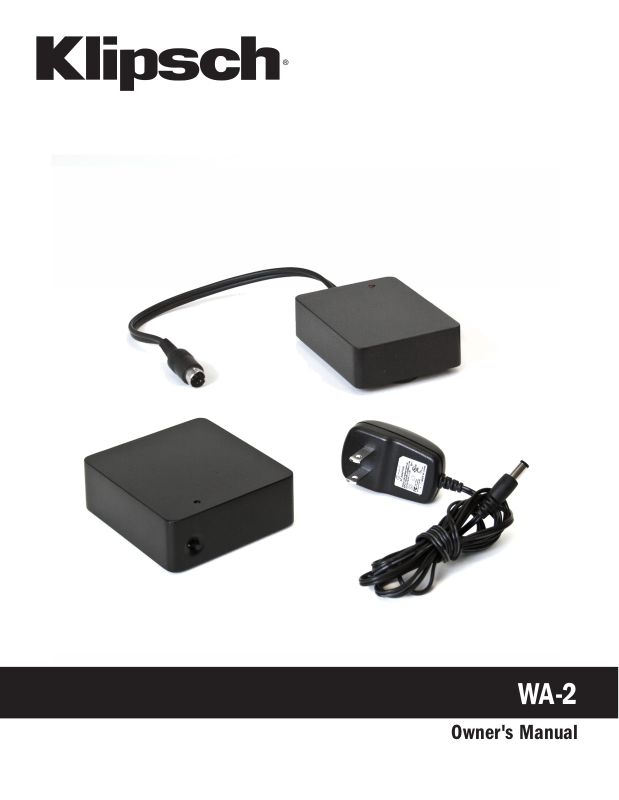

Klipsch WA-2 User Manual

WA-2

Owner's Manual

IMPORTANT SAFETY INSTRUCTIONS!

1. READ these instructions.

2. KEEP these instructions.

3. HEED all warnings.

4. FOLLOW all instructions.

5. DO NOT use this apparatus near water.

6. CLEAN ONLY with dry cloth.

7. DO NOT block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. DO NOT install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

9. DO NOT defeat the safety purpose of the polarized or grounding type plug. A polarized plug has two

blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wider blade or the third prong are provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10. PROTECT the power cord from being walked on or pinched, particularly at plugs, convenience

receptacles, and the point where they exit from the apparatus.

11. ONLY USE attachments/accessories speciﬁed by the manufacturer.

12. USE only with a cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or sold

with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injur y from tip-over.

13. UNPLUG this apparatus during lightning storms or when unused for long periods of time.

14. REFER all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been

damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. DO NOT expose this apparatus to dripping or splashing and ensure that no objects ﬁlled with liquids,

such as vases, are placed on the apparatus.

16. To completely disconnect this apparatus from the AC Mains, disconnect the power supply cord plug

from the AC receptacle.

17. The mains plug of the power supply cord shall remain readily operable.

The exclamation point, within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

The lightning ﬂash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufﬁcient magnitude to constitute a risk of electrical shock to persons.

WARNING: To reduce the risk of ﬁre or electrical shock, do not expose this apparatus to rain or moisture. WARNING: No naked ﬂame sources – such as candles – should be placed on the product.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

WARNING: Do Not Open! Risk of Electrical Shock. Voltages in this equipment are hazardous to life. No user-serviceable parts inside. Refer all servicing to qualified ser vice personnel.

Place the equipment near a main power supply outlet and make sure that you can easily access the power breaker switch.

WARNING: This product is intended to be operated ONLY from the AC Voltages listed on the back panel or included power supply of the product. Operation from other voltages other than those indicated may cause irreversible damage to the product and void the product s warrant y. The use of AC Plug Adapters is cautioned because it can allow the product to be plugged into voltages in which the product was not designed to operate. If the product is equipped with a detachable power cord, use only the type provided with your product or by your local distributor and/or retailer. If you are unsure of the correct operational voltage, please contact your local distributor and/or retailer.

FCC AND CANADA EMC COMPLIANCE INFORMATION:

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energ y and, if not in-stalled and used in accordance with the instructions, may cause harmful inter ference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment of f and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit dif ferent from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Approved under the veriﬁcation provision of FCC Part 15 as a Class B Digital Device. Caution: Changes or modiﬁcations not expressly approved by the manufacturer could void the user’s authority to operate this device. This Class B digital apparatus complies with Canadian ICES -003. Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

EU COMPLIANCE INFORMATION:

Eligible to bear the CE mark, Conforms to European Union Low Voltage Directive 2006/95/EC; Conforms to European Union EMC Directive 2004/108/EC.

WEEE NOTICE

Note: This mark applies only to countries within the European Union (EU) and Norway.

This appliance is labeled in accordance with European Directive 2002/96/EC concerning waste electrical and electronic equipment (WEEE). This label indicates that this product should not be disposed of with household waste. It should be deposited at an appropriate facility to enable recovery and recycling.

WIRELESS TRANSMITTER COMPLIANCE INFORMATION:

The term “IC:” before the radio certiﬁcation number only signiﬁes that Industry Canada technical speciﬁcations were met. This equipment complies with FCC and IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. Le terme «IC:» avant le numéro de certiﬁcation radio signiﬁe seulement que les spéciﬁcations techniques d’Industrie Canada ont été respectées. Cet appareil est conforme à FCC et IC l’exposition aux rayonnements limites ﬁxées pour un environnement non contrôlé. Cet appareil doit être installé et utilisé avec une distance minimale de 20 cm entre le radiateur et votre corps. Cet transmetteur ne doit pas être co-situé ou opérant en liaison avec toute autre antenne ou transmetteur. This device has been designed to operate with the antennas listed below, and having a maximum gain of [x] dB. Antennas not included in this list or having a gain greater than [x] dB are strictly prohibited for use with this device. The required antenna impedance is 50 ohms. Operation is subject to the following two conditions: (1) this device may not cause inter ference, and (2) this device must accept any inter ference, including interference that may cause undesired operation of the device. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.

Thank you for your purchase of the Klipsch WA-2 Wireless Subwoofer Kit!

The WA-2 will only operate with select Klipsch, Energy, Mirage and Jamo brand subwoofers that have a “WA Por t” input. The WA-2 is a 2.4 GHz product designed to wirelessly transmit a signal up to a 50

foot radius.

Packing List:

1. Transmitter

2. Receiver

3. Power supply

4. Audio cable

5. Velcro strips

6. This Owner’s Manual

Setup:

1. Decide where the subwoofer will go (refer to your subwoofer owner’s manual).

2. Most receivers (and pre-ampliﬁers ) have a line level subwoofer output labeled Subwoofer Pre Out, Sub Out, SW Out, etc. If you have this, connect one end of the supplied audio cable to it and connect the other end of the cable into WA-2 transmitter input ‘C’ . In absence of a subwoofer output connect Left and Right channel Pre-Amp outputs from your receiver (if provided) to ‘C’ and ‘B’ inputs on the transmitter.

3. Connect the cable from the WA-2 receiver to the “WA Port” on the back of the subwoofer. Carefully match the 4 pins of the cable to the corresponding 4 holes on the WA Port and gently push in until connected. Improper pin alignment can result in damage to the connector.

4. Plug supplied power supply cable into ‘E’ on the WA-2 transmitter and plug other end into an AC wall outlet.
