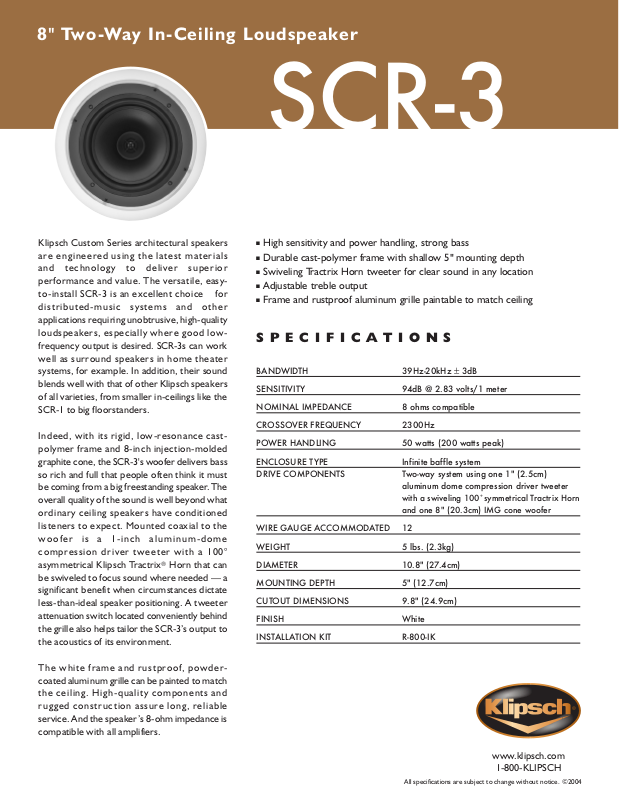

8" Two-Way In-Ceiling Loudspeaker
SCR-3
Klipsch Custom Series architectural speakers
are engineered using the latest materials
and technology to deliver superior
performance and value. The versatile, easyto-install SCR-3 is an excellent choice for
distributed-music systems and other
applications requiring unobtrusive, high-quality
loudspeakers, especially where good lowfrequency output is desired. SCR-3s can work
well as surround speakers in home theater
systems, for example. In addition, their sound
blends well with that of other Klipsch speakers
of all varieties, from smaller in-ceilings like the
SCR-1 to big floorstanders.
Indeed, with its rigid, low-resonance castpolymer frame and 8-inch injection-molded
graphite cone, the SCR-3's woofer delivers bass
so rich and full that people often think it must
be coming from a big freestanding speaker. The
overall quality of the sound is well beyond what
ordinary ceiling speakers have conditioned
listeners to expect. Mounted coaxial to the
woofer is a 1-inch aluminum-dome
compression driver tweeter with a 100°
asymmetrical Klipsch Tractrix
be swiveled to focus sound where needed — a
significant benefit when circumstances dictate
less-than-ideal speaker positioning. A tweeter
attenuation switch located conveniently behind
the grille also helps tailor the SCR-3’s output to
the acoustics of its environment.
®
Horn that can
■
High sensitivity and power handling, strong bass
■
Durable cast-polymer frame with shallow 5" mounting depth
■
Swiveling Tractrix Horn tweeter for clear sound in any location
■
Adjustable treble output
■
Frame and rustproof aluminum grille paintable to match ceiling
SPECIFICATIONS
BANDWIDTH 39Hz-20kHz ± 3dB
SENSITIVITY 94dB @ 2.83 volts/1 meter
NOMINAL IMPEDANCE 8 ohms compatible
CROSSOVER FREQUENCY 2300Hz
POWER HANDLING 50 watts (200 watts peak)
ENCLOSURE TYPE Infinite baffle system
DRIVE COMPONENTS Two-way system using one 1" (2.5cm)
aluminum dome compression driver
with a swiveling 100˚symmetrical Tractrix Horn
and one 8" (20.3cm) IMG cone woofer
WIRE G
WEIGHT
DIAMETER
MOUNTING DEPTH 5" (12.7cm)
CUTOUT DIMENSIONS 9.8" (24.9cm)
FINISH White
INSTALLATION KIT R-800-IK
AUGE ACCOMMODATED 12
5 lbs. (2.3kg)
10.8" (27.4cm)
tweeter
The white frame and rustproof, powdercoated aluminum grille can be painted to match
the ceiling. High-quality components and
rugged construction assure long, reliable
service. And the speaker’s 8-ohm impedance is
compatible with all amplifiers.
.klipsch.com
www
1-800-KLIPSCH
All specifications are subject to change without notice. ©2004
